Understanding the Oracle GoldenGate Veridata Directory Structure

C Understanding the Oracle GoldenGate Veridata Directory Structure

Understand the directory structure, which is created after the Oracle GoldenGate Veridata installation.

This chapter includes the following sections:

Note that the sample directories in this section illustrate the recommended directory structure, as described in "Understanding the Recommended Directory Structure" in Planning an Installation of Oracle Fusion Middleware. Your directory structure may differ slightly based on where you choose to create these directories on your system.

C.1 Oracle Home Directory Structure

Figure C-1 shows an example of the basic directory structure of your ORACLE_HOME after installation and domain configuration of Oracle GoldenGate Veridata in a WebLogic Server domain. Note that figure shows only important directories. There are other directories and files created too.

Figure C-1 Directory Structure of Oracle_Home

Description of "Figure C-1 Directory Structure of Oracle_Home"

Table C-1 describes these directories in more details.

Table C-1 Directory Description for Oracle GoldenGate Veridata in a WebLogic Server Domain

Directory or file	Description
`oracle_common`	This directory contains the common binary and library files required for Oracle WebLogic Server.
`wlserver`	This directory contains a small portion of webLogic Server binaries that are used for management functionality. This directory is also referred to as the WebLogic home directory, or `WL_HOME`.
veridata	This directory contains the Oracle GoldenGate Veridata binaries and also the following directories: `agent`: represents the home directory for the Veridata agent `bin`: contains the scripts for the Veridata agent `clilib`: contains the command-line library files for Veridata `common`: contains Veridata domain templates `plugin`: contains Veridata plug-in for Upgrade Assistant `samples`: contains the sample certificates for SSL configuration `t2p`: contains the scripts and instructions for moving from a test to production environment `webapps`: contains the Veridata web application EAR file
`install`	This directory contains install-related files and scripts.
`inventory`	This directory contains information about the components, feature sets, and patches installed in this Oracle home directory.
`logs`	This directory contains the log files for your installation and configuration transactions.
`odi`	This directory contains the ODI binaries.
`OPatch`	This directory contains OPatch and supported files. OPatch is a tool used to patch Oracle Fusion Middleware software.
`oui`	This directory contains files used by the Oracle Universal Installer, including the deinstallation program. If you need to run the Oracle Universal Installer again after the product is installed, you should do so from this directory.
`domain-registry.xml`	This registry file contains the location of all domains currently registered with this WebLogic Server installation. Whenever you add a new domain, it is registered in this file.

C.2 Veridata Domain Home Directory Structure

Figure C-2 shows an example of the basic directory structure of your VERIDATA_DOMAIN_HOME after installation and domain configuration of Oracle GoldenGate Veridata in a WebLogic Server domain.

For more information about the domain home and the contents, see Domain Directory Contents in Understanding Domain Configuration for Oracle WebLogic Server.

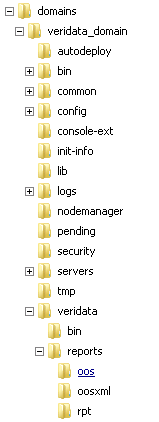

Figure C-2 Veridata Domain Home directory structure

Description of "Figure C-2 Veridata Domain Home directory structure"

Table C-2 describes the important directories in the Oracle GoldenGate Veridata domain.

Table C-2 Directory Description for Oracle GoldenGate Veridata Domain

Directory or file	Description
`bin`	This directory contains scripts that are used in the process of starting and stopping the Administration Server and the Managed Servers in the domain.
config	This directory contains the current configuration and deployment state of the domain. The `veridata.cfg` configuration file is located in a sub directory at `config/veridata`.
`logs`	This directory contains the domain-level log files.
`servers`	This directory contains one subdirectory for each Oracle WebLogic Server instance in the domain.
`veridata`	This directory contains the following subdirectories: bin: contains the Veridata command-line utilities. reports: default location for the out-of-sync files and reports.
