8.17 Realtime Data Ingestion into Oracle AI Data Platform with Oracle GoldenGate for DAA

Overview

This Quickstart covers a step-by-step process showing how to ingest parquet files into Oracle AI Data Platform (AIDP) in real-time with Oracle GoldenGate for Distributed Applications and Analytics (GG for DAA).

Oracle AI Data Platform is a managed service that unifies data lake, catalog, compute, and workflow orchestration into a single service. It allows the users to securely discover, prepare, and govern structured and unstructured data, while enabling large-scale analytics and AI/ML workloads with Apache Spark for building data-driven applications and accelerating business insights.

GG for DAA AIDP handler uses the stage and merge data flow. In stage and merge, the change data is staged in an OCI Object Storage bucket in microbatches and eventually merged into to the target delta tables managed by AIDP. All replication process is automatically handled by Oracle AI Data Platform.

Parent topic: Quickstarts

8.17.1 Prerequisites

To successfully complete this Quickstart, you must have the following:
  • Oracle Cloud Infrastructure account set up for Oracle AI Data Platform.
  • Simba JDBC driver for Apache Spark. You can download the Simba JDBC driver from the cluster detail page of the Oracle AI Data Platform console.

In this Quickstart, a sample trail file (named tr) which is shipped with GG for DAA is used. If you want to continue with sample trail file, it is located at GG_HOME/opt/AdapterExamples/trail/ in your GG for DAA instance.

Parent topic: Realtime Data Ingestion into Oracle AI Data Platform with Oracle GoldenGate for DAA

8.17.2 Install Required Dependency Files

GG for DAA uses client libraries in the replication process and these libraries need to be downloaded before setting up the replication process. You can use dependency downloader to download the client libraries. Dependency Downloader is a set of shell scripts that downloads dependency jar files from Maven and other repositories.

GG for DAA uses Simba JDBC driver that you can download from AIDP console. You can download the Simba JDBC driver from Oracle AI Data Platform Workspace / Compute/ Connection details.

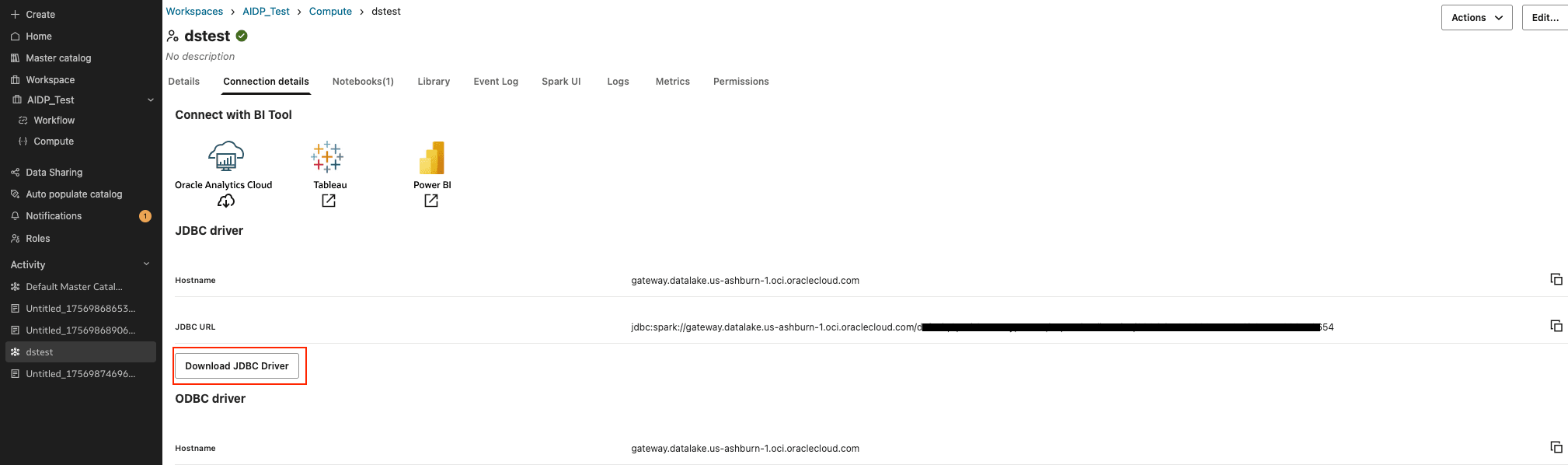

Figure 8-124 JDBC Driver


Download JDBC Driver

The required dependency files for OCI Object Storage can be downloaded using Dependency Downloader utility available in GG for DAA.The Dependency Downloader is a set of shell scripts that downloads dependency jar files from Maven and other repositories.
  1. In your GG for DAA VM, go to Dependency Downloader utility located at GG_HOME/opt/DependencyDownloader/.
  2. Run the oracle_oci.sh with the required version.

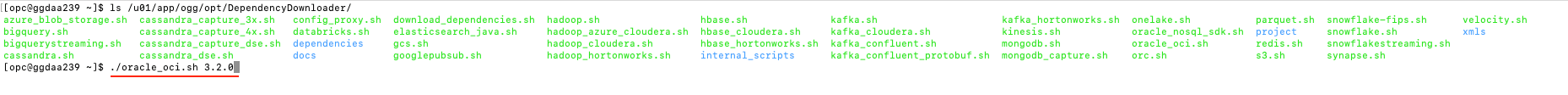

    Figure 8-125 Run oracle_oci.sh with the required version


    oracle_oci.sh required version

  3. A new directory is created in GG_HOME/opt/DependencyDownloader/dependencies. For example, /u01/app/ogg/opt/DependencyDownloader/dependencies/oracle_oci_3.2.0/* Take a note of this directory.

Parent topic: Realtime Data Ingestion into Oracle AI Data Platform with Oracle GoldenGate for DAA

8.17.3 Configure Credentials for Oracle Cloud Infrastructure

You need to create a configuration file to authenticate into OCI. The ideal configuration file include user, fingerprint, key_file, tenancy, and region with their respective values. The default configuration file name and location is ~/.oci/config. For more information, see required keys and ocids document.

Sample Configuration File
[DEFAULT]
user=ocid1.user.oc1..mockValue
fingerprint=mockFingerPrintValue
tenancy=ocid1.compartment.oc1..mockValue
region=us-phoenix-1
key_file=<path to your private keyfile>

Parent topic: Realtime Data Ingestion into Oracle AI Data Platform with Oracle GoldenGate for DAA

8.17.4 Create a Replicat in Oracle GoldenGate for Distributed Applications and Analytics

To create a replicat in Oracle GoldenGate for Distributed Applications and Analytics (GG for DAA):
  1. Go to Administration Service and click the + sign to add a replicat.

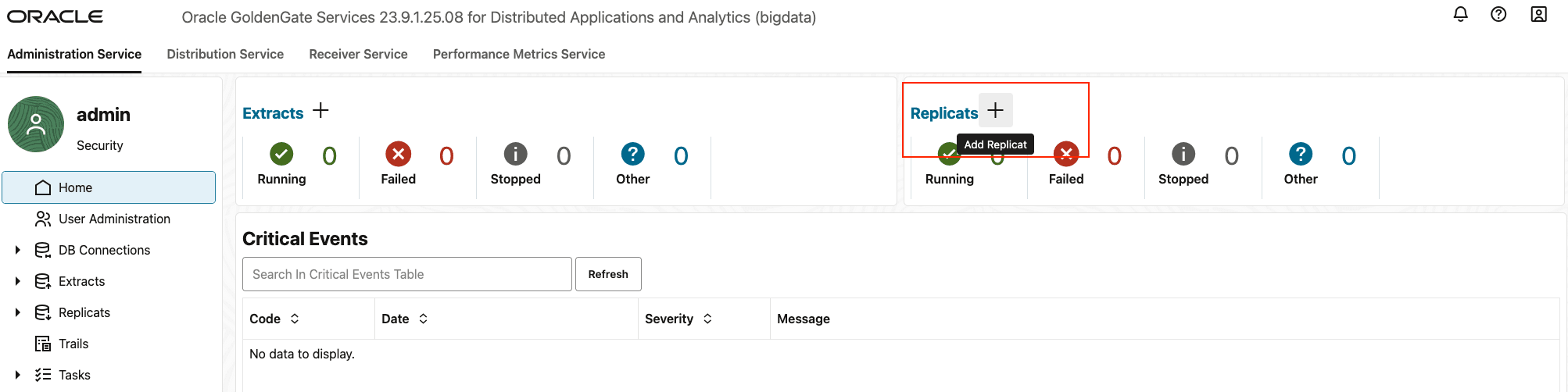

    Figure 8-126 Click + in the Administration Service tab


    Click + in the Administration Service tab

  2. Select the Replicat Type and click Next.

    There are two different Replicat types available: Classic Replicat and Coordinated Replicat. Classic Replicat is a single threaded process whereas Coordinated Replicat is a multithreaded one that applies transactions in parallel. Coordinated Replicat results in multiple files being created as there is a multithreaded process running.

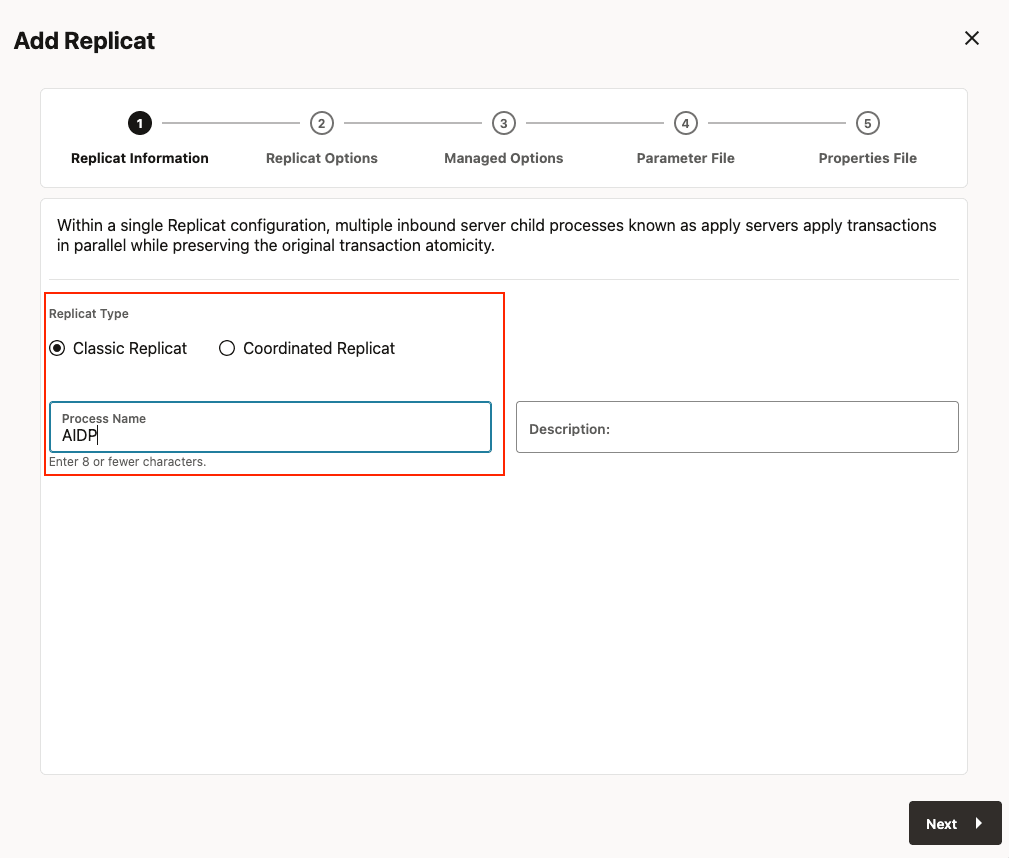

    Figure 8-127 Select a Replicat Option

    Replicat Options
  3. Enter the Replicat Options and click Next:
    1. Replicat Trail: Name of the required trail file. For sample trail, provide tr.
    2. Subdirectory: Enter GG_HOME/opt/AdapterExamples/trail/ if using the sample trail.
    3. Target: Oracle AI Data Platform

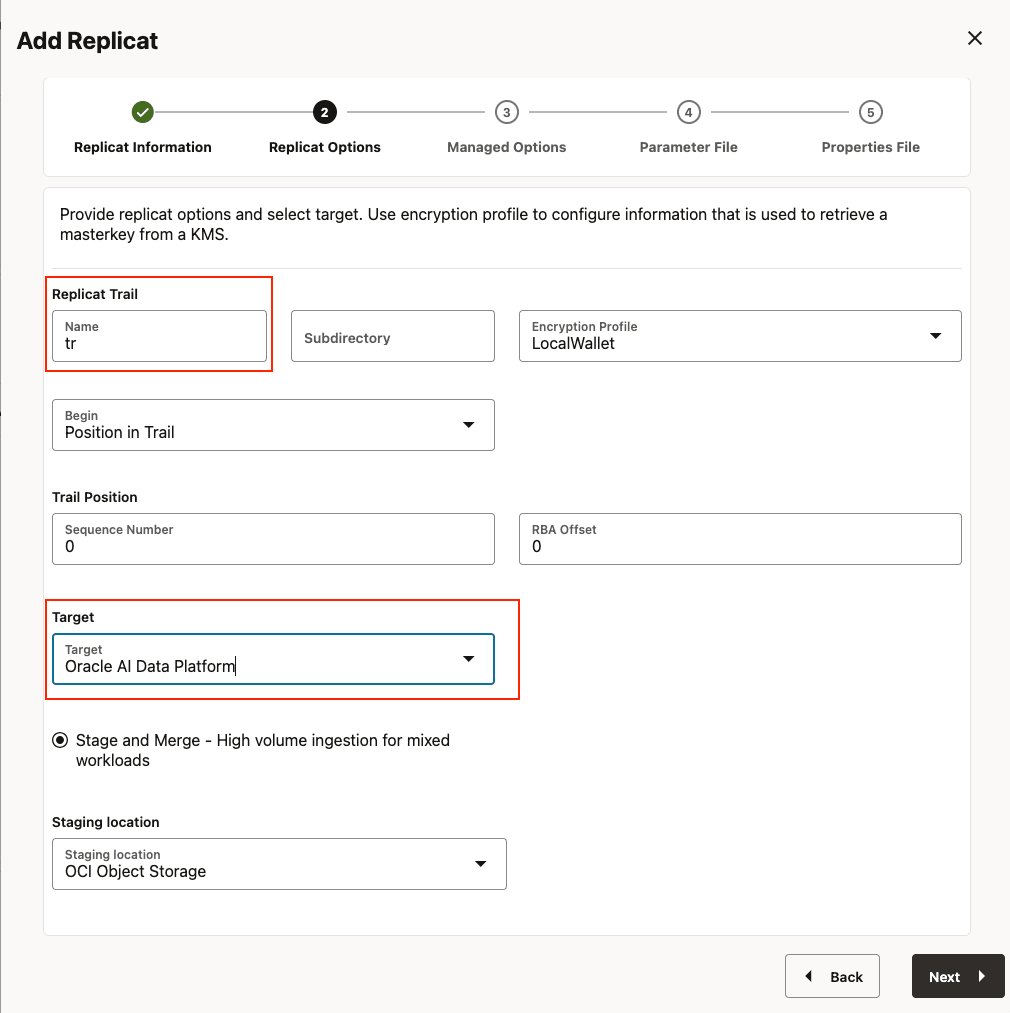

      Figure 8-128 Provide Replicat Options and Select Target

      Provide Replicat Options and Select Target
    4. Leave Managed Options as is and click Next.

      Figure 8-129 Managed Options

      Managed Options
    5. Enter Parameter File details and click Next.
      In the Parameter File, you can either specify source to target mapping or leave it as-is with a wildcard selection. If Coordinated Replicat is selected as the Replicat Type, an additional parameter needs to be provided:
      TARGETDB LIBFILE libggjava.so SET property=<ggbd-deployment_home>/etc/conf/ogg/your_replicat_name.properties

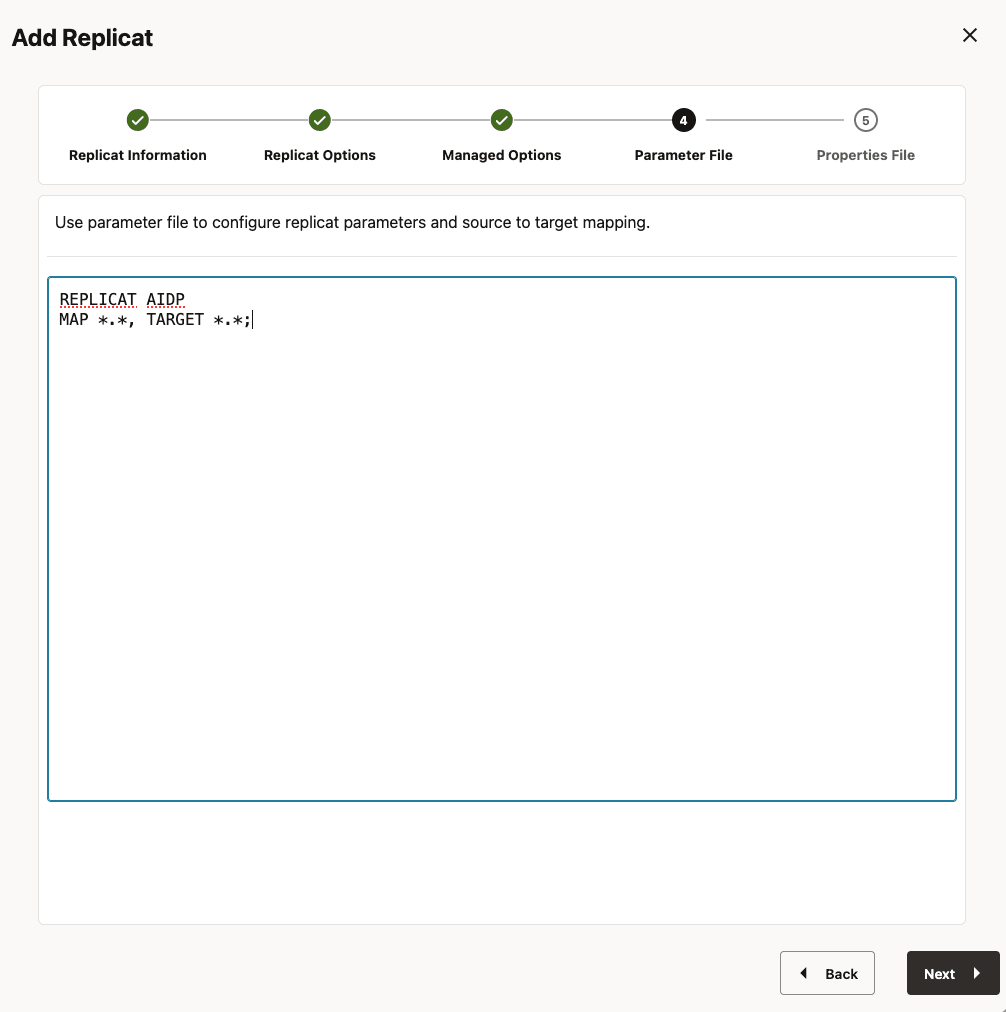

      Figure 8-130 Parameter File

      Parameter File
    6. In the Properties File, update the properties marked as TODO and click Create and Run.

      Note:

      Before clicking Create and Run you need to copy and paste the provided property list into Properties File, update as required and click Create and Run.
      # Properties file for Replicat
AIDP# Configuration to load
GoldenGate trail operation records into AI Data Platform using OCI object store staging
location.# Note: Recommended to only edit
the configuration marked as TODO

gg.target=aidp
gg.stage=oci
# The OCI Event handler
#TODO: Edit the OCI Config file path
gg.eventhandler.oci.configFilePath=/path_to/.oci/config
#TODO: Edit the OCI profile
gg.eventhandler.oci.profile=<your_oci_profile_name>
#TODO: Edit the OCI region
gg.eventhandler.oci.region=<your_oci_region>
#TODO: Edit the OCI compartment OCID
gg.eventhandler.oci.compartmentID=<your_compartment_ocid, eg; ocid1.compartment.oc1..aaaaaaaaftrzllvla63f5von…>
#TODO: Edit the OCI bucket name
gg.eventhandler.oci.bucketMappingTemplate=<your_bucket_name>

# Oracle AI Data Platform Event Handler.
#TODO: Edit JDBC ConnectionUrl
gg.eventhandler.aidp.connectionURL=<your_aidp_jdbc, eg; jdbc:spark://gateway.datalake.us-ashburn-1.oci.oraclecloud.com/default;SparkServerType=IDL;httpPath=cliservice/393dcb48-302…;OCIProfile=<your_oci_profile_name>;
#TODO: Edit the classpath to include OCI Event handler dependencies and Simba JDBC driver.
gg.classpath=/home/oracle/dependencies/*:/home/oracle/install/gg/opt/DependencyDownloader/dependencies/oracle_oci_3.0.0/*

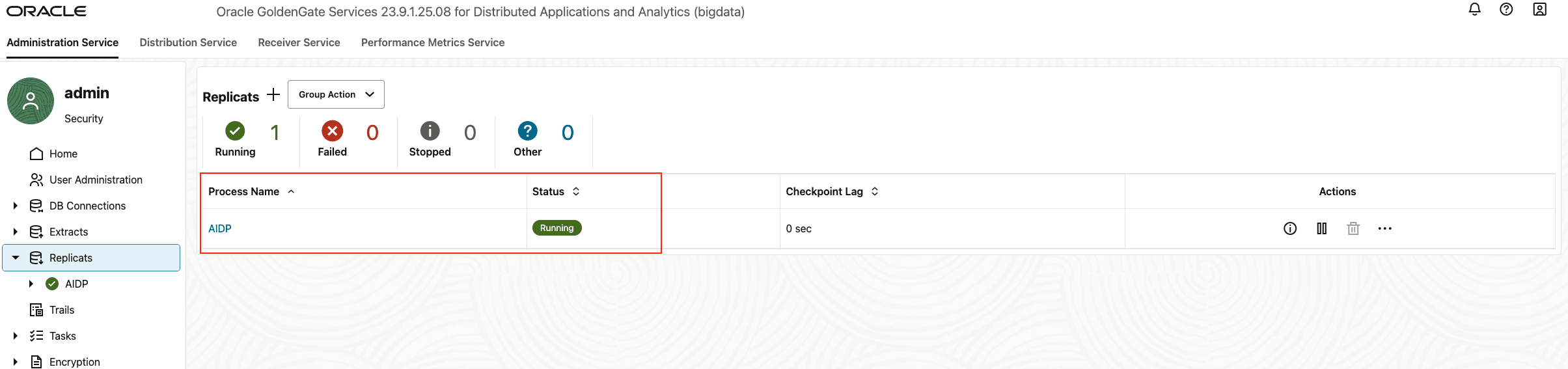

  4. If replicat starts successfully, then it is in running state. Go to action/details/statistics to see the replication statistics.

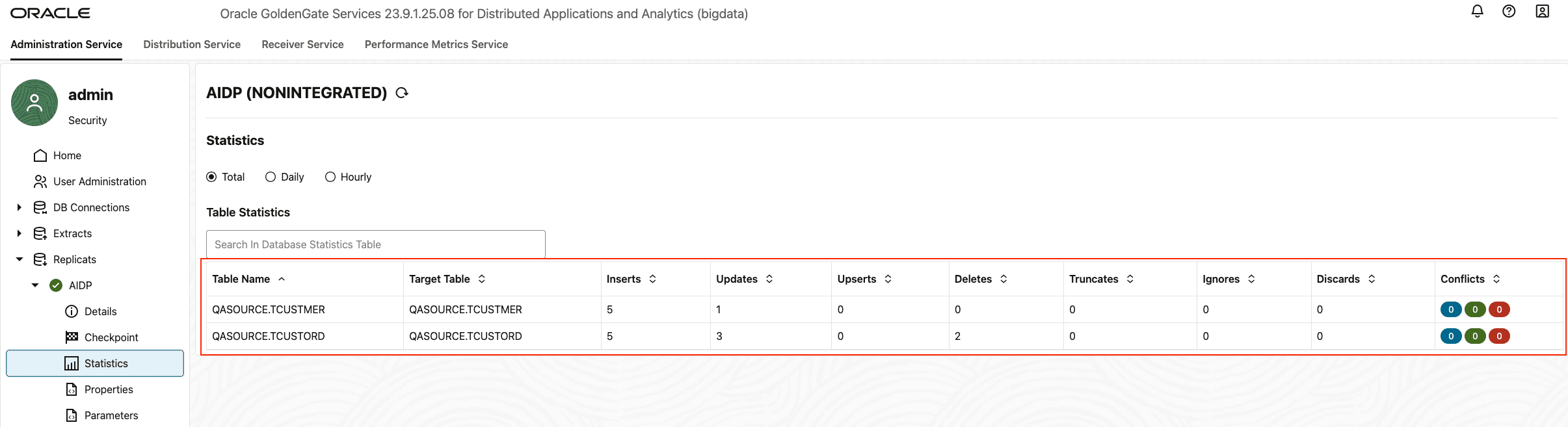

    Figure 8-131 Replication Statistics

    Replication Statistics

    Figure 8-132 Replication Statistics


    Replication Statistics

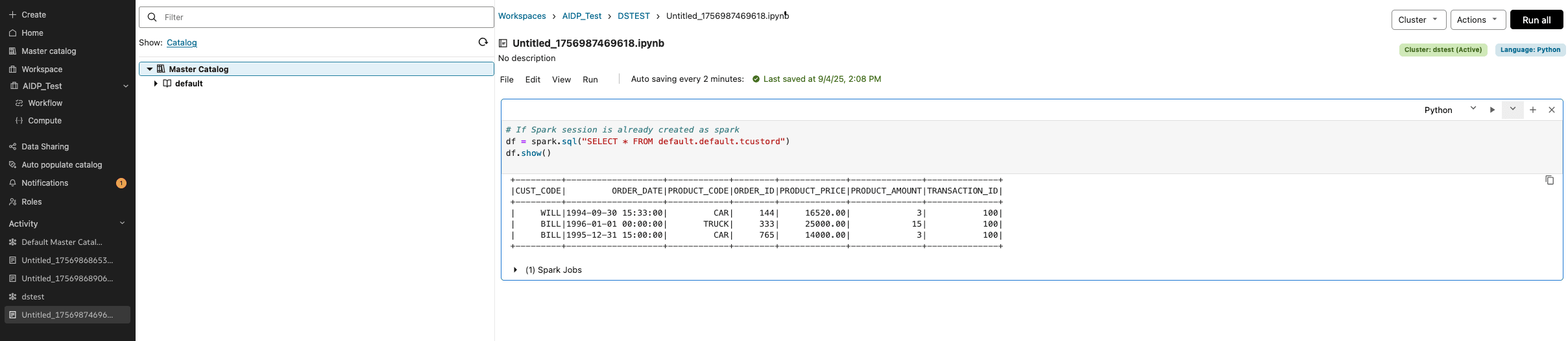

  5. Go to AI Data Platform console and check the tables. It may take a short moment for tables to be created and loaded.

    Figure 8-133 AI Data Platform

    AI Data Platform
