This topic provides systematic instructions to configure WebLogic LDAP Setup.

1. Navigate to left panel and click domain name.
2. Under Settings for ldap_domain, click Security and Embedded LDAP.

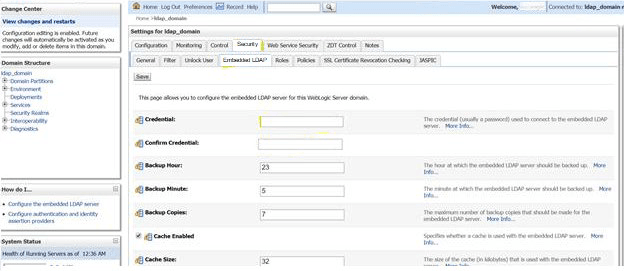

   Figure 8-1 Settings for ldap_domain





   Description of "Figure 8-1 Settings for ldap_domain"



3. Set the Credential for WebLogic Embedded LDAP store.

   Note:

   This is needed in the Security Config table.

This topic provides systematic instructions to create users.

1. On Domain Structure, click Security Realms.
   The Summary of Security Realms screen displays.

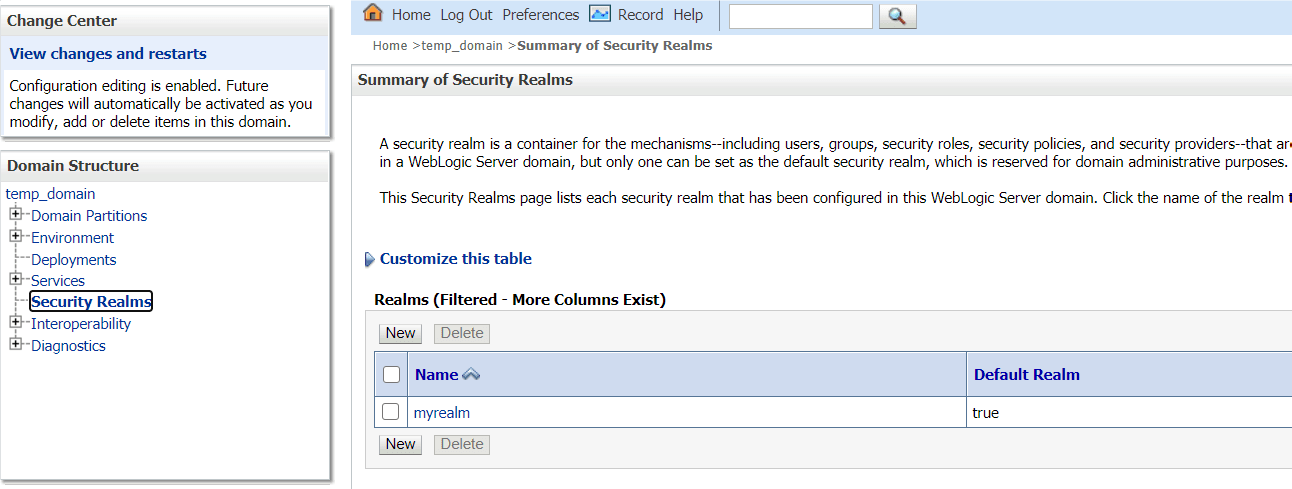

   Figure 8-2 Summary of Security Realms





   Description of "Figure 8-2 Summary of Security Realms"



2. On the Realms (Filtered - More Columns Exist) table, click myrealm.
   The Setting of myrealm screen displays.

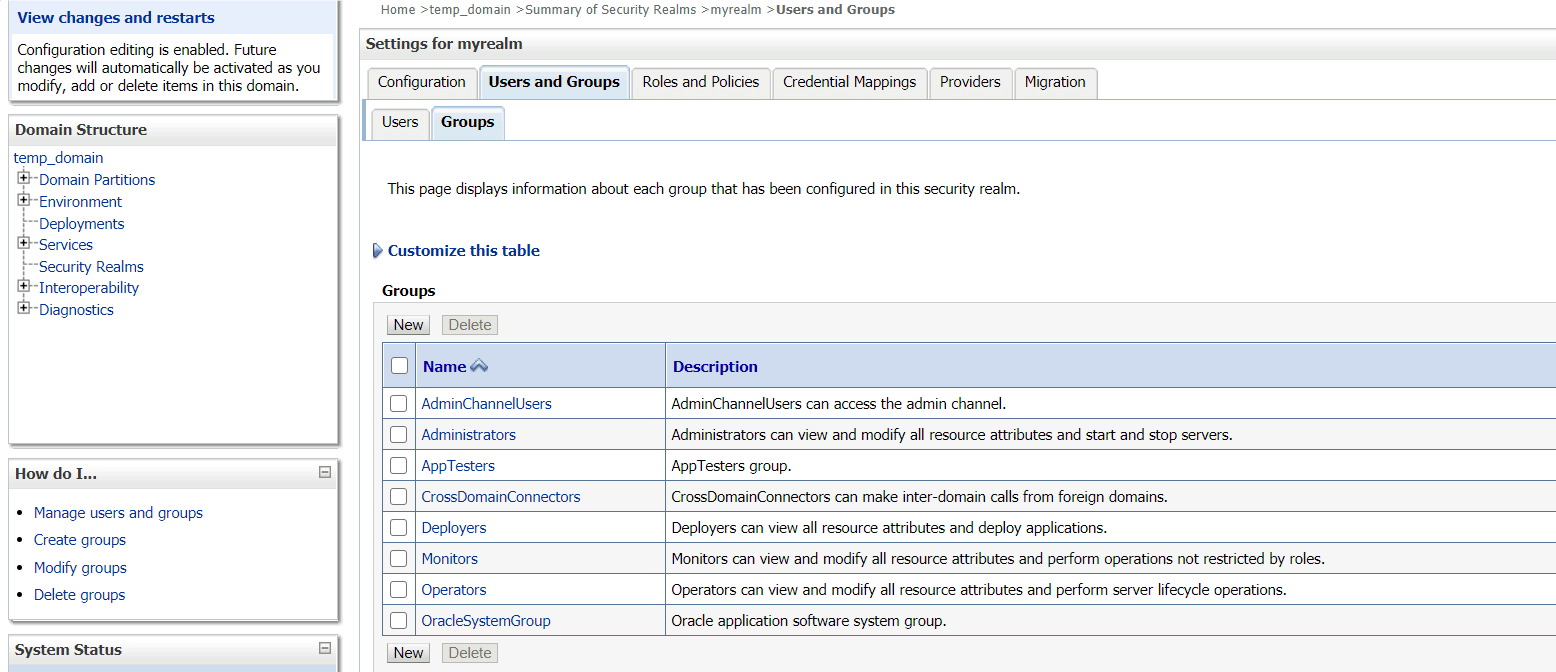

   Figure 8-3 Settings for myrealm





   Description of "Figure 8-3 Settings for myrealm"



3. Under Settings for myrealm, click Users and Groups
4. Click Groups. On the Groups table, Click New.
   The Create a New User screen displays.

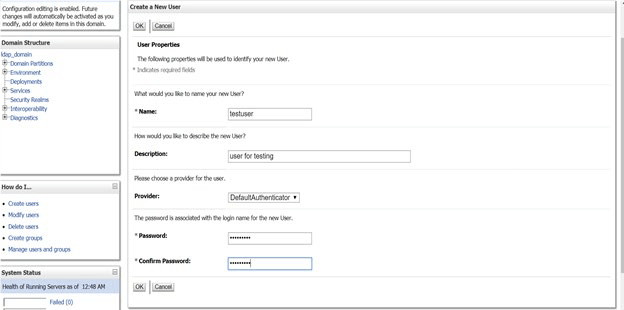

   Figure 8-4 Create a New User





   Description of "Figure 8-4 Create a New User"



5. Specify all the required details and click OK.
   The new group is created.
6. Go to Settings for myrealm, click Users.

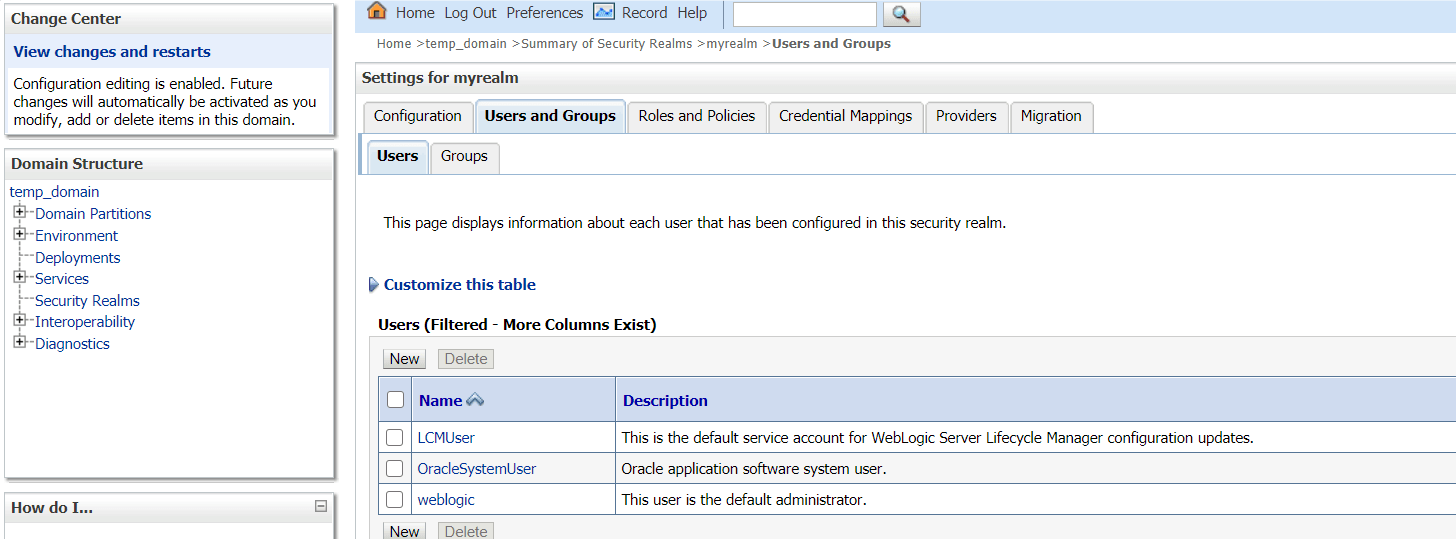

   Figure 8-5 Settings for myrealm





   Description of "Figure 8-5 Settings for myrealm"



7. On the Users table, Click New.
   The Create a New User screen displays.

   Figure 8-6 Create a New User





   Description of "Figure 8-6 Create a New User"



8. Specify all the required details and click OK.
   The new user is created.

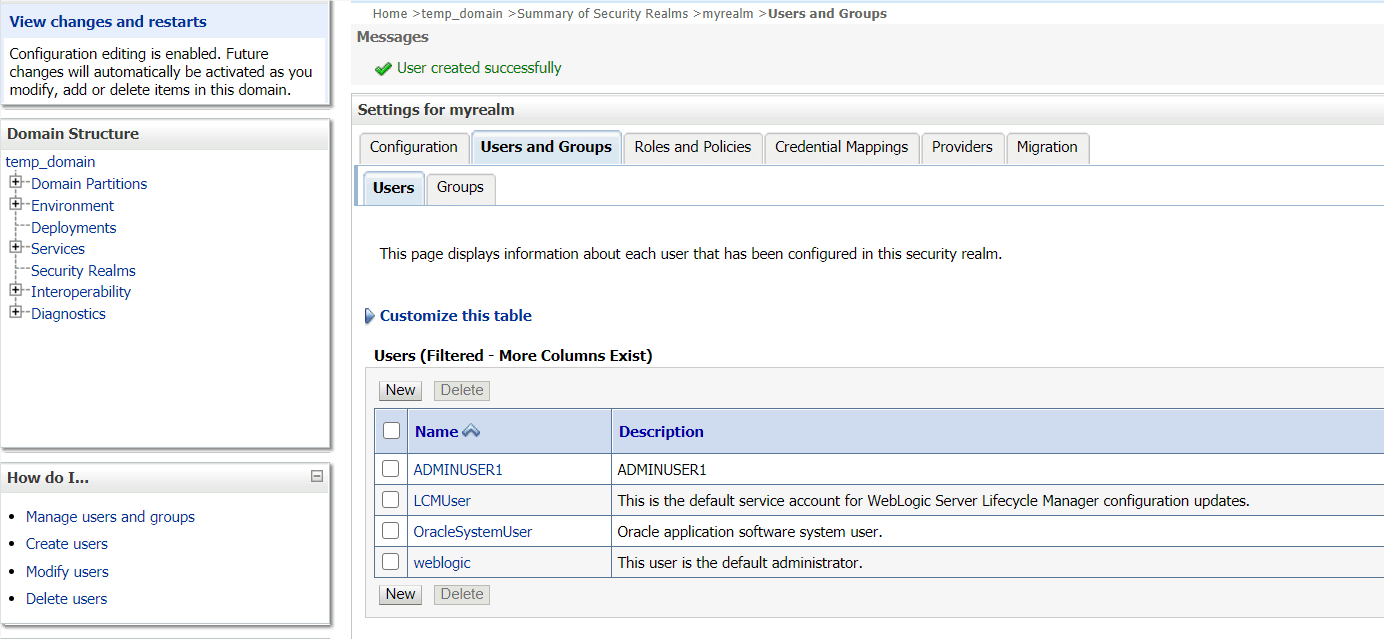

   Figure 8-7 User Creation- Success Message





   Description of "Figure 8-7 User Creation- Success Message"



9. On the Users (Filtered - More Columns Exist) table, click on the newly created user to assign to some group.
   The Setting for ADMINUSER1 screen displays.
10. On Setting for ADMINUSER1 (or whatever your user name is) window, click Groups and select the required groups to assign to the user and click single right button as shown below.

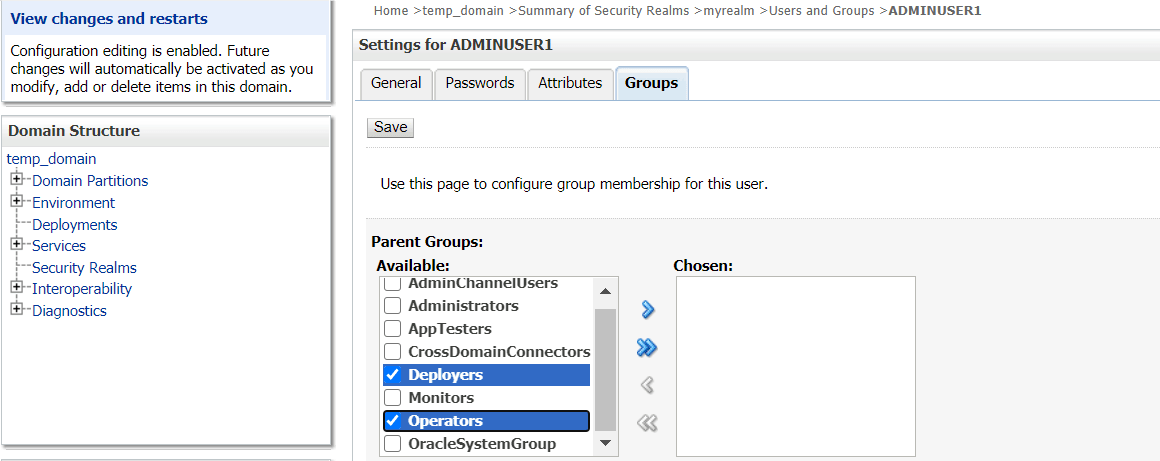

    Figure 8-8 Setting for ADMINUSER1





    Description of "Figure 8-8 Setting for ADMINUSER1"



11. Click Save.
    The selected groups displays on Chosen.

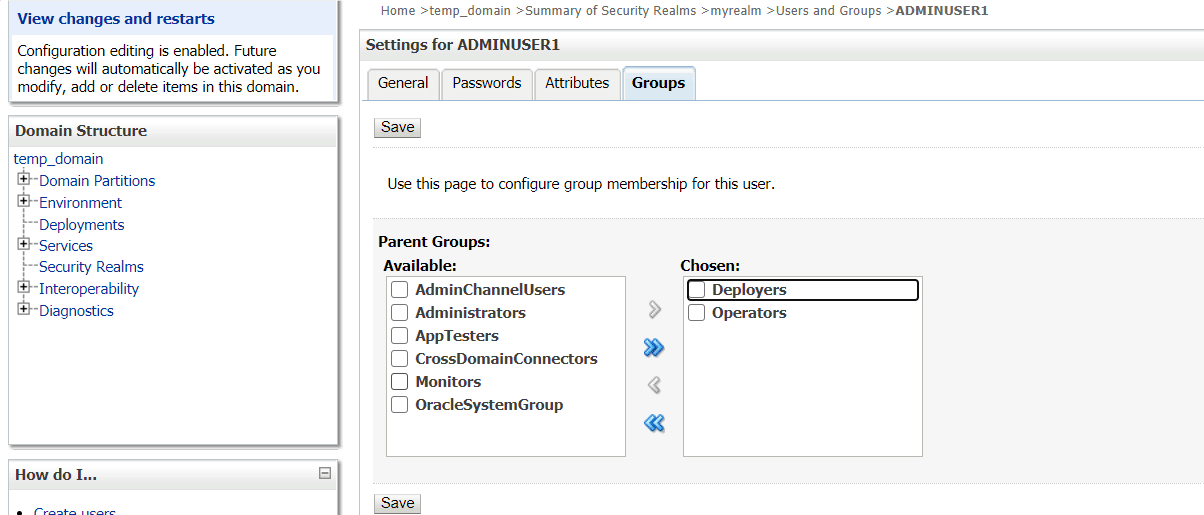

    Figure 8-9 Setting for ADMINUSER1





    Description of "Figure 8-9 Setting for ADMINUSER1"




This topic describes about Oracle Banking Microservices Architecture Security Config Table Entries.

Connection details for the embedded LDAP of WebLogic (assuming the admin server is running on 10.99.99.10:7001) are given below:

Connection Details:

URL: ldap:// 10.99.99.10:7001

Server Base: dc={DOMAIN_NAME} ( in our case it would be dc=ldap_domain)

User Search Base: ou=people,ou=myrealm

Server User: cn=admin

Server Credentials: As setup in step Point 3 under 1.8.1

This topic provides the information about the Workaround for plato-api-gateway Service Deployment Issue with OJDBC11 Background.

The plato-api-gateway service deployment may fail when using the default ojdbc11 JAR provided with WebLogic 14.1.2. As a temporary workaround, you can manually replace the JDBC driver with version 21.11.0.0.0.
