4 Deploy Application

The following section details the steps to deploy Application.

4.1 Deploying Application

  1. Login to the Oracle Enterprise Manager 12c console . (i.e. http://hostname:port/em)

    Figure 4-1 Deploying Application 1


    Description of Figure 4-1 follows
    Description of "Figure 4-1 Deploying Application 1"

  2. Click on Lock and Edit as shown below.

    Figure 4-2 Deploying Application 2


    Description of Figure 4-2 follows
    Description of "Figure 4-2 Deploying Application 2"

  3. The following window is displayed.

    Figure 4-3 Deploying Application 3


    Description of Figure 4-3 follows
    Description of "Figure 4-3 Deploying Application 3"

  4. Click on Deployments in the left panel. To deploy go to Deployments option in the menu as shown below.

    Figure 4-4 Deploying Application 4


    Description of Figure 4-4 follows
    Description of "Figure 4-4 Deploying Application 4"

  5. Click Choose File button and select OFSLL application archive file i.e. ofsll_1411.ear. Choose the Deployment Plan (if any).

    Figure 4-5 Deploying Application 5


    Description of Figure 4-5 follows
    Description of "Figure 4-5 Deploying Application 5"

    Note:

    A deployment plan can be used to easily change an application's WebLogic Server configuration for a specific environment without modifying existing deployment descriptors.

    Sample plan.xml

    Figure 4-6 Deploying Application 6


    Description of Figure 4-6 follows
    Description of "Figure 4-6 Deploying Application 6"

  6. Click Next.
    The following window is displayed.

    Figure 4-7 Deploying Application 7


    Description of Figure 4-7 follows
    Description of "Figure 4-7 Deploying Application 7"

  7. Check target server as per the requirement OFSLL_ManagedServer and click Next.

    Figure 4-8 Deploying Application 8


    Description of Figure 4-8 follows
    Description of "Figure 4-8 Deploying Application 8"

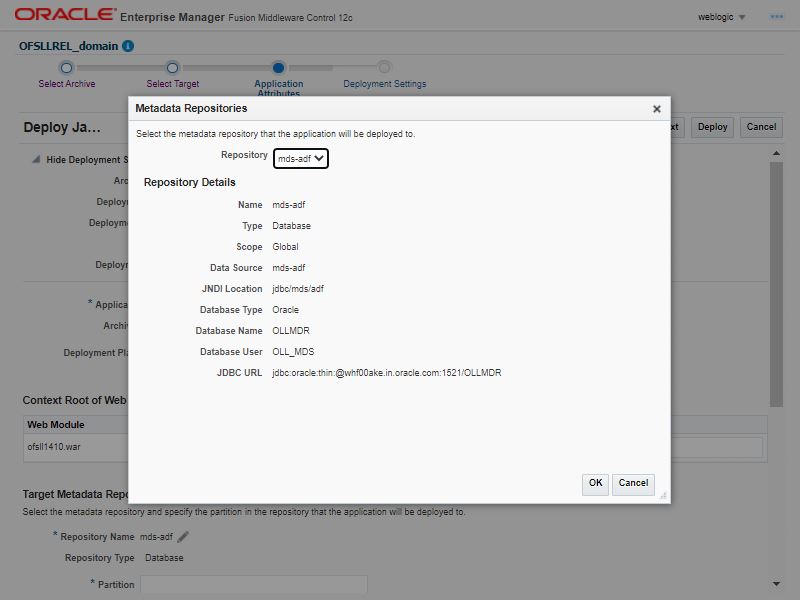

  8. Click Options button to select Repository Name.
    The following window is displayed.

    Figure 4-9 Deploying Application 9


    Description of Figure 4-9 follows
    Description of "Figure 4-9 Deploying Application 9"

  9. Select Repository as per requirement and click OK.

    Figure 4-10 Deploying Application 10


    Description of Figure 4-10 follows
    Description of "Figure 4-10 Deploying Application 10"

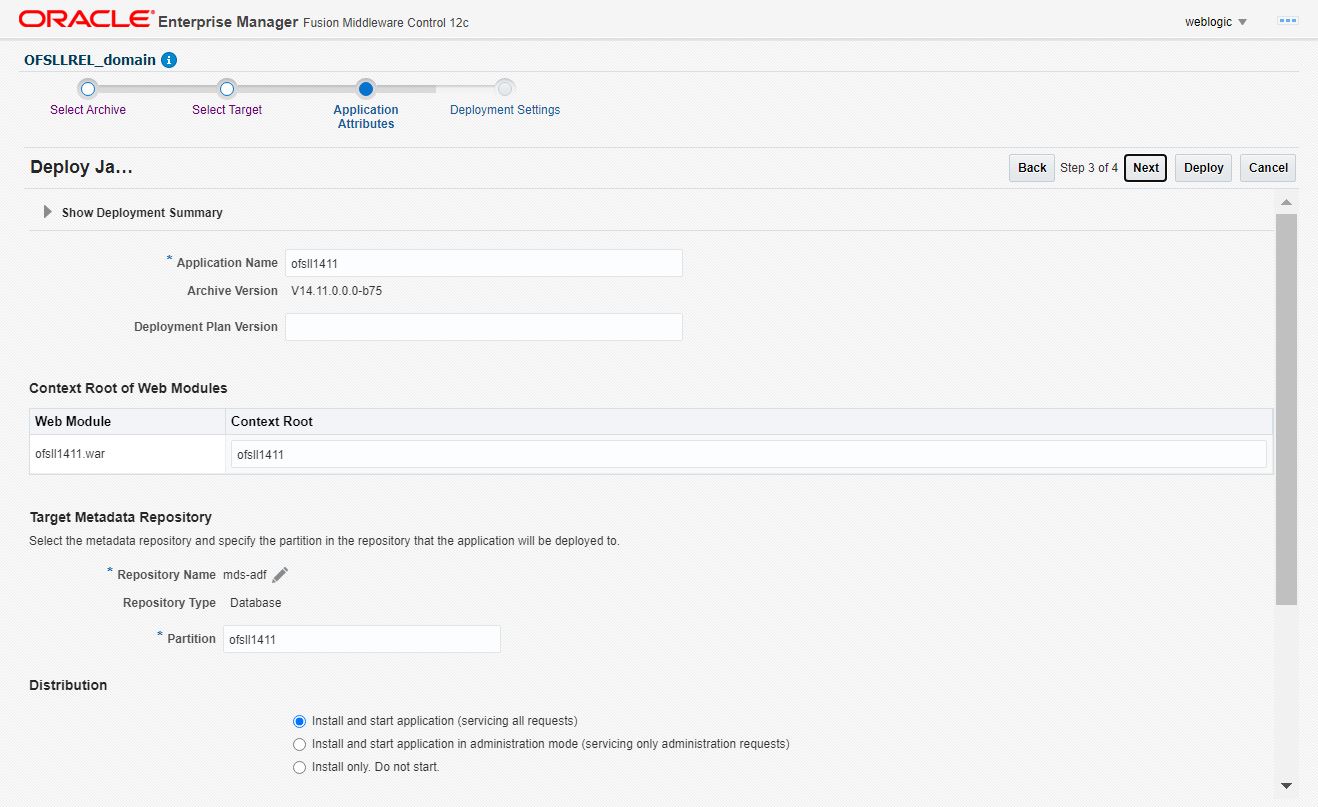

  10. Enter Partition name as per the requirement and click Next.

    Figure 4-11 Deploying Application 11


    Description of Figure 4-11 follows
    Description of "Figure 4-11 Deploying Application 11"

  11. Click Deploy.
    The following window is displayed.

    Figure 4-12 Deploying Application 12


    Description of Figure 4-12 follows
    Description of "Figure 4-12 Deploying Application 12"

  12. Click Close once the message Deploy operation completed is displayed.

Parent topic: Deploy Application
