8.2.1 Create JMS Server

Follow the below steps to create JMS server.
  1. Login to WebLogic Server 12c console (http://hostname:port/console).
    The following screen is displayed.

    Figure 8-11 Create JMS Server 1


    Description of Figure 8-11 follows
    Description of "Figure 8-11 Create JMS Server 1"

  2. Specify the Weblogic administrator user name and password and click Log In.
    The Oracle Weblogic home page is displayed.

    Figure 8-12 Create JMS Server 2


    Description of Figure 8-12 follows
    Description of "Figure 8-12 Create JMS Server 2"

  3. Click Domain Name > Services > Messaging > JMS Server.
  4. In the main window, click Lock & Edit.
    The following window is displayed.

    Figure 8-13 Create JMS Server 3


    Description of Figure 8-13 follows
    Description of "Figure 8-13 Create JMS Server 3"

  5. Click New.
    The following window is displayed.

    Figure 8-14 Create JMS Server 4


    Description of Figure 8-14 follows
    Description of "Figure 8-14 Create JMS Server 4"

  6. Specify the JMS Server Name as OfsllJMSServer. Click Next.
    The following window is displayed.

    Figure 8-15 Create JMS Server 4


    Description of Figure 8-15 follows
    Description of "Figure 8-15 Create JMS Server 4"

  7. Select None as the Persistent Store type. Click Next.
    The following window is displayed.

    Figure 8-16 Create JMS Server 5


    Description of Figure 8-16 follows
    Description of "Figure 8-16 Create JMS Server 5"

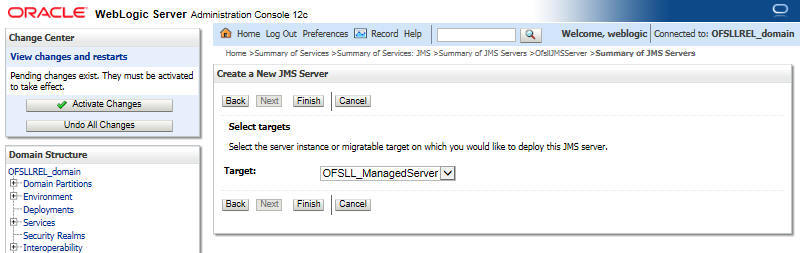

  8. Select the target managed server and click Finish.
  9. Click Activate Changes under Change Center. Once done, the following window is displayed:

    Figure 8-17 Create JMS Server 6


    Description of Figure 8-17 follows
    Description of "Figure 8-17 Create JMS Server 6"

Parent topic: AQ-JMS Queue Configuration
