8.2.2 Create JMS Module

Follow the below steps to create JMS module.
  1. Login to WebLogic Server 12c console (http://hostname:port/console) by specifying the Weblogic administrator user name and password.
  2. Click Domain Name > Services > Messaging > JMS Modules.
    The following window is displayed.

    Figure 8-18 Create JMS Module 1


    Description of Figure 8-18 follows
    Description of "Figure 8-18 Create JMS Module 1"

  3. Click New.
    The following screen is displayed.

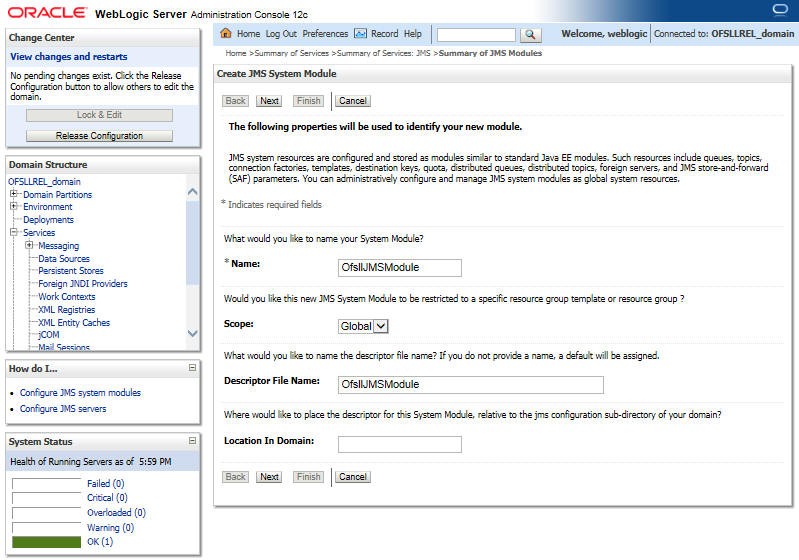

    Figure 8-19 Create JMS Module 2


    Description of Figure 8-19 follows
    Description of "Figure 8-19 Create JMS Module 2"

  4. Specify the following details:
    • Enter the System Module Name as OfsllJMSModule
    • Enter the Description File Name as OfsllJMSModule
  5. Click Next.
    The following screen is displayed.

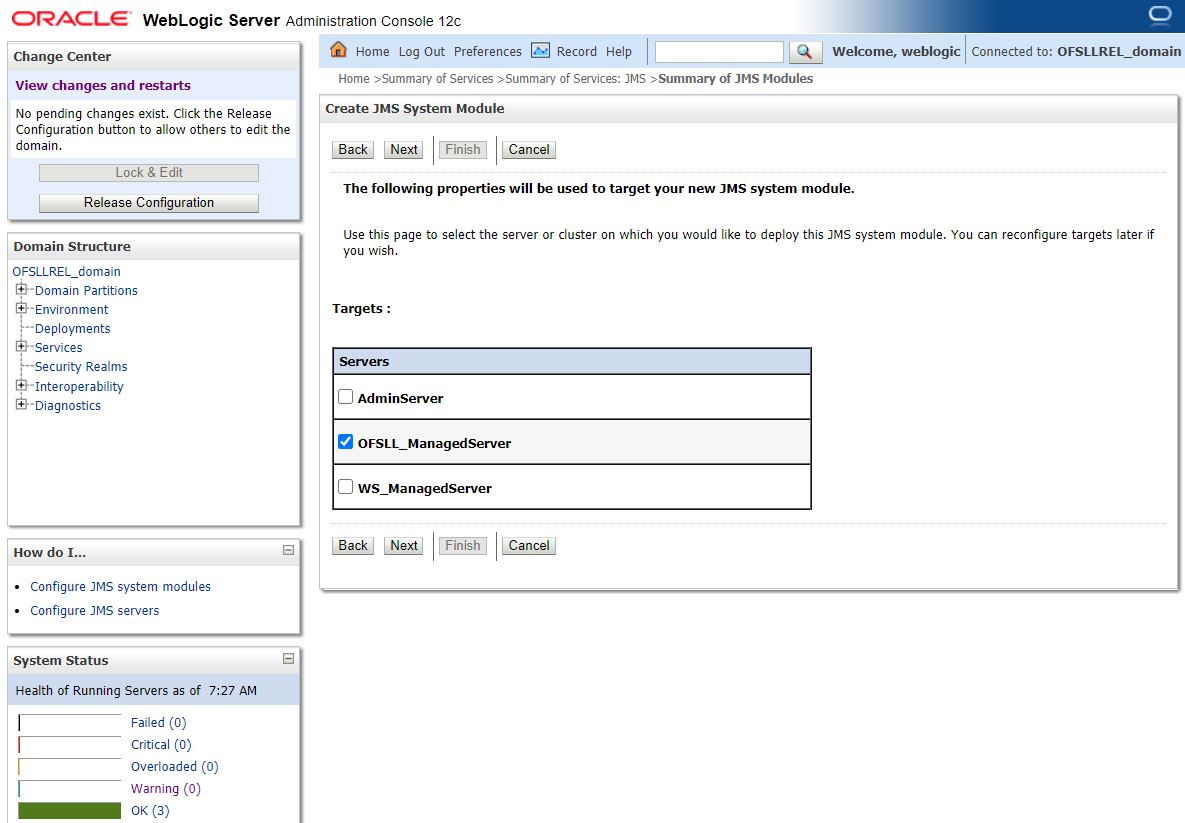

    Figure 8-20 Create JMS Module 3


    Description of Figure 8-20 follows
    Description of "Figure 8-20 Create JMS Module 3"

  6. Select the target server and click Next.
    The following window is displayed.

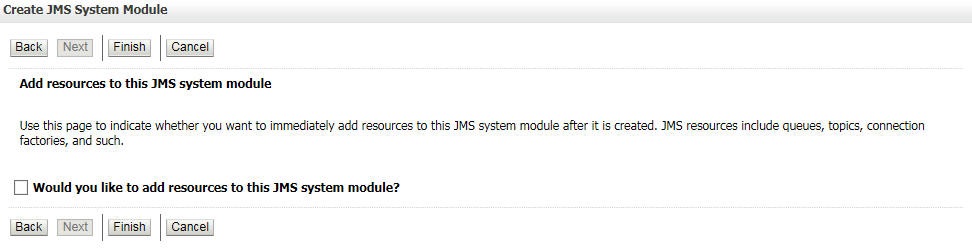

    Figure 8-21 Create JMS Module 4


    Description of Figure 8-21 follows
    Description of "Figure 8-21 Create JMS Module 4"

  7. Click Finish to save and activate the changes. Once done, the following window is displayed.

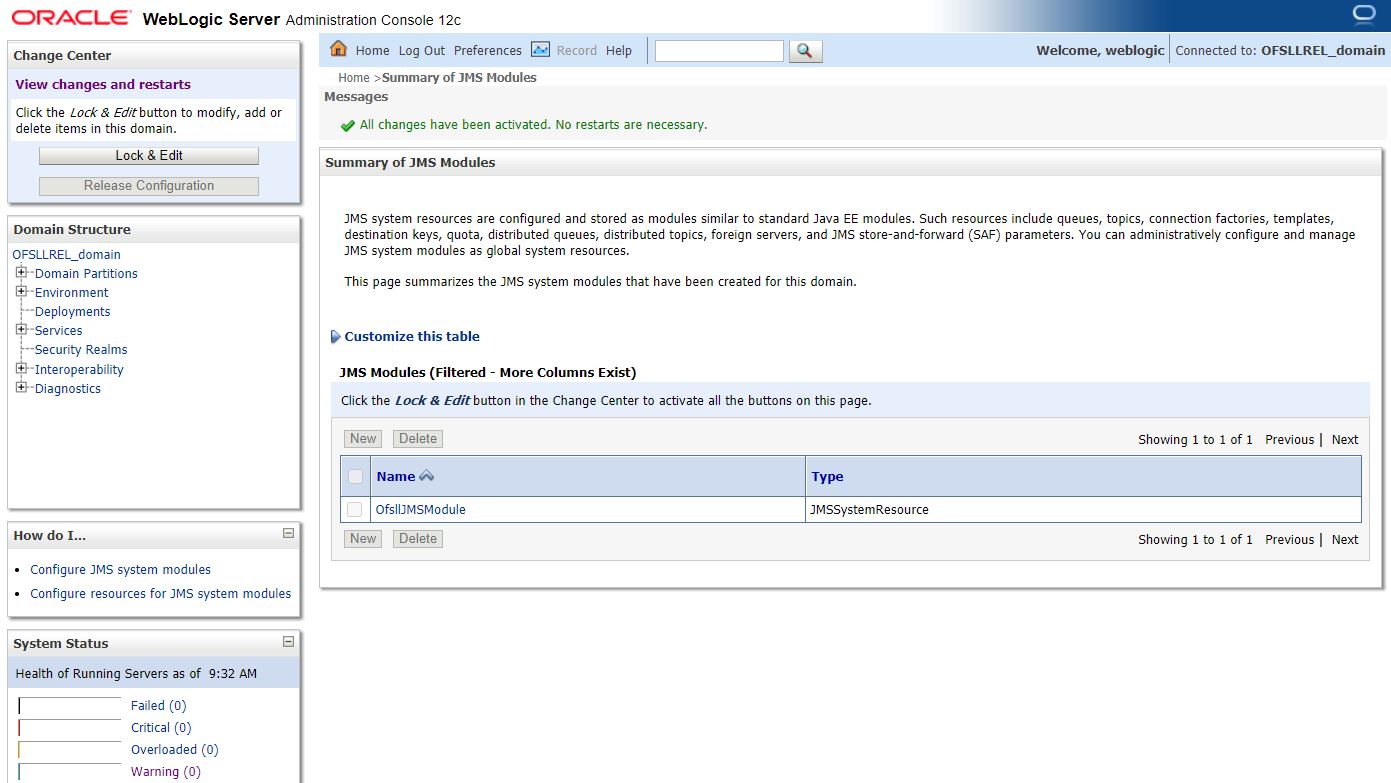

    Figure 8-22 Create JMS Module 5


    Description of Figure 8-22 follows
    Description of "Figure 8-22 Create JMS Module 5"
