This topic provides the systematic instructions to initiate the registration stage of Import LC Issuance request.

Specify User ID and Password, and login to Home screen.

Figure 2-2 LogIn Screen

Description of "Figure 2-2 LogIn Screen"

1. On Home screen, click Trade Finance - Islamic. Under Trade Finance - Islamic, click Import - Documentary Credit.
2. Under Import - Documentary Credit, click Import LC Issuance Islamic.
   The Import LC Issuance Islamic screen is displayed.

   Figure 2-3 Import LC issuance Islamic





   Description of "Figure 2-3 Import LC issuance Islamic"




   The Import LC Issuance - Registration screen displays.

   The Import LC Issuance - Registration stage has two sections Application Details and LC Details. Let’s look at the details of Registration screens below:

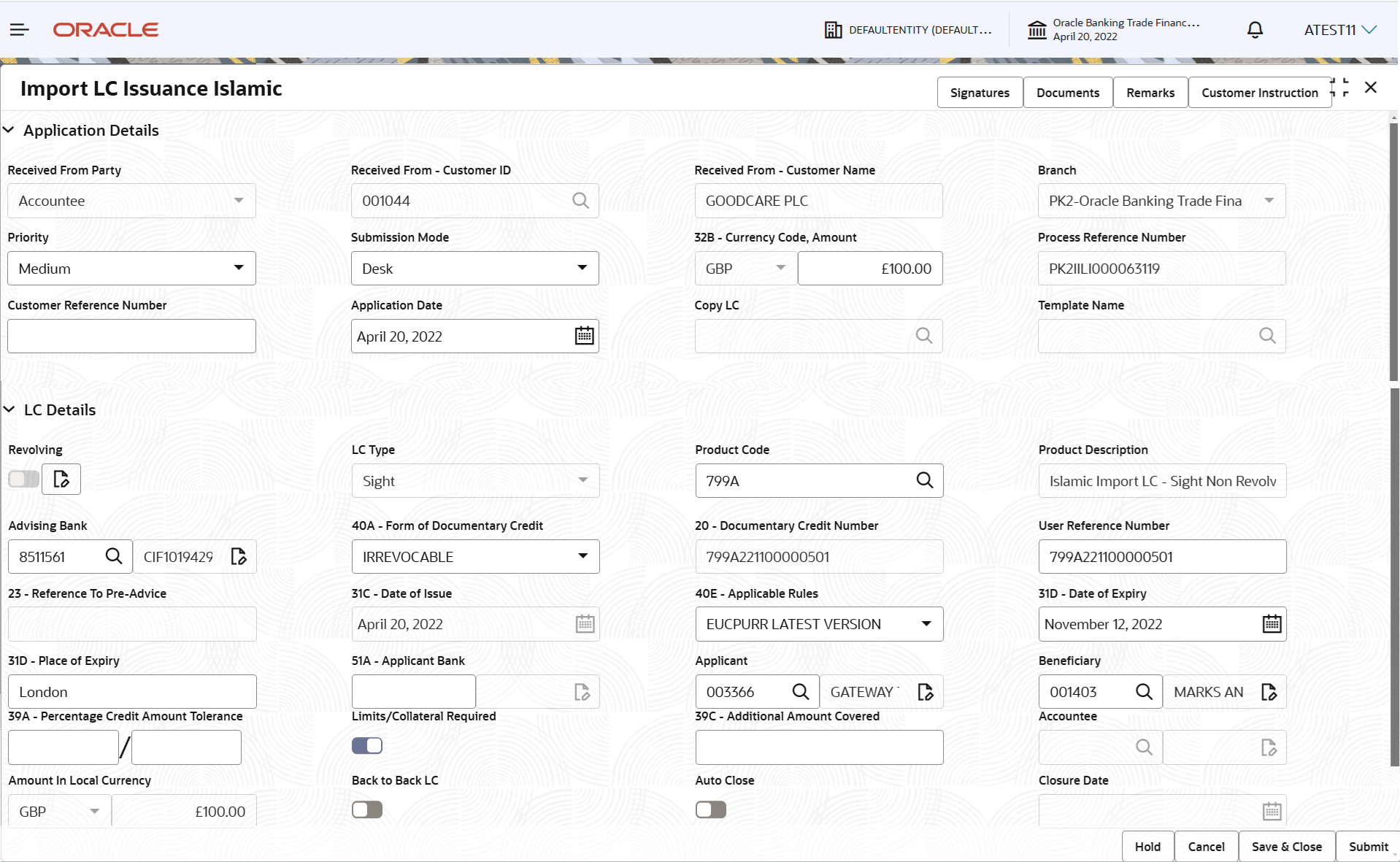

   Figure 2-4 Import LC Issuance Islamic - Registration - Application Details





   Description of "Figure 2-4 Import LC Issuance Islamic - Registration - Application Details"



3. On Import LC Issuance Islamic - Registration - Application Details screen, specify the fields.

   Note:

   The fields which are marked as Required are mandatory.

   For more information on fields, refer to the field description table below. In case of MT798, Application Details are defaulted to SWIFT.

   Table 2-3 Import LC Issuance Islamic - Registration - Application Details - Field Description

   Field	Description
   Received from Party	Select the party from which the Import LC Issuance request can be received. The options are: Applicant Applicant’s Bank Accountee
   Received From - Customer ID	Specify the Customer ID of the applicant or applicant’s bank. Alternatively, click Search to search and select the Customer ID. System allows only the customer of the bank for selection. Note: If the selected customer/ party is blacklisted the system displays a warning message.
   Received From - Customer Name	Name of the customer or applicant. This field will be auto populated based on the selected customer ID.
   Branch	By default, customer’s home branch will be displayed based on the customer ID and it can be changed, if required. Note: Once the request is submitted, Branch field is non-editable.
   Priority	Set the priority of the Import LC issuance request. The options are: Essential Critical High Medium Low If priority is not maintained for the customer, system will populate 'Medium' as the default priority. User can change the priority populated any time before submit of Registration stage.
   Submission Mode	Select the submission mode of Import LC Issuance request from the drop-down list. By default the submission mode will have the value as ‘Desk’. Courier - Request received through Courier Desk - Request received through Desk Email- Request received through Email SWIFT- Non STP - Request received through SWIFT Fax- Request received through Fax
   Currency Code, Amount	Select the currency code from the drop-down list. Specify the value of LC (with decimal places) as per currency type and tab out.
   Process Reference Number	Read only field. Unique sequence number for the transaction. Process Reference Number is auto generated by  the system based on process name and branch code.
   Customer Reference Number	Specify a unique Customer Reference Number which will be the User Reference of the LC.
   Application Date	Application displays the branch’s current date  by default and enables the user to change the date to any back date. Note: Future date selection is not allowed.
   Copy LC	Specify the LC number, the system populates the details of the LC. Alternatively, click Search to search and select the LC. If an existing LC is to be copied, the details of the LC is captured here.
   Template name	Specify the template name if the applicant details are already captured and the data can be reused with the template to reduce the effort. Alternatively, click Search to search and select the Template code. Description of the illustration templatename.png

   LC Details

   Registration user can provide LC details in this section. Alternately, details can be provided by Scrutiny user.

4. On Import LC Issuance - Registration - LC Details screen, specify the fields.


   Description of the illustration registrationlcdetails.png



   Note:

   The fields which are marked as Required are mandatory.

   For more information on fields, refer to the field description table below.

   Table 2-4 Import LC Issuance - Registration - LC Details - Field Description

   Field	Description
   Revolving	Switch to the option, if LC type is revolving. Switch to the option, if LC type is not revolving.
   LC Type	Select the applicable LC type. The options are: Sight Usance
   Product Code	Specify the product code and on tab out system will validate and populate the product code. Alternatively, click Search to search and select the product code with code or product description.
   Product Description	Read only field. This field displays the description of the product as per the product code.
   Advising Bank	Specify the advising bank name or click Search to search and select the advising bank based on Party ID/Party Name. User can also input the party ID and on tab out system will validate and populate the 'Advising Bank’ name. Note: In case the selected Bank is not RMA Compliant, the system prompts the user to use a different advising bank or use non SWIFT Media to transmit the LC and displays error message “RMA arrangement not available, please change the bank or use MAIL Medium”. If the party is blacklisted the system displays a warning message.
   40A - Form of Documentary Credit	Select the type of LC (Documentary Credit) as per the requirement. By default LC type is Irrevocable.
   Documentary Credit Number	Read only field. This field displays the documentary credit number, simulated from the back office. Number will be populated on the selection of Product Code.
   User Reference Number	User Reference Number will be auto populated by the system based on selection of Product Code. The user can change the User Reference Number.
   Reference To Pre-Advice	Read only field. This field displays the details of Pre-Advice, if issued by the bank.
   Date of Issue	Read only field. This field displays the branch’s current date as date of issue defaulted from the application. User cannot change the defaulted date. Application will populate the Date of Issue field with branch date on approval if date of approval is later than date of Registration.
   Applicable Rules	Select the applicable rules for the LC. Default rule as UCP Latest Version. The options are: UCP LATEST VERSION EUCP LATEST VERSION UCPURR LATEST VERSION EUCPURR LATEST VERSION OTHR
   Rule Narrative	Specify the rules narrative. This field is available if the value in Applicable Rule is OTHR.
   Date of Expiry	Select the expiry date of the LC. The expiry date can be equal or greater than the issue date. If the Expiry Date is earlier than the issue date, system will provide an error and if the ‘Expiry Date is equal to the Issue Date’, system will provide a alert message.
   Place of Expiry	Specify the place of expiry of LC.
   Applicant Bank	This field displays the applicant bank details , if Received From Applicant Bank option is enabled. If request is not received from applicant bank, this field must be blank.
   Applicant	This field displays the applicant details based on the details provided in Application Details section. If the request is received from Applicant bank, select the applicant from the List of Values. Note: If the selected applicant/ party is blacklisted the system displays a warning message.
   Beneficiary	Specify the beneficiary of the LC or click Search and select the beneficiary based on Party ID/Party Name. If beneficiary is not a customer of the bank, then choose WALKIN customer id and provide the beneficiary details. If beneficiary is a customer and KYC status is not valid, then system will display alert message. Note: If the selected beneficiary/ party is blacklisted the system displays a warning message.
   Percentage Credit Amount Tolerance	Specify the tolerance (+/-) on the total LC value. Tolerance value must be either one or two digit value. If tolerance is more than 10%, alert message will be displayed.
   Limits/Collateral Required	Switch to the option, to enable limit check during the process flow of this request. Switch to the option, to disable limit check during the process flow of this request.
   Additional Amount Covered	Specify the additional amount included in LC.
   Accountee	Specify the accountee or click Search and select the accountee.
   Amount In Local Currency	Read only field. After the tab out of ‘Currency Code, Amount’ field, system populates the Local currency and amount value in this field. System fetches the local currency equivalent value for the LC amount from back office (with decimal places).
   Back to Back LC	Read only field. Switch to the option, if the back to back Import LC is issued. Switch to the option, if back to back LC is not applicable.
   Export LC Reference	Specify the export LC reference or click Search to search and select the underlying export LC reference number. This field is appears , if you enable Back to Back LC field.
   Export LC Available Amount	Read only field. System displays the available amount under the Export LC. This field is appears , if you enable Back to Back LC field.
   Export LC Expiry Date	Read only field. System displays the expiry date of the underlying export LC. This field is appears , if you enable Back to Back LC field.
   Export LC Shipment Date	Read only field. System displays the latest shipment date of the underlying export LC. This field is appears , if you enable Back to Back LC field.
   Auto Close	Switch to the option, if Auto close is required for that transactions. Switch to the option, if Auto close is not required for that transactions.
   Closure Date	Read only field. This field displays the “Closure Date”defaulted by the system, with the value “Expiry Date” + No of Closure days maintained in the respective Product in which the contract has been created. System automatically close the contract on the specified “Closure Date” if “Auto Close” is selected as “Yes” for the specific contract. User can modify the system defaulted “Closure Date” and system should validate the same for the below conditions, Closure Date must be after the Issue Date. Closure Date must be after the Expiry Date. Closure Date cannot be blank, when the “Auto Close” is checked.

5. Click Submit.
   The task will move to next logical stage of Import LC Issuance - Islamic.
   For more information on action buttons, refer to the field description table below.

   Table 2-5 Import LC Issuance - Registration - Action Buttons - Field Description

   Field	Description
   Signatures	Click the Signature button to verify the signature of the customer/ bank if required. The user can view the Customer Number and Name of the signatory, Signature image and the applicable operation instructions if any available in the back-office system. If more than one signature is available, system should display all the signatures.
   Documents	Upload the documents received under the LC. Application displays mandatory documents to be uploaded for Import LC Issuance - Islamic. Place holders are also available to upload additional documents submitted by the applicant
   Remarks	Specify any additional information regarding the LC. This information can be viewed by other users processing the request.
   Customer Instructions	Click to view/ input the following: Standard Instructions – In this section, the system will populate the details of Standard Instructions maintained for the customer. User will not be able to edit this. Transaction Level Instructions – In this section, OBTFPMCS user can input any Customer Instructions received as part of transaction processing. This section will be enabled only for customer initiated transactions.
   Hold	The details provided will be saved and status will be on hold. User must update the remarks on the reason for holding the task. This option is used, if there are any pending information yet to be received from applicant.
   Cancel	Cancels the Import LC issuance - Islamic task. Details entered will not be saved and the task will be removed.
   Save & Close	Save the information provided and holds the task in ‘My Task’ queue for working later. This option will not submit the request.
   Submit	Click Submit, system will trigger acknowledgment to the customer and give confirmation message for successful submission. The task will move to next logical stage of Import LC issuance. If mandatory fields have not been captured, system will display an error message until the mandatory fields data are provided.
   Checklist	Click to view the list of items that needs to be completed and acknowledge. If mandatory checklist items are not selected, system will display an error on submit.

• Oracle Banking Trade Finance Process Management Cloud Service - OBDX Bidirectional flow
  This topic provides the systematic instructions to initiate the OBTFPM- OBDX Bidirectional flow.
