3.10.1 Maintain Gateway Amendment Details

This topic provides the systematic instructions to maintain gateway amendment details.

To recall, you need to identify the fields that can be amended by an external system, say, a Siebel CRM application.
  • Service Name: This is a broad level grouping of similar operations within a module in Oracle Banking Trade Finance Cloud Service. The service names are published by Oracle Banking Trade Finance Cloud Service. As an example, you can consider OBTF BC Service. This service is exposed by the OBTF Interface Gateway to create BC contract.
  • Operation Name: This is the name of the operation that the external system wishes to perform within the service. These operations names are published by Oracle Banking Trade Finance Cloud Service. As an example, you can consider Query Contract, which is for Querying BC contract.
  • External Operation Name: This is the specific area of operation that an external system is performing on its side within the broad context of the Oracle Banking Trade Finance Cloud Service’s amendment. In an external system, if the BC contract is created, this has a unique name by which it is identified within Oracle Banking Trade Finance Cloud Service.

It is through the ‘Gateway Amendment Maintenance’ screen that you maintain a set of amendable fields, which can amend in Oracle Banking Trade Finance Cloud Service whenever a request for the same will be send from an external system. Based on this maintenance, the amendment request is addressed by Oracle Banking Trade Finance Cloud Service.

Specify the User ID and Password, and login to Homepage.
  1. On the Homepage, type GWDAMDMT in the text box, and click the next arrow.

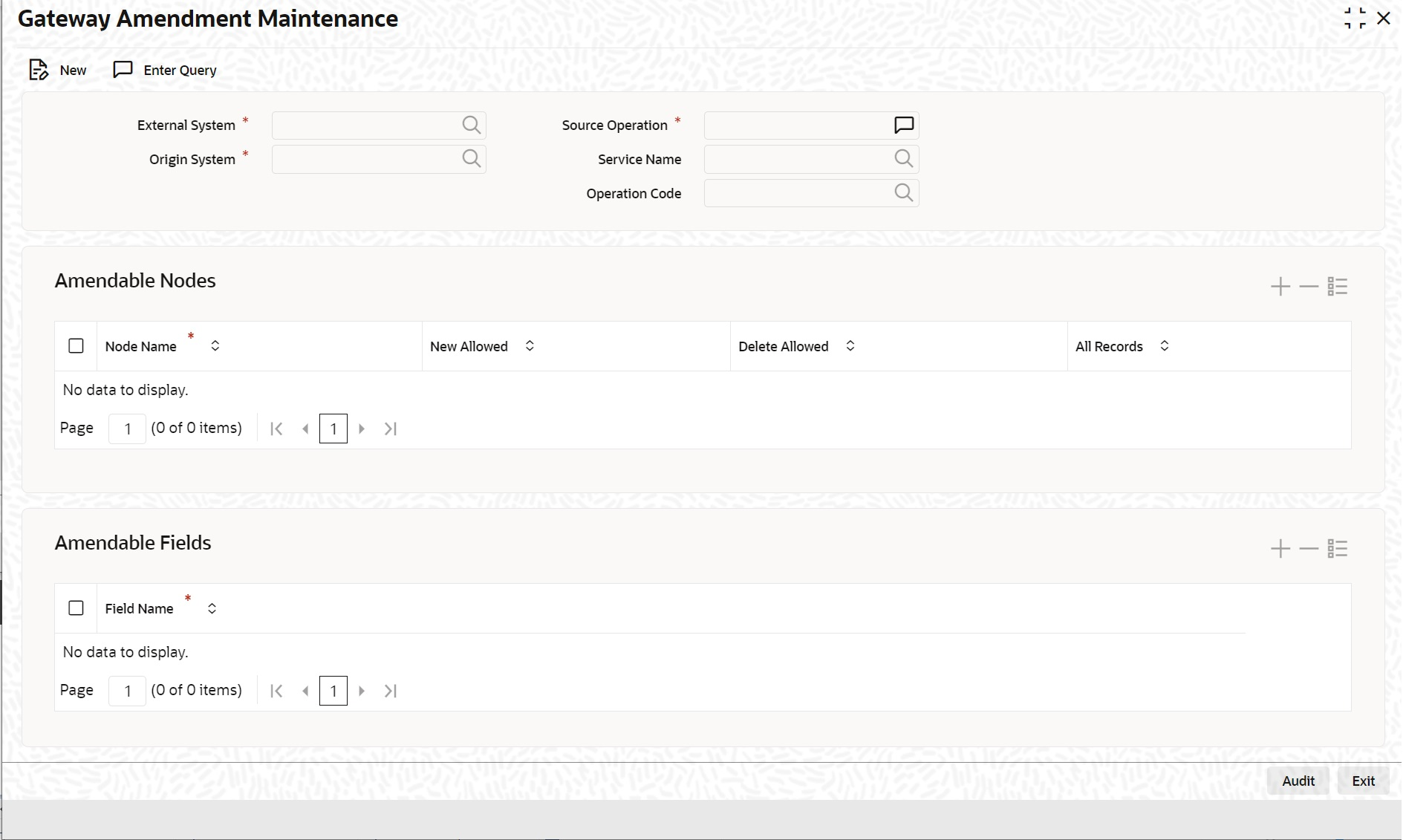

    The Gateway Amendment Maintenance screen is displayed.
    Description of 3.10.1_gwdamdmt.png follows
    Description of the illustration 3.10.1_gwdamdmt.png

  2. On Gateway Amendment Maintenance screen, specify the fields.
    For information on fields, refer to Table 3-19:

    Table 3-19 Gateway Amendment Maintenance- Field Description

    Field Description
    External System Select the relevant external system. Based on the maintenance here, only the fields that are selected as amendable can be modified if a request comes from the chosen external system.

    Note:

    The maintenance pertaining to external systems is factory shipped for your bank.
    Origin System Specify the origin system for which the amendment details are applicable.
    Source Operation The free format text (without spaces) which identifies the amendment you are doing. This is mandatory.

    Note:

    Source Operation will be defaulted as (FUNCTIONID)_MODIFY, if the Source Operation is not sent from an external system and the function ID will be derived from Service and Operation combination.
    Service Name The relevant service name, this is a broad level grouping of similar operations within a module in Oracle Banking Trade Finance Cloud Service. The service names are published by Oracle Banking Trade Finance Cloud Service.

    Note:

    The maintenance pertaining to service names is factory shipped for your bank.
    Operation Code The relevant operation code. This is the operation that the external system wishes to perform within the selected service. The operation names are published by Oracle Banking Trade Finance Cloud Service. As an example, you can take ‘Modify Contract’, which is for modification of a BC contract. Each operation under different service names is identified by a unique code.

    Note:

    The maintenance pertaining to operation codes is factory shipped for your bank.
    Amendable Nodes
    Node Name Specify the node name. Alternatively, you can select the node name from the option list. The list displays all valid nodes maintained in the system.
    New Allowed Check this box if ‘New Allowed’ is applicable.
    Delete Allowed Check this box if ‘Delete Allowed’ is applicable.
    All Records Check this box if all records are applicable.

Parent topic: Amendment Maintenance
