1.2 View Customer Priority Maintenance

This topic provides the systematic instructions to view the record maintained in the Customer Priority Maintenance screen as a single tile.

The user can view the summary of customer priority maintained in the form of tiles. The user can view the Customer Priority in the ‘List’ or ‘Table’ form, by clicking the List or Table icon on the top right corner of the screen.

  1. On Home screen, click Core Maintenance. Under Core Maintenance, click Priority Code.
  2. Under Priority Code, click Customer Priority Maintenance.
    The Customer Priority Maintenance screen is displayed.

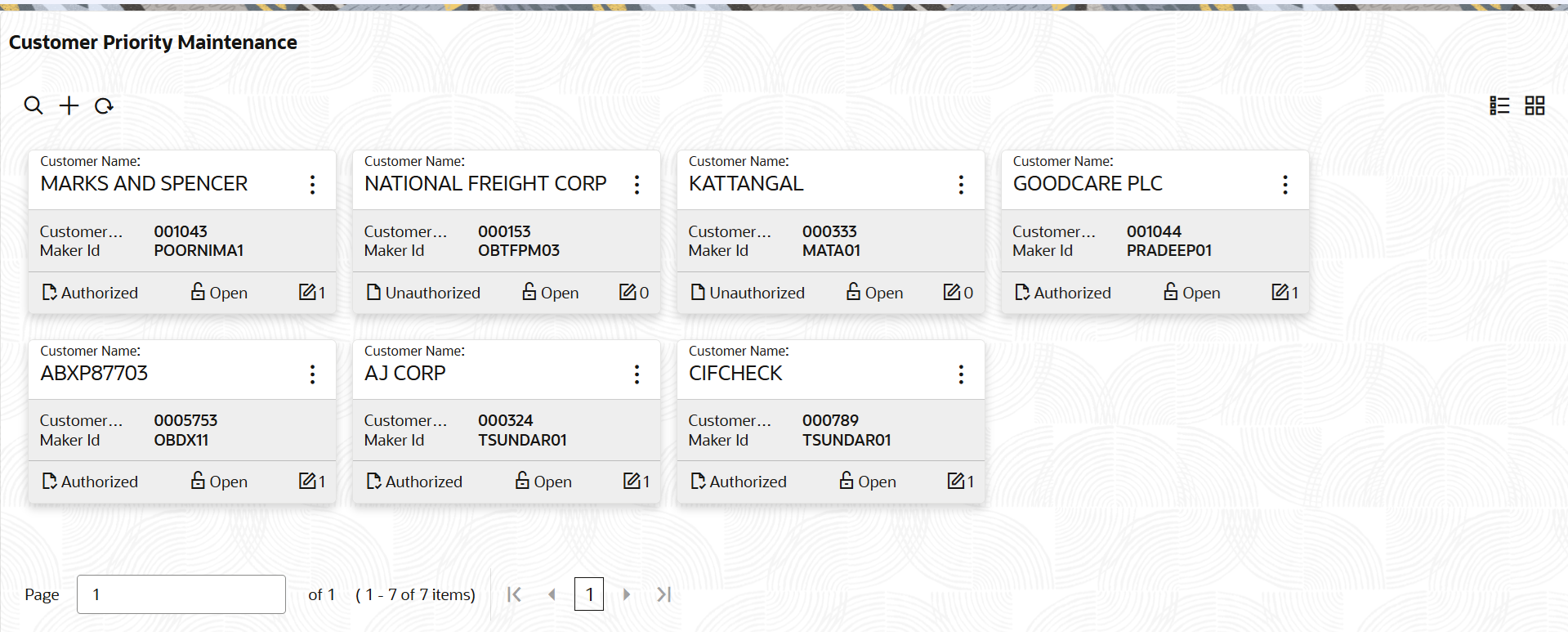

    Figure 1-2 Customer Priority Maintenance


    Description of Figure 1-2 follows
    Description of "Figure 1-2 Customer Priority Maintenance"

  3. On Customer Priority Maintenance screen, following fields are displayed.

    For more information on fields, refer to the field description table below.

    Table 1-3 Customer Priority Maintenance - Field Description

    Field Description
    Customer Name Displays the customer name of the Customer.
    Customer Number Displays the customer number of the customer.
    Maker ID Specify displays the maker ID.
    Status Displays the status of the record. Values are Authorized and Unauthorized.
  4. Click
    View More

    icon, and perform any one of the following actions:
    • Click Authorize to Authorize the customer priority maintenance.
    • Click Delete to delete the customer priority maintenance.
    • Click Unlock to unlock the customer priority maintenance.
    • Click View to view the Customer Priority Maintenance screen.

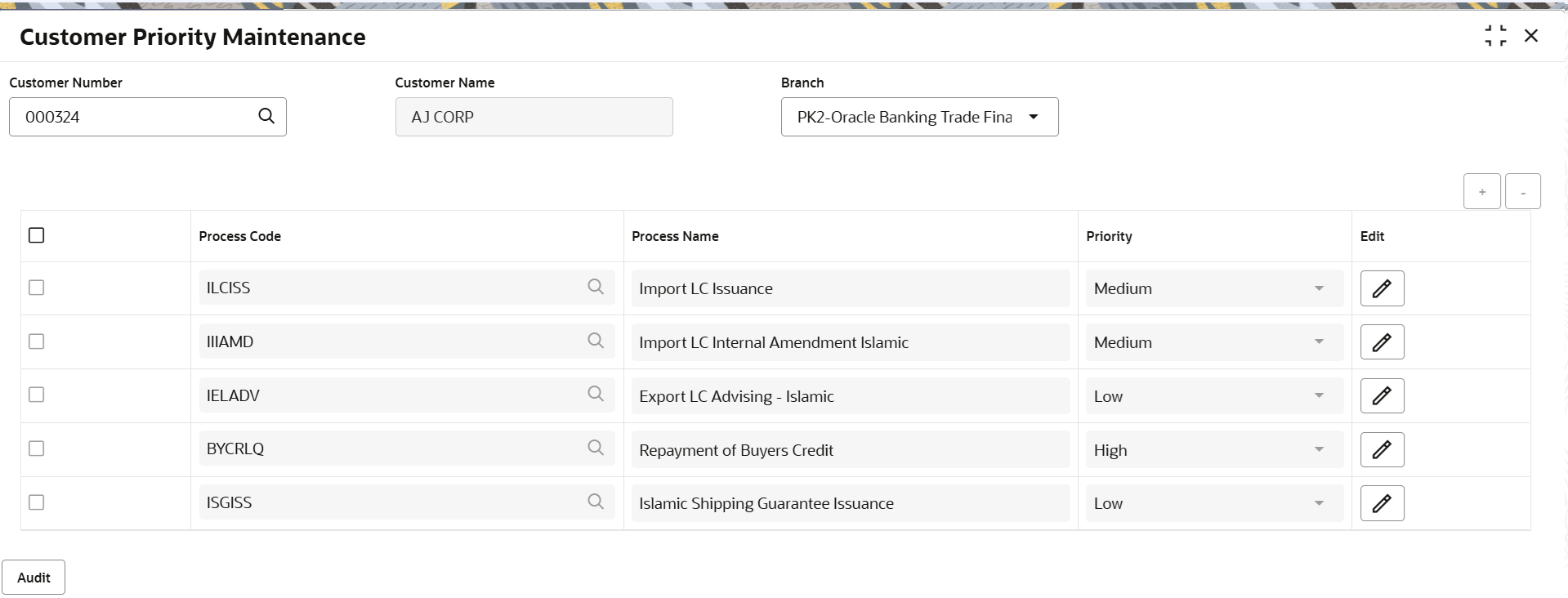

    Figure 1-3 Customer Priority Maintenance - View


    Description of Figure 1-3 follows
    Description of "Figure 1-3 Customer Priority Maintenance - View"

    For more information on fields, refer to the field description table below.

    Table 1-4 Customer Priority Maintenance - Field Description

    Field Description
    Customer Number Displays the customer number of the customer.

    The user can edit this field to view the other customer priority maintenance.
    Customer Name Read only field.

    System defaults the customer name of thr Customer.
    Branch System defaults the branch details.
    Process Code Displays the process code

    The user can edit this field.
    Process Name Read only field.

    System defaults the process name based on Process code.
    Priority System defaults the priority of the process code.

    The user can change the priority.
    Edit Edit button to edit the records, if required.

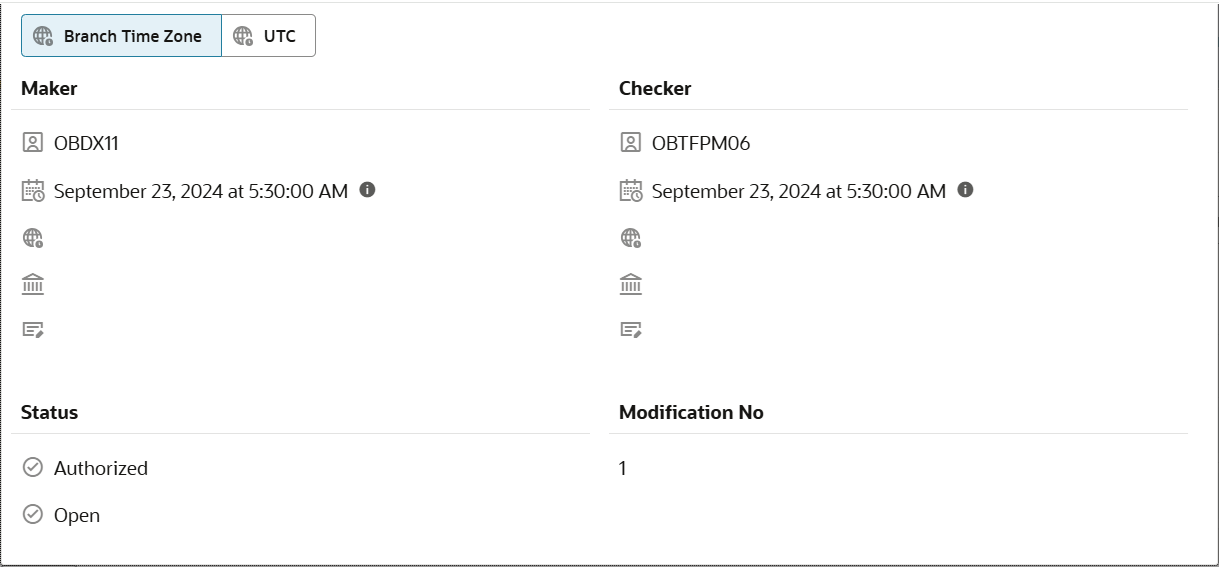

    Audit

    The screen provides information about Maker and Checker User ID details, initiated date, time, status, modification number etc.
    Description of audit.png follows
    Description of the illustration audit.png

    This screen provides information about user initiated the transaction, initiated date, stage wise detail etc.

    For more information on audit, refer to the field description table below.

    Table 1-5 Audit - Field Description

    Field Description
    Maker ID System displays the maker ID.
    Checker System displays the checker ID.
    Time stamp System displays the maker id date and time stamp.
    Time stamp System displays the checker id date and time stamp.
    Modification No. Displays the modification number.
    Status Displays the status of the record. Values are Authorized and Unauthorized.
    • Un-authorized Record – View, Unlock and Authorize.
    • Authorized Record – View, Unlock
  5. Click the List View, to view the Customer Priority Maintenance in list form.

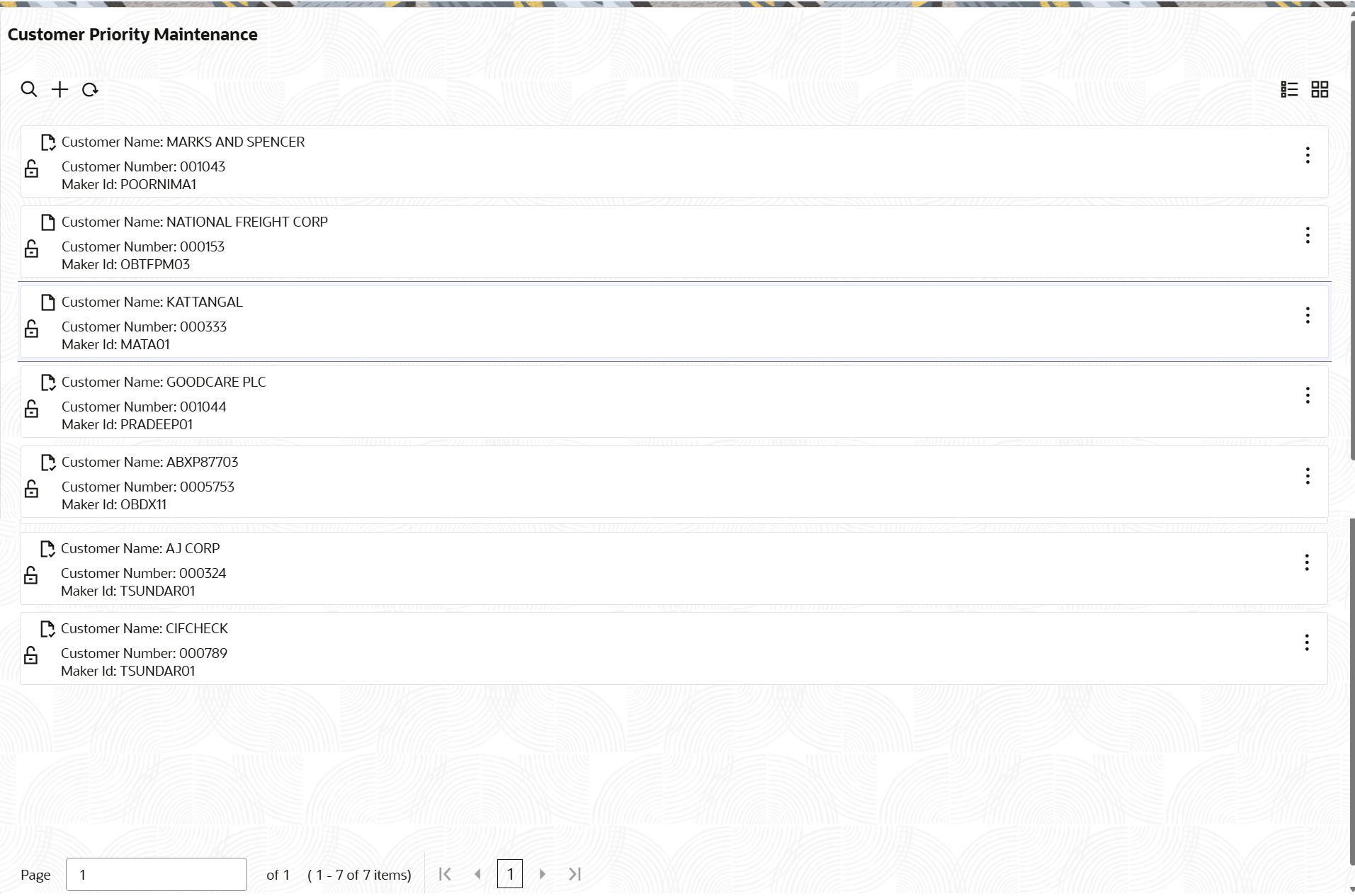

    Figure 1-4 Customer Priority Maintenance - List


    Description of Figure 1-4 follows
    Description of "Figure 1-4 Customer Priority Maintenance - List"

Parent topic: Customer Priority Maintenance
