Signature Details

The US RTP Signature Details screen allows user to maintain signature details that are to be stamped in the XML messages.
  1. On Homepage, specify PMDXMLSN in the text box, and click next arrow.
    US RTP Signature Details screen is displayed.

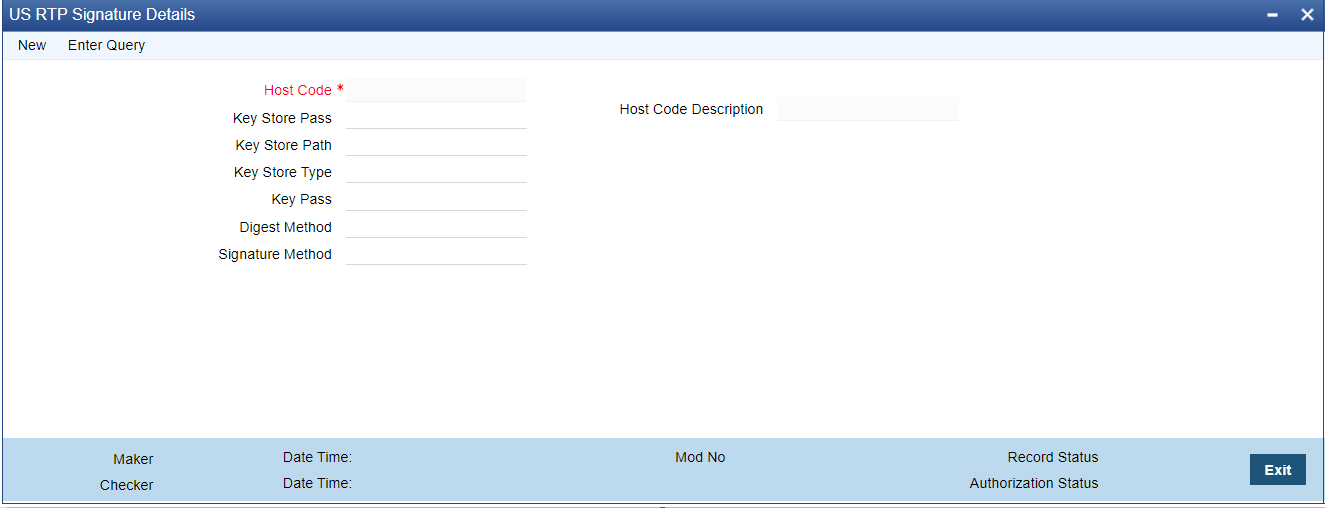

    Figure 2-11 US RTP Signature Details

    Description of Figure 2-11 follows
    Description of "Figure 2-11 US RTP Signature Details"
  2. Click New button on the Application toolbar.
  3. On US RTP Signature Details screen, specify the fields.
    For more information on fields, refer to the field description below:

    Table 2-6 US RTP Signature Details - Field Description

    Field Description
    Host Code System displays the Host Code of selected branch of the logged in user on clicking ‘New’ button.
    Host Code Description System defaults the description of the Host Code.
    Key Store Pass Specify the valid Key Store Pass in the text field.
    Key Store Path Specify the valid Key Store Path in the text field.
    Key Pass Specify the valid Key Pass in the text field.
    Digest Method Specify the valid Digest Method in the text field.
    Signature Method Specify the valid Signature Method in the text field.

Parent topic: US RTP Maintenances
