India RTGS Network Channel Type Preferences

  1. On Homepage, specify PLDNWCHL in the text box, and click next arrow.
    India RTGS Network Channel Type Preferences screen is displayed.

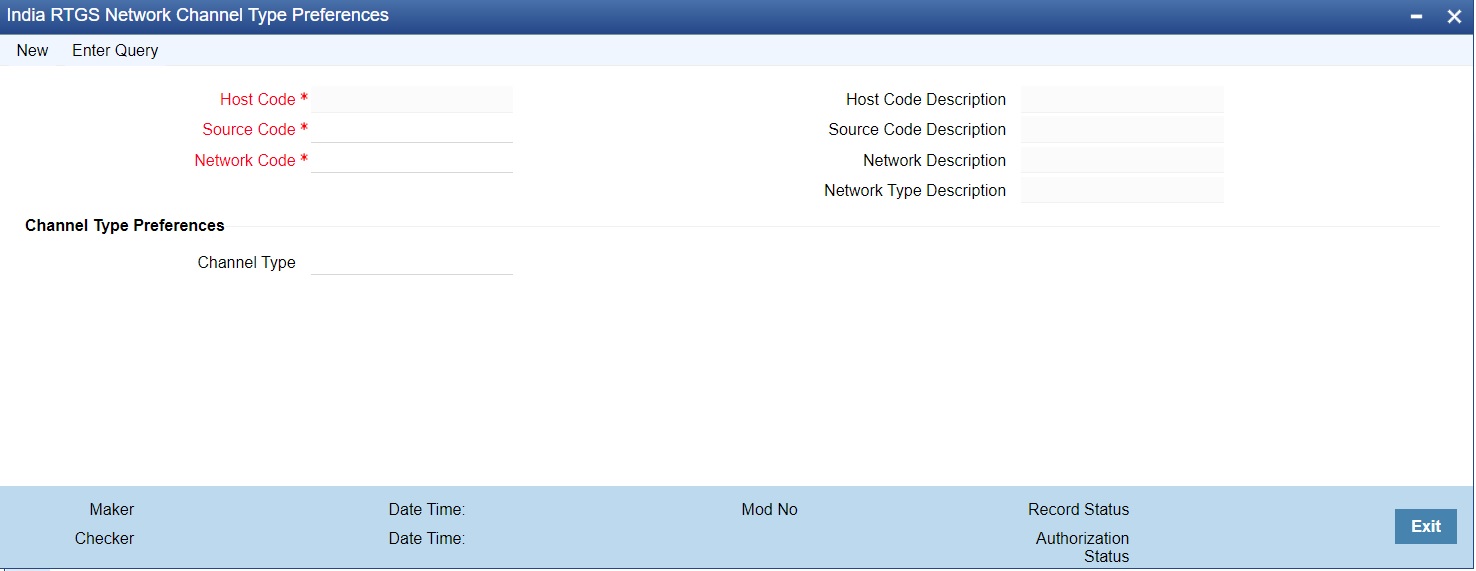

    Figure 2-262 India RTGS Network Channel Type Preferences


    Description of Figure 2-262 follows
    Description of "Figure 2-262 India RTGS Network Channel Type Preferences"

  2. Click New button on the Application toolbar.
  3. On India RTGS Network Channel Type Preferences screen, specify the fields.

    Table 2-138 India RTGS Network Channel Type Preferences - Field Description

    Field Description
    Host Code System defaults the Host Code of transaction branch on clicking ‘New’.
    Host Code Description System defaults the description of the displayed Host Code.
    Source Code Specify the Source Code from the list of values. Lists all valid and open source code as maintained in PMDSORCE.
    Source Description System defaults the Description of the Source Code selected.
    Network Code Specify the Network Code from the list of values. If only one Network is maintained with payment type as ‘NEFT/ RTGS’ for the host code, the same gets defaulted in this field. In case multiple networks are found for the same combination, all applicable networks are listed.
    Network Description System defaults the description of the Network selected.
    Network Type Description System defaults the Network Type Description of the Network selected.
    Channel Type Preference --
    Channel Type
    Specify the Channel Type from the list of values. This LOV lists the below values as being used in outbound RTGS Payment (PLDOTONL):
    • Internet Banking
    • Cash Management
    • Treasury
    • ATM
    • Mobile
    • Other

    If there is no maintenance done in this screen, system populates 'Other' as channel type by default. This is applicable for outbound RTGS payments initiated through single payout service.
