Use the US ACH Directory Upload screen to manually upload the US ACH (FedACH) Directory using a fixed-length text file.

1. On Homepage, specify PMDNCHUP in the text box, and click next arrow.
   The US ACH Directory Upload screen is displayed.

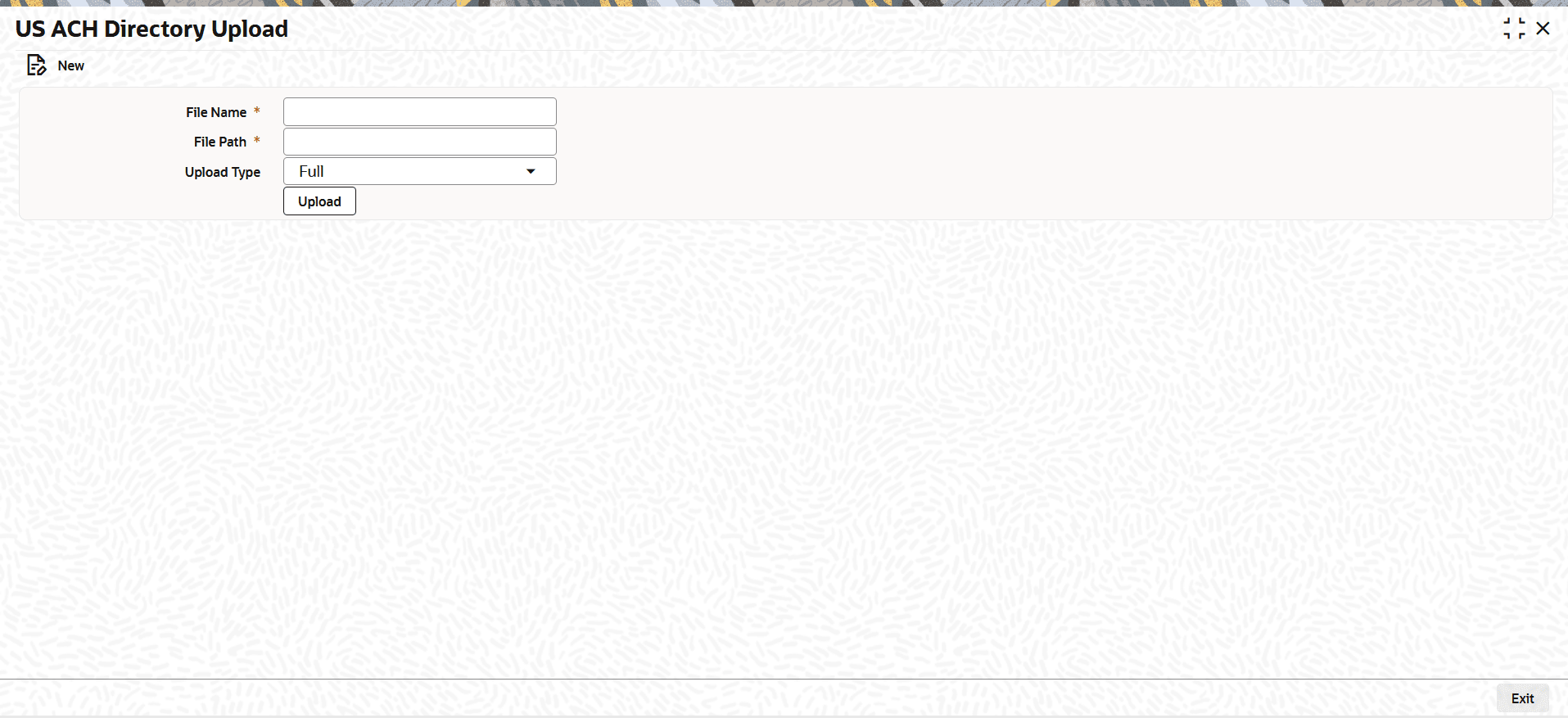

   Figure 2-20 US ACH Directory Upload





   Description of "Figure 2-20 US ACH Directory Upload"



2. On US ACH Directory Upload screen, click New to specify the fields.
   For more information about the fields, refer to field description table.

   Table 2-18 US ACH Directory Upload - Field Description

   Field	Description
   File Name	Specify the File Name of the ACH Directory text file.
   File Path	Specify the DB server path where the directory file is placed.
   Upload Type	Select the Upload Type from the drop-down list. The available options are: Full Partial This field indicates whether the file being uploaded is a Full file, containing all ACH participants, or a Partial file, containing only records updated since a specified past date.
   Upload button	Click this button to initiate the process of picking up the file from the specified location, parsing it and inserting the records in the ACH Directory table.

   Support is provided to upload US ACH Directory through File envelope Rest service. Multi-part file upload is enabled to send the file as part of the Rest request. The file type to be used is USAchDirectory.
