3.1.1.9 Cover Payment Information Tab - Other Details Button
This topic explains the Other Details buttons under the Cover Payment Information tab in the Cross Border Outbound FI to FI Customer Credit Transfer Input Detailed screen.
- Click the Other Details button to display the
corresponding sub-screen with the appropriate heading.
The Other Details buttons for Debtor Details, Creditor Details, Debtor Agent Details, Creditor Agent Details, and Intermediary Agent 1 under the Cover Payment Information tab open sub-screens with similar fields. The screen header changes based on the button selected.

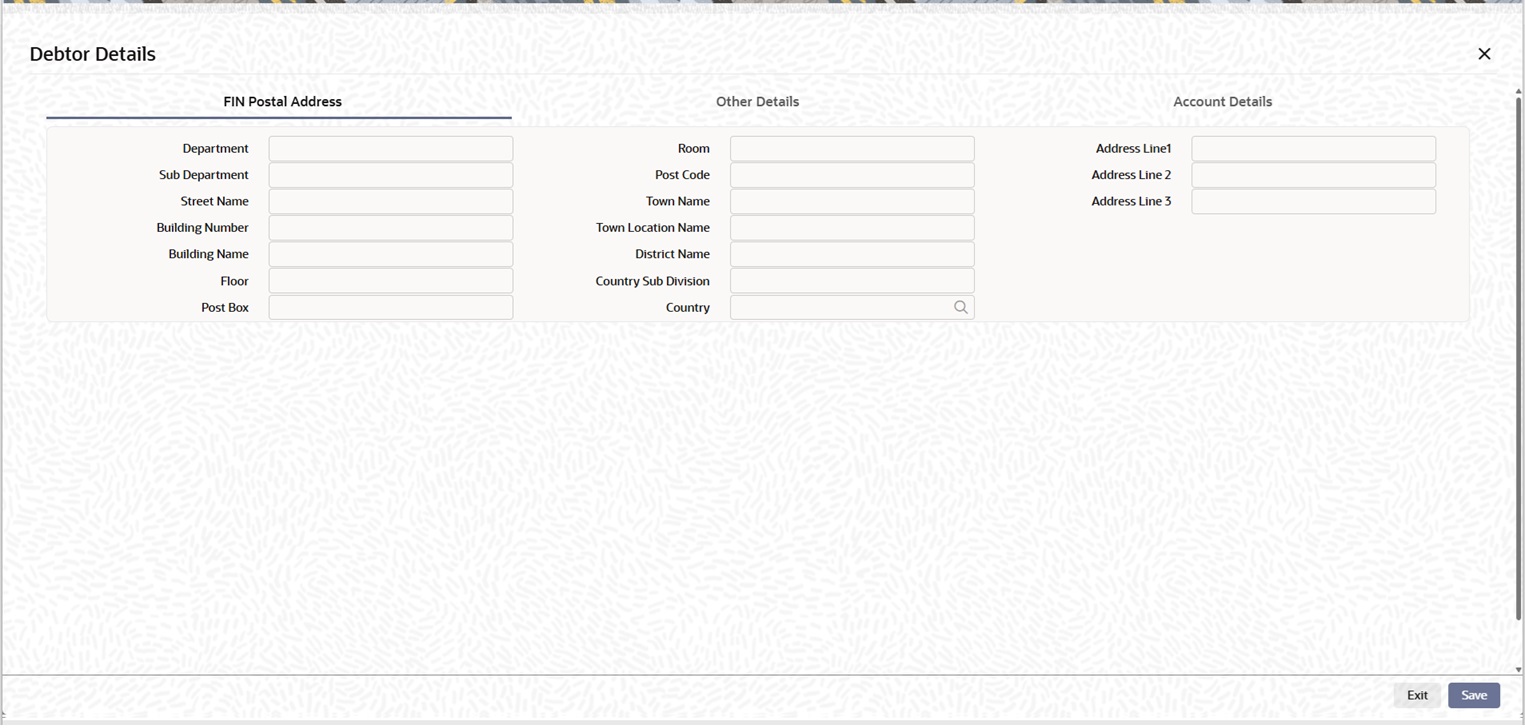

Figure 3-22 Cover Payment Information Tab_Other Details - FIN Postal Address

Description of "Figure 3-22 Cover Payment Information Tab_Other Details - FIN Postal Address" - On the FIN Postal Address tab, specify the fields.For more information about the fields, refer to field description table.
Table 3-23 Cover Payment Information Tab - Other Details Button - FIN Postal Address Tab - Field Description
Field Description Department Specify the department. Sub Department Specify the sub-department. Street Name Specify the street name. Building Number Specify the building number. Building Name Specify the building name. Floor Specify the Floor. Post Box Specify the post box name. Room Specify the Room. Post Code Specify the post code. Town Name Specify the town name. Town Location Name Specify the town location name. District Name Specify the district name. Country Sub Division Specify the country sub division. Country Select the Country from the list of values. Address Line 1 Specify the Address Line 1 Address Line 2 Specify the Address Line 2 Address Line 3 Specify the Address Line 3 - Click the Other Details tab in the screen.

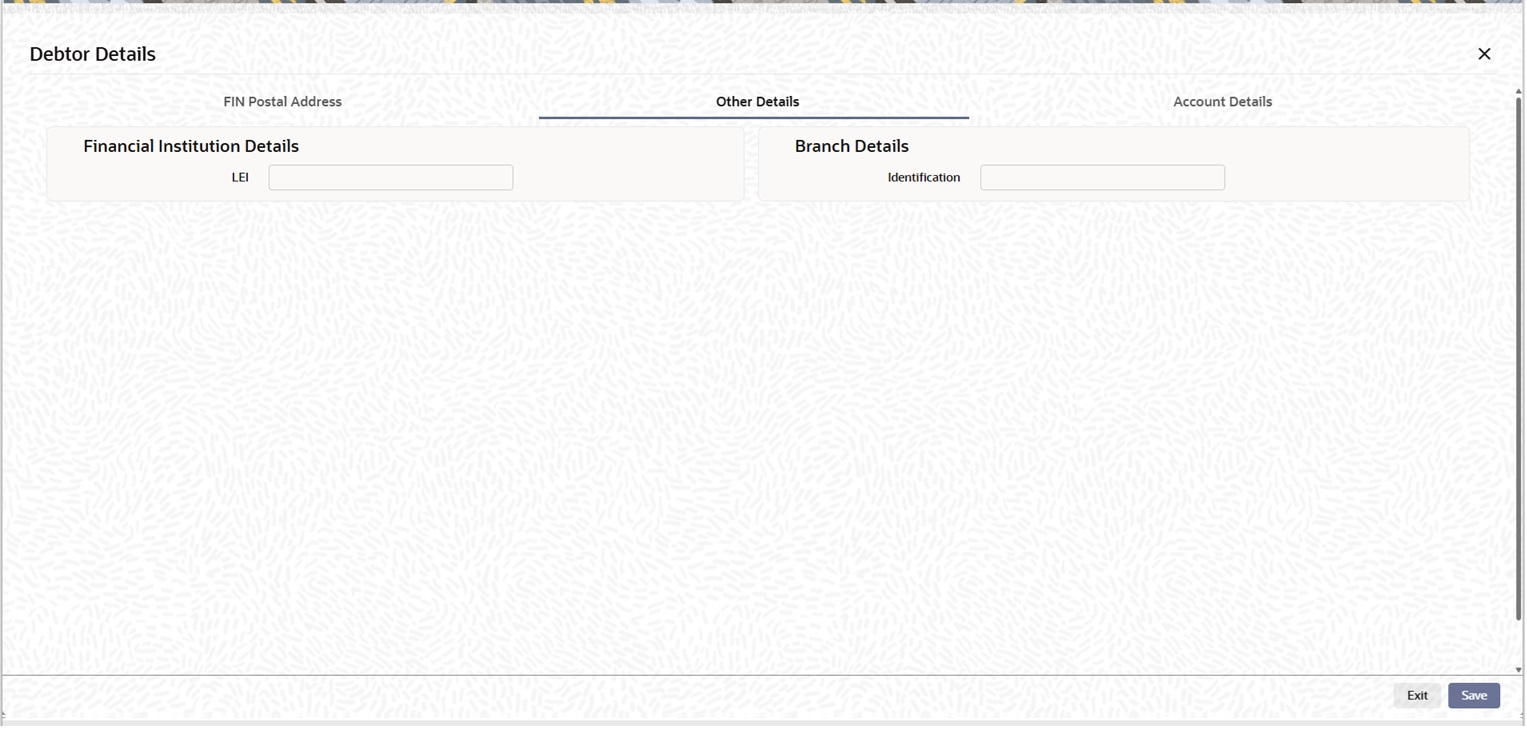

Figure 3-23 Cover Payment Information Tab_Other Details - Account Details

Description of "Figure 3-23 Cover Payment Information Tab_Other Details - Account Details" - On the Other Details tab, specify the fields.
Table 3-24 Cover Payment Information Tab_Other Details - Other Details
Field Description Financial Institution Details This section displays the following fields. LEI Specify LEI of the agent. Branch Details This section displays the following fields. Identification Specify Identification of the branch. - Click the Account Details tab.

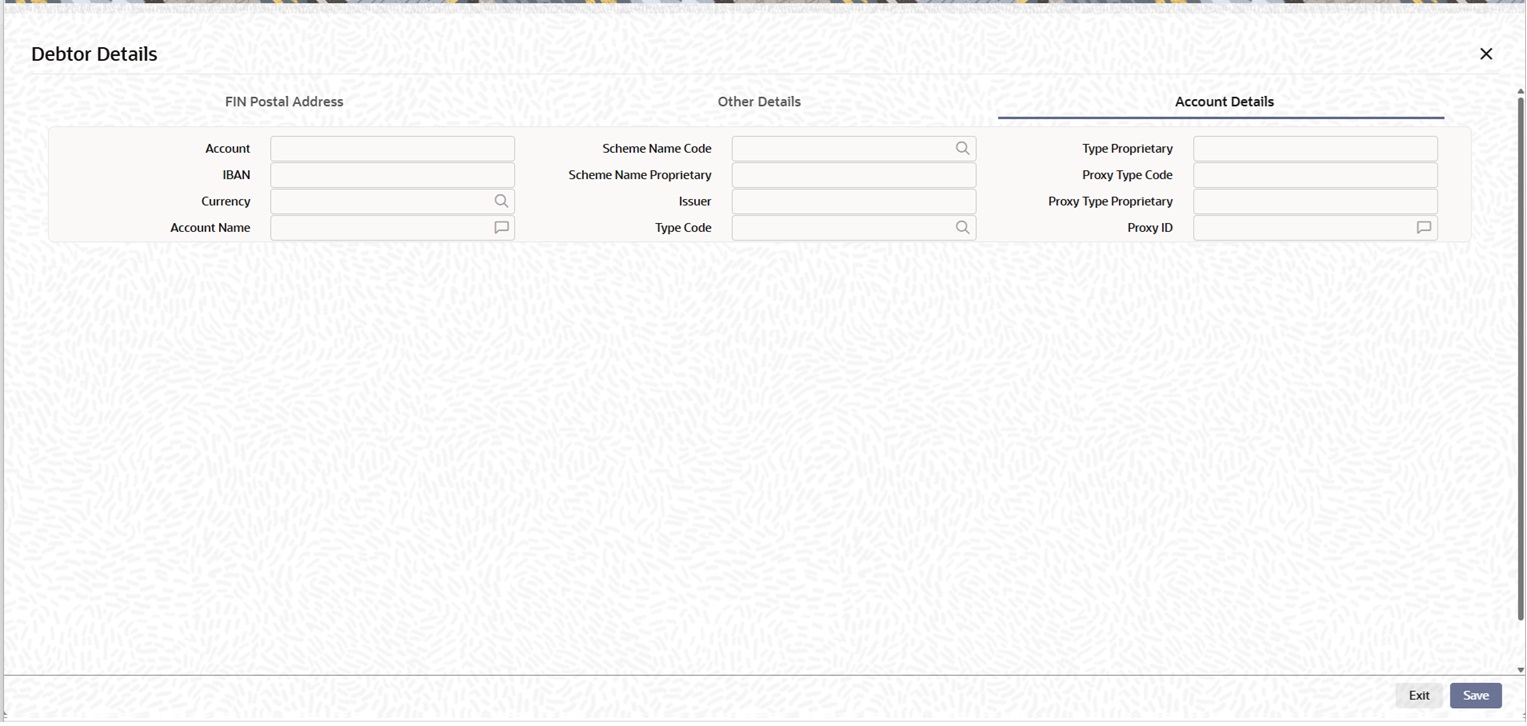

Figure 3-24 Cover Payment Information Tab_Other Details - Account Details

Description of "Figure 3-24 Cover Payment Information Tab_Other Details - Account Details" - On the Account Details tab, specify the fields.For more information about the fields, refer to field description table.
Table 3-25 Cover Payment Information Tab - Other Details Button - Account Details Tab - Field Description
Field Description Account Specify the account of the agent. IBAN Specify the IBAN. Currency Select the currency of the agent from the list of values. Account Name Specify the account name of the agent. Scheme Name Code Select the Scheme Name Code from the list of values. Scheme Name Proprietary Select the Country of Birth from the list of values. Issuer Specify the issuer. Type Code Select the Type Code from the list of values. Type Proprietary Specify the Type Proprietary. Proxy Type Code Select the Proxy Type Code from the list of values. Proxy Type Proprietary Specify the Proxy Type Proprietary. Proxy ID Specify the Proxy ID. Note:
If you enter Type information, you must provide either Type Code or Type Proprietary.
If you enter Scheme information, you must provide either Schema Name Code or Schema Name Proprietary.
If you enter Proxy information, you must provide either Proxy Type Code or Proxy Type Proprietary.
If you enter Proxy information, you must provide Proxy ID.
