1.3 Maintenance for Product Processor as environment variable

This topic describes information about the maintenance for Oracle FLEXCUBE Universal Banking.

Gateway setup should be done in Oracle FLEXCUBE Universal Banking for particular source system (Oracle Banking Originations Cloud Service) by doing maintenance in the below mentioned screens.

  1. From Home screen, click Interconnect and click Routing Hub.
  2. Under Routing Hub, click Service Consumers.
    The Service Consumers screen displays.

    Figure 1-13 Service Consumers


    Description of Figure 1-13 follows
    Description of "Figure 1-13 Service Consumers"

  3. Click View More on the RPM_ORIGINATION tile.
    The RPM_ORIGINATION screen displays.

    Figure 1-14 RPM_ORIGINATION - Environment Variables


    Description of Figure 1-14 follows
    Description of "Figure 1-14 RPM_ORIGINATION - Environment Variables"

  4. Click Edit Group on the Assets tile.
    The Edit Group screen displays.

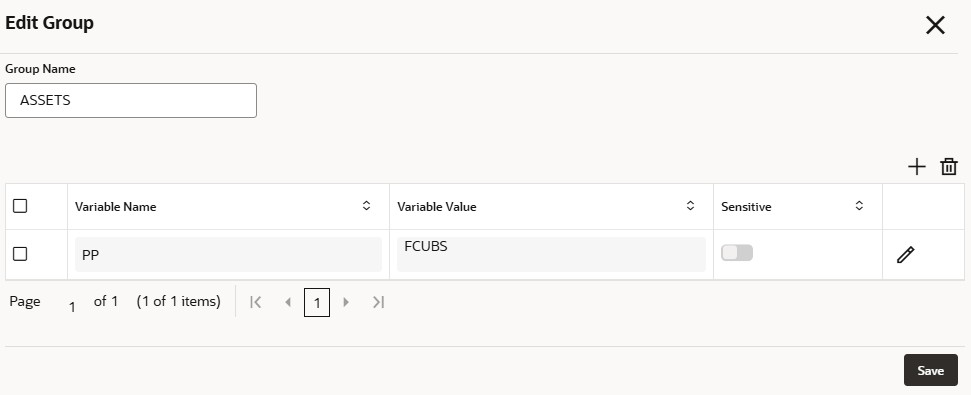

    Figure 1-15 Edit Group


    Description of Figure 1-15 follows
    Description of "Figure 1-15 Edit Group"

  5. Click Edit and update PP as Variable Name, FCUBS as Variable Value.
    The Variable Value is shown as FCUBS by default. User can update it manually if it is not shown.
  6. Repeat the same steps above for TD and LOAN groups.
  7. Click Save to save the changes.
