This topic provide the systematic instructions to integrate Oracle FLEXCUBE Universal Banking service provider within Oracle Banking Originations Cloud Service.

1. From Home screen, click Interconnect and click Routing Hub.
2. Under Routing Hub, click Service Consumers.

   The Service Consumers screen displays.

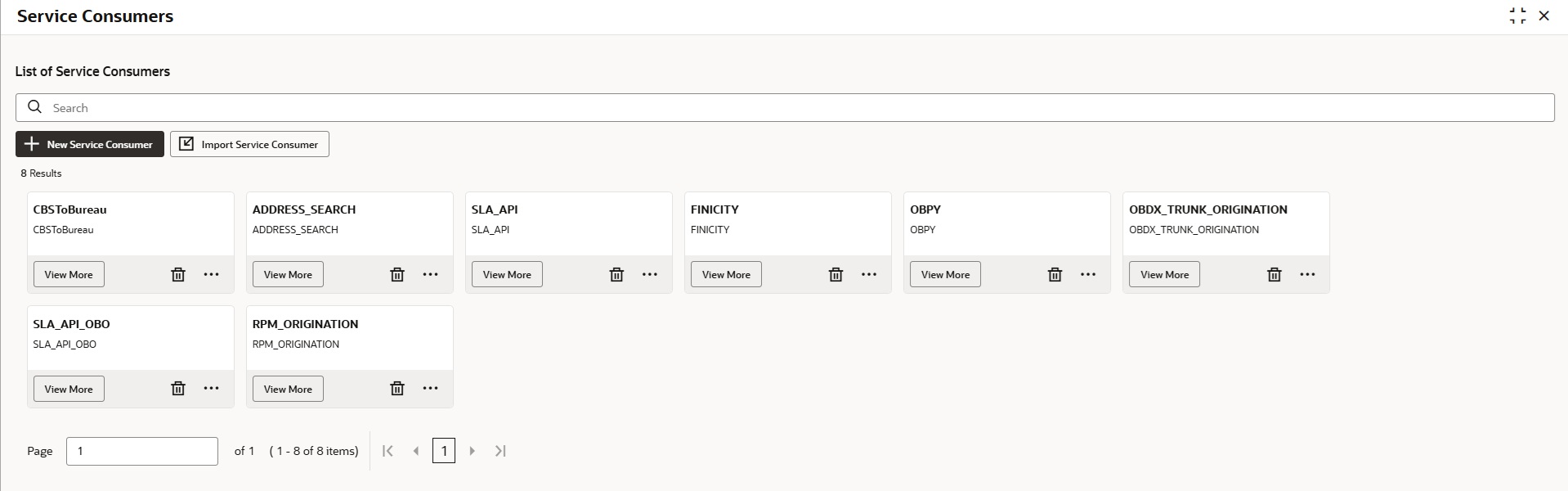

   Figure 1-6 Service Consumers





   Description of "Figure 1-6 Service Consumers"



3. Click Import Service Consumer.
   The Import Service Consumer - Basic Details screen displays.

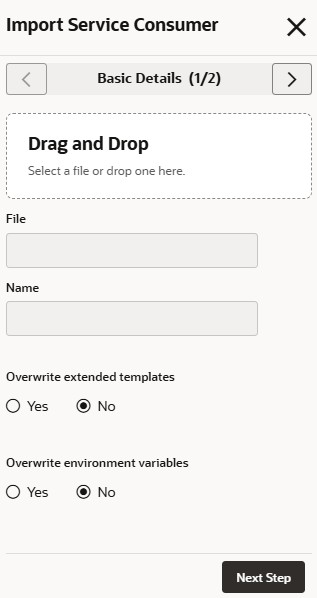

   Figure 1-7 Import Service Consumers - Basic Details





   Description of "Figure 1-7 Import Service Consumers - Basic Details"




   For more information, refer to the fields description table below.

   Table 1-2 Import Service Consumer - Basic Details

   Field	Description
   Drag and Drop	Click Drag and Drop to upload the OBOConsumer.zip file for the current release.
   File	Displays the uploaded file name.
   Name	Displays the name of provider.
   Overwrite extended templates	Select the overwrite extended templates. The available options are: Yes No
   Overwrite environment variables	Select the overwrite environment variables. The available options are: Yes No

4. Click Next Step.
   The Import Service Consumer - Providers screen displays.

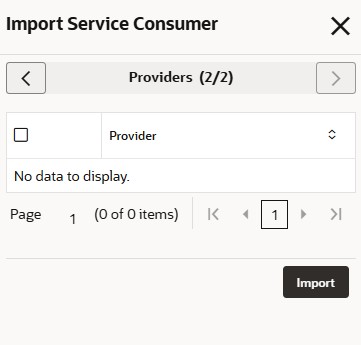

   Figure 1-8 Import Service Consumer - Providers





   Description of "Figure 1-8 Import Service Consumer - Providers"



5. Click Import.
   A new service consumer tile is added for the release.
6. Click View More on the RPM_ORIGINATION tile.
   The RPM_ORIGINATION screen displays.

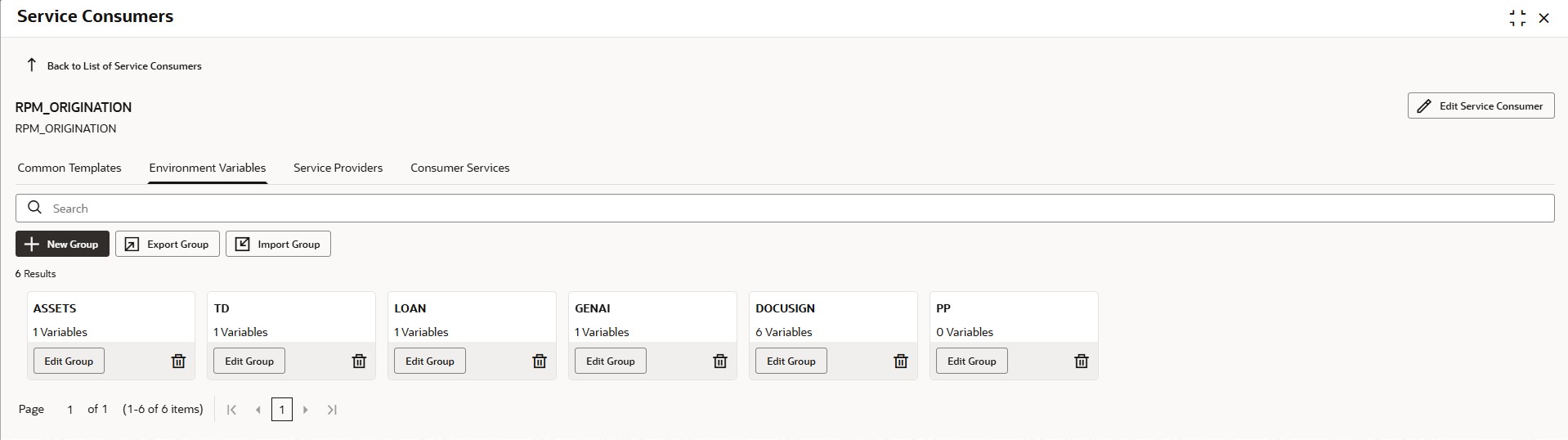

   Figure 1-9 RPM_ORIGINATION





   Description of "Figure 1-9 RPM_ORIGINATION"



7. Click Service Provider tab.
   The Service Provider tab displays.

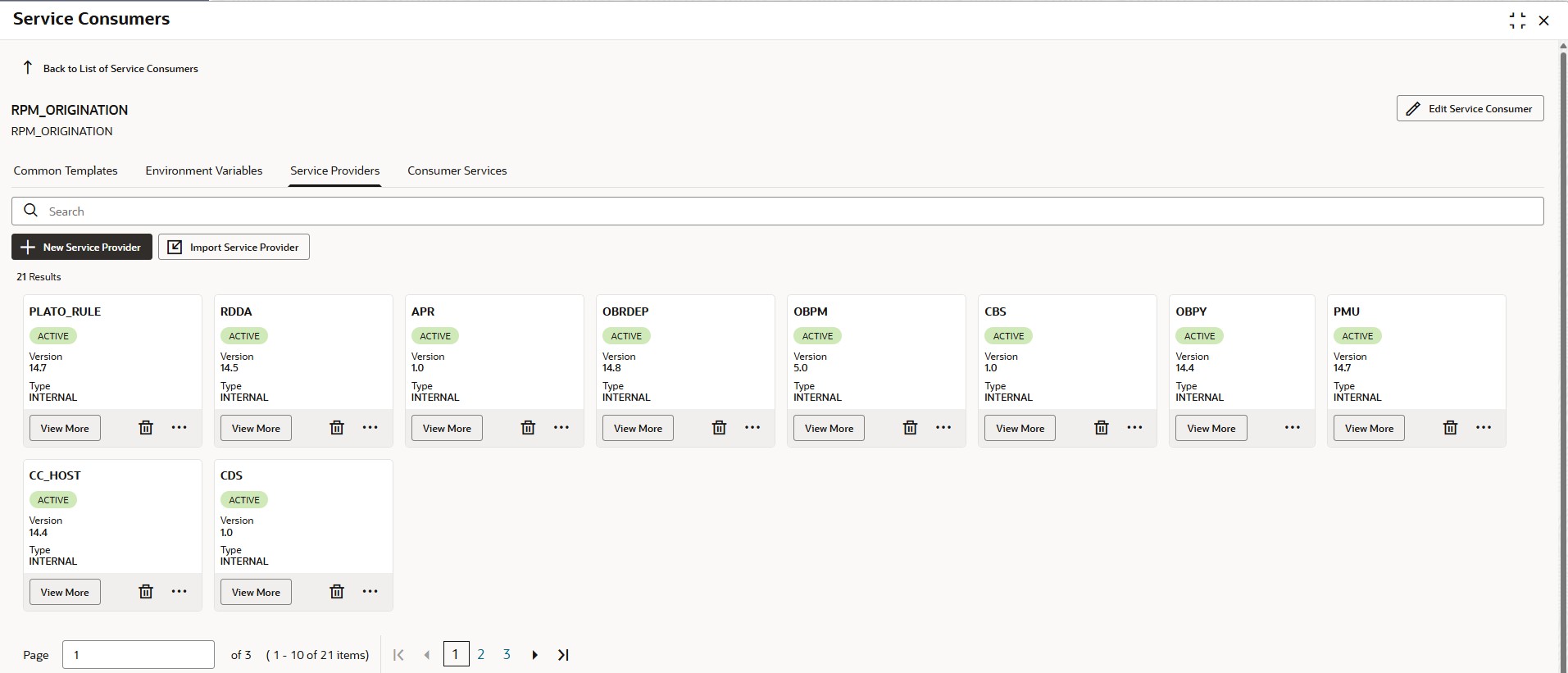

   Figure 1-10 Service Provider





   Description of "Figure 1-10 Service Provider"



8. Click View More on the FCUBS tile.
   The FCUBS screen displays.

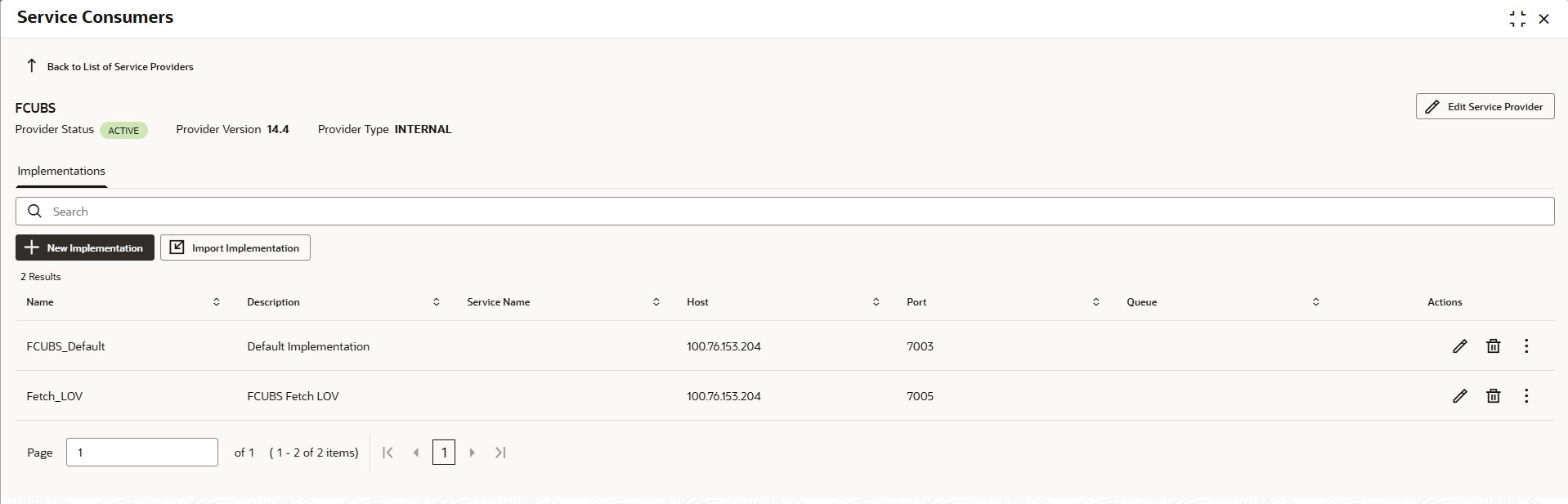

   Figure 1-11 FCUBS





   Description of "Figure 1-11 FCUBS"



9. Click .
   The Edit Implementation screen displays.

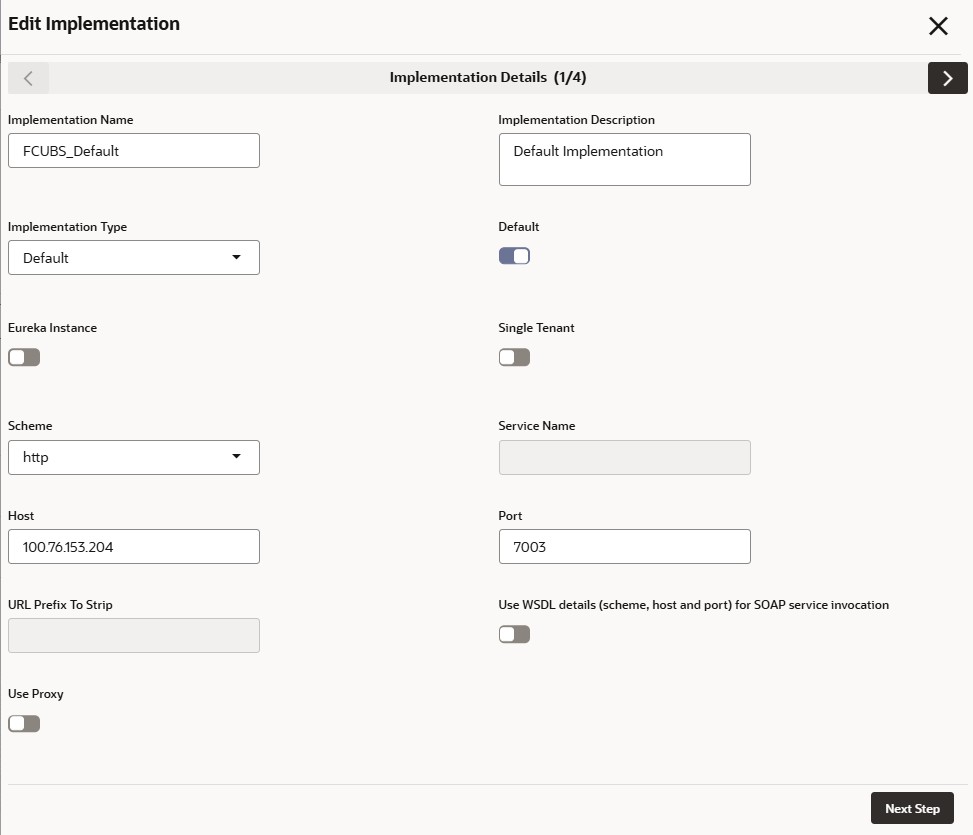

   Figure 1-12 Edit Implementation





   Description of "Figure 1-12 Edit Implementation"



10. Change the host and port as per the Oracle FLEXCUBE Universal Banking installation and click Save.
11. Repeat the same for all the FCUBS Service Providers.
    The below consumer services will be imported.

    Table 1-3 List of Consumer Service

    Consumer Service	Description
    Collateral_Creation	Usage: Create Local Collateral Service: FCUBSCoreService Operation: CreateLocalCollateral
    CASA_Account_Creation	Usage: Create CASA Account Service: FCUBSAccService Operation: CreateCustAcc
    Loan_Simulation	Usage: Perform Loan Account Simulation Service: FCUBSCLService Operation: CreateAccountSim
    TD_Simulation	Usage: Perform Term Deposit Account Simulation Service: FCUBSAccService Operation: QueryTDCustAccSim
    Get_Liability_Interest_Details	Usage: Fetch Liability Interest and Charge Details Service: FCUBSSTService Operation: QueryAccClasUde
    Get_Liability_Product_Details	Usage: Fetch Liability Product Details Service: FCUBSSTService Operation: QueryAccClasQuery
    Get_Loan_Product_Details	Usage: Fetch Loan Product Details Service: FCUBSCLService Operation: QueryProduct
    List_All_Loan_Products	Usage: List Loan Products Service: FCUBSCLService Operation: SummaryQueryProduct
    List_All_Liability_Products	Usage: List Liability Products Service: FCUBSSTService Operation: SummaryQueryAccClasMaint
    TD_Account_Creation	Usage: Create Term Deposit Account Creation Service: FCUBSAccService Operation: CreateTDCustAcc
    Loan_Account_Creation	Usage: Create Loan Account Creation Service: FCUBSCLService Operation: CreateAccount
    fetchTDAccount	Usage: Fetch TD accounts which are tagged as Collateral Linkage, for a particular customer number. This will be used for attaching TD accounts as collaterals in Oracle Banking Originations Cloud Service screens Service: fcubs-co-mo-lov-service Note: Make sure that the above service is deployed in FCUBS. Also make sure that the following INC which is released as part of FCUBS is present in CSTB_LOV_INFO table.
