This topic describes systematic instructions to maintain Oracle Banking Routing Hub configuration in common core for Oracle Banking Retail Deposit.

1. On Home screen, click Core Maintenance. Under Core Maintenance, click Routing Hub. Under Routing Hub, click Service Consumers.
   The Service Consumers screen is displayed.

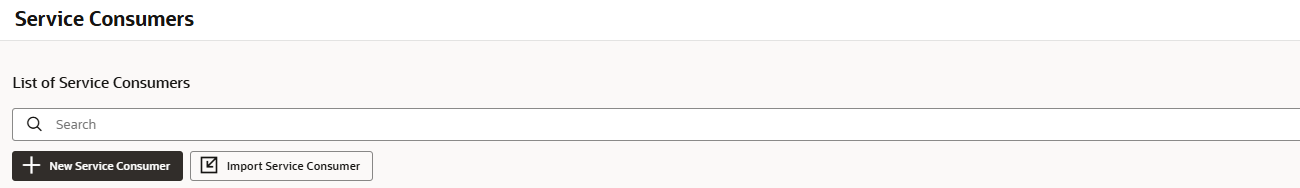

   Figure 1-1 Service Consumers





   Description of "Figure 1-1 Service Consumers"



2. Select Import Service Consumer and upload the RPM_ORIGINATION_Consumer.json file provided in the release and then click Extract.

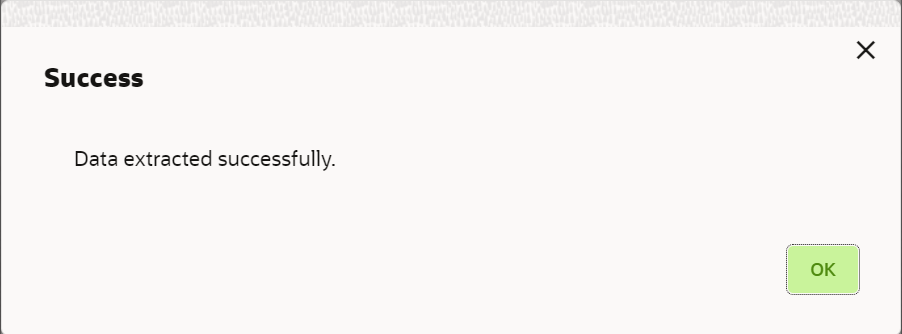

   Figure 1-2 Success





   Description of "Figure 1-2 Success"



3. Select OBRDEP and click Import.

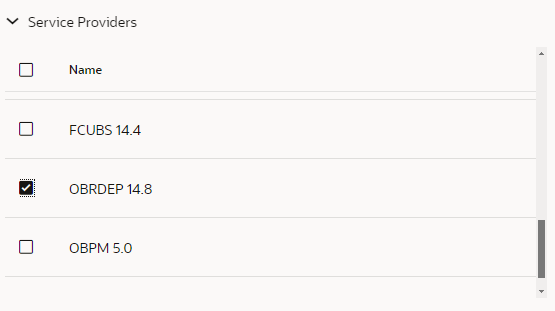

   Figure 1-3 Service Providers





   Description of "Figure 1-3 Service Providers"

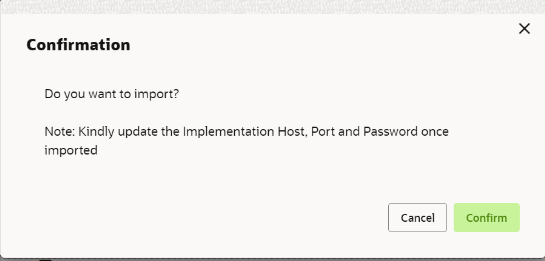

   Figure 1-4 Confirmation





   Description of "Figure 1-4 Confirmation"

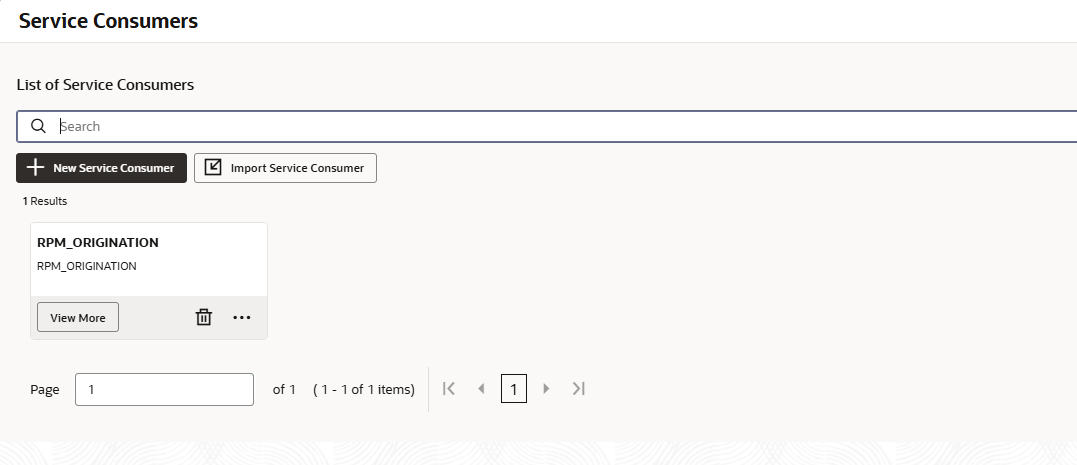

   Figure 1-5 RPM Origination





   Description of "Figure 1-5 RPM Origination"



4. Click RPM_ORIGINATION. Under RPM_ORIGINATION, click OBRDEP.
   The Service Provider screen displays.

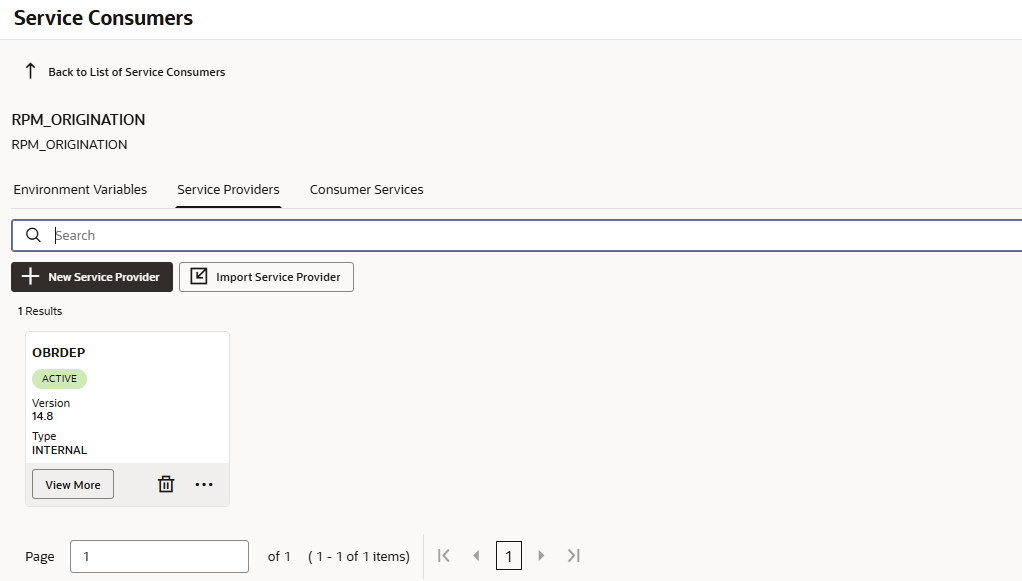

   Figure 1-6 Service Provider





   Description of "Figure 1-6 Service Provider"

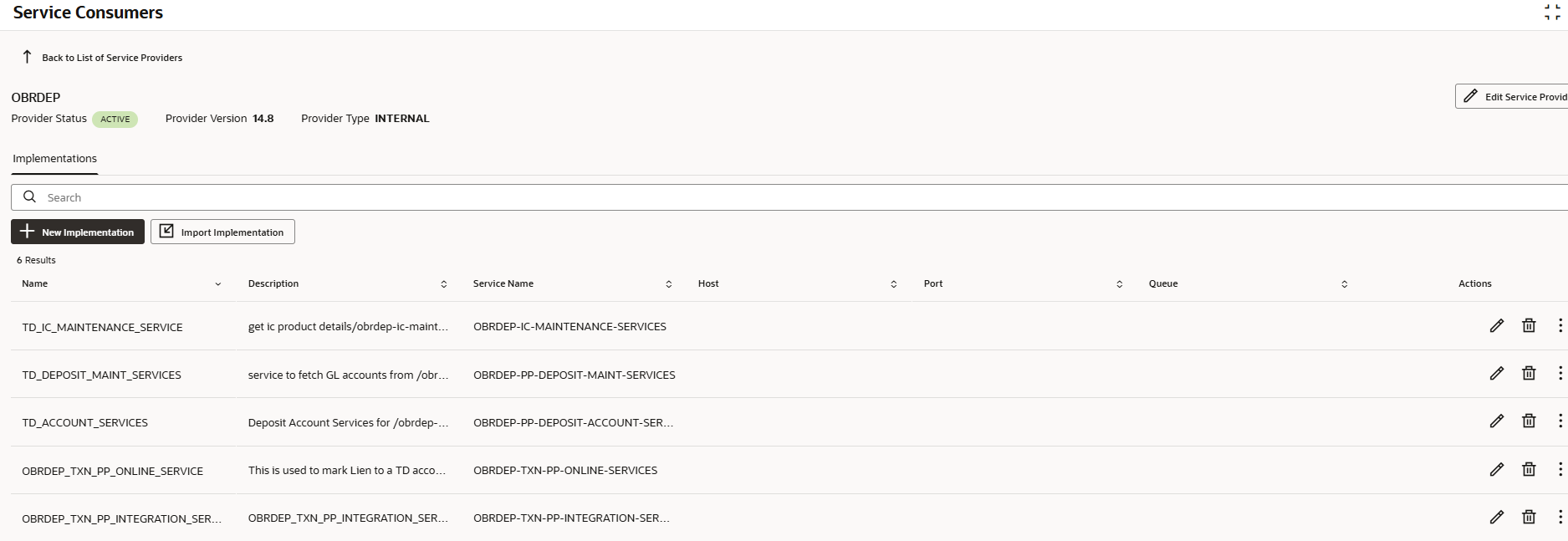

   Figure 1-7 RDEP Implementation





   Description of "Figure 1-7 RDEP Implementation"



5. Click Edit.
6. Change the host and port as per the Oracle OBRDEP installation.Click Next and save it.
   The Edit Implementation screen displays.

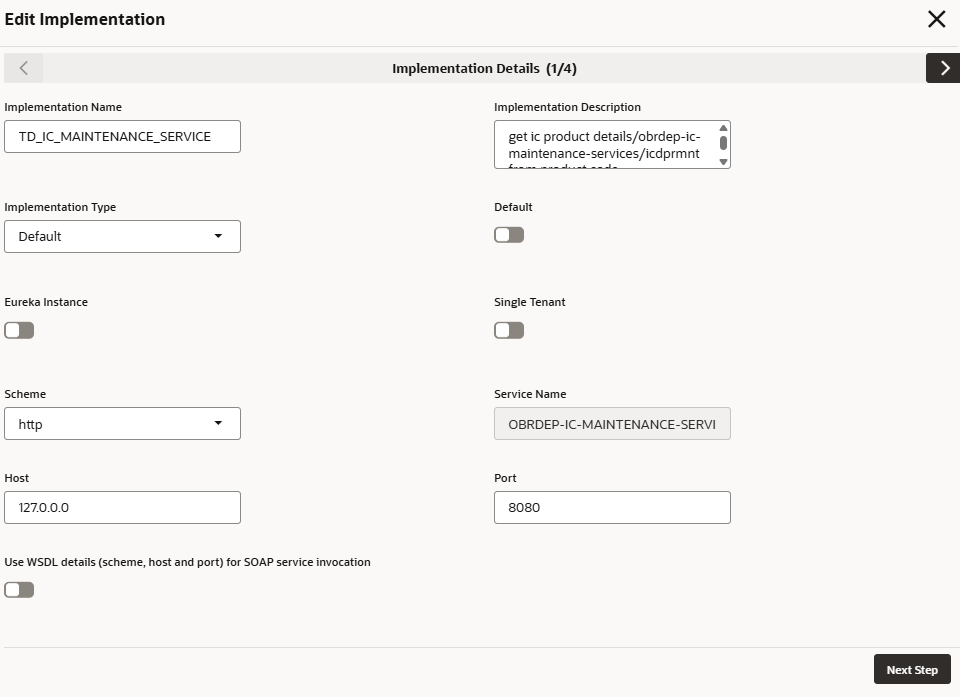

   Figure 1-8 Edit Implementation





   Description of "Figure 1-8 Edit Implementation"



7. Repeat the same for all the RDEP Service Provides.
8. The below consumer services will be imported.

   Table 1-1 Consumer Service

   Consumer Service	Description
   TD_Account_Creation	Usage: Create Term Deposit Account Transformation: TD_Account_Creation_Transform_OBRDEP
   TD_Simulation	Usage: Get simulated data of the interest and maturity value for the TD account Transformation: TD_Simulation_Transform_OBRDEP ,TD_Simulation_Get_UDE_Transform_OBRDEP
   TD_Get_Interest_Details	Usage: Get Interest Details For Term Deposit Transformation: TD_Get_Interest_Details_Transform_OBRDEP
   TD_Fetch_GL_Accounts	Usage: Fetch GL Account Details Transformation: Get_GL_Accounts_Transform_OBRDEP
   fetchTdAccount	Usage: Fetch TD accounts Transformation: fetchTdAccount_obrdep
   createTdAmtBlk	Usage: This is used to perform Lien Marking on TD Transformation: createTDAmtBlk
   closeTDAmtBlk	Usage: This is used to un-mark Lien Transformation: closeTDAmtBlk
   TD_Fetch_GL_Accounts	Usage: This is used to get GL account. Transformation: GET_GL_ACC_OBRDEP
