1.2 Maintenance for Product Processor as environment variable

This topic describes systematic instructions to maintain Oracle Banking Routing Hub configuration in common core for Oracle Banking Retail Deposit.

  1. On Home screen, click Core Maintenance. Under Core Maintenance, click Routing Hub. Under Routing Hub, click Service Consumers.
  2. Click View More.
    The View More screen displays.

    Figure 1-9 View Service Consumer


    Description of Figure 1-9 follows
    Description of "Figure 1-9 View Service Consumer"

  3. Under Environment Variables, Click New Group and create new group as ASSETS.
    The Service Consumer screen displays.

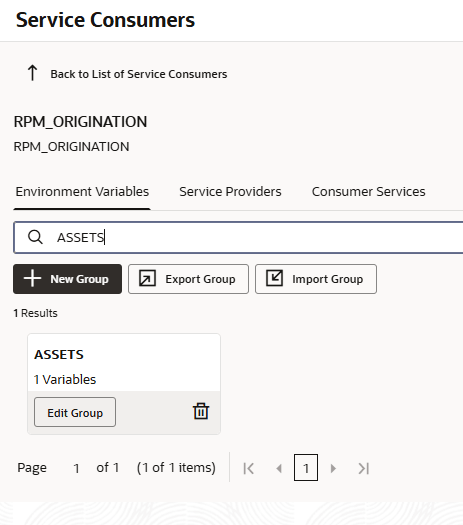

    Figure 1-10 Add Group


    Description of Figure 1-10 follows
    Description of "Figure 1-10 Add Group"

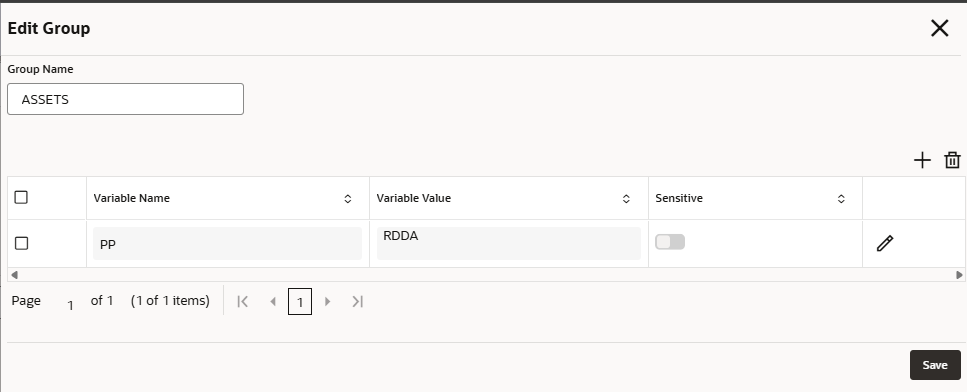

  4. Once the ASSETS group is created, select Edit Group, add a variable named PP, and assign it the value RDDA.
  5. Click RPM_ORIGINATION. Under RPM_ORIGINATION, click Consumer Services.
  6. Follow below steps for all consumer services mentioned in point number 10 of 2.2 section.
    1. Search List_All_Loan_Products.
    2. Click View More.
      The View Consumer Services screen displays.

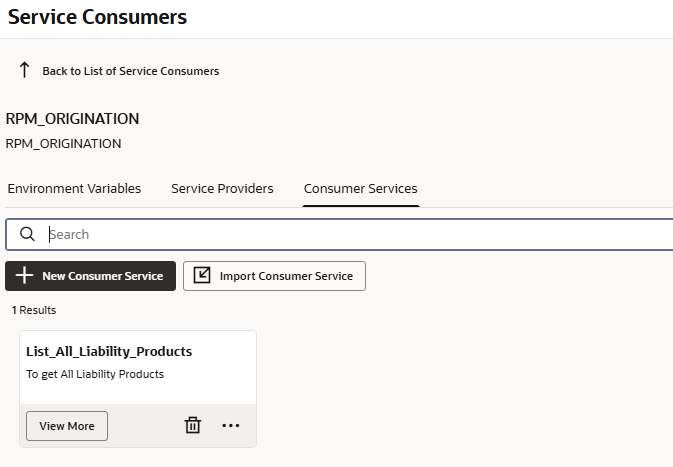

      Figure 1-12 View Consumer Services


      Description of Figure 1-12 follows
      Description of "Figure 1-12 View Consumer Services"

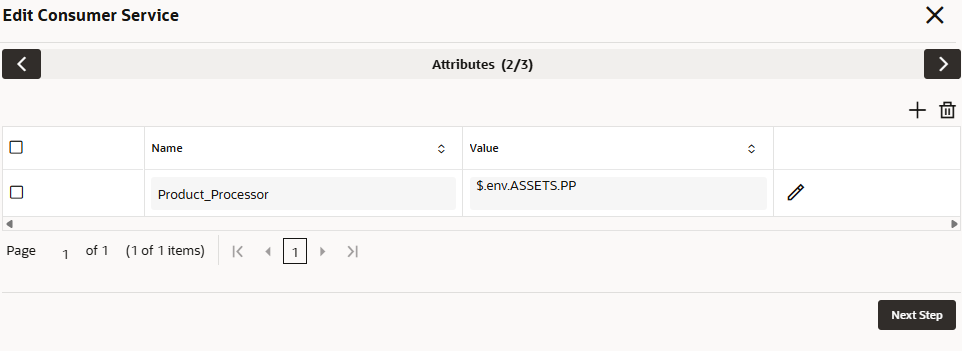

    3. Add Product_Processor as a new attribute, include the JSON path, and save the changes.

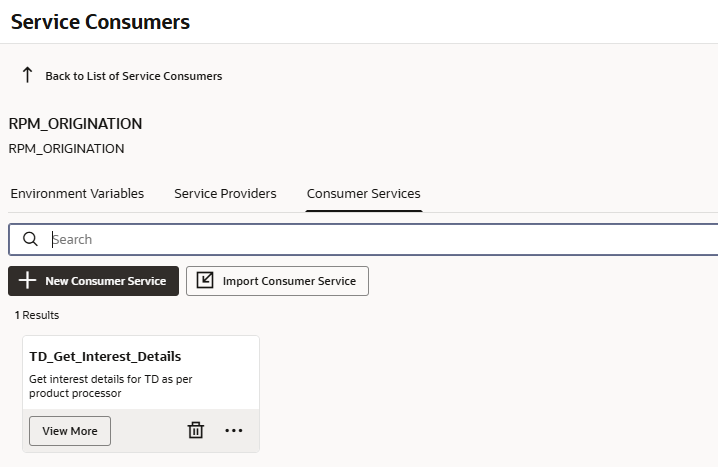

    4. Search TD_Get_Interest_Details under Consumer service and select View More.

      Figure 1-14 Consumer Services


      Description of Figure 1-14 follows
      Description of "Figure 1-14 Consumer Services"

    5. Click on Routing. Click on Edit for TD_Get_Interest_Details_Route_OBRDEP route.

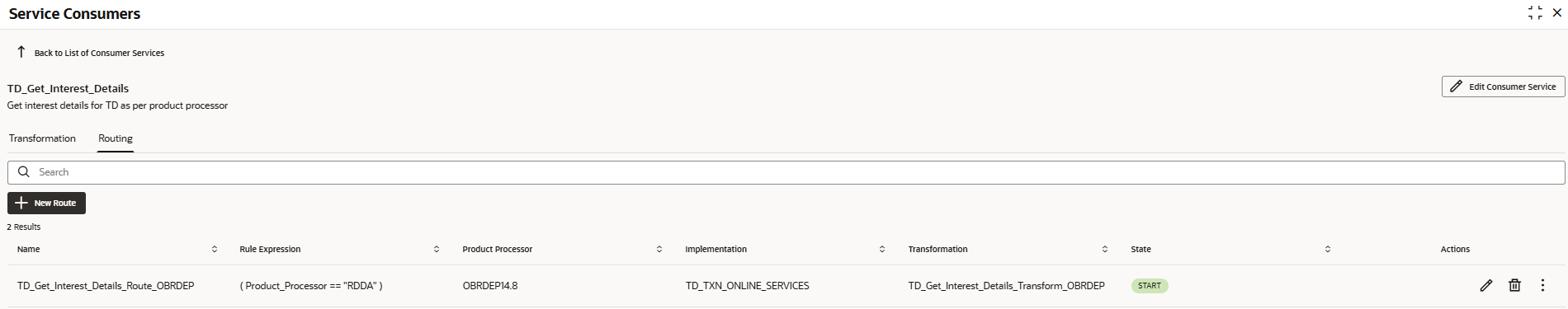

      Figure 1-15 Service Consumers


      Description of Figure 1-15 follows
      Description of "Figure 1-15 Service Consumers"

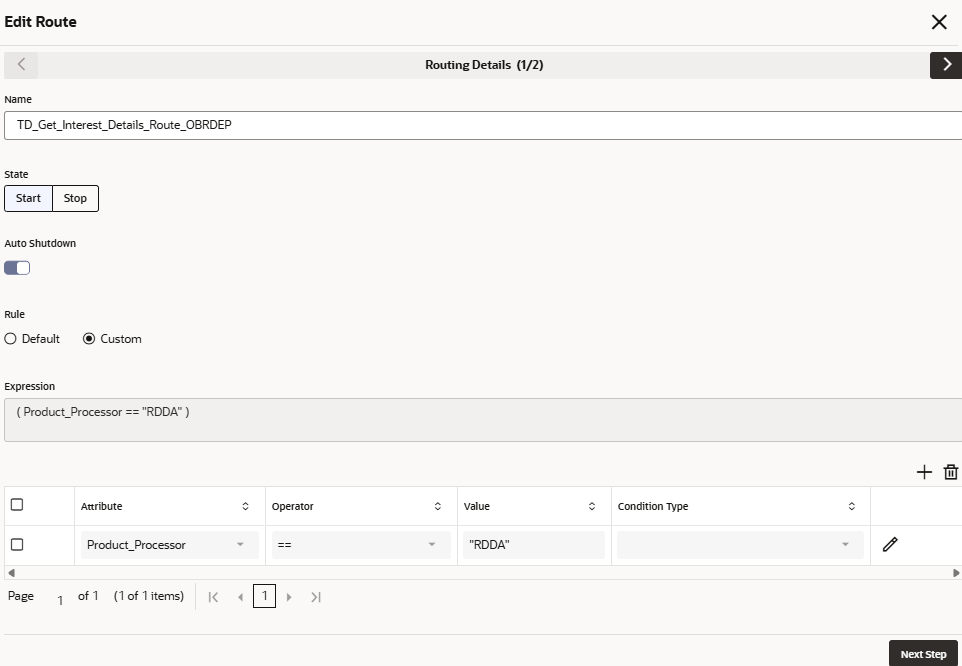

    6. Click Custom, under Rule. Click on
      Add

      .

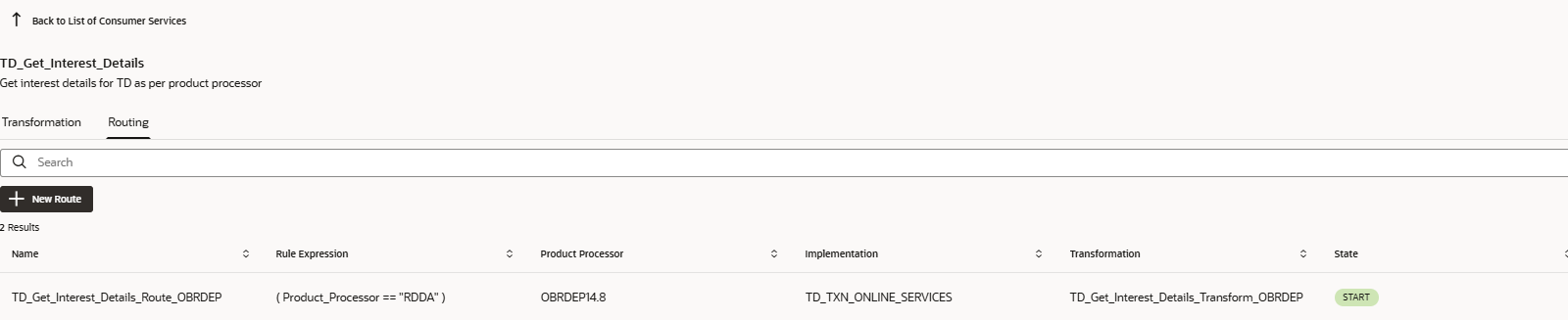

    7. Add Product_Processor as attribute and RDDA. Click
      Save

      .

Parent topic: Introduction
