4.5 Alexa Channel

This topic describes the systematic instruction to Alexa Channel option. Creating an Alexa skill called futuraBank along with a Webhook channel lets you chat with a specific bot.

Creating an Alexa skill called Futura Bank along with a Webhook channel lets you chat with a specific bot.

Add the skill information

Set up a developer account in the Amazon Developer Portal.

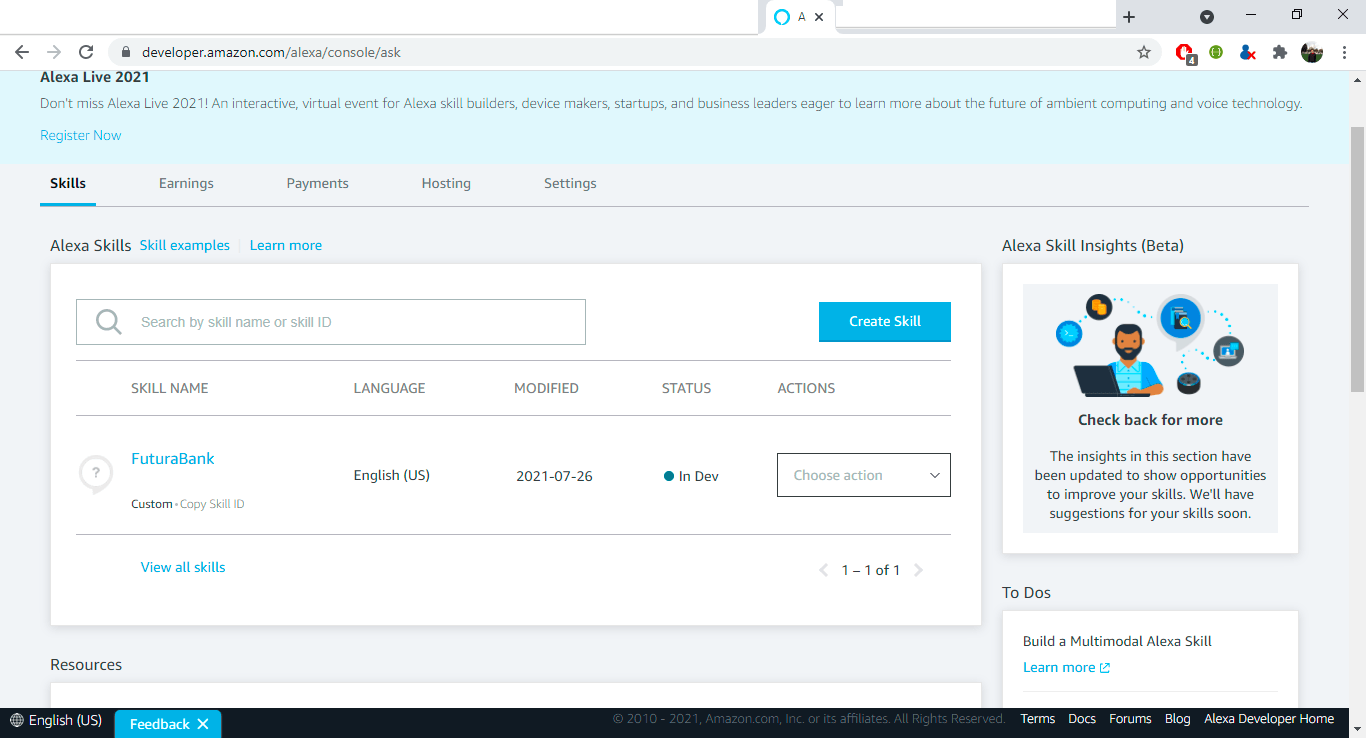

  1. Open the Amazon Developer Console.
  2. Click on ‘Create Skill’.
    Description of alexaconfig1.png follows
    Description of the illustration alexaconfig1.png

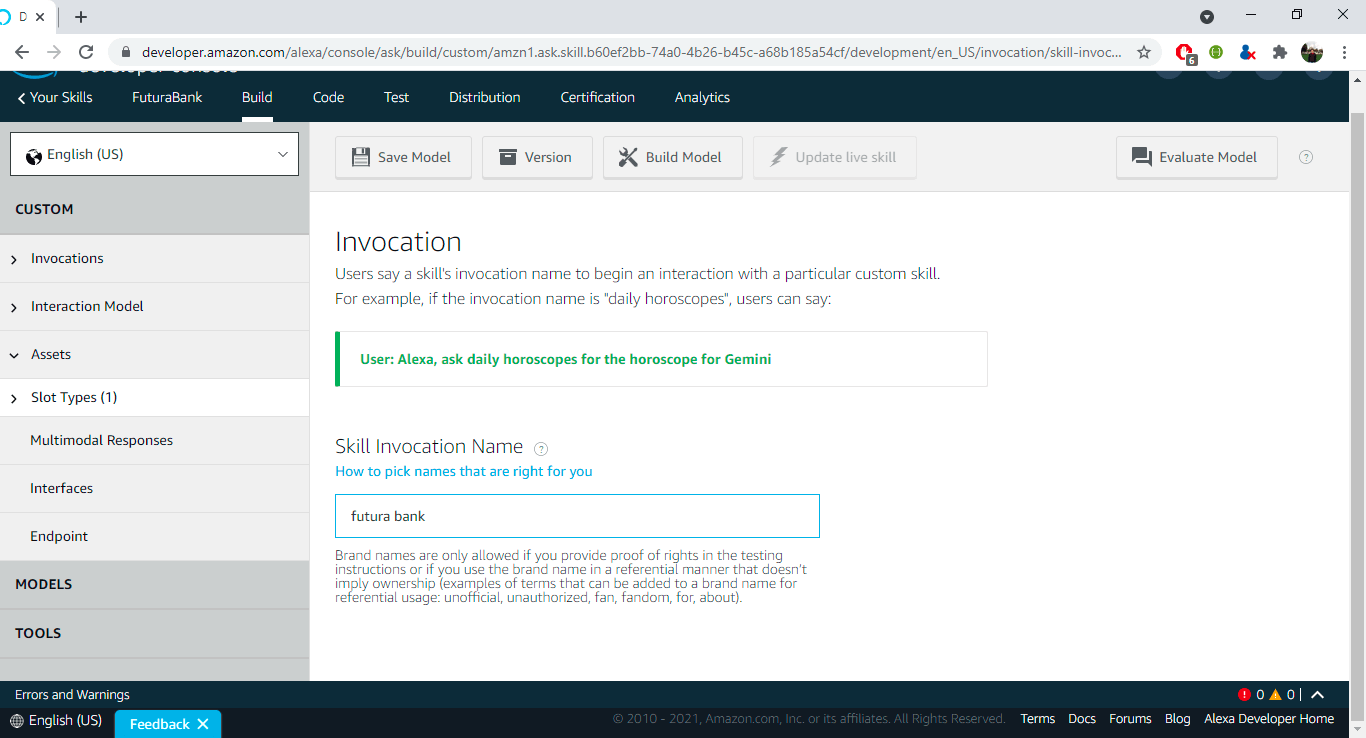

  3. Enter Futurabank (or any name that you want to use to invoke this skill) as the Invocation Name.
    Description of alexachannel2.png follows
    Description of the illustration alexachannel2.png

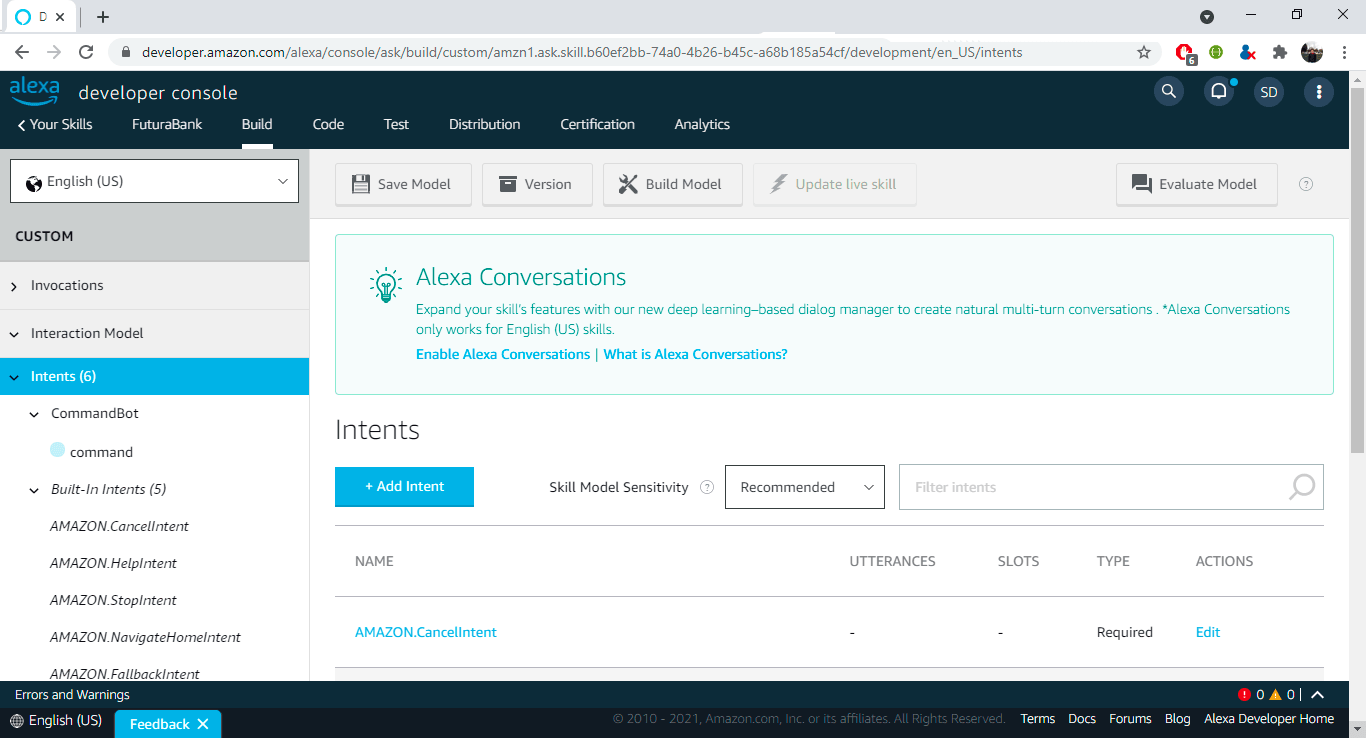

  4. Add new intent as CommandBot.
    Description of alexachannel3.png follows
    Description of the illustration alexachannel3.png

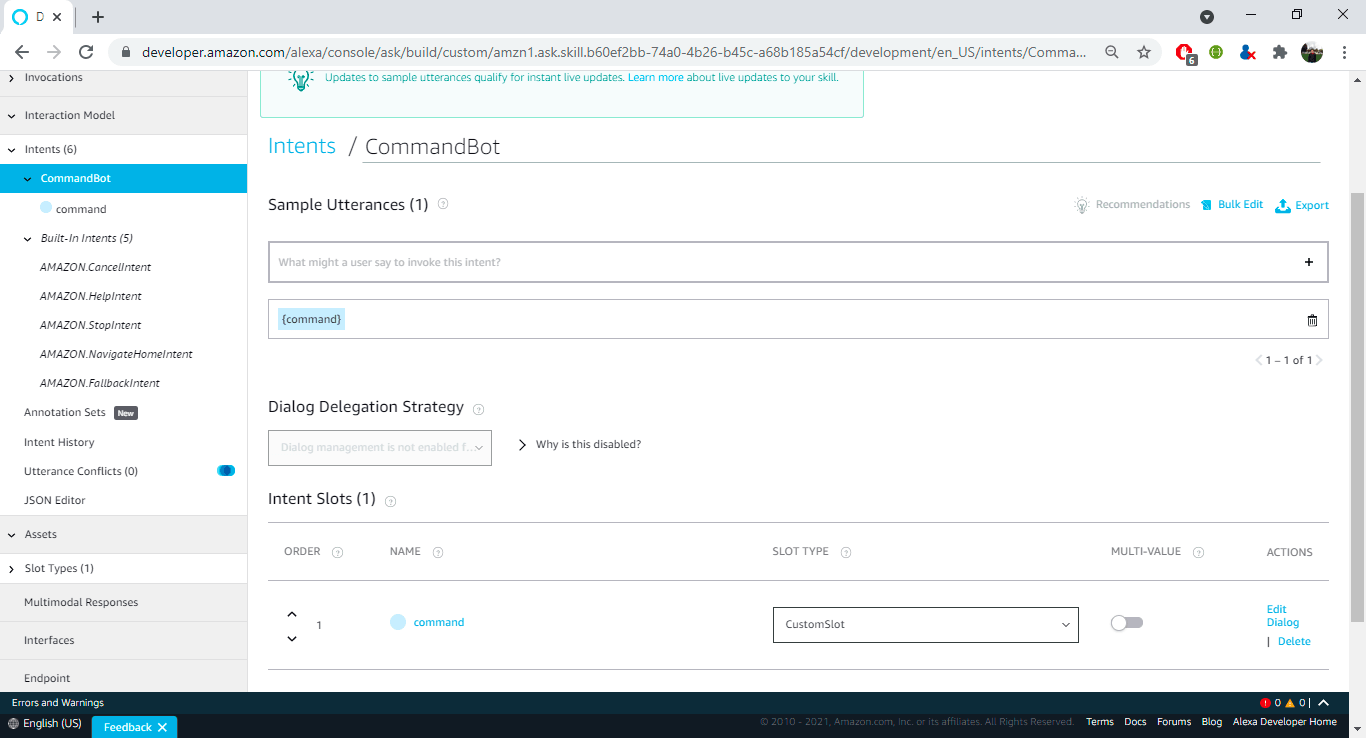

  5. Add sample utterance to it
    Description of alexachannel4.png follows
    Description of the illustration alexachannel4.png

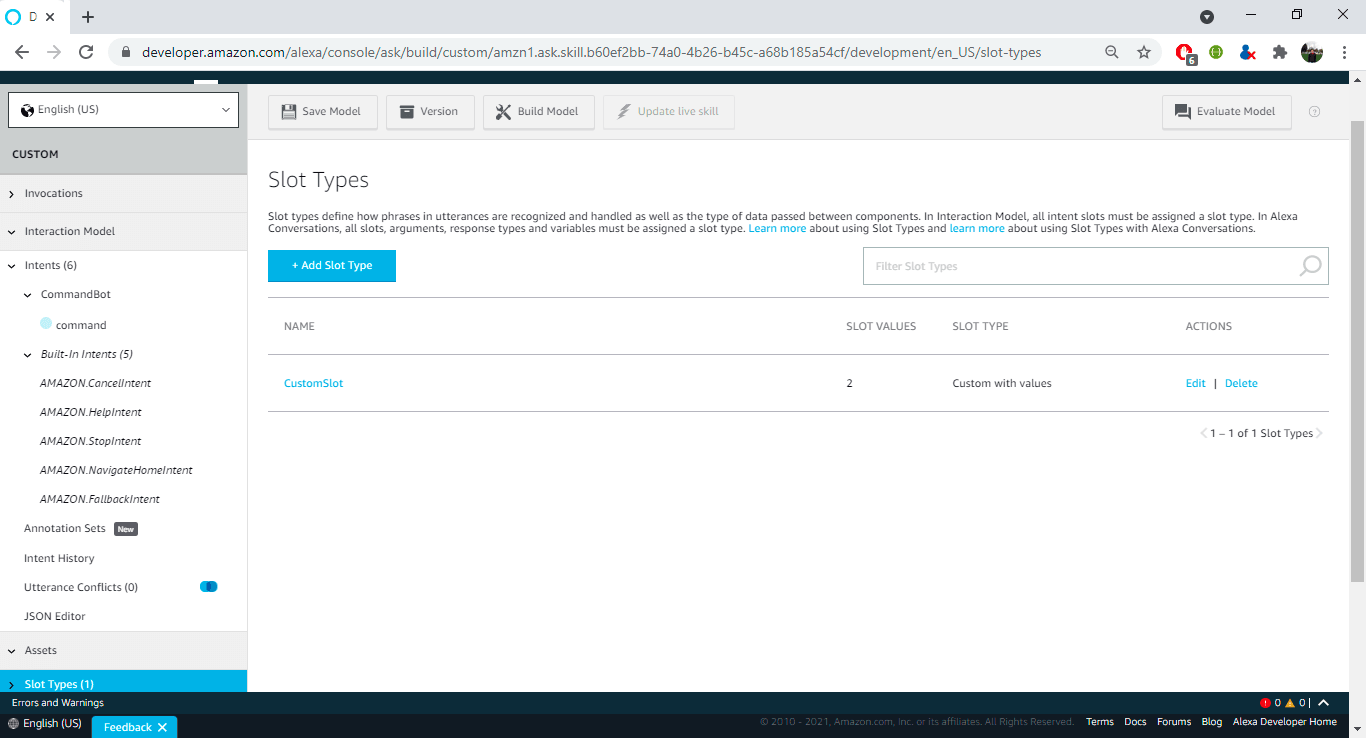

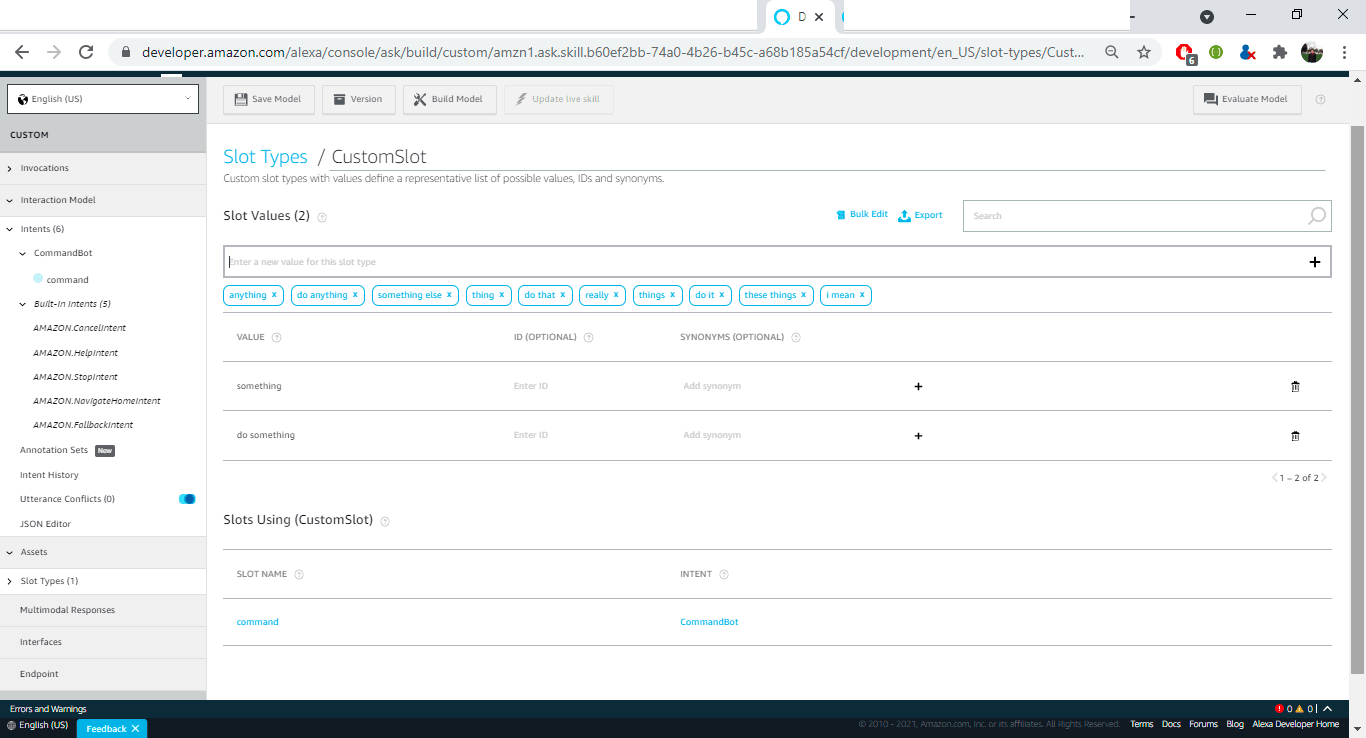

  6. Create custom slot.
    Description of alexachannel5.png follows
    Description of the illustration alexachannel5.png


    Description of alexachannel6.png follows
    Description of the illustration alexachannel6.png

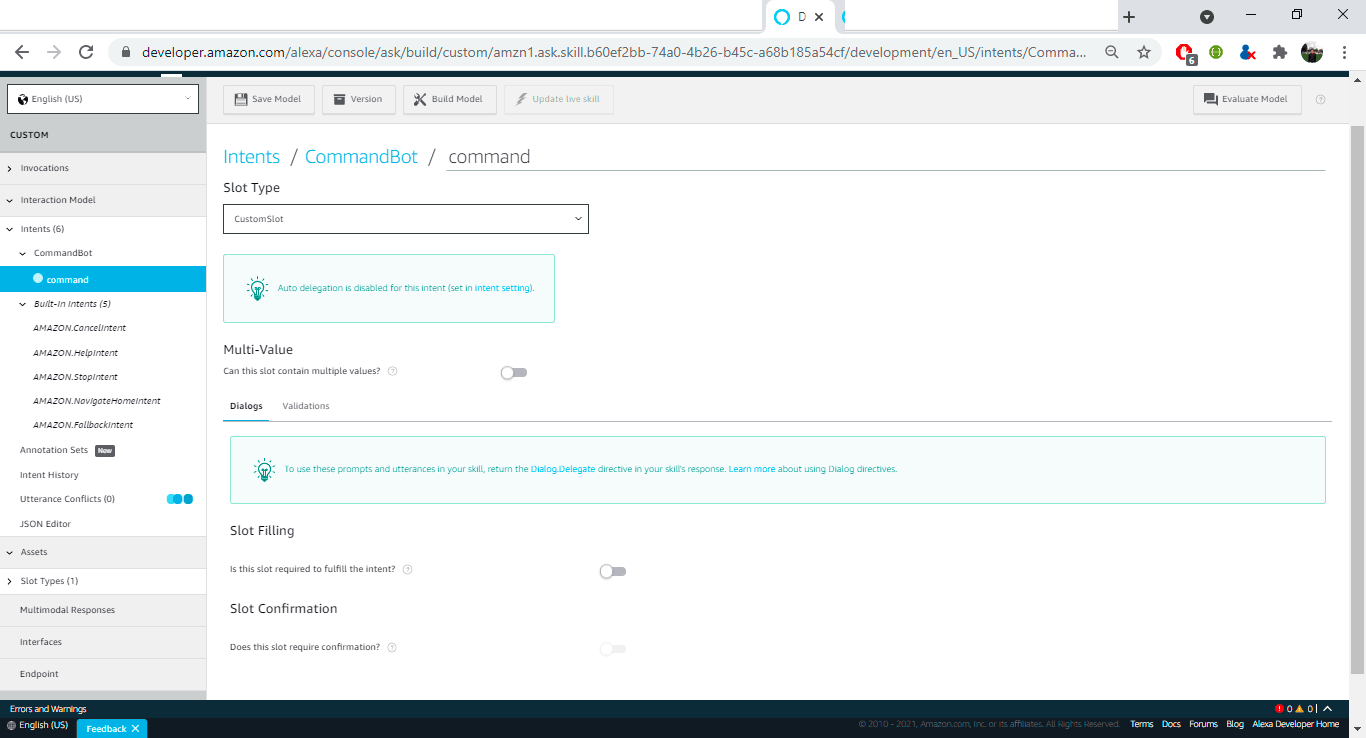

  7. Update this CustomSlot in previously added intent.
    Description of alexachannel7.png follows
    Description of the illustration alexachannel7.png

  8. Click Build Model in Build tab.

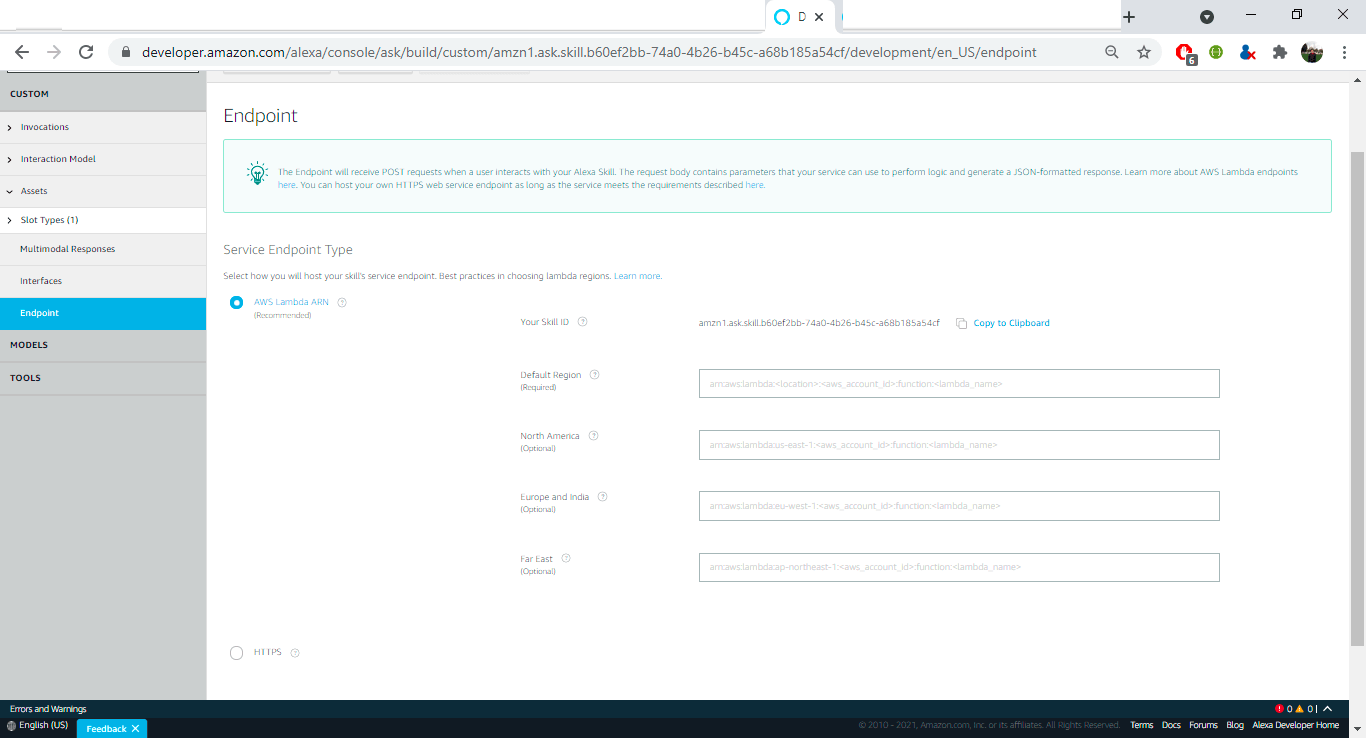

  9. Update endpoint and add CA.
  10. Note the skill ID.
    Description of alexachannel8.png follows
    Description of the illustration alexachannel8.png

Setup Account Linking for Alexa

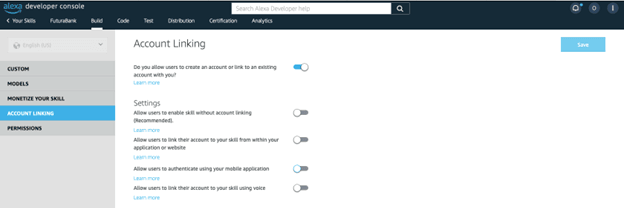

  1. Go to Account Linking tab in Alexa console and enable “allow users to create an account or link to an existing account”.
  2. In the Security Provider Information, select “Auth Code Grant” and set your web authorization Uri ,and access token
  3. Set scope to “accounts”.
    Description of alexaconfig9.png follows
    Description of the illustration alexaconfig9.png

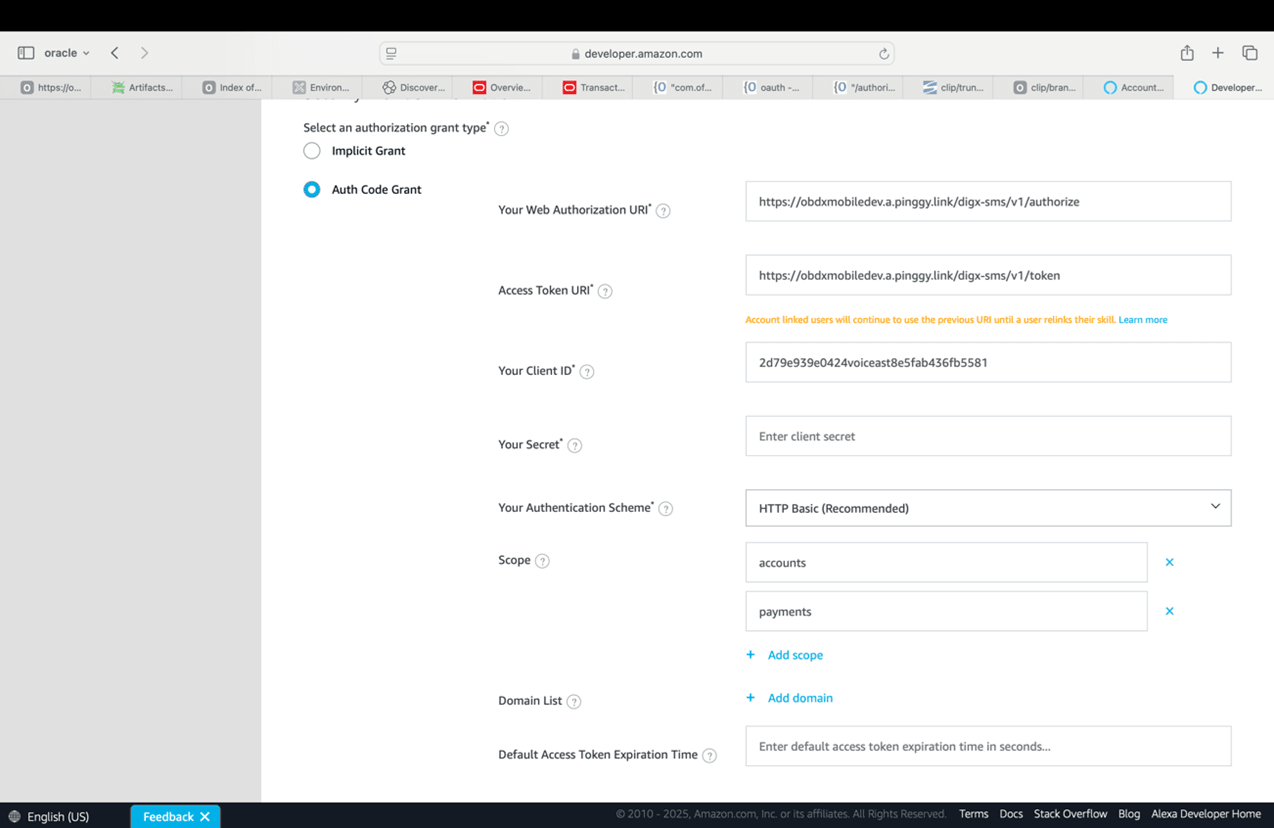

    Description of alexachannel10.png follows
    Description of the illustration alexachannel10.png

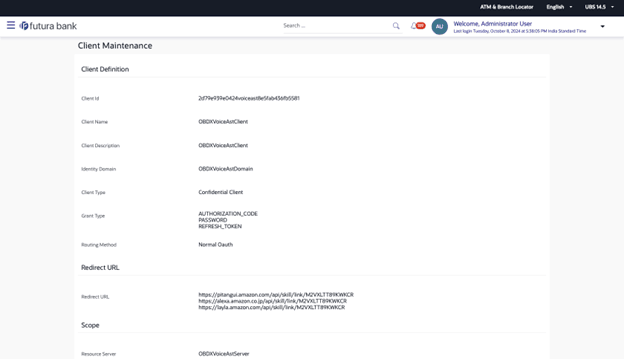

  4. Set the client Id for client from client Maintenance page for “OBDXVoiceAstDomain” identity domain client.
  5. Click Edit and set the client secret for the above client.
    Description of alexachannel11.png follows
    Description of the illustration alexachannel11.png

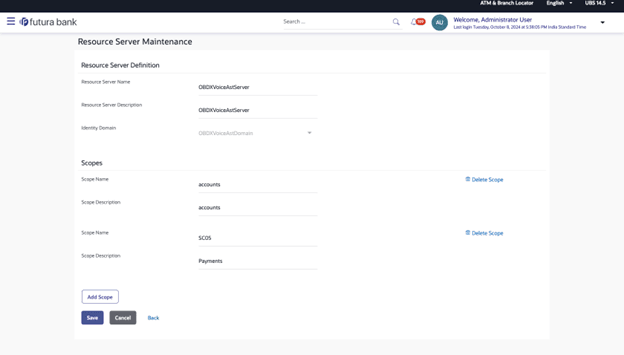

  6. Go to Resource Server Maintenance page and select Identity domain to OBDXVoiceAstDomain.
  7. Edit the Scope Name of SCO2 to “accounts” and Scope Description to “accounts”.
    Description of alexchannel12.png follows
    Description of the illustration alexchannel12.png

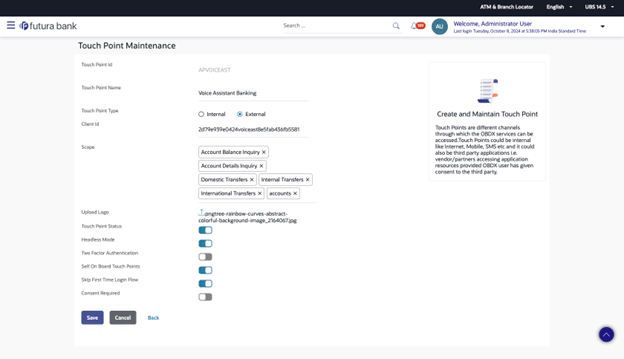

  8. Go to Touch Point Maintenance page and search for Voice Assistant Banking touch point name.
  9. Add “accounts” scope to the list of scopes, and add upload your bank logo.
  10. Enable Touch point status.
    Description of alexchannel13.png follows
    Description of the illustration alexchannel13.png

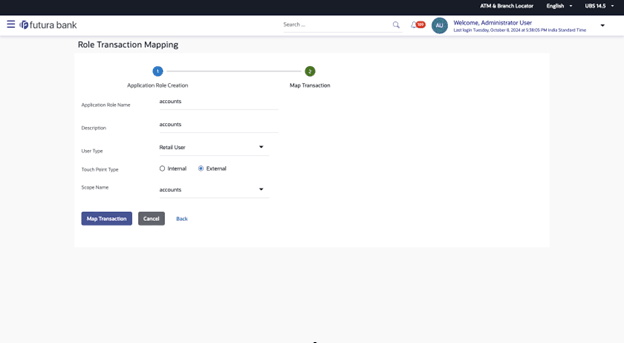

  11. Go to Role Transaction Mapping page, and create an external user and add accounts scope.
    Description of alexchannel14.png follows
    Description of the illustration alexchannel14.png

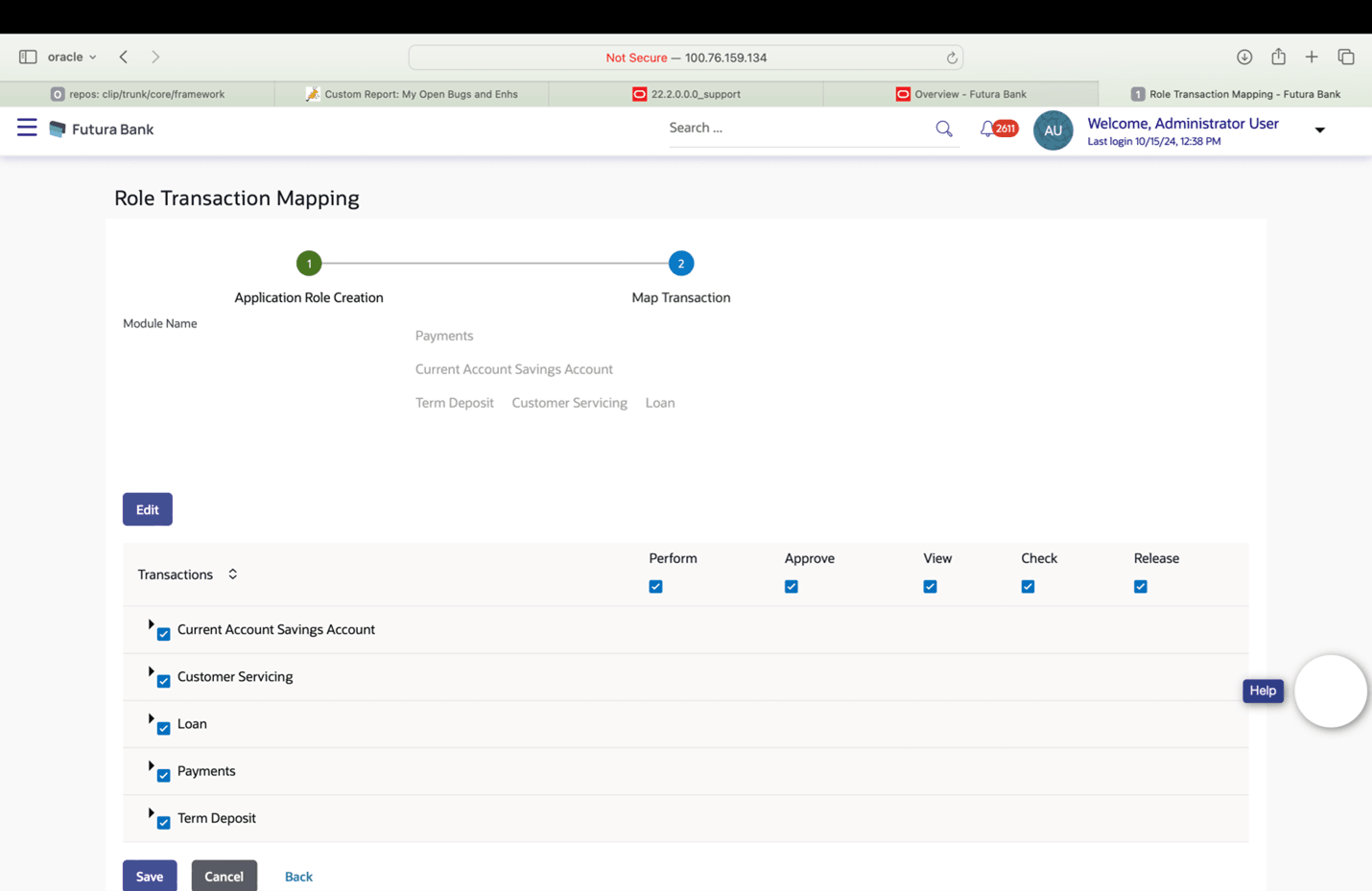

  12. Add module “current account savings account”, “term deposit”, “customer servicing” and “loan”,”payments”.
    Description of alexchannel15.png follows
    Description of the illustration alexchannel15.png

  13. Set the 'CODE_CHALLENGE_FLAG' , 'OPAQUE_ACCESS_TOKEN_FLAG' flags to N in auth_config table.

    update auth_config set prop_value='N' where prop_id='CODE_CHALLENGE_FLAG';

    update auth_config set prop_value='N' where prop_id='OPAQUE_ACCESS_TOKEN_FLAG';

  14. Update token_expiry in digx_au table for OBDXVoiceAstDomain domain_id

    update DIGX_AU_tokendetail set TOKEN_EXPIRY=600 where DOMAIN_ID='c733dee8-6e4f-4400-8170-cf7c6ef98165';

  15. Restart the server.

Create a Webhook channel in ODA

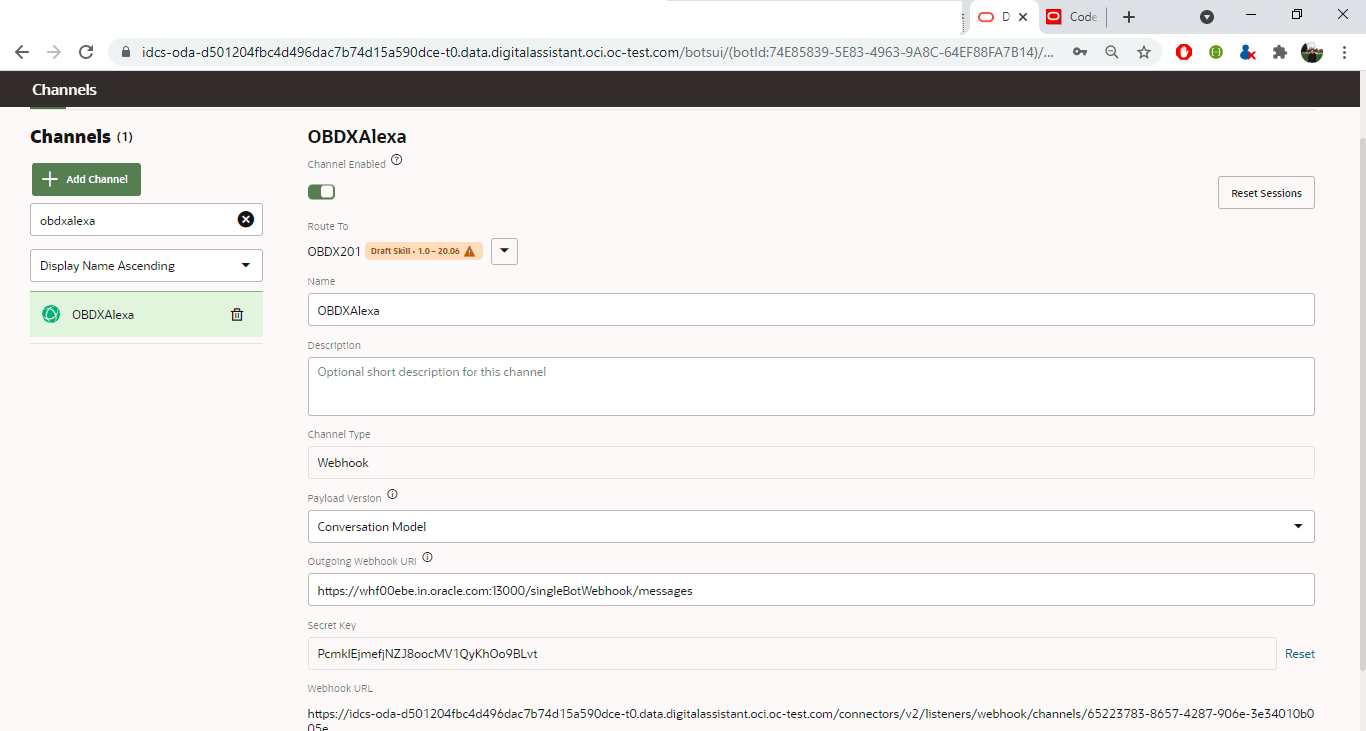

  1. In the Bot Builder, create a webhook channel for your bot. In the Create Channel dialog, enter the outgoing Webhook URL as https://bots-samples-nodejs:8889/ext/apps/alexa-singleBot/singleBotWebhook/messages. This URL is where your bot will send its responses back to the Alexa Futura Bot skill.
    Description of alexachannel9.png follows
    Description of the illustration alexachannel9.png

    1. Update amzn_appId, channelSecretKey & channelUrl in service.js
    2. Run nodeJS script
    3. npm install
    4. node index.js

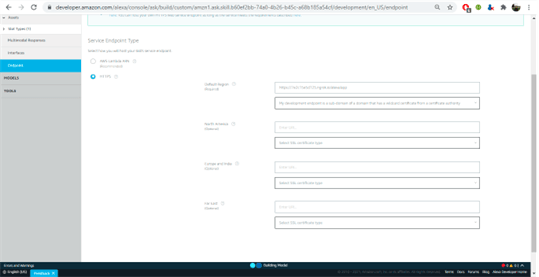

    5. This must be publicly hosted in https URL.
    6. Enter this URL in below screen
      Description of alexchannel17.png follows
      Description of the illustration alexchannel17.png

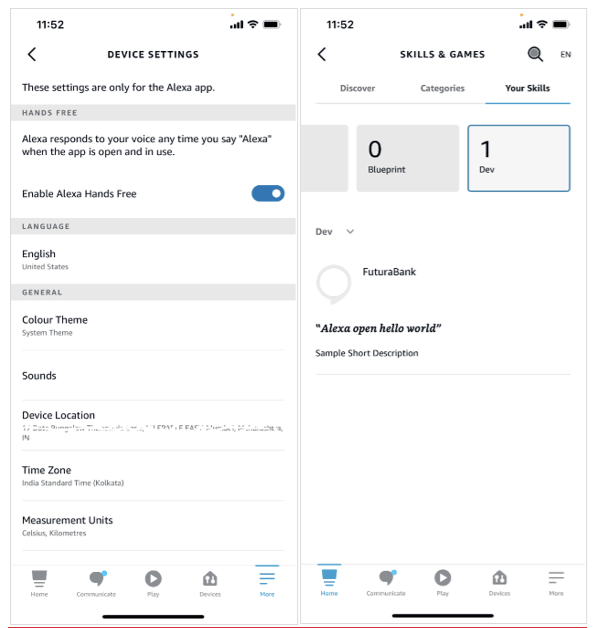

  2. In the Alexa Mobile App
    1. Ensure that the skill is visible.
    2. Change the language to English US.
      Description of alexchannel18.png follows
      Description of the illustration alexchannel18.png

  3. Link your amazon account for your skill through alexa app.

Parent topic: Configuring Channels in ODA
