This topic explains the ODTOperations.properties in detail.

Configure the Operations files as per Requirement.

Execution of Operation will be as per the sequence maintained in OdtOperations.properties.

1. LOGIN

   LOGIN should always be the first operation to be configured as part of any execution.

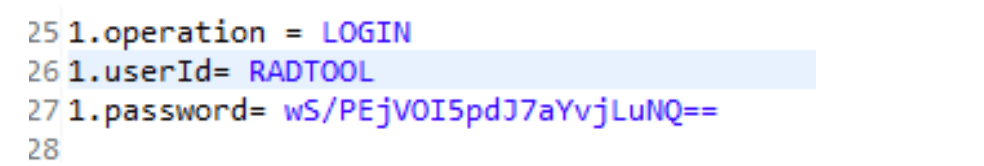

   Figure 2-3 SilentODT Login Properties





   Description of "Figure 2-3 SilentODT Login Properties"




   Table 2-4 Log in to Tool

   Field	Description
   Operation	LOGIN
   User Id	Specify the Open Development Tool User ID which is created in the Open Development Tool Application
   Password	Specify the Open Development Tool Password which is created in the Open Development Tool Application. Encrypted using ODTPassEncryption.bat. Refer section Configure SilentODTUtility for more details about encryption.

2. SETRELEASE
   This operation can be used for setting Release and Environment Preferences for SilentODTUtility.

   Note:

   Connection to the FLEXCUBE Universal Banking schema would be established based on data maintained in Open Development Tool or through the data in env_config.xml as explained in earlier section.

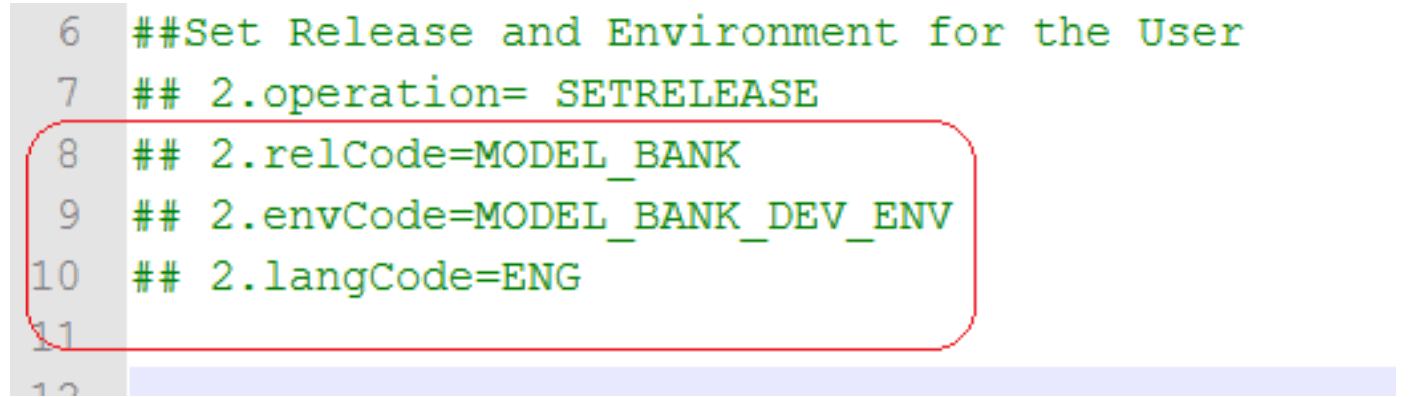

   Figure 2-4 SilentODT Set Release Properties





   Description of "Figure 2-4 SilentODT Set Release Properties"




   Table 2-5 Set Release and Environment for User

   Field	Description
   Operation	SETRELEASE
   relCode	Specify the Open Development Tool Release Code which is created in the Open Development Tool Application.
   envCode	Specify the Open Development Tool Environment Code which is created in the Open Development Tool Application.
   langCode	Specify the Lang code for the mentioned release code.

3. BULKGENERATION
   For generating all RADXML artifacts for release in bulk this feature can be used.

   Table 2-6 BULKGENERATION

   Field	Description
   radxmlListFile	Prepare text file which contains absolute path of all RADXML's. Provide the same file path.
   srcPath	Source path refers to the path where all RADXML's are presented. List File would be generated by the tool in this case. Note that only either radxmlListFile or srcPath should be present. If both are present, then the radxmlListFile parameter would be considered for Bulk Generation.
   fileType	EXTENSIBLE: artifacts generated only for extensible screens. NON_EXTENSIBLE: artifacts generated only for non-extensible screens. BOTH: artifacts for all files would be generated.
   destpath	Provide the path where the files will be generated.
   gen	Provide the type of files to be generated. For example, UIXML, SYS_JS, MAIN_SPC, MAIN_SQL,KERNEL_SPC, KERNEL_SQL

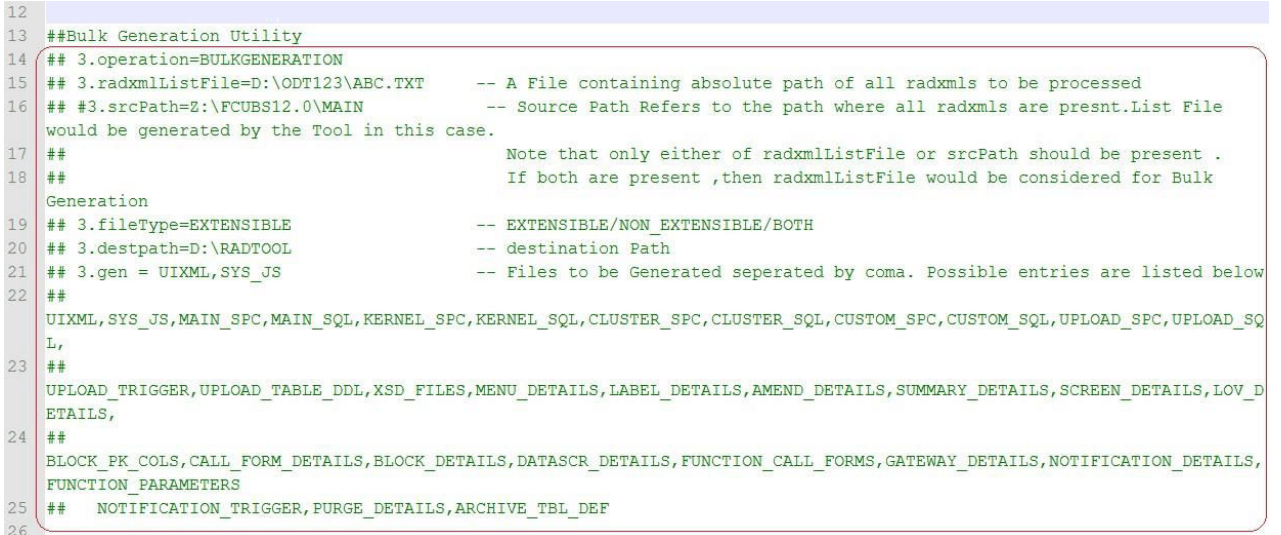

   Figure 2-5 SilentODT Bulk Generation Properties





   Description of "Figure 2-5 SilentODT Bulk Generation Properties"




   Table 2-7 Bulk Generation Utility

   Input

   Output

   radxmlListFile srcPath fileType gen destpath

   UIXML,SYS_JS,MAIN_SPC,MAIN_SQL,KERNEL_SPC,KERNEL_SQL, CLUSTER_SPC,CLUSTER_SQL,CUSTOM_SPC,CUSTOM_SQL, UPLOAD_SPC,UPLOAD_SQL,UPLOAD_TRIGGER,UPLOAD_TABLE_DDL, XSD_FILES,MENU_DETAILS,LABEL_DETAILS,AMEND_DETAILS, SUMMARY_DETAILS,SCREEN_DETAILS,LOV_DETAILS, BLOCK_PK_COLS,CALL_FORM_DETAILS,BLOCK_DETAILS, DATASCR_DETAILS,FUNCTION_CALL_FORMS,GATEWAY_DETAILS, NOTIFICATION_DETAILS,FUNCTION_PARAMETERS NOTIFICATION_TRIGGER,PURGE_DETAILS,ARCHIVE_TBL_DEF in destpath

4. REFRESH
   Refresh Functionality allows developers to upgrade the existing radxml to its later version keeping the sub version specific changes intact. Three kinds of refresh can done using the Tool. (Refer to the Development Workbench - Source Upgrade).

   • Child Refresh
   • Screen Child Refresh
   • Source Refresh

   Table 2-8 REFRESH

   Field	Description
   Refresh Type	Provide the refresh type (CHILD_REFRESH/SCRCHILD_REFRESH/SOURCE_REFRESH).
   srcFileList	A text file containing the list of all source RADXMLs. i.e. RADXMLs have to be refreshed.
   baseFileList	A text file containing the list of all base RADXMLs.
   srcRelType	Provide the release type of source RADXMLs list(KERNEL/CLUSTER/CUSTOM).
   baseRelType	Provide the release type of base RADXMLs list (KERNEL/CLUSTER/CUSTOM).
   destpath	Provide the path where the files will be generated.

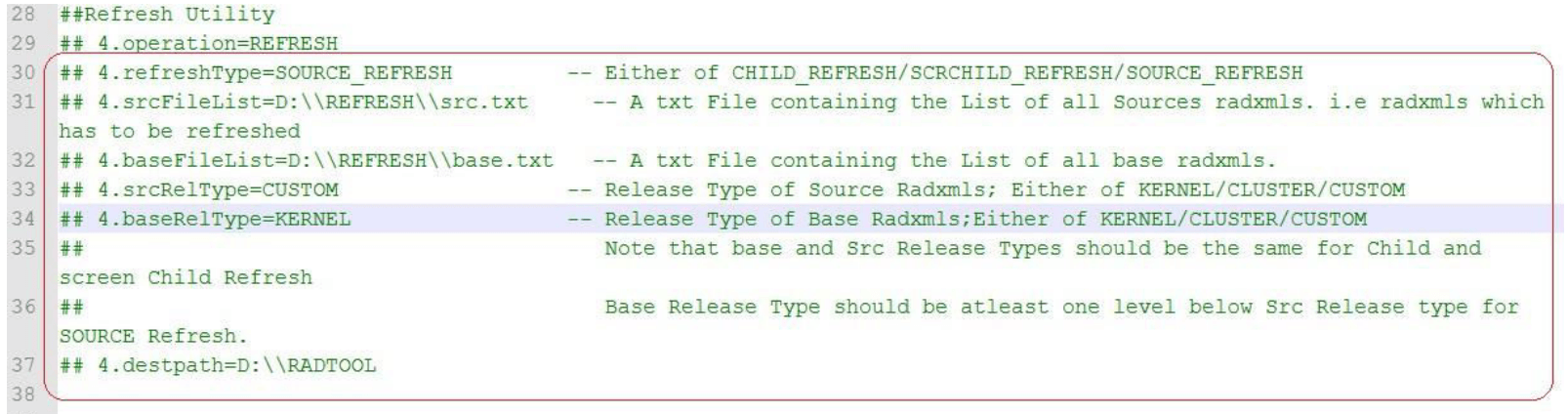

   Figure 2-6 SilentODT Refresh Properties





   Description of "Figure 2-6 SilentODT Refresh Properties"




   Table 2-9 Refresh Utility

   Input	Output
   refreshType	Refreshed Radxml’s in destpath.
   srcFileList	Refreshed Radxml’s in destpath.
   baseFileList	Refreshed Radxml’s in destpath.
   srcRelType	Refreshed Radxml’s in destpath.
   baseRelType	Refreshed Radxml’s in destpath.
   destpath	Refreshed Radxml’s in destpath.

5. SXML_BULKGENERATION

   Web service artifacts can be generated through this operation.

   Table 2-10 Service XML Bulk Generation

   Field	Description
   sxmlListFile	Prepare text file which contains absolute path of all Service XML.
   radxmlListFile	Prepare a text file that contains the absolute path of all RADXML which are used for those services.
   xsdListFile	Prepare a text file that contains the absolute path of all XSDs which are used for those services. Non-extensibility/Common XSDs are copied from this path.
   srcPath	Specify the source folder path which is an option (tool will create radxmlListFile and xsdListFile by itself from the srcPath). Note: If srcPath is provided, radxmlListFile and xsdListFile need not be provided.
   gen	Specify the type of files to be generated (separated by comma). The available options are: IMPL_FILE CONFIG_FILES WSDL_FILE,XSD_FILES GW_WS_PROP_FILES ANT_BUILD
   nonExtServicesReqd	Specify as Y/N, Specifies whether NonExtensible Operations has to include in the generated components.
   destpath	Specify the path where the files will be generated.
   validateXsds	Specify as Y/N, Default set to Y. If the value is set to Y all XSD will be validated by the tool.

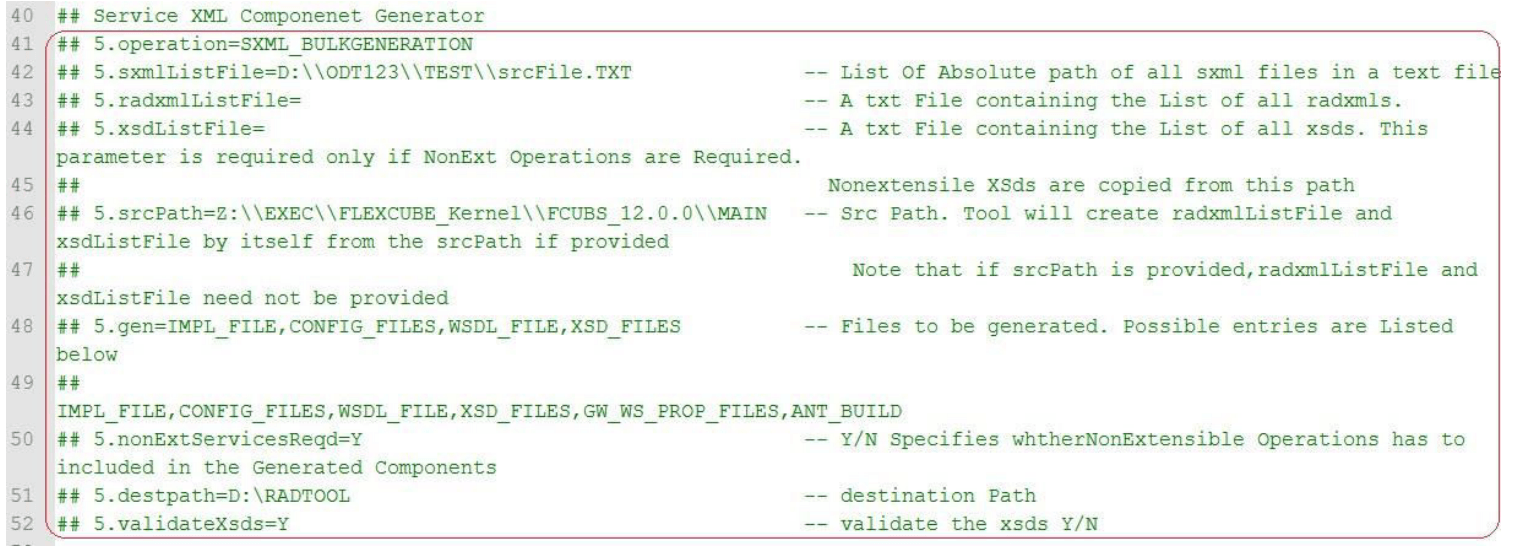

   Figure 2-7 SilentODT Service XML Bulk Generation Properties





   Description of "Figure 2-7 SilentODT Service XML Bulk Generation Properties"




   Table 2-11 SilentODT Service XML Bulk Generation Properties

   Input	Output
   sxmlListFile radxmlListFile xsdListFile srcPath baseRelType destpath validateXsds	IMPL_FILE,CONFIG_FILES,WSDL_FILE,XSD_FILES,GW_WS_PROP_FILES,ANT_BUILD in destpath

6. SXML_UPDATER
   This feature can be used to update the Service XMLs with the latest data from Radxmls. the following details will be updated.

   • Any addition, deletion or modification of operation codes in function ID would be updated in Service XML.
   • If any function ID is removed from the service (specified in RADXML); then the same would be removed from Service XML.
   • If any new function ID is attached to the service (in RADXML); then the same will not be updated in the Service XML. This has to added manually in the Service XML through Open Development Tool user interface.

   Table 2-12 Service XML Updater

   Field	Description
   Operation	SXML_UPDATE
   sxmlListFile	Prepare a text file that contains the absolute path of all Service XML. Provide the same file path.
   radxmlListFile	Prepare a text file that contains the absolute path of all RADXMLs which are used for those services. Provide the same file path.
   srcPath	Specify the source folder path. This field is optional (tool will create radxmlListFile and sxmlListFile by itself from the srcPath). Note that if srcPath is provided, radxmlListFile and sxmlListFile need not be provided.
   destpath	Specify the path where the files will be generated.
   confirmStage	SINGLE_STAGE_UPDATE (Default Value should not be modified by the developer)

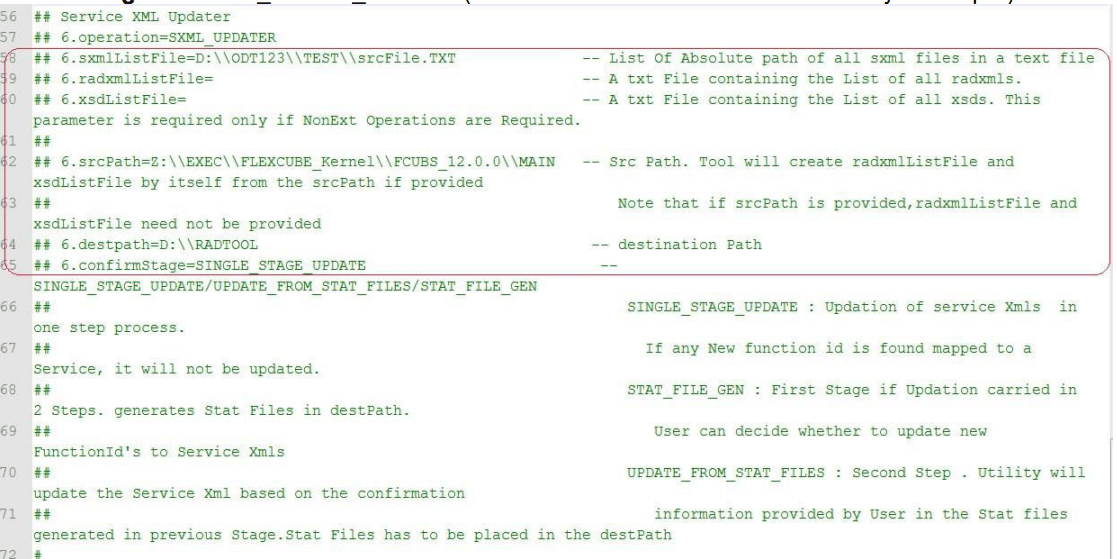

   Figure 2-8 SilentODT Service XML Updater Properties





   Description of "Figure 2-8 SilentODT Service XML Updater Properties"




   Table 2-13 Service XML Updater

   Input	Output
   xsdListFile	Updated Service XML’s in destpath.
   sxmlListFile	Updated Service XML’s in destpath.
   radxmlListFile	Updated Service XML’s in destpath.
   srcPath	Updated Service XML’s in destpath.
   destpath	Updated Service XML’s in destpath.
   confirmStage	Updated Service XML’s in destpath.

7. SXML_REFRESH

   Refresh Functionality allows us to upgrade the existing service xml to its later version keeping the sub version specific changes intact.

   Table 2-14 Service XML Refresh

   Field	Description
   srcFileList	Prepare a text file that contains the absolute path of all Service XML, the same file should be provided i.e. service XML which has to be refreshed.
   baseFileList	Prepare a text file that contains the absolute path of all base service XMLs. Provide the same file path. For instance, for a custom development team; all the latest Kernel files have to be mentioned in baseFileList while the custom Service XMLs to be refreshed has to be mentioned in the srcFileList.
   srcRelType	Specify the release type of Source RADXMLs list (KERNEL/CLUSTER/CUSTOM).
   baseRelType	Specify the release type of base RADXMLs list (KERNEL/CLUSTER/CUSTOM). baseRelType should be at least one level below srcRelType for SOURCE Refresh. For Instance, for a custom development team, srcRelType would be CUSTOM and baseRelType can be either KERNEL/CLUSTER depending on the base source type.
   destpath	Specify the path where the files will be generated.

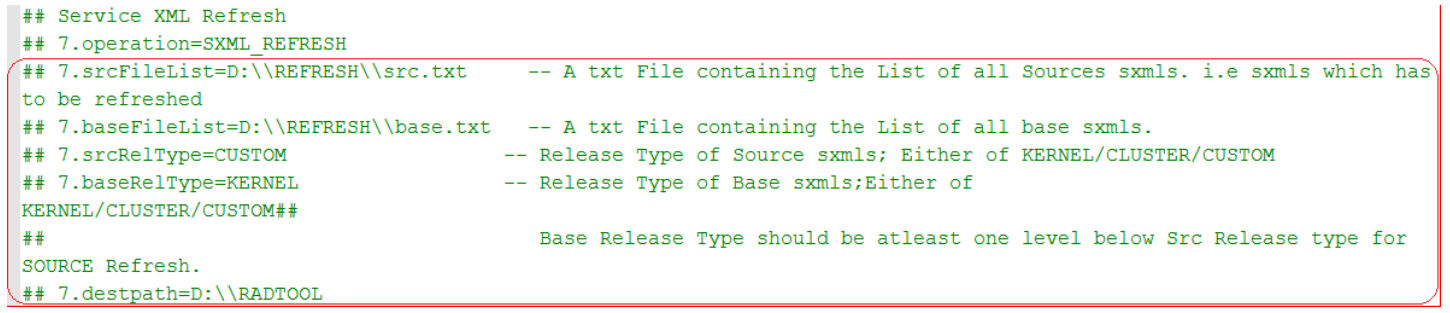

   Figure 2-9 SilentODT Service XML Refresh Properties





   Description of "Figure 2-9 SilentODT Service XML Refresh Properties"




   Table 2-15 Service XML Refresh

   Input	Output
   operation	Refreshed Service XML’s in destpath.
   srcFileList	Refreshed Service XML’s in destpath.
   baseFileList	Refreshed Service XML’s in destpath.
   srcRelType	Refreshed Service XML’s in destpath.
   baseRelType	Refreshed Service XML’s in destpath.
   destpath	Refreshed Service XML’s in destpath.
