5 Test Case Definition

This topic explains the systematic instructions to define the test case.

  1. On the Home Screen, under Browser, expand Test Case Definition and click on Detailed.
    Test Case Master screen is displayed.

    Figure 5-1 Test Case Master


    Description of Figure 5-1 follows
    Description of "Figure 5-1 Test Case Master"

  2. On the Test Case Master screen, to create new test case click the first command.
    Test Case Master screen is displayed.

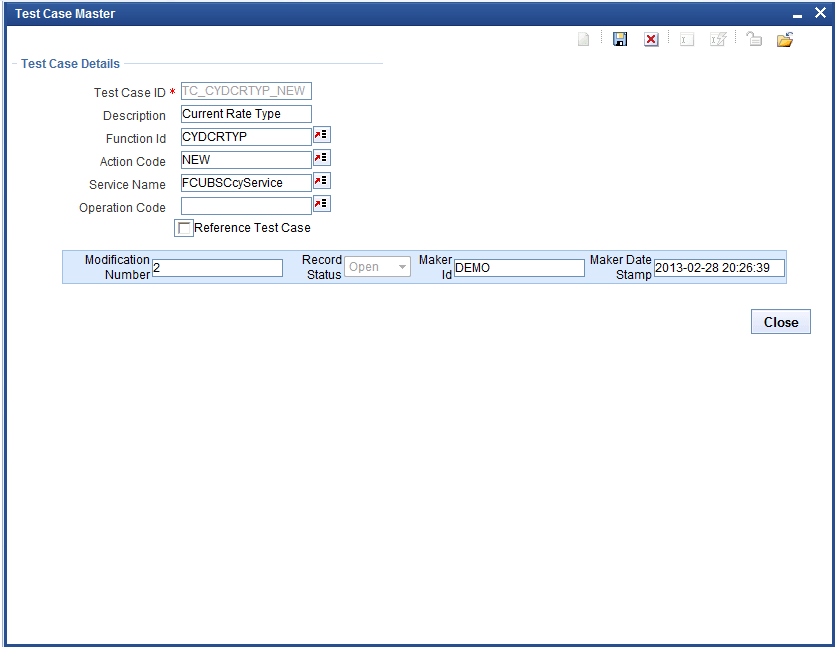

    Figure 5-2 New Test Case


    Description of Figure 5-2 follows
    Description of "Figure 5-2 New Test Case"

  3. Click on Save, to save the test case details.
  4. To query the data, click on the fourth command
  5. To get the queried data, click on the fifth command.

    Note:

    Function Id and Action code combination is used to take care of FCUBS requests, while Service Name and Operation Code is used to take care of Web Services requests.
  6. Click on Close button.
    Test Case Master screen is closed.
  7. On the Home Screen, under Browser, expand Test Case Definition and click on Summary.
    Test Case Master Summary screen is displayed.

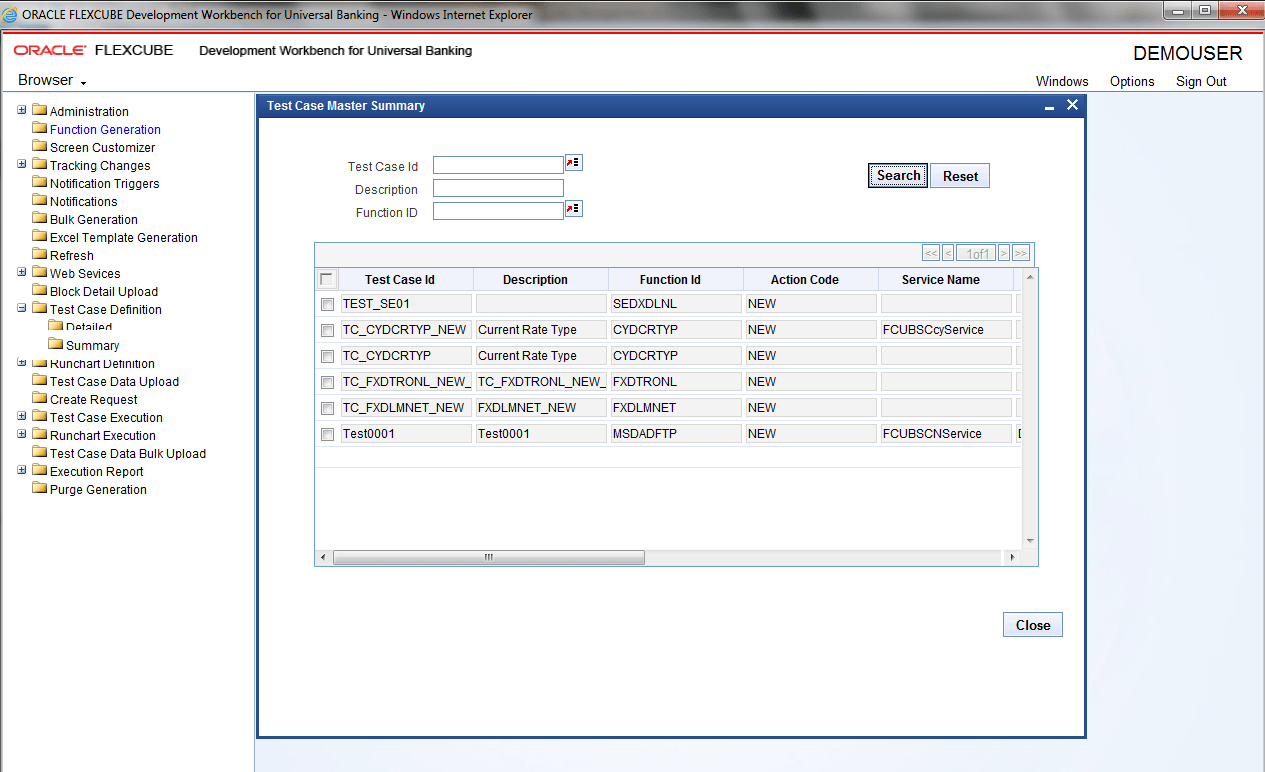

    Figure 5-3 Test Case Master Summary


    Description of Figure 5-3 follows
    Description of "Figure 5-3 Test Case Master Summary"

  8. On the Test Case Master Summary screen, by default the system displays the available test cases.
  9. To search for a specific test case, specify the fields on the Test Case Master Summary screen.
    For more information on fields, refer to the field description table.

    Table 5-1 Test Case Master Summary

    Field Description
    Test Case ID Specify the Test Case ID or click the choose option. The system displays the available Test Case ID's in the system.
    Description Specify the description.
    Function ID Specify the Function ID or click the choose option. The system displays the available Function ID's in the system.
  10. After specifying any of the fields, click Search to view the test case.
This topic contains the following sub-topics:
  • Test Case Upload
    This topic explains the systematic instructions to upload the excel template along with data.
  • Create Request
    This topic describes the process to create request.
  • Test Case Execution
    This topic explains the systematic instructions to execute the uploaded Test Case.
  • Run Chart Master
    This topic explains the systematic instructions to add multiple test cases and make a single Run Chart to execute at
  • Derivation
    The topic provides information about derivation.
