This topic provides systematic instructions to create a new screen.

1. On the Function Generation screen, right-click on the Screens node and select Add option.
   The Add Screen window displays.
2. Specify the Screen Name field.
   The Screen Name should start with CVS_<Name>.
   The Screen Details screen displays.

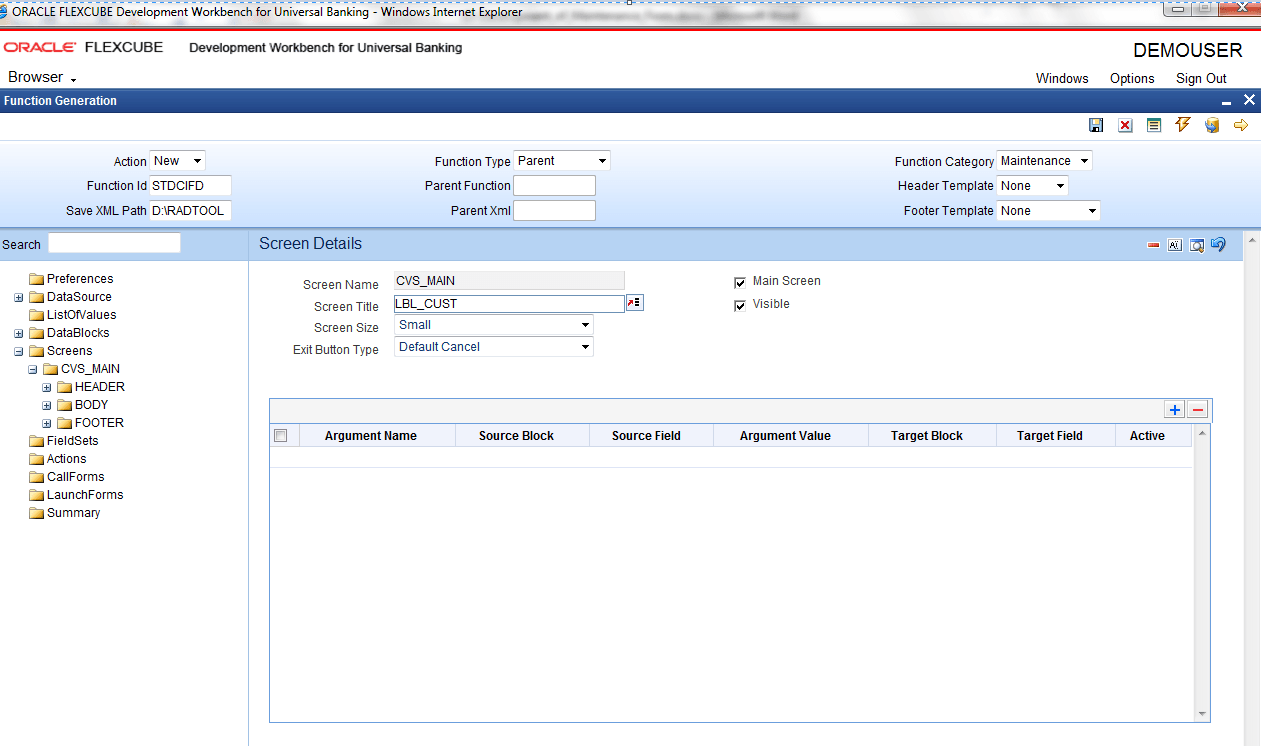

   Figure 2-15 Providing properties to new Screen





   Description of "Figure 2-15 Providing properties to new Screen"



3. Specify the Screen Details and click the Save icon to create a new screen.
   A new screen gets created and displays under the Screen node.

   By default screens are divided into 3 parts:

   • Header
   • Body
   • Footer

   One Main Screen is Mandatory and Tabs can be defined on any of the screen portions as required. User can add Sections to Tabs. Each section can be divided into Partitions.
4. To add a new Section to Tab, right-click the Tab and then select Add option.
   The Add Section screen displays.

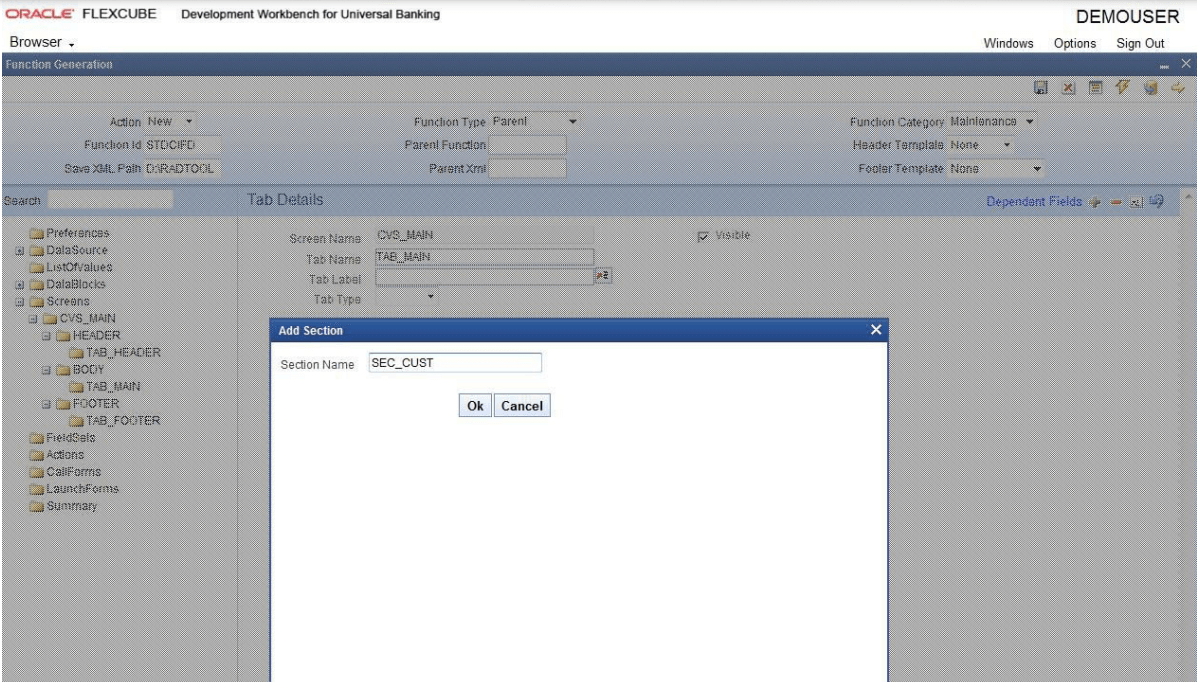

   Figure 2-16 Add Section





   Description of "Figure 2-16 Add Section"



5. On the Add Section screen, specify the Section Name field and click the OK button.
   A new Section gets created and displays under the respective Tab.
6. User can divide each section into required partitions.
   The Partition Details window displays and the user can specify details.

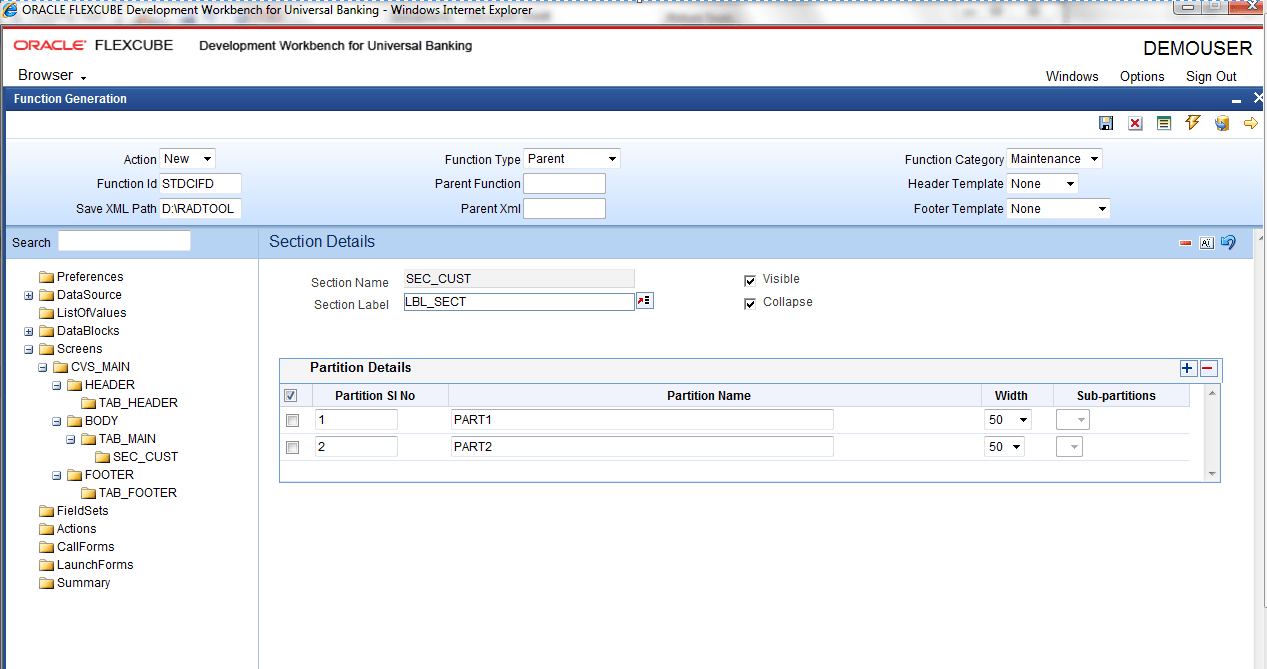

   Figure 2-17 Defining partitions for the Section





   Description of "Figure 2-17 Defining partitions for the Section"
