This topic explains systematic instructions to create the Persistence Store.

1. Under the Domain Structure on the left panel, navigate to the Services, and click Messaging, and then click Persistent Stores.
   The Summary of Persistent Stores screen displays.

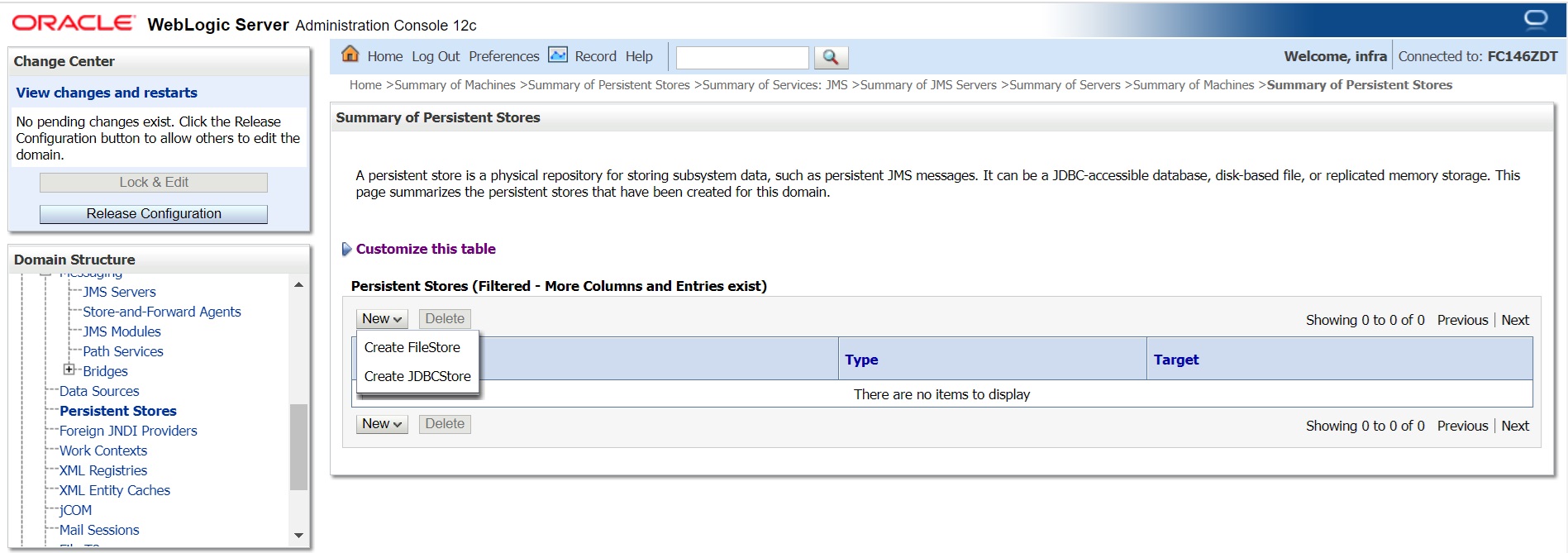

   Figure 3-1 Summary of Persistent Stores





   Description of "Figure 3-1 Summary of Persistent Stores"



2. Click New and select Create FileStore from the drop-down list.
   The Create a New File Store screen displays.

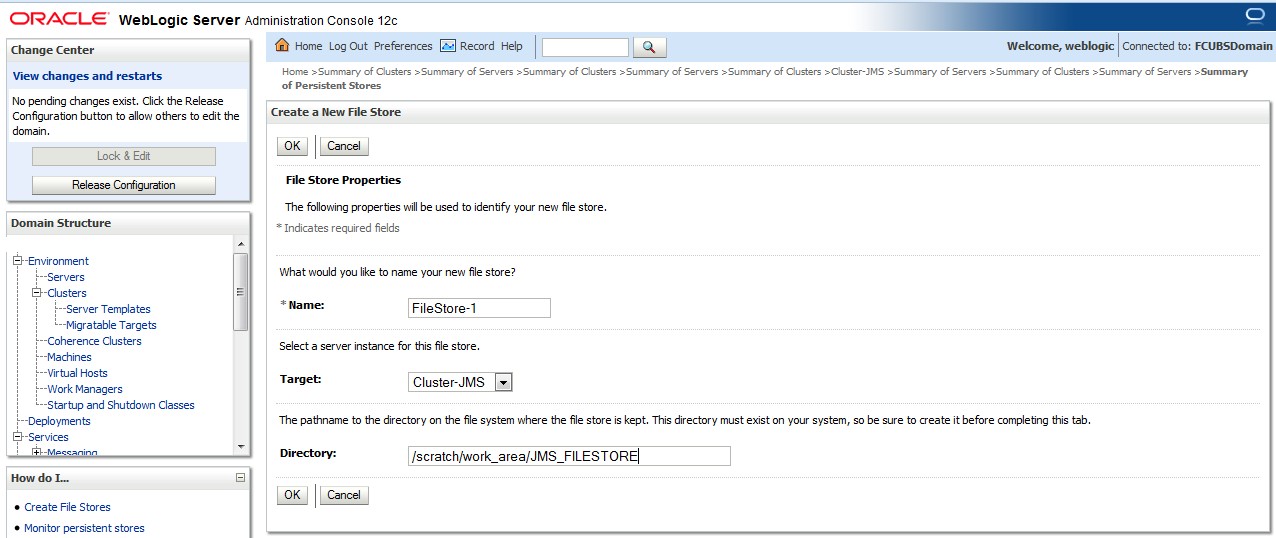

   Figure 3-2 Create a New File Store





   Description of "Figure 3-2 Create a New File Store"



3. Select Cluster-JMS from the Target drop-down, and click OK.
   The FileStore-1 is created.

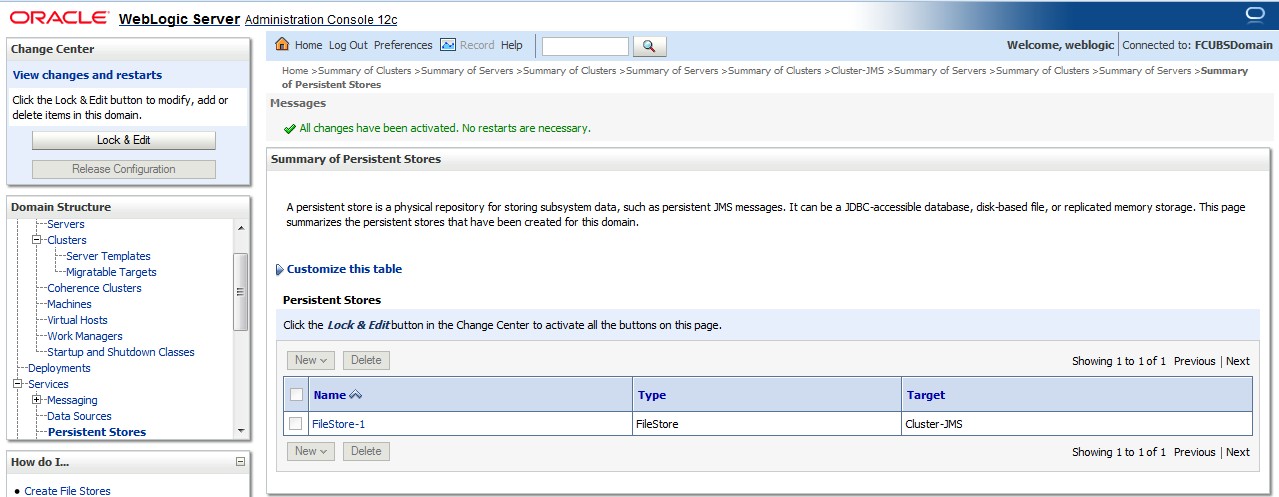

   Figure 3-3 Summary of Persistent Stores - Message





   Description of "Figure 3-3 Summary of Persistent Stores - Message"
