3.2 Create JMS Server

This topic explains systematic instructions to create the JMS Server.

  1. Under the Domain Structure left panel, navigate to the Services, and click Messaging and then click JMS Servers.
    The Summary of JMS Servers screen displays.

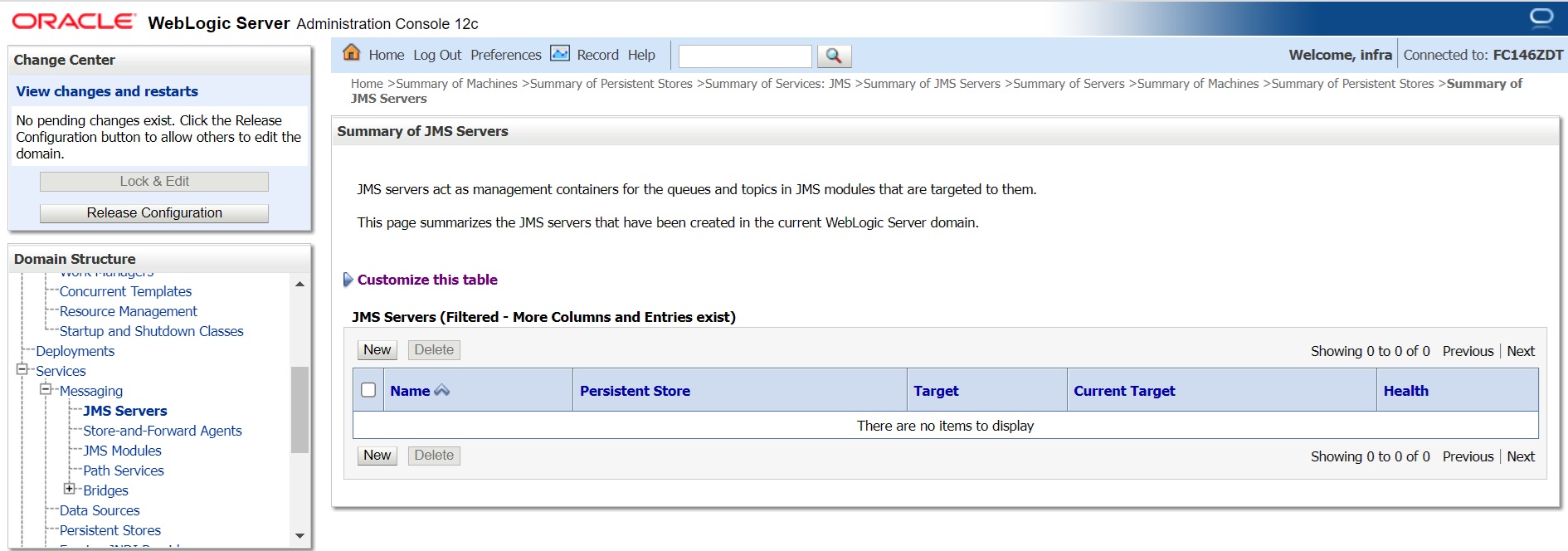

    Figure 3-4 Summary of JMS Servers


    Description of Figure 3-4 follows
    Description of "Figure 3-4 Summary of JMS Servers"

  2. Under JMS server table, click New.
    The Create a New JMS Server screen displays.

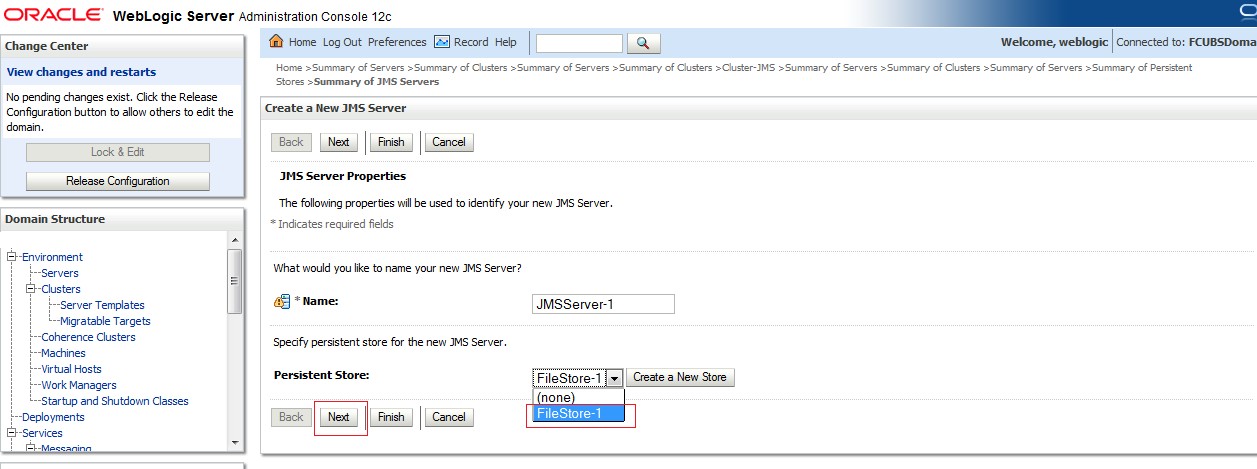

    Figure 3-5 Create a New JMS Server


    Description of Figure 3-5 follows
    Description of "Figure 3-5 Create a New JMS Server"

  3. Select FileStore-1 in the field of Persistent Store, and then click Next.
    The Create a New JMS Server- Target screen displays.

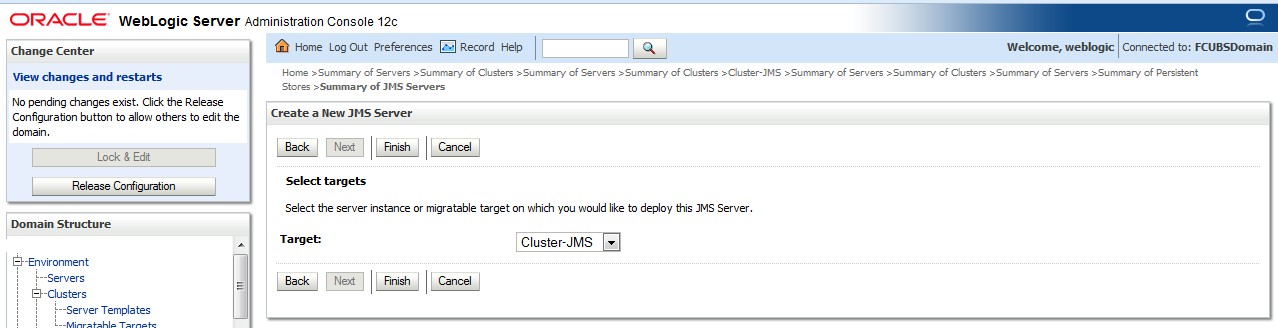

    Figure 3-6 Create a New JMS Server- Target


    Description of Figure 3-6 follows
    Description of "Figure 3-6 Create a New JMS Server- Target"

  4. Select Target as Cluster-JMS, and then click Finish.
    The JMS-Server-1 is created.

    Figure 3-7 Summary of JMS Servers - Message


    Description of Figure 3-7 follows
    Description of "Figure 3-7 Summary of JMS Servers - Message"

    In NFS below filestores can be seen.

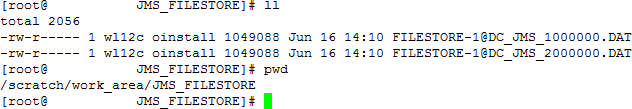

    Figure 3-8 JMS Filestore


    Description of Figure 3-8 follows
    Description of "Figure 3-8 JMS Filestore"

Parent topic: JMS Configuration
