1.2.12 Configure TimeOut Settings for BPEL

This topic explains steps to configure TimeOut Settings for BPEL.

To configure TimeOut setting for BPEL, follow the below steps:
  1. Login into Console (http://hostname:port/console).
    The WebLogic Server Home page displays.

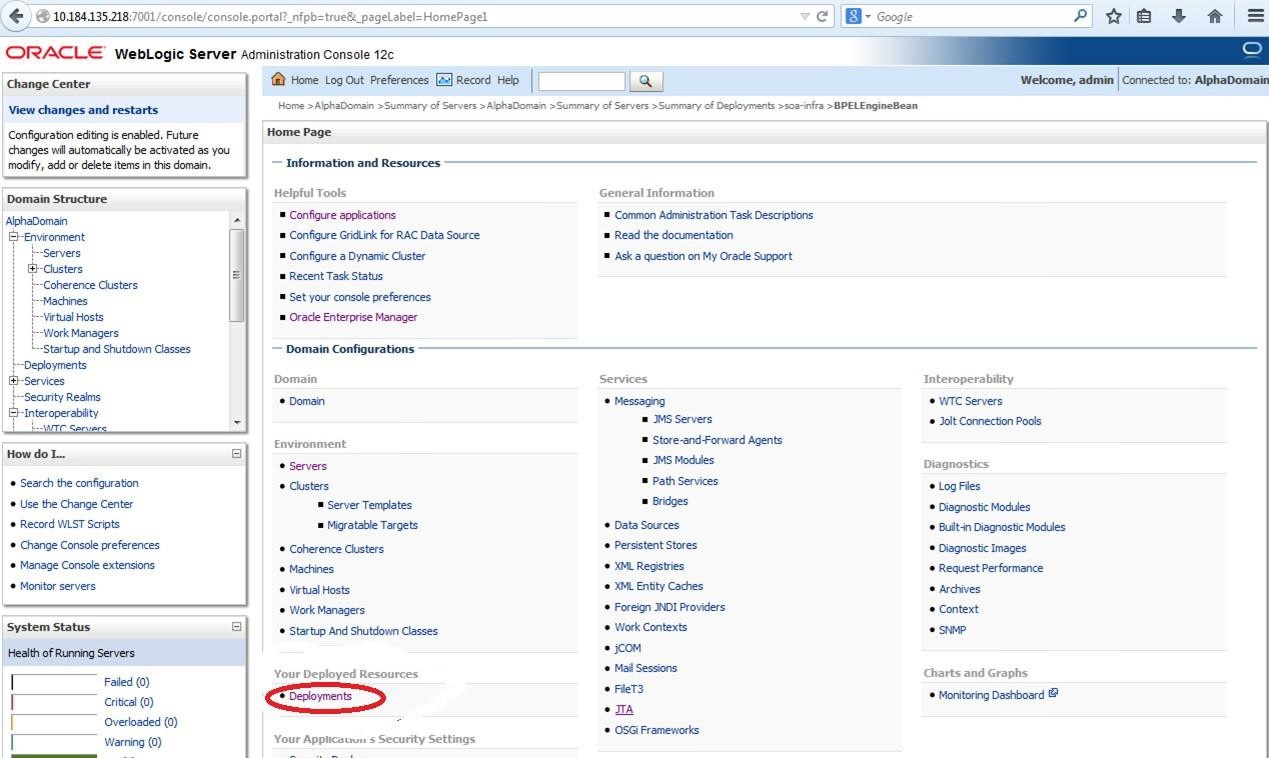

    Figure 1-110 WebLogic Server


    Description of Figure 1-110 follows
    Description of "Figure 1-110 WebLogic Server"

  2. Click Deployments.
    The Summary of Deployments screen displays.

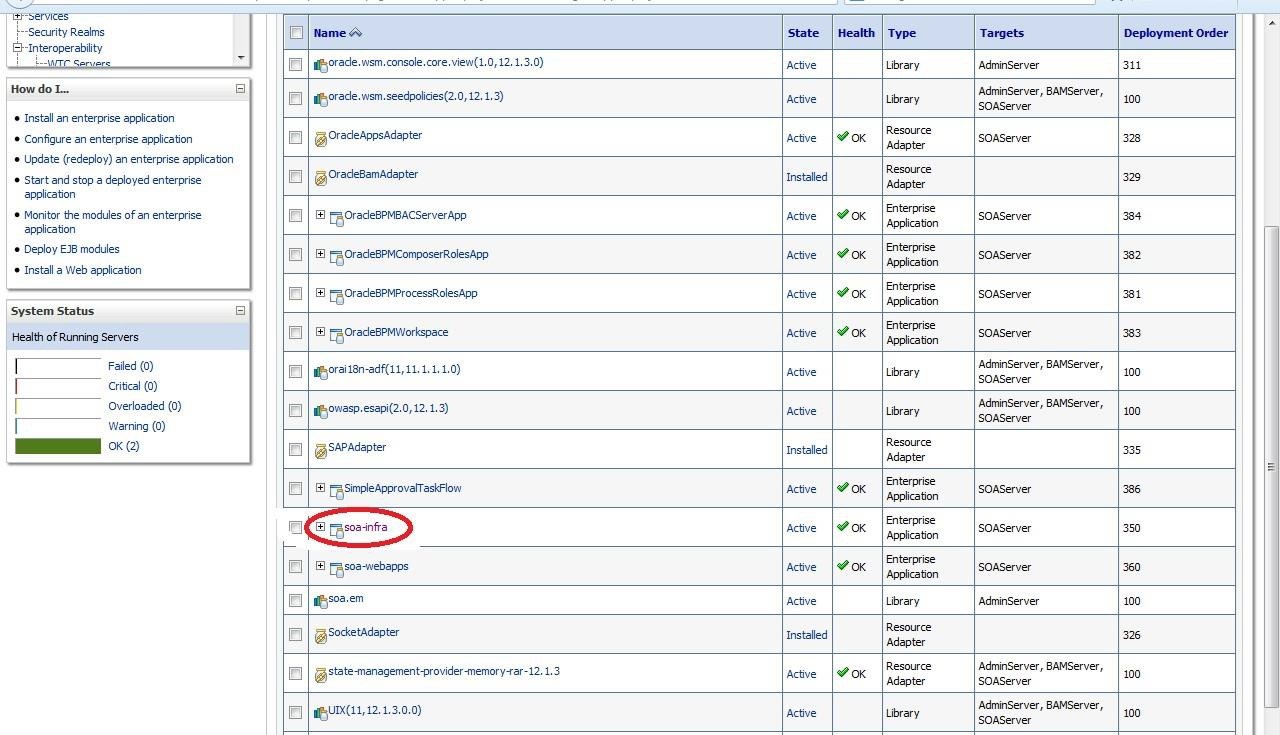

    Figure 1-111 Summary of Deployments


    Description of Figure 1-111 follows
    Description of "Figure 1-111 Summary of Deployments"

  3. Click soa-infra application under deployments.
  4. Go to EJBs, click BPELEngineBean.
    The Summary of BPELEngineBean screen displays.

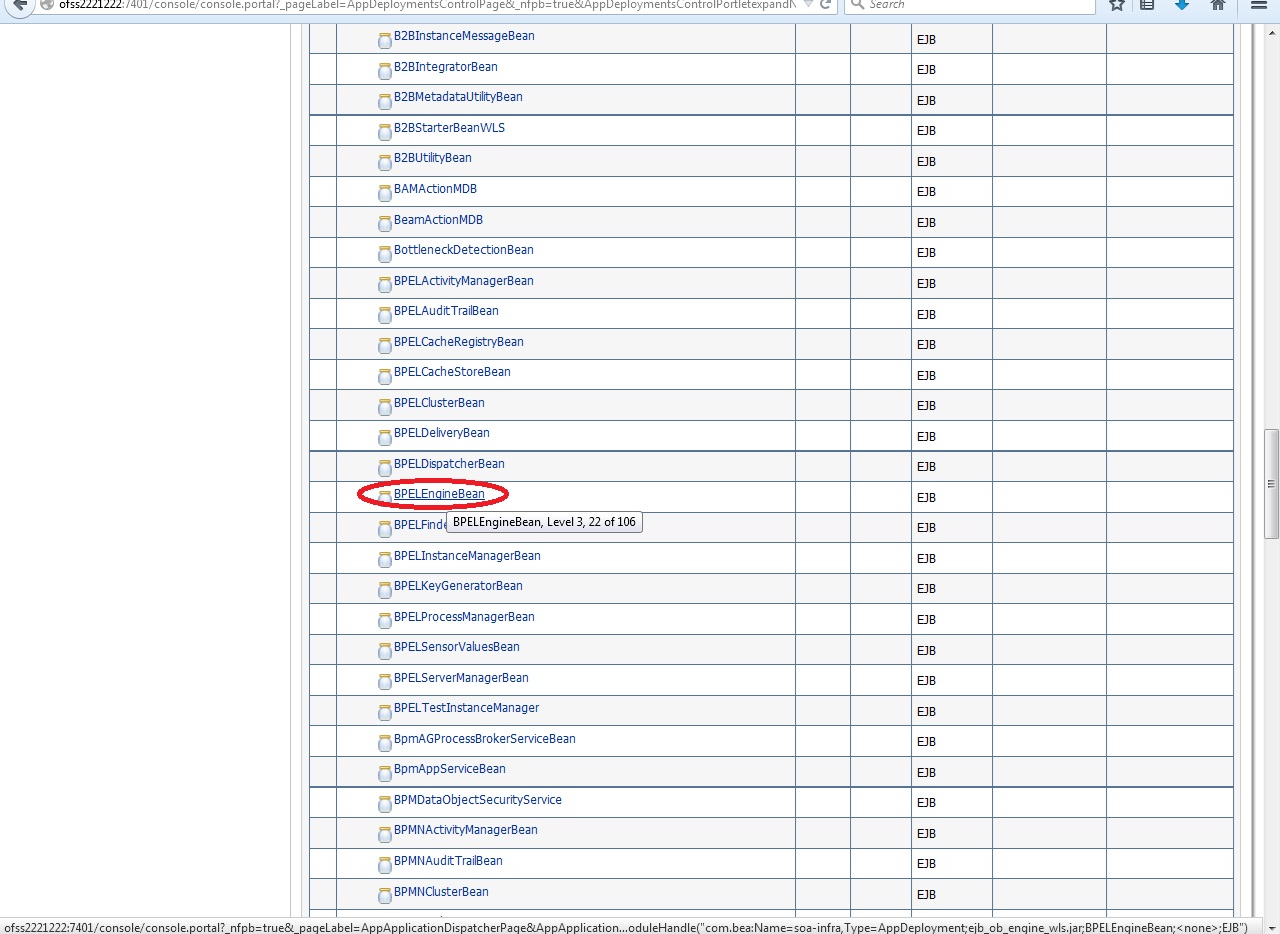

    Figure 1-112 Summary of BPELEngineBean


    Description of Figure 1-112 follows
    Description of "Figure 1-112 Summary of BPELEngineBean"

  5. On the BPELEngineBean screen, click Configuration and set Transaction TimeOut to 300.

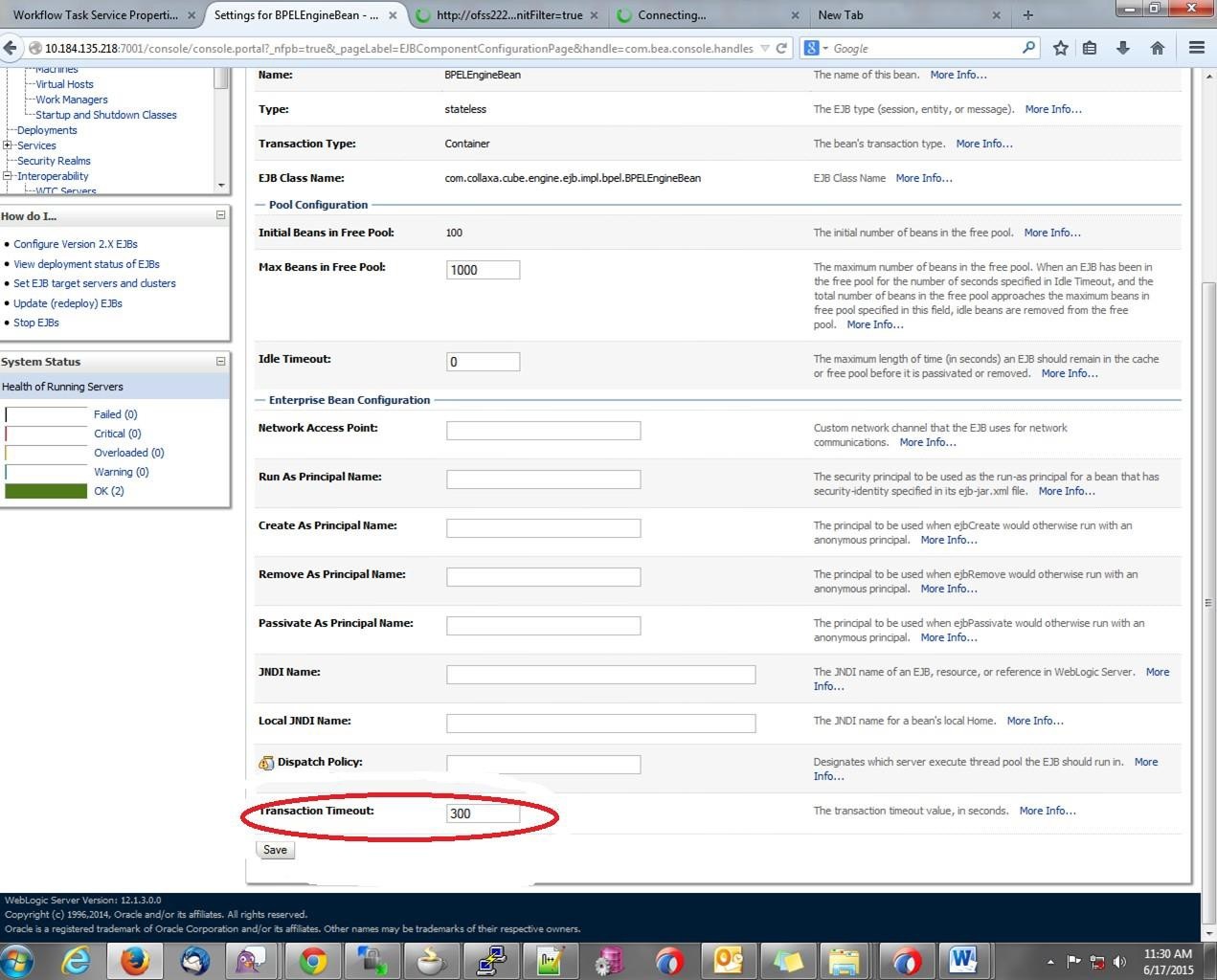

    Figure 1-113 BPELEngineBean Configuration - Transaction TimeOut


    Description of Figure 1-113 follows
    Description of "Figure 1-113 BPELEngineBean Configuration - Transaction TimeOut"

  6. Go to EJBs, click BPELDeliveryBean.
    The Summary of BPELDeliveryBean screen displays.

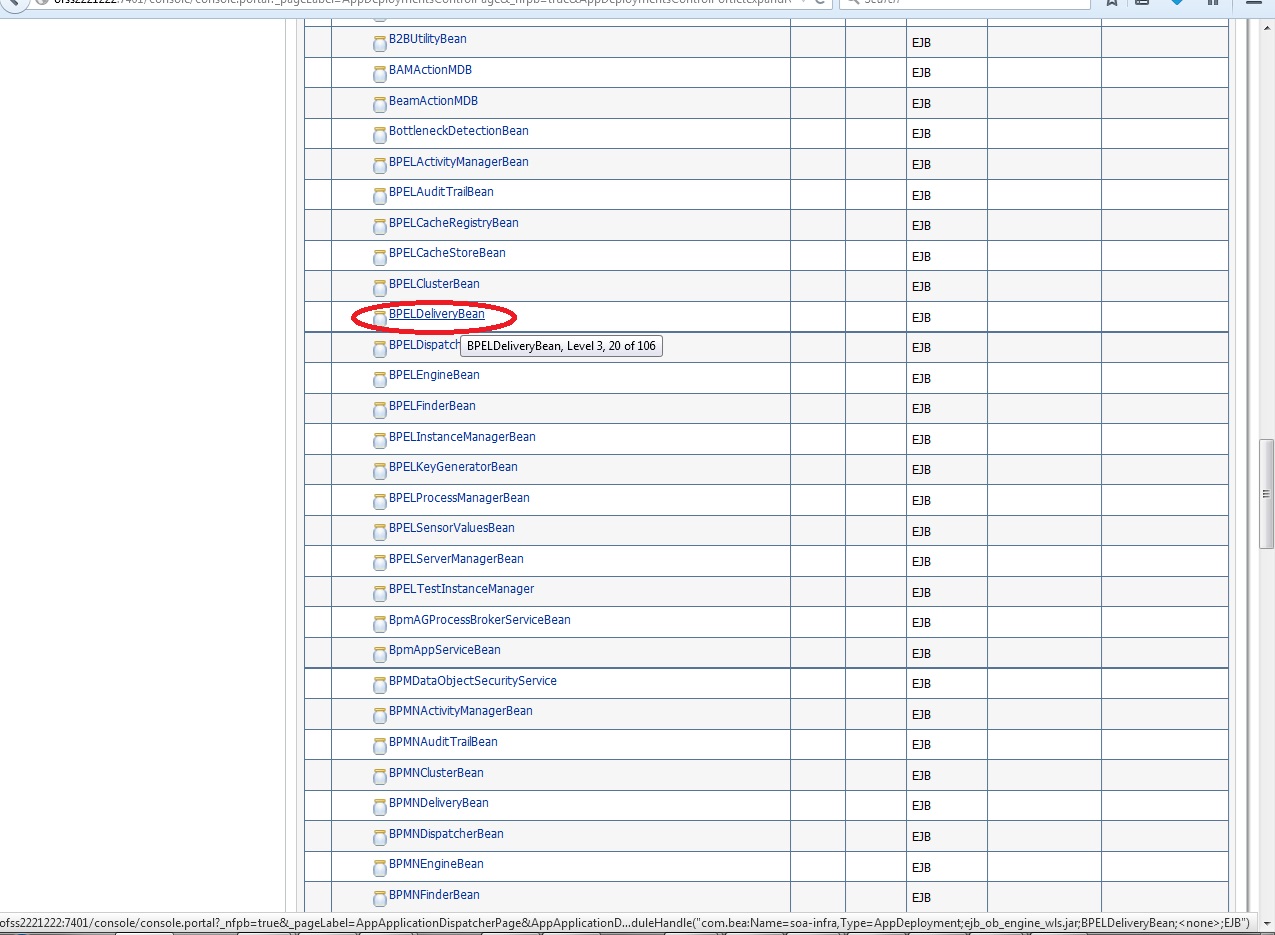

    Figure 1-114 Summary of BPELDeliveryBean


    Description of Figure 1-114 follows
    Description of "Figure 1-114 Summary of BPELDeliveryBean"

  7. On the BPELDeliveryBean screen, click Configuration and set Transaction TimeOut to 300.

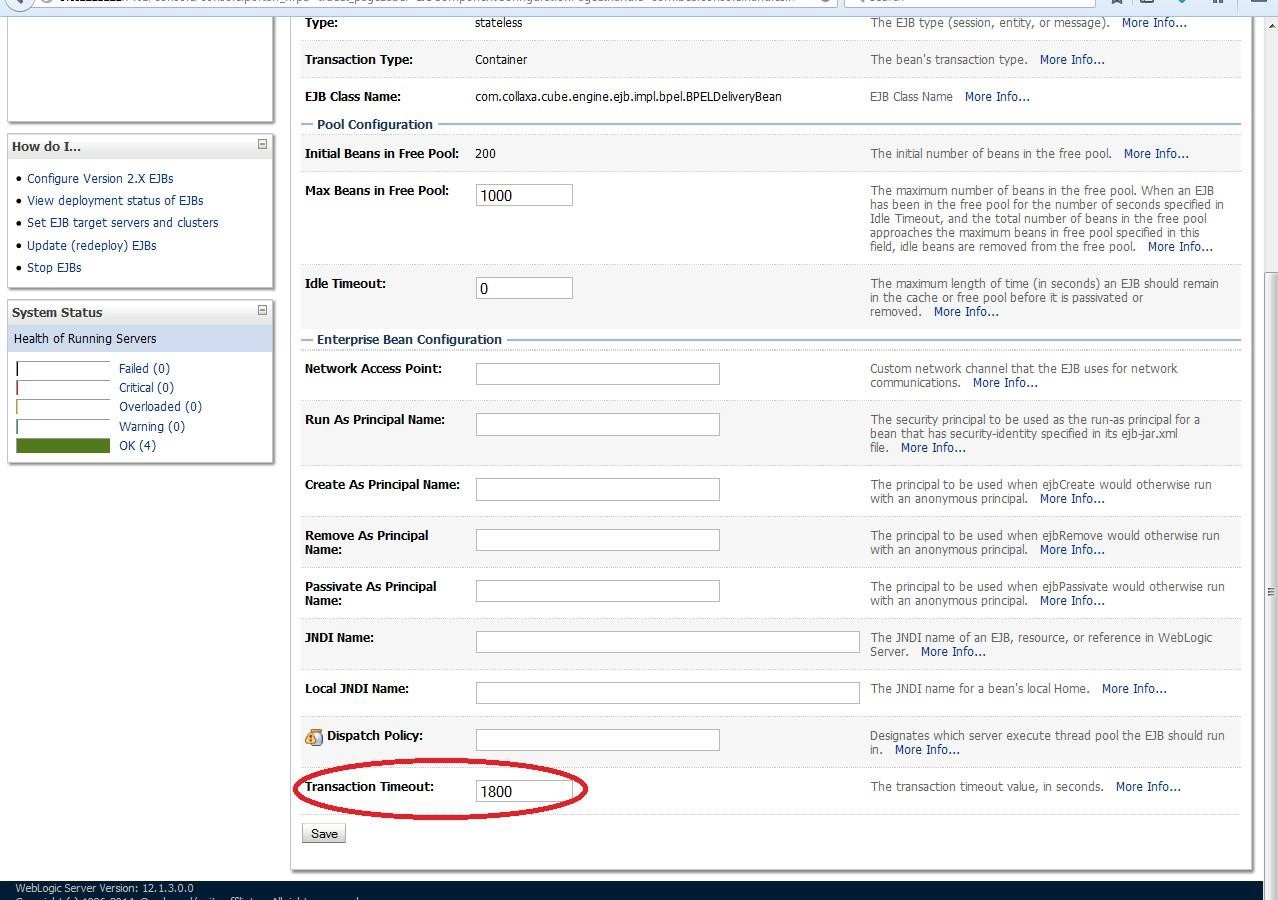

    Figure 1-115 BPELDeliveryBean Configuration - Transaction TimeOut


    Description of Figure 1-115 follows
    Description of "Figure 1-115 BPELDeliveryBean Configuration - Transaction TimeOut"

  8. Login to Console and click JTA under Services.
  9. Set the JTA timeout according to the below condition:
    BPELEngineBean + BPELDeliveryBean is <= JTA timeout (For example 300+300<=600).
    The Settings for dev_domain JTA screen displays.

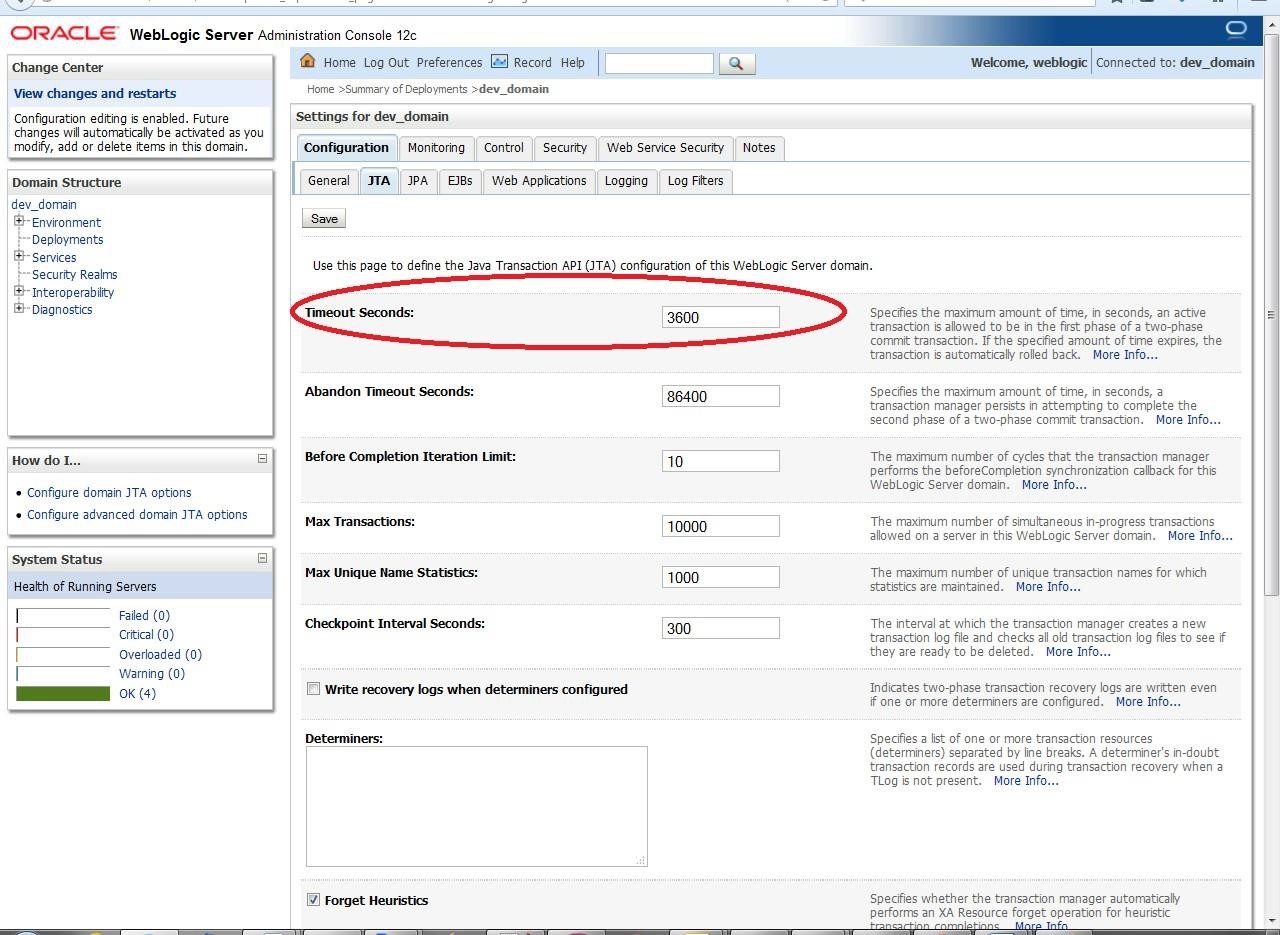

    Figure 1-116 Settings for dev_domain - JTA


    Description of Figure 1-116 follows
    Description of "Figure 1-116 Settings for dev_domain - JTA"

  10. Login to EM console (http://host:port/em).
  11. Right click on the soa-infra (SOAServer).
  12. Select SOA Administration and then click the BPEL Porperties.
    The soa-infra screen displays.

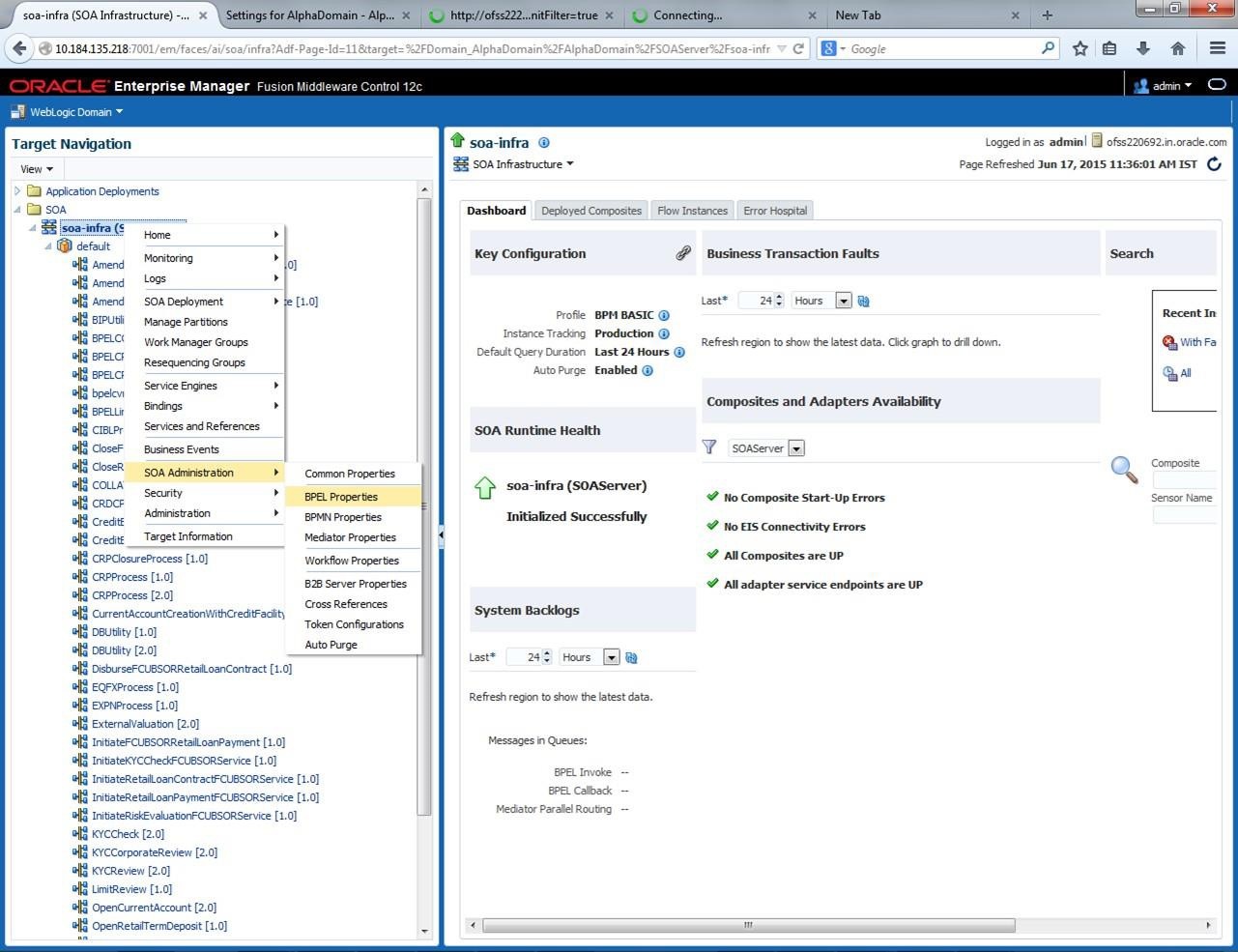

    Figure 1-117 SOA Infra


    Description of Figure 1-117 follows
    Description of "Figure 1-117 SOA Infra "

  13. Click MoreConfigpropeties and then click SyncMaxWaitTime.
  14. Change the SyncMaxWaitTime to 200 secs.

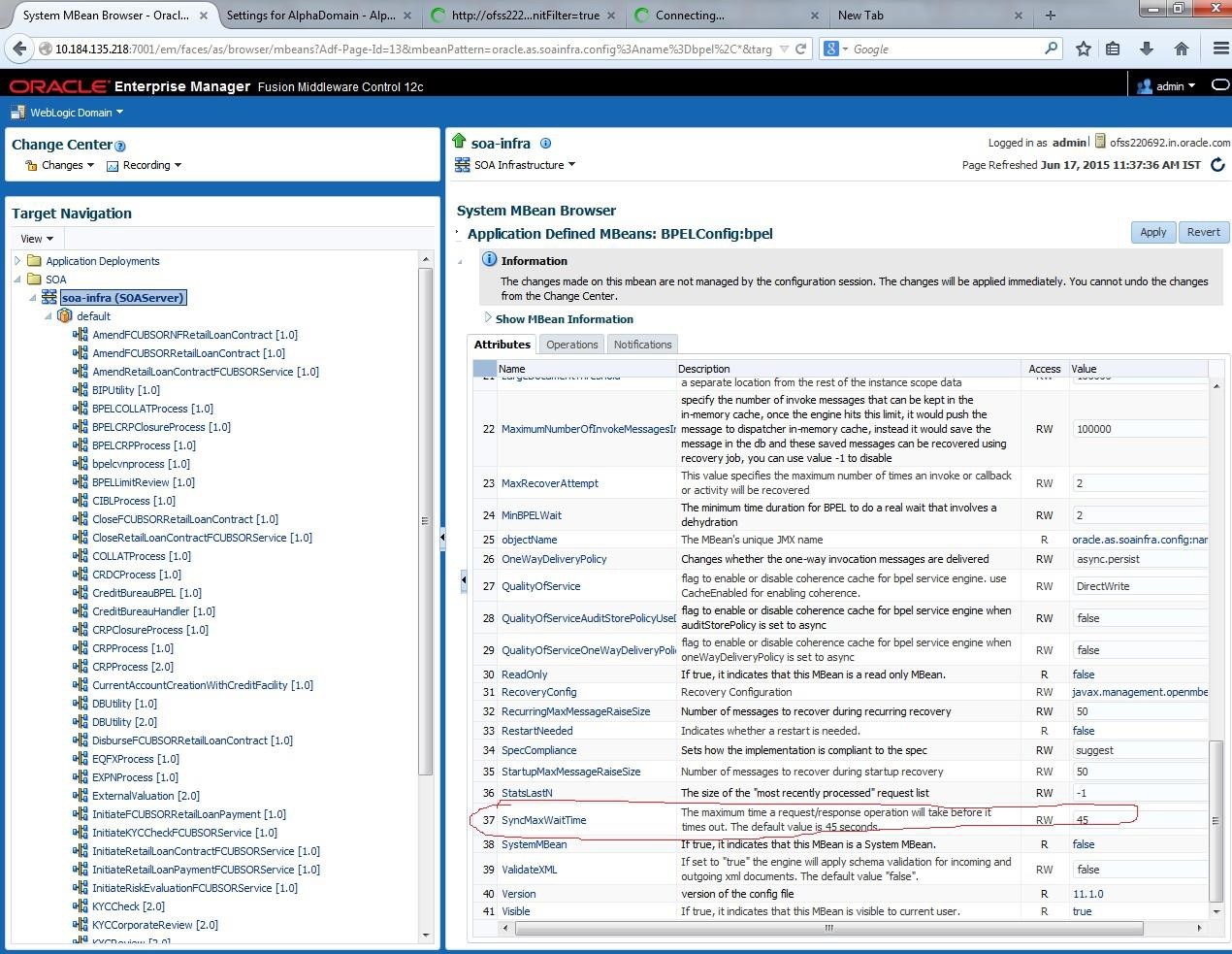

    Figure 1-118 System MBean Browser


    Description of Figure 1-118 follows
    Description of "Figure 1-118 System MBean Browser"

Parent topic: Integrate Oracle FLEXCUBE UBS and BPEL
