This topics explains the steps to configure the Email Driver.

1. Log in to EM console.
2. Navigate to User Messaging Service folder.
   The User Messaging Service target navigation folder displays.

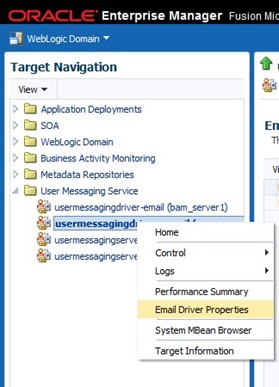

   Figure 1-105 User Messaging Service





   Description of "Figure 1-105 User Messaging Service"



3. Right click usermessagingdriver-email (soa_server1).
4. Click Email Driver Properties.
   The usermessagingdriver-email screen displays.

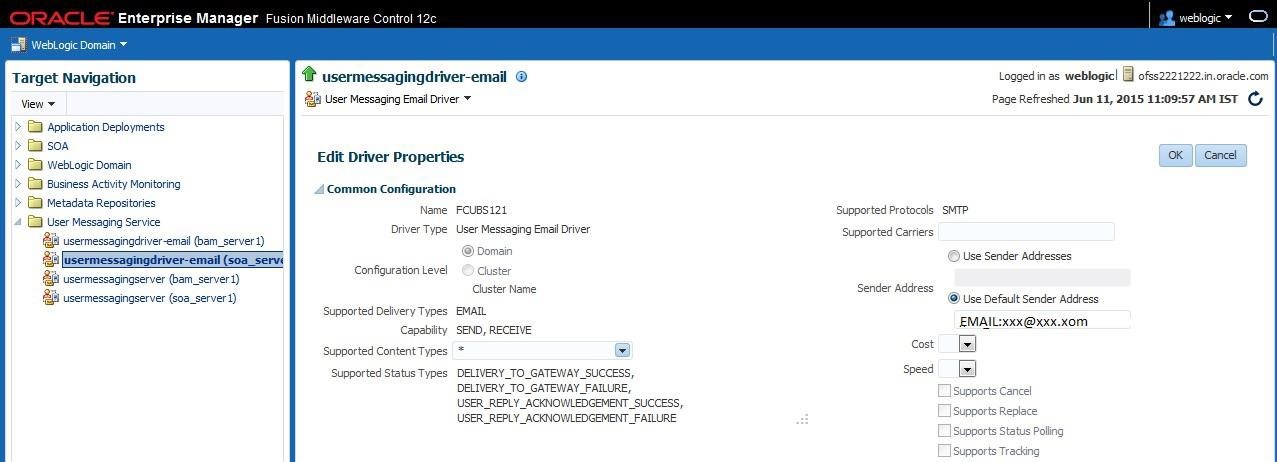

   Figure 1-106 usermessagingdriver-email





   Description of "Figure 1-106 usermessagingdriver-email"



5. Specify the Sender Address and Default Sender Address (This ID will be used as sender address).
6. Specify the supported protocols (SMTP).
7. Select the mail access protocol (IMAP) as per the mail server specification.
   The Driver-Specific Configuration screen displays.

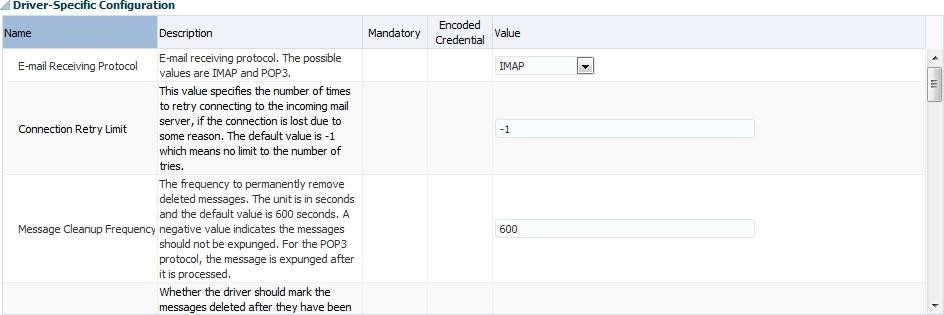

   Figure 1-107 Driver-Specific Configuration





   Description of "Figure 1-107 Driver-Specific Configuration"



8. Specify the Receive folder in the mailbox (INBOX).
9. Specify the Outgoing Mail Server hostname or IP.
10. Specify the Outgoing Mail Server Port.
11. Specify the Outgoing Default From Address.
12. Specify the Outgoing Username and Password if required.

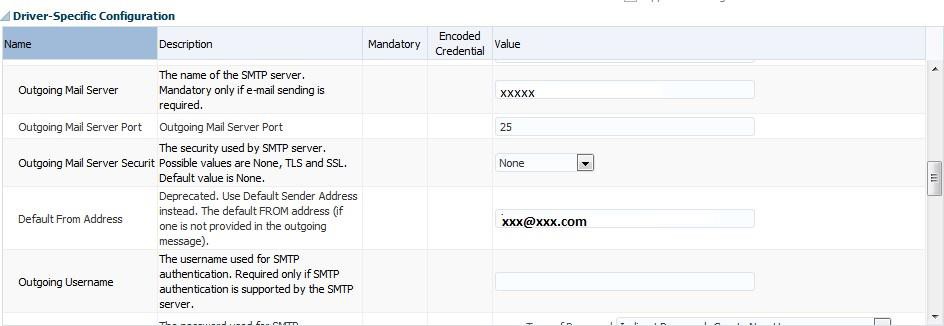

    Figure 1-108 Driver-Specific Configuration





    Description of "Figure 1-108 Driver-Specific Configuration"



13. Navigate to SOA folder.
14. Right click soa-infra (soa_server1) and select SOA Administration and then click Workflow Porperties.
    The Workflow Notification Properties screen displays.

    Figure 1-109 Workflow Notification Properties





    Description of "Figure 1-109 Workflow Notification Properties"



15. Select Email/ALL from the Notification Modedrop-down list.
16. Specify the From Address, Actionable Address, and Reply To Address.
