This topic explains the systematic instructions to create the JMS Modules in the Weblogic application server.

1. Start the Administrative Console of the WebLogic application server. Enter the Oracle WebLogic Admin Console URL in the address bar in an internet browser. For example: http://10.10.10.10:1001/console.
   The Oracle Weblogic Server - Welcome screen displays.

   Figure 7-37 Oracle Weblogic Server - Welcome





   Description of "Figure 7-37 Oracle Weblogic Server - Welcome"



2. Specify the WebLogic administrator Username, Password and click Log In.
3. Navigate to Oracle Weblogic home page.
   The Oracle Weblogic Server - Home Page screen displays.

   Figure 7-38 Oracle Weblogic Server - Home Page





   Description of "Figure 7-38 Oracle Weblogic Server - Home Page"



4. On the left pane, under Domain Structure, expand Services, Messaging and JMS Modules under it.
   The JMS Modules screen displays.

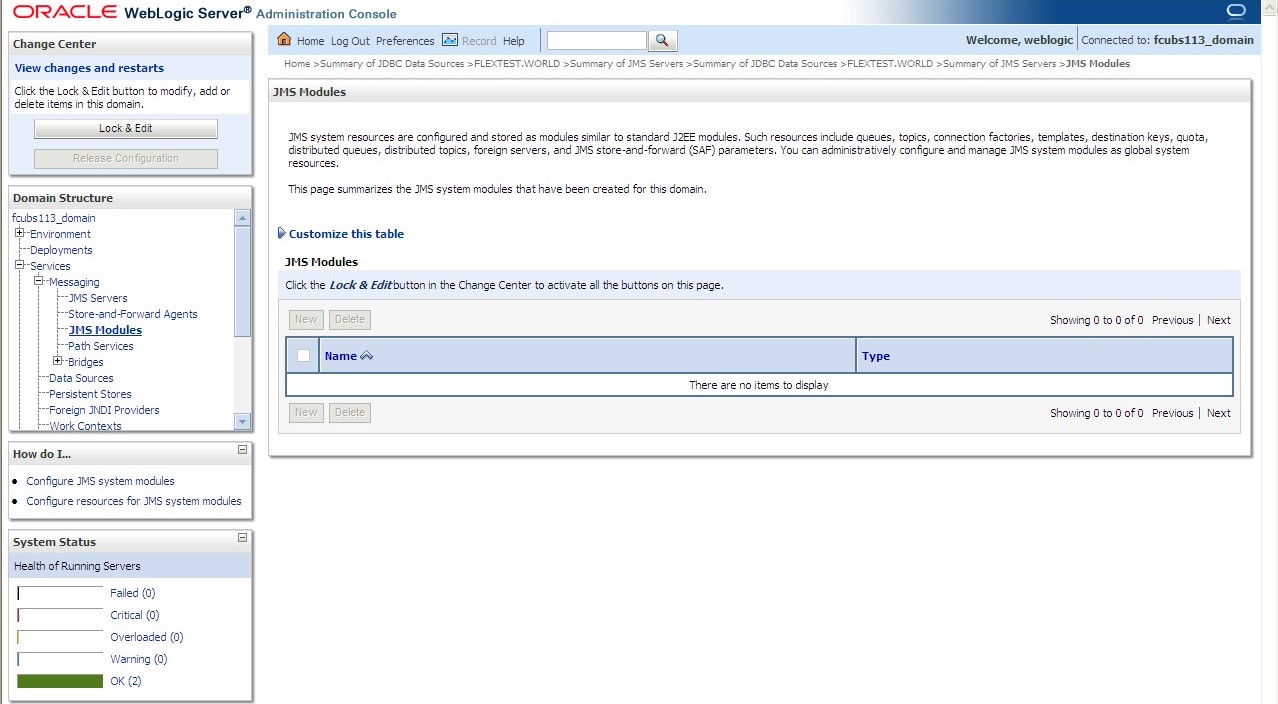

   Figure 7-39 JMS Modules





   Description of "Figure 7-39 JMS Modules"



5. To create new JMS Module, click the Lock & Edit button under the Change Center.
   The JMS Modules - New screen displays.

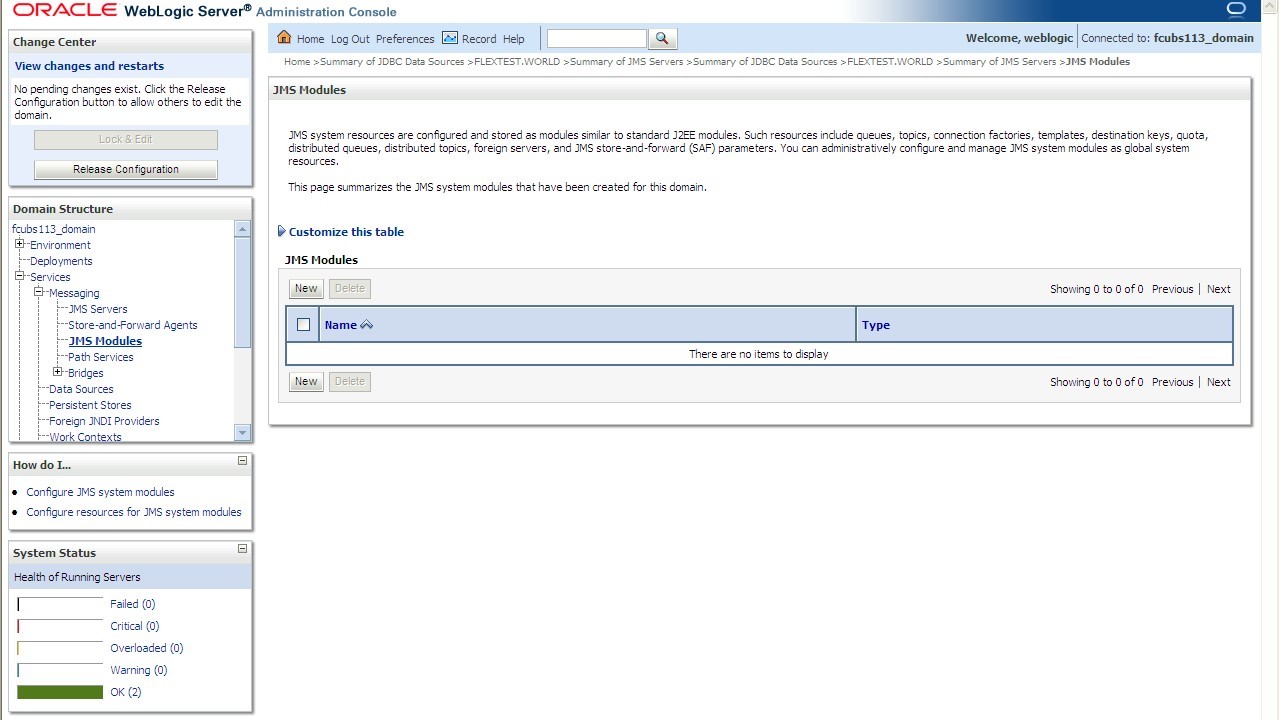

   Figure 7-40 JMS Modules - New





   Description of "Figure 7-40 JMS Modules - New"



6. On the JMS Modules screen, click New.
   The Create JMS System Module screen displays.

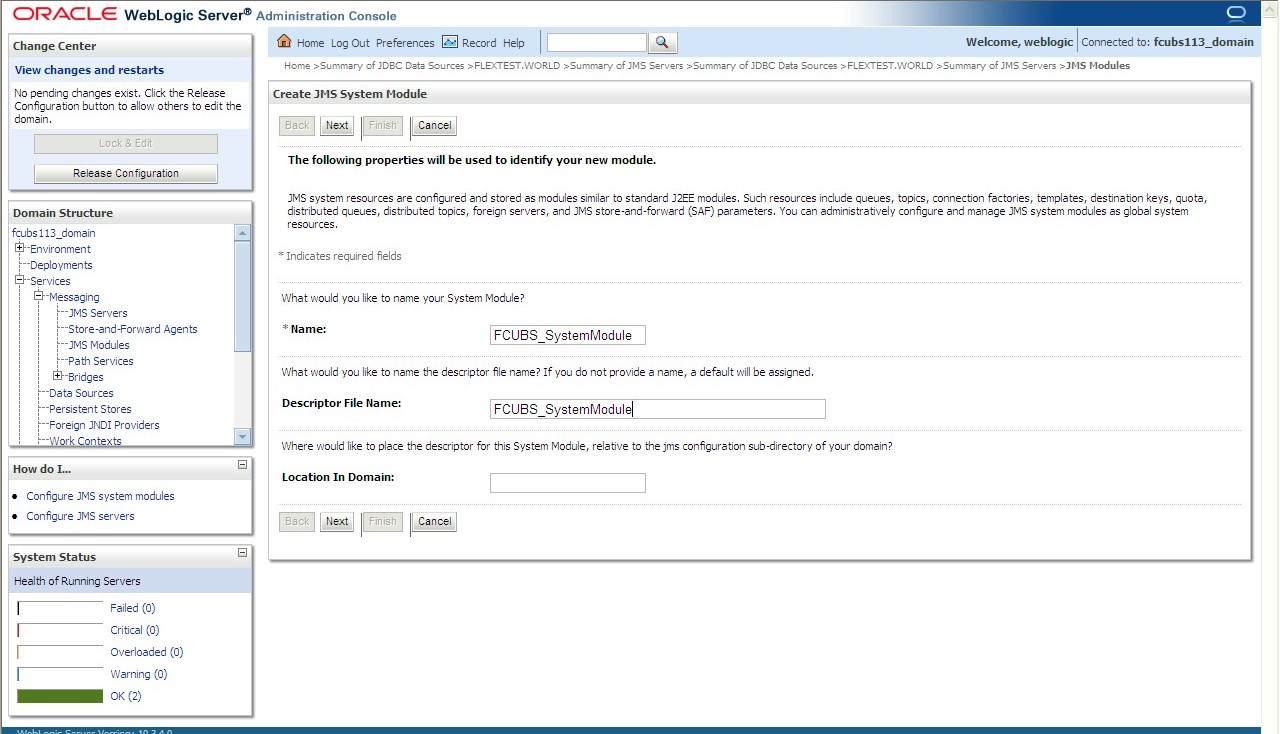

   Figure 7-41 Create JMS System Module





   Description of "Figure 7-41 Create JMS System Module"




   For more information on fields, refer to the field description table.

   Table 7-6 Create JMS System Module

   Field	Description
   Name	Enter the System Module Name as FCUBS_SystemModule.
   Description File Name	Enter the Description File Name as FCUBS_SystemModule.

7. Click Next.
   The Create JMS System Module - Targets screen displays.

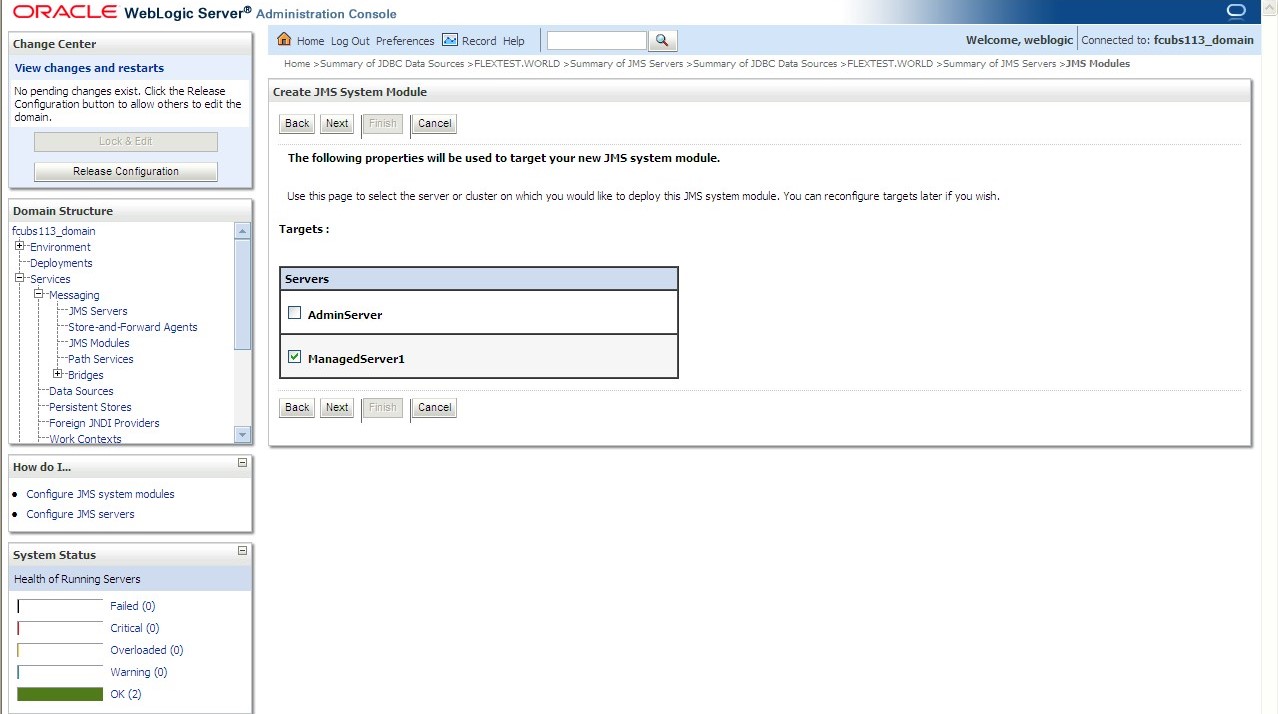

   Figure 7-42 Create JMS System Module - Targets





   Description of "Figure 7-42 Create JMS System Module - Targets"



8. Select the check box against the server created and click Next.
   The Create JMS System Module - Add Resources screen displays.

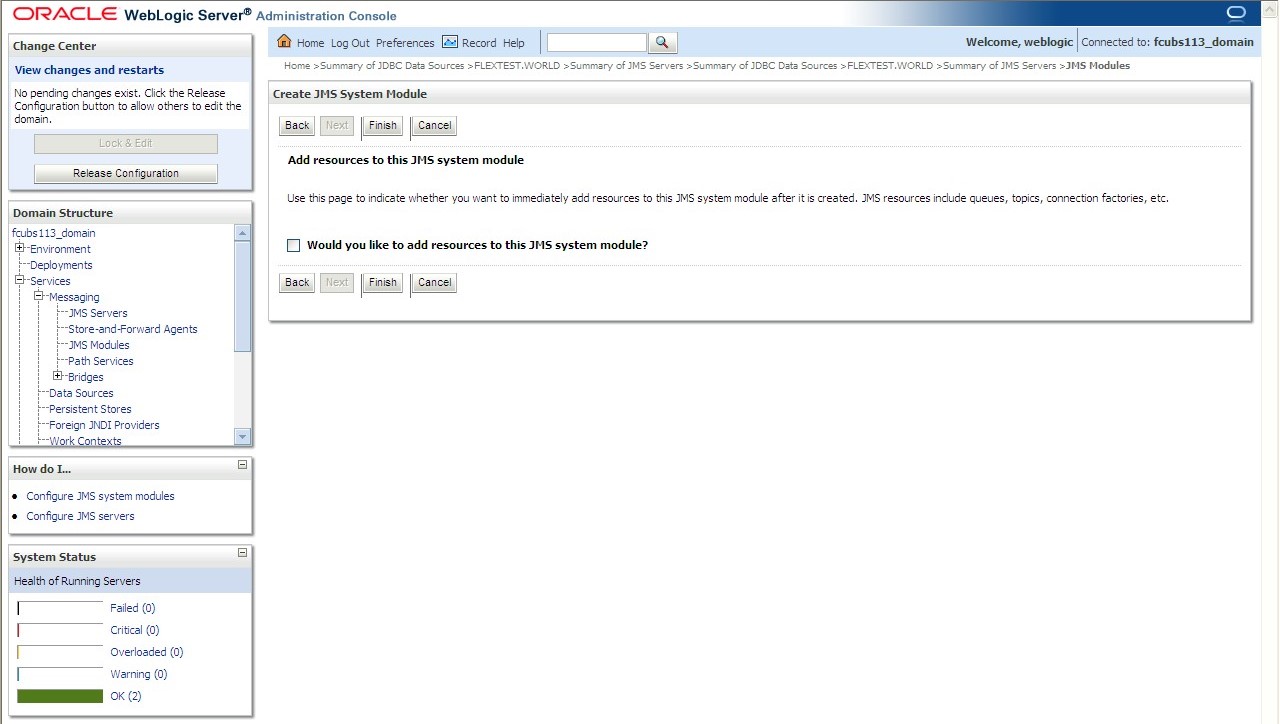

   Figure 7-43 Create JMS System Module - Add Resources





   Description of "Figure 7-43 Create JMS System Module - Add Resources"



9. Click the Finish button.
   The message displays on the JMS Modules - Message screen confirming that JMS was created successfully

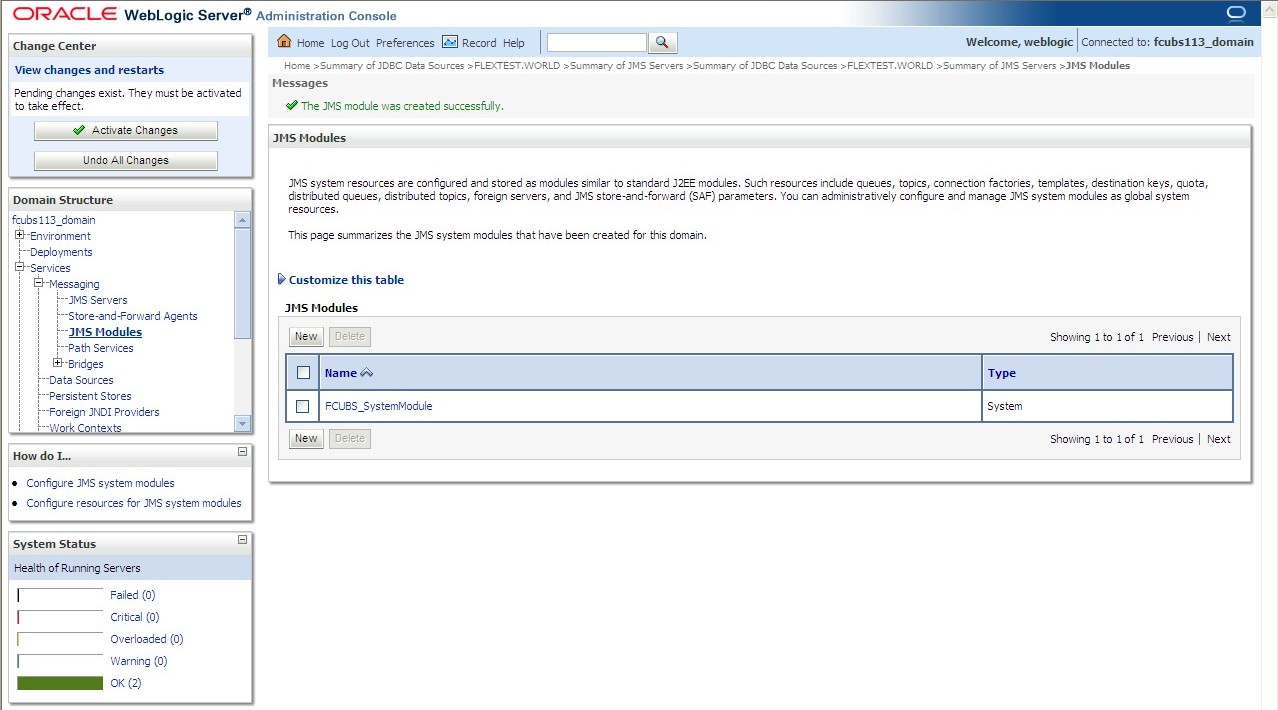

   Figure 7-44 JMS Modules - Message





   Description of "Figure 7-44 JMS Modules - Message"



10. Click the Activate Changes button under Change Center. The message All the changes have been activated. No restarts are necessary displays.
    The JMS Modules - Activate Changes screen displays.

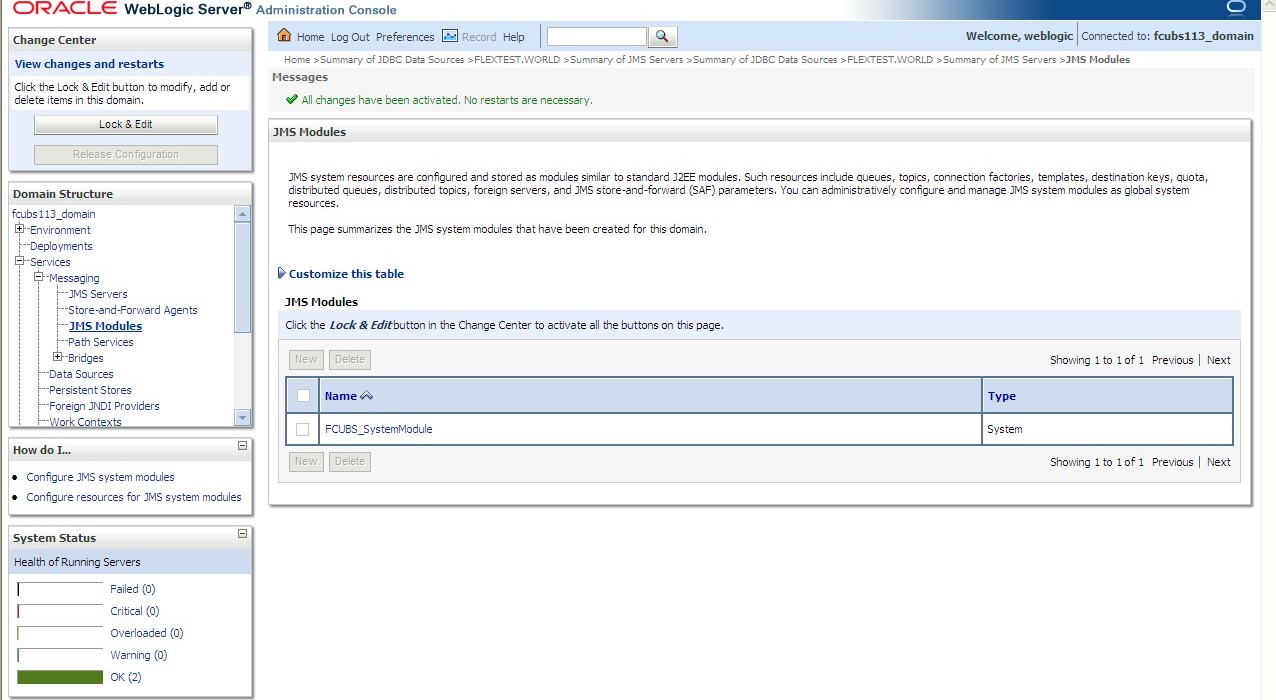

    Figure 7-45 JMS Modules - Activate Changes Message





    Description of "Figure 7-45 JMS Modules - Activate Changes Message"
