This topic explains the systematic instructions to create the JMS Connection Factory in the Weblogic application server.

1. On the Settings for FCUBS_SystemModule - Configuration tab, select the newly created JMS Queue module.
   The Settings for FCUBS_SystemModule - Configuration tab displays.

   Figure 7-61 Settings for FCUBS_SystemModule





   Description of "Figure 7-61 Settings for FCUBS_SystemModule "



2. Click New.
   The Create a New JMS System Module Resource screen displays.

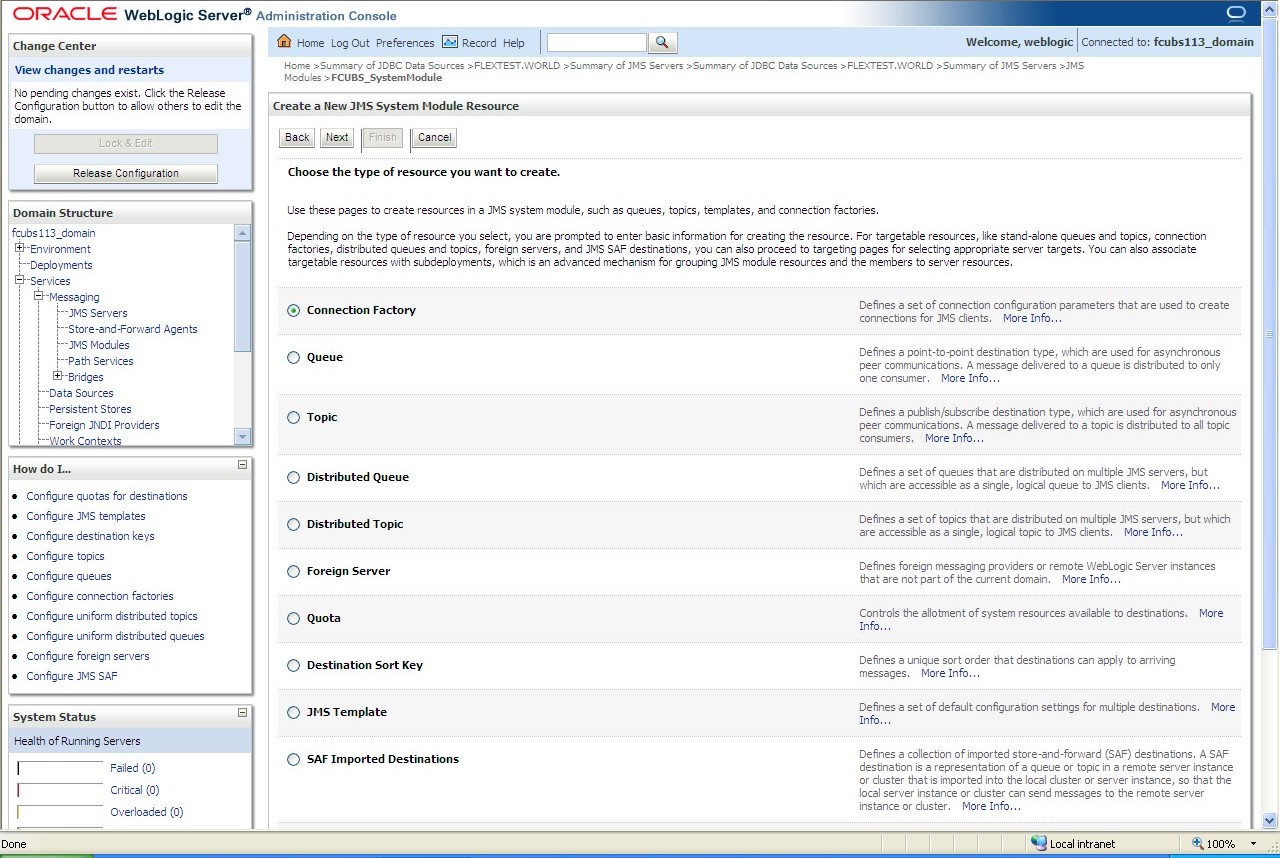

   Figure 7-62 Create a New JMS System Module Resource





   Description of "Figure 7-62 Create a New JMS System Module Resource"



3. Select the Connection Factory option and then click Next.
   The Create a New JMS System Module Resource - Connection Factory Properties screen displays.

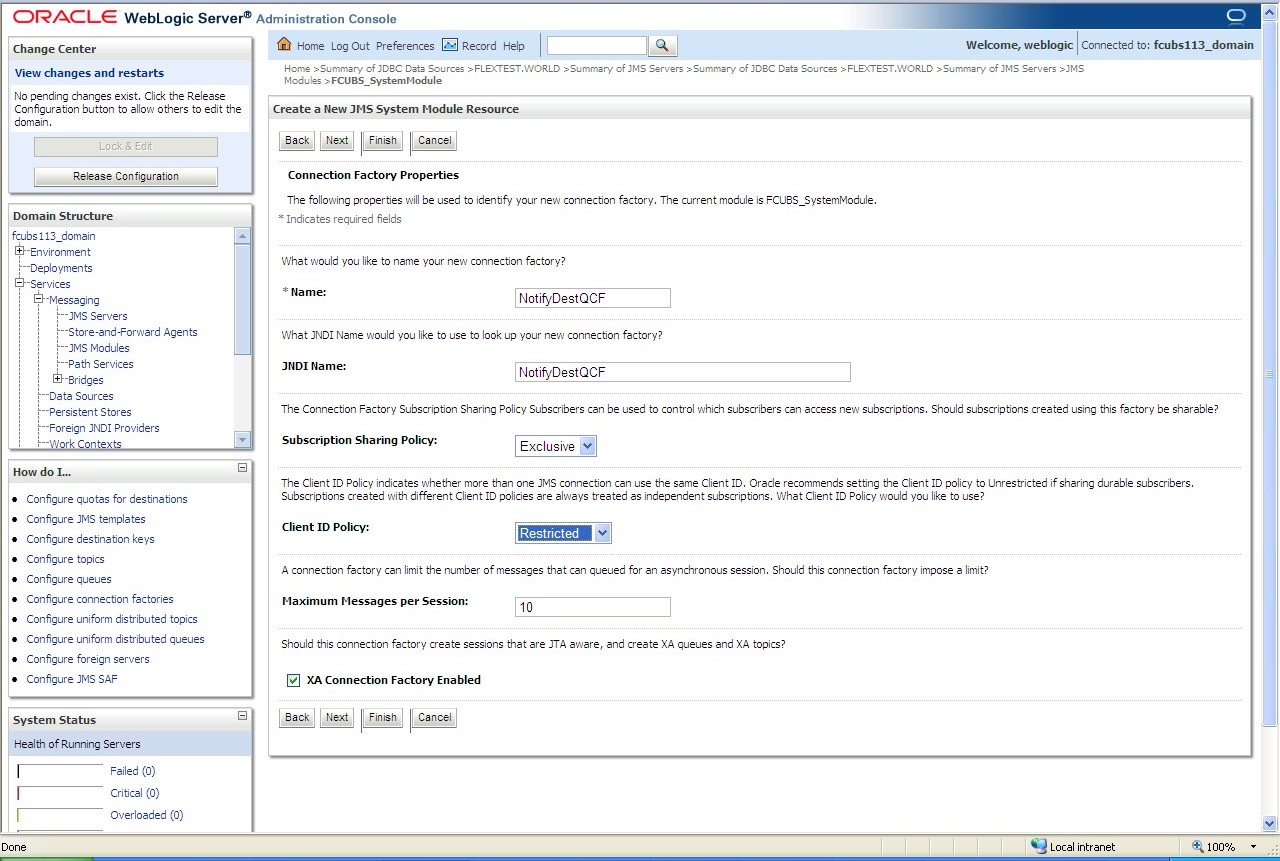

   Figure 7-63 Create a New JMS System Module Resource - Connection Factory Properties





   Description of "Figure 7-63 Create a New JMS System Module Resource - Connection Factory Properties"




   For more information, refer to the fields description table.

   Table 7-8 Connection Factory Properties

   Filed	Description
   Name	Specify the Name of the Connection factory asNotifyDestQCF.
   JNDI Name	Specify the JNDI Name as NotifyDestQCF
   Client ID Policy	Select the Client ID policy as Restricted from the drop-down.

4. Select the XA Connection Factory Enabled check box and click Next.
   The Create a New JMS System Module Resource - Targets screen displays.

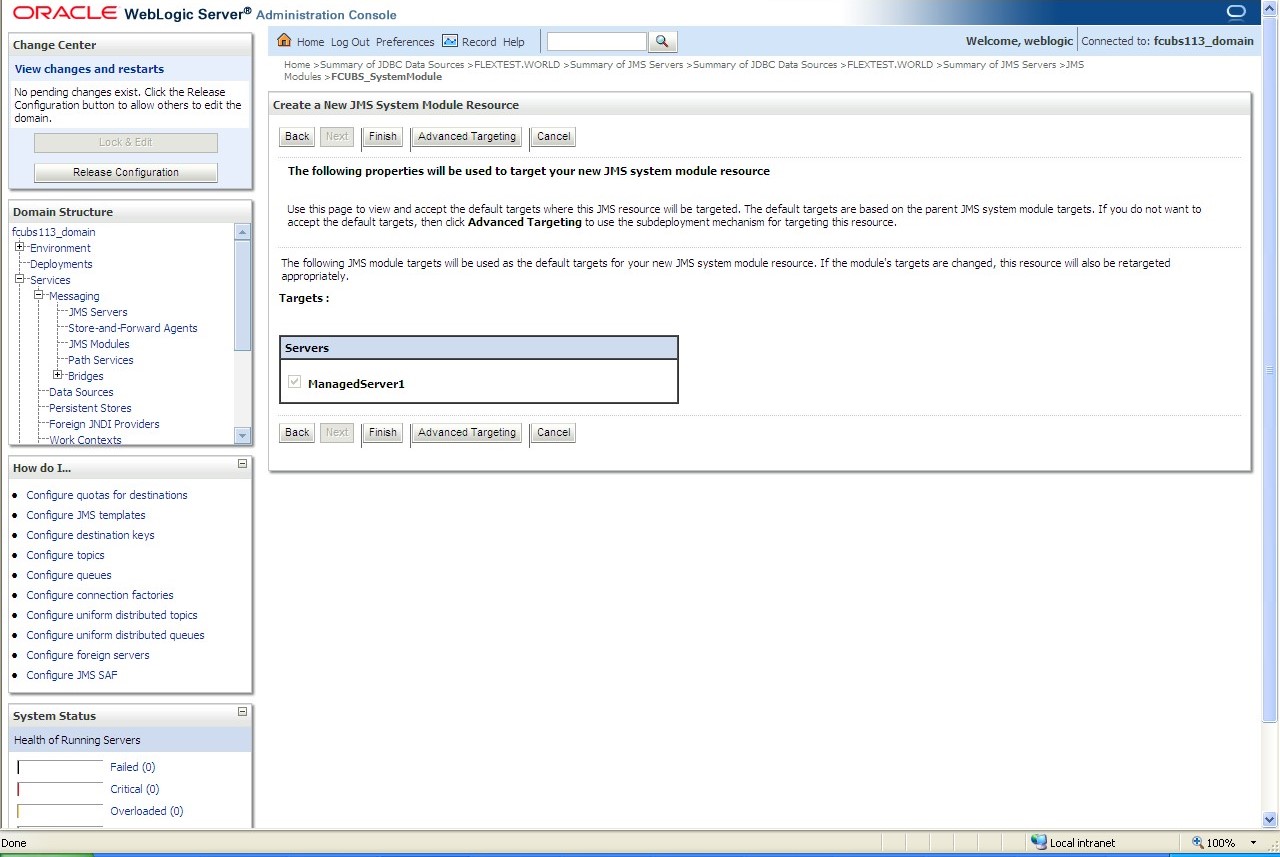

   Figure 7-64 Create a New JMS System Module Resource - Targets





   Description of "Figure 7-64 Create a New JMS System Module Resource - Targets"



5. Click on the Advanced Targeting.
   The Create a New JMS System Module Resource - Advance Targeting screen displays.

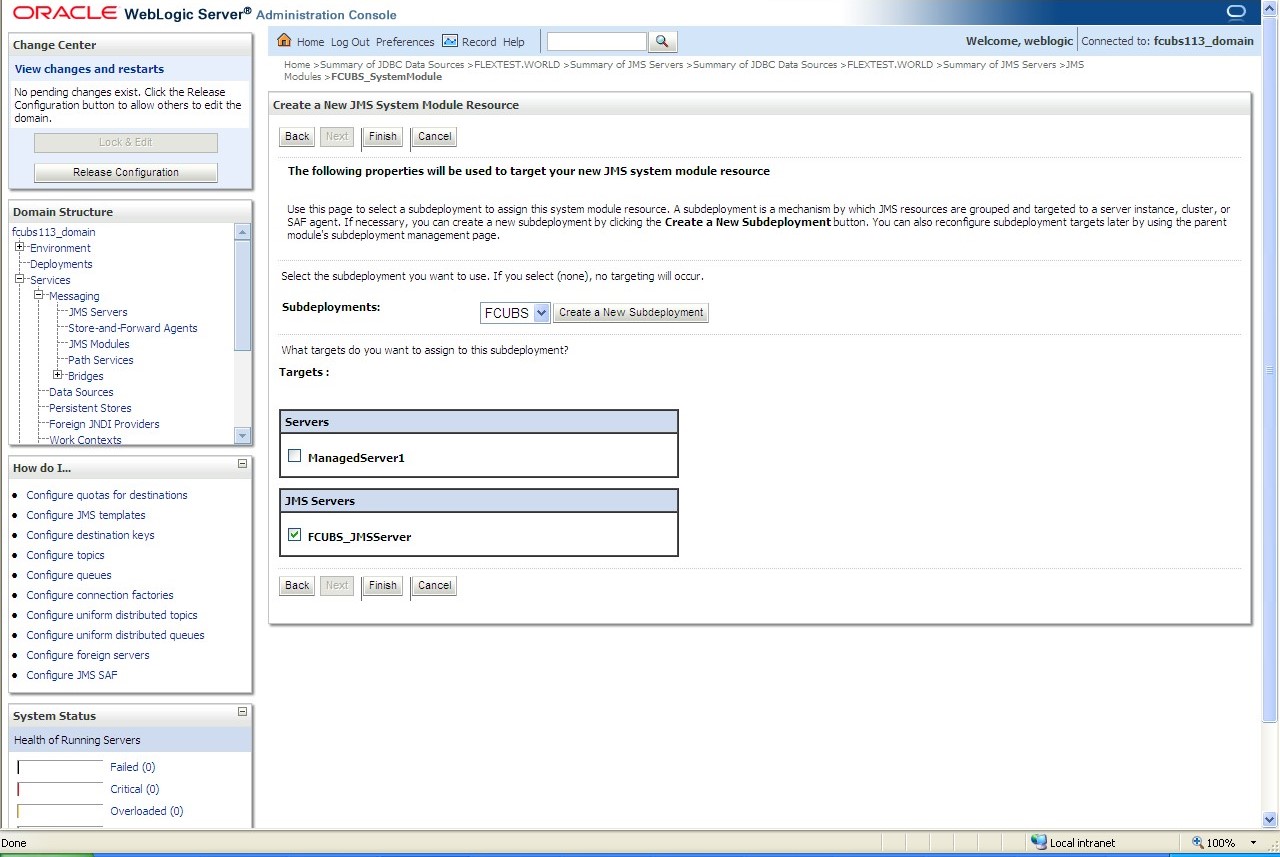

   Figure 7-65 Create a New JMS System Module Resource - Advance Targeting





   Description of "Figure 7-65 Create a New JMS System Module Resource - Advance Targeting"



6. Select the Subdeployments as FCUBS from the drop-down list.
7. Under the JMS Servers, select the check box against Managed Server.
8. Click Finish.
   The message displays on the Settings for FCUBS_SystemModule screen confirming that Connection Factory created successfully.

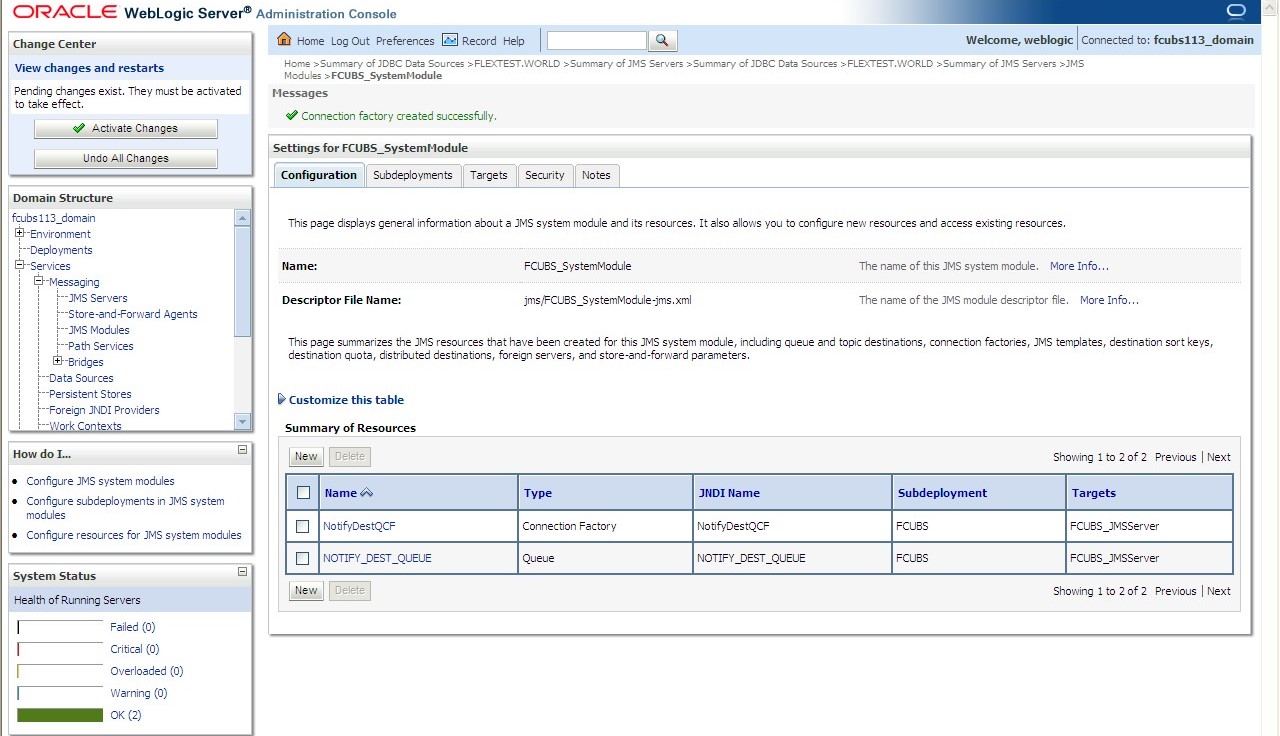

   Figure 7-66 Settings for FCUBS_SystemModule - Connection Factory Messages





   Description of "Figure 7-66 Settings for FCUBS_SystemModule - Connection Factory Messages"



9. To have the XA Connection Factory enabled, click the Connection Factory NotifyDestQCF from the Summary of Resources table.
   The Settings for NotifyDestQCF screen displays.

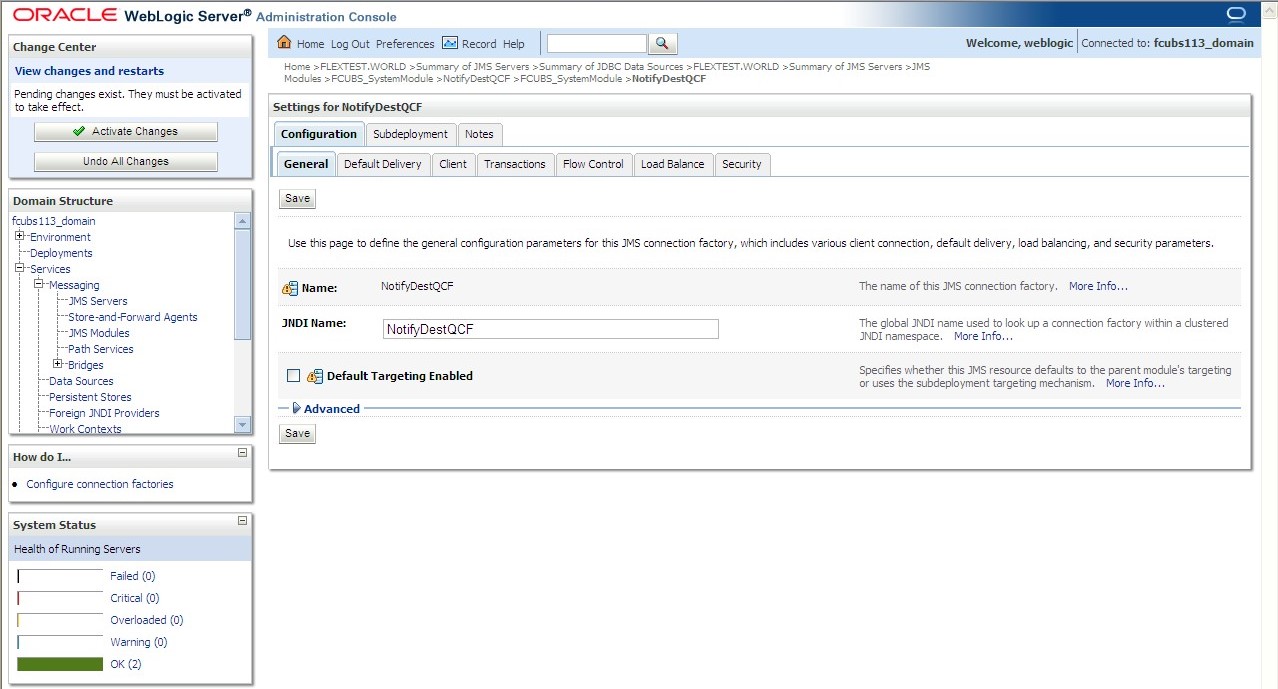

   Figure 7-67 Settings for NotifyDestQCF





   Description of "Figure 7-67 Settings for NotifyDestQCF"



10. Click the Transactions tab.
    The Settings for NotifyDestQCF - Transactions tab displays.

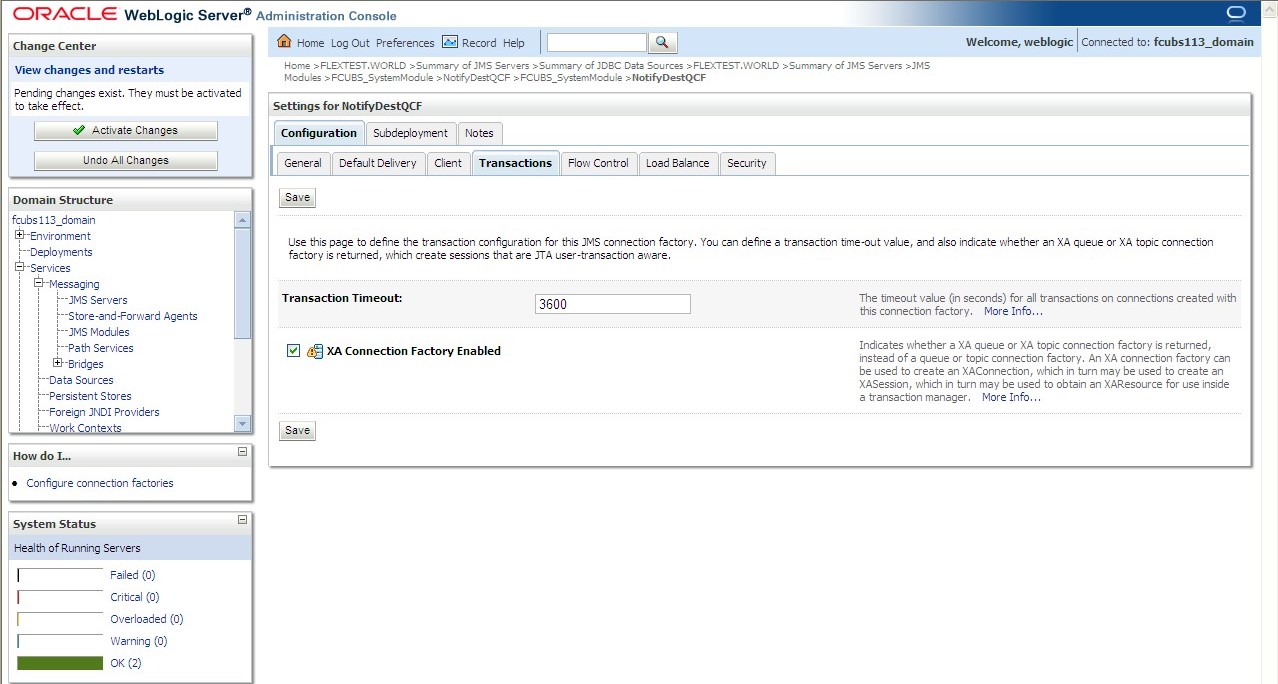

    Figure 7-68 Settings for NotifyDestQCF - Transactions





    Description of "Figure 7-68 Settings for NotifyDestQCF - Transactions"



11. Select the XA Connection Factory Enabled check box.
12. Click the Save button.
    The message displays on the Settings for NotifyDestQCF - Messages screen confirming that Settings updated successfully.

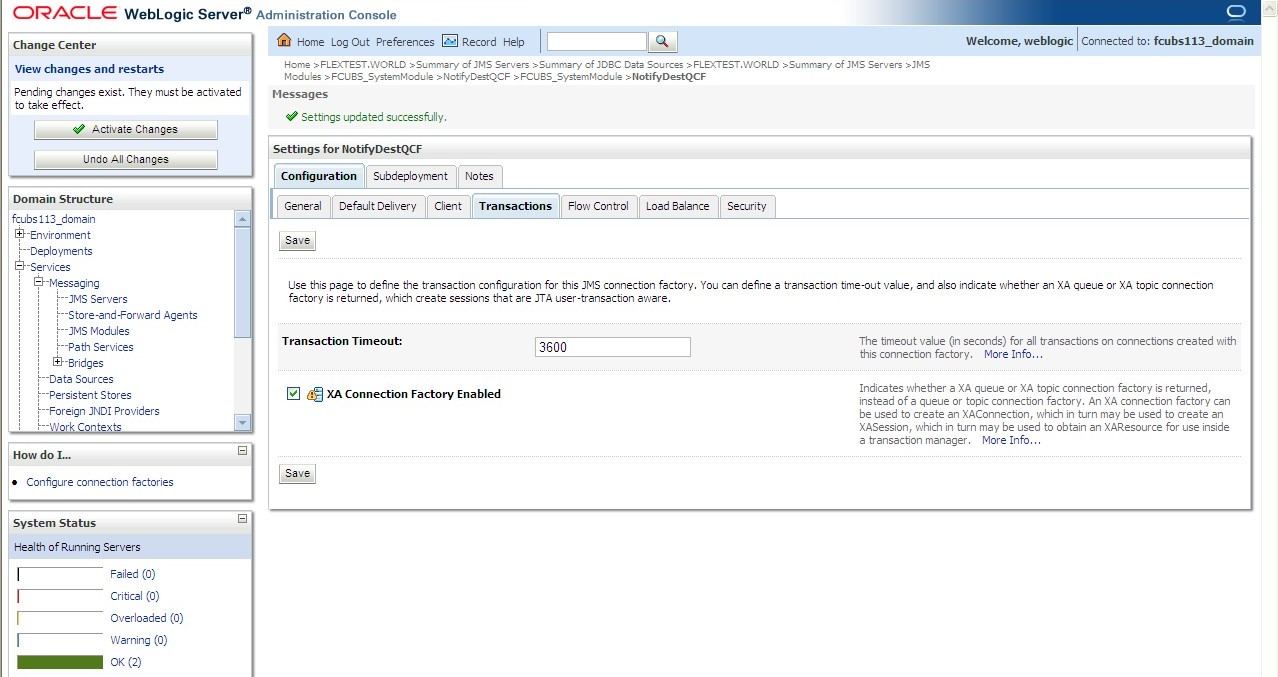

    Figure 7-69 Settings for NotifyDestQCF - Messages





    Description of "Figure 7-69 Settings for NotifyDestQCF - Messages"



13. Click the Activate Changes button under Change Center.
    The message displays on the Settings for NotifyDestQCF screen confirming that All the changes have been activated. No restarts are necessary.

    Figure 7-70 Settings for NotifyDestQCF - Activate Changes





    Description of "Figure 7-70 Settings for NotifyDestQCF - Activate Changes"
