This topic explains systematic instructions to create a property file through the REST Services application.

1. On the Gateway Property File Creation screen, select REST Services (Applicable to UBS 14.1 and above versions) application type.

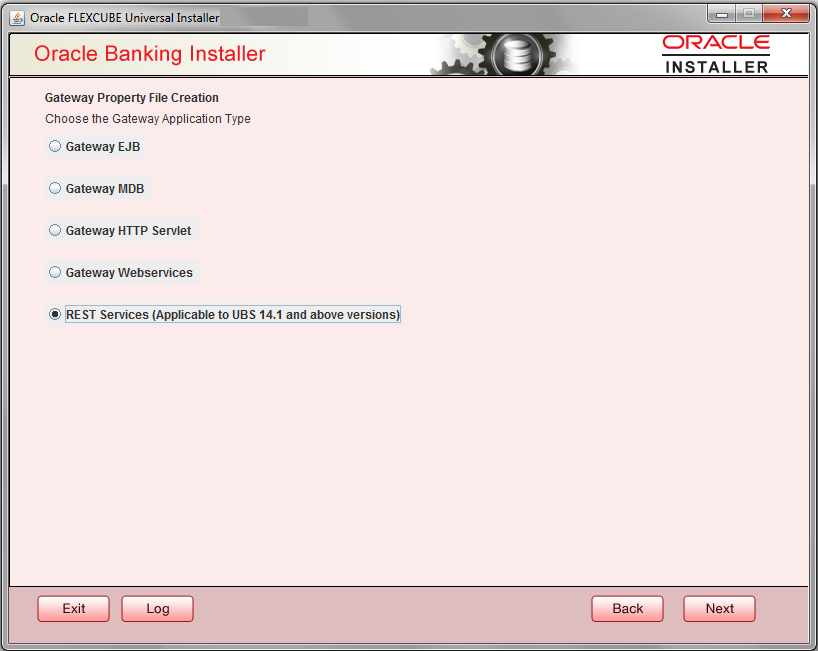

   Figure 1-31 REST Services_Gateway Property File Creation





   Description of "Figure 1-31 REST Services_Gateway Property File Creation"



2. Click Next.
   The SMS Schema Details screen displays.

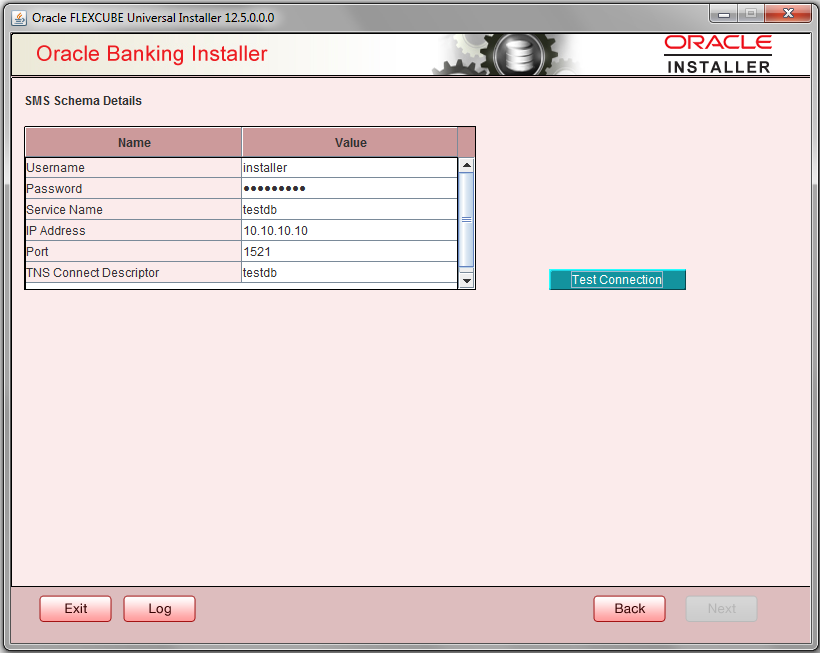

   Figure 1-32 SMS Schema Details





   Description of "Figure 1-32 SMS Schema Details"



3. Specify the valid Username, Password, Service Name IP Address, Port, and TNS Connect Descriptor, and then click Test Connection.
   The successful test connection will enable the Next button.
4. Click Next.
   The Property File Creation screen displays.
5. On the Property File Creation screen, specify the fields.

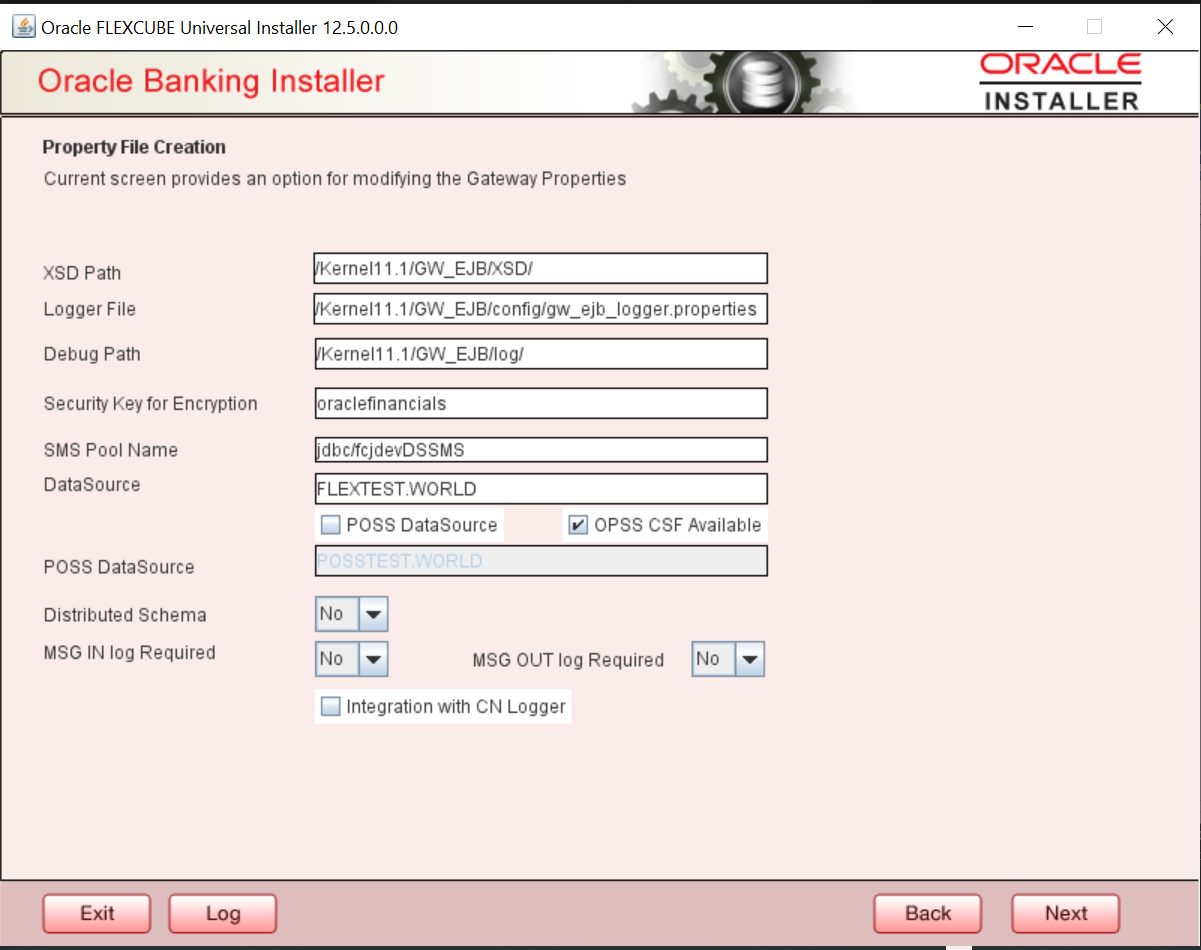

   Figure 1-33 Property File Creation





   Description of "Figure 1-33 Property File Creation"




   For more information, refer to the fields description table.

   Table 1-17 Property File Creation - File Description

   Field	Description
   XSD Path	Specify the XSD path.
   Logger File	Specify logger property file path.
   Debug Path	Specify the path where debugs are to be written.
   Security Key for Encryption	Specify the security key for the encryption. Here specify oraclefinancialsolutions.
   SMS Pool Name	Specify valid pool name. This field displays the default value jdbc/fcjdevDSSMS.
   DataSource	The JDBC data source is an object bound to the JNDI tree and provides database connectivity through a pool of JDBC connections.
   POSS DataSource	Check this box if POSS is required.
   OPSS CSF Available	This check box indicates whether OPSS-CSF is installed or not.
   POSS DataSource	If the POSS DataSource box is checked, specify the POSS Datasource Name in this field.
   Distributed Schema	Select either Yes or No from the drop-down list.
   MSG IN Log Required	Select either Yes or No from the drop-down list.
   MSG OUT Log Required	Select either Yes or No from the drop-down list.
   Integration with CN Logger	Check this box for the Integration with CN Logger.

6. Click Next to Specify REST Services information.
   The RESTServices Properties screen displays.

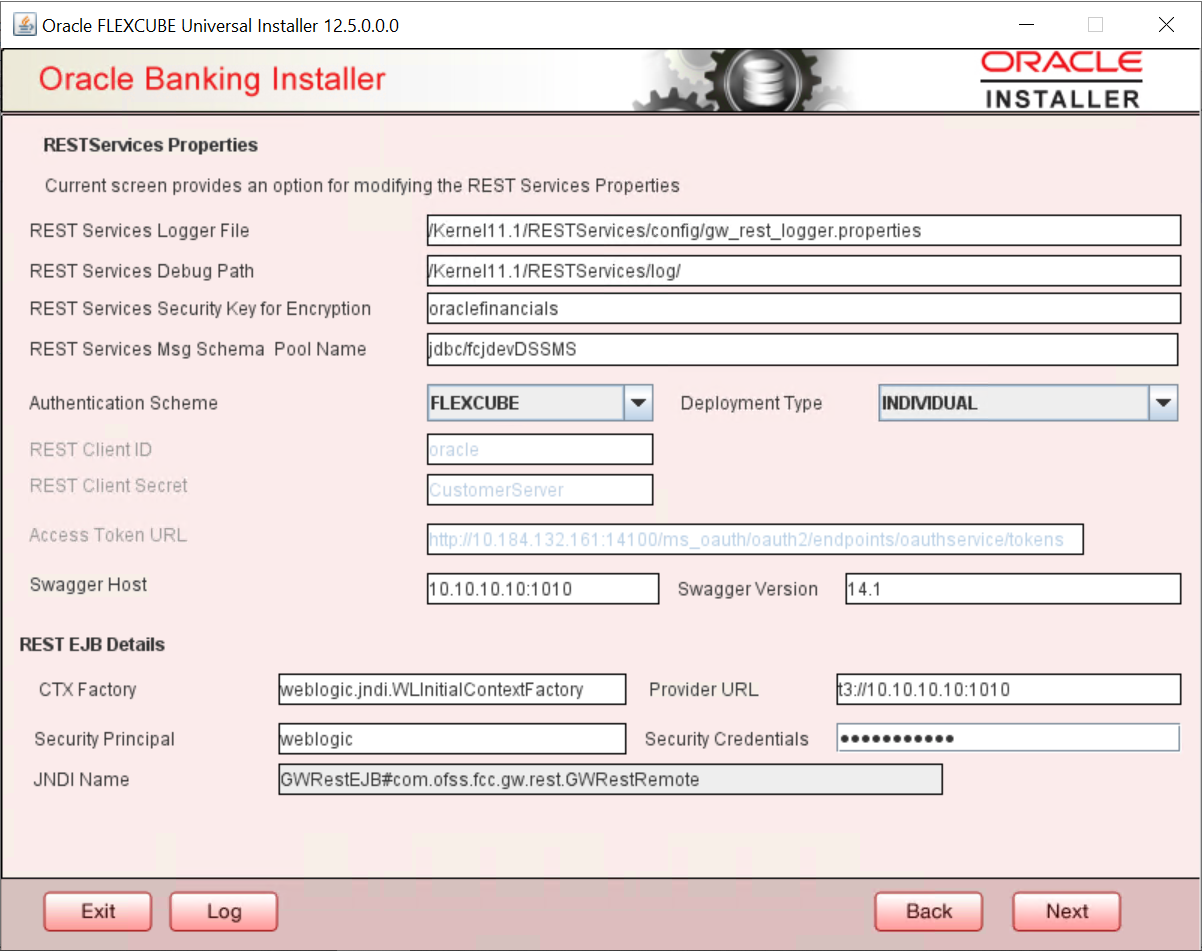

   Figure 1-34 RESTServices Properties





   Description of "Figure 1-34 RESTServices Properties"




   For more information, refer to the fields description table.

   Table 1-18 REST Services Properties

   Field	Description
   REST Services Logger File	Specify logger property file path.
   REST Services Debug Path	Specify the path where debugs are to be written.
   REST Services Security Key for Encryption	Specify the security key for the encryption. In this case, it is oraclefinancialsolutions.
   REST Services Msg Schema Pool Name	Specify a valid pool name. This field displays the default value as jdbc/fcjdevDSSMS.
   Authentication Scheme	Select Authentication Scheme from the drop-down list. OAUTH FLEXCUBE For the FLEXCUBE authentication scheme, REST Client ID, REST Client Secret, and Access Token URL are disabled. The same has to be specified if OAUTH is selected.
   CTX factory	Specify valid CTX factory information.
   Provider URL	Specify the URL with the valid port number.
   Security Principal	Specify the security principal user name.
   Security Credentials	Specify the security principal password.
   JNDI Name	In this field, JNDI Name is defaulted based on the application server selected.

7. Click Next.
   The Property Installation screen displays.

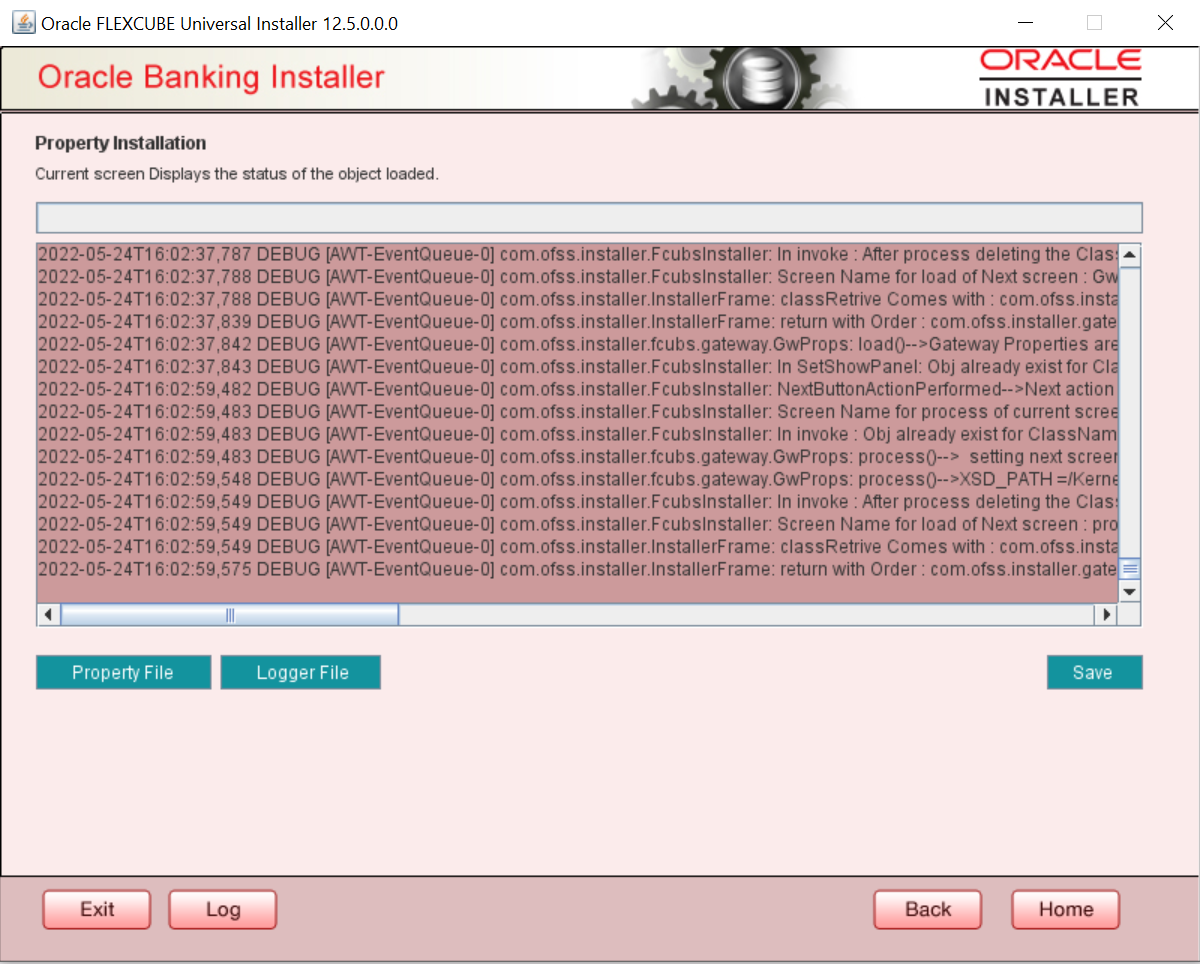

   Figure 1-35 Property Installation





   Description of "Figure 1-35 Property Installation"



8. Click Property File to view the created property file.
9. Click Save to save the created property file in the desired location.
   The property file will be created in a temporary folder.
