6.1.4 System Configuration – Third Party Configurations - Host Details – View and Edit

This topic describes the systematic instruction to System Configuration – Third Party Configurations - Host Details – View and Edit option.

Using this option System Administrator maintains the host configuration. These details once defined can be viewed and edited using this transaction.

To edit the third party configurations - host details:

  1. Click on System Configuration option on the dashboard and navigate to the host details tab.
    The default option is View.

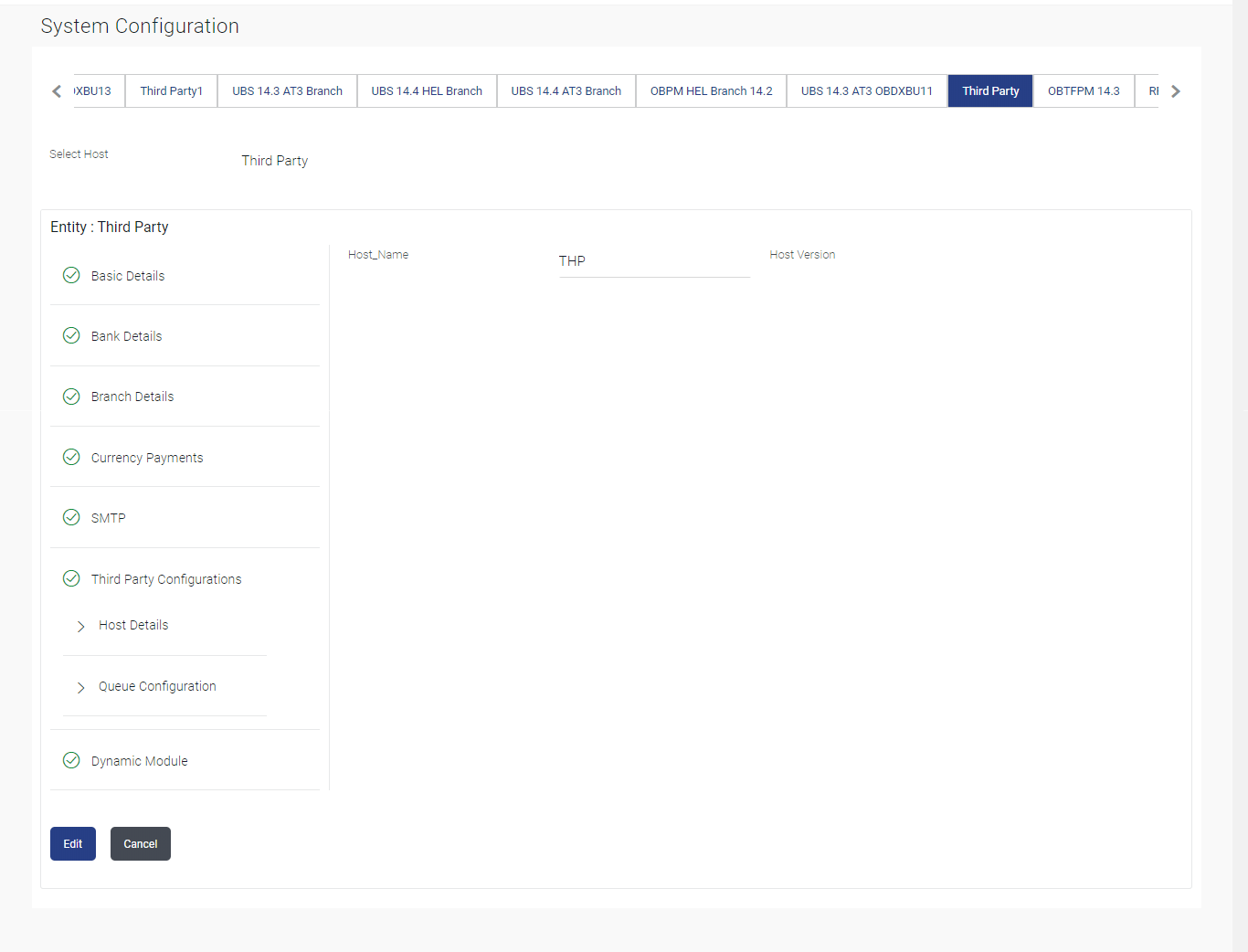

    Figure 6-21 System Configuration – Third Party Configurations - Host Details - View


    Description of Figure 6-21 follows
    Description of "Figure 6-21 System Configuration – Third Party Configurations - Host Details - View"

  2. Click Edit to edit the Host Details.
    The System Configuration - Third Party Configurations - Host Details screen appears in editable form.
    OR

    Click Cancel to cancel the transaction.

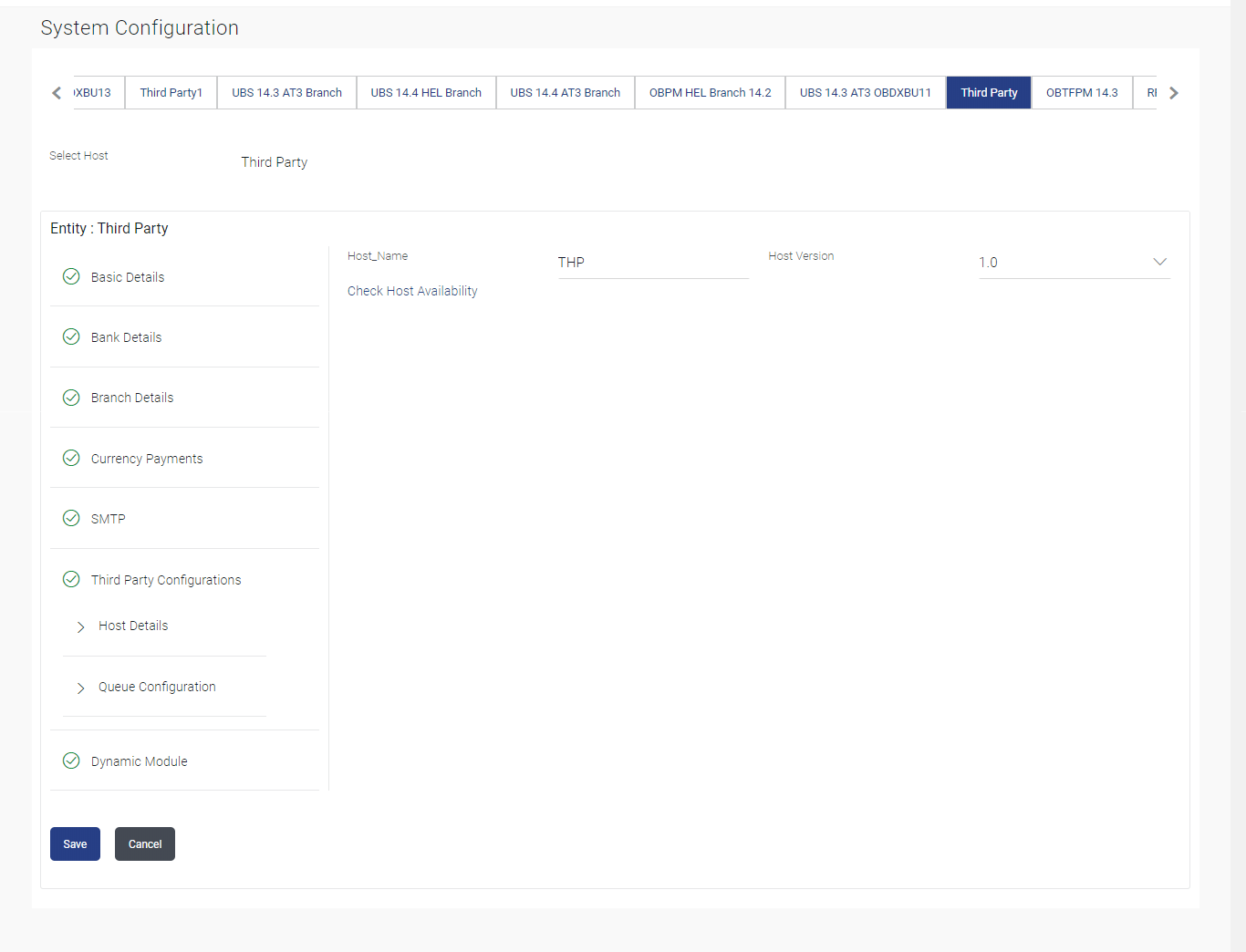

    Figure 6-22 System Configuration - Third Party Configurations - Host Details - Edit


    Description of Figure 6-22 follows
    Description of "Figure 6-22 System Configuration - Third Party Configurations - Host Details - Edit"

    Note:

    The fields which are marked as Required are mandatory.

    For more information on fields, refer to the field description table.

    Table 6-17 System Configuration - Third Party Configurations - Host Details - Field Description

    Field Name Description
    Host Name Displays the host name. This field is not editable.
    Host Version Displays the host version and available for edit.
  3. In the Host Name list, enter the host name.
  4. From the Host Version list, select the version of the host, if required.
  5. Click host availability to verify the host name and version.
  6. Perform anyone of the following actions:
    • Click Save to save the changes.
    • Click Cancel to cancel the transaction.
  7. Perform anyone of the following actions:
    • The System Configuration - Third Party Configurations -Host Details - Review screen appears. Verify the details, and click Confirm.
    • Click Cancel to cancel the transaction.
    • Click the Basic Details, Bank Details, Branch Details, SMTP or Dynamic Modules tabs to view and edit the respective details.

    The screen with success message along with the reference number and status appears.

  8. Click OK to complete the transaction.

Parent topic: System Configuration – Third Party – View and Edit
