14.1.2.1 Admin Workflow Management – Search

This topic describes the systematic instruction to Admin Workflow Management – Search option.

Bank Administrator user can search the workflows maintained for administrator users.

Workflows maintained (if any) for admin users are displayed on the screen after searching with valid input. User can view the details of existing workflow by clicking on the search results or can create new approval workflow using this screen.

To search the approval workflow for admin users:

  1. In the Admin Workflow Management screen, enter the search parameters and click Search.
    The Admin Workflow Management screen with search results appears based on the searched criteria.

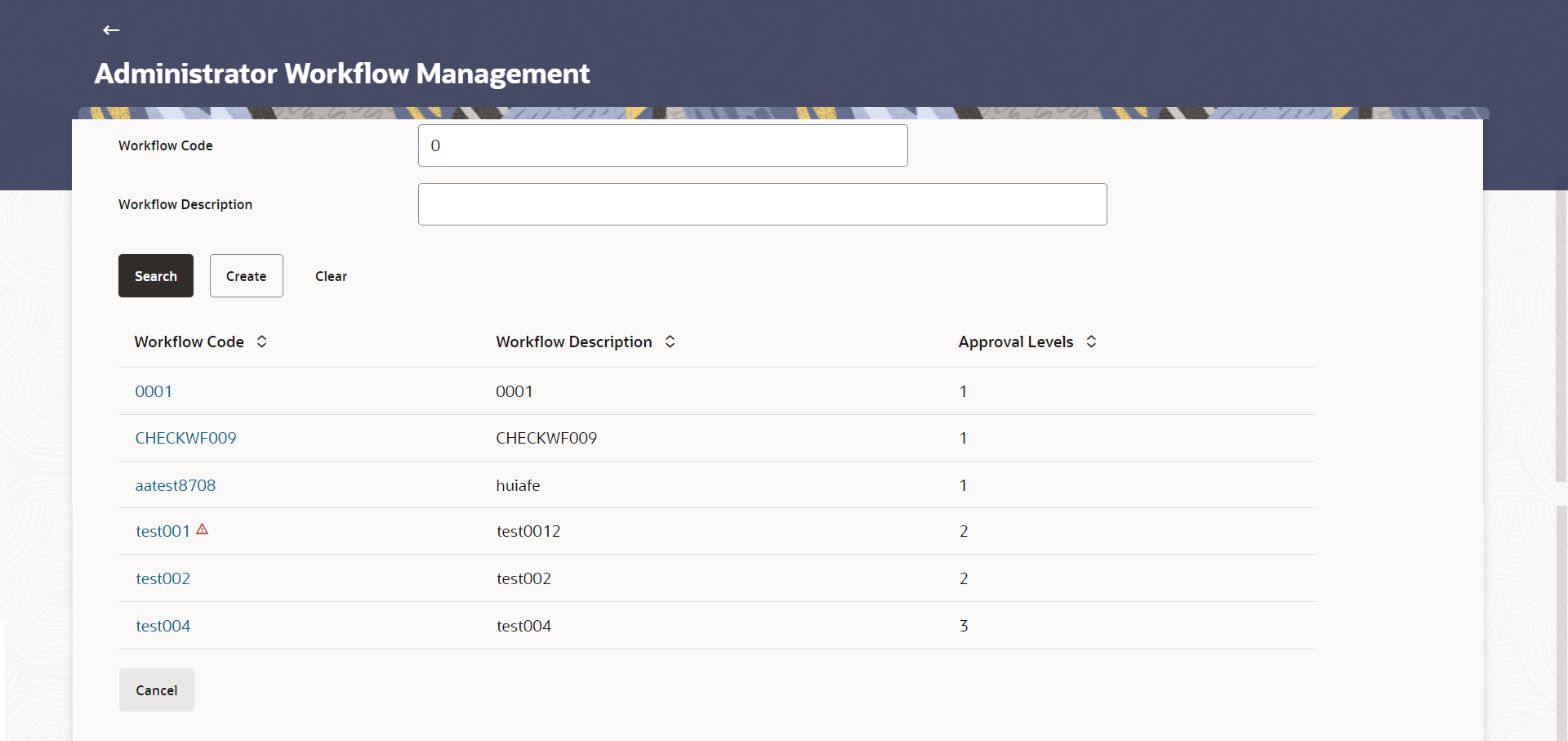

    Figure 14-4 Workflow Management – Search


    Description of Figure 14-4 follows
    Description of "Figure 14-4 Workflow Management – Search"

    Note:

    The fields which are marked as Required are mandatory.

    For more information on fields, refer to the field description table.

    Table 14-2 Field Description

    Field Name Description
    Workflow Code The approval workflow code to search the approval workflows.
    Workflow Description The approval workflow description to search the approval workflows.
    Search Result Information specified in below fields are related to Search Result.
    Workflow Code Unique code of the already maintained approval workflow.
    Workflow Description Description of the already maintained approval workflow.
    Approval Level Number of approval levels in each workflow.
  2. Perform anyone of the following actions:
    • Click the Work Flow code link, to view details of the selected Approval Workflow.

      The Workflow Management - View screen appears.

    • Click Cancel to cancel the operation and navigate back to Dashboard.
    • Click Clear to reset the data entered.
    • Click Create create new Approval Workflow for admin users.

Parent topic: Approval Workflow - Admin User - Workflow Management
