Before you can configure node chains, you need to install and configure the Offline Mediation Controller components.

1. Start the Offline Mediation Controller components:

   • Oracle Universal Directory

   • One or more node managers

   • The administration server

   • Administration Client

   For information, see "Starting and Stopping Offline Mediation Controller" in Offline Mediation Controller System Administrator's Guide.

2. In Administration Client, create mediation hosts for each instance of a node manager. To create a mediation host, you assign the host name and port number of a node manager. After a mediation host is created, you can create nodes and node chains.

3. When you create a new node on the mediation host, Administration Client presents a series of choices that enable you to select a node for your solution. You select the solution type and the node type. Depending on the solution type and node type, you also select a node specialization.

4. Each node requires configuration and might require you to edit the rule file. All configurations and editing of rule files are performed in Administration Client.

5. When all nodes are created and configured, create a node chain by doing the following:

   • Create the CC, EP, AP, and DC nodes as necessary.

   • Specify the order of the nodes in the node chain by dragging and dropping connection lines from the output of one node to the input of another node.

   • In the CC node, set up a method for Offline Mediation Controller to receive input from an external system.

   • In the DC node, set up a destination for Offline Mediation Controller to send data to.

6. After the nodes are configured and connected, start the node chain.

To configure nodes in Administration Client, choose the type of node that you want and then edit the configuration in a dialog box. Each node can have different configuration options depending on the node functionality. For example, CC nodes can include file input configuration, and DC nodes have no configuration for destination nodes.

For information about the options in each dialog box tab, see Offline Mediation Controller Online Help.

In addition to general and destination configurations, EC nodes and AP nodes typically include node-specific configuration parameters. For example:

• The duplicate check EP node uses a De-Duplication tab to configure options such as where to store the files that hold duplicate records, the number of records per file, and so on.

• The record recycling EP node uses a Database Info tab to configure the connection information required to send records to a database.

• The session aggregation AP node uses an Aggregator tab to specify how often to send aggregated records to the next node in the node chain.

You edit rule files when you configure nodes in Administration Client. You open the rule file, edit it, and perform a test compilation. If compilation fails, you can edit it again. When compilation succeeds, save the file.

Rule files define the functionality that a node carries out. For example:

• The rule file for a CC node contains the mapping and normalizing rules that translate incoming data into a NAR.

• The rule file for a DC node contains rules that transform a NAR into the output needed by the target system.

• The rule file for an EP node contains functions that manipulate data.

In many cases, a node has a pre-configured rule file that does not need editing. In some cases, a node can include multiple rule files that you can choose from, such as to specify a different output. In some cases, you need to select a rule file and edit it.

Editing a rule file can be as simple as providing a value in a name-value pair. For example, the following entry in a rule file specifies the field to use when checking for duplicate records:

DUP_CHECK_KEYS "calling_number session_id seq_no";

You can also use Java hooks to implement more complex mappings and configurations. For example, this Java hook implements a JDBC connection:

Config {
JDBCDriver "oracle.jdbc.driver.OracleDriver";
JDBCUrl "jdbc:oracle:thin:@%DBHOST%:%DBPORT%:%DBSID%";
}

Java hooks are provided by each cartridge. For example, the Oracle CDR Format Cartridge includes many Java hooks to validate input.

For more information about using Java hooks with NPL, see "Java hooks" in Offline Mediation Controller Cartridge Development Kit NPL Reference Guide.

You can use various types of routing in a node chain to process NARs in different ways and implement load balancing. You can use:

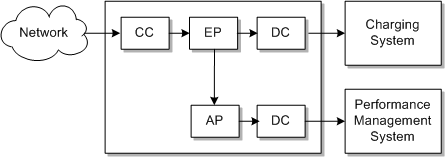

• Multicast routing to branch a node chain and send all of the NAR files to both branches. Figure 2-1 shows a node chain with one input and two outputs. In this configuration, the EP node sends all of the NAR files to two different nodes: one for output to a charging system, and one to an aggregation processor that sends the NARs to a performance management system.

  Figure 2-1 Node Chain with Multicast Routing


  Description of "Figure 2-1 Node Chain with Multicast Routing"

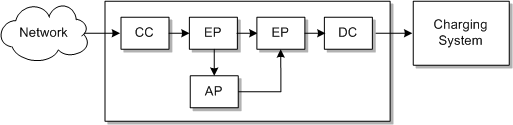

• Directed routing to send NAR files to different branches. For example, you can branch a node chain based on the value of a field in the NAR. Figure 2-2 shows a node chain that implements an additional aggregation step for only some of the NAR files.

  Figure 2-2 Directed Routing


  Description of "Figure 2-2 Directed Routing"

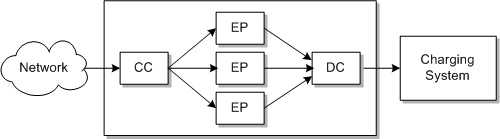

You can improve performance by creating multiple instances of the same processing node. You can then route NAR files to different instances to process the files in parallel. Figure 2-3 shows a CC node configured to send NAR files to one of three different EP nodes.

To send NAR files to different nodes as shown in Figure 2-3, you can use:

• Round robin routing, which rotates to whichever node the NAR file is sent.

• Modulus routing, which sends the NAR file to a node based on a field value in the NAR.

See Offline Mediation Controller Online Help for information about configuring NAR file routing.

You configure NAR routing in two places:

• In the Destination tab when you configure the node. For example, you can choose multicast or round robin routing.

• When you drag and drop a connection from one node to another. If routing is enabled for the destination node, you enter the routing method. For example, to configure distributed routing, you specify the conditions that enable the NAR file to be sent to the destination node.

You can manage performance by configuring node chains on multiple mediation hosts.

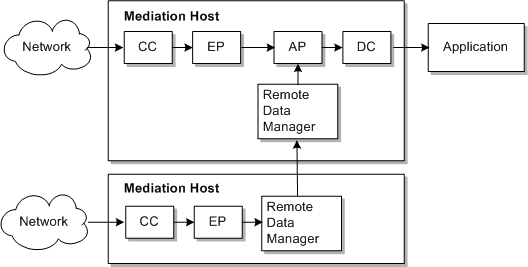

Figure 2-4 shows a node chain that runs on two mediation hosts. This node chain receives input from two devices, but outputs to one application. The Remote Data Manager sends the output NAR of an EP node on one mediation host to the input of the AP node in the other mediation host.

You can run multiple instances of Offline Mediation Controller by running multiple pairs of the primary administration server and backup servers. If you do, you can send NAR files from the DC node in one instance of Offline Mediation Controller to the CC node in another instance. Figure 2-5 shows node chains connected across administration servers.
