5 About Integrating Offline Mediation Controller REST Services Manager with Cloud Native

You can integrate an external application with Oracle Communications Offline Mediation Controller cloud native by using Offline Mediation Controller REST Services Manager.

Topics in this document:

About Offline Mediation Controller REST Services Manager

The Offline Mediation Controller REST Services Manager allows you to perform the same operations as the NMShell application using external client applications. For example, it allows your external application to do the following in Offline Mediation Controller:

Manage Nodes
Manage Node Managers
Retrieve a list of node chains
Compile and save the NPL rules file
Export node configurations and customizations

About Offline Mediation Controller REST Services Manager Cloud Native Architecture

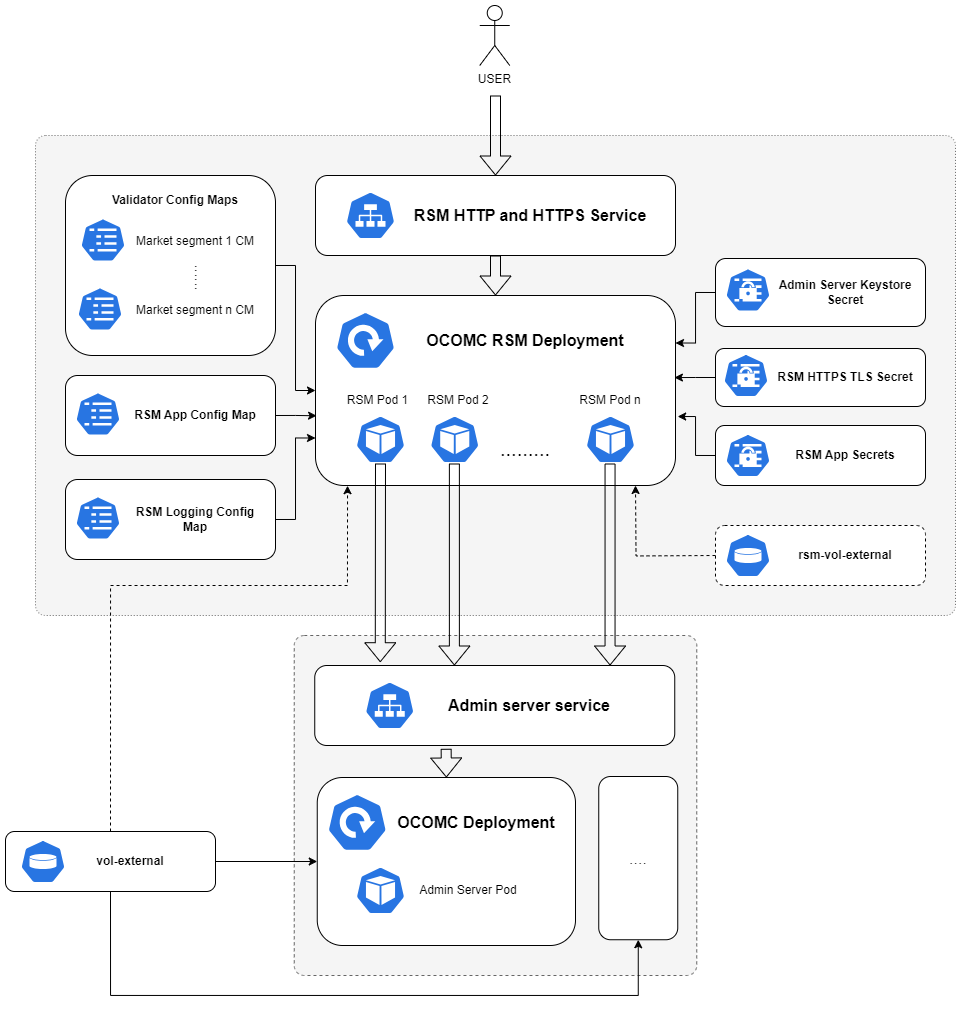

Figure 5-1 shows all the components of the Offline Mediation Controller REST Services Manager cloud native architecture.

Figure 5-1 Offline Mediation Controller REST Services Manager Cloud Native Architecture

Description of "Figure 5-1 Offline Mediation Controller REST Services Manager Cloud Native Architecture"

The components in this figure include:

REST Services Manager Deployment: The primary deployment of REST Services Manager with all the necessary components and configurations.
REST Services Manager HTTP and HTTPS Service: This service exposes REST Services Manager to ports, allowing access to REST Services Manager through HTTP and HTTPS protocols.
Validator ConfigMap: There is a unique ConfigMap for each market segment.
REST Services Manager App ConfigMap: The ConfigMap contains the application.yaml file, which holds the configurations required to initiate the REST Services Manager server.
REST Services Manager Logging ConfigMap: The ConfigMap holds the log4j2.yaml file, encompassing logging-related configurations.
Admin Server Keystore Secret: This secret contains the administration server KeyStore file in a Base64-encoded format.
RSM HTTPS TLS Secret: This secret contains the HTTPS TLS store utilized by REST Services Manager when the HTTPS protocol is enabled.
REST Services Manager App Secret: This secret contains all confidential information necessary to launch the REST Services Manager server.
vol-external: This is an optional PV reference. REST Services Manager will incorporate it only if the flag rsm.pvc.ocomcExternal.enabled in the override-values.yaml file is set to true. When enabled, the REST Services Manager will share the vol-external PV of the OCOMC core deployment. It is mandatory to enable this flag if the node chain solution includes cartridges containing sensitive information such as FTP or database passwords.
rsm-vol-external: This PV is optional and can be enabled by setting the flag rsm.pvc.external.enabled to true in the values.yaml file. When enabled, the REST Services Manager will load custom cartridges from the specified PV into the classpath. The source directory for it can be configured in the override-values.yaml file.

Installing Offline Mediation Controller REST Services Manager

The Offline Mediation Controller REST Services Manager can be installed along with core Offline Mediation Controller components using a unified Helm chart.

To install Offline Mediation Controller REST Services:

Configure and install all required third-party software. See "Setting Up Prerequisite Software".
Configure the Offline Mediation Controller server and REST Services Manager connection. See "Configuring the Offline Mediation Controller Core and REST Services Manager Connection".
Configure the REST Services Manager server. See "Configuring the REST Services Manager Server".
Load custom validators. See "Configuring and Loading Custom Validators".
Deploy Offline Mediation Controller REST Services Manager. See "Deploying Offline Mediation Controller Services".

Setting Up Prerequisite Software

As part of preparing your environment for Offline Mediation Controller REST Services Manager, you install and set up various components and services in ways that are best suited for your cloud native environment. The following shows the high-level prerequisite tasks for deploying Offline Mediation Controller REST Services Manager:

Ensure that you have downloaded the latest software that is compatible with Offline Mediation Controller cloud native. See "Offline Mediation Controller Cloud Native System Requirements" in Offline Mediation Controller Compatibility Matrix.
Ensure that your environment setup is complete. See "Setting Up Your Environment".
Download the Offline Mediation Controller cloud native Helm chart. See "Downloading Packages for the Offline Mediation Controller Cloud Native Helm Charts".

Configuring the Offline Mediation Controller Core and REST Services Manager Connection

To configure the Offline Mediation Controller core and REST Services Manager connection:

In your override-values.yaml file for oc-cn-ocomc-helm-chart, set the following keys:
- ocomcRSM.rsm.adminServerConnection.hostname: Specify the hostname where the Offline Mediation Controller Admin Server is running.
- ocomcRSM.rsm.adminServerConnection.port: Specify the port where Offline Mediation Controller Admin Server listens.
If Offline Mediation Controller core uses SSL, do the following:
1. Copy your adminClientTruststore.jks file from the vol-keystore PV of Offline Mediation Controller core to the oc-cn-ocomc/rsm/ocomc-rsm-keystore directory.
2. In your override-values.yaml file, set the following keys:
  - ocomcRSM.rsm.adminServerConnection.ssl.enabled: Set this key to true. This enables SSL between REST Services Manager and the Admin Server.
  - ocomcRSM.rsm.adminServerConnection.ssl.keystoreName: Specify the name of your KeyStore file, such as adminClientTruststore.jks.
If authentication is enabled for Offline Mediation Controller core, set the following keys in your override-values.yaml file:
- ocomcRSM.rsm.adminServerConnection.username: Specify the user name for logging in to the Admin Server.
- ocomcRSM.rsm.adminServerConnection.password: Specify the password for logging in to the Admin Server.

Configuring the REST Services Manager Server

To configure the Offline Mediation Controller REST Services Manager Server:

Enable HTTPS in REST Services Manager by doing the following:
1. Copy your generated .p12 KeyStore file to the REST Services Manager Helm chart directory (oc-cn-ocomc/charts/oc-cn-ocomc-rsm/ocomc-rsm-keystore).
2. Set the following keys in your override-values.yaml file for oc-cn-ocomc:
  - ocomcRSM.rsm.https.enabled: Set this to true.
  - ocomcRSM.rsm.https.ketsotreName: Specify the name of the KeyStore file with the extension.
  - ocomcRSM.rsm.https.keystorePassPhrase: Specify the KeyStore passphrase.
Expose REST Services Manager through a NodePort by setting the following keys in your override-values.yaml file:
- ocomcRSM.rsm.service.type: Set this to NodePort.
- ocomcRSM.rsm.service.nodePort: Specify the port number.
- ocomcRSM.rsm.https.service.nodePort: If the HTTPS port is enabled, specify the port for exposing the HTTPS port outside the cluster.
Enable Oracle Access Management authentication by setting the following keys in your override-values.yaml file:
1. ocomcRSM.rsm.security.provider: Set this to OAM.
2. ocomcRSM.rsm.security.configuration.oam: Fill in the Oracle Access Management and Oracle Unified Directory configuration details.
Set the log levels to the appropriate level in the ocomcRSM.rsm.logging.packagingLogging keys in your override-values.yaml file.

Configuring and Loading Custom Validators

In Offline Mediation Controller REST Services Manager, you can configure custom validators.

To load custom validators:

Enable custom validators for Offline Mediation Controller RSM. In your override-values.yaml file for oc-cn-ocomc-helm-chart, set the ocomcRSM.rsm.customisation.nodeConfigValidator.validators.enabled key to true.
Create a subdirectory within the RSM Helm chart directory (oc-cn-ocomc-rsm/ocomc-rsm-validator) with the name of the market segment for the validator. For example, create a directory named oc-cn-ocomc-rsm/ocomc-rsm-validator/my-market.
Copy the validator YAML files into the directory created in the previous step.
In your override-values.yaml file, set the ocomcRSM.rsm.customisation.nodeConfigValidator.validators.marketSegments key to a list of supported market segments.

About the Offline Mediation Controller REST Services Manager Keys

Table 5-1 lists the keys that directly impact Offline Mediation Controller REST Services Manager. Add these keys to your override-values.yaml file with the same path hierarchy.

Table 5-1 Offline Mediation Controller REST Services Manager Keys

Key	Path in values.yaml file	Description
imagePullSecrets	-	The location of your imagePullSecrets, which stores the credentials (or Secret) for accessing your private Docker registry.
name	ocomcRSM.rsm	The name to use for the deployment. The final name of the deployment is derived using the name provided.
fullname	ocomcRSM.rsm	The final name of the deployment to use. This would be used for the deployment without any modification.
replicas	ocomcRSM.rsm	The total number of REST Services Manager pods to run in the deployment.
restartCount	ocomcRSM.rsm	Tracks the number of restarts. To restart the pods, increment the value by 1 and run the helm upgrade command.
serviceMonitor.enabled	ocomcRSM.rsm	Whether to enable the service monitor for REST Services Manager metrics.
imageRepository	ocomcRSM.rsm.container	The repository from where the REST Services Manager image can be pulled. Note: The repository URI should not end with a trailing slash.
imagePullPolicy	ocomcRSM.rsm.container	The image pull policy to use for the deployment. The default value is IfNotPresent, which specifies not to pull the image if it's already present. Applicable values are IfNotPresent and Always.
image	ocomcRSM.rsm.container	The REST Services Manager image name and tag concatenated with a colon (:). Ensure to align with the REST Services Manager image version to be deployed.
enabled	ocomcRSM.rsm.https	Whether REST Services Manager should run with HTTPS.
keystoreName	ocomcRSM.rsm.https	The KeyStore file name with its extension to use for HTTPS. The file must be present in the oc-cn-ocomc-rsm/ocomc-rsm-keystore directory.
keystorePassPhrase	ocomcRSM.rsm.https	The passphrase for the HTTPS KeyStore file.
extRsmKeystoreSecret	ocomcRSM.rsm.https	The external KeyStore Secret name.
service.nodePort	ocomcRSM.rsm.https	The node port to use for HTTPS service. This would be used when the service type of REST Services Manager is set to NodePort.
hostname	ocomcRSM.rsm.adminServerConnection	The host name for accessing the Administration Server.
port	ocomcRSM.rsm.adminServerConnection	The port at which the Administration Server is listening on.
username	ocomcRSM.rsm.adminServerConnection	The user name to use for logging into the Administration Server.
password	ocomcRSM.rsm.adminServerConnection	The password for the specified user to use during login.
ocomcExternal.enabled	ocomcRSM.rsm.pvc	Whether REST Services Manager shares the same external PV of the Offline Mediation Controller core. Enabling this is mandatory when REST Services Manager is involved in creating node chain solutions involving cartridges with sensitive password information (FTP or database passwords). The mount path is /app/volumes/ocomc-ext.
ocomcExternal.name	ocomcRSM.rsm.pvc	The name of the external volume in Offline Mediation Controller Core.
external.enabled	ocomcRSM.rsm.pvc	Whether to create an external PV for REST Services Manager. The mount path is /app/volumes/ext.
name	ocomcRSM.rsm.storageClass	The storage class to use if REST Services Manager's external PV is enabled.
cartridgeFolder	ocomcRSM.rsm.configEnv	The directory path where REST Services Manager retrieves and loads cartridges from.
nodeTypeMapper.enabled	ocomcRSM.rsm.customisation	Whether to load custom nodeMappers into REST Services Manager. The content of the file needs to be added to oc-cn-ocomc-rsm/templates/configmap-nodetypemapper.yaml.
nodeConfigValidator.validators.enabled	ocomcRSM.rsm.customisation	Whether to load custom validators into REST Services Manager.
nodeTypeMetadata.enabled	ocomcRSM.rsm.customisation	Whether to load custom node type metadata files into REST Services Manager.
transformers.enabled	ocomcRSM.rsm.customisation.nodeConfigTransformer	Whether to enable custom transformers.
requestAutomation.enabled	ocomcRSM.rsm.jobs	Whether to enable a request automation job (true) or not (false).
requestAutomation.resources.limits.cpu	ocomcRSM.rsm.cpu	The CPU limit for job replicas.
requestAutomation.resources.limits.memory	ocomcRSM.rsm.jobs	The memory limit for job replicas.
requestAutomation.resources.requests.memory	ocomcRSM.rsm.jobs	The memory limit for job replicas.
requestAutomation.resources.requests.memory	ocomcRSM.rsm.jobs	The minimum memory for job replicas.
service.type	ocomcRSM.rsm.service	The Kubernetes service type to use.
nodePort	ocomcRSM.rsm.service	The NodePort that REST Services Manager should be exposed to if service type is set to NodePort.
limits.cpu	ocomcRSM.rsm.resources	The CPU limit for REST Services Manager pods.
limits.memory	ocomcRSM.rsm.resources	The memory limit for REST Services Manager pods.
requests.cpu	ocomcRSM.rsm.resources	The minimum CPU for REST Services Manager pods.
requests.memory	ocomcRSM.rsm.resources	The minimum memory for REST Services Manager pods.
rsmTrustStore.enabled	ocomcRSM.rsm.rsmTrustStore	Whether to enable a custom TrustStore for SSL/TLS.
trustStoreName	ocomcRSM.rsm.rsmTrustStore	The TrustStore file name.
extRSMTruststoreSecret	ocomcRSM.rsm.rsmTrustStore	The external TrustStore Secret name.
trustStorePassPhrase	ocomcRSM.rsm.rsmTrustStore	The passphrase for the TrustStore.
provider	ocomcRSM.rsm.security	The security provider for user authentication.
jvmOpts	ocomcRSM.rsm	The required JVM configuration for REST Services Manager.
terminationGracePeriodSeconds	ocomcRSM.rsm	The termination grace period for the pod. This is optional.
format.type	ocomcRSM.rsm.logging	The logging layout to use. The value should be a supported log4j logging layout.
format.pattern	ocomcRSM.rsm.logging	The logging pattern to use.
rootLevel	ocomcRSM.rsm.logging	The REST Services Manager's root logging level.
packageLogging	ocomcRSM.rsm.logging	The logging levels specific to individual packages.
