C.1 Labeling Cables

This section provides general labeling instructions for cables.

Before installing any cable use this procedure to label the cables to ensure connection to the proper ports and ease of future maintenance.

warning:

The intra-building port(s) of the equipment or subassembly is suitable for connection to intra-building or unexposed wiring or cabling only. The intra-building port(s) of the equipment or subassembly MUST NOT be metallically connected to interfaces that connect to the Outside Plant (OSP) or its wiring. These interfaces are designed for use as intra-building interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE, Issue 4) and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring.

Recommended Tools

Installer’s Cable Running List
All cables listed in Installer’s Cable Running List
Any non-Oracle cables
Cable labels (including blank labels for non-Oracle cables)
Fine point marker

C.1.1 Procedure - Cable Labeling

Perform this procedure to label cables.

Locate the Installer’s Cable Running List in the Equipment Specification for the site.
Refer to Figure C-1 for an example.

Figure C-1 Installer’s Cable Running List Example
Locate the labels included with the cable shipment.
Take one cable and identify the cable’s part number in the Cable Type column of the cable running list.
Match the cable with its corresponding pair of labels:
1. Go to the cable’s From column of the cable running list.
2. Match the From column information to the From information on one label.
3. Match the From column information to the To information on the other label.

  Note:
  The label for the connector end of these cables can be identified by the presence of a “J” number, for example: J32, that appears in the “From” area of the label.

  Note:
  Make sure that all cables specific to an A or B side are clearly labeled as A cable and B cable.
Repeat 4 for each cable to ensure that all labels are present and that originations and destinations of all cables are clearly identified.
For cables that come from the factory with connectors already installed, apply the appropriate label onto each end of the cable approximately two inches from the connector.

Note:
Ensure that the labels are positioned so they are still readable after the cables are installed.
For cables that need to be cut to the appropriate length: After the cable is cut to the appropriate length, affix labels with the item number approximately two inches from the end of the cable insulation.
For cables not ordered through Oracle, confirm source, part number, and origination/destination points before labeling them.

Note:
All cables must be labeled with “TO” and “FROM” destinations
After you have labeled all cables, you are ready for cable installation.

C.2 Cables and Adapters

Cables and adapters are listed in alphabetical order.

The words NOT TERMINATED or UNTERMINATED refers to the end of the cable that is not equipped with a connector in manufacturing and the wires must be cut, dressed, and connected at the site specific location.

C.2.1 Cable and Adapter Use

Table C-1 shows the cables and adapters used for E5-type cards in new installations in a vacant uncabled slot in a shelf.

Note:

References to E5- type cards include E5-B type cards.

Note:

Exceptions, additions, and clarifications to the following tables are by superscript numeric notation relating to the listed notes located at the end of this section. The notations are indicated as a numbered step reference (such as 1) which corresponds to the appropriate note which is shown at the end of this section. For example, a table cell with X^1,2 would indicate that notes 1 and 2 are applicable to that component.

Table C-1 Cable/Adapter Use - New Installation

Card P/N	Application	Adapter	Qty	Cable	Qty
E5-E1T1-B 870-2970-xx	E1	No adapters required		830-1132-XX	1
E5-E1T1-B 870-2970-xx	T1	No adapters required		7112462 830-1197-XX	2
E5-ENET-B 870-2971-xx	IPLIM IPGW IPSG STC	830-1102-XX	2	830-1174-XX	2
E5-ENET-B 870-2971-xx	FAST COPY
E5-SM8G-B 870-2990-01	SCCP (ExAP Interface)	830-1104-XX	2	830-1174-XX	2
E5-SM8G-B 870-2990-01	GTT	No adapters required		No cables required
E5-ENET-B 870-2971-xx	IPSM	OR 830-1103-XX	1		1
E5-ATM-B 870-2972-01	ATM-T1	No adapters required		7112462 830-1197-XX	1
E5-ATM-B 870-2972-01	ATM-E1	No adapters required		830-1132-XX	1
E5-MASP 7346924 870-2903-xx	OAM	830-1333-02	1
E5-MCPM-B	MCP	830-1102-XX	1	830-1174-XX	1
SLIC 7094646	ENUM DEIR SIP SCCP (ExAP Interface)	830-1102-03	2	830-1174-XX CAT6A 830-1404-xx	2
	IPSG	830-1102-03	2	830-1174-XX CAT6A 830-1404-xx	4
	IPS MCP STC	830-1102-03	1	830-1174-XX	1
	GTT	No adapters required		No cables required
SLIC 7094646	E1	No adapters required		830-1132-XX	1
SLIC 7094646	T1	No adapters required		7112462 830-1197-XX	2

Notes:

All references to ROHS are ROHS compliant.
If these older cables exist, they may be used in lieu of newer cables.
- Non-ROHS 830-0788-XX/ROHS 830-1177-XX DB26 – RJ45 (Straight thru Shielded)
- Non-ROHS 830-0789-XX/ROHS 830-1178-XX DB26 – RJ45 (Crossover Shielded)
Backplane connector A (must be used with adapter 870-1343-02).
Backplane connector B (must be used with adapter 870-1343-01).
This configuration is used if both ATM links in one cable.
This configuration is used if the A and the B port to carry the ATM links over 2 cables.
LNP Node 384 Million or ELAP 8.0 .
Existing cables must be replaced with 830-1174-XX or non-ROHS 870-0724-XX.
ADD 830-1132-xx cable to drop the second physical port to the B port.
ADD 830-1184-xx or 830-1197-XX to drop the second physical port to the B port.

C.2.2 Alarm Cable (Holdover Clock)

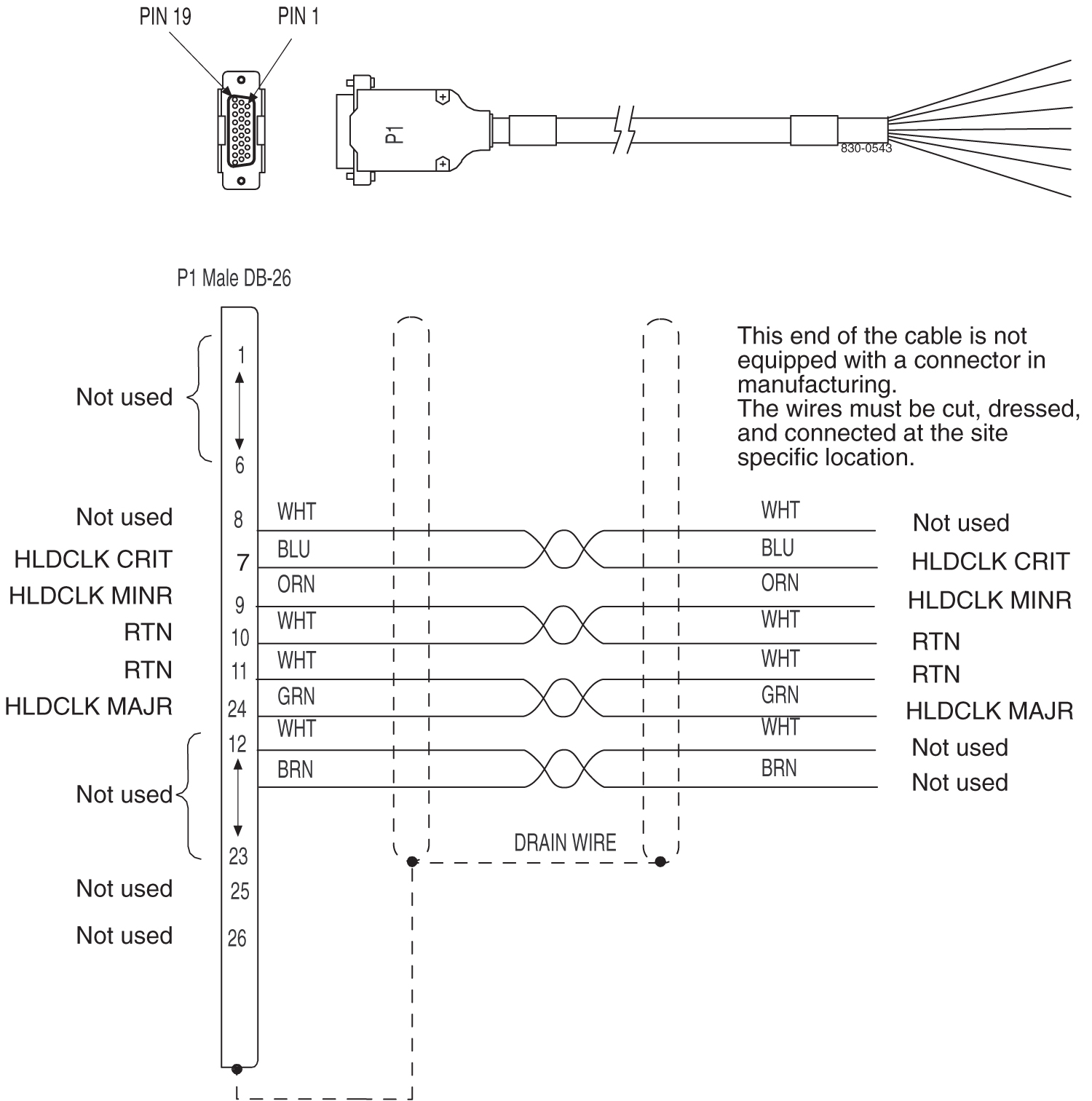

Figure C-2 Holdover Clock Alarm Cable

img/r_alarm_cable_holdover_clock_im-fig1.jpg

C.2.3 B-Clock Cable

Table C-2 Clock Cable

Part Number		Length (inches)	Part Number		Length (inches)
North American	International	Length (inches)	North American	International	Length (inches)
830-0398-01	830-1150-01	96	830-0398-12	--	164
830-0398-02	--	144	830-0398-13	830-1150-13	176
830-0398-03	--	192	830-0398-14	830-1150-14	208
830-0398-04	830-1150-04	240	830-0398-15	--	224
830-0398-05	--	288	830-0398-16	--	232
830-0398-06	830-1150-06	360	830-0398-17	830-1150-17	252
830-0398-07	--	18	830-0398-18	--	272
830-0398-08	--	48	830-0398-19	830-1150-19	284
830-0398-09	--	84	830-0398-20	830-1150-20	52
830-0398-10	830-1150-10	116	830-0398-21	830-1150-21	78
830-0398-11	830-1150-11	132

Figure C-3 Clock Cable

C.2.4 Crossover (CAT-5) Cable

Table C-3 Crossover CAT-5 Cable

Part Number		Length
North American	International	meters	feet
830-0723-01	830-1173-01	0.30	1
830-0723-02	830-1173-02	0.90	3
830-0723-03	830-1173-03	1.37	4.5
830-0723-xx	830-1173-xx	available in many more lenghts

Figure C-4 Crossover CAT-5 Cable

C.2.5 E5-ENET ADAPTER (DB26 Male-to-Dual RJ45)

The Ethernet cable pinouts differ between the E5-ENET card and the DCM or single-slot EDCM cards.

Adapter 830-1102-02 is required for installation of the E5-ENETwhen the DCM cable is replaced with a CAT5 straight-through cable 830-1174-xx. The adapter is connected to the backplane and the CAT5 straight-through cable cable is connected from the other side of the adapter to a switch, or a hub, or a patch panel (same place the DCM cable was terminated). If the card inserted into the slot does not match the backplane connector, the interface will not function.

Figure C-5 DB26 Male to Dual RJ45 Adapter

img/r_e5_enet_adapter_db26_male_to_dual_rjj45_im-fig1.jpg

C.2.6 External Alarm Cable (Custom)

Table C-4 External Alarm Cable (Custom)

Part Number		Length
North American	International	feet	meters
830-0435-01	830-1151-01	50	15.24
830-0435-02	830-1151-02	75	22.86
830-0435-03	830-1151-03	100	30.48
830-0435-04	830-1151-04	125	38.10
830-0435-05	830-1151-05	150	45.72
830-0435-06	830-1151-06	175	53.34
830-0435-07	830-1151-07	200	61.96
830-0435-08	830-1151-08	250	76.20
830-0435-09	830-1151-09	300	91.40
830-0435-10	830-1151-10	500	152.40
830-0435-11	830-1151-11	1000	304.80

Figure C-6 External Alarm Cable (Custom)

img/r_external_alarm_cable_custom_im-fig1.jpg

C.2.7 Fan Power and Alarm Cable

The fan power and alarm cable is part of the fan assembly.

For A fan power, plug one end of the cable into J-9 on backplane 850-0330-06. Route the cable to the left of the frame, faced from the rear, and to the assembly, to the connection marked FAN A POWER.

For B fan power, plug one end of the cable into J-8 on the backplane 850-0330-06. Route the cable to the left of the frame, faced from the rear, and to the fan assembly, to the connection marked FAN B POWER. Form and dress the two cables together and check the security of all of the connections.

C.2.8 Filter Rack Alarm Cable

Table C-5 Filter Rack Alarm Cable

Part Number		Length
North American	International	feet	meters
830-0638-01	830-1163-01	5.0	1.524
830-0638-02	830-1163-02	8.0	2.438
830-0638-03	830-1163-03	11.0	3.352
830-0638-04	830-1163-04	14.0	4.267
830-0638-05	830-1163-05	17.0	5.182
830-0638-06	830-1163-06	20.0	6.069
830-0638-07	830-1163-07	21.5	6.553
830-0638-08	830-1163-08	27.5	8.382

Figure C-7 Filter Rack Alarm Cable

img/r_filter_rack_alarm_cable_im-fig1.jpg

C.2.9 IMT Cable High Speed

Table C-6 Interface Cable High Speed

Part Number	Length
International	feet	meters
830-1344-01	5.75	1.75
830-1344-02	7.67	2.34
830-1344-04	0.5	0.15
830-1344-05	14.0	4.27
830-1344-06	12.0	3.66
830-1344-07	13.0	3.96
830-1344-08	16.0	4.88
830-1344-09	19.0	5.79
830-1344-10	21.0	6.4
830-1344-11	23.0	7.01
830-1344-12	25.0	7.62
830-1344-15	11.0	3.35
830-1344-17	27.0	8.23

Figure C-8 IMT Cable

C.2.10 Source Clock Cable (BITS/High-speed)

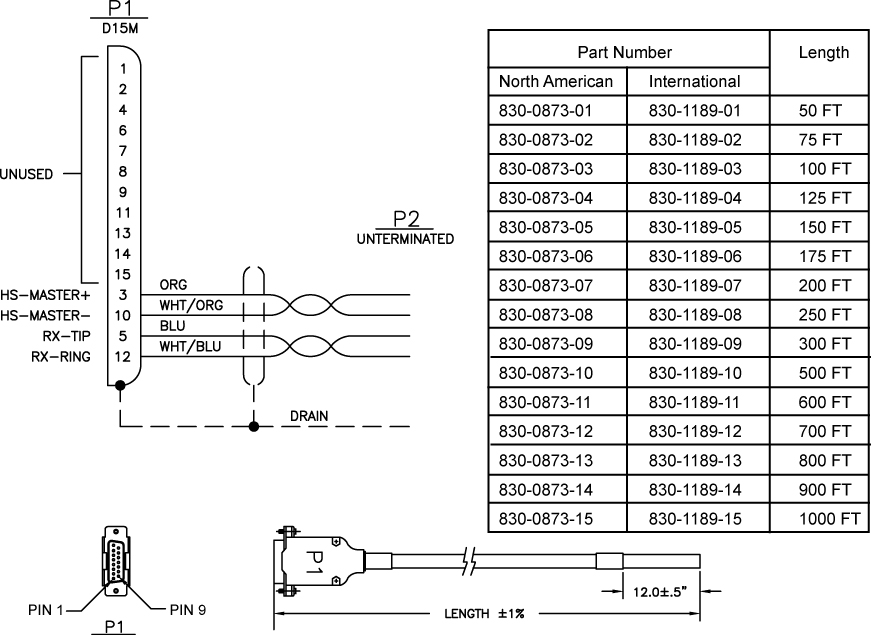

Figure C-9 Source Clock Cable (BITS/High-speed)

C.2.11 Power Cable

Table C-7 Power Cable

Part Number	Length
	feet	meters
830-1147-04	4.5	1.22
830-1147-05	6.5	1.98
830-1147-06	8.5	2.58

Figure C-10 Power Cable

C.2.12 Row Alarm Cable

Table C-8 Row Alarm Cable

Part Number		Length
		feet	meters
830-1145-12		20	6.1

Figure C-11 Row Alarm Cable

C.2.13 Serial Interface, Terminal, and Printer Adapter

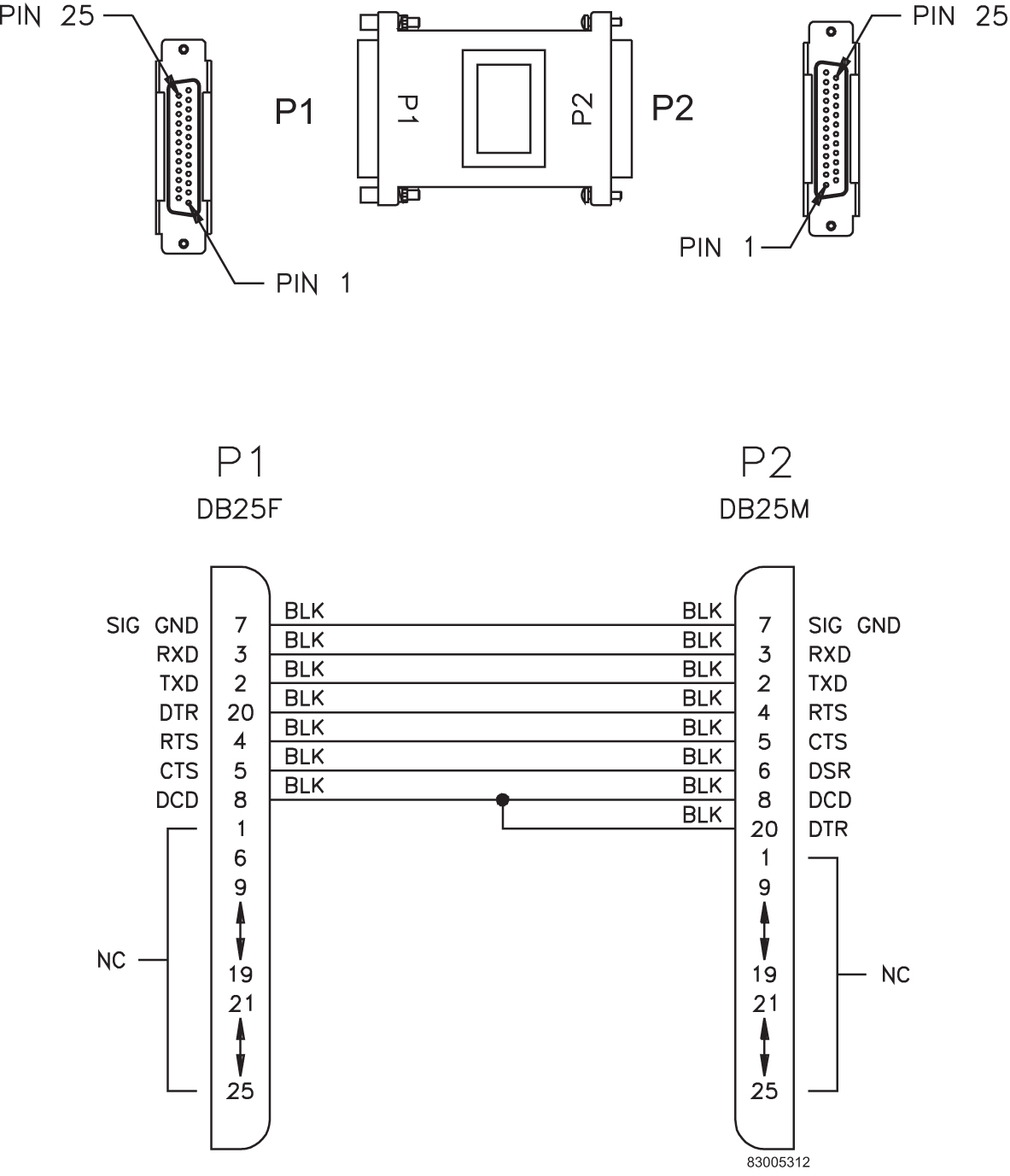

Figure C-12 Serial Interface, Adapter

img/r_serial_interface_terminal_and_printer_adapter_im-fig1.jpg

C.2.14 Shielded Straight Through Cable (CAT-5)

Table C-9 Shielded Straight Through CAT-5 Cable

Part Number	Length
	meters	feet
830-1174-10	30.48	100.0
830-1174-43	60.96	200.0
830-1174-63	91.44	300.0

Figure C-13 Straight Through Cable (CAT-5)

img/r_straight_through_cable_cat_5_im-fig1.jpg

C.2.15 Switch-to-Frame Ground Cable

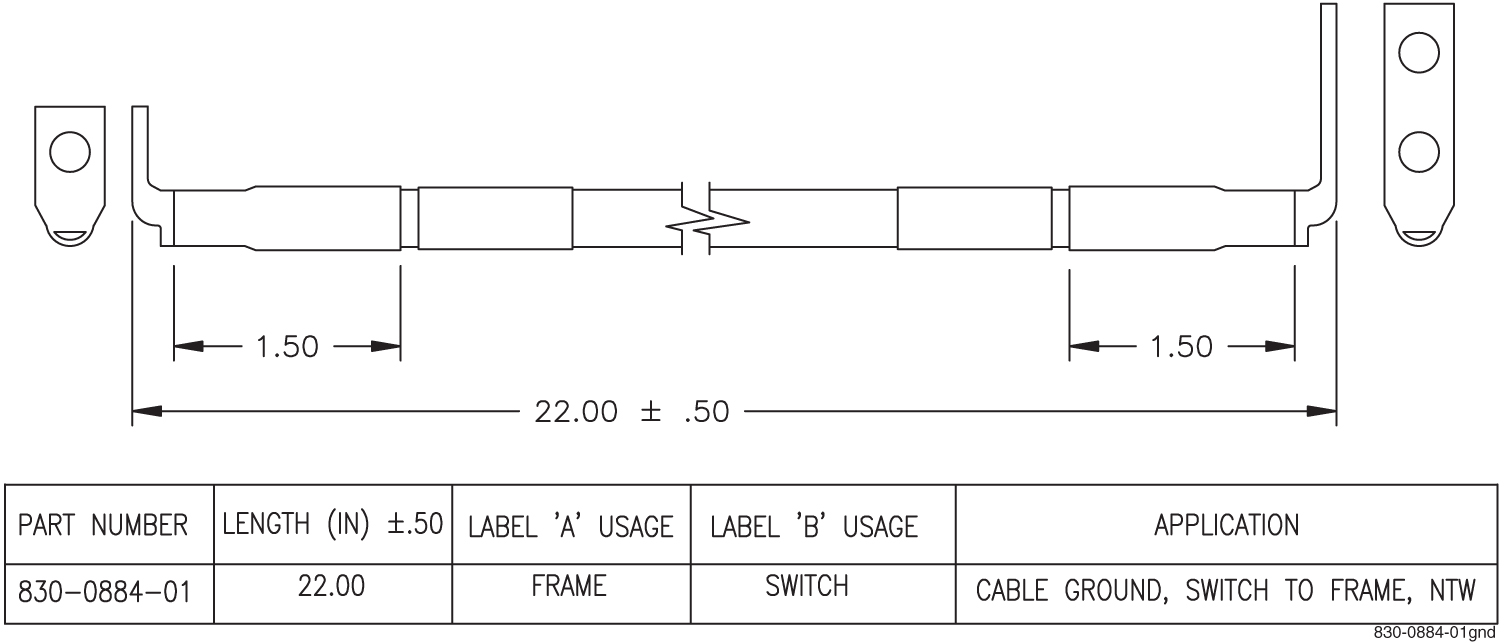

Figure C-14 Switch to Frame Ground Cable

img/r_switch_to_frame_ground_cable_im-fig1.jpg

C.2.16 Local Maintenance Center Cable

Table C-10 Local Maintenance Center Cable

Part Number		Length
North American	International	feet	meters
830-0231-01	830-1144-01	50	15.25
830-0231-02	830-1144-02	75	22.88
830-0231-03	830-1144-03	100	30.50
830-0231-04	830-1144-04	125	38.13
830-0231-05	830-1144-05	150	45.75
830-0231-06	830-1144-06	175	53.38
830-0231-07	830-1144-07	200	61.00
830-0231-08	830-1144-08	250	76.25
830-0231-09	830-1144-09	300	91.50
830-0231-10	830-1144-10	500	152.50
830-0231-11	--	1000	305.00

Figure C-15 Local Maintenance Center Cable

img/r_local_maintenance_center_cable_im-fig1.jpg

C.2.17 Remote Maintenance Center Cable

Table C-11 Remote Maintenance Center Cable

Part Number		Length
North American	International	feet	meters
830-0233-01	830-1146-01	50	15.25
830-0233-02	830-1146-02	75	22.88
830-0233-03	830-1146-03	100	30.50
830-0233-04	830-1146-04	125	38.13
830-0233-05	830-1146-05	150	45.75
830-0233-06	830-1146-06	175	53.38
830-0233-07	830-1146-07	200	61.00
830-0233-08	830-1146-08	250	76.25
830-0233-09	830-1146-09	300	91.50
830-0233-10	830-1146-10	500	152.50
830-0233-11	830-1146-11	1000	305.00

Figure C-16 Remote Maintenance Center Cable

img/r_remote_maintenance_center_cable_im-fig1.jpg
