2 About Real-Time Rerating Pipelines

Learn how events are processed by Oracle Communications Billing and Revenue Management (BRM) real-time rerating pipelines as well as how to configure real-time rerating pipelines.

Topics in this document:

About Real-Time Rerating Pipelines

When you run the pin_rerate utility to rerate events rated in real-time and events rated in a batch pipeline, you run the pin_rerate utility to send pipeline-rated events to a real-time rerating pipeline to be rerated.

The Connection Manager (CM) sends pipeline-rated events in the form of an flist to the NET_EM pipeline module. The NET_EM module transfers the event to a real-time rerating pipeline for rerating.

The real-time rating opcodes add to the flist all the enrichment data needed by the real-time rerating pipeline to rate the event. For example, if the real-time rating opcodes determine that a discount should be applied, it adds the discount information to the flist.

Similar to a batch rerating pipeline, a real-time rerating pipeline performs both rating and discounting functions.

To rerate events, the real-time rerating pipeline gets the new pricing information from the Pipeline Manager database. Certain configuration data, such as currency and noncurrency balance element information, are obtained from the BRM database.

Overview of Event Processing in the Real-Time Rerating Pipeline

The real-time rerating pipeline processes events in the following way:

  1. The INP_Realtime input module converts the flist received from the NET_EM module to event data record (EDR) format and creates an EDR container.

    Note:

    You can also create and run an iScript to manipulate data in the EDR container before it is sent to the pipeline modules.

  2. The pipeline function modules calculate the new balance impacts by using the new pricing and discounting information and then add the balance impacts to the EDR container.

  3. The OUT_Realtime module converts the EDR back into flist format and sends the flist to NET_EM.

  4. NET_EM sends the flist with the new balance impacts back to the CM.

  5. BRM updates the account's balances and records the event in the BRM database.

For detailed information about configuring the real-time rerating pipeline, see "Configuring Rerating of Pipeline-Rated Events in the Real-Time Rerating Pipeline".

Figure 2-1 shows the data flow for rerating pipeline-rated events by using the real-time rerating pipeline.

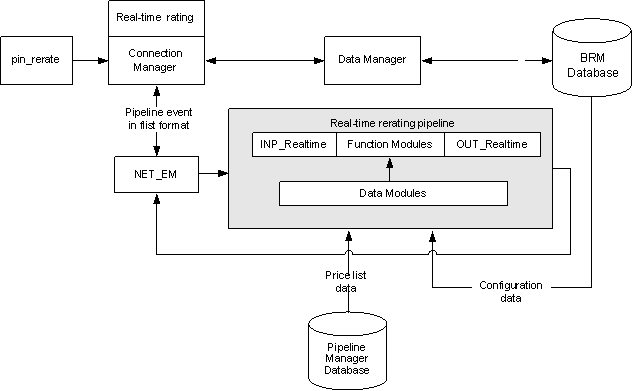

Figure 2-1 Rerating Data Flow for Pipeline-Rated Events


Description of Figure 2-1 follows
Description of "Figure 2-1 Rerating Data Flow for Pipeline-Rated Events"

About Transaction Management for the Real-Time Rerating Pipeline

The real-time rerating pipeline does not use the Transaction Manager (TAM) module. Instead, transaction handling is provided by the CM. When a rerating transaction fails, the CM rolls back the transaction and restores all the account balances in the BRM database. For this reason, function modules and iScripts used by the real-time rerating pipeline are stateless.

Note:

If you use iScripts for custom processing, ensure that the iScripts are stateless.

Configuring Rerating of Pipeline-Rated Events in the Real-Time Rerating Pipeline

To configure rerating of pipeline-rated events in the real-time rerating pipeline, perform the following tasks:

Configuring a Real-Time Rerating Pipeline

A real-time rerating pipeline is configured similarly to a batch rerating pipeline, but with fewer preprocessing and post-rating modules. This is because most of the enrichment data is provided in the input flist received from the CM.

You typically create a separate instance of Pipeline Manager for real-time rerating. The default registry file is Pipeline_home/conf/wirelessRealtime.reg.

Figure 2-2 shows the real-time rerating pipeline architecture.

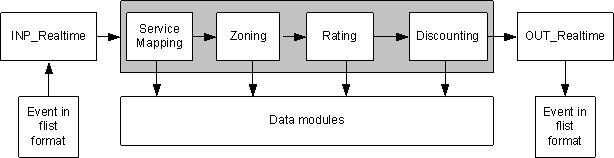

Figure 2-2 Real-Time Rerating Pipeline Architecture


Description of Figure 2-2 follows
Description of "Figure 2-2 Real-Time Rerating Pipeline Architecture"

Configuring Multiple Real-Time Rerating Pipelines

To improve performance or scalability, you configure multiple instances of real-time rerating pipelines. For example, you can increase performance by configuring multiple pipelines to process rerate requests in parallel or by configuring multiple real-time rerating pipelines to process different rerate requests: for example, by configuring one pipeline that rerates only GPRS events and another that rerates only GSM events.

Configuring the Real-Time Rerating Data Pool

Configure the following data modules:

  • DAT_Zone

  • Rateplan

  • DAT_Calendar

  • DAT_TimeModel

  • DAT_PriceModel

  • Dayrate

  • DAT_Currency

  • DAT_USC_Map

Configuring the Modules in the Real-Time Rerating Pipeline

Configure the following modules in the real-time rerating pipelines:

  • Configure the INP_Realtime input module. Specify the flist-to-EDR mapping file used for rerating in the OpcodeMapping registry entry. For example:

    OpcodeMapping = ./formatDesc/Formats/Realtime/rate_event.xml

  • Configure the NET_EM module:

  • Configure the output module to add any customizations to the output flist.

  • Configure these function modules:

    • FCT_ServiceCodeMap

    • FCT_CustomerRating

    • FCT_PreRating

    • FCT_IRules

    • FCT_USC_Map

    • FCT_RSC_Map

    • FCT_MainRating

    • FCT_Dayrate

    • FCT_RateAdjust

    • FCT_Rounding

    • FCT_DiscountAnalysis

    • FCT_Discount

Configuring the Real-Time Rerating Pipeline to Set Charge Offer Validity Periods

If your charge offers are configured to start when they are first used, configure the ISC_FirstProductRealtime iScript in the real-time rerating pipeline.

When charge offers start on first usage, the real-time rerating pipeline adds the account's first-usage charge offer and discount information to the EDR. ISC_FirstProductRealtime sets the validity period in the BRM database for those charge offers that were used to rate the event and that start on first usage. This triggers any purchase and cycle fees.

Configuring the Real-Time Rerating Pipelines in the IFW_PIPELINE Table

Pipeline Manager stores information about pipelines in the IFW_PIPELINE table. The pipelines that are preconfigured in the Pipelines section of the default registry file (Pipeline_home/conf/wirelessRealtime.reg) are inserted into the IFW_PIPELINE table during Pipeline Manager installation.

Note:

  • If you are not using the default registry file, and you have configured new real-time rerating pipelines, you must manually insert the pipelines into the IFW_PIPELINE table by using SQL commands. Otherwise, you will receive an error at system startup.

  • If you are using the default registry file and have changed the default pipeline names or you have configured additional pipelines, you must manually insert the new pipelines into the IFW_PIPELINE table.

The following example shows SQL commands to insert RealtimeReratingGSM and RealtimeReratingGPRS pipelines into the IFW_PIPELINE table:

% sqlplus pin/password@databaseAlias

SQL>INSERT INTO IFW_PIPELINE ( PIPELINE, NAME, EDRC_DESC ) VALUES ( 'RealtimeReratingGSM', 'GSM Realtime Rerating Pipeline', 'ALL_RATE');

SQL>INSERT INTO IFW_PIPELINE ( PIPELINE, NAME, EDRC_DESC ) VALUES ( 'RealtimeReratingGPRS', 'GPRS Realtime Rerating Pipeline', 'ALL_RATE');

SQL>commit;
