Disaster recovery provides continuity in service for your customers and guards against data loss if a system fails. In ECE cloud native, disaster recovery is implemented by configuring two or more active production sites at different geographical locations. If one production site fails, another active production site takes over the traffic from the failed site.

During operation, ECE requests are routed across the production sites based on your load-balancing configuration. All updates that occur in an ECE cluster at one production site are replicated to other production sites through the Coherence cache federation.

For more information about the active-active disaster recovery configuration, see "About the Active-Active System" in BRM System Administrator's Guide.

To configure ECE cloud native for active-active disaster recovery:

1. In each Kubernetes cluster, expose ports on the external IP using the Kubernetes LoadBalancer service.

   The ECE Helm chart includes a sample YAML file for the LoadBalancer service (oc-cn-ece-helm-chart/templates/ece-service-external.yaml) that you can configure for your environment.

2. On your primary production site, update the override-values.yaml file with the external IP of the LoadBalancer service, the federation-related parameters, the JMX port for the monitoring agent, the active-active disaster recovery parameters, and so on.

   The following shows example override-values.yaml file settings for a primary production site:

   monitoringAgent:
      monitoringAgentList:
         - name: "monitoringagent1"
           replicas: 1
           jmxport: "31020"
           jmxEnabled: "true"
           jvmJMXOpts: "-Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.local.only=false  -Dcom.sun.management.jmxremote.password.file=../config/jmxremote.password -Dsecure.access.name=admin -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.port=31020 -Dcom.sun.management.jmxremote.rmi.port=31020"
           jvmOpts: "-Djava.net.preferIPv4Addresses=true"
           jvmGCOpts: ""
           restartCount: "0"
           nodeSelector: "node1"
         - name: "monitoringagent2"
           replicas: 1
           jmxport: "31021"
           jmxEnabled: "true"
           jvmJMXOpts: "-Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.local.only=false  -Dcom.sun.management.jmxremote.password.file=../config/jmxremote.password -Dsecure.access.name=admin -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.port=31021 -Dcom.sun.management.jmxremote.rmi.port=31021"
           jvmOpts: "-Djava.net.preferIPv4Addresses=true"
           jvmGCOpts: ""
           restartCount: "0"
           nodeSelector: "node2"
   charging:
      jmxport: "31022"
      coherencePort: "31015"
   ...
   ...
      clusterName: "BRM"
      isFederation: "true"
      primaryCluster: "true"
      secondaryCluster: "false"
      clusterTopology: "active-active"
      cluster:
         primary:
            clusterName: "BRM"
            eceServiceName: ece-server
            eceServicefqdnOrExternalIP: "0.1.2.3"
         secondary:
            - clusterName: "BRM2"
              eceServiceName: ece-server
              eceServicefqdnOrExternalIp: "0.1.3.4"
      federatedCacheScheme:
         federationPort:
            brmfederated: 31016
            xreffederated: 31017
            replicatedfederated: 31018
            offerProfileFederated: 31019

3. On your secondary production site, update the override-values.yaml file with the external IP of the LoadBalancer service, the federation-related parameters, the JMX port for the monitoring agent, the active-active disaster recovery parameters, and so on.

   The following shows example settings in an override-values.yaml for a secondary production site:

   monitoringAgent:
      monitoringAgentList:
         - name: "monitoringagent1"
           replicas: 1
           jmxport: "31020"
           jmxEnabled: "true"
           jvmJMXOpts: "-Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.local.only=false  -Dcom.sun.management.jmxremote.password.file=../config/jmxremote.password -Dsecure.access.name=admin -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.port=31020 -Dcom.sun.management.jmxremote.rmi.port=31020"
           jvmOpts: "-Djava.net.preferIPv4Addresses=true"
           jvmGCOpts: ""
           restartCount: "0"
           nodeSelector: "node1"
         - name: "monitoringagent2"
           replicas: 1
           jmxport: "31021"
           jmxEnabled: "true"
           jvmJMXOpts: "-Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.local.only=false  -Dcom.sun.management.jmxremote.password.file=../config/jmxremote.password -Dsecure.access.name=admin -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.port=31021 -Dcom.sun.management.jmxremote.rmi.port=31021"
           jvmOpts: "-Djava.net.preferIPv4Addresses=true"
           jvmGCOpts: ""
           restartCount: "0"
           nodeSelector: "node2"
   charging:
      jmxport: "31022"
      coherencePort: "31015"
   ...
   ...
     clusterName: "BRM2"
      isFederation: "true"
      primaryCluster: "false"
      secondaryCluster: "true"
      clusterTopology: "active-active"
      cluster:
         primary:
            clusterName: "BRM"
            eceServiceName: ece-server
            eceServicefqdnOrExternalIP: "0.1.2.3"
         secondary:
            - clusterName: "BRM2"
              eceServiceName: ece-server
              eceServicefqdnOrExternalIp: "0.1.3.4"
      federatedCacheScheme:
         federationPort:
            brmfederated: 31016
            xreffederated: 31017
            replicatedfederated: 31018
            offerProfileFederated: 31019

4. On your primary and secondary production sites, add the customerGroupConfigurations and siteConfigurations sections to the override-values.yaml file.

   The following shows example settings to add to the override-values.yaml file in your primary and secondary production sites:

   customerGroupConfigurations:
      - name: "customergroup1"
        clusterPreference:
          - priority: "1"
            routingGatewayList: "0.1.2.3:31500"
            name: "BRM"
          - priority: "2"
            routingGatewayList: "0.1.3.4:31500"
            name: "BRM2"
      - name: "customergroup2"
        clusterPreference:
          - priority: "2"
            routingGatewayList: "0.1.2.3:31500"
            name: "BRM"
          - priority: "1"
            routingGatewayList: "0.1.3.4:31500"
            name: "BRM2"
   siteConfigurations:
      - name: "BRM"
        affinitySiteNames: "BRM2"
        monitorAgentJmxConfigurations:
          - name: "monitoringagent1"
            host: "node1"
            jmxPort: "31020"
            disableMonitor: "true"
          - name: "monitoringagent2"
            host: "node2"
            jmxPort: "31021"
            disableMonitor: "true"
      - name: "BRM2"
        affinitySiteNames: "BRM"
        monitorAgentJmxConfigurations:
          - name: "monitoringagent1"
            host: "node1"
            jmxPort: "31020"
            disableMonitor: "true"
          - name: "monitoringagent2"
            host: "node2"
            jmxPort: "31021"
            disableMonitor: "true"

5. In your override-values.yaml file, configure kafkaConfigurationList with both primary and secondary site Kafka details.

   The following shows example settings to add to the override-values.yaml file in your primary and secondary production sites:

   kafkaConfigurationList:
      -  name: "BRM"
         hostname: "hostname:port"
         topicName: "ECENotifications"
         suspenseTopicName: "ECESuspenseQueue"
         partitions: "200"
         kafkaProducerReconnectionInterval: "120000"
         kafkaProducerReconnectionMax: "36000000"
         kafkaDGWReconnectionInterval: "120000"
         kafkaDGWReconnectionMax: "36000000"
         kafkaBRMReconnectionInterval: "120000"
         kafkaBRMReconnectionMax: "36000000"
         kafkaHTTPReconnectionInterval: "120000"
         kafkaHTTPReconnectionMax: "36000000"
      -  name: "BRM2"
         hostname: "hostname:port"
         topicName: "ECENotifications"
         suspenseTopicName: "ECESuspenseQueue"
         partitions: "200"
         kafkaProducerReconnectionInterval: "120000"
         kafkaProducerReconnectionMax: "36000000"
         kafkaDGWReconnectionInterval: "120000"
         kafkaDGWReconnectionMax: "36000000"
         kafkaBRMReconnectionInterval: "120000"
         kafkaBRMReconnectionMax: "36000000"
         kafkaHTTPReconnectionInterval: "120000"
         kafkaHTTPReconnectionMax: "36000000"

6. If data persistence is enabled, configure a primary and secondary Rated Event Formatter instance on your primary and secondary production sites for each site in the ratedEventFormatter section of the override-values.yaml file.

   The following shows example settings to add to the override-values.yaml file in your primary and secondary production sites:

   ratedEventFormatter:
      ratedEventFormatterList:
           ratedEventFormatterConfiguration:
              name: "ref_site1_primary"
              clusterName: "BRM"
              primaryInstanceName: "REF-1"
              partition: "1"
              noSQLConnectionName: "noSQLConnection"
              connectionName: "oracle1"
              threadPoolSize: "2"
              retainDuration: "0"
              ripeDuration: "30"
              checkPointInterval: "20"
              siteName: "site1"
              pluginPath: "ece-ratedeventformatter.jar"
              pluginType: "oracle.communication.brm.charging.ratedevent.formatterplugin.internal.SampleFormatterPlugInImpl"
              pluginName: "brmCdrPluginDC1Primary"
              noSQLBatchSize: "25"
           ratedEventFormatterConfiguration:
              name: "ref_site1_secondary"
              clusterName: "BRM2"
              partition: "1"
              noSQLConnectionName: "noSQLConnection"
              connectionName: "oracle2"
              threadPoolSize: "2"
              retainDuration: "0"
              ripeDuration: "30"
              checkPointInterval: "20"
              siteName: "site1"
              pluginPath: "ece-ratedeventformatter.jar"
              pluginType: "oracle.communication.brm.charging.ratedevent.formatterplugin.internal.SampleFormatterPlugInImpl"
              pluginName: "brmCdrPluginDC1Primary"
              noSQLBatchSize: "25"
           ratedEventFormatterConfiguration:
              name: "ref_site2_primary"
              clusterName: "BRM2"
              primaryInstanceName: "REF-2"
              partition: "1"
              noSQLConnectionName: "noSQLConnection"
              connectionName: "oracle2"
              threadPoolSize: "2"
              retainDuration: "0"
              ripeDuration: "30"
              checkPointInterval: "20"
              siteName: "site2"
              pluginPath: "ece-ratedeventformatter.jar"
              pluginType: "oracle.communication.brm.charging.ratedevent.formatterplugin.internal.SampleFormatterPlugInImpl"
              pluginName: "brmCdrPluginDC1Primary"
              noSQLBatchSize: "25"
           ratedEventFormatterConfiguration:
              name: "ref_site2_secondary"
              clusterName: "BRM"
              partition: "1"
              noSQLConnectionName: "noSQLConnection"
              connectionName: "oracle1"
              primaryInstanceName: "ref_site2_primary"
              threadPoolSize: "2"
              retainDuration: "0"
              ripeDuration: "30"
              checkPointInterval: "20"
              siteName: "site2"
              pluginPath: "ece-ratedeventformatter.jar"
              pluginType: "oracle.communication.brm.charging.ratedevent.formatterplugin.internal.SampleFormatterPlugInImpl"
              pluginName: "brmCdrPluginDC1Primary"
              noSQLBatchSize: "25"

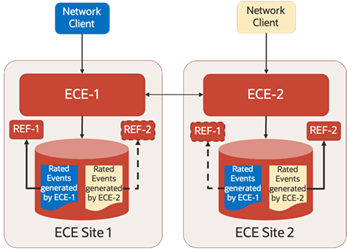

   The siteName key specifies which ECE site’s rated events are processed by the Rated Event Formatter instance, independent of which ECE site the Rated Event Formatter instance is running in. Primary Rated Event Formatter instances run in the same site as siteName and are normally active and processing the local ECE site’s rated events. Secondary Rated Event Formatter instances run in a different ECE site as siteName and are only activated when the primary instance is unavailable.

   For more information about Rated Event Formatter in active-active systems, see "About Rated Event Formatter in a Persistence-Enabled Active-Active System" in BRM System Administrator's Guide.

7. Depending on whether persistence is enabled in ECE, do one of the following:

   • If persistence is enabled, add the cachePersistenceConfigurations and connectionConfigurations.OraclePersistenceConnectionConfigurations sections to your override-values.yaml file on both primary and secondary production sites.

     The following shows example settings to add to the override-values.yaml file on your primary and secondary sites:

      cachePersistenceConfigurations:
           cachePersistenceConfigurationList:
             -  clusterName: "BRM"
                persistenceStoreType: "OracleDB"
                persistenceConnectionName: "oraclePersistence1"
     ...
     ...
             -  clusterName: "BRM2"
                persistenceStoreType: "OracleDB"
                persistenceConnectionName: "oraclePersistence2"
     ...
     ...
        connectionConfigurations:
              OraclePersistenceConnectionConfigurations:
                 - clusterName: "BRM"
                   name: "oraclePersistence1"
     ...
     ...
                 - clusterName: "BRM2"
                   name: "oraclePersistence2"
     ...
     ...

   • If persistence is disabled, add the ratedEventPublishers and NoSQLConnectionConfigurations sections to your override-values.yaml file on primary and secondary production sites.

     The following shows example settings to add to the override-values.yaml file on your primary and secondary sites:

        ratedEventPublishers:
          -  clusterName: "BRM"
             noSQLConnectionName: "noSQLConnection1"
             threadPoolSize: "4"
          -  clusterName: "BRM2"
             noSQLConnectionName: "noSQLConnection2"
             threadPoolSize: "4"
        connectionConfigurations:
              NoSQLConnectionConfigurations:
                 - clusterName: "BRM"
                   name: "noSQLConnection1"
     ...
     ...
                 - clusterName: "BRM2"
                   name: "noSQLConnection2"
     ...
     ...

8. Deploy the ECE Helm chart (oc-cn-ece-helm-cart) on the primary cluster and bring the primary cluster to the Usage Processing state.

9. Invoke federation from the primary production site to your secondary production sites by connecting from JConsole of the ecs1 pod.

   1. Update the label for the ecs1-0 pod:

      kubectl label -n NameSpace po ecs1-0 ece-jmx=ece-jmx-external

   2. Update the /etc/hosts file on the remote machine with the worker node of ecs1-0:

      IP_OF_WORKER_NODE ecs1-0.ece-server.namespace.svc.cluster.local

   3. Connect to JConsole:

      jconsole ecs1-0.ece-server.namespace.svc.cluster.local:31022

      JConsole starts.

   4. Invoke start() and replicateAll() with the secondary production site name from the coordinator node of each federated cache in JMX. To do so:

      1. Expand the Coherence node, expand Federation, expand BRMFederatedCache, expand Coordinator, and then expand Coordinator. Click on start(BRM2) and replicateAll(BRM2), where BRM2 is the secondary production site name.

      2. Expand the Coherence node, expand Federation, expand OfferProfileFederatedCache, expand Coordinator, and then expand Coordinator. Click on start(BRM2) and replicateAll(BRM2).

      3. Expand the Coherence node, expand Federation, expand ReplicatedFederatedCache, expand Coordinator, and then expand Coordinator. Click on start(BRM2) and replicateAll(BRM2).

      4. Expand the Coherence node, expand Federation, expand XRefFederatedCache, expand Coordinator, and then expand Coordinator. Click on start(BRM2) and replicateAll(BRM2).

   5. From the secondary production site, verify that data is being federated from the primary production site to the secondary production sites, and that all pods are running.

   After federation completes, your primary and secondary production sites move to the Usage Processing state, and the monitoring agent pods are spawned.

   Note:

   By default, the federation interceptor is invoked for events received at the destination site during replicateAll for conflict resolution. You can disable this by setting the disableFederationInterceptor attribute to true in the charging.server AppConfiguration MBean at the destination site before invoking replicateAll for Coherence services from the source site. The cache data will be replicated at the destination site without performing conflict resolution. Once replicateAll is complete, set the disableFederationInterceptor attribute to false.

10. When all pods are ready on each site, scale down and then scale up the monitoring agent pods in each production site. This synchronizes the monitoring agent pods with the other pods in the cluster.

    Note:

    Repeat these steps to scale up or down any pod after the monitoring agent is initialized.

    1. Scale down monitoringagent1 to 0:

       kubectl -n NameSpace scale deploy monitoringagent1 --replicas=0

    2. Wait for monitoringagent1 to stop and then scale it back up to 1.

       kubectl -n NameSpace scale deploy monitoringagent1 --replicas=1

    3. Scale down monitoringagent2 to 0:

       kubectl -n NameSpace scale deploy monitoringagent2 --replicas=0

    4. Wait for monitoringagent2 to stop and then scale it back up to 1.

       kubectl -n NameSpace scale deploy monitoringagent2 --replicas=1

11. Verify that the monitoring agent logs are collecting metrics.

By default, the ECE active-active disaster recovery mode processes usage requests according to the preferred site assignments in the customerGroup list. For example, if subscriber A's preferred primary site is site 1, ECE processes subscriber A's usage requests on site 1. If subscriber A's usage request is received by production site 2, it is sent to production site 1 for processing.

You can configure the ECE active-active mode to process usage requests on the site that receives the request, regardless of the subscriber's preferred site. For example, if a subscriber's usage request is received by production site 1, it is processed on production site 1. Similarly, if the usage request is received by production site 2, it is processed on production site 2.

To configure the ECE active-active mode to process usage requests on the site that receives the request irrespective of the subscriber's preferred site:

1. In your override-values.yaml file for oc-cn-ece-helm-chart, set the charging.brsConfigurations.brsConfigurationList.brsConfig.skipActiveActivePreferredSiteRouting key to true.

2. Run the helm upgrade command to update your ECE Helm release:

   helm upgrade EceReleaseName oc-cn-ece-helm-chart --values OverrideValuesFile --namespace BrmNameSpace

   where:

   • EceReleaseName is the release name for oc-cn-ece-helm-chart and is used to track the installation instance.

   • OverrideValuesFile is the path to the YAML file that overrides the default configurations in the oc-cn-ece-helm-chart/values.yaml file.

   • BrmNameSpace is the namespace in which to create BRM Kubernetes objects for the BRM Helm chart.

When an active production site fails, you must notify the monitoring agent about the failed site. This stops ECE from rerouting requests to the failed production site.

To notify the monitoring agent about a failed production site:

1. Connect to the monitoring agent through JConsole:
   1. Update /etc/hosts with the worker IP of the monitoringagent1 pod.

      worker_IP ece-monitoringagent-service-1

   2. Connect through JConsole by running this command:

      jconsole ece-monitoringagent-service-1:31020

      JConsole starts.

2. Expand the ECE Monitoring node.
3. Expand Agent.
4. Expand Operations.
5. Set the failoverSite() operation to the name of the failed production site.

You can also use the activateSecondaryInstanceFor operation to fail over to a backup Rated Event Formatter as described in "Activating a Secondary Rated Event Formatter Instance". See "Resolving Rated Event Formatter Instance Outages" in BRM System Administrator's Guide for conceptual information about how to resolve Rated Event Formatter outages.

Notify the monitoring agent after a failed production site starts functioning again. This allows ECE to route requests to the site again.

To add a fixed site back to the ECE disaster recovery system:

1. Connect to the monitoring agent through JConsole:

   1. Update /etc/hosts with the worker IP of the monitoringagent1 pod.

      worker_IP ece-monitoringagent-service-1

   2. Connect through JConsole by running this command:

      jconsole ece-monitoringagent-service-1:31020

      JConsole starts.

2. Expand the ECE Monitoring node.

3. Expand Agent.

4. Expand Operations.

5. Set the recoverSite() operation to the name of the original production site.

If a primary Rated Event Formatter instance is down, you can activate a secondary instance to take over rated event processing. For example, in Figure 30-1, you could activate REF-2 in ECE Site 1 if REF-1 in ECE Site 1 goes down.

Figure 30-1 Sample Rated Event Formatter Instance in Active-Active Mode

Description of "Figure 30-1 Sample Rated Event Formatter Instance in Active-Active Mode"

To activate a secondary Rated Event Formatter instance:

1. Connect to the ratedeventformatter pod through JConsole by doing the following:

   1. Update the label for the ratedeventformatter pod:

      kubectl label -n NameSpace po ratedeventformatter1-0 ece-jmx=ece-jmx-external

      Note:

      ece-jmx-service-external has only one endpoint as the IP of the ratedeventformatter pod.

   2. Update the /etc/hosts file on the remote machine with the worker node of the ratedeventformatter pod.

      IP_OF_WORKER_NODE ratedeventformatter1-0.ece-server.namespace.svc.cluster.local

   3. Connect through JConsole by running this command:

      jconsole redeventformatter1-0.ece-server.namespace.svc.cluster.local:31022

      JConsole starts.

2. Expand the ECE Monitoring node.

3. Expand RatedEventFormatterMatrices.

4. Expand Operations.

5. Run the activateSecondaryInstance operation.

   The secondary Rated Event Formatter instance begins processing rated events.

In active-active ECE deployments, any changes to the ECE cache on one site are automatically federated to the ECE cache on other sites to keep the sites in sync. Most types of cache objects are replicated seamlessly. However, the following types can encounter conflicts during the federation process:

• Balance

• ActiveSession

• Customer

• TopUpHistory

• RecurringBundleIdHistory

Conflicts can arise for these object types when the same cache entry changes simultaneously at both sites or when the same cache entry changes at multiple sites while federation is down. For example, Site 1 processes Joe's purchase of 500 prepaid minutes, while Site 2 processes his usage of 20 prepaid minutes. ECE employs custom conflict resolution logic to detect and resolve these conflicting changes.

On rare occasions, ECE may be unable to resolve certain conflicts. When ECE cannot resolve a conflict, it:

• Keeps the change to the cache entry at the local ECE site but does not modify the cache entry at the receiving ECE site.

• Logs details about the unresolved conflict to the ECS log files, which are located in the ECE_home/logs directory, for subsequent review and possible corrective actions.

You can find details about the processing results of ECE federation change events, including cache conflict detection and resolution, in the ece.federated.service.change.records metric. See "ECE Federated Service Metrics" for more details.
