Oracle WebLogic Server includes a security architecture that provides a secure foundation for applications. PDC depends on the WebLogic Server security framework to secure its resources and servers. Managing PDC security involves the following:

• Managing security realms: Configuring new security realms, changing the default security realm, and deleting security realms.

• Managing users and groups: Defining users and assigning them to a group that can be authenticated in a security realm.

• Managing security providers: Managing security providers that provide security services to applications to protect WebLogic Server resources.

• Managing security policies: Managing security policies that specify who can access a WebLogic Server resource.

  The Wssp1.2-2007-Https-BasicAuth.xml security policy secures the connection between the PDC Web service API and the client applications using one way secure sockets layer (SSL). You can also add custom security policies to secure the PDC Web service API using WebLogic Server Administration Console.

See the WebLogic Server Administration Console Help for more information on managing security realms, managing users and groups, managing security providers, and managing security policies.

Monitoring your system regularly ensures fast recognition and resolution of problems or issues. You can use WebLogic Server Administration Console to monitor the following:

• The PDC domain

• The PDC administration server and managed servers

See the WebLogic Server Administration Console Help for more information.

Managing PDC involves managing the following:

• The PDC database

• The WebLogic server on which PDC is installed

Pricing and setup components configured in PDC must be published to Oracle Communications Billing and Revenue Management (BRM) subscription and rating engines, referred to as the target engines. During the publication process, the data is transformed into the format used by the BRM subscription and rating engines. The rating engines include BRM real-time rating engine (RRE), BRM batch-rating engine (BRE), and Oracle Communications Billing and Revenue Management (BRM) Elastic Charging Engine (ECE).

The PDC transformation process for pricing and setup components involves the following steps:

1. Using the PDC GUI application or the ImportExportPricing utility, you submit the pricing and setup components that you want to publish.

2. PDC validates the pricing and setup components.

3. PDC creates a transformation job for each target engine.

4. The job dispatcher puts the transformation job in the appropriate target engine work item queue.

5. The transformation engine or the ECE Pricing Updater associated with that queue retrieves the PDC components from the job dispatcher (see "About the Transformation Engines" and "About the ECE Pricing Updater").

6. The transformation engine or the ECE Pricing Updater converts the PDC components into the format required by the target engine (see "About the Target Engine Load Utilities" and "About the ECE Pricing Updater").

7. The transformation engine calls the load utility in the BRM server and Batch Rating Engine to load the PDC components into the respective databases, and ECE Pricing Updater loads the PDC components into ECE.

8. The transformation engine updates the tables in its cross-reference database.

9. The transformation engine or the ECE Pricing Updater sends the status to the job dispatcher, which notifies the PDC server.

10. The PDC server updates the status of the changeset.

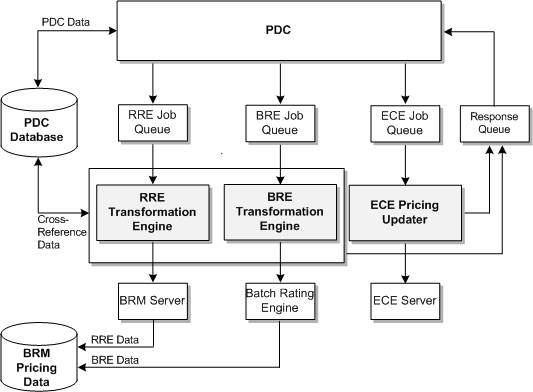

Figure 66-1 illustrates the PDC transformation process for the ECE and BRM integration.

Figure 66-1 PDC Transformation Process

Description of "Figure 66-1 PDC Transformation Process"

PDC stores the configuration entries and sensitive information, such as account and database passwords, in the PDC and BRM Integration Pack wallets. PDC provides sample PDC and BRM Integration Pack wallets. You can use these wallets to store the configuration data and passwords.

To create your own PDC wallet to store the configuration data and passwords, run the following command:

./PDCWalletUtil.sh create walletlocation walletpassword

where:

• walletlocation is the location in which the wallet must be created.

• walletpassword is the wallet password.

To create your own BRM Integration Pack wallet to store the configuration data and passwords for the utilities in BRM Integration Pack, run the following command:

./PDCBRMWalletUtil.sh create walletlocation walletpassword

After you create the wallets, update the appropriate wallet location in the following configuration files:

• PDC_home/apps/bin/ImportExportConfiguration.xml. Specify the PDC wallet location in this file. This file is used to configure the ImportExportPricing utility. See "Importing and Exporting Pricing and Setup Components" in PDC Creating Product Offerings.

• BRM_Integration_Pack_home/apps/syncpdc/SyncPDCConfiguration.xml. Specify the BRM Integration Pack wallet location in this file. This file is used to configure the SyncPDC utility. See "Synchronizing Pricing Setup Components" in PDC Creating Product Offerings.

• BRM_Integration_Pack_home/apps/transformation/TransformationConfiguration.xml. Specify the BRM Integration Pack wallet location in this file. This file is used by the transformation engines to connect to their target engine.

• BRM_Integration_Pack_home/apps/migration/MigrationConfiguration.xml. Specify the BRM Integration Pack wallet location in this file. This file is used to configure the MigrateBRMPricing utility. See "BRM Pricing Migration Utility" in BRM Upgrade Guide.

To change the EclipseLink log level for PDC:

1. Navigate to the MW_home/oracle_common/common/bin directory, where MW_home is the directory in which the Oracle Middleware components are installed.

2. Start the WebLogic Scripting Tool (WLST) by running the following command:

   ./wlst.sh


3. Connect to the server on which you want to change the logging level by running the following command:

   connect(UserName,Password,'t3://hostname:port')


4. Go to the custom settings by running the following command:

   custom()


   Note:

   'custom()' can take a few minutes to run, approximately 5 minutes.

5. Go to TopLink by running the following command:

   cd('TopLink')


6. List the sessions at this level by running the following command:

   ls()


   For example:

   drw-TopLink:Name=Development-JobDispatcher#1.2.0.0.0file_/scratch/ri-user-1/data/pdc_domain/servers/AdminServer/tmp/WL_user/JobDispatcher_1.2.0.0.0/7qjzil/APP-INF/lib/jobdispatcher_entities.jar_default,Type=Configuration
   drw-TopLink:Name=Development-pricingui#V2.0file/scratch/ri-user-1/data/pdc_domain/servers/AdminServer/tmp/_WL_user/pricinguiV2.0/jztz5c/APP-INF/lib/pricing_entities.jar_default,Type=Configuration
   drw-TopLink:Name=Session(JobDispatcher#1.2.0.0.0file/scratch/ri-user-1/data/pdcdomain/servers/AdminServer/tmp/_WL_user/JobDispatcher1.2.0.0.0/7qjzil/APP-INF/lib/jobdispatcher_entities.jar_default)
   drw-TopLink:Name=Session(pricingui#V2.0file_/scratch/ri-user-1/data/pdc_domain/ser vers/AdminServer/tmp/WL_user/pricinguiV2.0/jztz5c/APP-INF/lib/pricing_entiti es.jar_default)


7. Go the session by running the following command:

   cd('session')


   For example:

   cd('custom:/TopLink/TopLink:Name=Session(pricingui#V2.0file_/scratch/ri-user-1/data/pdc_domain/servers/AdminServer/tmp/_WL_user/pricingui_V2.0/jztz5c/APP-INF/lib/pricing_entities.jar_default)


8. Change the SQL and EclipseLink log level (as appropriate) by running the following command:

   set('CurrentEclipseLinkLogLevel',newLevel)


   Refer to Table 66-1 for a list of the different log levels and a brief description for each level.

   Table 66-1 EclipseLink Log Levels

   Level	Description
   OFF	This setting disables the generation of the log output. You may want to set logging to OFF during production to avoid the overhead of logging.
   SEVERE	This level enables reporting of failure cases only. Usually, if the failure occurs, the application stops.
   WARNING	This level enables logging of issues that have a potential to cause problems. For example, a setting that is picked by the application and not by the user.
   INFO	This level enables the standard output. The contents of this output is very limited. It is the default logging level if a logging level is not set.
   CONFIG	This level enables logging of such configuration details as your database login information and some metadata information. You may want to use the CONFIG log level at deployment time.
   FINE	This level enables logging of the first level of the debugging information and SQL. You may want to use this log level during debugging and testing, but not at production.
   FINER	This level enables logging of more debugging information than the FINE setting. For example, the transaction information is logged at this level. You may want to use this log level during debugging and testing, but not at production.
   FINEST	This level enables logging of more debugging information than the FINER setting, such as a very detailed information about certain features (for example, sequencing). You may want to use this log level during debugging and testing, but not at production.
   ALL	This level currently logs at the same level as FINEST.

This section describes the tasks that you can perform to back up and restore your PDC system.

To prevent any data loss and minimize the impact of software or hardware failure, back up your system immediately after installing or updating the system. Repeat the backup process whenever you make any changes in the data or in the configuration files.

If you do not back up the PDC system regularly, you need to reinstall and reconfigure PDC if the system is corrupted due to operational or system errors. Reinstalling and reconfiguring eliminates any chance of recovering and reprocessing data processed by the PDC system at the time of the error.

To perform a complete backup of your PDC system, make a complete offline copy of the following:

• The WebLogic server domains directory; by default, MW_home/user_projects/domains/PDC. For instructions, see "Backing Up a Directory".

• The PDC installation directory and its content: PDC_home. PDC_home contains the PDC keystore. For instructions, see "Backing Up a Directory".

• The Oracle Inventory (oraInventory) directory. Open the /etc/oraInst.loc (Linux) file to find the default location of the oraInventory directory. For instructions, see "Backing Up a Directory".

• BRM Integration Pack and its content: BRM_Integration_Pack_home. This pack includes the keystore for BRM Integration Pack. For instructions, see "Backing Up a Directory".

• The PDC directory and its content: PDC_BRM_home. For instructions, see "Backing Up a Directory".

• The PDC database schema. Make a complete offline backup of your PDC database schema using the appropriate backup tools for your schema version.

  For example, on the machine on which the PDC users are created, run the Oracle database export (exp) utility to export the data in the PDC database to a file and then store it in a safe location. You can later run the import (imp) utility to import the data from the file into the PDC database when you restore PDC. See your database documentation for more information on performing full database backups.

• The transformation cross-reference database schema. Make a complete offline backup of your transformation cross-reference database schema using the appropriate backup tools for your schema version.

  For example, on the machine on which the PDC users are created, run the Oracle database export (exp) utility to export the data in the transformation cross-reference database to a file and store it in a safe location. You can later run the import (imp) utility to import the data from the file into the transformation cross-reference database when you restore PDC. See your database documentation for more information on performing full database backups.

• For example, on the machine on which the PDC users are created, run the Oracle database export (exp) utility to export the data in the migration cross-reference database to a file and store it in a safe location. You can later run the import (imp) utility to import the data from the file into the migration cross-reference database when you restore PDC. See your database documentation for more information on performing full database backups.

• The PDC database.

  Make a complete offline backup of your PDC database using the appropriate backup tools for your database version and ensure that the backup is completely valid and usable. The backup must contain both the database definition and all the database contents. See your database documentation for more information on performing full database backups.
