Run the following command on VM Guest to verify the exacli credentials:

exacli --xml -c <user>@<ip_address> -e 'list cell attributes all'

Collect the storage server IP address from /etc/oracle/cell/network-config/cellip.ora on the VM Guest.

In Oracle Cloud Infrastructure (OCI), access is granted to resources in an identity domain by creating policies. To successfully discover and monitor Exadata Database Service and Autonomous Database on Oracle Exadata Database Service on Cloud@Customer, Oracle Exadata Database Service on Dedicated Infrastructure, and Oracle Exadata Database Service on Exascale Infrastructure in OCI for Oracle Enterprise Manager, you must manually grant and maintain IAM policies to provide Oracle Enterprise Manager with necessary privileges for Exadata Database Service resources in OCI.

There are two approaches to maintain these policies:

• The simplest approach involves the definition of policies using predefined OCI aggregate resource types, which provide access to resources that are typically used together.

• For organizations with more fine-grained security requirements, a more detailed approach involves the definition of policies created specifically on each individual applicable resource, further supporting the principle of least privilege. There are separate service-specific individual resource types for deployments on Oracle Exadata Database Service on Cloud@Customer, Oracle Exadata Database Service on Dedicated Infrastructure, and Oracle Exadata Database Service on Exascale Infrastructure in OCI.

Each of these approaches can be implemented tenancy-wide or at a compartment level for finer control. Furthermore, the policies can be created for individual users or for a group of users. The examples in this document reference groups. For details on creating groups, see Managing Groups in the Oracle Cloud Infrastructure Documentation.

The following sections provide the required policy statements for each approach including the policies to be granted at aggregate resource level or individual resource level, at the compartment level or tenancy level. In case of granting at the individual resource level, the information is also provided by service type and deployment. Select the approach required by your organization’s security requirements and follow the corresponding section.

Note that all the policy statements include the identify domain and are granted at the group level. Substitute the actual identity domain name for <Domain> and a suitable group name for <Group Name> in the policy statement. If the identity domain is Default, then substitute <Domain> with Default. If required, all statements can be modified to grant to an individual user instead of a group. Also, insert the right compartment name for <Compartment Name> in the policy statements.

For more information on managing access to OCI resources, see Managing Access to Resources in Oracle Cloud Infrastructure Documentation.

To enable access to the Oracle Cloud resources, Enterprise Manager requires API key credentials associated with an Oracle Cloud Infrastructure IAM user. This IAM user must be assigned the required permissions using policies.

During the discovery flow, the list of available resources to discover as targets will be controlled by the policies and permissions of this IAM user. If the IAM user has limited visibility to the Exadata Cloud resources in the tenancy, the resources available during discovery will be restricted to this list. However, if the IAM user has permissions to view all the resources in the tenancy, then the list of Exadata Cloud resources returned during the discovery flow will include them all.

For details on creating the required policies, see Create IAM Policies to Support Discovery and Monitoring.

Below are the steps for creating the named credential required for monitoring the Exadata Infrastructure and VM Clusters. This uses the API Signing Key for the Oracle IAM user granted the proper policies above. This is an RSA key pair in PEM format (minimum 2048 bits). See How to Generate an API Signing Key.

Additionally, you will need the fingerprint of the public key. See How to Get the Key's Fingerprint.

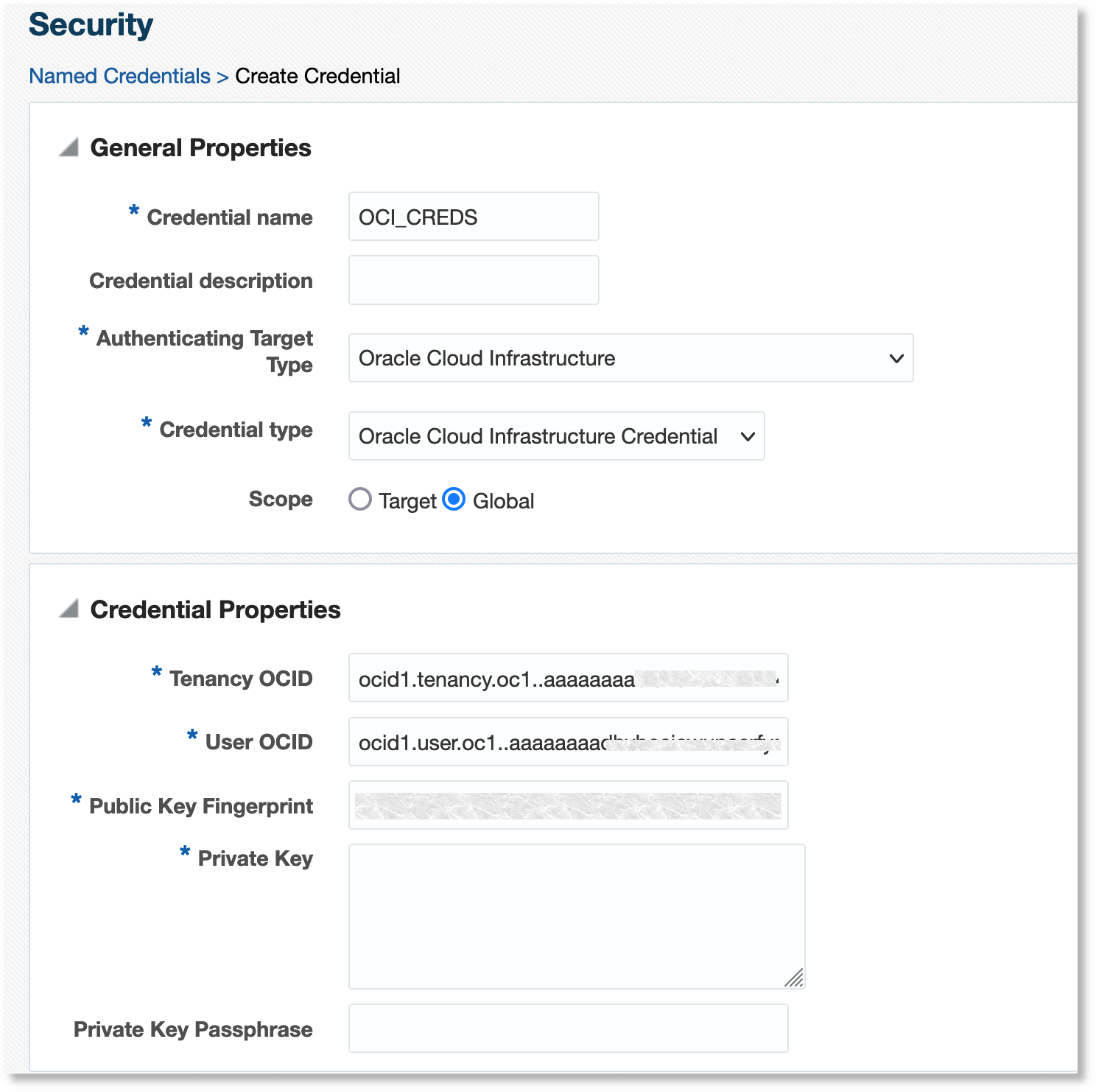

1. Click the setup icon , click Security, and select Named Credentials. The Named Credentials page is displayed.

2. Click Create. The Create Credential page opens.

3.





   Provide the following information:

   • Credential Name: Provide a suitable name to the credential. For example, OCI_CREDS.
   • Credential Description: Describe the purpose of the credential and the intended use.
   • Authenticating Target Type: Specify the target type for which this credential set will be used for authentication. Select Oracle Cloud Infrastructure from the menu.
   • Credential Type: Specify the type of the credential that you're creating. Select Oracle Cloud Infrastructure Credential from the menu.
   • Scope: Select the visibility of the credential in Enterprise Manager. Select Global.
   • Tenancy OCID: The OCID of your OCI tenancy.
   • User OCID: The OCID of the user to access OCI.
   • Public Key Fingerprint: Provide the fingerprint of the public key of your API signing key pair.
   • Private Key: Provide the private key of your API signing key pair.
   • Private Key Passphrase: Specify the passphrase of your private key, if any.

   Click Save.

You can test these credential for proper functioning by following the steps in Test the Named Credentials Created for OCI Monitoring.

The VM Guest hosts are accessed through SSH and therefore the agents must be installed using SSH based named credentials. It is recommended that you use one of the two SSH credential methods described below.

• Create SSH based named credentials for the opc user that utilizes sudo to oracle and SSH based named credentials for the opc user that utilizes sudo to root. Provide the private and public SSH keys for the opc user.

• Create a new SSH key and add it to the authorized_keys file for the oracle user. Create an SSH based named credential for the oracle user using this newly created private and public key.

For steps to create SSH based named credentials and SSH keys, see Setting Up SSH Key-based Host Authentication in Host Authentication Features.

To associate the storage servers of the grid infrastructure with the cloud target, create a named credential for storing the ExaCLI user name and password used for connecting to the Exadata Storage Server.

For the relevant documentation about the user name and password, see:

• Exadata Database on Cloud@Customer: Monitoring and Managing Exadata Storage Servers with ExaCLI in Exadata Database Service on Cloud@Customer Administrator's Guide
• Exadata Database on Cloud@Customer: Monitoring and Managing Exadata Storage Servers with ExaCLI in Exadata Database Service on Dedicated Infrastructure

During the discovery of the cloud target, you will point to this named credential set for discovering the storage servers. This must be a named credential of the type ExaCLI or RESTful API.

1. Click the setup icon , click Security, and select Named Credentials. The Named Credentials page is displayed.

2. Click Create. The Create Credential page opens.

3. Provide the following information:

   • Credential Name: Provide a suitable name to the credential. For example, EXADATA_CRED.
   • Credential Description: Describe the purpose of the credential and the intended use.
   • Authenticating Target Type: Specify the target type for which this credential set will be used for authentication. Select Oracle Exadata Storage Server from the menu.
   • Credential Type: Specify the type of the credential that you're creating. Select Credential for ExaCLI or RESTful API from the menu.
   • Scope: Select the visibility of the credential in Enterprise Manager. Select Global.
   • Username and Password: Provide the user name and password to access the storage cells. This is the exacli user that was generated as part of the Exadata Cloud Service setup.
   • Run Privilege: You can select the level of privilege provided to the user for access.
   • Access Control section: You can add grants, and select the grantee in this section.

   Click Save.

You can now view the new credential created in the Named Credentials page.

The Enterprise Manager Agent will be installed on the guest hosts of each VM cluster for the purpose of monitoring the resources that reside in that VM Cluster like host, database, listener, ASM, etc

In addition to these agents, one EM Agent outside of the Exadata Cloud is required for discovery and Exadata Cloud target resource monitoring. This agent is installed in a location that is able to communicate with the OCI API rest endpoints as well as the Enterprise Manager OMS servers. This agent can be used to discover and monitor multiple Exadata Cloud targets. Below are the recommendations for this agent:

• The agent should be placed on a host within the customer's data center.
• The chosen agent should not be one of the central agents on the Oracle Management Servers (OMS) nor should it be an agent that is installed on one of the VM guest hosts of the Exadata Cloud VM Cluster.
• The host should meet the requirements for installing an Enterprise Manager Agent. For details on the host requirements for installing an EM Agent, see Meeting the Generic Prerequisites for Installing Standalone Management Agents Using Add Host Targets Wizard or EM CLI.
• For HA/DR considerations, there should be both primary and backup agents selected but care should be taken to consider the proper location for the primary and backup agents.
• If Enterprise Manager is configured for HA/DR, agents must be located in sites that are accessible from both the primary and DR Enterprise Manager sites. That is, the agent selected for OCI monitoring should be on a host in the same data center or site where the primary EM is running and the backup agent should be located on a host in the data center or site where the EM DR environment is located.
• Agents must be able to communicate to the OCI API Rest endpoints, over public network, for example, by using a proxy or VPN. For more information about the endpoints, see Internal Server Error in the Exadata Cloud discovery wizard.

An Enterprise Manager agent should also be installed on each of the guest VM hosts on the Exadata Cloud VM Cluster for the purpose of monitoring each of the resources that reside in that VM Cluster like host, database, ASM, etc.

Install an agent on the hosts selected for discovery and monitoring of the Exadata Cloud Services.

Install an agent onto each of the VM Cluster guest hosts using the SSH based named credential created earlier. Manually deploy the Exadata Plug-in to these agents.

For steps to install agents, see Installing Oracle Management Agents in Enterprise Manager Basic Installation Guide.

To configure the EM agent to connect to OCI through a proxy server, use the following steps:

1. Log in to your agent host.

2. Edit the file $EMDROOT/work/agentStateDir/sysman/config/s_jvm_options.opt. Add the following line at end of the file and save the file:

   -Djdk.http.auth.tunneling.disabledSchemes=""

3. Edit the file $EMDROOT/work/agentStateDir/sysman/config/emd.properties. Include the below properties in the file emd.properties:

   oci_http_proxy_host= <proxy host>
   oci_http_proxy_port= <proxy port>
   oci_proxy_username= <proxy user>
   oci_proxy_password= <proxy password>

4. Restart the agent:

   emctl stop agent ; emctl start agent ;
