Adding Compliance Standards

Introduction to Adding Compliance Standards

As a plug-in developer, you are responsible for the following steps when adding compliance standards:

Define compliance standard rules.
Compliance standard rules can be either of the following:
- Repository check-based rules
- Real-time monitoring rules.
For information about defining compliance standard rules, see About the Compliance Standard Rules.
Define a compliance standard.

For more information, see Defining Compliance Standards.
Define a compliance framework.

For more information, see Defining a Compliance Framework.
Package the compliance standard rules, standards, and framework as metadata XML.

For more information, see Packaging Compliance XML.
Set up and test the compliance content.

For more information, see Setting Up and Testing Compliance Standards and Rules.
Deploy the plug-in.

For information about deploying plug-ins, see Validating, Packaging, and Deploying the Plug-in.

Assumptions and Prerequisites

This chapter assumes you are familiar with the following:

Plug-in development overview, including how to package a plug-in and its XML files.
If you are installing compliance data with the emctl register oms metadata -service gccompliance command, it will require an EM_COMPLIANCE_UTIL.trigger_rule_dependency_job callback. You must enter the following commands through SQL*Plus as the SYSMAN user:
```
begin EM_COMPLIANCE_UTIL.trigger_rule_dependency_job;
end;
/
```
Note:

This is necessary only if you are using the emctl register oms metadata -service gccompliance command to install compliance content.

If you are installing the plug-in, then you do not have to enter the previous SQL.

For more information about the emctl register oms metadata command, see Updating Deployed Metadata Files Using the Metadata Registration Service (MRS).

About the Compliance Standard Rules

This section provides a description of the following:

Defining Repository Check-based Rules

A repository check-based rule checks the configuration state of one or more targets. A rule is compliant if the test fails to identify a violation. In other words, the test determines that the configuration item is in the required state or has the prescribed value. Any rule that uncovers a violation is noncompliant.

The data source that is evaluated by a rules test condition can be based on a repository query. A rules test condition can be implemented using a threshold condition based on the underlying metrics or queries column value, or SQL expression, or a PL/SQL function. (The policies are similar to Oracle Enterprise Manager 10g Release 5).

The key points in this area include:

Defining Compliance Standard Rules, Compliance Standards, and Compliance Frameworks
Replacing out-of-box policy groups (10.2.x/11.10) with Compliance Standards that you create referring to Compliance Standard Rules
Mapping your compliance standards to the appropriate Compliance Frameworks
Defining Oracle Business Intelligence Publisher (BI Publisher) reports for compliance

The following example provides the syntax for defining repository rules and the next example provides an example of a repository rule definition.

Note:

For the complete compliance XML Schema Definitions (XSDs), see the following JAR file:

$ORACLE_HOME/sysman/jlib/gccomplianceCommon.jar

Note:

For additional examples, see More Compliance Examples.

Example: Repository Rule Definition Syntax

<xsd:complexType name="RuleT">
    <xsd:sequence>
      <xsd:element name="DisplayName" type="std:DisplayString256Def" minOccurs="0"/>
      <xsd:element name="TargetType" type="std:Name256Def"/>
      <xsd:element name="IsSystem" type="std:BooleanDef" minOccurs="0" default="false"/>
      <xsd:element name="IsHidden" type="std:BooleanDef" minOccurs="0" default="false"/>
      <xsd:element name="evaluateAlways" type="std:BooleanDef" default="false" minOccurs="0"/>
      <!-- E.g. target version, platform based filter -->
      <xsd:element ref="std:TargetPropertyFilter" minOccurs="0"/>
      <xsd:element name="Description" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="Impact" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="Recommendation" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="FixLinkList" type="std:FixLinkListT" minOccurs="0"/>
      <xsd:element name="ViolationContextList" type="std:ViolationContextListT"/>
      <xsd:element name="CheckSource" type="std:CheckSourceT" minOccurs="1" maxOccurs="1"/>

      <xsd:element name="Severity" default="MinorWarning" minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="MinorWarning"/>
            <xsd:enumeration value="Warning"/>
            <xsd:enumeration value="Critical"/>
          </xsd:restriction>
      </xsd:simpleType>
      </xsd:element>
      <xsd:element name="LifeCycleStatus" default="Development" minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="Development"/>
            <xsd:enumeration value="Production"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="KeywordList" type="std:KeywordListT" minOccurs="0"/>
      <xsd:element name="UrlLink" type="std:String4000Def" minOccurs="0"/>
      <xsd:element name="ViolationMessage" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="ClearViolationMessage" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="Author" type="std:Name256Def" minOccurs="0"/>
      <xsd:element name="LastUpdatedBy" type="std:Name256Def" minOccurs="0"/>
    </xsd:sequence>
    <xsd:attribute name="name" type="std:Name256Def" use="required"/>
    <xsd:attribute name="oms_version" type="std:Name32Def" use="required"/>
  </xsd:complexType>

The following example is defined for oracle_database target_type, which is part of the database plug-in.

Youcan define a rule for any target type registered with Enterprise Manager.

Example: Sample Rule

<Rule xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_rule1">
    <DisplayName nlsid="SAMPLE_RULE_1_NAME">Sample Rule 1</DisplayName>
    <TargetType>oracle_database</TargetType>
    <IsSystem>true</IsSystem>
	<TargetPropertyFilter>
        <PropertyItem>
            <PropertyName>orcl_gtp_operating_system</PropertyName>
            <ValueList>
                <Value>Windows</Value>
            </ValueList>
        </PropertyItem>
        <PropertyItem>
            <PropertyName>orcl_gtp_target_version</PropertyName>
            <ValueList>
                <Value>8.1.6+</Value>
            </ValueList>
        </PropertyItem>
    </TargetPropertyFilter>
    <Description nlsid="SAMPLE_RULE_1_DESC">Checks for use of a single control file</Description>
    <Impact nlsid="SAMPLE_RULE_1_IMPACT">The control file is one of the most
important files in an Oracle database. It maintains many physical characteristics
and important recovery information about the database. If you lose the only copy
of the control file due to a media error, there will be unnecessary down time and
other risks.</Impact>
    <Recommendation nlsid="SAMPLE_RULE_1_RECO">Use at least two control files that are multiplexed on different disks.</Recommendation>
    <ViolationContextList>
        <Column type="String" name="FILE_LIST">
            <DisplayLabel nlsid="SAMPLE_RULE_1_COL_1">FILE_LIST</DisplayLabel>
            <IsHidden>false</IsHidden>
            <IsKey>false</IsKey>
        </Column>
        <Column type="Number" name="CONTROL_FILE_COUNT">
            <DisplayLabel nlsid="SAMPLE_RULE_1_COL_2">CONTROL_FILE_COUNT</DisplayLabel>
            <IsHidden>false</IsHidden>
            <IsKey>false</IsKey>
        </Column>
    </ViolationContextList>
    <CheckSource>
        <RepositoryCheckDefinition>
            <Metric>
    <TargetType>oracle_database</TargetType>
    <MetricName>sample_rule1</MetricName>
    <SourceType>SQL</SourceType>
        <Source>select CONTROL_FILE_COUNT, FILE_LIST, TARGET_GUID from MGMT$CS_DB_CONTROL_FILE_COUNT</Source>
    <MetricColumnList>
        <MetricColumnInfo>
                <ColumnName>FILE_LIST</ColumnName>
                <ColumnType>String</ColumnType>
                <isKey>false</isKey>
                <ColumnLabel nlsid="SAMPLE_RULE_1_COL_1">FILE_LIST</ColumnLabel>
                      </MetricColumnInfo>
        <MetricColumnInfo>
                <ColumnName>CONTROL_FILE_COUNT</ColumnName>
                <ColumnType>Number</ColumnType>
                <isKey>false</isKey>
                <ColumnLabel nlsid="SAMPLE_RULE_1_COL_2">CONTROL_FILE_COUNT</ColumnLabel>
        </MetricColumnInfo>
    </MetricColumnList>
               </Metric>
            <ParameterList>
                <RuleParameter>
                    <ParamName>CONTROL_FILE_COUNT</ParamName>
                    <ParamType>Number</ParamType>
                </RuleParameter>
            </ParameterList>
            <ParameterDefaultSettings>
                <ParamValue>
                    <ParamName>CONTROL_FILE_COUNT</ParamName>
                    <MinorWarnThreshold>1</MinorWarnThreshold>
                </ParamValue>
            </ParameterDefaultSettings>
            <TestCondition>
                <ThresholdCriteria>
                    <ColumnName>CONTROL_FILE_COUNT</ColumnName>
                    <TestOperator>EQ</TestOperator>
                    <ThresholdValue>1</ThresholdValue>
                    <ThresholdType>Number</ThresholdType>
                </ThresholdCriteria>
            </TestCondition>
        </RepositoryCheckDefinition>
    </CheckSource>
   <Severity>MinorWarning</Severity>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <KeywordList>
        <Keyword nlsid="CONFIGURATION">Configuration</Keyword>
    </KeywordList>
    <ViolationMessage nlsid="SAMPLE_RULE_1_VIOL_MSG">The database has an insufficient number of control files.</ViolationMessage>
    <ClearViolationMessage nlsid="SAMPLE_RULE_1_VIOL_CLEAR_MSG">The database has sufficient number of control files.</ClearViolationMessage>
    <Author>SYSMAN</Author>
</Rule>

Table 13-1 provides a description of the tags used to define a repository rule:

Table 13-1 Key Tags for Defining Repository Rules

Tag	Subtag	Description
`DisplayName`	`NA`	The display name of the rule. It provides the nlsid attribute to support the translation of messages.
`TargetType`	`NA`	The type of target to which this rule is can be associated
`IsSystem`	`NA`	True for out-of-the-box rules. Otherwise, False
`IsHidden`	`NA`	False by default. When set to True, the IsHidden rules are not visible in the UI and no events are generated. This element should be set to true for out-of-the-box rules
`Description`	`NA`	The description of the rule. It provides the nlsid attribute to support the translation of messages.
`Impact`	`NA`	Impact if the rule violates (when rule is noncompliant). It provides the `nlsid` attribute to support the translation of messages
`ViolationContextList`	`NA`	Violation context defines a violation to a rule uniquely. Violation context lists columns from <Source> Query, which will be visible as a part of the violation. Each column must mark as key or non-key. The mandatory target_guid column from <Source> query is implicitly added to the violation context and should not be included in the violation context explicitly.
`NA`	`Column`	Metric Column name. Uses Attributes name and type `DisplayLabel`: Display name for column. It provides the nlsid attribute to support the translation of messages `IsHidden`: True, if this column should not be displayed as a part of a violation context. Otherwise, False. `IsKey`: True, if this column is a key
`CheckSource`	`NA`	Defines the data source for Rule evaluation.
..`RepositoryCheckDefinition`	`NA`	Defines data source for a repository rule.
`NA`	`Metric`	Defines data source query. `MetricName`: Name of metric `SourceType`: SQL. The only supported SourceType `Source`: This is a SQL query written over MGMT$_% views. (Enterprise Manager provides MGMT$_% views, see Oracle Enterprise Manager Management Repository Views Reference.). If required, this SQL query can be written over other provided views that they have a direct SELECT privilege to the MGMT_VIEW user in Enterprise Manager. Note: You can specify target_guid within a rule source query. This ensures that target_guid will get bound in the query at runtime. This can lead to improved performance. For example: select a.cm_target_guid as target_guid, a.SESS_LAZY_DESER_ENABLED from MGMT$WEBLOGIC_CLUSTER a, mgmt$target_flat_members mtfm where mtfm.member_target_guid = a.cm_target_guid and mtfm.aggregate_target_type = 'exalogic_system' and a.cm_target_guid = :target_guid `MetricColumnList`: List of columns in Source query `MetricColumnInfo`: Metric column `ColumnName`: Metric Column name `ColumnType`: Metric Column Type `isKey`: True, if column is a key column. Otherwise, False. `ColumnLabel`: Column display name
`ParameterList`	`NA`	List of parameters Note: If parameters are specified and used in a where clause, then you can customize the parameter value at compliance standard rule and target type level or compliance standard rule and target instance level. This enables the user to customize or control the check definition behavior per target instance or at the target type level.
`RuleParameter`	`NA`	Parameter definition
`NA`	`ParamName`	Name of parameter
`NA`	`ParamType`	parameter Type (String or number)
`ParameterDefaultSettings`		Default values for parameters
`NA`	`ParamValue`	Define a default value for a parameter: `ParamName`: Name of parameter `CritThreshold/WarnThreshold/MinorWarnThreshold`: Parameter default value. For critical severity, use `CritThreshold`. For warning severity, use `WarnThreshold`. For minor warning severity, use `MinorWarnThreshold`.
`TestCondition`	`NA`	The TestCondition tag operates over the data source fetched by running the Metric's <Source> Query. Any data source row that satisfies the condition is a violation to the rule
`NA`	`ThresholdCriteria`	Requires a column from Source Query, a threshold value, and operator (=,<,>, and so on) to relate the column value and threshold value.
`NA`	`SqlWhereClauseCriteria`	Requires a SQL condition over the columns from <Source> query. Optionally, this condition can include one or more parameters.
`Severity`	`NA`	Severity of Rule (Critical, Warning, MinorWarning)
`LifeCycleStatus`	`NA`	Lifecycle status of rule, (Development or Production)
`UrlLink`	`NA`	Detail URL for the Rule, containing details about the rule
`ViolationMessage`	`NA`	Message recorded with violation (for rule). Used for notifications. It provides the nlsid attribute to support the translation of messages
`ClearViolationMessage`	`NA`	Message recorded with clearing of violation (for rule). Used for notifications. It provides the nlsid attribute to support the translation of messages.
`KeywordList`	`NA`	List of keywords associated with the Rule.
`NA`	Keyword	Keywords applicable to the compliance standard
`Author`	`NA`	Rule Author.

Defining Real-time Monitoring Rules

You can use a real-time monitoring rule to monitor any action that can happen against a file, a database object, or a Microsoft Windows Registry key. It can also monitor the starting and stopping of processes, and the logging in, logging out, and switching user (su) activity of users. The real-time aspect of the monitoring means that it captures the exact time the action occurred along with the user that performed the action.

Results from real-time monitoring can be reconciled with a Change Management system such as BMC Remedy. This reconciliation can automatically determine if an action was supposed to happen (authorized) or not (unauthorized). If a customer does not have a Change Management server, this audit status annotation can be made manually through the UI.

A major part of any IT compliance initiative is to ensure that your IT operations staff are making changes and managing the environment according to corporate policies. By reconciling what is happening in the environment to the customer's change management process, real-time monitoring helps to identify out-of-policy actions that will either lead to a high risk environment, or a compliance control that will fail audits.

Creating a real-time monitoring rule involves the following steps. These are explained further below.

Choose the target type and entity type being monitored. A rule can also be limited based on certain target type properties (OS, target version, hardware platform, and target lifecycle)
Choose one or more target type facets to monitor
Choose one or more observations to watch for
Choose zero or more facets to filter the results that are monitored
Choose the change management reconciliation options

Integration points in this area include:

Defining (one or more) facets for your target types. Facets define the low level artifacts that will be monitored
Defining new compliance standard rules for new or existing compliance standards
Mapping your compliance standard rules and compliance standards to the out-of-box compliance frameworks that are related to industry standard frameworks.
Creating connectors to support new ticketing systems (including definition of custom region). This can also be used to extend out-of-box change reconciliation support (currently limited to Remedy 7.x). For information about the process for creating new connectors, see the Oracle Enterprise Manager Connector Integration Guide.

What Entity Types Can I Monitor?

When you define a real-time monitoring rule, the first thing you have to decide is what entity type on a host to monitor. For Oracle Enterprise Manager, the following entity types can be monitored with Real-time Monitoring Rules:

OS File
OS Process
OS User
Microsoft Windows Registry
Microsoft Active Directory User
Microsoft Active Directory Computer
Microsoft Active Directory Group
Oracle Database Table
Oracle Database View
Oracle Database Procedure
Oracle Database User
Oracle Database Index
Oracle Database Sequence
Oracle Database Function
Oracle Database Package
Oracle Database Library
Oracle Database Trigger
Oracle Database Tablespace
Oracle Database Materialized View
Oracle Database Cluster
Oracle Database Link
Oracle Database Dimension
Oracle Database Profile
Oracle Database Public DB Link
Oracle Database Synonym
Oracle Database Public Synonym
Oracle Database Segment
Oracle Database Type
Oracle Database Role
Oracle Database SQL Query Statement

These entity types are fixed by the capabilities of the current release and cannot be extended. However, you can use them when creating facets and Real-Time monitoring rules.

In addition to facets defining what can be monitored, there is a set of entities that can be used for filtering also. The following list includes the most commonly used filtering entity types:

OS Process
OS User
Oracle Database User
Time Window
Host

When you create a Real-time monitoring rule, choose what to monitor (that is, what files). Then choose if you want to use filtering so that only actions performed by certain users, or at certain periods of time are monitored.

About Real-time Monitoring Facets

Target Type Facets are used to specify the list of entities to monitor. These facets can be used again at a later time in any number of rules. They can be created on their own, or created inline with a Real-time Monitoring rule.

In the case of OS File monitoring, a facet could be a list of distinct single files, patterns with wildcards that would include many files, or simply an entire directory.

These patterns can also include parameters with a default, but can be overridden as required for each target.

The following are some examples of facets that may be defined for a HOST target type and an OS FILE entity type:

User Credential Files

/etc/passwd
/etc/shadow
/etc/mail/trusted-users

Network Configuration Files

/etc/hosts
/etc/resolv.conf
/etc/hosts.*
/etc/defaultrouter
/etc/nsswitch.conf
/etc/netmasks

{app_install_directory}/network/config

Here are some examples of facets that might be defined for a HOST target type and an OS PROCESS entity type. These might be monitored in real-time because any of these processes started on a production server could lead to a significant security risk.

Network Configuration Tools

ifconfig
xhost

The following table provides a list of hypothetical facets that you might create for your given target type. The facet name can be anything you choose. For some plug-in developers, there might be many more facets than these limited examples. For each facet, there is a description of the included patterns.

Target-Type Facet	Description
Log files	List each log file the target type has. Customers want to monitor when regular users modify a log file (not a system user)
Binary Files	List each binary the target type has. Rules can be created to monitor if a binary is tampered with or when a binary is patched. Instead of listing each individual binary, it can also list a whole directory, but exclude frequently changing files
Library Files	List each library the target type has. Rules can be created to monitor if a library is tampered with or when a library is patched. Instead of listing each individual library, it can also list a whole directory, but exclude frequently changing files
General Configuration Files	List any configuration files that are user changeable normally, but the user might want to capture changing.
Security Key Files	List any files that store certificates, keys, and so on. This can be a whole directory also, but exclude files that change regularly. This is to monitor if any users read the files in an attempt to get the content of the certificates.
Security Configuration Files	List any files that configure how security works in the target type, such as encryption configuration, and so on
Application Users	List the typical application users (that is, Oracle, root), and so on. Users can use this facet to filter monitoring changes where they do not care if the application user makes the change
Utility Processes	Any utility processes that normally run during a maintenance period, but should not be run during production
Registry Keys	Any Microsoft Windows registry keys that affect the configuration of the target
Configuration Tables	Any database tables that store configuration data.

Creating Real-time Monitoring Facets

This section provides an overview of the XML tags used in creating a real-time monitoring facet and an example of XML fragment showing facet creation. Facets can be created on their own as shown in this example, or inline with a real-time monitoring rule creation.

Table 13-2 provides descriptions of the tags used to define a Real-time monitoring facet:

Table 13-2 Key Tags Used to Define a Real-Time Monitoring Facet

Tag	Subtag	Description
`Name`	`NA`	The internal name of the facet. This must be unique across all facets that exist and is not visible on the UI.
`DisplayName`	`NA`	The display name of the facet. It provides the nlsid attribute to support the translation of messages.
`TargetType`	`NA`	The type of target to which this rule can be associated.
`EntityType`	`NA`	The entity type for which you are creating the facet (such as `osfile`, `osprocess`, `osuser`, and so on)
`IsSystem`	`NA`	True, for out-of-the-box rules. Otherwise, False.
`Description`	`NA`	The description of the facet. It provides the nlsid attribute to support the translation of messages.
`Author`	`NA`	The Enterprise Manager user that is the author of the facet.
`LastUpdatedBy`	`NA`	The Enterprise Manager user that last updated the facet. This should be same as the author for your initially created data.
`SourcePattern`/`GeneralPattern`:	`NA`	Container holding the pattern definition that makes up the facet
`NA`	`Patterns/Pattern`	Collection of patterns that define the facet. A single facet can be made up of include and exclude patterns. `Value`: An actual pattern. This pattern can include wildcards and parameters. Parameters are specified or bounded by { and }. Parameters must have a default value which is defined further down in the XML. The entity type determines the limitations on how wildcards are used. The product documentation outlines these limitations per entity type. `Description`: Description of the pattern. It provides the nlsid attribute to support the translation of messages. `IsIncluded`: Whether this pattern is an include pattern or exclude pattern. The notion of include or exclude is useful for wildcards. You can have a pattern which includes an entire directory, then you can exclude subdirectories or individual files under that included directory. A value of 0 indicates that this pattern is an exclude pattern. 1 indicates an include pattern.
`NA`	`Parameters/Parameter`	Collection of pattern default values for each parameter introduced in the patterns. Parameters are not shared across facets. If you use the same parameter name in two facets, each facet must define its own default value. `Name`: The parameter name used in the patterns defined above in the XML `Value`: The default value for this parameter. Users can override this parameter value per target when associating a Compliance Standard to one or more targets where this facet is in use. `Description`: Description of the parameter. It provides the nlsid attribute to support the translation of messages. `isActive`: Whether this parameter is currently in use in the list of patterns. This should always be 1 as you would not define new parameters without using them in the patterns

Example: Sample Facet Definition

<Facet xmlns="http://www.oracle.com/DataCenter/ConfigStd" is_time_window="0">
    <Name>network_configuration_files</Name>
    <DisplayName nlsid="SAMPLE_FACET_DNAME">Networking configuration files</DisplayName>
    <TargetType>host</TargetType>
    <EntityType>osfile</EntityType>
    <IsSystem>1</IsSystem>
    <Description nlsid="SAMPLE_FACET_DESC">Files on a standard UNIX operating system that contain configuration relevant to the networking operations.</Description>
    <Author>SYSMAN</Author>
    <LastUpdatedBy>SYSMAN</LastUpdatedBy>
    <SourcePattern>
        <GeneralPattern>
            <Patterns>
                <Pattern>
                    <Value>{ETCDIR}/hosts</Value>
                    <Description nlsid="SAMPLE_FACET_PATTERN_1_DESC">Contains IP to hostname mappings</Description>
                    <IsIncluded>1</IsIncluded>
                </Pattern>
                <Pattern>
                    <Value>{ETCDIR}/resolv.conf</Value>
                    <Description nlsid="SAMPLE_FACET_PATTERN_2_DESC">Contains local name resolution mappings.</Description>
                    <IsIncluded>1</IsIncluded>
                </Pattern>
                <Pattern>
                    <Value>{ETCDIR}/appsecurity/*</Value>
                    <Description nlsid="SAMPLE_FACET_PATTERN_3_DESC">All files in a directory used for my custom application.</Description>
                    <IsIncluded>1</IsIncluded>
                </Pattern>
                <Pattern>
                    <Value>{ETCDIR}/appsecurity/sample.conf</Value>
                    <Description nlsid="SAMPLE_FACET_PATTERN_4_DESC">Excluding one file that is not a production configuration file that does not need to be monitored.</Description>
                    <IsIncluded>0</IsIncluded>
                </Pattern>

            <Parameters>
                <Parameter>
                    <Name>ETCDIR</Name>
                    <Description nlsid="SAMPLE_FACET_PARAMETER_1_DESC">Location where all base Unix configuration files sit.</Description>
                    <Value>/etc</Value>
                    <IsActive>1</IsActive>
                </Parameter>
            </Parameters>
        </GeneralPattern>
    </SourcePattern>
</Facet>

Creating Real-time Monitoring Facets for Time Windows

Time windows are a special type of facet that is used for filtering real-time monitoring. Typically, the Enterprise Manager end user creates time window facets since they are specific to their own operations schedules, but this document includes the content for reference purposes.

Table 13-3 provides a description of the tags of a time window facet:

Table 13-3 Key Tags Used to Define a Time Window Facet

Tag	Subtag	Description
`Name`	`NA`	The internal name of the facet. This must be unique across all facets that exist and is not visible on the UI.
`DisplayName`	`NA`	The display name of the facet. It provides the nlsid attribute to support the translation of messages.
`TargetType`	`NA`	The type of target to which this rule is associated
`EntityType`	`NA`	The entity type for which you are creating the facet. For this example, it is timewindow
`IsSystem`	`NA`	True, for out-of-the-box rules. Otherwise, False.
`Description`	`NA`	The description of the facet. It provides the nlsid attribute to support the translation of messages.
`Author`	`NA`	The Enterprise Manager user that is the author of the facet.
`LastUpdatedBy`	`NA`	The Enterprise Manager user that last updated the facet. This should be same as the author for your initially created data.
`SourcePattern/SchedulePattern`	`NA`	NA
`NA`	`TZDisplayName`	The display name of the time zone in English. For example Greenwich Mean Time (UTC+0).
`NA`	`Duration`	`DurStartMinute`: The minute starting from 00:00 (midnight) when the time window starts. For example, 1439 = 11:59PM `DurEndMinute`: The minute starting from 00:00 (midnight) when the time window ends `DurMinute`: Precalculated duration that can be used for describing the time window, especially if it spans two days. A duration must be less or equal to 1440 (24 hours)
`NA`	`Recurrence`	`RecStartDate`: The date that the time window starts `RecurrencePattern`: `RecPattern`: The type of recurrence. Options are: "Single", "Daily", "Weekly", "Monthly", or "Yearly". `RecPatternDays`:Represents the days of the week, comma separated values. Sunday = 1, Saturday = 7. `RecPatternFrequency`: The frequency for repeating if the type of recurrence is to do "Every X of some pattern".

Example: Sample Time Window Facet Definition

    <Facet is_time_window="1>
        <Name>general_working_hours</Name>
        <DisplayName>General Working Hours</DisplayName>
        <TargetType>host</TargetType>
        <EntityType>timewindow</EntityType>
        <IsSystem>0</IsSystem>
        <Description>Define the work hour from 9:00 am to 5:00 pm</Description>
        <Author>SYSMAN</Author>
        <LastUpdatedBy>SYSMAN</LastUpdatedBy>
        <SourcePattern>
            <SchedulePattern>
                <TZDisplayName/>
                <Duration>
                    <DurStartMinute>540</DurStartMinute>
                    <DurEndMinute>1020</DurEndMinute>
                    <DurMinute>480</DurMinute>
                </Duration>
                <Recurrence>
                    <RecStartDate>2010-07-26</RecStartDate>
                    <RecurrencePattern>
                        <RecPattern>WEEKLY</RecPattern>
                        <RecPatternDays>1,2,5</RecPatternDays>
                        <RecPatternFrequency>1</RecPatternFrequency>
                    </RecurrencePattern>
                </Recurrence>
            </SchedulePattern>
        </SourcePattern>
    </Facet>

Creating Real-time Monitoring Rules

This section provides an overview of the XML tags used in creating a real-time monitoring rule and an example XML fragment showing rule creation. This XML fragment assumes that the facet has been created already and is referenced in this rule.

Table 13-4 provides a description of the tags used to define a real-time rule:

Table 13-4 Key Tags Used to Define a Real-time Rule

Tag	Subtag	Description
`DisplayName`	`NA`	The display name of the rule. It provides the nlsid attribute to support the translation of messages.
`TargetType`	`NA`	The type of target to which this rule is associated
`IsSystem`	`NA`	True, for out-of-the-box rules. Otherwise, False.
`Description`	`NA`	The description of the rule. It provides the `nlsid` attribute to support the translation of messages.
`Impact`	`NA`	Impact if the rule violates (when rule is noncompliant). It provides the nlsid attribute to support the translation of messages
`ViolationContextList`	`NA`	Violation context defines a violation to a rule uniquely. Violation context lists columns from <Source> Query, which will be visible as a part of the violation. Each column must mark as key or non-key. The mandatory target_guid column from <Source> query is implicitly added to the violation context and should not be included in the violation context explicitly.
`NA`	`Column`	Metric Column name. Uses Attributes name and type: `DisplayLabel`: Display name for column. It provides the nlsid attribute to support the translation of messages `IsHidden`: True, if this column should not be displayed as a part of a violation context. Otherwise, False. `IsKey`: True, if this column is a key.
`CheckSource`	`NA`	Defines the data source for Rule evaluation.
`NA`	`RealTimeMonitoringLogicDefinition`	Defines data source for Real-time Monitoring Rule
`NA`	`EntityType`	The type of monitoring performed (that is, `osfile`, `osprocess`, `osuser`, and so on). A full list is available in What Entity Types Can I Monitor?.
`NA`	`Facets`	The collection of facets to refer to in this rule. Some facets can be monitoring facets and some might be filtering facets. `Facet Reference`: The internal reference name of the facet `Name`: The internal reference name of the facet that the rule refers to `TargetType`: The target type of the referenced facet. This should always be the same as the rule target type for your content. `EntityType`: The entity type of the referenced facet `IsFilteredFacet`: 0 indicates this facet reference is used to determine what to monitor. 1 indicates this facet reference is a filter. `InvertedFilteredFacet`: Only applicable if `IsFilteredFacet=1`. This specifies that the patterns in the facet definition are inverted (1) or not (0). If a filter facet was for “Production Hours" and then it was inverted, then monitoring will only occur outside of the pattern defined for “Production Hours"
`NA`	`ObservationTypes/ObservationType`	The types of observations you want to monitor in real-time. `Name`: Internal reference name for the observation type you want to have monitored in this rule.
`NA`	`Settings`	`CMSetting`: Settings related to the performance of change management reconciliation. The auto_authorized=0 attribute indicates manual reconciliation only. 1 indicates integration with a change management server. Typically, you cannot use this field because the connector would not exist yet. If you create a rule without CM settings, a customer can override the rule and set their own custom CM settings after associating the rule with a Compliance Standard. `CMConnector`: The connector the rule should use for automatic reconciliation. `AnnotateAuthObservation`: Indicates whether the Change Management connector should annotate authorized observations into the requests that made the observations authorized.
`NA`	`AdvancedSetting`	Advanced rule settings `GroupSetting`: Settings about how observation bundles will be closed. Observation bundles collect a series of actions that happen against the same rule, by the same user, and on the same target over a short period of time. `ObsGroupIdleTimeout`: The timeout period (in minutes) after the last user action before a bundle will be closed. `ObsGroupMaxAge`: The maximum duration (in minutes) of an observation bundle. `ObsGroupMaxObservations`: The maximum number of observations in an observation bundle. `GenerateEventByManualAuth`: If you are using manual reconciliation, then you have the option of generating informational level events when observations occur. 1 indicates that an informational event will be created for each observation group. 0 indicates that no informational event will be created.
`NA`	`Options`	Additional options that can be configured based on the entity type. Some entity types will not have options. `Option` (Name/Value): A single name or value pair option setting.
`Severity`	`NA`	Severity of the rule (Critical, Warning, or MinorWarning)
`LifeCycleStatus`	`NA`	Lifecycle status of the rule (Development or Production)
`UrlLink`	`NA`	Detail URL for the rule, containing details about the rule
`ViolationMessage`	`NA`	Message recorded with violation (for the rule). Used for notifications. It provides the nlsid attribute to support the translation of messages.
`ClearViolationMessage`	`NA`	Message recorded with clearing of violation (for the rule). Used for notifications. It provides the nlsid attribute to support the translation of messages.
`KeywordList`	`NA`	List of keywords associated with the rule
`NA`	`Keyword`	Keywords applicable to the compliance standard
`Author`	`NA`	Rule author

Example: Sample Rule Definition

<Rule xmlns="http://www.oracle.com/DataCenter/ConfigStd" Name="monitor_critical_os_config_files">
    <DisplayName nlsid="SAMPLE_RULE_NAME">Monitor critical OS configuration files</DisplayName>
    <TargetType>host</TargetType>
    <IsSystem>True</IsSystem>
        <Description nlsid="SAMPLE_RULE_DESC">Monitor several critical
        configuration areas of a Linux host to ensure no configuration changes are
        happening out of bounds. Monitoring is only done during production
        hours.</Description>
    <Impact nlsid="SAMPLE_RULE_IMPACT">Capturing real-time changes to these files may indicate a serious security issue.</Impact>
    <Recommendation nlsid="SAMPLE_RULE_RECO">Ensure that change management policy documents how and when changes should be made in production.
        Create compensating controls to address these out of bound issues.</Recommendation>
    <ViolationContextList/>
    <CheckSource>
        <RealTimeMonitoringLogicDefinition>
            <EntityType>osfile</EntityType>
            <Facets>
                <FacetReference>
                    <Name>network_configuration_files</Name>
                    <TargetType>host</TargetType>
                    <EntityType>osfile</EntityType>
                    <IsFilteredFacet>0</IsFilteredFacet>
                    <InvertFilteredFacet>0</InvertFilteredFacet>
                </FacetReference>
                <FacetReference>
                    <Name>maild_configuration_files</Name>
                    <TargetType>host</TargetType>
                    <EntityType>osfile</EntityType>
                    <IsFilteredFacet>0</IsFilteredFacet>
                    <InvertFilteredFacet>0</InvertFilteredFacet>
                </FacetReference>
                <FacetReference>
                    <Name>sshd_configuration_files</Name>
                    <TargetType>host</TargetType>
                    <EntityType>osfile</EntityType>
                    <IsFilteredFacet>0</IsFilteredFacet>
                    <InvertFilteredFacet>0</InvertFilteredFacet>
                </FacetReference>
                <FacetReference>
                    <Name>crontab_configuration_files</Name>
                    <TargetType>host</TargetType>
                    <EntityType>osfile</EntityType>
                    <IsFilteredFacet>0</IsFilteredFacet>
                    <InvertFilteredFacet>0</InvertFilteredFacet>
                </FacetReference>
                <FacetReference>
                    <Name>kernel_configuration_files</Name>
                    <TargetType>host</TargetType>
                    <EntityType>osfile</EntityType>
                    <IsFilteredFacet>0</IsFilteredFacet>
                    <InvertFilteredFacet>0</InvertFilteredFacet>
                </FacetReference>
                <FacetReference>
                    <Name>production_hours</Name>
                    <TargetType>host</TargetType>
                    <EntityType>timewindow</EntityType>
                    <IsFilteredFacet>1</IsFilteredFacet>
                    <InvertFilteredFacet>0</InvertFilteredFacet>
                </FacetReference>
            </Facets>
            <ObservationTypes>
                <ObservationType>
                    <Name>osfile_create_suc</Name>
                </ObservationType>
                <ObservationType>
                    <Name>osfile_content_modified_suc</Name>
                </ObservationType>
                <ObservationType>
                    <Name>osfile_delete_suc</Name>
                </ObservationType>
                <ObservationType>
                    <Name>osfile_content_mod_archive_suc</Name>
                </ObservationType>
            </ObservationTypes>
            <Settings>
                <CMSetting auto_authorized="0">
                    <CMConnector></CMConnector>
                    <AnnotateAuthObservation></AnnotateAuthObservation>
                </CMSetting>
                <AdvancedSetting>
                    <GroupSetting>
                        <ObsGroupIdleTimeout>15</ObsGroupIdleTimeout>
                        <ObsGroupMaxAge>30</ObsGroupMaxAge>
                        <ObsGroupMaxObservations>1000</ObsGroupMaxObservations>
                    </GroupSetting>
                    <GenerateEventByManualAuth>0</GenerateEventByManualAuth>
                </AdvancedSetting>
            </Settings>
            <Options>
                <Option value="10" name="osfile_archivenumber"/>
                <Option value="50000" name="osfile_polling_maxfilealert"/>
                <Option value="100" name="osfile_archive_maxsrcfilealert"/>
            </Options>
        </RealTimeMonitoringLogicDefinition>
    </CheckSource>
    <Severity>MinorWarning</Severity>
    <LifeCycleStatus>Development</LifeCycleStatus>
    <KeywordList>
        <Keyword nlsid="CONFIGURATION">Configuration</keyword>
        <Keyword nlsid="SECURITY">Security</keyword>
    </KeywordList>
    <ViolationMessage nlsid="SAMPLE_RULE_VIOL_MSG">Violation due to change in critical OS configuration files during production hours.</ViolationMessage>
    <ClearViolationMessage nlsid="SAMPLE_RULE_VIOL_CLRMSG">Cleared violation due to change in critical OS configuration files during production hours.</ClearViolationMessage>
    <Author>SYSMAN</Author>
</Rule>

Defining Compliance Standards

Compliance Standards are mapped to Compliance Standard Rules (Repository Rules or Real-time Monitoring Rules) in a hierarchical fashion.

The following example provides the syntax for defining compliance standards and the next example provides an example of a Compliance Standard Definition.

Note:

For the complete compliance XSDs, see the following JAR file:

$ORACLE_HOME/sysman/jlib/gccomplianceCommon.jar

Note:

For additional examples, see More Compliance Examples.

Example: Compliance Standard Definition Syntax

<xsd:complexType name="StandardT">
    <xsd:sequence>
      <xsd:element name="DisplayName" type="std:DisplayString128Def" minOccurs="0"/>
      <xsd:element name="TargetType" type="std:Name128Def" minOccurs="1" maxOccurs="1"/>
      <xsd:element ref="std:TargetPropertyFilter" minOccurs="0"/>
      <xsd:element name="Author" type="std:Name256Def" default="ORACLE" minOccurs="0"/>
      <xsd:element name="Version" type="xsd:nonNegativeInteger" default="1" minOccurs="0"/>
      <xsd:element name="LifeCycleStatus" default="Development" minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="Development"/>
            <xsd:enumeration value="Production"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="IsHidden" type="std:BooleanDef" minOccurs="0" default="false"/>
      <xsd:element name="IsSystem" type="std:BooleanDef" minOccurs="0" default="false"/>
      <xsd:element name="IsAutoEnable" type="std:BooleanDef" minOccurs="0" default="false"/>
      <xsd:element name="Description" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="KeywordList" type="std:KeywordListT" minOccurs="0"/>
      <xsd:element name="ReferenceURL" type="std:String4000Def" minOccurs="0"/>
      <xsd:element name="FrontMatter" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="RearMatter" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="Notice" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="Body" type="std:BodyT" minOccurs="0"/>
      <xsd:element name="ExtraInfo" type="xsd:string" minOccurs="0" maxOccurs="1"/>
    </xsd:sequence>
    <xsd:attribute name="name" type="std:NameDef" use="required"/>
    <xsd:attribute name="oms_version" type="std:Name32Def" use="required"/>
  </xsd:complexType>

Table 13-5 provides a description of the tags used in defining Compliance Standards:

Table 13-5 Key Tags Used in Defining Compliance Standards

Tag	Subtag	Description
`DisplayName`	`NA`	The display name of the compliance standard. It provides the nlsid attribute to support the translation of messages. Note: The nlsid attribute is not applicable to metadata plug-ins.
`TargetType`	`NA`	The type of target to which this compliance standard can be associated
`Author`	`NA`	Compliance standard author
`Version`	`NA`	The version of the compliance standard
`LifeCycleStatus`	`NA`	Lifecycle status of compliance standard (Development or Production)
`IsSystem`	`NA`	True, if the compliance standard is provided out-of-the-box. Otherwise, False.
`Description`	`NA`	Description of the compliance standard. It provides the nlsid attribute to support the translation of messages.
`IsAutoEnable`	`NA`	If set to True, the compliance standard will be associated with all exiting targets for the defined target type. (Defined using TargetType)
`KeywordList`	`NA`	A list of keywords applicable to the compliance standard
`NA`	`Keyword`	Keywords applicable to the compliance standard
`ReferenceURL`	`NA`	The reference URL of the compliance standard
`FrontMatter`	`NA`	Front matter message. It provides the nlsid attribute to support the translation of messages.
`RearMatter`	`NA`	Rear matter message. It provides the nlsid attribute to support the translation of messages.
`Notice`	`NA`	Notice message. It provides the nlsid attribute to support the translation of messages.
`Body`	`NA`	Body of the compliance standard. Can have one or more of the following listed elements
`NA`	`RuleFolder`	Defines a rule folder. A RuleFolder can have the following: `RuleFolder` `RuleReference` `Include Standard Reference` `DisplayName`: The display name of the Rule Folder. It provides the nlsid attribute to support the translation of messages. `Description`: Description of the Rule Folder. It provides the nlsid attribute to support the translation of messages. Note: The `nlsid` attribute is not applicable to metadata plug-ins. `ReferenceURL`: The reference URL of the Rule Folder `Importance`: Importance of Rule Folder (Low/Normal/High)
`NA`	`Include`	Include another compliance standard reference to the including compliance standard
`NA`	`RuleReference`	Include rule reference to the compliance standard

Example: Sample Compliance Standard 1

<Standard xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_cs1">
     <DisplayName nlsid="SAMPLE_CS_1_NAME">Sample Compliance Standard 1</DisplayName>
    <TargetType>oracle_database</TargetType>
            		<TargetPropertyFilter>
                    			<PropertyItem>
                            				<PropertyName>orcl_gtp_target_version</PropertyName>
                              				<ValueList>
                                    					<Value>8.1.6+</Value>
                              				</ValueList>
                    			</PropertyItem>
            </TargetPropertyFilter>
     <Author>SYSTEM</Author>
     <Version>1</Version>
     <LifeCycleStatus>Production</LifeCycleStatus>
     <IsSystem>true</IsSystem>
     <Description nlsid="SAMPLE_CS_1_DESC">Sample Description</Description>
     <KeywordList>
         <Keyword nlsid="CONFIGURATION">Configuration</Keyword>
     </KeywordList>
     <ReferenceURL>http://sampleurl.com</ReferenceURL>
     <Body>
             			<RuleFolder name="sample_RF_1">
                     				<DisplayName nlsid="SAMPLE_RF_1_NAME">Sample Rulefolder</DisplayName>
                     				<Description nlsid="SAMPLE_RF_1_DESC">This includes rules that checks for use of a single control file</Description>
                     				<ReferenceURL>http://www.oracle.com/db_rf1</ReferenceURL>
                     				<Importance>Normal</Importance>
                     				<RuleReference>
                     				<Name>sample_rule1</Name>
                     				<TargetType>oracle_database</TargetType>
                     				<Importance>Normal</Importance>
                     				</RuleReference>
             			</RuleFolder>
     </Body>
</Standard>

Defining a Compliance Framework

Note:

Although the Compliance Framework term is used throughout this document, the XML API uses the term Group or SubGroup. This is an internal name used for the XML structure that is not exposed on the Enterprise Manager UI.

The following example provides the syntax for defining a compliance framework and the next example provides an example of a compliance framework definition.

Note:

For the complete compliance XSDs, see the following JAR file:

$ORACLE_HOME/sysman/jlib/gccomplianceCommon.jar

Note:

For additional examples, see More Compliance Examples.

Example: Compliance Framework Definition Syntax

<xsd:complexType name="StandardGroupT">
    <xsd:sequence>
      <xsd:element name="DisplayName" type="std:DisplayString128Def" minOccurs="0"/>
      <xsd:element name="Author" type="std:Name256Def" default="ORACLE" minOccurs="0"/>
      <xsd:element name="Version" type="xsd:nonNegativeInteger" default="1" minOccurs="0"/>
      <xsd:element name="LifeCycleStatus" default="Development"minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="Development"/>
            <xsd:enumeration value="Production"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
      <xsd:element name="Description" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="KeywordList" type="std:KeywordListT" minOccurs="0"/>
      <xsd:element name="ReferenceURL" type="std:String4000Def" minOccurs="0"/>
      <xsd:element name="FrontMatter" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="RearMatter" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="Notice" type="std:DisplayString800Def" minOccurs="0"/>
      <xsd:element name="IsHidden" type="std:BooleanDef" minOccurs="0"default="false"/>
      <xsd:element name="IsSystem" type="std:BooleanDef" minOccurs="0"default="false"/>
      <xsd:element name="GroupBody" type="std:GroupBodyT" minOccurs="0"/>
      <xsd:element name="ExtraInfo" type="xsd:string" minOccurs="0"maxOccurs="1"/>
    </xsd:sequence>
    <xsd:attribute name="name" type="std:NameDef" use="required"/>
    <xsd:attribute name="oms_version" type="std:Name32Def" use="required"/>
  </xsd:complexType>

Table 13-6 provides a description of the tags used in defining a Compliance Framework:

Table 13-6 Key Tags Used in Defining a Compliance Framework

Tag	Subtag	Description
`DisplayName`	`NA`	The display name of the compliance framework. It provides the nlsid attribute to support the translation of messages.
`Author`	`NA`	Author of the compliance framework
`Version`	`NA`	The version of the compliance framework
`LifeCycleStatus`	`NA`	The lifecycle status of the compliance framework (Development or Production)
`IsSystem`	`NA`	True, if compliance framework is provided out-of-the box. Otherwise, False.
`Description`	`NA`	Description of compliance framework. It provides the nlsid attribute to support the translation of messages. Note: The `nlsid` attribute is not applicable to metadata plug-ins.
`KeywordList`	`NA`	List of keywords applicable to compliance framework
`NA`	`Keyword`	Keywords applicable to the compliance standard
`ReferenceURL`	`NA`	The reference URL of the compliance framework
`FrontMatter`	`NA`	Front matter message. It provides the nlsid attribute to support the translation of messages
`RearMatter`	`NA`	Rear matter message. It provides the nlsid attribute to support the translation of messages.
`Notice`	`NA`	Notice message. It provides the nlsid attribute to support the translation of messages.
`ExtraInfo`	`NA`	Additional information about the compliance framework.
`GroupBody`	`NA`	Defines the body of the compliance framework. It can have one or more of the following elements:
`NA`	`SubGroup`	Defines a child framework element. A child framework element can include the following: Child framework Include Standard Reference. `DisplayName`: The display name of the child framework `Description`: Description of the child framework `ReferenceURL`: The reference URL of the child framework `Importance`: Importance of child framework (Low, Normal, or High)
`NA`	`StandardReference`	Includes the compliance standard reference to the compliance framework

Example: Sample Compliance Framework

<StandardGroup xmlns="http://www.oracle.com/DataCenter/ConfigStd" name="sample_csg" oms_version="12.1.0.1.0">
        <DisplayName nlsid="SAMPLE_CSG_NAME">Sample Compliance Framework</DisplayName>
        <Author>SYSTEM</Author>
        <Version>1</Version>
        <LifeCycleStatus>Production</LifeCycleStatus>
        <Description nlsid="SAMPLE_CSG_DESC">Sample Description</Description>
        <KeywordList>
            <Keyword nlsid="SECURITY">Security</Keyword>
        </KeywordList>
        <ReferenceURL>http://sampleurl.com</ReferenceURL>
        <IsHidden>false</IsHidden>
        <IsSystem>true</IsSystem>
        <GroupBody>
            <SubGroup name="SampleSubgroup">
                <DisplayName nlsid="SAMPLE_CSG_SUBGROUP_NAME">Sample Child Framework</DisplayName>
                <Description nlsid="SAMPLE_CSG_SUBGROUP_DESC">Sample Child framework Description</Description>
                <ReferenceURL>http://sampleurl.com</ReferenceURL>
                <Importance>Normal</Importance>
                <StandardReference>
                    <Name>sample_cs3</Name>
                    <Author>SYSTEM</Author>
                    <Version>1</Version>
                    <Importance>Normal</Importance>
                </StandardReference>
            </SubGroup>
        </GroupBody>
 </StandardGroup>

Defining Compliance Content

The following example provides the syntax for defining compliance content and the Sample XML Compliance Metadata example provides an example of XML compliance metadata.

Note:

For additional examples, see More Compliance Examples.

Example: Compliance Content Definition Syntax

<xsd:complexType name="ComplianceContentT">
  <xsd:sequence>

    <!-- Cummulative change since the first release.-->
    <xsd:element ref="std:ChangeList" minOccurs="0" maxOccurs="1"/>
    <!-- End Cummulative change since the first release -->

    <!-- Current state of entities -->
    <xsd:element ref="std:Facet" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="std:Rule" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="std:Standard" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="std:StandardGroup" minOccurs="0" maxOccurs="unbounded"/>
    <!-- Current state of entities -->
  </xsd:sequence>
  <xsd:attribute name="oms_version" type="std:Name32Def" use="required"/>
  <xsd:attribute name="name" type="std:Name64Def" use="required"/>
  <!-- content_version of compliance content should be equal to version of last change tag if any. -->
  <xsd:attribute name="content_version" type="std:Name64Def" use="optional" default = "12.1.0.0.0"/>
  <xsd:attribute name="IsCompareEnabled" type="std:BooleanDef" use="optional" default = "true"/>
</xsd:complexType>

<xsd:element name="ComplianceContent" type="std:ComplianceContentT"/>

Table 13-7 provides a description of some of the attributes used in defining compliance content:

Table 13-7 Compliance Content Attributes

Attribute	Description
`oms_version`	Version of Oracle Management Service (OMS)
`name`	Name of the compliance content
`content_version`	Version of the compliance content
`IsCompareEnabled`	Specifies whether a rule or compliance standard is updated incrementally or if the entire rule or compliance standard is regenerated. Possible Values: True: For each rule and standard tag, the software finds the incremental change automatically and updates the entity incrementally. For example, if only one rule is updated in a compliance standard, only that rule is updated in the compliance standard and then the updated rule is reevaluated for all targets associated to the compliance standard at the time of the rule update (where the rule is a repository rule) False: The user must specify `<UpdateRule>` within the `<ChangeList><Change..>....</ChangeList></Change>` tags. This causes the rule to be overridden ( that is, all attributes and definitions). Similarly, if a compliance standard is updated, it will override the standard completely and and regenerate results (in case of repository check-based standards). Note: If you set `isCompareEnabled = false`, then you must provide all the changes that were made in each version cumulatively since the compliance content was created. This is very important for metadata consistency. Oracle recommends that you always summarize the changes in each version even if the `isCompareEnabled` attribute is set to true. Because if you need to switch from `isCompareEnabled= true` (default) to `isCompareEnabled=false` at a future date, then all historical changes across different versions of the compliance content will be available to you.

Example: Sample XML Compliance Metadata

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<!DOCTYPE ComplianceContent [
<!ENTITY rule SYSTEM "SampleRuleThresholdCondition.xml">
<!ENTITY standard SYSTEM "SampleComplianceStandard.xml">
<!ENTITY standardgroup SYSTEM "SampleComplianceStandardGroup.xml">
]>
<ComplianceContent xmlns="http://www.oracle.com/DataCenter/ConfigStd" name="Sample Compliance Framework" oms_version="11.2.0.1.0">
<ChangeList>
        		<Change version="12.2.0.0.0">
                		<UpdateRule>
                        			<RuleName>sample_rule</RuleName>
                        			<TargetType>oracle_database</TargetType>
                		</UpdateRule>
                		<UpdateStandardGroup>
                			        <StandardGroupName>sample_csg</StandardGroupName>
                        			<StandardGroupAuthor>SYSTEM</StandardGroupAuthor>
                        			<StandardGroupVersion>1</StandardGroupVersion>
                		</UpdateStandardGroup>
        	</Change>
</ChangeList>
&rule;
&standard;
&standardgroup;
</ComplianceContent>

Removing Compliance Content

To remove or delete compliance content, enter the following command:

emctl deregister oms metadata -sysman_pwd sysman -core -service gccompliance -file DeleteComplianceContent.xml

In the previous command, DeleteComplianceContent.xml represents the name of the Delete Compliance Content XML file.

The following examples provide the syntax for defining Delete Compliance Content and an example of a Delete Compliance Content XML file.

Example: Delete Compliance Content Syntax

<!-- delete compliance metadata corresponding to the compliance content name provided. -->
  <xsd:complexType name="DeleteComplianceContentT">
    <xsd:attribute name="name" type="std:Name64Def" use="required"/>
  </xsd:complexType>
<xsd:element name="DeleteComplianceContent" type="std:DeleteComplianceContentT"/>

Example: DeleteComplianceContent XML

  <DeleteComplianceContent xmlns="http://www.oracle.com/DataCenter/ConfigStd" name="Sample Compliance Framework" />

Supporting Translation

Note:

Translation is supported for the Oracle Fusion Middleware plug-in only.

For each nlsid attribute in the XML samples, you must specify a Data Loading Format (DLF) map entry. A DLF file contains the English string for each defined nlsid attribute. These strings are available for translation.

Example: Sample DLF File

<?xml version="1.0" encoding="UTF-8"?>
<table xml:lang="en" name="MGMT_MESSAGES">

<!-- lookup-key indicates which columns are used by
     TransX to recognize a row as a duplicate -->
<lookup-key>
  <column name="MESSAGE_ID"/>
  <column name="SUBSYSTEM"/>
  <column name="LANGUAGE_CODE"/>
  <column name="COUNTRY_CODE"/>
</lookup-key>

<!-- columns field indicates which columns will be loaded as
     part of processing the dataset and which should be
     translated by the Translation Group -->
<columns>
  <column name="MESSAGE_ID" type="string" maxsize="64"/>
  <column name="SUBSYSTEM" type="string" maxsize="64"/>
  <column name="LANGUAGE_CODE" type="string" language="%l"/>
  <column name="COUNTRY_CODE" type="string" language="%Cs"/>
  <column name="MESSAGE" type="string" maxsize="1000" translate="yes"/>
</columns>

<!-- dataset specifies the data to be loaded into the repository -->
<dataset>

  <row>
    <col name="MESSAGE_ID">SAMPLE_RULE_NAME</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Sample Rule</col>
  </row>

  <row>
    <col name="MESSAGE_ID">SAMPLE_RULE_DESC</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Checks for use of a single control file</col>
  </row>

 <row>
    <col name="MESSAGE_ID">SAMPLE_RULE_IMPACT</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">The control file is one of the most important files in an
Oracle database. It maintains many physical characteristics and important
recovery information about the database. If you lose the only copy of the control
file due to a media error, there will be unnecessary down time and other risks.</col>
 </row>

<row>
    <col name="MESSAGE_ID">SAMPLE_RULE_RECO</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Use at least two control files that are multiplexed on different disks.</col>
 </row>

<row>
    <col name="MESSAGE_ID">SAMPLE_RULE_COL_1</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">FILE_LIST</col>
 </row>

 <row>
    <col name="MESSAGE_ID">SAMPLE_RULE_COL_2</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">CONTROL_FILE_COUNT</col>
 </row>

<row>
    <col name="MESSAGE_ID">SAMPLE_RULE_VIOL_MSG</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">The database has an insufficient number of control files.</col>
 </row>

<row>
    <col name="MESSAGE_ID">SAMPLE_RULE_VIOL_CLEAR_MSG</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">The database has sufficient number of control files.</col>
</row>

<!-- Standard NLSID Mappings -->

<row>
    <col name="MESSAGE_ID">SAMPLE_CS_NAME</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Sample Compliance Standard</col>
 </row>

 <row>
    <col name="MESSAGE_ID">SAMPLE_CS_DESC</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Sample Description</col>
 </row>

<row>
    <col name="MESSAGE_ID">SAMPLE_RF_NAME</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Sample Rulefolder</col>
</row>

 <row>
    <col name="MESSAGE_ID">SAMPLE_RF_DESC</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">This includes rules that checks for use of a single control file.</col>
 </row>

<!-- Standard Group NLSID Mappings -->

 <row>
    <col name="MESSAGE_ID">SAMPLE_CSG_NAME</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Sample Compliance Framework</col>
 </row>

 <row>
    <col name="MESSAGE_ID">SAMPLE_CSG_DESC</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Sample Description</col>
 </row>

 <row>
    <col name="MESSAGE_ID">SAMPLE_CSG_SUBGROUP_NAME</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Sample Child Framework</col>
 </row>

  <row>
    <col name="MESSAGE_ID">SAMPLE_CSG_SUBGROUP_DESC</col>
    <col name="SUBSYSTEM">POLICY</col>
    <col name="MESSAGE">Sample Child Framework Description</col>
 </row>

</dataset>
</table>

Note:

If the DLF entry is for a real-time monitoring facet or pattern, then the subsystem is GCCOMPLIANCE_CCC. For all other rules, the subsystem is POLICY.

Packaging Compliance XML

This section indicates the location of the XML and DLF files.

XML Files

Store all the XML files in the following directory:
```
plugin_stage/oms/metadata/gccompliance/
```
In the previous directory path, plugin_stage is the plug-in staging directory.

For more information about the plug-in staging directory, see Staging the Plug-in.
DLF Files

Store all the DLF files in the following directory:
```
plugin_stage/oms/rsc/area/gccompliance
```
In the previous directory path, plugin_stage is the plug-in staging directory and area represents the subcomponent such as db for database or ecm for configuration management.

Setting Up and Testing Compliance Standards and Rules

To test your compliance standards or rules, do the following:

Install Compliance Content

To install compliance content:

Use the following command to install the compliance content:

emctl register oms metadata -sysman_pwd password -core -service gccompliance -file ComplianceContent.xml

Submit the following job for back-end processing:

begin em_compliance_util.trigger_rule_dependency_job;end;

Test Compliance Standard

To test your compliance standard:

Log in to the Enterprise Manager console.
From the Enterprise menu, select Compliance, then select Library.

The Compliance Library page appears.
Click Compliance Standards.
Select the required compliance standard, then click Associate Targets.

The Target Association for Compliance Standard: Compliance Standard Name page appears, where Compliance Standard Name is the name of your selected compliance standard.
Click Add.

The Search and Select: Targets window appears.
Select the target that you want to evaluate, then click Select.
From the Target Association for Compliance Standard: Compliance Standard Name page, click OK.
Click Yes to the Save Association message.

The Compliance Standards page appears.

The previous steps trigger the evaluation, which occurs in a background job.
After a few minutes, from the Enterprise menu, select Compliance, then select Results.

The Compliance Standards Evaluation Results page appears.
Select your compliance standard, then click Show Details.

The Compliance Standard Result Detail page appears.
From the left-hand side of the page, expand Compliance Standard Name to view any nodes, then click a node to view the results for that node.

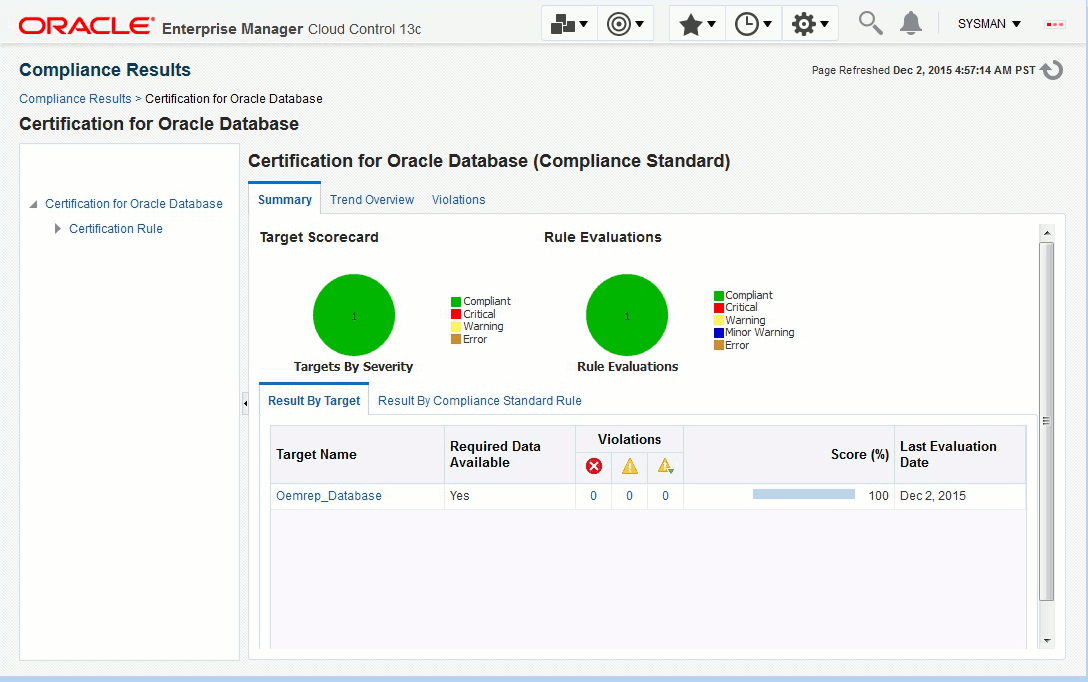

Figure 13-1 Compliance Standard Result Detail

Description of "Figure 13-1 Compliance Standard Result Detail"

Constraints for Testing

Note the following constraints when you are testing your compliance standards or rules:

The MGMT_VIEW user must have the SELECT privilege on the views used in the query
target_guid must be one of the SELECT attributes in the query
Alias names or select clause names must be less than 64 characters
Ensure that the standard references from a compliance standard are imported first. Place the standard references first in the compliance content list.
At least one column from the SELECT clause of the SQL source must be marked as a non-key column in the violation context definition and metric definition.
The target_guid column must not be specified for violation context columns or for metric definitions.
If the query references views from outside of the enclosing plug-in, then the views must be exposed by the EDK to the plug-in (at the plug-in EDK level).
If the SQL source query of a repository rule refers to a PLSQL function, then ensure that it refers to global PLSQL functions only, and not package functions (that is, if those PLSQL functions depend on tables whose update triggers a rule evaluation). This is required to generate the list of tables which the rule evaluation outcome depends on correctly. Execute privileges must be granted to the mgmt_view user on this function.
The target type of the rule included in a compliance standard must be the same as that of the immediate parent standard.
Key columns of STRING type must contain less than 64 characters.

More Compliance Examples

This section provides additional examples of compliance content, rules, compliance standards, and compliance framework.

The following example provides an example of compliance content version 1 and the next example provides an example of compliance content version 2. Version 1 is the initial version of the compliance content. Note that the content version number is 12.1.0.1.0, while the content version in the Compliance Content Version 2 example is 12.1.0.2.0.

Compliance content contains a ChangeList element. The ChangeList element describes the changes that have occurred since the first version of compliance content, such as updated rules, standards, and so on.

Example: Compliance Content Version 1

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<!DOCTYPE ComplianceContent [
<!ENTITY rule1 SYSTEM "SampleRule1.xml">
<!ENTITY rule2 SYSTEM "SampleRule2.xml">
<!ENTITY rule3 SYSTEM "SampleRule3.xml">
<!ENTITY rule4 SYSTEM "SampleRule4.xml">
<!ENTITY rule5 SYSTEM "SampleRule5.xml">
<!ENTITY rule6 SYSTEM "SampleRule6.xml">
<!ENTITY standard1 SYSTEM "SampleComplianceStandard1.xml">
<!ENTITY standard2 SYSTEM "SampleComplianceStandard2.xml">
<!ENTITY standard3 SYSTEM "SampleComplianceStandard3.xml">
<!ENTITY standardgroup SYSTEM "SampleComplianceFramework.xml">]
]>
<ComplianceContent xmlns="http://www.oracle.com/DataCenter/ConfigStd" name="SampleComplianceContent" oms_version="12.1.0.1.0" content_version="12.1.0.1.0">
<ChangeList>
    <!-- ChangeList tag process each of the Change Tag with respect to the version of the ComplianceContent installed in repository. -->
	         <Change version="12.1.0.1.0">
         <!-- AddSubGroupWithinStandardGroup will introduce a subgroup within an existing  compliance framework/standard group in repository. -->
         <!-- AddStandardReferenceToStandardGroup will introduce a reference to a standard within an existing  compliance framework/standard group in repository. -->
        		<AddSubGroupWithinStandardGroup order="2">
            			<StandardGroupName>oracle_pci</StandardGroupName>
            			<StandardGroupAuthor>ORACLE</StandardGroupAuthor>
            			<StandardGroupVersion>1</StandardGroupVersion>
            			<SubGroup name="sampleSubgroup1">
                    					<DisplayName>sub1</DisplayName>
                    					<ReferenceURL>http://sampleAddedSubgroup.com</ReferenceURL>
                    					<Importance>High</Importance>
            			</SubGroup>
        </AddSubGroupWithinStandardGroup>
            		<AddStandardReferenceToStandardGroup>
            			<StandardGroupName>oracle_pci</StandardGroupName>
            			<StandardGroupAuthor>ORACLE</StandardGroupAuthor>
            			<StandardGroupVersion>1</StandardGroupVersion>
            			<SubGroupListInfo>
                    					<SubGroupElem>oracle_pci_ctrlobj_a</SubGroupElem>
            			</SubGroupListInfo>
            			<StandardReference>
                    					<Name>sample_cs1</Name>
                    					<Author>SYSTEM</Author>
                    					<Version>1</Version>
            			</StandardReference>
    </AddStandardReferenceToStandardGroup>
    	</Change>
</ChangeList>
<!--List of compliance standard rules -->
&rule1;
&rule2;
&rule3;
&rule4;
&rule5;
&rule6;
<!--List of compliance standards -->
&standard1;
&standard2;
&standard3;
<!--List of compliance standard groups/frameworks-->
&standardgroup;
</ComplianceContent>

The following example provides an example of a compliance rule that checks for use of a single control file

Example: Sample Rule 1

<Rule xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_rule1">
    <DisplayName nlsid="SAMPLE_RULE_1_NAME">Sample Rule 1</DisplayName>
    <TargetType>oracle_database</TargetType>
    <IsSystem>true</IsSystem>
	<TargetPropertyFilter>
        <PropertyItem>
            <PropertyName>orcl_gtp_operating_system</PropertyName>
            <ValueList>
                <Value>Windows</Value>
            </ValueList>
        </PropertyItem>
        <PropertyItem>
            <PropertyName>orcl_gtp_target_version</PropertyName>
            <ValueList>
                <Value>8.1.6+</Value>
            </ValueList>
        </PropertyItem>
    </TargetPropertyFilter>
    <Description nlsid="SAMPLE_RULE_1_DESC">Checks for use of a single control file</Description>
    <Impact nlsid="SAMPLE_RULE_1_IMPACT">The control file is one of the most
important files in an Oracle database. It maintains many physical characteristics
and important recovery information about the database. If you lose the only copy
of the control file due to a media error, there will be unnecessary down time and
other risks.</Impact>
    <Recommendation nlsid="SAMPLE_RULE_1_RECO">Use at least two control files that are multiplexed on different disks.</Recommendation>
    <ViolationContextList>
        <Column type="String" name="FILE_LIST">
            <DisplayLabel nlsid="SAMPLE_RULE_1_COL_1">FILE_LIST</DisplayLabel>
            <IsHidden>false</IsHidden>
            <IsKey>false</IsKey>
        </Column>
        <Column type="Number" name="CONTROL_FILE_COUNT">
            <DisplayLabel nlsid="SAMPLE_RULE_1_COL_2">CONTROL_FILE_COUNT</DisplayLabel>
            <IsHidden>false</IsHidden>
            <IsKey>false</IsKey>
        </Column>
    </ViolationContextList>
    <CheckSource>
        <RepositoryCheckDefinition>
            <Metric>
    <TargetType>oracle_database</TargetType>
    <MetricName>sample_rule1</MetricName>
    <SourceType>SQL</SourceType>
        <Source>select CONTROL_FILE_COUNT, FILE_LIST, TARGET_GUID from MGMT$CS_DB_CONTROL_FILE_COUNT</Source>
    <MetricColumnList>
        <MetricColumnInfo>
                <ColumnName>FILE_LIST</ColumnName>
                <ColumnType>String</ColumnType>
                <isKey>false</isKey>
                <ColumnLabel nlsid="SAMPLE_RULE_1_COL_1">FILE_LIST</ColumnLabel>
                      </MetricColumnInfo>
        <MetricColumnInfo>
                <ColumnName>CONTROL_FILE_COUNT</ColumnName>
                <ColumnType>Number</ColumnType>
                <isKey>false</isKey>
                <ColumnLabel nlsid="SAMPLE_RULE_1_COL_2">CONTROL_FILE_COUNT</ColumnLabel>
        </MetricColumnInfo>
    </MetricColumnList>
               </Metric>
            <ParameterList>
                <RuleParameter>
                    <ParamName>CONTROL_FILE_COUNT</ParamName>
                    <ParamType>Number</ParamType>
                </RuleParameter>
            </ParameterList>
            <ParameterDefaultSettings>
                <ParamValue>
                    <ParamName>CONTROL_FILE_COUNT</ParamName>
                    <MinorWarnThreshold>1</MinorWarnThreshold>
                </ParamValue>
            </ParameterDefaultSettings>
            <TestCondition>
                <ThresholdCriteria>
                    <ColumnName>CONTROL_FILE_COUNT</ColumnName>
                    <TestOperator>EQ</TestOperator>
                    <ThresholdValue>1</ThresholdValue>
                    <ThresholdType>Number</ThresholdType>
                </ThresholdCriteria>
            </TestCondition>
        </RepositoryCheckDefinition>
    </CheckSource>
   <Severity>MinorWarning</Severity>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <KeywordList>
        <Keyword nlsid="CONFIGURATION">Configuration</Keyword>
    </KeywordList>
    <ViolationMessage nlsid="SAMPLE_RULE_1_VIOL_MSG">The database has an insufficient number of control files.</ViolationMessage>
    <ClearViolationMessage nlsid="SAMPLE_RULE_1_VIOL_CLEAR_MSG">The database has sufficient number of control files.</ClearViolationMessage>
    <Author>SYSMAN</Author>
</Rule>

The following example provides a sample compliance rule that checks for use of a single control file.

Example: Sample Rule 2

<Rule xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_rule2">
    <DisplayName nlsid="SAMPLE_RULE_2_NAME">Sample Rule 2</DisplayName>
    <TargetType>oracle_database</TargetType>
    <IsSystem>true</IsSystem>
	<TargetPropertyFilter>
        <PropertyItem>
            <PropertyName>orcl_gtp_operating_system</PropertyName>
            <ValueList>
                <Value>Windows</Value>
            </ValueList>
        </PropertyItem>
        <PropertyItem>
            <PropertyName>orcl_gtp_target_version</PropertyName>
            <ValueList>
                <Value>8.1.6+</Value>
            </ValueList>
        </PropertyItem>
    </TargetPropertyFilter>
    <Description nlsid="SAMPLE_RULE_2_DESC">Checks for use of a single control file</Description>
    <Impact nlsid="SAMPLE_RULE_2_IMPACT">The control file is one of the most important files in an Oracle database.
It maintains many physical characteristics and important recovery information
about the database. If you lose the only copy of the control file due to a media
error, there will be unnecessary down time and other risks.</Impact>
    <Recommendation nlsid="SAMPLE_RULE_2_RECO">Use at least two control files that are multiplexed on different disks.</Recommendation>
    <ViolationContextList>
        <Column type="String" name="FILE_LIST">
            <DisplayLabel nlsid="SAMPLE_RULE_2_COL_1">FILE_LIST</DisplayLabel>
            <IsHidden>false</IsHidden>
            <IsKey>false</IsKey>
        </Column>
        <Column type="Number" name="CONTROL_FILE_COUNT">
            <DisplayLabel nlsid="SAMPLE_RULE_2_COL_2">CONTROL_FILE_COUNT</DisplayLabel>
            <IsHidden>false</IsHidden>
            <IsKey>false</IsKey>
        </Column>
    </ViolationContextList>
    <CheckSource>
        <RepositoryCheckDefinition>
            <Metric>
    <TargetType>oracle_database</TargetType>
    <MetricName>sample_rule2</MetricName>
    <SourceType>SQL</SourceType>
        <Source>select CONTROL_FILE_COUNT, FILE_LIST, TARGET_GUID from MGMT$CS_DB_CONTROL_FILE_COUNT</Source>
    <MetricColumnList>
        <MetricColumnInfo>
                <ColumnName>FILE_LIST</ColumnName>
                <ColumnType>String</ColumnType>
                <isKey>false</isKey>
                <ColumnLabel nlsid="SAMPLE_RULE_2_COL_1">FILE_LIST</ColumnLabel>
                      </MetricColumnInfo>
        <MetricColumnInfo>
                <ColumnName>CONTROL_FILE_COUNT</ColumnName>
                <ColumnType>Number</ColumnType>
                <isKey>false</isKey>
                <ColumnLabel nlsid="SAMPLE_RULE_2_COL_2">CONTROL_FILE_COUNT</ColumnLabel>
        </MetricColumnInfo>
    </MetricColumnList>
               </Metric>
            <ParameterList>
                <RuleParameter>
                    <ParamName>CONTROL_FILE_COUNT</ParamName>
                    <ParamType>Number</ParamType>
                </RuleParameter>
            </ParameterList>
            <ParameterDefaultSettings>
                <ParamValue>
                    <ParamName>CONTROL_FILE_COUNT</ParamName>
                    <MinorWarnThreshold>1</MinorWarnThreshold>
                </ParamValue>
            </ParameterDefaultSettings>
            <TestCondition>
                <ThresholdCriteria>
                    <ColumnName>CONTROL_FILE_COUNT</ColumnName>
                    <TestOperator>EQ</TestOperator>
                    <ThresholdValue>1</ThresholdValue>
                    <ThresholdType>Number</ThresholdType>
                </ThresholdCriteria>
            </TestCondition>
        </RepositoryCheckDefinition>
    </CheckSource>
   <Severity>MinorWarning</Severity>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <KeywordList>
        <Keyword nlsid="CONFIGURATION">Configuration</Keyword>
    </KeywordList>
    <ViolationMessage nlsid="SAMPLE_RULE_2_VIOL_MSG">The database has an insufficient number of control files.</ViolationMessage>
    <ClearViolationMessage nlsid="SAMPLE_RULE_2_VIOL_CLEAR_MSG">The database has sufficient number of control files.</ClearViolationMessage>
    <Author>SYSMAN</Author>
</Rule>

The following example provides an example of a compliance rule that checks for use of a single control file.

Example: Sample Rule 3

<Rule xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_rule3">
    <DisplayName nlsid="SAMPLE_RULE_3_NAME">Sample Rule 3</DisplayName>
    <TargetType>oracle_database</TargetType>
    <IsSystem>true</IsSystem>
	<TargetPropertyFilter>
        <PropertyItem>
            <PropertyName>orcl_gtp_operating_system</PropertyName>
            <ValueList>
                <Value>Windows</Value>
            </ValueList>
        </PropertyItem>
        <PropertyItem>
            <PropertyName>orcl_gtp_target_version</PropertyName>
            <ValueList>
                <Value>8.1.6+</Value>
            </ValueList>
        </PropertyItem>
    </TargetPropertyFilter>
    <Description nlsid="SAMPLE_RULE_3_DESC">Checks for use of a single control file</Description>
    <Impact nlsid="SAMPLE_RULE_3_IMPACT">The control file is one of the most important files in an Oracle database.
It maintains many physical characteristics and important recovery information
about the database. If you lose the only copy of the control file due to a media
error, there will be unnecessary down time and other risks.</Impact>
    <Recommendation nlsid="SAMPLE_RULE_3_RECO">Use at least two control files that are multiplexed on different disks.</Recommendation>
    <ViolationContextList>
        <Column type="String" name="FILE_LIST">
            <DisplayLabel nlsid="SAMPLE_RULE_3_COL_1">FILE_LIST</DisplayLabel>
            <IsHidden>false</IsHidden>
            <IsKey>false</IsKey>
        </Column>
        <Column type="Number" name="CONTROL_FILE_COUNT">
            <DisplayLabel nlsid="SAMPLE_RULE_3_COL_2">CONTROL_FILE_COUNT</DisplayLabel>
            <IsHidden>false</IsHidden>
            <IsKey>false</IsKey>
        </Column>
    </ViolationContextList>
    <CheckSource>
        <RepositoryCheckDefinition>
            <Metric>
    <TargetType>oracle_database</TargetType>
    <MetricName>sample_rule3</MetricName>
    <SourceType>SQL</SourceType>
        <Source>select CONTROL_FILE_COUNT, FILE_LIST, TARGET_GUID from MGMT$CS_DB_CONTROL_FILE_COUNT</Source>
    <MetricColumnList>
        <MetricColumnInfo>
                <ColumnName>FILE_LIST</ColumnName>
                <ColumnType>String</ColumnType>
                <isKey>false</isKey>
                <ColumnLabel nlsid="SAMPLE_RULE_3_COL_1">FILE_LIST</ColumnLabel>
        </MetricColumnInfo>
        <MetricColumnInfo>
                <ColumnName>CONTROL_FILE_COUNT</ColumnName>
                <ColumnType>Number</ColumnType>
                <isKey>false</isKey>
                <ColumnLabel nlsid="SAMPLE_RULE_3_COL_2">CONTROL_FILE_COUNT</ColumnLabel>
        </MetricColumnInfo>
    </MetricColumnList>
               </Metric>
            <ParameterList>
                <RuleParameter>
                    <ParamName>CONTROL_FILE_COUNT</ParamName>
                    <ParamType>Number</ParamType>
                </RuleParameter>
            </ParameterList>
            <ParameterDefaultSettings>
                <ParamValue>
                    <ParamName>CONTROL_FILE_COUNT</ParamName>
                    <MinorWarnThreshold>1</MinorWarnThreshold>
                </ParamValue>
            </ParameterDefaultSettings>
            <TestCondition>
                <ThresholdCriteria>
                    <ColumnName>CONTROL_FILE_COUNT</ColumnName>
                    <TestOperator>EQ</TestOperator>
                    <ThresholdValue>1</ThresholdValue>
                    <ThresholdType>Number</ThresholdType>
                </ThresholdCriteria>
            </TestCondition>
        </RepositoryCheckDefinition>
    </CheckSource>
   <Severity>MinorWarning</Severity>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <KeywordList>
        <Keyword nlsid="CONFIGURATION">Configuration</Keyword>
    </KeywordList>
    <ViolationMessage nlsid="SAMPLE_RULE_3_VIOL_MSG">The database has an insufficient number of control files.</ViolationMessage>
    <ClearViolationMessage nlsid="SAMPLE_RULE_3_VIOL_CLEAR_MSG">The database has sufficient number of control files.</ClearViolationMessage>
    <Author>SYSMAN</Author>
</Rule>

The following example provides an example of a compliance rule that checks that no unintended ports are left open.

Example: Sample Rule 4

<Rule xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_rule4">
    <DisplayName nlsid="SAMPLE_RULE_4_NAME">Sample Rule 4</DisplayName>
    <TargetType>host</TargetType>
    <IsSystem>true</IsSystem>
    <Description nlsid="SAMPLE_RULE_4_DESC">Ensure that no unintended ports are left open</Description>
    <Impact nlsid="SAMPLE_RULE_4_IMPACT">Open ports may allow a malicious user to take over the host.</Impact>
    <Recommendation nlsid="SAMPLE_RULE_4_RECOMM">Do not open insecure ports.</Recommendation>
    <ViolationContextList>
            <Column type="Number" name="port">
                    <DisplayLabel nlsid="SAMPLE_RULE_4_PORT_COL">Port Number</DisplayLabel>
                    <IsHidden>false</IsHidden>
                    <IsKey>true</IsKey>
            </Column>
    </ViolationContextList>
    <CheckSource>
        <RepositoryCheckDefinition>
            <Metric>
                    <TargetType>host</TargetType>
                <MetricName>sample_rule4</MetricName>
                    <SourceType>SQL</SourceType>
                    <Source>SELECT target_guid, port as port, port as dummy FROM MGMT$ESM_PORTS_LATEST</Source>
                    <MetricColumnList>
                        <MetricColumnInfo>
                            <ColumnName>port</ColumnName>
                            <ColumnType>Number</ColumnType>
                            <isKey>true</isKey>
                            <ColumnLabel nlsid="SAMPLE_RULE_4_LABEL">Port Number</ColumnLabel>
                        </MetricColumnInfo>
                    </MetricColumnList>
                </Metric>
                <ParameterList>
                    <RuleParameter>
                        <ParamName nlsid="SAMPLE_RULE_4_DFLT_PORT_PNAME">DFLT_PORT</ParamName>
                        <ParamType>Number</ParamType>
                    </RuleParameter>
                </ParameterList>
                <ParameterDefaultSettings>
                    <ParamValue>
                        <ParamName>DFLT_PORT</ParamName>
                        <MinorWarnThreshold>655</MinorWarnThreshold>
                    </ParamValue>
                </ParameterDefaultSettings>
                <TestCondition>
                    <SqlWhereClauseCriteria>
                        <WhereClause>:port &lt; :DFLT_PORT</WhereClause>
                    </SqlWhereClauseCriteria>
                </TestCondition>
        </RepositoryCheckDefinition>
    </CheckSource>
    <Severity>Critical</Severity>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <KeywordList>
        <Keyword nlsid="SECURITY">Security</Keyword>
    </KeywordList>
    <ViolationMessage nlsid="SAMPLE_RULE_4_MESG">The host is in an insecure state. Port %port% is open.</ViolationMessage>
    <ClearViolationMessage nlsid="SAMPLE_RULE_4_CLR_MESG">Port %port% is not open.</ClearViolationMessage>
    <Author>ORACLE</Author>
    <LastUpdatedBy>&lt;SYSTEM&gt;</LastUpdatedBy>
</Rule>

The following example provides an example of a compliance rule that checks that no unintended ports are left open.

Example: Sample Rule 5

<Rule xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_rule5">
    <DisplayName nlsid="SAMPLE_RULE_5_NAME">Sample Rule 5</DisplayName>
    <TargetType>host</TargetType>
    <IsSystem>true</IsSystem>
    <Description nlsid="SAMPLE_RULE_5_DESC">Ensure that no unintended ports are left open</Description>
    <Impact nlsid="SAMPLE_RULE_5_IMPACT">Open ports may allow a malicious user to take over the host.</Impact>
    <Recommendation nlsid="SAMPLE_RULE_5_RECOMM">Do not open insecure ports.</Recommendation>
    <ViolationContextList>
            <Column type="Number" name="port">
                <DisplayLabel nlsid="SAMPLE_RULE_5_PORT_COL">Port Number</DisplayLabel>
                <IsHidden>false</IsHidden>
                <IsKey>true</IsKey>
            </Column>
    </ViolationContextList>
    <CheckSource>
        <RepositoryCheckDefinition>
            <Metric>
                <TargetType>host</TargetType>
            <MetricName>sample_rule5</MetricName>
                <SourceType>SQL</SourceType>
                <Source>SELECT target_guid, port as port, port as dummy FROM MGMT$ESM_PORTS_LATEST</Source>
                <MetricColumnList>
                    <MetricColumnInfo>
                        <ColumnName>port</ColumnName>
                        <ColumnType>Number</ColumnType>
                        <isKey>true</isKey>
                        <ColumnLabel nlsid="SAMPLE_RULE_5_LABEL">Port Number</ColumnLabel>
                    </MetricColumnInfo>
                </MetricColumnList>
            </Metric>
            <ParameterList>
                <RuleParameter>
                    <ParamName nlsid="SAMPLE_RULE_5_DFLT_PORT_PNAME">DFLT_PORT</ParamName>
                    <ParamType>Number</ParamType>
                </RuleParameter>
            </ParameterList>
            <ParameterDefaultSettings>
                <ParamValue>
                    <ParamName>DFLT_PORT</ParamName>
                    <MinorWarnThreshold>655</MinorWarnThreshold>
                </ParamValue>
            </ParameterDefaultSettings>
            <TestCondition>
                <SqlWhereClauseCriteria>
                    <WhereClause>:port &lt; :DFLT_PORT</WhereClause>
                </SqlWhereClauseCriteria>
            </TestCondition>
        </RepositoryCheckDefinition>
    </CheckSource>
    <Severity>Critical</Severity>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <KeywordList>
        <Keyword nlsid="SECURITY">Security</Keyword>
    </KeywordList>
    <ViolationMessage nlsid="SAMPLE_RULE_5_MESG">The host is in an insecure state. Port %port% is open.</ViolationMessage>
    <ClearViolationMessage nlsid="SAMPLE_RULE_5_CLR_MESG">Port %port% is not open.</ClearViolationMessage>
    <Author>ORACLE</Author>
    <LastUpdatedBy>&lt;SYSTEM&gt;</LastUpdatedBy>
</Rule>

The following example provides an example of a compliance rule that checks that no unintended ports are left open.

Example: Sample Rule 6

<Rule xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_rule6">
    <DisplayName nlsid="SAMPLE_RULE_6_NAME">Sample Rule 6</DisplayName>
    <TargetType>host</TargetType>
    <IsSystem>true</IsSystem>
    <Description nlsid="SAMPLE_RULE_6_DESC">Ensure that no unintended ports are left open</Description>
    <Impact nlsid="SAMPLE_RULE_6_IMPACT">Open ports may allow a malicious user to take over the host.</Impact>
    <Recommendation nlsid="SAMPLE_RULE_6_RECOMM">Do not open insecure ports.</Recommendation>
    <ViolationContextList>
            <Column type="Number" name="port">
                <DisplayLabel nlsid="SAMPLE_RULE_6_PORT_COL">Port Number</DisplayLabel>
                <IsHidden>false</IsHidden>
                <IsKey>true</IsKey>
            </Column>
    </ViolationContextList>
    <CheckSource>
        <RepositoryCheckDefinition>
            <Metric>
                <TargetType>host</TargetType>
            <MetricName>sample_rule6</MetricName>
                <SourceType>SQL</SourceType>
                <Source>SELECT target_guid, port as port, port as dummy FROM MGMT$ESM_PORTS_LATEST</Source>
                <MetricColumnList>
                    <MetricColumnInfo>
                        <ColumnName>port</ColumnName>
                        <ColumnType>Number</ColumnType>
                        <isKey>true</isKey>
                        <ColumnLabel nlsid="SAMPLE_RULE_6_LABEL">Port Number</ColumnLabel>
                    </MetricColumnInfo>
                </MetricColumnList>
            </Metric>
            <ParameterList>
                <RuleParameter>
                    <ParamName nlsid="SAMPLE_RULE_6_DFLT_PORT_PNAME">DFLT_PORT</ParamName>
                    <ParamType>Number</ParamType>
                </RuleParameter>
            </ParameterList>
            <ParameterDefaultSettings>
                <ParamValue>
                    <ParamName>DFLT_PORT</ParamName>
                    <MinorWarnThreshold>655</MinorWarnThreshold>
                </ParamValue>
            </ParameterDefaultSettings>
            <TestCondition>
                <SqlWhereClauseCriteria>
                    <WhereClause>:port &lt; :DFLT_PORT</WhereClause>
                </SqlWhereClauseCriteria>
            </TestCondition>
        </RepositoryCheckDefinition>
    </CheckSource>
    <Severity>Critical</Severity>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <KeywordList>
        <Keyword nlsid="SECURITY">Security</Keyword>
    </KeywordList>
    <ViolationMessage nlsid="SAMPLE_RULE_6_MESG">The host is in an insecure state. Port %port% is open.</ViolationMessage>
    <ClearViolationMessage nlsid="SAMPLE_RULE_6_CLR_MESG">Port %port% is not open.</ClearViolationMessage>
    <Author>ORACLE</Author>
    <LastUpdatedBy>&lt;SYSTEM&gt;</LastUpdatedBy>
</Rule>

The following example provides an example of a compliance standard that includes rules to check for use of a single control file.

Example: Sample Compliance Standard 1

<Standard xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_cs1">
    <DisplayName nlsid="SAMPLE_CS_1_NAME">Sample Compliance Standard 1</DisplayName>
    <TargetType>oracle_database</TargetType>
        <TargetPropertyFilter>
            <PropertyItem>
                <PropertyName>orcl_gtp_target_version</PropertyName>
                <ValueList>
                    <Value>Windows</Value>
                </ValueList>
            </PropertyItem>
            <PropertyItem>
                <PropertyName>orcl_gtp_target_version</PropertyName>
                <ValueList>
                    <Value>8.1.6+</Value>
                </ValueList>
            </PropertyItem>
    </TargetPropertyFilter>
    <Author>SYSTEM</Author>
    <Version>1</Version>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <IsSystem>true</IsSystem>
    <Description nlsid="SAMPLE_CS_1_DESC">Sample Description</Description>
    <KeywordList>
        <Keyword nlsid="CONFIGURATION">Configuration</Keyword>
    </KeywordList>
    <ReferenceURL>http://sampleurl.com</ReferenceURL>
    <Body>
            <RuleFolder name="sample_RF_1">
                <DisplayName nlsid="SAMPLE_RF_1_NAME">Sample Rulefolder</DisplayName>
                <Description nlsid="SAMPLE_RF_1_DESC">This includes rules that checks for use of a single control file</Description>
                <ReferenceURL>http://www.oracle.com/db_rf1</ReferenceURL>
                <Importance>Normal</Importance>
                <RuleReference>
                <Name>sample_rule1</Name>
                <TargetType>oracle_database</TargetType>
                <Importance>Normal</Importance>
                </RuleReference>
            </RuleFolder>
    </Body>
</Standard>

The following example provides an example of a compliance standard that includes rules to check for open unsecured ports.

Example: Sample Compliance Standard 2

<Standard xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_cs2">
    <DisplayName nlsid="SAMPLE_CS_2_NAME">Sample Compliance Standard 2</DisplayName>
    <TargetType>host</TargetType>
    <Author>SYSTEM</Author>
    <Version>1</Version>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <IsSystem>true</IsSystem>
    <Description nlsid="SAMPLE_CS_2_DESC">Sample Description</Description>
    <KeywordList>
        <Keyword nlsid="SECURITY">Security</Keyword>
    </KeywordList>
    <ReferenceURL>http://sampleurl.com</ReferenceURL>
    <Body>
        <RuleFolder name="sample_RF_2">
            <DisplayName nlsid="SAMPLE_RF_2_NAME">Sample Rulefolder</DisplayName>
            <Description nlsid="SAMPLE_RF_2_DESC">This includes rules that checks for open insecure ports.</Description>
            <ReferenceURL>http://www.oracle.com/db_rf1</ReferenceURL>
            				<Importance>Normal</Importance>
            				<RuleReference>
            				<Name>sample_rule4</Name>
            <TargetType>host</TargetType>
            <Importance>Normal</Importance>
				            </RuleReference>
        </RuleFolder>
    </Body>
</Standard>

The following example provides an example of a compliance standard that includes rules to check for open unsecured ports.

Example: Sample Compliance Standard 3

<Standard xmlns="http://www.oracle.com/DataCenter/ConfigStd" oms_version="12.1.0.1.0" name="sample_cs3">
    <DisplayName nlsid="SAMPLE_CS_3_NAME">Sample Compliance Standard 3</DisplayName>
    <TargetType>host</TargetType>
    <Author>SYSTEM</Author>
    <Version>1</Version>
    <LifeCycleStatus>Production</LifeCycleStatus>
    <IsSystem>true</IsSystem>
    <Description nlsid="SAMPLE_CS_3_DESC">Sample Description</Description>
    <KeywordList>
        <Keyword nlsid="SECURITY">Security</Keyword>
    </KeywordList>
    <ReferenceURL>http://sampleurl.com</ReferenceURL>
    <Body>
            <RuleFolder name="sample_RF_3">
                <DisplayName nlsid="SAMPLE_RF_3_NAME">Sample Rulefolder</DisplayName>
                <Description nlsid="SAMPLE_RF_3_DESC">This includes rules that checks for open insecure ports.</Description>
                <ReferenceURL>http://www.oracle.com/db_rf1</ReferenceURL>
                <Importance>Normal</Importance>
                <RuleReference>
                <Name>sample_rule5</Name>
                <TargetType>host</TargetType>
                <Importance>Normal</Importance>
                </RuleReference>
            </RuleFolder>
    </Body>
</Standard>
]]

The following example provides an example of a compliance framework.

Example: Sample Compliance Framework

<StandardGroup xmlns="http://www.oracle.com/DataCenter/ConfigStd" name="sample_csg" oms_version="12.1.0.1.0">
        <DisplayName nlsid="SAMPLE_CSG_NAME">Sample Compliance Framework</DisplayName>
        <Author>SYSTEM</Author>
        <Version>1</Version>
        <LifeCycleStatus>Production</LifeCycleStatus>
        <Description nlsid="SAMPLE_CSG_DESC">Sample Description</Description>
        <KeywordList>
            <Keyword nlsid="SECURITY">Security</Keyword>
        </KeywordList>
        <ReferenceURL>http://sampleurl.com</ReferenceURL>
        <IsHidden>false</IsHidden>
        <IsSystem>true</IsSystem>
        <GroupBody>
            <SubGroup name="SampleSubgroup">
                <DisplayName nlsid="SAMPLE_CSG_SUBGROUP_NAME">Sample Child Framework</DisplayName>
                <Description nlsid="SAMPLE_CSG_SUBGROUP_DESC">Sample Child framework Description</Description>
                <ReferenceURL>http://sampleurl.com</ReferenceURL>
                <Importance>Normal</Importance>
                <StandardReference>
                    <Name>sample_cs3</Name>
                    <Author>SYSTEM</Author>
                    <Version>1</Version>
                    <Importance>Normal</Importance>
                </StandardReference>
            </SubGroup>
        </GroupBody>
 </StandardGroup>

The following example provides an example of compliance content.

Example: Compliance Content Version 2

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<!DOCTYPE ComplianceContent [
<!ENTITY rule1 SYSTEM "SampleRule1.xml">
<!ENTITY rule2 SYSTEM "SampleRule2.xml">
<!ENTITY rule3 SYSTEM "SampleRule3.xml">
<!ENTITY rule5 SYSTEM "SampleRule5.xml">
<!ENTITY rule6 SYSTEM "SampleRule6.xml">
<!ENTITY standard1 SYSTEM "SampleComplianceStandard1.xml">
<!ENTITY standard3 SYSTEM "SampleComplianceStandard3.xml">
<!ENTITY standardgroup SYSTEM "SampleComplianceFramework.xml">
]>
<ComplianceContent xmlns="http://www.oracle.com/DataCenter/ConfigStd" name="SampleComplianceContent" oms_version="12.1.0.1.0" content_version="12.1.0.2.0">
<ChangeList>
  <!-- ChangeList tag process each of the Change Tag with respect to the version of the ComplianceContent installed in repository. -->

    <Change version="12.1.0.1.0">

    <!-- AddSubGroupWithinStandardGroup/AddStandardReferenceToStandardGroup tags will modify StandardGroup definition. -->
    <!-- AddSubGroupWithinStandardGroup will introduce a subgroup within an existing  compliance framework/standard group in repository. -->
    <!-- AddStandardReferenceToStandardGroup will introduce a reference to a standard within an existing  compliance framework/standard group in repository. -->


      <AddSubGroupWithinStandardGroup order="2">
          <StandardGroupName>oracle_pci</StandardGroupName>
          <StandardGroupAuthor>ORACLE</StandardGroupAuthor>
          <StandardGroupVersion>1</StandardGroupVersion>
          <SubGroup name="sampleSubgroup1">
              <DisplayName>sub1</DisplayName>
              <ReferenceURL>http://sampleAddedSubgroup.com</ReferenceURL>
              <Importance>High</Importance>
          </SubGroup>
      </AddSubGroupWithinStandardGroup>
      <AddStandardReferenceToStandardGroup>
          <StandardGroupName>oracle_pci</StandardGroupName>
          <StandardGroupAuthor>ORACLE</StandardGroupAuthor>
          <StandardGroupVersion>1</StandardGroupVersion>
          <SubGroupListInfo>
              <SubGroupElem>oracle_pci_ctrlobj_a</SubGroupElem>
          </SubGroupListInfo>
          <StandardReference>
              <Name>sample_cs1</Name>
              <Author>SYSTEM</Author>
              <Version>1</Version>
          </StandardReference>
      </AddStandardReferenceToStandardGroup>
      </Change>

      <Change version="12.1.0.2.0">

          <!-- Delete will be remove rule/standard from repository if present, else it will be noop. -->

      <DeleteStandard>
          <StandardName>sample_cs2</StandardName>
          <StandardAuthor>SYSTEM</StandardAuthor>
          <StandardVersion>1</StandardVersion>
      </DeleteStandard>

      <DeleteRule>
          <RuleName>sample_rule4</RuleName>
          <TargetType>host</TargetType>
      </DeleteRule>


      <!-- Entities with Update tag will override definitions if they exist in the repository. -->
      <!-- Please note that if standard/rule is updated then old results are
           replaced by new results based on standard/rule definition after update.  -->

      <UpdateRule>
          <RuleName>sample_rule5</RuleName>
          <TargetType>host</TargetType>
      </UpdateRule>
      <UpdateStandard>
          <StandardName>sample_cs3</StandardName>
          <StandardAuthor>SYSTEM</StandardAuthor>
          <StandardVersion>1</StandardVersion>
      </UpdateStandard>

      <UpdateStandardGroup>
          <StandardGroupName>sample_csg</StandardGroupName>
          <StandardGroupAuthor>SYSTEM</StandardGroupAuthor>
          <StandardGroupVersion>1</StandardGroupVersion>
      </UpdateStandardGroup>

      <!-- AddSubGroupWithinStandardGroup will introduce a subgroup within an existing  compliance framework/standard group in repository. -->
      <!-- AddStandardReferenceToStandardGroup will introduce a reference to a standard within an existing  compliance framework/standard group in repository. -->

      <AddSubGroupWithinStandardGroup order="2">
          <StandardGroupName>oracle_pci</StandardGroupName>
          <StandardGroupAuthor>ORACLE</StandardGroupAuthor>
          <StandardGroupVersion>1</StandardGroupVersion>
          <SubGroup name="sampleSubgroup2">
                  <DisplayName>sub2</DisplayName>
                  <ReferenceURL>http://sampleAddedSubgroup.com</ReferenceURL>
                  <Importance>High</Importance>
          </SubGroup>
      </AddSubGroupWithinStandardGroup>
      <AddStandardReferenceToStandardGroup>
          <StandardGroupName>oracle_pci</StandardGroupName>
          <StandardGroupAuthor>ORACLE</StandardGroupAuthor>
          <StandardGroupVersion>1</StandardGroupVersion>
          <SubGroupListInfo>
                  <SubGroupElem>oracle_pci_ctrlobj_a</SubGroupElem>
          </SubGroupListInfo>
          <StandardReference>
                  <Name>sample_cs3</Name>
                  <Author>SYSTEM</Author>
                  <Version>1</Version>
          </StandardReference>
      </AddStandardReferenceToStandardGroup>
      </Change>

</ChangeList>
<!--List of compliance standard rules -->
&rule1;
&rule2;
&rule3;
&rule5;
&rule6;
<!--List of compliance standards -->
&standard1;
&standard3;
<!--List of compliance standard groups/frameworks -->
&standardgroup;
</ComplianceContent>

Publishing Compliance Content Using Self Update

If you want to publish compliance content without having to deploy the plug-in, than use the Self Update console.

To publish and apply compliance content from the Self Update console:

Create a compliance content JAR file from the XML content using the following command:
```
-jar cvfM compliancecontent.jar compliance_content_files
```
Note:

Similarly, multiple DLF files can be combined in a JAR file.

Create a manifest file to specify the name of the compliance content, label, and the version of the compliance content to be published. This manifest file specifies compliancecontent.jar and compliancedlf.jar in order respectively.

Example: Sample Manifest File

<?xml version="1.0" encoding="utf-8"?>
<tns:EntityInstance xmlns:tns="http://www.oracle.com/EnterpriseGridControl/SelfUpdateManifest"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" EntityType="param" EntityTypeVersion="12.1.0.1.0" Vendor="Oracle" Maturity="TEST">

<tns:Description><![CDATA[<param>]]></tns:Description>

<tns:AttributeList>
<tns:Version>12.1.0.1.0</tns:Version>
<tns:Attribute Name="name" Value="<param>" Label="display_name"/>
</tns:AttributeList>
<tns:Readme><![CDATA[ <param>]]>
</tns:Readme>
<tns:CustomParamList/>
<tns:DependsOn/>
<tns:ArchiveList>
<tns:Archive Filename="param"/>
<tns:Archive Filename="param"/>
</tns:ArchiveList>
<tns:CustomData/>
</tns:EntityInstance>

Create a SAR (self update archive) file from the manifest file, compliancecontent.jar, and compliancedlf.jar using the following command:
```
edkutil prepare_update -manifest manifest_file_name -archivedir directory_containing_compliancecontent.jar_and_compliancedlf.jar -out sar_file_name
```
Note:

Before you import the SAR file into Enterprise Manager, make sure that the Software Library is configured.

For more information, see Setting Up the Software Library.
Import the SAR file into Enterprise Manager using the following command:
```
emcli import_update -omslocal -file=complete_path_to_sar_file
```
Note:

Using the -omslocal flag means that the file must be placed on the Oracle Management Server (OMS) file system.
Log in to Enterprise Manager. From the Setup menu, select Extensibility, and then Self Update.

The Self Update page appears.
From the Status area, check that Downloaded Updates is set to 1 for Compliance Content.
In the Type column, click Compliance Content.

The Self Update: Compliance Content page appears.
Select the row with downloaded in the Status column, then Apply. Follow the steps in the wizard that appears.
From the Actions list, select Apply and check that the Status column reads succeeded.
Verify the imported compliance content from the Compliance Library. To view the Compliance Library, from the Enterprise menu, select Compliance, then select Library.
