Replace an NVMe drive in an Oracle Database Appliance X8 series system.

1. Identify the NVMe drive to be replaced. Type the following command at the host:
   # odaadmcli show disk

   For example, the drive names pd_00 and pd_01 are seen by the host as NVMe0 and NVMe1 and correspond to front drive slots 0 and 1, respectively.

2. Unmount and power off the drive to be replaced. Do one of the following:
   1. If you are replacing a failed drive, check to see if its blue ready-to-remove light is lit.
      If a drive has failed, it should power off automatically and light its blue ready-to-remove indicator after 5 minutes.
   2. If the drive being replaced doesn't already have its blue ready-to-remove indicator lit, type the following command from the host to unmount and turn off power to the drive:
      # odaadmcli power disk off pd_xx
      Where pd_xx is the name of the disk to be replaced as described in step 1.
      Before proceeding to the next step confirm that the blue ready-to-remove indicator on the drive is lit.
3. Push the latch release button on the front of the drive to open the drive latch [1], grasp the latch, and pull the drive out of the drive slot [2] as shown in the following figure.


   Description of the illustration gxxxx_x8_drive_removal.jpg

4. Align the replacement drive with the drive slot.
   The drive is physically addressed according to the slot in which it is installed. It is important to install a replacement drive in the same slot as the drive that was removed.
5. With the drive latch in the open position, slide the drive into the slot until the drive is fully seated [1] and then close the drive latch to lock the drive in place [2] as shown in the following figure.


   Description of the illustration gxxxx_x8_drive_install.jpg

6. Power on and remount the replacement drive. Type the following command from the host:
   # odaadmcli power disk on pd_xx

   Where pd_xx is the name of the disk being replaced as described in step 1.

   It can take a few minutes for the power-on operation to complete. Once complete, the drive's green OK indicator will light.

7. To check the status of the replacement disk, type the following command from the host:
   # odaadmcli show disk

   For additional information, refer to the Oracle Database Appliance Deployment and User's Guide.

Add NVMe storage to an Oracle Database Appliance X8-2M. Note that the Oracle Database Appliance X8-2S does not support additional storage.

1. Remove the drive filler panel of an unpopulated slot by using your finger to pry open the panel release latch and pulling the filler out of the drive slot.

   Note:

   Replace filler panels with drives one at a time to ensure proper system cooling.

2. Open the latch of the new drive by pressing the release button on the drive.

   Caution:

   Do not over-rotate the latch outwards when opening. Doing so can damage it.

3. Insert the new drive by sliding the drive into the slot until the drive is fully seated. Then close the drive latch to lock the drive in place.
4. Repeat steps 1 - 3 for each new drive.

   For the Oracle Database Appliance X8-2M, the name for these drives to the host will be pd_02, pd_03, pd_04, etc., matching the numbering of their respective drive slots up to pd_11.

5. Power on each of the new drives by entering the appropriate commands from the host using the following command format:

   # odaadmcli power disk on pd_##

   Where ## is the number of the drive being powered on (02 through 11).

   It can take a few minutes for the power-on operation to complete. Once complete, the green OK indicators will light for the newly installed drives.

   Note:

   Do not attempt to power on and expand storage on one new disk and then power on and expand storage on the next new disk. Before you can expand storage, all the new disks must be powered on with their green OK indicators lit.

6. Expand the system storage to include the new drives. Type the following command from the host:
   # odaadmcli expand storage -ndisk number_of_disks

   Where number_of_disks is the number of disks being added. The system will then detect and use the new storage.

   For additional information, refer to the Oracle Database Appliance Deployment and User's Guide.

Replace an NVMe drive in an Oracle Database Appliance X7 series system.

1. Identify the NVMe drive to be replaced. Type the following command at the host:
   # odaadmcli show disk

   For example, the drive names pd_00 and pd_01 are seen by the host as NVMe0 and NVMe1 and correspond to front drive slots 0 and 1, respectively.

2. Unmount and power off the drive to be replaced. Do one of the following:
   1. If you are replacing a failed drive, check to see if its blue ready-to-remove light is lit.
      If a drive has failed, it should power off automatically and light its blue ready-to-remove indicator after 5 minutes.
   2. If the drive being replaced doesn't already have its blue ready-to-remove indicator lit, type the following command from the host to unmount and turn off power to the drive:
      # odaadmcli power disk off pd_xx
      Where pd_xx is the name of the disk to be replaced as described in step 1.
      Before proceeding to the next step confirm that the blue ready-to-remove indicator on the drive is lit.
3. Push the latch release button on the front of the drive to open the drive latch [1], grasp the latch, and pull the drive out of the drive slot [2] as shown in the following figure.

   Description of the illustration g6621_x7_remove-hdd.jpg
4. Align the replacement drive with the drive slot.
   The drive is physically addressed according to the slot in which it is installed. It is important to install a replacement drive in the same slot as the drive that was removed.
5. With the drive latch in the open position, slide the drive into the slot until the drive is fully seated [1] and then close the drive latch to lock the drive in place [2] as shown in the following figure.

   Description of the illustration g6622_x7_install-hdd.jpg
6. Power on and remount the replacement drive. Type the following command from the host:
   # odaadmcli power disk on pd_xx

   Where pd_xx is the name of the disk being replaced as described in step 1.

   It can take a few minutes for the power-on operation to complete. Once complete, the drive's green OK indicator will light.

7. To check the status of the replacement disk, type the following command from the host:
   # odaadmcli show disk

   For additional information, refer to the Oracle Database Appliance Deployment and User's Guide.

Add NVMe storage to an Oracle Database Appliance X7-2M.

1. Remove the drive filler panel of an unpopulated slot by using your finger to pry open the panel release latch and pulling the filler out of the drive slot.

   Note:

   Replace filler panels with drives one at a time to ensure proper system cooling.

2. Open the latch of the new drive by pressing the release button on the drive.

   Caution:

   Do not over-rotate the latch outwards when opening. Doing so can damage it.

3. Insert the new drive by sliding the drive into the slot until the drive is fully seated. Then close the drive latch to lock the drive in place.
4. Repeat steps 1 - 3 for each new drive.

   • For the Oracle Database Appliance X7-2M, the name for these drives to the host will be pd_02, pd_03, pd_04, etc., matching the numbering of their respective drive slots up to pd_07.

5. Power on the new drives by entering the appropriate commands from the host.

   • If you are adding three drives, type:

     # odaadmcli power disk on pd_02

     # odaadmcli power disk on pd_03

     # odaadmcli power disk on pd_04

   • If you are adding six drives, additionally type:

     # odaadmcli power disk on pd_05

     # odaadmcli power disk on pd_06

     # odaadmcli power disk on pd_07

   It can take a few minutes for the power-on operation to complete. Once complete, the green OK indicators will light for the newly installed drives.

   Note:

   Do not attempt to power on and expand storage on one new disk and then power on and expand storage on the next new disk. Before you can expand storage, all the new disks must be powered on with their green OK indicators lit.

6. Expand the system storage to include the new drives. Type the following command from the host:
   # odaadmcli expand storage -ndisk number_of_disks

   Where number_of_disks is the number of disks being added. The system will then detect and use the new storage.

   For additional information, refer to the Oracle Database Appliance Deployment and User's Guide.

Replace an NVMe drive in an Oracle Database Appliance X6 series system.

1. Identify the NVMe drive to be replaced. Type the following command at the host:
   # odaadmcli show disk

   For example, the drive names pd_00 and pd_01 are seen by the host as NVMe0 and NVMe1 and correspond to front drive slots 0 and 1, respectively.

2. Unmount and power off the drive to be replaced. Do one of the following:
   1. If you are replacing a failed drive, check to see if its blue ready-to-remove light is lit.
      If a drive has failed, it should power off automatically and light its blue ready-to-remove indicator after 5 minutes.
   2. If the drive being replaced doesn't already have its blue ready-to-remove indicator lit, type the following command from the host to unmount and turn off power to the drive:
      # odaadmcli power disk off pd_xx
      Where pd_xx is the name of the disk to be replaced as described in step 1.
      Before proceeding to the next step confirm that the blue ready-to-remove indicator on the drive is lit.
3. Push the latch release button on the front of the drive to open the drive latch [1], grasp the latch, and pull the drive out of the drive slot [2] as shown in the following figure.

   Description of the illustration a3481_x6_drive_removal.jpg
4. Align the replacement drive with the drive slot.
   The drive is physically addressed according to the slot in which it is installed. It is important to install a replacement drive in the same slot as the drive that was removed.
5. With the drive latch in the open position, slide the drive into the slot until the drive is fully seated [1] and then close the drive latch to lock the drive in place [2] as shown in the following figure.

   Description of the illustration a3482_x6_drive_install.jpg
6. Power on and remount the replacement drive. Type the following command from the host:
   # odaadmcli power disk on pd_xx

   Where pd_xx is the name of the disk being replaced as described in step 1.

   It can take a few minutes for the power-on operation to complete. Once complete, the drive's green OK indicator will light.

7. To check the status of the replacement disk, type the following command from the host:
   # odaadmcli show disk

   For additional information, refer to the Oracle Database Appliance Deployment and User's Guide.

Add NVMe storage in an Oracle Database Appliance X6 series system.

1. Remove the drive filler panel of an unpopulated slot by using your finger to pry open the panel release latch and pulling the filler out of the drive slot.

   Note:

   Replace filler panels with drives one at a time to ensure proper system cooling.

2. Open the latch of the new drive by pressing the release button on the drive.

   Caution:

   Do not over-rotate the latch outwards when opening. Doing so can damage it.

3. Insert the new drive by sliding the drive into the slot until the drive is fully seated. Then close the drive latch to lock the drive in place.
4. Repeat steps 1 - 3 for each new drive.

   • For the Oracle Database Appliance X6-2S/X6-2M, the name for these drives to the host will be pd_02 and pd_03, matching the numbering of their respective drive slots.

   • For the Oracle Database Appliance X6-2L, the name for these drives to the host will be pd_02, pd_05 and pd_08, matching the numbering of their respective drive slots.

5. Power on the new drives by entering the appropriate commands from the host.

   • For the Oracle Database Appliance X6-2S/X6-2M, type:

     # odaadmcli power disk on pd_02

     # odaadmcli power disk on pd_03

   • For the Oracle Database Appliance X6-2L, type:

     # odaadmcli power disk on pd_02

     # odaadmcli power disk on pd_05

     # odaadmcli power disk on pd_08

   It can take a few minutes for the power-on operation to complete. Once complete, the green OK indicators will light for the newly installed drives.

   Note:

   Do not attempt to power on and expand storage on one new disk and then power on and expand storage on the next new disk. Before you can expand storage, all the new disks must be powered on with their green OK indicators lit.

6. Expand the system storage to include the new drives. Type the following command from the host:
   # odaadmcli expand storage

   The system will then detect and use the new storage.

   For additional information, refer to the Oracle Database Appliance Deployment and User's Guide.

Add disk storage in an Oracle Database Appliance X8-2-HA storage shelf.

The Oracle Database Appliance X8-2-HA storage shelf partially-populated base configuration supports storage expansion with either 7.68 TB SSDs (available in six-packs) or 14 TB HDDs (available in an eighteen-pack). Depending on your initial base storage shelf configuration, there can be up to eighteen expansion slots. These slots are labeled 6-23 as seen from the front of the system (callouts 6 through 23 in the following illustration).

Description of the illustration gxxxx-x8-2ha_optional_shelf_drives_top.jpg

• If your system has Oracle Database Appliance X8-2-HA software release 18.7, 19.4 or 19.5, all storage must be added BEFORE you initially power-on the system and install system software. Once the system is provisioned and running you cannot add storage.

  If your system is running Oracle Database Appliance release 18.8, 19.6 or later version:

  • For a high performance shelf, you can add up to eighteen 7.68 TB SSDs (available in six-packs). You can add storage with the system running and use the appliance CLI software commands to expand the storage configuration.

  • For a high capacity shelf, you can add eighteen 14 TB HDDs (available in an eighteen-pack). You must power off the appliance, add storage, then re-image and redeploy the appliance software. This is required to reconfigure the appliance from the default high performance mode to high capacity mode.

• Expanding the base configuration storage shelf with 7.68 TB SSDs for high performance. The base configuration has slots 0-5 with 7.68 TB drives for DATA/RECO. Expansion SSDs are available in six-packs and are populated in shelf storage slots from the bottom up to also be used for DATA/RECO, as follows:

  • The first six expansion drives go into slots 6-11.
  • The second six expansion drives go into slots 12-17.
  • The third six expansion drives go into slots 18-23.

  The following illustration shows the expanded drive configuration for 7.68 TB SSDs.



  Description of the illustration oda_x8-2-ha_shelf_ssds.jpg


• Expanding the base configuration storage shelf with 14 TB HDDs for high capacity. When expanding the storage shelf with HDDs, the base configurations SSDs will be used for FLASH and the HDDs will be used for DATA/RECO. Expansion HDDs are available in an eighteen-pack and populate the empty shelf storage slots (slots 6-23).

  The following illustration shows the expanded drive configuration for 14 TB HDDs.



  Description of the illustration oda_x8-2-ha_shelf_hdds.jpg


• Once you expand storage to support additional disks, you cannot revert to the base configuration (no drives in slots 6-23).

• If you plan on adding another storage shelf, it must be populated identically to your first storage shelf.

• The odaadmcli commands listed here must be run as the root user.

1. Do one of the following:

   • If you are adding 7.68 TB SSDs to the storage shelf, leave the appliance powered on and proceed to the next step.

   • If you are adding 14 TB HDDs to the storage shelf, power off the appliance and proceed to the next step.

2. To install the new drives into the storage shelf, do the following:
   1. Remove one of the empty slot drive filler panels by pressing its release button [1] and removing it from the drive slot [2] as shown in the following figure.

      Note:

      Replace filler panels with drives one at a time to ensure proper storage shelf chassis cooling.

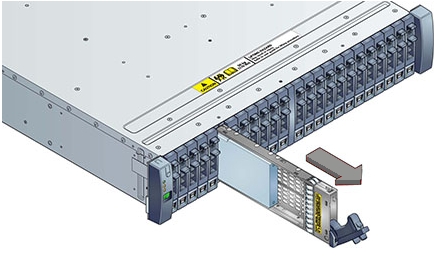

      Description of the illustration g5703_de3-24c_drive_removal1.jpg
   2. Open the drive lever of the new drive by pressing the release button on the drive.
   3. Slide the new drive into the drive slot [1] until it engages with the backplane connector and then close the lever to fully seat the drive and lock it into place [2] as shown in the following figure.

      Check that the drive is locked in place and flush with the other drives.


      Description of the illustration g5704_de3-24c_drive_replacement1.jpg
   4. Repeat steps a through c until all of the new drives are installed in the storage shelf.
3. Do one of the following:

   • If you added 7.68 TB SSDs to the storage shelf, check that the OK indicator on each new drive is steady green to indicate that it is ready. Then expand the system storage to include the new drives by typing the following command from the primary server node (node 0):

     # odaadmcli expand storage -ndisk number_of_disks -enclosure 0

     Where number_of_disks is the number of disks being added. The system will then detect and use the new storage. It can take up to 12 minutes to update the configuration. For additional storage commands, refer to the Deployment and User's Guide.

   • If you added 14 TB HDDs to the storage shelf, power on the appliance, then re-image and redeploy the appliance software as described in the Deployment and User's Guide.

4. If you are also adding a storage expansion shelf (can only be added to a system with an identically and fully populated storage shelf), you can do so after successfully completing the previous step.

   Refer to the Oracle Database Appliance Owner's Guide for information on installing a storage expansion shelf into a rack.

   Refer to the Oracle Database Appliance Deployment and User's Guide for information on cabling and storage expansion commands for a storage expansion shelf.

Add disk storage in an Oracle Database Appliance X7-2-HA storage shelf.

The Oracle Database Appliance X7-2-HA storage shelf partially-populated base configuration supports 15 expansion slots for either 7.68 TB SAS SSDs (available in five-packs) or 14 TB SAS HDDs (available in a fifteen-pack). These expansion slots are labeled 5-19 as seen from the front of the system (callouts 5 through 19 in the following illustration).

Description of the illustration gxxxx-x7-2ha_optional_shelf_drives.jpg

• Expanding the base configuration storage shelf with 7.68 TB SSDs for high performance. The base configuration has slots 20-23 populated with 800GB drives for REDO and slots 0-4 with 3.2 TB drives for DATA/RECO. Note that 3.2 TB SSDs are no longer available. Storage expansions options are:

  • If you are running Oracle Database Appliance software release 18.7, you must power off the system to remove any existing 3.2 TB SSDs and replace them with 7.68 TB SSDs. You cannot have both types of drives in the storage shelf. After the new storage is added you must perform clean-up, redeploy the appliance software, and restore the database from a backup after adding the new storage.

  • If you are running Oracle Database Appliance software release 18.8, 19.6 or later version, your 7.68 TB SSDs can be added with the system running without replacing the existing 3.2 TB SSDs. Note that the 7.68 TB SSDs will be formatted as 3.2 TB SSDs after being added to the system to match the existing 3.2 TB drives.

  Expansion drives are available in five-packs and are populated in shelf storage slots from the bottom up, as follows:

  • The first five expansion drives go into slots 5-9.
  • The second five expansion drives go into slots 10-14.
  • The third five expansion drives go into slots 15-19.

  When you expand storage, you must first install all of your expansion disks (5, 10 or 15). Once you expand storage to support additional disks, you cannot revert to the base configuration (no drives in slots 5-19).

  The following illustration shows an example expanded drive configuration with 7.68 TB SSDs (existing 3.2 TB SSDs replaced).


  Description of the illustration oda_x7-2ha_shelf_15ssd_expansion.jpg

• Expanding the base configuration storage shelf with 14 TB HDDs for high capacity. The base configuration has slots 20-23 populated with 800GB drives for REDO and slots 0-4 with 3.2 TB drives for DATA/RECO. For a high capacity shelf, you can add up to fifteen 14 TB HDDs (available in five-packs). Note that 10 TB HDDs are no longer available. In order to support 14 TB HDDs in the system you must be running Oracle Database Appliance software release 18.7, 18.8, 19.6 or later version. In addition:

  • The storage shelf must be powered off and the five 3.2 TB SSDs already in the base configuration must be moved to slots 15 -19 and the new storage installed.

  • After the new storage is added, perform clean-up, redeploy the appliance software, and restore the database from a backup.

  Once you expand storage to support additional disks, you cannot revert to the base configuration (no drives in slots 5-19).

  The following illustration shows the expanded drive configuration with 14 TB HDDs.





  Description of the illustration oda_x7ha_shelf_15hdd_expansion.jpg




• The storage expansion shelf is no longer available for this product.

• The odaadmcli commands listed here must be run as the root user.

1. Do one of the following:

   • If your appliance is running Oracle Database Appliance release 18.7 and you are adding 7.68 TB SDDs to the storage shelf and replacing existing 3.2 TB SSDs, power off the appliance and proceed to the next step.

   • If your appliance is running Oracle Database Appliance release 18.8, 19.6 or later version and you are adding 7.68 TB SDDs to the storage shelf and not replacing existing 3.2 TB SSDs, leave the appliance powered on and proceed to the next step.

   • If your appliance is running Oracle Database Appliance release 18.7, 18.8, 19.6 or later version and you are adding 14 TB HDDs to the storage shelf, power off the appliance and move the 3.2 TB DATA/RECO drives from shelf storage slots 0-4 to slots 15-19. Proceed to the next step.

2. To install the new drives into the storage shelf, do the following:
   1. Remove one of the empty slot drive filler panels by pressing its release button [1] and removing it from the drive slot [2] as shown in the following figure.

      Note:

      Replace filler panels with drives one at a time to ensure proper storage shelf chassis cooling.


      Description of the illustration g5703_de3-24c_drive_removal1.jpg
   2. Open the drive lever of the new drive by pressing the release button on the drive.
   3. Slide the new drive into the drive slot [1] until it engages with the backplane connector and then close the lever to fully seat the drive and lock it into place [2] as shown in the following figure.

      Check that the drive is locked in place and flush with the other drives.


      Description of the illustration g5704_de3-24c_drive_replacement1.jpg
   4. Repeat steps a through c until all of the new drives are installed in the storage shelf.
3. Do one of the following:

   • If your appliance is running Oracle Database Appliance release 18.7 and you added 7.68 TB SSDs and replaced existing 3.2 TB SSDs with 7.68 TB SSDs, power on the appliance and perform cleanup, redeploy the appliance and restore the database as described in the Deployment and User's Guide for the appliance.

   • If your appliance is running Oracle Database Appliance release 18.8, 19.6 or later version and you added 7.68 TB SSDs to the shelf and did not replace existing 3.2 TB SSDs, check that the OK indicator on each new drive is steady green to indicate that it is ready. Then expand the system storage to include the new drives by typing the following command from the primary server node (node 0):

     # odaadmcli expand storage -ndisk number_of_disks -enclosure 0

     Where number_of_disks is the number of disks being added. The system will then detect and use the new storage.

   • If your appliance is running Oracle Database Appliance software release 18.7, 18.8, 19.6 or later version and you added 14 TB HDDs to the shelf and moved the existing 3.2 TB SSDs, power on the appliance and perform cleanup, redeploy the appliance and restore the database as described in the Deployment and User's Guide for the appliance.

Add disk storage in an Oracle Database Appliance X6-2-HA storage shelf.

The Oracle Database Appliance X6-2-HA storage shelf partially-populated base configuration supports ten expansion slots for 7.68 TB SAS SSD drives. These are slots labeled 10-19 as seen from the front of the system (callouts 10 through 19 in the following illustration). When adding to the storage shelf, you must populate all of these slots at the same time.

Description of the illustration x6-2-ha_optional_shelf_drives.jpg

• If your system is running Oracle Database Appliance software release 18.7, 18.8, 19.6 or later version, 7.68 TB SAS SSDs can be used for storage expansion (1.6 TB SSDs are no longer available). However, this means that you must also replace any existing 1.6 TB SSDs with 7.68 TB SSDs, perform clean-up, redeploy the appliance software, and restore the database from a backup. You cannot have both types of drives in the storage shelf.

  If you expand storage, you must first add all of the disks and then expand storage on all the new disks at the same time. Once you expand storage to support disks in slots 10-19, you cannot revert to the base configuration (no drives in slots 10-19).

• The storage expansion shelf is no longer available for this product.

1. To install the new drives into the storage shelf, do the following:
   1. Remove one of the drive filler panels from slots 10-19 by pressing its release button [1] and removing it from the drive slot [2] as shown in the following figure.

      Note:

      Replace filler panels with drives one at a time to ensure proper storage shelf chassis cooling.


      Description of the illustration g5703_de3-24c_drive_removal1.jpg
   2. Open the drive lever of the new drive by pressing the release button on the drive.
   3. Slide the new drive into the drive slot [1] until it engages with the backplane connector and then close the lever to fully seat the drive and lock it into place [2] as shown in the following figure.

      Check that the drive is locked in place and flush with the other drives.


      Description of the illustration g5704_de3-24c_drive_replacement1.jpg
   4. Repeat steps a through c until all of the empty drive slots in the storage shelf are filled with the new drives
2. Replaced any existing 1.6 TB SSDs with 7.68 TB SDDs.
3. Power on the appliance and perform cleanup, redeploy the appliance and restore the database as described in the Deployment and User's Guide for the appliance.

Replace a storage disk in an Oracle Database Appliance storage shelf.

1. Locate the failed drive on the front of the storage shelf.

   Look for the drive with its Service Required indicator and/or Ready-to-Remove indicator lit.

   Caution:

   Equipment damage. Do not remove a drive unless you have an immediate replacement.

2. Remove the drive:

   • For the DE3-24C, press the release button [1] to release the drive lever and then, rotate the lever open and, grasping the drive body, slide the drive out of the storage shelf [2] as shown in the following figure.

     Note:

     For the DE2-24C, slide the release latch as indicated by the debossed arrow to release the drive lever.


     Description of the illustration g5703_de3-24c_drive_removal.jpg

   • For the DE2-24P, slide the release latch as indicated by the debossed arrow to release the drive lever and then, rotate the lever open and, grasping the drive body, slide the drive out of the storage shelf as shown in the following figure.


     Description of the illustration j_driveout.jpg
3. Install the replacement drive:

   • For the DE2-24C and DE3-24C, open the drive lever on the replacement drive. Slide the new drive into the drive slot [1] until it engages with the backplane connector and then close the lever to fully seat the drive and lock it into place [2] as shown in the following figure.

     Check that the drive is locked in place and flush with the other drives.


     Description of the illustration g5704_de3-24c_drive_replacement.jpg

   • For the DE2-24P, open the drive lever on the replacement drive. Slide the drive into the drive slot until it engages with the backplane connector and then close the lever to fully seat the drive and lock it into place as shown in the following figure.

     Check that the drive is locked in place and flush with the other drives.


     Description of the illustration j_drivein.jpg
4. Once installed, the system should automatically detect and use the replacement drive. Ensure that the green OK indicator for the replacement drive lights to show that the drive is ready.

   This can take a few minutes to complete.

Replace a power supply in an Oracle Database Appliance storage shelf.

The storage shelf and the storage expansion shelf each have two power supplies. Indicators (LEDs) on the power supplies indicate their operation state.

The power supplies are redundant and one can be replaced while the appliance is running.

Example figure showing a DE3-24C power supply:

Description of the illustration g5498-x6-2ha_storage_shelf_psu_callouts.jpg

Example figure showing a DE2-24C or DE2-24P power supply:

Description of the illustration j_smpscloseup.jpg

Callout	Description
1	AC power fail indicator
2	Fan fail indicator
3	Power supply status indicator
4	DC power fail indicator
5	Release lever
6	AC connector
7	On/Off switch

If any of the indicators are amber, or if the power supply status indicator does not light, replace the power supply.

1. Ensure the power supply on/off switch is in the "O" off position.
2. Disconnect the power cord tie strap from the power cord, and unplug the power cord from the power supply.
3. Remove the power supply unit using the procedure for your storage shelf model:

   • For the DE3-24C, grasp the power supply handle, push the release button [1], and slide the power supply out of the chassis [2] as shown in the following figure.


     Description of the illustration g5701-de3-24c_psu_removal.jpg

   • For the DE2-24C or DE2-24P, push the ejector release button [1], grasp the power supply ejector handle and rotate it to the open position [2] as shown in the following figure. Slide the power supply out of the chassis.


     Description of the illustration j_psout.jpg
4. Install the replacement power supply unit using the procedure for your storage shelf model:

   • For the DE3-24C, slide the replacement power supply module into the chassis. When fully installed, you should hear a click of the release lever returning to the locked position.

   • For a DE2-24C or DE2-24P, open the ejector handle arm on the replacement power supply. Slide the replacement power supply module into the chassis. Push the lever fully closed until you hear or feel a click.

5. Plug the power cord into the new power supply and attach the power cord tie strap to the power cord.
6. Place the power supply on/off switch to the "I" on position.

   The Power/OK status LED should be a steady green, and all other indicators should be off.

Replace an IO module in an Oracle Database Appliance storage shelf.

1. Disconnect the cables from the I/O module (the various models are shown below). Be sure to mark the cables so you can return them to their proper connectors.

   • Example figure showing the DE3-24C (callout descriptions are listed in the table below):


     Description of the illustration g5499-x6-2ha_storage_shelf_iom_callouts.jpg

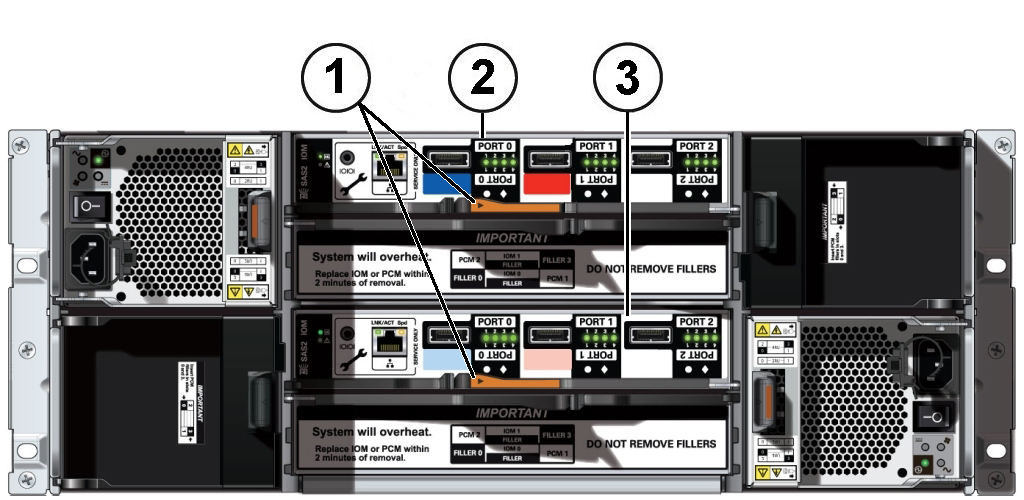

   • Example figure showing the DE2-24C (callout descriptions are listed in the table below):


     Description of the illustration de2-24c-io-mods.jpg

   • Example figure showing the DE2-24P (callout descriptions are listed in the table below):


     Description of the illustration de2-24p-io-mods.jpg

   Callout	Description
   1	I/O module locking levers
   2	I/O module 1 (top)
   3	I/O module 0 (bottom)

2. Remove the I/O module using the procedure for your storage shelf model:

   • For the DE3-24C, using your thumb and forefinger, pinch the release buttons [1] together to release the locking lever [2] as shown in the following figure. Grasp the lever and remove the I/O module from the chassis [3] as shown in the following figure.


     Description of the illustration g5702_de3-24c_io-module_removal.jpg

   • For the DE2-24C or DE2-24P, using your thumb and forefinger, squeeze the release button [1] toward the locking lever hole to release the lever [2]. Grasp the lever and remove the I/O module from the chassis.


     Description of the illustration j_ioreleaseleversmall.jpg
3. Open the lever in the new I/O module if it is not already open.
4. Slide the new I/O module into the disk shelf and close the locking lever.

   Caution:

   Equipment damage. Be careful not to damage the connector pins at the back of the I/O module.

5. Reconnect the cables.
6. Verify that the new I/O module is working correctly.

   • After approximately 60 seconds, the power LED should be solid green and the Fault/Locate LED should be off.

   • For each port that has a cable connected, all four activity LEDs should be solid green.
