  2. Overview of Oracle Database Appliance

2 Overview of Oracle Database Appliance

Learn about Oracle Database Appliance model supported components,capabilities and features.

Supported Components and Capabilities

See a listing of supported components and capabilities for various Oracle Database Appliance models.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance X8-2 Series Components and Capabilities

See a listing of the various supported capabilities for the Oracle Database Appliance X8-2 series.

The following table lists supported components and capabilities for the Oracle Database Appliance X8-2 series systems.

Component Oracle Database Appliance X8-2S Oracle Database Appliance X8-2M Oracle Database Appliance X8-2-HA

Server node

Single 2RU server.

Single 2RU server.

Two 2RU server nodes. Each server node operates independently from the other server node. The lower server is node 0. The upper server is node 1.

CPUs

One 16-core 2.3 GHz Intel Xeon 5218 processor.

Two 16-core 2.3 GHz Intel Xeon 5218 processors.

Two 16-core 2.3 GHz Intel Xeon 5218 processors per server node.

Memory

192 GB – six 32 GB low-voltage DDR4 RDIMMs rated at 2667 MT/sec.

Optional memory expansion to 384 GB. See Optional Component Installation.

384 GB – twelve 32 GB low-voltage DDR4 RDIMMs rated at 2667 MT/sec.

Optional memory expansion to 768 GB. See Optional Component Installation.

384 GB – twelve 32 GB low-voltage DDR4 RDIMMs rated at 2667 MT/sec per server node.

Optional memory expansion to 768 GB per server. Both server nodes must have the same amount of memory. See Optional Component Installation.

Storage devices

The server includes:

  • Two internal 480 GB M.2 SATA SSDs reserved for operating system storage and system booting

  • Two 2.5-inch 6.4 TB NVMe SSDs in front slots 0 and 4

No additional storage options are supported.

The server includes:

  • Two internal 480 GB M.2 SATA SSDs reserved for operating system storage and system booting

  • Two 2.5-inch 6.4 TB NVMe SSDs in front slots 0 and 1

Up to ten optional NVMe SSDs can be added. See Optional Component Installation.

Each server node includes:

  • Two internal 480 GB M.2 SATA SSDs reserved for operating system storage and system booting

The 4RU storage shelf includes one of the following available configurations:

  • Partially populated storage shelf with either six, twelve, or eighteen 2.5-inch 7.68 TB SAS SSDs (in 3.5-inch mounting brackets)

  • Twenty-four 2.5-inch 7.68 TB SAS SSDs (in 3.5-inch mounting brackets) in slots 0-23

  • Six 2.5-inch 7.68 TB SAS SSDs (in 3.5-inch mounting brackets) in slots 0-5 and eighteen 3.5-inch 14 TB SAS HDDs in slots 6-23

For a partially populated storage shelf, optional 7.68 TB SAS SSDs, or 14 TB SAS HDDs can be added. See Optional Component Installation.

USB 3.0 ports

Two total (one rear and one internal) per server.

Two total (one rear and one internal) per server.

Two total (one rear and one internal) per server node.

PCI Express (PCIe) I/O slots

Eleven external low-profile PCIe Gen-3 slots. In the base configuration:

PCIe slot 7 contains one of the following:

  • Dual Port (SFP28) 25 Gb Ethernet Adapter

  • Quad Port (RJ-45) 10Gbase-T Adapter

PCIe slot 9 contains an NVMe switch card.

Additional option card configurations can be ordered. See Optional Component Installation.

Eleven external low-profile PCIe Gen-3 slots. In the base configuration:

PCIe slot 7 contains one of the following:

  • Dual Port (SFP28) 25 Gb Ethernet Adapter

  • Quad Port (RJ-45) 10Gbase-T Adapter

PCIe slots 3, 4, 8 and 9 contain an NVMe switch card.

Additional option card configurations can be ordered. See Optional Component Installation.

Eleven external low-profile PCIe Gen-3 slots for each server node. In the base configuration:

PCIe slot 1 contains a Dual Port (SFP28) 25 Gb Ethernet Adapter (node interconnect)

PCIe slot 7 contains one of the following:

  • Dual Port (SFP28) 25 Gb Ethernet Adapter

  • Quad Port (RJ-45) 10Gbase-T Adapter

PCIe slots 3 and 8 contain a Dual-port External 12Gb/s SAS3 host bus adapter

Additional option card configurations can be ordered. See Optional Component Installation.

Cluster device

N/A

N/A

One integrated cluster device with node-to-node interconnection is provided on each server node through two 25GbE ports with SFP28 connections.

SAS ports

N/A

N/A

Four external SAS3 ports on each server node.

Eight SAS3 ports on the storage shelf (four used).

Eight SAS3 ports on the storage expansion shelf (four used).

Onboard Ethernet ports

One 10/100/1000Base-T network interface port with RJ-45 connector on each server rear panel.

One 10/100/1000Base-T network interface port with RJ-45 connector on each server rear panel.

One 10/100/1000Base-T network interface port with RJ-45 connector on each server node rear panel.

Network management (NET MGT) port

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server node rear panel.

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server node rear panel.

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server node rear panel.

Serial management (SER MGT) port

One RS-232 RJ-45 serial port on each server rear panel.

One RS-232 RJ-45 serial port on each server rear panel.

One RS-232 RJ-45 serial port on each server node rear panel.

VGA port

N/A

N/A

N/A

Service Processor (SP)

Each server has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Each server has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Each server node has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Power supplies

Two hot-pluggable power supplies.

Two hot-pluggable power supplies.

Two hot-pluggable power supplies per server node and per storage shelf.

Cooling fans

Four 80-mm, hot-pluggable fan modules per server for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply has its own cooling fans.

Four 80-mm, hot-pluggable fan modules per server for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply has its own cooling fans.

Four 80-mm, hot-pluggable fan modules per server node for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply (server node and storage shelf) has its own cooling fans.

Operating system

Oracle Linux.

Oracle Linux.

Oracle Linux.

Management software

Oracle Integrated Lights Out Manager (ILOM) 4.0.

Oracle Integrated Lights Out Manager (ILOM) 4.0.

Oracle Integrated Lights Out Manager (ILOM) 4.0.

Parent topic: Supported Components and Capabilities

Oracle Database Appliance X7-2 Series Components and Capabilities

See a listing of the various supported capabilities for the Oracle Database Appliance X7-2 series.

The following table lists supported components and capabilities for the Oracle Database Appliance X7-2 series systems.

Component Oracle Database Appliance X7-2S Oracle Database Appliance X7-2M Oracle Database Appliance X7-2-HA

Server node

Single 1RU server.

Single 1RU server.

Two 1RU server nodes. Each server node operates independently from the other server node. The lower server is node 0. The upper server is node 1.

CPUs

One 10-core 2.2 GHz Intel Xeon 4114 processor.

Two 18-core 2.3 GHz Intel Xeon 6140 processors.

Two 18-core 2.3 GHz Intel Xeon 6140 processors per server node.

Memory

192 GB – six 32 GB low-voltage DDR4 RDIMMs rated at 2667 MT/sec.

Optional memory expansion to 384 GB. See Optional Component Installation.

384 GB – twelve 32 GB low-voltage DDR4 RDIMMs rated at 2667 MT/sec.

Optional memory expansion to 768 GB. See Optional Component Installation.

384 GB – twelve 32 GB low-voltage DDR4 RDIMMs rated at 2667 MT/sec per server node.

Optional memory expansion to 768 GB per server. Both server nodes must have the same amount of memory. See Optional Component Installation.

Storage devices

The server includes:

  • Two internal 480 GB M.2 SATA SSDs reserved for operating system storage and system booting

  • Two 2.5-inch 6.4 TB NVMe SSDs in slots HDD 0-1

The server includes:

  • Two internal 480 GB M.2 SATA SSDs reserved for operating system storage and system booting

  • Two 2.5-inch 6.4 TB NVMe SSDs in slots HDD 0-1

Up to six optional NVMe SSDs can be added. See Optional Component Installation.

Each server node includes:

  • Two internal 480 GB M.2 SATA SSDs reserved for operating system storage and system booting

The 4RU storage shelf includes:

  • Four 2.5-inch 800 GB high endurance SAS SSDs (in 3.5-inch mounting brackets) in slots 20-23

  • Plus one of the following available configurations:

    • Five 2.5-inch 3.2 TB SAS SSDs (in 3.5-inch mounting brackets) in slots 0-4 and filler panels in slots 5-19

    • Twenty 2.5-inch 3.2 TB SAS SSDs (in 3.5-inch mounting brackets) in slots 0-19

    • Five 2.5-inch 3.2 TB SAS SSDs (in 3.5-inch mounting brackets) in slots 15-19 and fifteen 3.5-inch 10 TB SAS HDDs in slots 0-14

For a partially populated storage shelf, optional SAS SSDs, or HDDs can be added. See Optional Component Installation.

USB 2.0 ports

Two total (one rear and one internal) per server.

Two total (one rear and one internal) per server.

Two total (one rear and one internal) per server node.

PCI Express (PCIe) I/O slots

Three external and one internal low-profile PCIe Gen-3 slots. These are shipped empty.

Three external and one internal low-profile PCIe Gen-3 slots. These are shipped empty.

Three external and one internal low-profile PCIe Gen-3 slots for each server node. They contain:

  • PCIe slot 1: Dual 25 GbE SFP28 PCIe 2.0 Low Profile Adapter

  • PCIe slot 2: Dual-port External 12Gb/s SAS3 host bus adapter

  • PCIe slot 3: Dual-port External 12Gb/s SAS3 host bus adapter

Cluster device

N/A

N/A

One integrated cluster device with node-to-node interconnection is provided on each server node through two 10/25GbE ports with SFP28 connections.

SAS ports

N/A

N/A

Four external SAS3 ports on each server node.

Eight SAS3 ports on the storage shelf (four used).

Eight SAS3 ports on the storage expansion shelf (four used).

Onboard Ethernet ports

One 10/100/1000Base-T network interface port with RJ-45 connector on each server rear panel.

Two 10/25GbE SFP28 ports, or two 10 GbE RJ-45 ports located on the back of each server. The system can be configured to use either the SFP28 or RJ-45 ports, but not both.

One 10/100/1000Base-T network interface port with RJ-45 connector on each server rear panel.

Two 10/25GbE SFP28 ports, or two 10 GbE RJ-45 ports located on the back of each server. The system can be configured to use either the SFP28 or RJ-45 ports, but not both.

One 10/100/1000Base-T network interface port with RJ-45 connector on each server node rear panel.

Two 10/25GbE SFP28 ports, or two 10 GbE RJ-45 ports located on the back of each server node. The system can be configured to use either the SFP28 or RJ-45 ports, but not both.

Network management (NET MGT) port

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server node rear panel.

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server node rear panel.

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server node rear panel.

Serial management (SER MGT) port

One RS-232 RJ-45 serial port on each server rear panel.

One RS-232 RJ-45 serial port on each server rear panel.

One RS-232 RJ-45 serial port on each server node rear panel.

VGA port

N/A

N/A

N/A

Service Processor (SP)

Each server has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Each server has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Each server node has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Power supplies

Two hot-pluggable power supplies.

Two hot-pluggable power supplies.

Two hot-pluggable power supplies per server node and per storage shelf.

Cooling fans

Four 40-mm, hot-pluggable fan modules per server for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply has its own cooling fans.

Four 40-mm, hot-pluggable fan modules per server for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply has its own cooling fans.

Four 40-mm, hot-pluggable fan modules per server node for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply (server node and storage shelf) has its own cooling fans.

Operating system

Oracle Linux.

Oracle Linux.

Oracle Linux.

Management software

Oracle Integrated Lights Out Manager (ILOM) 4.0.

Oracle Integrated Lights Out Manager (ILOM) 4.0.

Oracle Integrated Lights Out Manager (ILOM) 4.0.

Parent topic: Supported Components and Capabilities

Oracle Database Appliance X6-2 Series Components and Capabilities

See a listing of the various supported capabilities for the Oracle Database Appliance X6-2 series.

The following table lists supported components and capabilities for the Oracle Database Appliance X6-2 series systems.

Component Oracle Database Appliance X6-2S Oracle Database Appliance X6-2M Oracle Database Appliance X6-2L Oracle Database Appliance X6-2-HA

Server node

Single 1RU server.

Single 1RU server.

Single 2RU server.

Two 1RU server nodes. Each server node operates independently from the other server node. The lower server is node 0. The upper server is node 1.

CPUs

One 10-core 2.2 GHz Intel Xeon E5-2630 V4 processor.

Two 10-core 2.2 GHz Intel Xeon E5-2630 V4 processors.

Two 10-core 2.2 GHz Intel Xeon E5-2630 V4 processors.

Two 10-core 2.2 GHz Intel Xeon E5-2630 V4 processors per server node.

Memory

128 GB – four 32 GB low-voltage DDR4 RDIMMs rated at 2400 MT/s (2133 MT/s actual maximum).

Optional memory expansion to 384 GB. See Optional Component Installation.

256 GB – eight 32 GB low-voltage DDR4 RDIMMs rated at 2400 MT/s (2133 MT/s actual maximum).

Optional memory expansion to 512 GB or 768 GB. See Optional Component Installation.

256 GB – eight 32 GB low-voltage DDR4 RDIMMs rated at 2400 MT/s (2133 MT/s actual maximum).

Optional memory expansion to 512 GB or 768 GB. See Optional Component Installation.

256 GB – eight 32 GB low-voltage DDR4 RDIMMs rated at 2400 MT/s per server node (2133 MT/s actual maximum).

Optional memory expansion to 512 GB or 768 GB. Both server nodes must have the same amount of memory. See Optional Component Installation.

Storage devices

The server includes:

  • Two 2.5-inch 480 GB SATA SSDs in slots HDD 0-1 reserved for operating system storage and system booting

  • Two 2.5-inch 3.2 TB NVMe SSDs in slots NVMe 0-1

Two optional NVMe SSDs can be added. See Optional Component Installation.

The server includes:

  • Two 2.5-inch 480 GB SATA SSDs in slots HDD 0-1 reserved for operating system storage and system booting

  • Two 2.5-inch 3.2 TB NVMe SSDs in slots NVMe 0-1

Two optional NVMe SSDs can be added. See Optional Component Installation.

The server includes:

  • Six 2.5-inch 3.2 TB NVMe SSDs in front slots 0, 1, 3, 4, 6, 7

    Three optional NVMe SSDs can be added. See Optional Component Installation.

  • Two 2.5-inch 480 GB SATA SSDs in rear slots 0-1 reserved for operating system storage and system booting

Each server node includes:

  • Two 2.5-inch 480 GB SATA SSDs in slots 0-1 reserved for operating system storage and system booting

The 4RU storage shelf and the optional storage expansion shelf each include:

  • Ten 2.5-inch 1.6 TB SAS SSDs (in 3.5-inch mounting brackets) in slots 0-9

  • Base storage shelf configuration: Filler panels in slots 10-19 (optional SAS SSDs can be added to these slots, see Optional Component Installation)

    Full storage shelf or standard storage expansion shelf configuration: Ten 2.5-inch 1.6 TB SAS SSDs (in 3.5-inch mounting brackets) in slots 10-19

  • Four 2.5-inch 200 GB high endurance SAS SSDs (in 3.5-inch mounting brackets) in slots 20-23

USB 2.0 ports

Six total (two front, two rear and two internal) per server.

Six total (two front, two rear and two internal) per server.

Six total (two front, two rear and two internal) per server.

Six total (two front, two rear and two internal) per server node.

PCI Express (PCIe) I/O slots

Three external and one internal low-profile PCIe Gen-3 slots. They contain:

  • PCIe slot 2: NVMe Switch PCIe Card

  • PCIe slot 3: Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter

  • PCIe slot 4: Dual-port Internal 12Gb/s SAS3 host bus adapter

Three external and one internal low-profile PCIe Gen-3 slots. They contain:

  • PCIe slot 2: NVMe Switch PCIe Card

  • PCIe slot 3: Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter

  • PCIe slot 4: Dual-port Internal 12Gb/s SAS3 host bus adapter

Six external internal low-profile PCIe Gen-3 slots. They contain:

  • PCIe slot 1: Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter

  • PCIe slots 2, 5, 6: NVMe Switch PCIe Card

  • PCIe slot 3: Dual-port Internal 12Gb/s SAS3 host bus adapter

Three external and one internal low-profile PCIe Gen-3 slots for each server node. They contain:

  • PCIe slot 1: Dual Port QDR InfiniBand M3 PCIe 3.0 Low Profile Adapter

    --or--

    PCIe slot 1: Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter

  • PCIe slot 2: Dual-port External 12Gb/s SAS3 host bus adapter

  • PCIe slot 3: Dual-port External 12Gb/s SAS3 host bus adapter

  • PCIe slot 4: Dual-port Internal 12Gb/s SAS3 host bus adapter

Cluster device

N/A

N/A

N/A

One integrated cluster device with node-to-node interconnection is provided on each server node through two InfiniBand ports with QSFP+ connections.

Alternatively, you have the option of creating the node-to-node interconnection using two of each server node's four 10 GbE network interface ports with RJ-45 connections.

This alternative configuration is used when the Oracle Database Appliance X6-2-HA is ordered with a Dual 10GbE SFP+ PCIe 2.0 Low Profile Adapter instead of the standard InfiniBand adapter when an Ethernet fiber connection to the data center or public network is required.

SAS ports

Two internal SAS3 ports.

Two internal SAS3 ports.

Two internal SAS3 ports (only one used for rear drives).

Two internal SAS3 and four external SAS3 ports on each server node.

Eight SAS3 ports on the storage shelf (four used).

Eight SAS3 ports on the storage expansion shelf (four used).

Onboard Ethernet ports

Two functional auto-sensing 100/1000/10000 Base-T Ethernet ports with RJ-45 connectors located on the back of the server.

Ethernet ports NET 2 and NET 3 are nonfunctional in single-processor systems.

Four auto-sensing 100/1000/10000 Base-T Ethernet ports with RJ-45 connectors located on the back of the server.

Four auto-sensing 100/1000/10000 Base-T Ethernet ports with RJ-45 connectors located on the back of the server.

Four auto-sensing 100/1000/10000 Base-T Ethernet ports with RJ-45 connectors located on the back of each server node.

Network management (NET MGT) port

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server rear panel.

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server rear panel.

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server rear panel.

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on each server node rear panel.

Serial management (SER MGT) port

One RS-232 RJ-45 serial port on each server rear panel.

One RS-232 RJ-45 serial port on each server rear panel.

One RS-232 RJ-45 serial port on each server rear panel.

One RS-232 RJ-45 serial port on each server node rear panel.

VGA port

One high-density HD-15 video port on each server rear panel.

One high-density HD-15 video port on each server rear panel.

One high-density HD-15 video port on each server rear panel.

One high-density HD-15 video port on each server node rear panel.

Service Processor (SP)

Each server has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Each server has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Each server node has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Each server node has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Power supplies

Two hot-pluggable power supplies.

Two hot-pluggable power supplies.

Two hot-pluggable power supplies.

Two hot-pluggable power supplies per server node and per storage shelf.

Cooling fans

Four 40-mm, hot-pluggable fan modules per server for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply has its own cooling fans.

Four 40-mm, hot-pluggable fan modules per server for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply has its own cooling fans.

Four 80-mm, hot-pluggable fan modules per server for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply has its own cooling fans.

Four 40-mm, hot-pluggable fan modules per server node for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply (server node and storage shelf) has its own cooling fans.

Operating system

Oracle Linux.

Oracle Linux.

Oracle Linux.

Oracle Linux.

Management software

Oracle Integrated Lights Out Manager (ILOM) 3.2.

Oracle Integrated Lights Out Manager (ILOM) 3.2.

Oracle Integrated Lights Out Manager (ILOM) 3.2.

Oracle Integrated Lights Out Manager (ILOM) 3.2.

Parent topic: Supported Components and Capabilities

Oracle Database Appliance Version 1 and Models X3-2, X4-2 and X5-2 Components and Capabilities

See a listing of the various supported capabilities for the Oracle Database Appliance Version 1 and Models X3-2, X4-2 and X5-2.

The following table lists supported components and capabilities for the Oracle Database Appliance Version 1, Oracle Database Appliance X3-2, Oracle Database Appliance X4-2 and Oracle Database Appliance X5-2.

Component Oracle Database Appliance (Version 1) Oracle Database Appliance X3-2 Oracle Database Appliance X4-2 Oracle Database Appliance X5-2

Server node

Two server nodes per chassis. Each server node operates independently from the other server node. The lower server is node 0. The upper server is node 1.

Two server nodes. Each server node operates independently from the other server node. The lower server is node 0. The upper server is node 1.

Two server nodes. Each server node operates independently from the other server node. The lower server is node 0. The upper server is node 1.

Two server nodes. Each server node operates independently from the other server node. The lower server is node 0. The upper server is node 1.

CPUs

Two 6-core 3.06 GHz Intel Xeon X5675 processors per server node.

Two 8-core 2.9 GHz Intel Xeon E5-2690 processors per server node.

Two 12-core 2.7 GHz Intel Xeon E5-2697 v2 processors per server node.

Two 18-core 2.3 GHz Intel Xeon E5-2699 v3 processors per server node.

Memory

96 GB – six 8 GB low-voltage DDR3 RDIMMs (single or dual rank) at 1333 MT/s per server node.

Quad-rank DIMMs are not supported.

256 GB – sixteen 16 GB low-voltage DDR3 RDIMMs at 1600 MT/s per server node.

256 GB – sixteen 16 GB low-voltage DDR3 RDIMMs at 1600 MT/s per server node.

256 GB – eight 32 GB low-voltage DDR4 LRDIMMs at 2133 MT/s per server node.

Optional memory expansion to 512 GB or 768 GB. See Optional Component Installation.

Storage devices

Each server node includes:

  • Twenty 3.5-inch SAS 600-GB HDDs in slots 0-19

  • Four 3.5-inch SAS 73-GB SSDs in slots 20-23

  • Two rear accessed, 2.5-inch SATA 500 GB HDDs reserved for operating system storage and system booting

  • One internal 4 GB USB thumb drive

Each server node includes:

  • Two 2.5-inch 600 GB SAS2 HDDs reserved for operating system storage and system booting

The storage shelf and the optional storage expansion shelf each include:

  • Twenty 2.5-inch 900 GB SAS2 HDDs in slots 0-19

  • Four 2.5-inch 200 GB SAS SSDs in slots 20-23

Each server node includes:

  • Two 2.5-inch 600 GB SAS2 HDDs reserved for operating system storage and system booting

  • One internal 4 or 8 GB USB thumb drive (reserved for future use)

The storage shelf and the optional storage expansion shelf each include:

  • Twenty 2.5-inch 900 GB SAS2 HDDs in slots 0-19

  • Four 2.5 inch 200 GB SAS SSDs in slots 20-23

Each server node includes:

  • Two 2.5-inch 600 GB SAS2 HDDs reserved for operating system storage and system booting

  • One internal 8 GB USB thumb drive (reserved for future use)

The storage shelf and the optional storage expansion shelf each include:

  • Sixteen 3.5-inch 4 TB or 8 TB SAS2 HDDs in slots 0-15

  • Four 2.5-inch 400 GB medium endurance SAS SSDs in slots 16-19

  • Four 2.5-inch 200 GB high endurance SAS SSDs in slots 20-23

USB 2.0 ports

Two rear and one internal for each server node.

Six total (two front, two rear and two internal) per server node.

Six total (two front, two rear and two internal) per server node.

Six total (two front, two rear and two internal) per server node.

PCI Express (PCIe) I/O slots

Three external low-profile PCIe Gen-2 slots (x8) for each server node. They contain:

  • PCIe slot 0: Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter

  • PCIe slot 1: Quad-port 1 GbE (Gigabit Ethernet) Network Adapter with RJ-45 connectors

  • PCIe slot 2: Dual-port External 6Gb/s SAS2 host bus adapter

One internal low-profile PCIe Gen-2 slot (x8) with a Dual-port Internal 6Gb/s SAS2 host bus adapter

Three external and one internal low-profile PCIe Gen-3 slots for each server node. They contain:

  • PCIe slot 1: Dual-port 10 GbE Network Adapter with RJ-45 connectors

  • PCIe slot 2: Dual-port External 6Gb/s SAS2 host bus adapter

  • PCIe slot 3: Dual-port External 6Gb/s SAS2 host bus adapter

  • PCIe Slot 4: Dual-port Internal 6Gb/s SAS2 host bus adapter

Three external and one internal low-profile PCIe Gen-3 slots for each server node. They contain:

  • PCIe slot 1: Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter

  • PCIe slot 2: Dual-port External 6Gb/s SAS2 host bus adapter

  • PCIe slot 3: Dual-port External 6Gb/s SAS2 host bus adapter

  • PCIe slot 4: Dual-port Internal 6Gb/s SAS2 host bus adapter

Three external and one internal low-profile PCIe Gen-3 slots for each server node. They contain:

  • PCIe slot 1: Dual Port QDR InfiniBand M3 PCIe 3.0 Low Profile Adapter

  • PCIe slot 2: Dual-port External 12Gb/s SAS3 host bus adapter

  • PCIe slot 3: Dual-port External 12Gb/s SAS3 host bus adapter

  • PCIe slot 4: Dual-port Internal 12Gb/s SAS3 host bus adapter

Cluster device

One integrated cluster device with node-to-node connections is provided on each server node. Each integrated cluster device provides two internal 1 GbE network interface ports and two internal dual-port UART ports.

One integrated cluster device with node-to-node interconnection is provided on each server node through two 10 GbE network interface ports with RJ-45 connections.

One integrated cluster device with node-to-node interconnection is provided on each server node through two 10 GbE network interface ports with dual-rate SFP+ connections.

Alternatively, you have the option of creating the node-to-node interconnection using two of each server node's four 10 GbE network interface ports with RJ-45 connections. Refer to the Oracle Database Appliance Deployment and User's Guide for more information.

One integrated cluster device with node-to-node interconnection is provided on each server node through two InfiniBand ports with QSFP+ connections.

Alternatively, you have the option of creating the node-to-node interconnection using two of each server node's four 10 GbE network interface ports with RJ-45 connections. Refer to the Oracle Database Appliance Deployment and User's Guide for more information.

SAS ports

N/A

Two internal SAS2 and four external SAS2 ports on each server node.

Six SAS2 ports on the storage shelf (four used).

Six SAS2 ports on the storage expansion shelf (four used).

Two internal SAS2 and four external SAS2 ports on each server node.

Six SAS2 ports on the storage shelf (four used).

Six SAS2 ports on the storage expansion shelf (four used).

Two internal SAS3 and four external SAS3 ports on each server node.

Six SAS2 ports on the storage shelf (four used).

Six SAS2 ports on the storage expansion shelf (four used).

Onboard Ethernet ports

Two 1 GbE network interface ports with RJ-45 connectors located on the back panel of each server node.

Four auto-sensing 100/1000/10000 Base-T Ethernet ports with RJ-45 connectors located on the back of each server node.

Four auto-sensing 100/1000/10000 Base-T Ethernet ports with RJ-45 connectors located on the back of each server node.

Four auto-sensing 100/1000/10000 Base-T Ethernet ports with RJ-45 connectors located on the back of each server node.

Optionally, you can purchase the Sun Dual 10GbE SFP+ PCIe 2.0 Low Profile Adapter as a replacement for the standard InfiniBand adapter if an Ethernet fiber connection to the data center or public network is required. See Optional Component Installation.

Network management (NET MGT) port

One 10/100Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on the back panel of each server node.

One 10/100Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on the back panel of each server node.

One 10/100Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on the back panel of each server node.

One 10/100/1000Base-T network interface port with RJ-45 connector dedicated to the service processor (SP) on the back panel of each server node.

Serial management (SER MGT) port

One RS-232 RJ-45 serial port on the back panel of each server node.

One RS-232 RJ-45 serial port on the back panel of each server node.

One RS-232 RJ-45 serial port on the back panel of each server node.

One RS-232 RJ-45 serial port on the back panel of each server node.

VGA port

One high-density HD-15 video port on the back panel of each server node.

One high-density HD-15 video port on the back panel of each server node.

One high-density HD-15 video port on the back panel of each server node.

One high-density HD-15 video port on the back panel of each server node.

Service Processor (SP)

Each server node has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100Base-T management port and optionally through one of the host GbE ports (sideband management)

Each server node has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100Base-T management port and optionally through one of the host GbE ports (sideband management).

Each server node has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100Base-T management port and optionally through one of the host GbE ports (sideband management).

Each server node has a service processor with the following features:

  • Includes the Baseboard Management Controller (BMC), which supports the industry-standard Intelligent Platform Management Interface (IPMI) feature set.

  • Supports remote KVMS over IP.

  • Supports Ethernet access to SP through a dedicated 10/100/1000Base-T management port and optionally through one of the host GbE ports (sideband management).

Power supplies

Two hot-pluggable power supplies per chassis.

Two hot-pluggable power supplies per server node and per storage shelf.

Two hot-pluggable power supplies per server node and per storage shelf.

Two hot-pluggable power supplies per server node and per storage shelf.

Cooling fans

Two redundant hot-pluggable fan modules per server node.

Four 40-mm, hot-pluggable fan modules per server node for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply (server node and storage shelf) has its own cooling fans.

Four 40-mm, hot-pluggable fan modules per server node for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply (server node and storage shelf) has its own cooling fans.

Four 40-mm, hot-pluggable fan modules per server node for chassis cooling. Each fan module contains two counter-rotating fan pairs (four rotors total).

Each power supply (server node and storage shelf) has its own cooling fans.

Operating system

Oracle Linux.

Oracle Linux.

Oracle Linux.

Oracle Linux.

Management software

Oracle Integrated Lights Out Manager (ILOM) 3.0.

Oracle Integrated Lights Out Manager (ILOM) 3.1.

Oracle Integrated Lights Out Manager (ILOM) 3.1.

Oracle Integrated Lights Out Manager (ILOM) 3.2.

Parent topic: Supported Components and Capabilities

Oracle Database Appliance X8-2S/X8-2M Front and Back Panels

See views and descriptions of front and back panel features for Oracle Database Appliance X8-2S/X8-2M.

This section describes Oracle Database Appliance X8-2S/X8-2M front and back panels. If you have some other Oracle Database Appliance model, select the appropriate link listed in Overview of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance X8-2S Front Panel

See an illustration and description of Oracle Database Appliance X8-2S front panel features.

Oracle Database Appliance X8-2S server occupies 2RU of rack space.

The following figure shows the components on the front panel of an Oracle Database Appliance X8-2S.


Description of gxxxx-x8-2s_front_panel.png follows
Description of the illustration gxxxx-x8-2s_front_panel.png

Callout Description

1

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

2

Locate LED/button: white

3

Service Required LED: amber

4

Power/OK LED: green

5

Power button

6

Fan Fault LED: amber

7

Power Supply (PS) Fault LED: amber

8

System Over Temperature Warning LED: amber

9

SP OK LED: green

10

DO NOT SERVICE

11 - 22

Front mounted drive slots:

  • NVMe0 in drive slot 0 (callout 11)
  • NVMe1 in slot 4 (callout 15)
  • Filler panels in slots 1 - 3 and 5 - 11 (callouts 12 - 14 and 16 - 22)

Parent topic: Oracle Database Appliance X8-2S/X8-2M Front and Back Panels

Oracle Database Appliance X8-2M Front Panel

See an illustration and description of Oracle Database Appliance X8-2M front panel features.

Oracle Database Appliance X8-2M server occupies 2RU of rack space.

The following figure shows the components on the front panel of an Oracle Database Appliance X8-2M.


Description of gxxxx-x8-2sm_front_panel.png follows
Description of the illustration gxxxx-x8-2sm_front_panel.png

Callout Description

1

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

2

Locate LED/button: white

3

Service Required LED: amber

4

Power/OK LED: green

5

Power button

6

Fan Fault LED: amber

7

Power Supply (PS) Fault LED: amber

8

System Over Temperature Warning LED: amber

9

SP OK LED: green

10

DO NOT SERVICE

11 - 22

Front mounted drive slots:

  • NVMe0 in drive slot 0 (callout 11)
  • NVMe1 in slot 1 (callout 12)
  • Filler panels in slots 2 - 11 (callouts 13 - 22)

Parent topic: Oracle Database Appliance X8-2S/X8-2M Front and Back Panels

Oracle Database Appliance X8-2S/X8-2M Back Panel

See an illustration and description of Oracle Database Appliance X8-2S/X8-2M back panel features.

The following figure shows the components on the back panel of an Oracle Database Appliance X8-2S/X8-2M.


Description of g7314_x8-2sm_rear_2_nics.jpg follows
Description of the illustration g7314_x8-2sm_rear_2_nics.jpg
Callout Description

1

Power Supply (PS) 1 with fan module

2

Power Supply (PS) 1 status indicators: Service Required LED: amber, AC OK LED: green

3

Power Supply (PS) 0 with fan module

4

Power Supply (PS) 0 status indicators: Service Required LED: amber, AC OK LED: green

5

PCIe card slot 1: filler panel

6

PCIe card slot 2:

  • Oracle Database Appliance X8-2S: filler panel
  • Oracle Database Appliance X8-2M: filler panel, or optional Oracle Dual Port 25Gb Ethernet Adapter, or optional Oracle Quad Port 10GBase-T Adapter
7

PCIe card slot 3:

  • Oracle Database Appliance X8-2S: filler panel
  • Oracle Database Appliance X8-2M: Oracle NVMe Switch PCIe card

8

PCIe card slot 4:

  • Oracle Database Appliance X8-2S: filler panel
  • Oracle Database Appliance X8-2M: Oracle NVMe Switch PCIe card

9

PCIe card slot 5: filler panel

10

PCIe card slot 6: filler panel

11

SER MGT port: RJ-45 serial port used to connect to the Oracle ILOM service processor

12

NET MGT port: 10/100/1000Base-T network interface port with RJ-45 connector used to connect to the Oracle ILOM service processor

13

100/1000BASE-T network interface port with RJ-45 connector: NET 0

14

USB 3.0 connector

15

System status indicators: Locate LED: white, Service Required LED: amber, Power/OK LED: green

16

PCIe card slot 7: public network interface card

  • Oracle Dual Port 25Gb Ethernet Adapter [16a]

    --or--

  • Oracle Quad Port 10GBase-T Adapter [16b]

17

PCIe card slot 8:

  • Oracle Database Appliance X8-2S: filler panel, or optional Oracle Dual Port 25Gb Ethernet Adapter, or optional Oracle Quad Port 10GBase-T Adapter
  • Oracle Database Appliance X8-2M: Oracle NVMe Switch PCIe card

18

PCIe card slot 9: Oracle NVMe Switch PCIe card

19

PCIe card slot 10: filler panel, or optional Oracle Dual Port 25Gb Ethernet Adapter, or optional Oracle Quad Port 10GBase-T Adapter

20

PCIe card slot 11: filler panel

Parent topic: Oracle Database Appliance X8-2S/X8-2M Front and Back Panels

Oracle Database Appliance X8-2-HA Front and Back Panels

See views and descriptions of front and back panel features for Oracle Database Appliance X8-2-HA.

This section describes Oracle Database Appliance X8-2-HA front and back panels. If you have some other Oracle Database Appliance model, select the appropriate link listed in Overview of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance X8-2-HA Front Panel

See an illustration and listing of Oracle Database Appliance X8-2-HA front panel features.

Oracle Database Appliance X8-2-HA includes two server nodes (two Oracle Server X8-2L's) and an Oracle DE3-24C storage shelf. The entire unit occupies 8RU. The optional storage expansion shelf requires an additional 4RU, increasing the total to 12RU.

The following figure shows the front of Oracle Database Appliance X8-2-HA with an optional storage expansion shelf.


Description of gxxxx-x8-2ha-front-callouts.jpg follows
Description of the illustration gxxxx-x8-2ha-front-callouts.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE3-24C)

4

Optional storage expansion shelf (DE3-24C)

Parent topic: Oracle Database Appliance X8-2-HA Front and Back Panels

Server Node Front Panel Features

See an illustration and listing of Oracle Database Appliance X8-2-HA server node front panel features.

The following figure shows the components on the front panel of an Oracle Database Appliance X8-2-HA server node.


Description of gxxxx-x8-2-ha_front_panel.png follows
Description of the illustration gxxxx-x8-2-ha_front_panel.png
Callout Description

1

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

2

Locate LED/button: white

3

Service Required LED: amber

4

Power/OK LED: green

5

Power button

6

Fan Fault LED: amber

7

Power Supply (PS) Fault LED: amber

8

System Over Temperature Warning LED: amber

9

SP OK LED: green

10

DO NOT SERVICE

11 - 22

Front mounted drive slots 0 - 11 (filler panels)

Note:

When contacting Oracle Support Services, use the Top Level Identifier (TLI) instead of the serial number. You can find the TLI by looking at the top of either server node or on the top of the storage shelf. For details, see Technical Support.

Storage Shelf Front Panel Features

See an illustration and listing of Oracle Database Appliance X8-2-HA storage shelf front panel features.

The following figure shows the Oracle Database Appliance X8-2-HA storage shelf front panel features.

Note:

There are three base configurations for the storage shelf: two fully populated and one partially populated (disk slots 6-23 are filler panels). Do not attempt to move or switch disks in the base configurations as it could cause the deployment to fail.

You have the option of upgrading the partially populated base configuration storage shelf to add disks to the empty slots. See Optional Component Installation. Upgrading the base configuration to a fully populated storage shelf will allow you to add a storage expansion shelf later, if needed.


Description of gxxxx-x8-2ha_storage_shelf_front_callouts.jpg follows
Description of the illustration gxxxx-x8-2ha_storage_shelf_front_callouts.jpg
Callout Description

1

Storage shelf Locate indicator

2

Storage shelf fault indicator

3

Storage shelf OK/power indicator

4

Storage shelf power supply fault indicator

5

Storage shelf IO module fault indicator

6

Drive Ready-to-Remove indicator

7

Drive fault indicator

8

Drive power/activity indicator

Oracle Database Appliance X8-2-HA Back Panel

See an illustration and listing of Oracle Database Appliance X8-2-HA back panel features.

This section describes the back panel features for Oracle Database Appliance X8-2-HA.

The following figure shows the Oracle Database Appliance X8-2-HA.


Description of gxxxx-x8-2ha-rear-callouts.jpg follows
Description of the illustration gxxxx-x8-2ha-rear-callouts.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE3-24C)

4

Optional storage expansion shelf (DE3-24C)

Parent topic: Oracle Database Appliance X8-2-HA Front and Back Panels

Server Node Back Panel Features

See an illustration and listing of Oracle Database Appliance X8-2-HA server node back panel features.

The following figure shows the components on the back panel of an Oracle Database Appliance X8-2-HA server node.


Description of g7315_x8-2-ha_rear_2_nics.jpg follows
Description of the illustration g7315_x8-2-ha_rear_2_nics.jpg
Callout Description

1

Power Supply (PS) 1 with fan module

2

Power Supply (PS) 1 status indicators: Service Required LED: amber, AC OK LED: green

3

Power Supply (PS) 0 with fan module

4

Power Supply (PS) 0 status indicators: Service Required LED: amber, AC OK LED: green

5

PCIe card slot 1: Oracle Dual Port 25Gb Ethernet Adapter provides two ports with SFP28 connections for a private cluster interconnect between server nodes

6

PCIe card slot 2: filler panel, or optional Oracle Dual Port 25Gb Ethernet Adapter, or optional Oracle Quad Port 10GBase-T Adapter

7

PCIe card slot 3: provides two SAS3 connectors used to connect the servers to the storage shelf and the storage expansion shelf

8 - 10

PCIe card slots 4 - 6: filler panels

11

SER MGT port: RJ-45 serial port used to connect to the Oracle ILOM service processor

12

NET MGT port: 10/100/1000Base-T network interface port with RJ-45 connector used to connect to the Oracle ILOM service processor

13

100/1000BASE-T network interface port with RJ-45 connector: NET 0

14

USB 3.0 connector

15

System status indicators: Locate LED: white, Service Required LED: amber, Power/OK LED: green

16

PCIe card slot 7: public network interface card

  • Oracle Dual Port 25Gb Ethernet Adapter [16a]

    --or--

  • Oracle Quad Port 10GBase-T Adapter [16b]

17

PCIe card slot 8: provides two SAS3 connectors used to connect the servers to the storage shelf and the storage expansion shelf

18

PCIe card slot 9: filler panel

19

PCIe card slot 10: filler panel, or optional Oracle Dual Port 25Gb Ethernet Adapter, or optional Oracle Quad Port 10GBase-T Adapter

20

PCIe card slot 11: filler panel
Storage Shelf Back Panel Features

See an illustration and listing of Oracle Database Appliance X8-2-HA storage shelf back panel features.

The following figure shows the Oracle Database Appliance X8-2-HA storage shelf back features.

Note:

The network ports on the storage shelf are intended for use by service engineers only.

Description of g5697-de3-24c-rear-callouts.jpg follows
Description of the illustration g5697-de3-24c-rear-callouts.jpg
Callout Description

1

AC power indicator

2

Fan fail indicator

3

Power supply status indicator

4

DC power fail indicator

5

Power Supply with fan module 0

6

Service ports (reserved for Oracle Service only)

7

SAS I/O module 1

8

SAS I/O module 0

9

Power Supply with fan module 1

Oracle Database Appliance X7-2S/X7-2M Front and Back Panels

See views and descriptions of front and back panel features for Oracle Database Appliance X7-2S/X7-2M.

This section describes Oracle Database Appliance X7-2S/X7-2M front and back panels. If you have some other Oracle Database Appliance model, select the appropriate link listed in Overview of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance X7-2S/X7-2M Front Panel

See an illustration and description of Oracle Database Appliance X7-2S/X7-2M front panel features.

Oracle Database Appliance X7-2S and Oracle Database Appliance X7-2M servers each occupy 1RU.

The following figure shows the components on the front panel of an Oracle Database Appliance X7-2S/X7-2M.

Description of gxxxx-x7-2sm_front_panel.png follows
Description of the illustration gxxxx-x7-2sm_front_panel.png
Callout Description

1

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

2

Locate LED/button: white

3

Service Required LED: amber

4

Power/OK LED: green

5

Power button

6

Fan Fault LED: amber

7

Power Supply (PS) Fault LED: amber

8

System Over Temperature Warning LED: amber

9

SP OK LED: green

10

DO NOT SERVICE

11 - 12

NVMe0, NVMe1

13 - 18

HDD filler

Parent topic: Oracle Database Appliance X7-2S/X7-2M Front and Back Panels

Oracle Database Appliance X7-2S/X7-2M Back Panel

See an illustration and description of Oracle Database Appliance X7-2S/X7-2M back panel features.

The following figure shows the components on the back panel of an Oracle Database Appliance X7-2S/X7-2M.


Description of gxxxx-x7-2sm_rear_panel.png follows
Description of the illustration gxxxx-x7-2sm_rear_panel.png

Callout Description

1

Power Supply (PS) 0 with fan module

2

Power Supply (PS) 0 status indicators: Service Required LED: amber, AC OK LED: green

3

Power Supply (PS) 1 with fan module

4

Power Supply (PS) 1 status indicators: Service Required LED: amber, AC OK LED: green

5

System status indicators: Locate LED: white, Service Required LED: amber, Power/OK LED: green

6

PCIe card slot 1: empty

7

PCIe card slot 2: empty

8

PCIe card slot 3: empty

PCIe card slot 4 (internal): empty.

9

NET MGT port. Service processor 10/100/1000Base-T network interface port with RJ-45 connector used to connect to Oracle Integrated Lights Out Manager (ILOM)

10

1 GbE RJ-45 network interface port: NET 0

11

1/10 GbE RJ-45 network interface port: NET 1

The system can be configured to use either the 10 GbE RJ-45 network ports or the 10/25 GbE SFP28 ports.

12

1/10 GbE RJ-45 network interface port: NET 2

The system can be configured to use either the 10 GbE RJ-45 network ports or the 10/25 GbE SFP28 ports.

13

10/25 GbE SFP28 network interface port: NET 1

The system can be configured to use either the 10 GbE RJ-45 network ports or the 10/25 GbE SFP28 ports.

14

10/25 GbE SFP28 network interface port: NET 2

The system can be configured to use either the 10 GbE RJ-45 network ports or the 10/25 GbE SFP28 ports.

15

USB 2.0 connector

16

SER MGT port. Service processor RJ-45 serial port used to connect to Oracle ILOM

Parent topic: Oracle Database Appliance X7-2S/X7-2M Front and Back Panels

Oracle Database Appliance X7-2-HA Front and Back Panels

See views and descriptions of front and back panel features for Oracle Database Appliance X7-2-HA.

This section describes Oracle Database Appliance X7-2-HA front and back panels. If you have some other Oracle Database Appliance model, select the appropriate link listed in Overview of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance X7-2-HA Front Panel

See an illustration and listing of Oracle Database Appliance X7-2-HA front panel features.

Oracle Database Appliance X7-2-HA includes two server nodes (two Oracle Server X7-2's) and an Oracle DE3-24C storage shelf. The entire unit occupies 6RU. The optional storage expansion shelf requires an additional 4RU, increasing the total to 10RU.

The following figure shows the front of Oracle Database Appliance X7-2-HA with an optional storage expansion shelf.

Description of gxxxx-x7-2ha-front-callouts.jpg follows
Description of the illustration gxxxx-x7-2ha-front-callouts.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE3-24C)

4

Optional storage expansion shelf (DE3-24C)

Parent topic: Oracle Database Appliance X7-2-HA Front and Back Panels

Server Node Front Panel Features

See an illustration and listing of Oracle Database Appliance X7-2-HA server node front panel features.

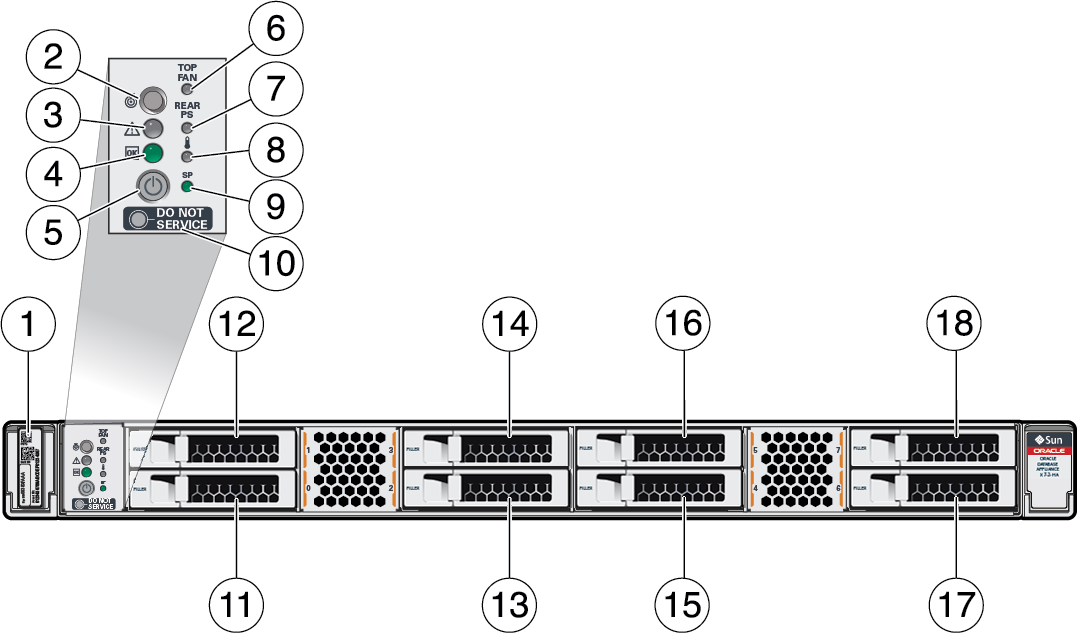

The following figure shows the components on the front panel of an Oracle Database Appliance X7-2-HA server node.

Description of gxxxx-x7-2ha_front_panel.png follows
Description of the illustration gxxxx-x7-2ha_front_panel.png
Callout Description

1

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

2

Locate LED/button: white

3

Service Required LED: amber

4

Power/OK LED: green

5

Power button

6

Fan Fault LED: amber

7

Power Supply (PS) Fault LED: amber

8

System Over Temperature Warning LED: amber

9

SP OK LED: green

10

DO NOT SERVICE

11 - 18

HDD/SSD 0 -7 (HDD filler)

Note:

When contacting Oracle Support Services, use the Top Level Identifier (TLI) instead of the serial number. You can find the TLI by looking at the top of either server node or on the top of the storage shelf. For details, see Technical Support.

Storage Shelf Front Panel Features

See an illustration and listing of Oracle Database Appliance storage shelf front panel features.

The following figure shows the Oracle Database Appliance X7-2-HA storage shelf front panel features.

Note:

There are three base configurations for the storage shelf: two fully populated and one partially populated (disk slots 5-19 are filler panels). Do not attempt to move or switch disks in the base configurations as it could cause the deployment to fail.

You have the option of upgrading the partially populated base configuration storage shelf to add disks to the empty slots. See Optional Component Installation. Upgrading the base configuration to a fully populated storage shelf will allow you to add a storage expansion shelf later, if needed.

Description of gxxxx-x7-2ha_storage_shelf_front_callouts.jpg follows
Description of the illustration gxxxx-x7-2ha_storage_shelf_front_callouts.jpg
Callout Description

1

Storage shelf Locate indicator

2

Storage shelf fault indicator

3

Storage shelf OK/power indicator

4

Storage shelf power supply fault indicator

5

Storage shelf IO module fault indicator

6

Drive Ready-to-Remove indicator

7

Drive fault indicator

8

Drive power/activity indicator

Oracle Database Appliance X7-2-HA Back Panel

See an illustration and listing of Oracle Database Appliance X7-2-HA back panel features.

This section describes the back panel features for Oracle Database Appliance X7-2-HA.

The following figure shows the Oracle Database Appliance X7-2-HA.

Description of gxxxx-x7-2ha_rear_view_2-shelves_callouts.jpg follows
Description of the illustration gxxxx-x7-2ha_rear_view_2-shelves_callouts.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE3-24C)

4

Optional storage expansion shelf (DE3-24C)

Parent topic: Oracle Database Appliance X7-2-HA Front and Back Panels

Server Node Back Panel Features

See an illustration and listing of Oracle Database Appliance X7-2-HA server node back panel features.

The following figure shows the components on the back panel of an Oracle Database Appliance X7-2-HA server node.

Description of gxxxx-x7-2ha_rear_view_callouts.png follows
Description of the illustration gxxxx-x7-2ha_rear_view_callouts.png
Callout Description

1

Power Supply (PS) 0 with fan module

2

Power Supply (PS) 0 status indicators: Service Required LED: amber, AC OK LED: green

3

Power Supply (PS) 1 with fan module

4

Power Supply (PS) 1 status indicators: Service Required LED: amber, AC OK LED: green

5

System status indicators: Locate LED: white, Service Required LED: amber, Power/OK LED: green

6

PCIe card slot 1. Provides two 10/25GbE network interface ports with SFP28 connections for a private cluster interconnect between server nodes.

7

PCIe card slot 2. Provides two SAS3 connectors used to connect the servers to the storage shelf and the storage expansion shelf.

8

PCIe card slot 3. Provides two SAS3 connectors used to connect the servers to the storage shelf and the storage expansion shelf.

9

NET MGT port. Service processor 10/100/1000Base-T network interface port with RJ-45 connector used to connect to Oracle Integrated Lights Out Manager (ILOM)

10

1 GbE RJ-45 network interface port: NET 0

11

1/10 GbE RJ-45 network interface port: NET 1

The system can be configured to use either the 10 GbE RJ-45 network ports or the 10/25 GbE SFP28 ports.

12

1/10 GbE RJ-45 network interface port: NET 2

The system can be configured to use either the 10 GbE RJ-45 network ports or the 10/25 GbE SFP28 ports.

13

10/25 GbE SFP28 network interface port: NET 1

The system can be configured to use either the 10 GbE RJ-45 network ports or the 10/25 GbE SFP28 ports.

14

10/25 GbE SFP28 network interface port: NET 2

The system can be configured to use either the 10 GbE RJ-45 network ports or the 10/25 GbE SFP28 ports.

15

USB 2.0 connector

16

SER MGT port. Service processor RJ-45 serial port used to connect to Oracle ILOM
Storage Shelf Back Panel Features

See an illustration and listing of Oracle Database Appliance X7-2-HA storage shelf back panel features.

The following figure shows the Oracle Database Appliance X7-2-HA storage shelf back features.

Note:

The network ports on the storage shelf are intended for use by service engineers only.

Description of g5697-de3-24c-rear-callouts.jpg follows
Description of the illustration g5697-de3-24c-rear-callouts.jpg
Callout Description

1

AC power indicator

2

Fan fail indicator

3

Power supply status indicator

4

DC power fail indicator

5

Power Supply with fan module 0

6

Service ports (reserved for Oracle Service only)

7

SAS I/O module 1

8

SAS I/O module 0

9

Power Supply with fan module 1

Oracle Database Appliance X6-2S/X6-2M/X6-2L Front and Back Panels

See views and descriptions of front and back panel features for Oracle Database Appliance X6-2S/X6-2M and X6-2L.

This section describes Oracle Database Appliance X6-2S/X6-2M/X6-2L front and back panels. If you have some other Oracle Database Appliance model, select the appropriate link listed in Overview of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance X6-2S/X6-2M Front Panel

See an illustration and description of Oracle Database Appliance X6-2S/X6-2M front panel features.

Oracle Database Appliance X6-2S and Oracle Database Appliance X6-2M servers each occupy 1RU.

The following figure shows the components on the front panel of an Oracle Database Appliance X6-2S/X6-2M.

Description of g5374_x6-2-node_numbered.jpg follows
Description of the illustration g5374_x6-2-node_numbered.jpg
Callout Description

1

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

2

Locate LED/button: white

3

USB 2.0 connectors (2)

4

SP OK LED: green

5

Service Required LED: amber

6

Power/OK LED: green

7

Power button

8

Fan Fault LED: amber

9

Power Supply (PS) Fault LED: amber

10

System Over Temperature Warning LED: amber

11 - 12

HDD 0 - HDD 1 (boot drives)

13 - 16

NVMe0, NVMe1, NVMe2 (or HDD filler), NVMe3 (or HDD filler)

17 - 18

HDD filler

19

DVD filler

Parent topic: Oracle Database Appliance X6-2S/X6-2M/X6-2L Front and Back Panels

Oracle Database Appliance X6-2S/X6-2M Back Panel

See an illustration and description of Oracle Database Appliance X6-2S/X6-2M back panel features.

The following figure shows the components on the back panel of an Oracle Database Appliance X6-2S/X6-2M.

Description of g5495_rear_view_x6-2sm_components.jpg follows
Description of the illustration g5495_rear_view_x6-2sm_components.jpg
Callout Description

1

Power Supply (PS) 0 with fan module

2

Power Supply (PS) 0 status indicators: Service Required LED: amber, AC OK LED: green

3

Power Supply (PS) 1 with fan module

4

Power Supply (PS) 1 status indicators: Service Required LED: amber, AC OK LED: green

5

System status indicators: Locate LED: white, Service Required LED: amber, Power/OK LED: green

6

PCIe card slot 1: empty

7

PCIe card slot 2: NVMe Switch PCIe Card

8

PCIe card slot 3. Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter. Provides two 10 GbE dual-rate SFP+ ports.

PCIe card slot 4 (internal). Dual-port Internal 12Gb/s SAS3 host bus adapter. Provides support for the server's internal SAS storage.

9

NET MGT port. Service processor 10/100/1000Base-T network interface port with RJ-45 connector used to connect to Oracle Integrated Lights Out Manager (ILOM)

10

SER MGT port. Service processor RJ-45 serial port used to connect to Oracle ILOM

11

10 GbE network interface port with RJ-45 connector

Ethernet ports NET 2 and NET 3 are nonfunctional in Oracle Database Appliance X6-2S.

12

10 GbE network interface port with RJ-45 connector

Ethernet ports NET 2 and NET 3 are nonfunctional in Oracle Database Appliance X6-2S.

13

10 GbE network interface port with RJ-45 connector

14

10 GbE network interface port with RJ-45 connector

15

USB 2.0 connectors (2)

16

DB-15 video connector

Parent topic: Oracle Database Appliance X6-2S/X6-2M/X6-2L Front and Back Panels

Oracle Database Appliance X6-2L Front Panel

See an illustration and description of Oracle Database Appliance X6-2L-2M front panel features.

The Oracle Database Appliance X6-2L server occupies 2RU.

The following figure shows the components on the front panel of an Oracle Database Appliance X6-2L.

Description of g5494-x6-2l_front_panel_callouts.jpg follows
Description of the illustration g5494-x6-2l_front_panel_callouts.jpg
Callout Description

1

Locate LED/button: white

2

Service Required LED: amber

3

Power/OK LED: green

4

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

5

SP OK LED: green

6

Power button

7 - 15

NVMe0, NVMe1, NVMe2 (or HDD filler), NVMe3, NVMe4, NVMe5 (or HDD filler), NVMe6, NVMe7, NVMe8 (or HDD filler)

Slots NVMe2 (callout 9), NVMe5 (callout 12) and NVMe8 (callout 15) are available for storage expansion on base configuration models. See Optional Component Installation.

16 - 18

Slots NVMe9 - NVMe11

Note that these NVMe slots are not supported for use with this product.

19

Top Fan Fault LED: amber

Power Supply (PS) Fault LED: amber

System Over Temperature Warning LED: amber

20

USB 2.0 connectors (2)

Parent topic: Oracle Database Appliance X6-2S/X6-2M/X6-2L Front and Back Panels

Oracle Database Appliance X6-2L Back Panel

See an illustration and description of Oracle Database Appliance X6-2L-2M back panel features.

The following figure shows the components on the back panel of an Oracle Database Appliance X6-2L.

Description of g5496-x6-2l_back_panel_callouts.jpg follows
Description of the illustration g5496-x6-2l_back_panel_callouts.jpg
Callout Description

1

rear HDD 0 (boot drive)

2

rear HDD 1 (boot drive)

3

Power Supply (PS) 0 with fan module

Power Supply (PS) 0 status indicators: Service Required LED: amber, AC OK LED: green

4

Power Supply (PS) 1 with fan module

Power Supply (PS) 1 status indicators: Service Required LED: amber, AC OK LED: green

5

PCIe card slot 1: Sun Dual 10GbE SFP+ PCIe 2.0 Low Profile Adapter

6

PCIe card slot 2: Oracle NVMe Switch PCIe card

7

PCIe card slot 3: Oracle Storage 12 Gb SAS3 PCIe RAID Internal HBA

8

Four 10 GbE network interface ports with RJ-45 connectors

9

System status indicators: Locate LED: white, Service Required LED: amber, Power/OK LED: green

10

SER MGT port. Service processor RJ-45 serial port used to connect to Oracle ILOM

11

NET MGT port. Service processor 10/100/1000Base-T network interface port with RJ-45 connector used to connect to Oracle Integrated Lights Out Manager (ILOM)

12

USB 2.0 connectors (2)

13

DB-15 video connector

14

PCIe card slot 4: Filler panel

15

PCIe card slot 5: Oracle NVMe Switch PCIe card

16

PCIe card slot 6: Oracle NVMe Switch PCIe card

Parent topic: Oracle Database Appliance X6-2S/X6-2M/X6-2L Front and Back Panels

Oracle Database Appliance X6-2-HA Front and Back Panels

See views and descriptions of front and back panel features for Oracle Database Appliance X6-2-HA.

This section describes Oracle Database Appliance X6-2-HA front and back panels. If you have some other Oracle Database Appliance model, select the appropriate link listed in Overview of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance X6-2HA Front Panel

See an illustration and listing of Oracle Database Appliance X6-2-HA front panel features.

Oracle Database Appliance X6-2-HA includes two server nodes (two Oracle Server X6-2's) and an Oracle DE3-24C storage shelf. The entire unit occupies 6RU. The optional storage expansion shelf requires an additional 4RU, increasing the total to 10RU.

The following figure shows the front of Oracle Database Appliance X6-2-HA with an optional storage expansion shelf.

Description of g5698-x6-2ha-front-callouts.jpg follows
Description of the illustration g5698-x6-2ha-front-callouts.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE3-24C)

4

Optional storage expansion shelf (DE3-24C)

Parent topic: Oracle Database Appliance X6-2-HA Front and Back Panels

Server Node Front Panel Features

See an illustration and listing of Oracle Database Appliance X6-2-HA server node front panel features.

The following figure shows the components on the front panel of an Oracle Database Appliance X6-2-HA server node.

Description of g5374_x6-2-ha-node_numbered.jpg follows
Description of the illustration g5374_x6-2-ha-node_numbered.jpg
Callout Description

1

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

2

Locate LED/button: white

3

USB 2.0 connectors (2)

4

SP OK LED: green

5

Service Required LED: amber

6

Power/OK LED: green

7

Power button

8

Fan Fault LED: amber

9

Power Supply (PS) Fault LED: amber

10

System Over Temperature Warning LED: amber

11

HDD 0 (boot drive)

12

HDD 1 (boot drive)

13 - 18

HDD filler

19

DVD filler

Note:

When contacting Oracle Support Services, use the Top Level Identifier (TLI) instead of the serial number. You can find the TLI by looking at the top of either server node or on the top of the storage shelf. For details, see Technical Support.

Storage Shelf Front Panel Features

See an illustration and listing of Oracle Database Appliance storage shelf front panel features.

The following figure shows the Oracle Database Appliance X6-2-HA storage shelf front panel features.

Note:

In the base configuration storage shelf, disk slots 10-19 are empty (filler panels only). The system deployment will fail if the placement of the disks in the base configuration is changed.

You have the option of upgrading the base configuration storage shelf to add an additional ten 1.6 TB SAS SSDs in slots 10-19. See Optional Component Installation. Upgrading the base configuration to a fully populated storage shelf will allow you to add a storage expansion shelf later, if needed.

Description of g5497-x6-2ha_storage_shelf_front_callouts.jpg follows
Description of the illustration g5497-x6-2ha_storage_shelf_front_callouts.jpg
Callout Description

1

Storage shelf Locate indicator

2

Storage shelf fault indicator

3

Storage shelf OK/power indicator

4

Storage shelf power supply fault indicator

5

Storage shelf IO module fault indicator

6

Drive Ready-to-Remove indicator

7

Drive fault indicator

8

Drive power/activity indicator

Oracle Database Appliance X6-2-HA Back Panel

See an illustration and listing of Oracle Database Appliance X6-2-HA back panel features.

This section describes the back panel features for Oracle Database Appliance X6-2-HA.

The following figure shows the Oracle Database Appliance X6-2-HA.

Description of g5370-x6-2ha_rear_view_2-shelves_callouts.jpg follows
Description of the illustration g5370-x6-2ha_rear_view_2-shelves_callouts.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE3-24C)

4

Optional storage expansion shelf (DE3-24C)

Parent topic: Oracle Database Appliance X6-2-HA Front and Back Panels

Server Node Back Panel Features

See an illustration and listing of Oracle Database Appliance X6-2-HA server node back panel features.

The following figure shows the components on the back panel of an Oracle Database Appliance X6-2-HA server node.

Description of g5371-x6-2ha_rear_view_callouts.jpg follows
Description of the illustration g5371-x6-2ha_rear_view_callouts.jpg
Callout Description

1

Power Supply (PS) 0 with fan module

2

Power Supply (PS) 0 status indicators: Service Required LED: amber, AC OK LED: green

3

Power Supply (PS) 1 with fan module

4

Power Supply (PS) 1 status indicators: Service Required LED: amber, AC OK LED: green

5

System status indicators: Locate LED: white, Service Required LED: amber, Power/OK LED: green

6

Two interface options are available from the factory for the appliance:

  • 6a: PCIe card slot 1. Provides two InfiniBand network interface ports with QSFP+ connections for a private cluster interconnect between server nodes.

    --or--

  • 6b: PCIe card slot 1. Provides two 10GbE network interface ports with SFP+ connections for the data center or public network.

    Create the private cluster interconnect between the server nodes using two of each server node's four built-in 10 GbE network interface ports with RJ-45 connections. Refer to the Deployment and User's Guide for more information.

7

PCIe card slot 2. Provides two SAS3 connectors used to connect the servers to the storage shelf and the storage expansion shelf.

8

PCIe card slot 3. Provides two SAS3 connectors used to connect the servers to the storage shelf and the storage expansion shelf.

9

NET MGT port. Service processor 10/100/1000Base-T network interface port with RJ-45 connector used to connect to Oracle Integrated Lights Out Manager (ILOM)

10

SER MGT port. Service processor RJ-45 serial port used to connect to Oracle ILOM

11

10 GbE network interface port with RJ-45 connector

12

10 GbE network interface port with RJ-45 connector

13

10 GbE network interface port with RJ-45 connector

14

10 GbE network interface port with RJ-45 connector

15

USB 2.0 connectors (2)

16

DB-15 video connector
Storage Shelf Back Panel Features

See an illustration and listing of Oracle Database Appliance X6-2-HA storage shelf back panel features.

The following figure shows the Oracle Database Appliance X6-2-HA storage shelf back features.

Note:

The network ports on the storage shelf are intended for use by service engineers only.

Description of g5697-de3-24c-rear-callouts.jpg follows
Description of the illustration g5697-de3-24c-rear-callouts.jpg
Callout Description

1

AC power indicator

2

Fan fail indicator

3

Power supply status indicator

4

DC power fail indicator

5

Power Supply with fan module 0

6

Service ports (reserved for Oracle Service only)

7

SAS I/O module 1

8

SAS I/O module 0

9

Power Supply with fan module 1

Oracle Database Appliance X5-2 Front and Back Panels

See views and descriptions of front and back panel features for Oracle Database Appliance X5-2.

This section describes Oracle Database Appliance X5-2 front and back panels. If you have some other Oracle Database Appliance model, select the appropriate link listed in Overview of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance X5-2 Front Panel

See an illustration and listing of Oracle Database Appliance X5-2 front panel features.

Oracle Database Appliance X5-2 includes two server nodes (two Oracle Server X5-2's) and an Oracle DE2-24C storage shelf. The entire unit occupies 6RU. The optional storage expansion shelf requires an additional 4RU, increasing the total to 10RU.

The following figure shows the front of Oracle Database Appliance X5-2 with an optional storage expansion shelf.

Description of a4159_front_view_oda_x5-2-callouts.jpg follows
Description of the illustration a4159_front_view_oda_x5-2-callouts.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE2-24C)

4

Optional storage expansion shelf (DE2-24C)

Parent topic: Oracle Database Appliance X5-2 Front and Back Panels

Server Node Front Panel Features

See an illustration and listing of Oracle Database Appliance X5-2 server node front panel features.

The following figure shows the components on the front panel of an Oracle Database Appliance X5-2 server node.

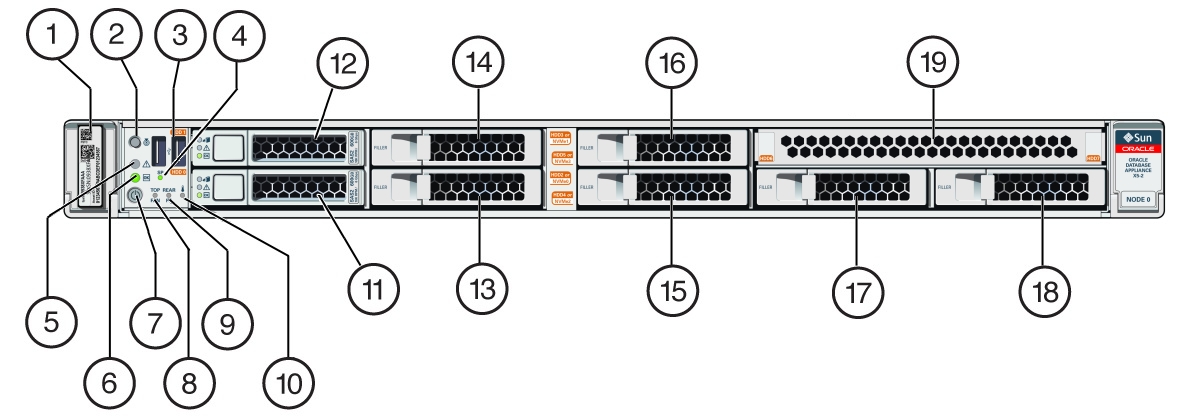

Description of a3421_oda-node_numbered.jpg follows
Description of the illustration a3421_oda-node_numbered.jpg
Callout Description

1

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

2

Locate LED/button: white

3

USB 2.0 connectors (2)

4

SP OK LED: green

5

Service Required LED: amber

6

Power/OK LED: green

7

Power button

8

Fan Fault LED: amber

9

Power Supply (PS) Fault LED: amber

10

System Over Temperature Warning LED: amber

11

HDD 0 (boot drive)

12

HDD 1 (boot drive)

13 - 18

HDD filler

19

DVD filler

Note:

When contacting Oracle Support Services, use the Top Level Identifier (TLI) instead of the serial number. You can find the TLI by looking at the top of either server node or on the top of the storage shelf. For details, see Technical Support.

Storage Shelf Front Panel Features

See an illustration and listing of Oracle Database Appliance storage shelf front panel features.

The following figure shows the Oracle Database Appliance X5-2 storage shelf front panel features.

Description of a4159a_front_view_shelf.jpg follows
Description of the illustration a4159a_front_view_shelf.jpg
Callout Description

1

Storage shelf OK/power indicator

2

Storage shelf fault indicator

3

Storage shelf Locate indicator

4

Drive power/activity indicator

5

Drive fault indicator

Oracle Database Appliance X5-2 Back Panel

See an illustration and listing of Oracle Database Appliance X5-2 back panel features.

The following figure shows the Oracle Database Appliance X5-2 back panel.

Description of a4160_rear_view_oda_x5-2-callouts.jpg follows
Description of the illustration a4160_rear_view_oda_x5-2-callouts.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE2-24C)

4

Optional storage expansion shelf (DE2-24C)

Parent topic: Oracle Database Appliance X5-2 Front and Back Panels

Server Node Back Panel Features

See an illustration and listing of Oracle Database Appliance X5-2 server node back panel features.

The following figure shows the components on the back panel of an Oracle Database Appliance X5-2 server node.

Description of a4161_rear_view_x5-2_components.jpg follows
Description of the illustration a4161_rear_view_x5-2_components.jpg
Callout Description

1

Power Supply (PS) 0 with fan module

2

Power Supply (PS) 0 status indicators: Service Required LED: amber, AC OK LED: green

3

Power Supply (PS) 1 with fan module

4

Power Supply (PS) 1 status indicators: Service Required LED: amber, AC OK LED: green

5

System status indicators: Locate LED: white, Service Required LED: amber, Power/OK LED: green

6

PCIe card slot 1. Provides two InfiniBand network interface ports with QSFP+ connections for a private cluster interconnect between server nodes.

Alternatively, you have the option of creating the node-to-node interconnection using two of each server node's four 10 GbE network interface ports with RJ-45 connections. Refer to the Oracle Database Appliance Getting Started Guide for more information.

7

PCIe card slot 2. Provides two SAS3 connectors used to connect the servers to the storage shelf and the storage expansion shelf.

8

PCIe card slot 3. Provides two SAS3 connectors used to connect the servers to the storage shelf and the storage expansion shelf.

9

NET MGT port. Service processor 10/100/1000Base-T network interface port with RJ-45 connector used to connect to Oracle Integrated Lights Out Manager (ILOM)

10

SER MGT port. Service processor RJ-45 serial port used to connect to Oracle ILOM

11

10 GbE network interface port with RJ-45 connector

12

10 GbE network interface port with RJ-45 connector

13

10 GbE network interface port with RJ-45 connector

14

10 GbE network interface port with RJ-45 connector

15

USB 2.0 connectors (2)

16

DB-15 video connector
Storage Shelf Back Panel Features

See an illustration and listing of Oracle Database Appliance X5-2 storage shelf back panel features.

The following figure shows the Oracle Database Appliance X5-2 storage shelf back features.

Note:

The network ports on the storage shelf are intended for use by service engineers only.

Description of a4163_rear_view_oda_i-o_callouts.jpg follows
Description of the illustration a4163_rear_view_oda_i-o_callouts.jpg
Callout Description

1

AC power indicator

2

Fan fail indicator

3

Power supply status indicator

4

DC power fail indicator

5

Service ports (reserved for Oracle Service only)

6

SAS I/O module 1

7

Power Supply with fan module 0

8

SAS I/O module 0

9

Power Supply with fan module 1

Oracle Database Appliance X3-2/X4-2 Front and Back Panels

See views and descriptions of front and back panel features for Oracle Database Appliance X3-2/X4-2.

This section describes Oracle Database Appliance X3-2/X4-2 front and back panels. If you have some other Oracle Database Appliance model, select the appropriate link listed in Overview of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance X3-2/X4-2 Front Panel

See an illustration and listing of Oracle Database Appliance X3-2/X4-2 front panel features.

Oracle Database Appliance X3-2/X4-2 includes two server nodes (either two Sun Server X3-2's, or two Sun Server X4-2's) and an Oracle DE2-24P storage shelf. The entire unit occupies 4RU. The optional DE2-24P storage expansion shelf requires an additional 2RU, increasing the total to 6RU.

The following figure shows the front of Oracle Database Appliance X3-2/X4-2 with an optional storage expansion shelf. Except for product labeling, Oracle Database Appliance X3-2 and Oracle Database Appliance X4-2 are nearly identical in outward appearance.

Description of a2617_odaplus-2-front-viewb.jpg follows
Description of the illustration a2617_odaplus-2-front-viewb.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE2-24P)

4

Optional storage expansion shelf (DE2-24P)

Parent topic: Oracle Database Appliance X3-2/X4-2 Front and Back Panels

Server Node Front Panel Features

See an illustration and listing of Oracle Database Appliance X3-2/X4-2 server node front panel features.

The following figure shows the components on the front panel of an Oracle Database Appliance X3-2/X4-2 server node.

Description of a2596_odaplus-node-detail.jpg follows
Description of the illustration a2596_odaplus-node-detail.jpg
Callout Description

1

Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag

2

Locate LED/button: white

3

USB 2.0 connectors (2)

4

SP OK LED: green

5

Service Required LED: amber

6

Power/OK LED: green

7

Power button

8

Fan Fault LED: amber

9

Power Supply (PS) Fault LED: amber

10

System Over Temperature Warning LED: amber

11

HDD 0 (boot drive)

12

HDD 1 (boot drive)

13 - 18

HDD filler

Note:

When contacting Oracle Support Services, use the Top Level Identifier (TLI) instead of the serial number. You can find the TLI by looking at the top of either server node or on the top of the storage shelf. For details, see Technical Support.

Storage Shelf Front Panel Features

See an illustration and listing of Oracle Database Appliance X3-2/X4-2 storage shelf front panel features.

The following figure shows the Oracle Database Appliance X3-2/X4-2 storage shelf front panel features.

Description of a2597_odaplus-storage-mod-detail.jpg follows
Description of the illustration a2597_odaplus-storage-mod-detail.jpg
Callout Description

1

Storage shelf OK/power indicator

2

Storage shelf fault indicator

3

Storage shelf Locate indicator

4

Drive fault indicator

5

Drive power/activity indicator

Oracle Database Appliance X3-2/X4-2 Back Panel

See an illustration and listing of Oracle Database Appliance X3-2/X4-2 back panel features.

The following figure shows the Oracle Database Appliance X4-2. The Oracle Database Appliance X3-2 and Oracle Database Appliance X4-2 are identical except for the network card in PCIe slot 1 (see Server Node Back Panel Features).

The following figure shows the Oracle Database Appliance X3-2/X4-2 back panel.

Description of odaplus-rear-view.jpg follows
Description of the illustration odaplus-rear-view.jpg
Callout Description

1

Server node 1

2

Server node 0

3

Storage shelf (DE2-24P)

4

Optional storage expansion shelf (DE2-24P)

Parent topic: Oracle Database Appliance X3-2/X4-2 Front and Back Panels

Server Node Back Panel Features

See an illustration and listing of Oracle Database Appliance X3-2/X4-2 server node back panel features.

The following figure shows the components on the back panel of an Oracle Database Appliance X3-2/X4-2 server node.

Description of odaplus-node-rear-detail.jpg follows
Description of the illustration odaplus-node-rear-detail.jpg
Callout Description

1

Power Supply (PS) 0 with fan module

2

Power Supply (PS) 0 status indicators: Service Required LED: amber, AC OK LED: green

3

Power Supply (PS) 1 with fan module

4

Power Supply (PS) 1 status indicators: Service Required LED: amber, AC OK LED: green

5

System status indicators: Locate LED: white, Service Required LED: amber, Power/OK LED: green

6

Oracle Database Appliance X4-2: PCIe card slot 1. Provides two 10 GbE dual-rate SFP+ ports for a private cluster interconnect between server nodes.

Alternatively, you have the option of creating the node-to-node interconnection using two of each server node's four 10 GbE network interface ports with RJ-45 connections. Refer to the Oracle Database Appliance Getting Started Guide for more information.

Oracle Database Appliance X3-2: PCIe card slot 1. Provides two 10 GbE network interface ports with RJ-45 connectors for a private cluster interconnect between server nodes.

7

PCIe card slot 2. Provides two SAS2 connectors used to connect the servers to the storage shelf and the storage expansion shelf.

8

PCIe card slot 3. Provides two SAS2 connectors used to connect the servers to the storage shelf and the storage expansion shelf.

9

NET MGT port. Service processor 10/100BASE-T network interface port with RJ-45 connector used to connect to Oracle Integrated Lights Out Manager (ILOM)

10

SER MGT port. Service processor RJ-45 serial port used to connect to Oracle ILOM

11

10 GbE network interface port with RJ-45 connector

12

10 GbE network interface port with RJ-45 connector

13

10 GbE network interface port with RJ-45 connector

14

10 GbE network interface port with RJ-45 connector

15

USB 2.0 connectors (2)

16

DB-15 video connector
Storage Shelf Back Panel Features

See an illustration and listing of Oracle Database Appliance X3-2/X4-2 storage shelf back panel features.

The following figure shows the Oracle Database Appliance X3-2/X4-2 storage shelf back panel.

Note:

The network ports on the storage shelf are intended for use by service engineers only.

Description of a2788_odaplus-storage-mod-rear-detail.jpg follows
Description of the illustration a2788_odaplus-storage-mod-rear-detail.jpg
Callout Description

1

AC power fail indicator

2

Power supply status indicator

3

Fan fail indicator

4

DC power fail indicator

5

Power Supply with fan module 0

6

Service ports (reserved for Oracle Service only)

7

SAS I/O module 1

8

SAS I/O module 0

9

Power Supply with fan module 1

Oracle Database Appliance Version 1 Front and Back Panels

See views and descriptions of front and back panel features for Oracle Database Appliance Version 1.

This section describes Oracle Database Appliance Version 1 front and back panels. If you have some other Oracle Database Appliance model, select the appropriate link listed in Overview of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Oracle Database Appliance Version 1 Front Panel

See an illustration and listing of Oracle Database Appliance Version 1 front panel features.

Oracle Database Appliance Version 1 includes two server nodes, SN0 and SN1. SN0 is on the bottom and SN1 is on the top. Server nodes are also called system controllers.

The following figure shows Oracle Database Appliance Version 1 front panel and describes its components.

Description of t4_127866_newcallouts_expanded3.jpg follows
Description of the illustration t4_127866_newcallouts_expanded3.jpg

Note:

The system has two each of items 1 through 8; one for each server node. It has only one RFID, product serial number tag, and, drive map.

Callout Description

1

Locate button/LED (white)

2

SP (service processor) OK LED (green = OK, amber = fault)

3

Server Node Ready to Remove LED (blue)

4

Service Required LED (amber)

5

Power/OK LED (green)

6

System Over Temperature LED (amber)

7

Rear HDD (hard disk drive)/PS (power supply)/Fan Fault LED (amber)

8

Power button (recessed)

9

Drive map

10

RFID (radio frequency identification) and product serial number tag

Parent topic: Oracle Database Appliance Version 1 Front and Back Panels

Oracle Database Appliance Version 1 Back Panel

See an illustration and listing of Oracle Database Appliance Version 1 back panel features.

The following figure shows Oracle Database Appliance Version 1 back panel and identifies the components on SN0. The components on SN1 are identical.

Description of rearallcalloutssmallwithflyout.jpg follows
Description of the illustration rearallcalloutssmallwithflyout.jpg
Callout Description

1

Power Supply Unit (PSU)

2

Locate button/LED (white)

3

Host nonmaskable interrupt (NMI) and SP reset recessed switches

4

Status LEDs:

  • Server Node Ready to Remove LED (blue)

  • Service required LED (amber)

  • Power/OK LED (green)

5

External MiniSAS ports (2 per server node) - Reserved. Do not use or connect cables to these ports

6

PCI Express (PCIe) slot 0 - Dual 10 GbE network interface ports

7

PCIe slot 1 - Quad 1 GbE network interface ports with RJ-45 connectors

8

Fans

9

SER MGT port. Service processor RJ-45 serial port used to connect to Oracle ILOM

The management ports are intended for use by service engineers only.

10

Dual onboard 1 GbE network interface ports with RJ-45 connectors

11

USB ports

12

NET MGT port. Service processor 10/100BASE-T network interface port with RJ-45 connector used to connect to Oracle Integrated Lights Out Manager (ILOM)

The management ports are intended for use by service engineers only.

13

Video connector to console

14

Rear hard disk drives (RHDDs) (boot drives; 2 per server node)

The RHDDs are behind hinged access panels.

Parent topic: Oracle Database Appliance Version 1 Front and Back Panels

Oracle Database Appliance Specifications

This section describes the physical, electrical and environmental specifications for the various Oracle Database Appliance models.

  • Physical Specifications
    This section describes the physical specifications for the various versions of Oracle Database Appliance.
  • Electrical Specifications
    This section describes the electrical specifications for the various versions of Oracle Database Appliance.
  • Environmental Specifications
    This section describes the environmental specifications for the various versions of Oracle Database Appliance.

Parent topic: Overview of Oracle Database Appliance

Physical Specifications

This section describes the physical specifications for the various versions of Oracle Database Appliance.

Parent topic: Oracle Database Appliance Specifications

Physical Specifications for Oracle Database Appliance X8-2 Series
Item Oracle Database Appliance X8-2S Oracle Database Appliance X8-2M Oracle Database Appliance X8-2-HA

Height

86.9 mm (3.4 in)

86.9 mm (3.4 in)

86.9 mm (3.4 in) per server node

175 mm (6.9 in) per storage shelf

Width

445 mm (17.5 in)

445 mm (17.5 in)

445 mm (17.5 in) per server node

446.0 mm (17.6 in) per storage shelf

Depth

759.4 mm (29.9 in)

759.4 mm (29.9 in)

759.4 mm (29.9 in) per server node

558.0 mm (22.0 in) per storage shelf

Weight

28.6 kg (63 lbs)

28.6 kg (63 lbs)

28.6 kg (63 lbs) per server node

38.0 kg (84 lbs) per storage shelf

Parent topic: Physical Specifications

Physical Specifications for Oracle Database Appliance X7-2 Series
Item Oracle Database Appliance X7-2S Oracle Database Appliance X7-2M Oracle Database Appliance X7-2-HA

Height

42.6 mm (1.7 in)

42.6 mm (1.7 in)

42.6 mm (1.7 in) per server node

175 mm (6.9 in) per storage shelf

Width

436.5 mm (17.2 in)

436.5 mm (17.2 in)

436.5 mm (17.2 in) per server node

Storage shelf: 446.0 mm (17.6 in)

Depth

737.0 mm (29.0 in)

737.0 mm (29.0 in)

737.0 mm (29.0 in) per server node

Storage shelf: 558.0 mm (22.0 in)

Weight

16.1 kg (34.5 lbs)

16.1 kg (34.5 lbs)

16.1 kg (34.5 lbs) per server node

38.0 kg (84.0 lbs) per storage shelf

Parent topic: Physical Specifications

Physical Specifications for Oracle Database Appliance X6-2 Series
Item Oracle Database Appliance X6-2S Oracle Database Appliance X6-2M Oracle Database Appliance X6-2L Oracle Database Appliance X6-2-HA

Height

42.6 mm (1.7 in)

42.6 mm (1.7 in)

87.6 mm (3.5 in)

42.6 mm (1.7 in) per server node

175 mm (6.9 in) per storage shelf

Width

436.5 mm (17.2 in)

436.5 mm (17.2 in)

445.0 mm (17.5 in)

436.5 mm (17.2 in) per server node

Storage shelf: 446.0 mm (17.6 in)

Depth

737.0 mm (29.0 in)

737.0 mm (29.0 in)

737.0 mm (29.0 in)

737.0 mm (29.0 in) per server node

Storage shelf: 558.0 mm (22.0 in)

Weight

16.1 kg (35.4 lbs)

16.1 kg (35.4 lbs)

29.0 kg (64.0 lbs)

16.1 kg (34.5 lbs) per server node

38.0 kg (84.0 lbs) per storage shelf

Parent topic: Physical Specifications

Physical Specifications for Oracle Database Appliance Version 1 and Models X3-2, X4-2 and X5-2
Item Oracle Database Appliance Version 1 Oracle Database Appliance X3-2/X4-2 Oracle Database Appliance X5-2

Height

175.1 mm (6.9 in)

42.6 mm (1.7 in) per server node

87.9 mm (3.5 in) per storage shelf

42.6 mm (1.7 in) per server node

175 mm (6.9 in) per storage shelf

Width

437.0 mm (17.2 in) (without mounting ears)

482.6 mm (19 in) (with mounting ears)

Server node: 436.5 mm (17.2 in)

Storage shelf: 483.0 mm (19.0 in)

Server node: 436.5 mm (17.2 in)

Storage shelf: 483.0 mm (19.0 in)

Depth

762.0 mm (30.0 in)

782.0 mm (30.8 in) (including fan module handles and latches)

Server node: 737.0 mm (29.0 in)

Storage shelf: 630.0 mm (24.8 in)

Server node: 737.0 mm (29.0 in)

Storage shelf: 630.0 mm (24.8 in)

Weight

72.6 kg (160.0 lbs)

16.3 kg (36.0 lbs) per server node

24.0 kg (52.9 lbs) per storage shelf

16.3 kg (36.0 lbs) per server node

37.2 kg (82.0 lbs) per storage shelf

Parent topic: Physical Specifications

Electrical Specifications

This section describes the electrical specifications for the various versions of Oracle Database Appliance.

Parent topic: Oracle Database Appliance Specifications

Electrical Specifications for Oracle Database Appliance X8-2 Series
Item Oracle Database Appliance X8-2S Oracle Database Appliance X8-2M Oracle Database Appliance X8-2-HA

Server node power supply output rated maximum

1200W at 100-127 VAC

1200W at 200-240 VAC

1200W at 100-127 VAC

1200W at 200-240 VAC

1200W at 100-127 VAC

1200W at 200-240 VAC

Server node AC power

7.2A at 100-127 VAC

3.4A at 200-240 VAC

7.2A at 100-127 VAC

3.4A at 200-240 VAC

7.2A at 100-127 VAC

3.4A at 200-240 VAC

Storage shelf power supply output rated maximum

Not included

Not included

580W at 100-127 VAC

580W at 200-240 VAC

Storage shelf AC Power

Not included

Not included

8A at 100-127 VAC

3A at 220-240 VAC

Power usage

For more information on power consumption, see Oracle Server X8-2L Power Calculator.

For more information on power consumption, see Oracle Server X8-2L Power Calculator.

Server node

  • Maximum: 522W

  • Typical: 217W

Storage shelf (24 SSDs)

  • Maximum: 452W

  • Typical: 257W

Storage shelf (6 SSDs, 14 HDDs)

  • Maximum: 421W

  • Typical: 261W
Electrical Specifications for Oracle Database Appliance X7-2 Series
Item Oracle Database Appliance X7-2S Oracle Database Appliance X7-2M Oracle Database Appliance X7-2-HA

Server node power supply output rated maximum

1200W at 100-127 VAC

1200W at 200-240 VAC

1200W at 100-127 VAC

1200W at 200-240 VAC

1200W at 100-127 VAC

1200W at 200-240 VAC

Server node AC power

7.2A at 100-127 VAC

3.4A at 200-240 VAC

7.2A at 100-127 VAC

3.4A at 200-240 VAC

7.2A at 100-127 VAC

3.4A at 200-240 VAC

Storage shelf power supply output rated maximum

Not included

Not included

580W at 100-127 VAC

580W at 200-240 VAC

Storage shelf AC Power

Not included

Not included

8A at 100-127 VAC

3A at 220-240 VAC

Power usage

For more information on power consumption, see Oracle Server X7-2 Power Calculator.

For more information on power consumption, see Oracle Server X7-2 Power Calculator.

Server node

  • Maximum: 479W

  • Typical: 172W

Storage shelf

  • Maximum: 453W

  • Typical: 322W
Electrical Specifications for Oracle Database Appliance X6-2 Series
Item Oracle Database Appliance X6-2S Oracle Database Appliance X6-2M Oracle Database Appliance X6-2L Oracle Database Appliance X6-2-HA

Server node power supply output rated maximum

600W at 100-127 VAC

600W at 200-240 VAC

600W at 100-127 VAC

600W at 200-240 VAC

1000W at 100-127 VAC

1000W at 200-240 VAC

600W at 100-127 VAC

600W at 200-240 VAC

Server node AC power

7.2A at 100-127 VAC

3.4A at 200-240 VAC

7.2A at 100-127 VAC

3.4A at 200-240 VAC

8.5 -12A at 100-127 VAC

5.7A at 200-240 VAC

7.2A at 100-127 VAC

3.4A at 200-240 VAC

Storage shelf power supply output rated maximum

Not included

Not included

Not included

580W at 100-127 VAC

580W at 200-240 VAC

Storage shelf AC Power

Not included

Not included

Not included

8A at 100-127 VAC

3A at 220-240 VAC

Power usage

Not available

Not available

Not available

Server node

  • Maximum: 336W

  • Typical: 142W

Storage shelf

  • Maximum: 453W

  • Typical: 322W
Electrical Specifications for Oracle Database Appliance Version 1 and Models X3-2, X4-2 and X5-2
Item Oracle Database Appliance Version 1 Oracle Database Appliance X3-2/X4-2 Oracle Database Appliance X5-2

Server node power supply output rated maximum

1270W at 100-120 VAC

1370W at 200-240 VAC

600W at 100-127 VAC

600W at 200-240 VAC

600W at 100-127 VAC

600W at 200-240 VAC

Server node AC power

12A at 110-127 VAC

7A at 200-240 VAC

13A at 100 VAC (Japan only)

7.2A at 100-127 VAC

3.4A at 200-240 VAC

7.2A at 100-127 VAC

3.4A at 200-240 VAC

Storage shelf power supply output rated maximum

Not supported

580W at 100-127 VAC

580W at 200-240 VAC

580W at 100-127 VAC

580W at 200-240 VAC

Storage shelf AC Power

Not supported

8A at 100-127 VAC

3A at 220-240 VAC

8A at 100-127 VAC

3A at 220-240 VAC

Power usage

Not available

Server node

  • X4-2 maximum: 439W

    X4-2 typical: 164W

  • X3-2 maximum: 551W

    X3-2 typical: 178W

Storage shelf

  • Maximum: 699W

  • Typical: 325W

Server node

  • Maximum: 727W

  • Typical: 508W

Storage shelf

  • Maximum: 699W

  • Typical: 469W

Environmental Specifications

This section describes the environmental specifications for the various versions of Oracle Database Appliance.

Parent topic: Oracle Database Appliance Specifications

Environmental Specifications for Oracle Database Appliance X8-2 Series
Item Oracle Database Appliance X8-2S Oracle Database Appliance X8-2M Oracle Database Appliance X8-2-HA

Operating temperature

5° C to 35° C (41° F to 95° F)

5° C to 35° C (41° F to 95° F)

5° C to 35° C (41° F to 95° F)

Nonoperating temperature

-40° C to 70° C (-40° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

Operating humidity

10% to 90% relative humidity, noncondensing

10% to 90% relative humidity, noncondensing

10% to 90% relative humidity, noncondensing

Nonoperating humidity

Up to 93% relative humidity, noncondensing

Up to 93% relative humidity, non-condensing

Up to 93% relative humidity, non-condensing

Operating altitude

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China markets where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft)

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft)

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft)

Nonoperating altitude

Up to 12,000 m (39,370 ft)

Up to 12,000 m (39,370 ft)

Up to 12,000 m (39,370 ft)

Cooling

For more information on power consumption, see Oracle Server X8-2L Power Calculator

For more information on power consumption, see Oracle Server X8-2L Power Calculator

Server node, see Oracle Server X8-2L Power Calculator

Storage shelf

  • At maximum usage: 1553 BTU/h

  • At typical usage: 874 BTU/h

Acoustic noise

8.1 Bels A-weighted operating, 5.8 Bels A-weighted idling

8.1 Bels A-weighted operating, 5.8 Bels A-weighted idling

8.1 Bels A-weighted operating, 5.8 Bels A-weighted idling
Environmental Specifications for Oracle Database Appliance X7-2 Series
Item Oracle Database Appliance X7-2S Oracle Database Appliance X7-2M Oracle Database Appliance X7-2-HA

Operating temperature

5° C to 35° C (41° F to 95° F)

5° C to 35° C (41° F to 95° F)

5° C to 35° C (41° F to 95° F)

Nonoperating temperature

-40° C to 70° C (-40° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

Operating humidity

10% to 90% relative humidity, noncondensing

10% to 90% relative humidity, noncondensing

10% to 90% relative humidity, noncondensing

Nonoperating humidity

Up to 93% relative humidity, noncondensing

Up to 93% relative humidity, non-condensing

Up to 93% relative humidity, non-condensing

Operating altitude

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China markets where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft)

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft)

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft)

Nonoperating altitude

Up to 12,000 m (39,370 ft)

Up to 12,000 m (39,370 ft)

Up to 12,000 m (39,370 ft)

Cooling

For more information on power consumption, see Oracle Server X7-2 Power Calculator

For more information on power consumption, see Oracle Server X7-2 Power Calculator

Server node, see Oracle Server X7-2 Power Calculator

Storage shelf

  • At maximum usage: 1553 BTU/h

  • At typical usage: 874 BTU/h

Acoustic noise

7.0 Bels A-weighted operating, 7.0 Bels A-weighted idling

7.0 Bels A-weighted operating, 7.0 Bels A-weighted idling

7.0 Bels A-weighted operating, 7.0 Bels A-weighted idling
Environmental Specifications for Oracle Database Appliance X6-2 Series
Item Oracle Database Appliance X6-2S Oracle Database Appliance X6-2M Oracle Database Appliance X6-2L Oracle Database Appliance X6-2-HA

Operating temperature

5° C to 35° C (41° F to 95° F)

5° C to 35° C (41° F to 95° F)

5° C to 35° C (41° F to 95° F)

5° C to 35° C (41° F to 95° F)

Nonoperating temperature

-40° C to 70° C (-40° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

Operating humidity

10% to 90% relative humidity, noncondensing

10% to 90% relative humidity, noncondensing

10% to 90% relative humidity, noncondensing

10% to 90% relative humidity, noncondensing

Nonoperating humidity

Up to 93% relative humidity, noncondensing

Up to 93% relative humidity, non-condensing

Up to 93% relative humidity, non-condensing

Up to 93% relative humidity, non-condensing

Operating altitude

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China markets where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft)

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft)

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft)

Up to 3,000 m* (9,840 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China where regulations might limit installations to a maximum altitude of 2,000 m (6,560 ft).

Nonoperating altitude

Up to 12,000 m (39,370 ft)

Up to 12,000 m (39,370 ft)

Up to 12,000 m (39,370 ft)

Up to 12,000 m (39,370 ft)

Cooling

Not available

Not available

Not available

Server node

  • At maximum usage: 1146 BTU/h

  • At typical usage: 485 BTU/h

Storage shelf

  • At maximum usage: 1553 BTU/h

  • At typical usage: 874 BTU/h

Acoustic noise

7.0 Bels A-weighted operating, 7.0 Bels A-weighted idling

7.0 Bels A-weighted operating, 7.0 Bels A-weighted idling

8.1 Bels A-weighted operating, 5.8 Bels A-weighted idling

7.0 Bels A-weighted operating, 7.0 Bels A-weighted idling
Environmental Specifications for Oracle Database Appliance Version 1 and Models X3-2, X4-2 and X5-2
Item Oracle Database Appliance Version 1 Oracle Database Appliance X3-2/X4-2 Oracle Database Appliance X5-2

Operating temperature

5° C to 35° C (41° F to 95° F)

5° C to 35° C (41° F to 95° F)

5° C to 35° C (41° F to 95° F)

Nonoperating temperature

-40° C to 70° C (-40° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

-40° C to 70° C (-40° F to 158° F)

Operating humidity

10% to 90% relative humidity, noncondensing

10% to 90% relative humidity, noncondensing

10% to 90% relative humidity, noncondensing

Nonoperating humidity

Up to 93% relative humidity, noncondensing

Up to 93% relative humidity, non-condensing

Up to 93% relative humidity, non-condensing

Operating altitude

Up to 3000 m* (9,840 ft). Maximum ambient temperature is derated by 1° C per 300 m (984 ft) above 900 m (2,953 ft)

* Except in China markets where regulations might limit installations to a maximum altitude of 2,000 m (6,562 ft)

Up to 3,048 m* (10,000 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China where regulations might limit installations to a maximum altitude of 2,000 m (6,562 ft)

Up to 3,048 m* (10,000 ft); maximum ambient temperature is derated by 1° C per 300 m above 900 m

* Except in China where regulations might limit installations to a maximum altitude of 2,000 m (6,562 ft)

Nonoperating altitude

Up to 12,000 m (39,370 ft)

Up to 12,000 m (39,370 ft)

Up to 12,000 m (39,370 ft)

Cooling

Not available

Server node

  • X4-2 at maximum usage: 1498 BTU/h

    X4-2 at typical usage: 560 BTU/h

  • X3-2 at maximum usage: 1744 BTU/h

    X3-2 at typical usage: 607 BTU/h

Storage shelf

  • At maximum usage: 2385 BTU/h

  • At typical usage: 1108 BTU/h

Server node

  • At maximum usage: 2482 BTU/h

  • At typical usage: 1734 BTU/h

Storage shelf

  • At maximum usage: 2385 BTU/h

  • At typical usage: 1600 BTU/h

Acoustic noise

7.8 B operating, 7.1 B idling (LwAd: 1 B=10 dB)

7.9 B operating, 5.58 B idling (LwAd: 1 B=10 dB)

7.0 Bels A-weighted operating, 7.0 Bels A-weighted idling

Technical Support

How to obtain technical support for your appliance.

For technical support, go to:

https://support.oracle.com/portal/

Oracle Database Appliance Version 1, X6-2S/X6-2M/X6-2L, X7-2S/X7-2M and X8-2S/X8-2M Oracle Database Appliance X3-2/X4-2/X5-2 and X6-2-HA/X7-2-HA/X8-2-HA

Report the serial number located on the front panel of the system, the top of the system, or on the Customer Information Sheet that is shipped with the system.

You only need to extend the server node a couple of inches on its slide rails to see the serial label on the top of the system. You do not need to release any cables, or slide it to the extended maintenance position.

Report the Top Level Identifier (TLI). To see the TLI, look on the Customer Information Sheet or look at the top of a server node or storage shelf on the left-hand side towards the front.

The TLI part number and TLI serial number are the same for the factory-bundled server nodes of an appliance. The following figure shows an example Top Level Identifier label:

Description of tli.jpg follows
Description of the illustration tli.jpg

If the appliance is in a rack where you cannot see the TLI, do one of the following:

  • Look on another component (server node or storage shelf) of the appliance. All factory-bundled server nodes of Oracle Database Appliance have the same TLI numbers.

  • Slide a server node partway out on its rails, just far enough to see the TLI. See the Oracle Database Appliance Service Manual for details.

    You only need to extend the server node a couple of inches on its slide rails to see the TLI. You do not need to release any cables, or slide it to the extended maintenance position.

Parent topic: Overview of Oracle Database Appliance
