The data source can be selected from the list of available data sources present in Figure 14-11.

Figure 14-24 RDF Network

Description of "Figure 14-24 RDF Network"

Select the desired Oracle RDF semantic network for the selected data source. Each network is identified by a network owner and network name.

You can execute the following semantic network actions:

Figure 14-25 RDF Network Actions

Description of "Figure 14-25 RDF Network Actions"

• Create an RDF network.
• Delete an RDF network.
• Gather statistics for a network.
• Refresh network indexes.
• Purge values not in use.

For Oracle RDF networks, the process of importing data into an RDF model is generally done by bulk loading the RDF triples that are available in the staging table.

Figure 14-26 RDF Import Data Actions

Description of "Figure 14-26 RDF Import Data Actions"

The available actions include:

• Upload one or more RDF files into a couple of Oracle RDF Graph staging tables. The staging table with suffix _CLOB will contain records with object values having length greater than 4k. These staging tables can be reused in other bulk load operations. Files with extensions .nt (N-triples), .nq (N-quads), .ttl (Turtle), .trig (TriG), and .jsonld (JsonLD) are supported for import. There is a limit of file size to be imported, which can be tuned by administrator.

  Also, zip files can be used to import multiple files at once. However, the zip file is validated first, and will be rejected if any of the following conditions occur:

  • Zip file contains directories
  • Zip entry name extension is not a known RDF format (.nt, .nq, .ttl, .trig, .jsonld)
  • Zip entry size or compressed size is undefined
  • Zip entry size does exceed maximum unzipped entry size
  • Inflate ratio between compressed size and file size is lower than minimum inflate ratio
  • Zip entries total size does exceed maximum unzipped total size

• Bulk load the staging table records into an Oracle RDF model.

• View the status of bulk load events.

SPARQL queries are cached data source, and they apply to Oracle data sources. The translations of the SPARQL queries into SQL expressions are cached for Oracle RDF network models. Each model can stores up to 64 different SPARQL queries translations. The Query Cache Manager dialog, allows you to browse data source network cache for queries executed in models.

Figure 14-27 SPARQL Query Cache Manager

Description of "Figure 14-27 SPARQL Query Cache Manager"

You can clear cache at different levels. The following describes the cache cleared against each level:

• Data source: All network caches are cleared.
• Network: All model caches are cleared.
• Model: All cached queries for model are cleared.
• Model Cache Identifier: Selected cache identifier is cleared.

Figure 14-28 Manage SPARQL Query Cache

Description of "Figure 14-28 Manage SPARQL Query Cache"

The navigator tree shows the available RDF objects for the selected data source.

• For Oracle data sources, it will contain the different concept types like models, virtual models, view models, RDF view models, rule bases, entailments, network indexes, and datatype indexes.

  Figure 14-29 RDF Objects for Oracle Data Source









• For endpoint RDF data sources, the RDF navigator will have a list of names representing the available RDF datasets in the RDF store.

  Figure 14-30 RDF Objects from capabilities








• If an external RDF data source does not have a capabilities URL, then just a default dataset is shown.

  Figure 14-31 Default RDF Object



To execute SPARQL queries and SPARQL updates, open the selected RDF object in the RDF objects navigator. For Oracle RDF objects, SPARQL queries are available for models (regular models, virtual models, and view models).

Different actions can be performed on the navigator tree nodes. Right-clicking on a node under RDF objects will bring the context menu options (such as Open, Rename, Analyze, Manage auxiliary tables, Delete, Create Graph Views, Visualize, and Publish) for that specific node.

Figure 14-32 RDF Navigator - Context Menu

If the selected RDF data source is public, a navigator node with the public datasets is displayed on the menu tree as shown in the following figure:

Figure 14-33 Data Source Published Datasets Navigator

To execute SPARQL queries and updates, open the selected RDF object in the RDF objects navigator. For Oracle RDF objects, SPARQL queries are available for regular models, virtual models, and view models.

You can define the following parameters for SPARQL queries:

• SPARQL: The query string.
• RDF options: Oracle RDF options to be used when processing a query (See Additional Query Options for more information.).
• Runtime parameters: Fetch size, query timeout and others (this is applied to Oracle RDF data sources).
• Rulebases: Rulebase names associated with RDF model in an entailment. If none, then the selection box will be empty.
• Binding parameters: The expression ?ora__bind is used as a binding parameter in a SPARQL string. Each binding parameter is defined by a type (uri or literal) and a value. For example:

  SELECT ?s ?p ?o WHERE { ?s ?p ?ora__bind } LIMIT 500

  An example of JSON representation of a binding parameter that can be passed to a REST query service is: { "type" : "literal", "value" : "abcdef" }

The following figure shows the SPARQL query page, containing the graph view.

Figure 14-34 SPARQL Query Page

The number of results on the SPARQL query is determined by the limit parameter in SPARQL string, or by the maximum number of rows that can be fetched from server. As an administrator you can set the maximum number of rows to be fetched in the settings page.

A graph view can be displayed for the query results. On the graph view, you must map the columns for the triple values (subject, predicate, and object). In a table view, the columns that represent URI values have hyperlinks.

Besides the Execute button to run the SPARQL query, there is also the Explain Plan button to retrieve the SQL query plan for the SPARQL. This basically displays a dialog with the EXPLAIN PLAN results and the SPARQL translation.

Figure 14-35 SQL EXPLAIN PLAN for SPARQL Translation

Description of "Figure 14-35 SQL EXPLAIN PLAN for SPARQL Translation"

For Oracle data sources, if the SPARQL query selects an RDF object value that represents a GeoSPARQL data type (such as WKT, GML, KML, or GeoJSON), a map visualization can be displayed by switching on Map view result. In this case, the SPARQL query must select the geometry attribute which is an RDF literal of a GeoSPARQL data type. On execution, this query will produce a GeoJSON result which is then passed to the map component for visualization. For example:

Figure 14-36 Map Visualization for GeoSPARQL Data Types in a SPARQL Query

Description of "Figure 14-36 Map Visualization for GeoSPARQL Data Types in a SPARQL Query"

To publish an Oracle RDF model as a dataset:

1. Right-click on the RDF model and select Publish from the menu as shown:

   Figure 14-37 Publish Menu


2. Enter the Dataset name (mandatory), Description, and Default SPARQL. This default SPARQL can be overwritten on the REST request.

   Figure 14-38 Publish RDF Model


3. Click OK.

   The public endpoint GET URL for the dataset is displayed. Note that the POST request can also be used to access the endpoint.

   Figure 14-39 GET URL Endpoint



   This URL uses the default values defined for the dataset and follows the pattern shown:

   http://${hostname}:${port_number}/orardf/api/v1/datasets/query/published/${dataset_name}

   You can override the default parameters stored in the dataset by modifying the URL to include one or more of the following parameters:

   • query: SPARQL query
   • format: Output format (JSON, XML, CSV, TSV, GeoJSON, N-Triples, Turtle)
   • options: String with Oracle RDF options
   • rulebases: Rulebase names associated with dataset RDF model in an entailment
   • params: JSON string with runtime parameters (timeout, fetchSize, and others)
   • bindings: JSON string with binding parameters (URI or literal values)

   The following shows the general pattern of the REST request to query published datasets (assuming the context root as orardf):

   http://${hostname}:${port_number}/orardf/api/v1/datasets/query/published/${dataset_name}?datasource=${datasource_name}&query=${sparql}&format=${format}&options=${rdf_options}&params=${runtime_params}&bindings=${binding_params}

   In order to modify the default parameters, you must open the RDF dataset definition by selecting Open from the menu options shown in the following figure or by double clicking the published dataset:

   Figure 14-40 Open an RDF Dataset Definition


   The RDF dataset definition for the selected published dataset opens as shown:

   Figure 14-41 RDF Dataset Definition



   You can update the default parameters and preview the results.

   Note:

   • RDF user with administrator privileges can update and unpublish any dataset.
   • RDF user with read and write privileges can only manage the datasets that the user created.
   • RDF user with read privileges can only query the dataset.

You can explore the published RDF datasets from a public web page.

You can access the page using the following URL format:

{protocol}://{host}:{port}/{app_name}/public.html

For example:

http://localhost:7101/orardf/public.html

The public web page is displayed as shown:

Figure 14-42 Public Web Page

Description of "Figure 14-42 Public Web Page"

The main components of this public page are:

• Published Datasets: contains the names of the published RDF datasets for public RDF data source. To open the RDF dataset double click it or right click the tree dataset and execute the Open menu item as shown:

  Figure 14-43 Opening a Published Dataset on the Public Page


  Description of "Figure 14-43 Opening a Published Dataset on the Public Page "
• The tab panel on the right allows you to execute SPARQL queries against the published RDF dataset. SPARQL query results are displayed in tabular as well as graph view formats. However, if the Accessibility switch on the top right corner of the page is switched ON, then the results are only displayed in tabular format.

  The following options are supported in the tab panel:

  • Templates: SPARQL template queries to use.
  • Add prefix: click to add the selected prefix in the combo box to a SPARQL query.
  • SPARQL: enter the SPARQL to be executed in the text area.
  • select/ask: select the output format for SPARQL SELECT and SPARQL ASK queries.
  • construct/describe: select the output format for SPARQL CONSTRUCT and SPARQL DESCRIBE queries.
  • Execute: click this button to execute the SPARQL query against the RDF public endpoint.
  • Table: shows the result in a tabular format.
  • Raw: shows the raw SPARQL result on specified format returned from server.
  • Download: click to download the raw response.

Result tables (also known as Subject-Property-Matrix (SPM) auxiliary tables) can be used to speed up SPARQL query execution. It is recommended you first refer to Speeding up Query Execution with Result Tables, for a detailed description of result tables. These auxiliary tables are associated with individual RDF graphs. Once they are created, they are automatically used during execution of SPARQL queries, unless specific options (see SPARQL Query Options for Result Tables) are passed in to indicate otherwise (note that the query cache may need to be cleared if the same SPARQL query is to be executed right after creating a result table).

There are three types of result tables based on the type of the query pattern used for producing the results to be stored:

• Star-Pattern tables (also known as Single-Valued Property or SVP tables) hold values for single-valued RDF properties. A property p is single-valued in an RDF model if each resource in the model has at most one value for p.
• Triple-Pattern tables (also known as Multi-Valued Property (MVP) tables) hold values for individual RDF properties.The property used for a triple-pattern table may be single-valued or multi-valued. (A property p is multi-valued in an RDF graph if it contains two triples (s p o1) and (s p o2) with o1 not equal to o2.)
• Chain-Pattern tables (also known as Property Chain (PCN) tables) hold paths in the RDF graph. A sequence of triples form a path if for each consecutive pair of triples, Ti and Tj, the object value of Ti is equal to the subject value of Tj.

Star-pattern and chain-pattern tables can be used to reduce joins during SPARQL query execution, while triple-pattern tables allow for more compact representation for triples involving individual properties. Additionally, if lexical values are included in the result tables, then joins needed for looking up lexical values can be avoided as well.

The RDF Server and Query UI web application provides support for creation and management of result tables. You can manage these auxiliary tables by right clicking the RDF graph and selecting the Manage Result Tables menu item as shown:

Figure 14-44 Result Tables

Description of "Figure 14-44 Result Tables"

The Result Tables page displays a table which lists the result tables present in the RDF graph. If you are a first time user, then this table list will be empty. In such a case, you need to create the Predicate Info Table that is required for creating and managing the result tables. The predicate info table stores information about each property used as predicate in the RDF graph. For each property (or its inverse), the stored information includes its id (or negative id, for the inverse), name, and statistics on cardinality (that is, the number of triples that use this property) per distinct subject (or, object, for the inverse). A value of one in the MAX_CNT column indicates that the property was single-valued when the statistics were last computed.

To create the predicate info table, click See predicate info table in the table menu bar and then select Create info table. Note that you also have the option to recreate the table at a later time as shown in the following image:

Figure 14-45 Predicate Info Table

Description of "Figure 14-45 Predicate Info Table"

Once the predicate info table is created, you can then create and manage the result tables.

• Creating Result Tables

• Managing Result Tables


The RDF Graph Query UI supports an advanced graph view feature that allows users to interact directly with the graph visualization. This is unlike the graph displayed on the RDF model editor or public component where the graph view is just an output of the SPARQL results on the paging table.

This section describes the advanced graph view component, starting from the execution of a SPARQL CONSTRUCT or SPARQL DESCRIBE query to advanced interaction with the graph visualization.

The main user interface (UI) elements of the advanced graph view component are as shown:

Figure 14-62 Advanced Graph View Components

Description of "Figure 14-62 Advanced Graph View Components"

The following describes the UI components seen in the preceding figure:

• SPARQL Query selector contains:
  • A text area with the SPARQL query (must be SPARQL CONSTRUCT or SPARQL DESCRIBE)
  • A tree with the root classes summaries (counts of incoming and outgoing predicates) resulting from the SPARQL query
• A graph view area that displays the graph with the RDF nodes and edges

To access the advanced graph view feature, right-click on the RDF model and select Visualize as shown:

Figure 14-63 Visualize Menu

Description of "Figure 14-63 Visualize Menu"

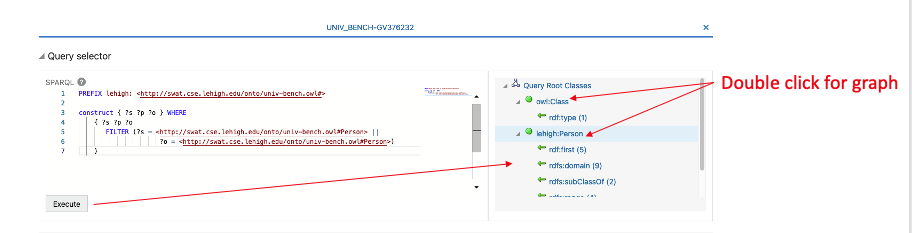

• Query Selector Panel

• Graph View


You can create relational views from RDF models. These views can represent a vertex or an edge view of a graph.

SPARQL query patterns can be used as a declarative language for specifying how to build vertex and edge views from RDF data.

It is important to note the following when creating the vertex and edge views from an RDF model:

• The RDF model must have classes defined and the application uses a SPARQL query to retrieve the distinct classes defined on an RDF model. For example:

  SELECT DISTINCT ?o
  WHERE { ?s a ?o } order by ?o

• One or more RDF classes can define a vertex view. A vertex view consists of:
  • Database vertex view name
  • Key attribute name
  • Vertex properties from RDF class
• One or two vertex views can define an edge view. An edge view consists of:
  • Database edge view name
  • Source and destination vertex keys
  • Label property from RDF classes

The following sections explain the steps to create a database graph view:

• Creating a Graph View

• Creating a Vertex View

• Creating an Edge View
