18.5.10.4 Specifying a REST Enabled SQL Reference in an Existing Component

Configure existing components to point to a remote database using a REST Enabled SQL service reference.

Note:

Before configuring a component to use a REST Enabled SQL service reference, , you must complete the tasks described in Before You Begin: REST Enabled SQL Service Requirements and create the reference as described in Creating a REST Enabled SQL Service Reference.

The following examples demonstrate how to configure the Source attributes for an existing Classic report and chart to point to a remote database using a REST Enabled SQL service reference named My REST Enabled SQL.

To configure existing components to point to a remote database using a REST Enabled SQL service reference:

  1. View the page containing the components to be reconfigured in Page Designer:
    1. On the Workspace home page, click the App Builder icon.
    2. Select an application.
    3. Select a page.
    Page Designer appears.
  2. In Page Designer, select the region containing the component (if not already selected) and edit the Source attributes.
  3. To specify a remote database for a report:
    1. In the Rendering tab (left pane), select the region (for example, Classic Report).
    2. In the Property Editor, edit the following:
      • Source, Location - Select REST Enabled SQL.
      • Source, Remote Server - Select the defined REST Enabled SQL Service reference (for example, My REST Enabled SQL.
      • Source, Type - Select how the data is queried. Select Table/View or SQL Query.
      • Configure the table or provide a SQL Query.
      • Configure the remaining attributes as needed.

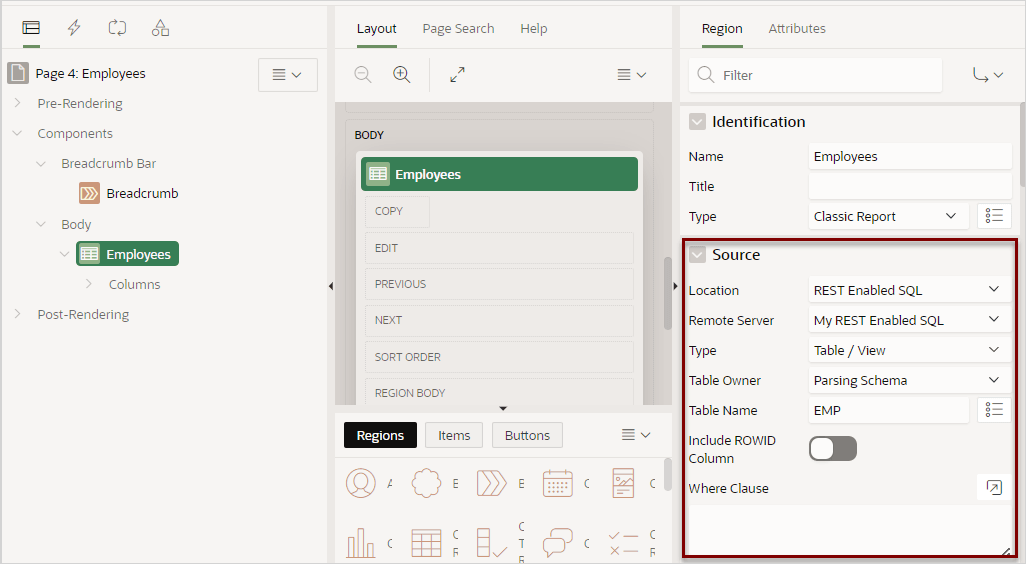

      In the following example, Classic Report is selected and the Source points to a Remote Server named My REST Enabled SQL.

      Description of rest_enabled_report_source.png follows
      Description of the illustration rest_enabled_report_source.png
  4. To specify a remote database for chart:
    1. In the Rendering tab (left pane), find and expand the region containing the chart.
    2. Expand Series and select the Series that defines the chart.
    3. In the Property Editor under Source, edit the following:
      • Location - Select REST Enabled SQL.
      • Remote Server - Select the defined REST Enabled SQL Service reference (for example, My REST Enabled SQL.
      • Type - Select how the data is queried. Select Table/View or SQL Query.
      • Configure the table or provide a SQL Query.
      • Configure the remaining attributes as needed.

      In the following example, Series 1 is selected and the Source points to a Remote Server named My REST Enabled SQL.

      Description of rest_enabled_chart_source.png follows
      Description of the illustration rest_enabled_chart_source.png
  5. Click Save or Save and Run Page.

Parent topic: Creating or Updating Components to Use a REST Enabled SQL
