Installation on macOS

Follow the steps below to get your Agent Factory environment provisioned, configured, and running on macOS. You can choose between Production mode and Quick Start mode, depending on your requirements. See Installation Modes to select the installation mode that best suits your needs.

Caution: Run the installation as a non-root user. Podman, a critical component, must be set up and used in rootless mode for Agent Factory installations. Do not perform the installation or run deployment steps as the root user.

Note: Sections where user input is expected are highlighted <like_this>.

VPN On. Production mode

Installing the App on Mac on Production Mode with VPN On

Download the installation kit

Go to the official download website and get the installation kit.

• Choose the Linux ARM 64-bit platform installer kit applied_ai_arm64.tar.gz for Apple Silicon (M-series) Mac systems.

• Choose the Linux x86-64 platform installer kit applied_ai.tar.gz for Intel-based Mac systems.

Uncompress the Installation Kit at the Staging Location

The staging location is a specified directory used to store build artifacts (such as executables and configuration files) needed to create Podman images for the application, and it also includes a Makefile to manage the entire deployment lifecycle.

Note: While choosing the staging location, make sure it is not on an NFS mount.

1. Create the staging location and copy the downloaded kit to the staging location.

   mkdir <staging_location>
   cd <staging_location>
   cp <path to installation kit> .

2. Uncompress the installation kit in the staging location.

   • For Apple M-Series Mac:

     tar xzf applied_ai_arm64.tar.gz

   • For Intel Mac:

     tar xzf applied_ai.tar.gz

Before you begin the installation process, make sure to configure any proxies required to connect outside your VPN.

export http_proxy=<your-http-proxy>;
export https_proxy=<your-https-proxy>;
export no_proxy=<your-domain>;
export HTTP_PROXY=<your-http-proxy>;
export HTTPS_PROXY=<your-https-proxy>;
export NO_PROXY=<your-domain>;

Run Interactive Installer

The interactive_install.sh script, included in the installation kit, automates nearly all setup tasks, including environment configuration, dependency installation, and application deployment.

This file will be present in the staging location once you extract the kit.

1. Run the Interactive Installer

   Now that the kit is unpacked, execute the interactive_install.sh script from within the same directory.

   bash interactive_install.sh --reset (Required if previously installed)
   bash interactive_install.sh

2. When the interactive installer prompts you, select the option:

   Are you on a corporate network that requires an HTTP/HTTPS proxy? (y/N): y
   Do you want to use the default specs? (Y/n): y
   Do you want to proceed with the manual database setup? (y/N): y
   [WARNING] Step 1: Create the database user.
   Enter the DB username you wish to create: <your_db_user>
   Enter the password for the new DB user: <your_db_user_password>
   [INFO] Run these SQL commands as a SYSDBA user on your PDB (Pluggable Database):
   ----------------------------------------------------
   CREATE USER <your_db_user> IDENTIFIED BY <your_db_user_password> DEFAULT TABLESPACE USERS QUOTA unlimited ON USERS;
   GRANT CONNECT, RESOURCE, CREATE TABLE, CREATE SYNONYM, CREATE DATABASE LINK, CREATE ANY INDEX, INSERT ANY TABLE, CREATE SEQUENCE, CREATE TRIGGER, CREATE USER, DROP USER TO <your_db_user>;
   GRANT CREATE SESSION TO <your_db_user> WITH ADMIN OPTION;
   GRANT READ, WRITE ON DIRECTORY DATA_PUMP_DIR TO <your_db_user>;
   GRANT SELECT ON V_$PARAMETER TO <your_db_user>;
   exit;
   ----------------------------------------------------
   Press [Enter] to continue to the next step...
   Select installation mode:
   1) prod
   2) quickstart
   Enter choice (1 or 2): 1
   You selected Production mode. Confirm? (yes/no): yes

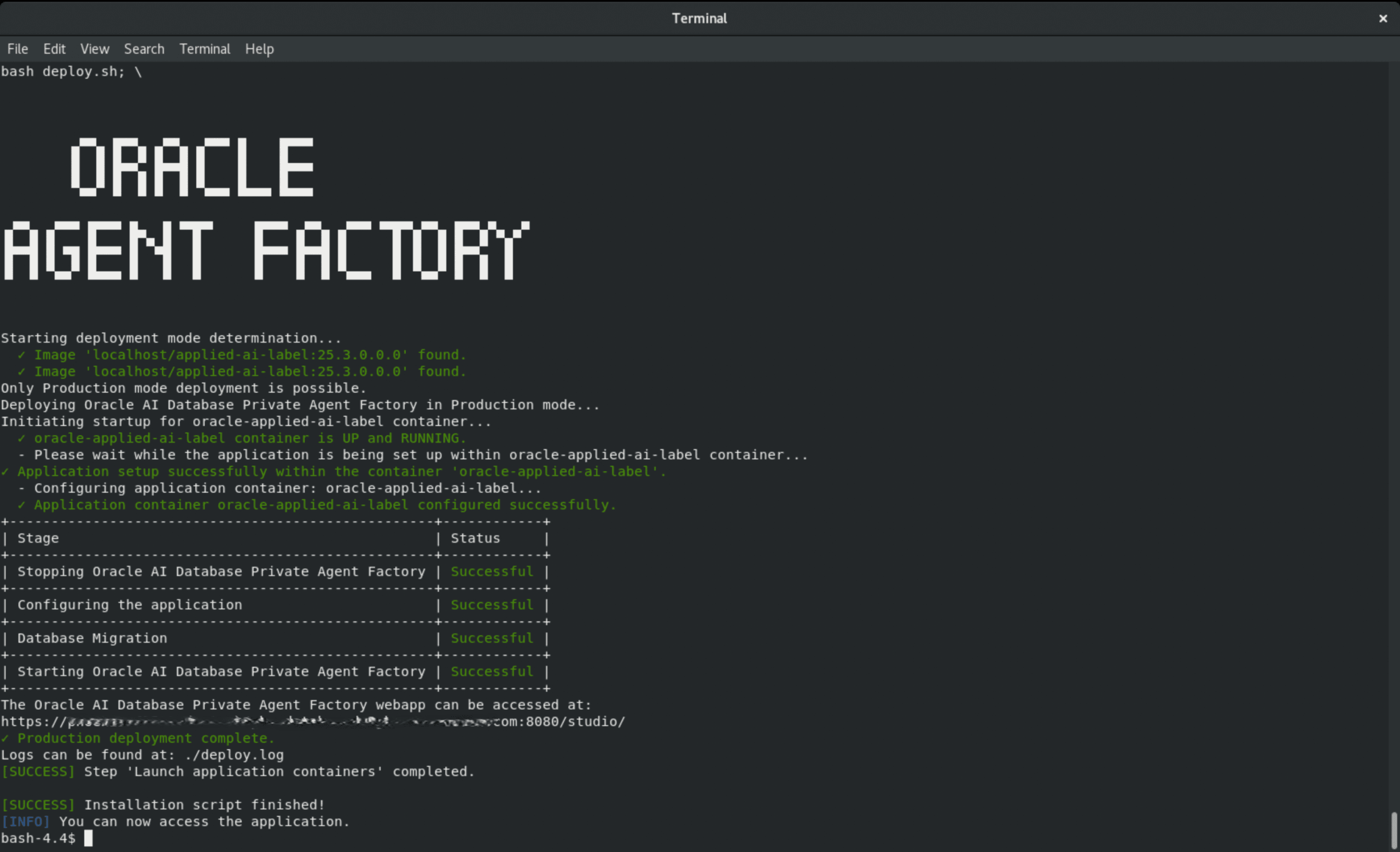

   The following output indicates that the installation was completed successfully.



Once the installation script finishes successfully, you can access the application at the URL https://<hostname>:8080/studio/ provided by the script and complete the remaining configuration through your web browser.

Access the Application

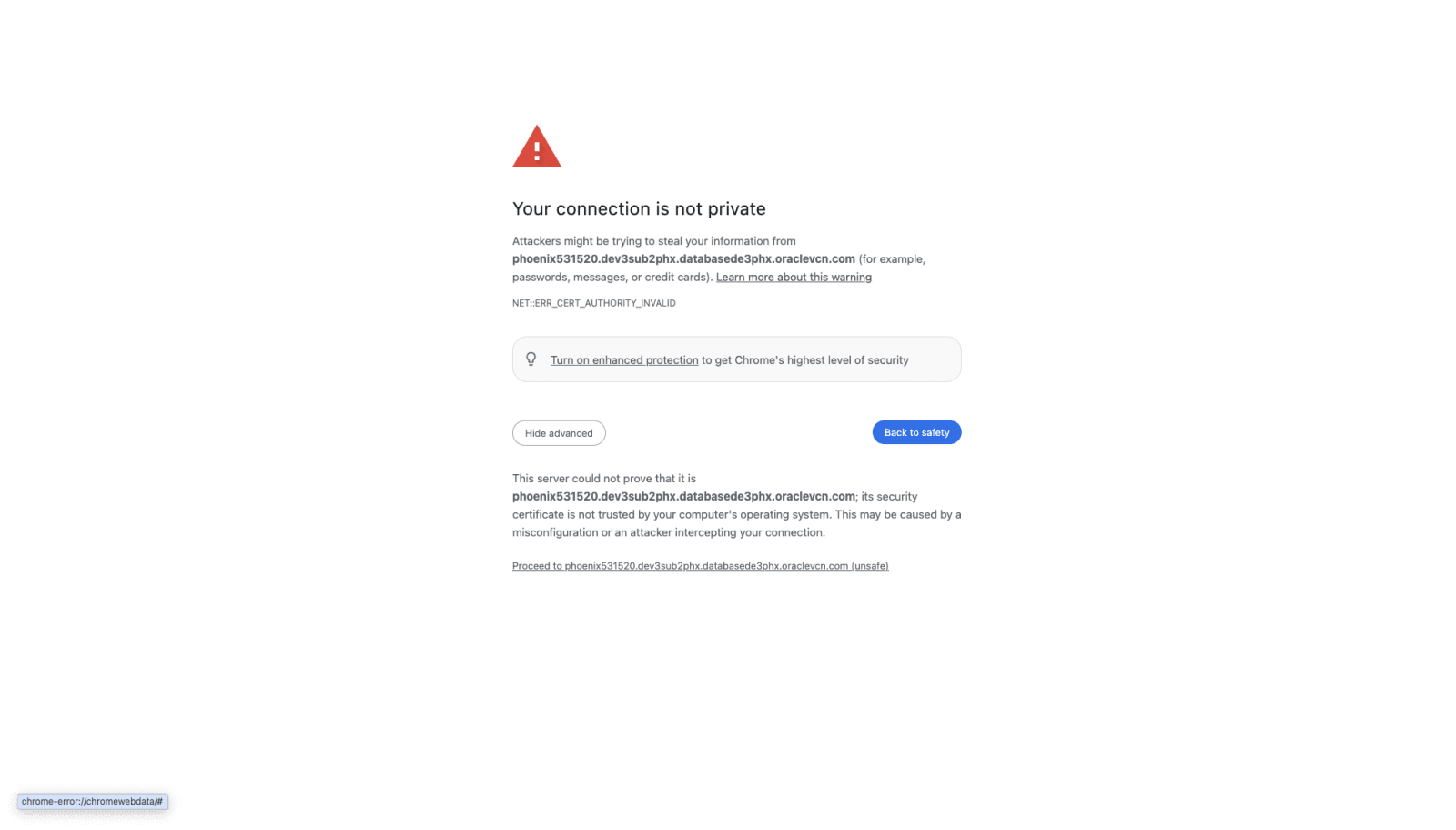

Copy and paste the application URL in a browser. You will see a page like below.

Click ‘Advanced’ and then ‘Proceed to host’.

Configure User

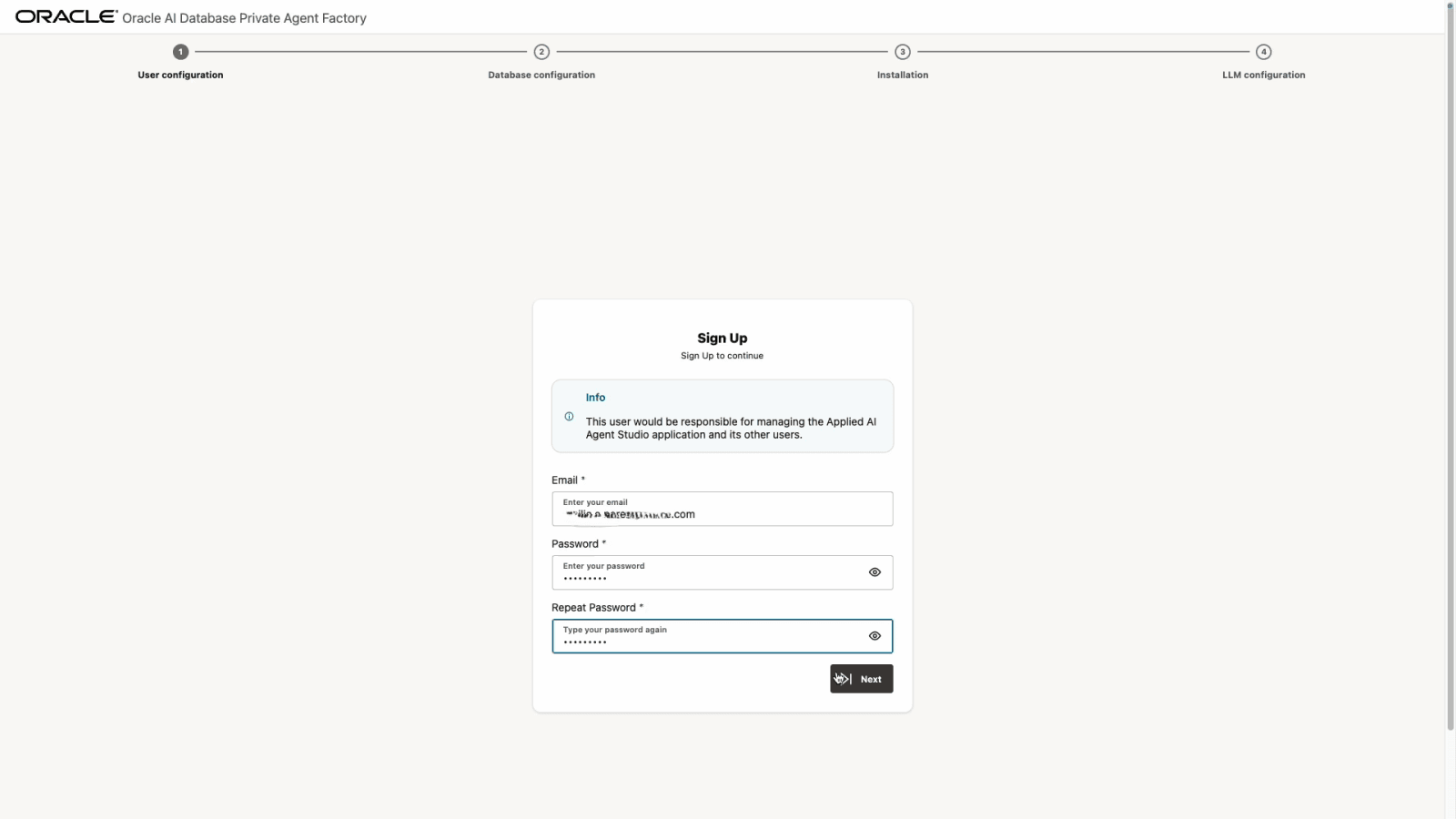

Set up an email and a secure password.

Configure Database Connection

Provide your database connection details. You can either enter the Oracle AI Database 26ai connection details directly, provide the connection string or upload a database wallet file, along with a user and password.

Basic: Enter all the connection details manually and the previously created database user and password.

Description of the illustration install-step-2-db-config-1.png

Connection String: Enter the Database Connection String and the previously created database user and password.

Description of the illustration install-step-2-db-config-2.png

Wallet: Upload a Database Wallet File and enter the previously created database user and password.

Description of the illustration install-step-2-db-config-3.png

Click Test Connection to verify that the information entered is correct. Upon a successful connection, you will see a ‘Database connection successful’ notification. Click Next.

Install Components

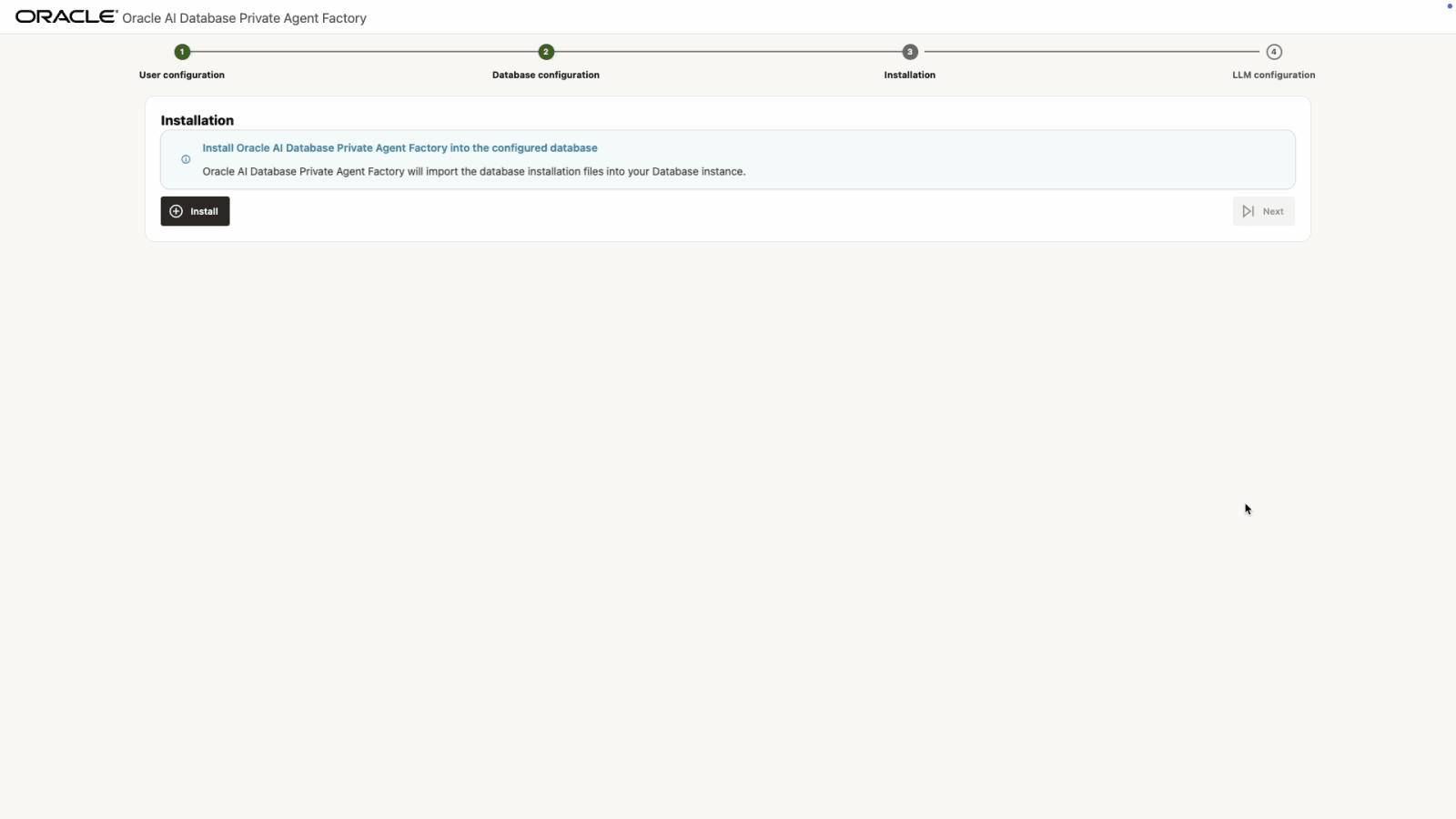

Click Install and wait a few minutes for the setup to complete.

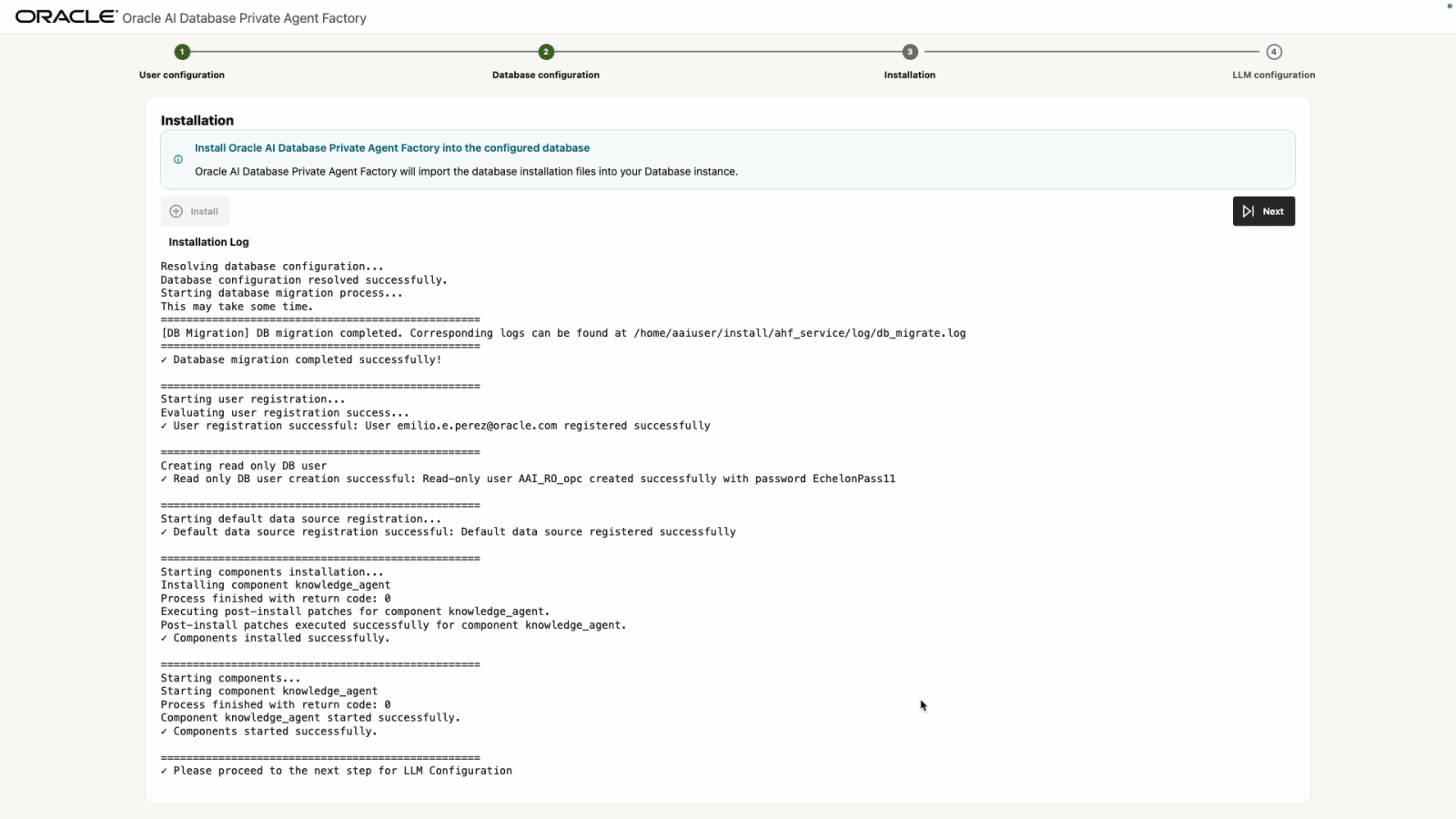

When finished, you will see the message ✓ Please proceed to the next step for LLM Configuration. Click Next.

Configure LLM

Before you continue, see Manage LLM to review the supported models and LLM providers, and how to set them up.

Select an LLM configuration based on your LLM provider. The application supports integration with Ollama, vLLM, OpenAI, and the full suite of OCI GenAI offerings. Depending on your selected provider, the required connection credentials may differ.

Description of the illustration install-step-llm-config.png

Enter the required details in the selected LLM configuration and select Test Connection. Once you see the Connection successful message, select Save Configuration.

Optionally, configure an embedding model to use for data ingestion and retrieval. By default, multilingual-e5-base model is used to generate embeddings and is also the local embedding model included with the service.

Finally, select Finish Installation to complete the setup and be redirected to the login page.

Log In to the Application

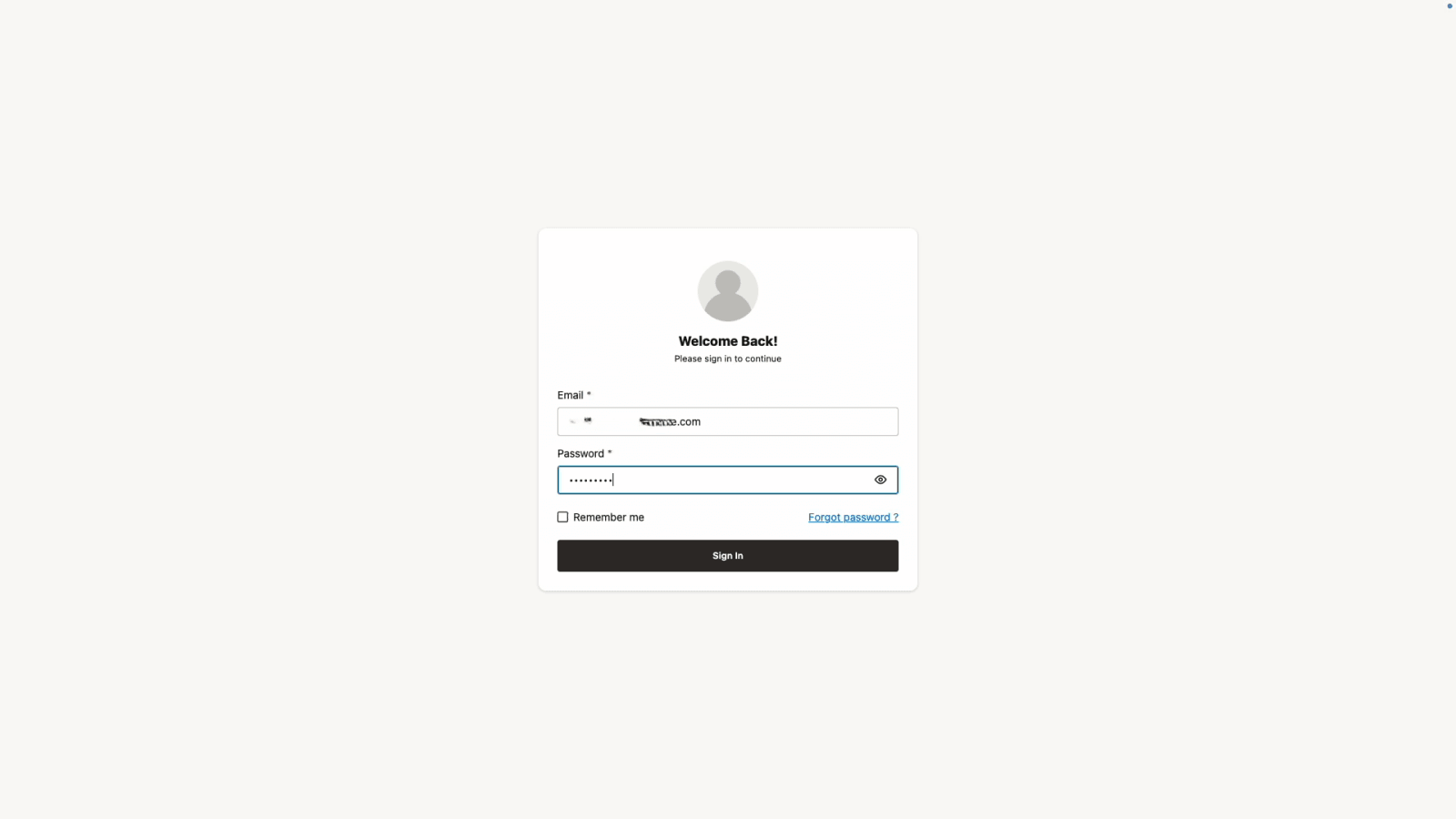

Log in with the email and password created previously. After logging in, you will be greeted by the Get Started screen.

VPN On. Quickstart mode

Install the Application on Mac on Quickstart Mode with VPN on

Download the installation kit

Go to the official download website and get the installation kit.

• Choose the Linux ARM 64-bit platform installer kit applied_ai_arm64.tar.gz for Apple Silicon (M-series) Mac systems.

• Choose the Linux x86-64 platform installer kit applied_ai.tar.gz for Intel-based Mac systems.

Uncompress the Installation Kit at the Staging Location

The staging location is a specified directory used to store build artifacts (such as executables and configuration files) needed to create Podman images for the application, and it also includes a Makefile to manage the entire deployment lifecycle.

Note: While choosing the staging location, make sure it is not on an NFS mount.

1. Create the staging location and copy the downloaded kit to the staging location.

   mkdir <staging_location>
   cd <staging_location>
   cp <path to installation kit> .

2. Uncompress the installation kit in the staging location.

   • For Apple M-Series Mac:

     tar xzf applied_ai_arm64.tar.gz

   • For Intel Mac:

     tar xzf applied_ai.tar.gz

Before you begin the installation process, make sure to configure any proxies required to connect outside your VPN.

export http_proxy=<your-http-proxy>;
export https_proxy=<your-https-proxy>;
export no_proxy=<your-domain>;
export HTTP_PROXY=<your-http-proxy>;
export HTTPS_PROXY=<your-https-proxy>;
export NO_PROXY=<your-domain>;

Run Interactive Installer

The interactive_install.sh script, included in the installation kit, automates nearly all setup tasks, including environment configuration, dependency installation, and application deployment.

This file will be present in the staging location once you extract the kit.

1. Run the Interactive Installer

   Now that the kit is unpacked, execute the interactive_install.sh script from within the same directory.

   bash interactive_install.sh --reset (Required if previously installed)
   bash interactive_install.sh

2. When the interactive installer prompts you, select the option:

   Are you on a corporate network that requires an HTTP/HTTPS proxy? (y/N): y
   Do you want to use the default specs? (Y/n): y
   Do you want to proceed with the manual database setup? (y/N): n
   Select installation mode:
   1) prod
   2) quickstart
   Enter choice (1 or 2): 2
   You selected Quickstart mode. Confirm? (yes/no): yes

The following output indicates that the installation was completed successfully.

Once the installation script finishes successfully, you can access the application at the URL https://<hostname>:8080/studio/ provided by the script and complete the remaining configuration through your web browser.

Access the Application

Copy and paste the application URL in a browser. You will see a page like below.

Click ‘Advanced’ and then ‘Proceed to host’.

Configure User

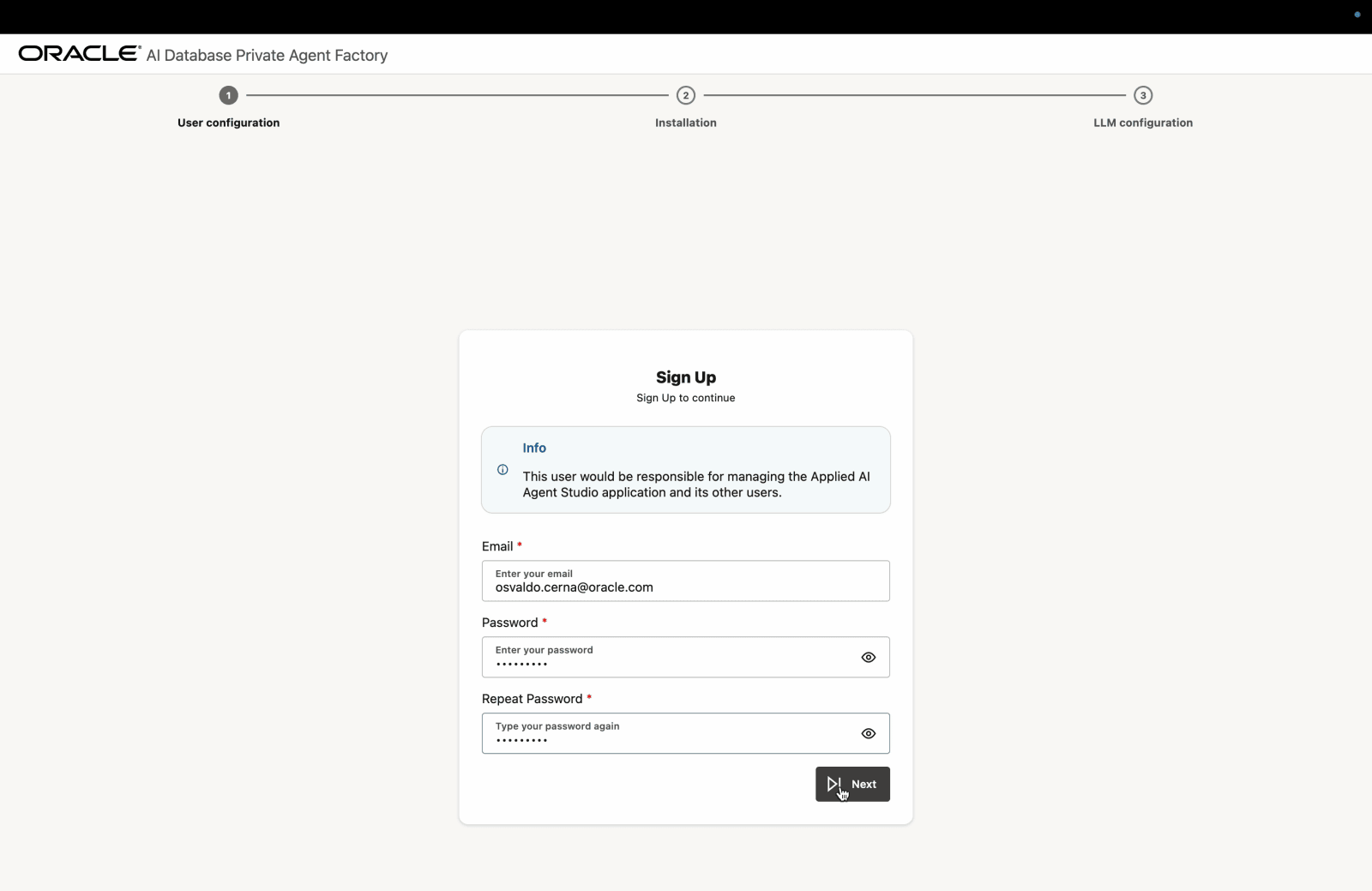

Set up an email and a secure password.

Install Components

Click Install and wait a few minutes for the setup to complete.

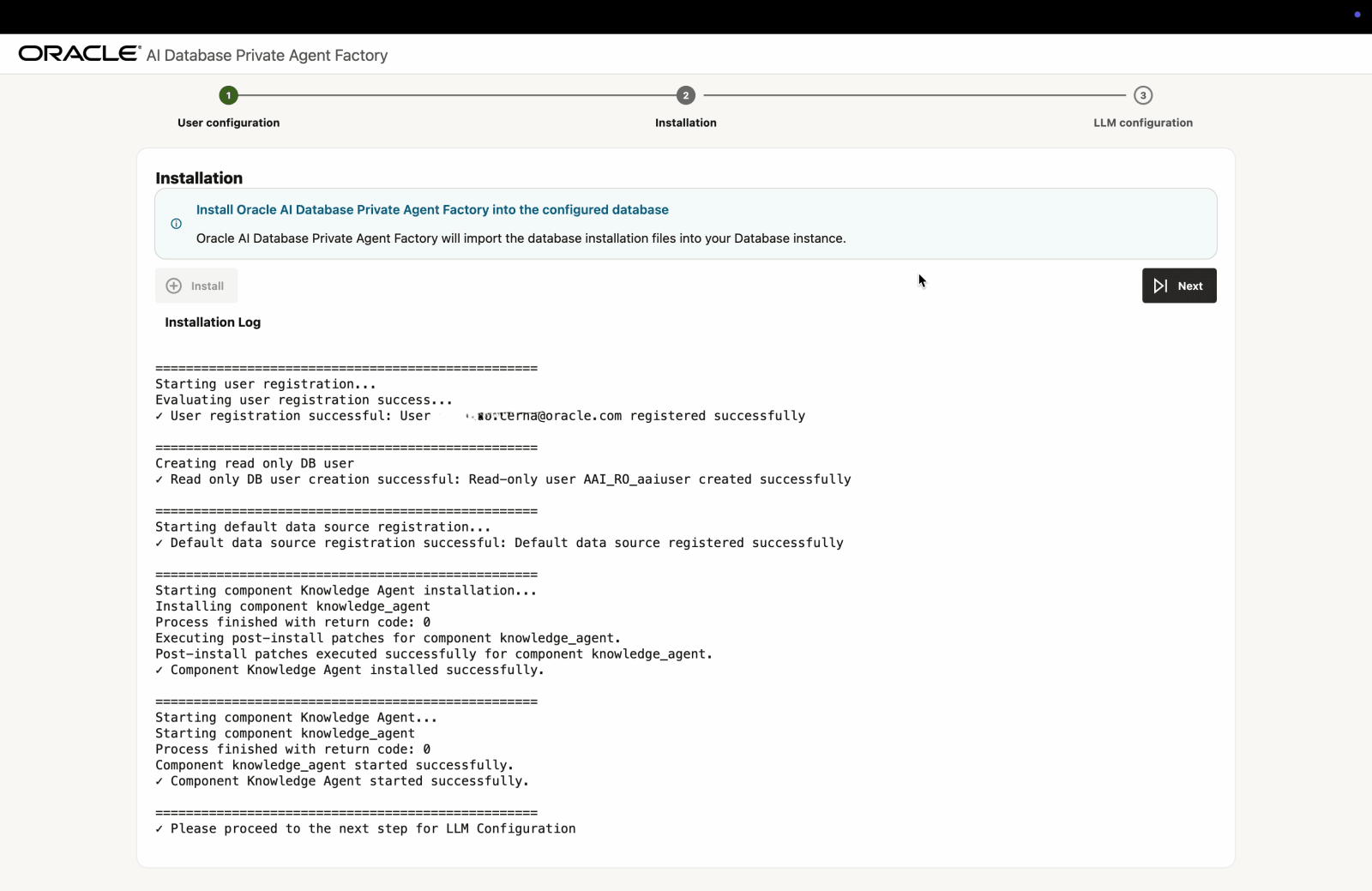

When finished, you will see the message ✓ Please proceed to the next step for LLM Configuration. Click Next.

Configure LLM

Before you continue, see Manage LLM to review the supported models and LLM providers, and how to set them up.

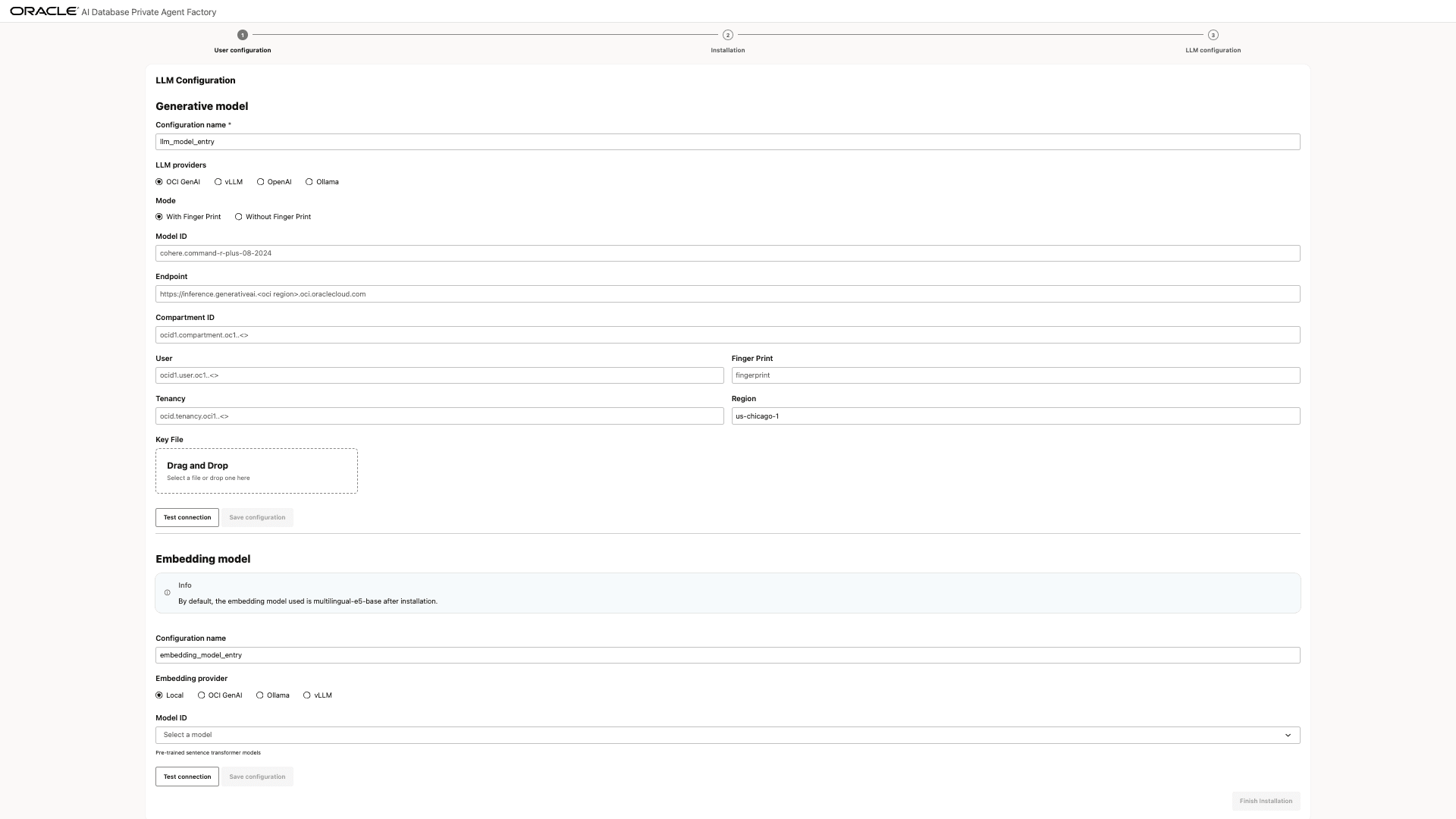

Select an LLM configuration based on your LLM provider. The application supports integration with Ollama, vLLM, OpenAI, and the full suite of OCI GenAI offerings. Depending on your selected provider, the required connection credentials may differ.

Enter the required details in the selected LLM configuration and select Test Connection. Once you see the Connection successful message, select Save Configuration.

Optionally, configure an embedding model to use for data ingestion and retrieval. By default, multilingual-e5-base model is used to generate embeddings and is also the local embedding model included with the service.

Finally, select Finish Installation to complete the setup and be redirected to the login page.

Log In to the Application

Log in with the email and password created previously. After logging in, you will be greeted by the Get Started screen.

No VPN. Production mode

Installing the App on Mac on Production Mode with VPN Off

Download the installation kit

Go to the official download website and get the installation kit.

• Choose the Linux ARM 64-bit platform installer kit applied_ai_arm64.tar.gz for Apple Silicon (M-series) Mac systems.

• Choose the Linux x86-64 platform installer kit applied_ai.tar.gz for Intel-based Mac systems.

Uncompress the Installation Kit at the Staging Location

The staging location is a specified directory used to store build artifacts (such as executables and configuration files) needed to create Podman images for the application, and it also includes a Makefile to manage the entire deployment lifecycle.

Note: While choosing the staging location, make sure it is not on an NFS mount.

1. Create the staging location and copy the downloaded kit to the staging location.

   mkdir <staging_location>
   cd <staging_location>
   cp <path to installation kit> .

2. Uncompress the installation kit in the staging location.

   • For Apple M-Series Mac:

     tar xzf applied_ai_arm64.tar.gz

   • For Intel Mac:

     tar xzf applied_ai.tar.gz

Run Interactive Installer

The interactive_install.sh script, included in the installation kit, automates nearly all setup tasks, including environment configuration, dependency installation, and application deployment.

This file will be present in the staging location once you extract the kit.

1. Run the Interactive Installer

   Now that the kit is unpacked, execute the interactive_install.sh script from within the same directory.

   bash interactive_install.sh --reset (Required if previously installed)
   bash interactive_install.sh

2. When the interactive installer prompts you, select the option:

   Are you on a corporate network that requires an HTTP/HTTPS proxy? (y/N): n
   Do you want to use the default specs? (Y/n): y
   Do you want to proceed with the manual database setup? (y/N): y
   [WARNING] Step 1: Create the database user.
   Enter the DB username you wish to create: <your_db_user>
   Enter the password for the new DB user: <your_db_user_password>
   [INFO] Run these SQL commands as a SYSDBA user on your PDB (Pluggable Database):
   ----------------------------------------------------
   CREATE USER <your_db_user> IDENTIFIED BY <your_db_user_password> DEFAULT TABLESPACE USERS QUOTA unlimited ON USERS;
   GRANT CONNECT, RESOURCE, CREATE TABLE, CREATE SYNONYM, CREATE DATABASE LINK, CREATE ANY INDEX, INSERT ANY TABLE, CREATE SEQUENCE, CREATE TRIGGER, CREATE USER, DROP USER TO <your_db_user>;
   GRANT CREATE SESSION TO <your_db_user> WITH ADMIN OPTION;
   GRANT READ, WRITE ON DIRECTORY DATA_PUMP_DIR TO <your_db_user>;
   GRANT SELECT ON V_$PARAMETER TO <your_db_user>;
   exit;
   ----------------------------------------------------
   Press [Enter] to continue to the next step...
   Select installation mode:
   1) prod
   2) quickstart
   Enter choice (1 or 2): 1
   You selected Production mode. Confirm? (yes/no): yes

   The following output indicates that the installation was completed successfully.



Once the installation script finishes successfully, you can access the application at the URL https://<hostname>:8080/studio/ provided by the script and complete the remaining configuration through your web browser.

Access the Application

Copy and paste the application URL in a browser. You will see a page like below.

Click ‘Advanced’ and then ‘Proceed to host’.

Configure User

Set up an email and a secure password.

Configure Database Connection

Provide your database connection details. You can either enter the Oracle AI Database 26ai connection details directly, provide the connection string or upload a database wallet file, along with a user and password.

Basic: Enter all the connection details manually and the previously created database user and password.

Description of the illustration install-step-2-db-config-1.png

Connection String: Enter the Database Connection String and the previously created database user and password.

Description of the illustration install-step-2-db-config-2.png

Wallet: Upload a Database Wallet File and enter the previously created database user and password.

Description of the illustration install-step-2-db-config-3.png

Click Test Connection to verify that the information entered is correct. Upon a successful connection, you will see a ‘Database connection successful’ notification. Click Next.

Install Components

Click Install and wait a few minutes for the setup to complete.

When finished, you will see the message ✓ Please proceed to the next step for LLM Configuration. Click Next.

Configure LLM

Before you continue, see Manage LLM to review the supported models and LLM providers, and how to set them up.

Select an LLM configuration based on your LLM provider. The application supports integration with Ollama, vLLM, OpenAI, and the full suite of OCI GenAI offerings. Depending on your selected provider, the required connection credentials may differ.

Description of the illustration install-step-llm-config.png

Enter the required details in the selected LLM configuration and select Test Connection. Once you see the Connection successful message, select Save Configuration.

Optionally, configure an embedding model to use for data ingestion and retrieval. By default, multilingual-e5-base model is used to generate embeddings and is also the local embedding model included with the service.

Finally, select Finish Installation to complete the setup and be redirected to the login page.

Log In to the Application

Log in with the email and password created previously. After logging in, you will be greeted by the Get Started screen.

No VPN. Quickstart mode

Install the Application on Mac on Quickstart Mode with VPN off

Download the installation kit

Go to the official download website and get the installation kit.

• Choose the Linux ARM 64-bit platform installer kit applied_ai_arm64.tar.gz for Apple Silicon (M-series) Mac systems.

• Choose the Linux x86-64 platform installer kit applied_ai.tar.gz for Intel-based Mac systems.

Uncompress the Installation Kit at the Staging Location

The staging location is a specified directory used to store build artifacts (such as executables and configuration files) needed to create Podman images for the application, and it also includes a Makefile to manage the entire deployment lifecycle.

Note: While choosing the staging location, make sure it is not on an NFS mount.

1. Create the staging location and copy the downloaded kit to the staging location.

   mkdir <staging_location>
   cd <staging_location>
   cp <path to installation kit> .

2. Uncompress the installation kit in the staging location.

   • For Apple M-Series Mac:

     tar xzf applied_ai_arm64.tar.gz

   • For Intel Mac:

     tar xzf applied_ai.tar.gz

Run Interactive Installer

The interactive_install.sh script, included in the installation kit, automates nearly all setup tasks, including environment configuration, dependency installation, and application deployment.

This file will be present in the staging location once you extract the kit.

1. Run the Interactive Installer

   Now that the kit is unpacked, execute the interactive_install.sh script from within the same directory.

   bash interactive_install.sh --reset (Required if previously installed)
   bash interactive_install.sh

2. When the interactive installer prompts you, select the option:

   Are you on a corporate network that requires an HTTP/HTTPS proxy? (y/N): n
   Do you want to use the default specs? (Y/n): y
   Do you want to proceed with the manual database setup? (y/N): n
   Select installation mode:
   1) prod
   2) quickstart
   Enter choice (1 or 2): 2
   You selected Quickstart mode. Confirm? (yes/no): yes

The following output indicates that the installation was completed successfully.

Once the installation script finishes successfully, you can access the application at the URL https://<hostname>:8080/studio/ provided by the script and complete the remaining configuration through your web browser.

Access the Application

Copy and paste the application URL in a browser. You will see a page like below.

Click ‘Advanced’ and then ‘Proceed to host’.

Configure User

Set up an email and a secure password.

Install Components

Click Install and wait a few minutes for the setup to complete.

When finished, you will see the message ✓ Please proceed to the next step for LLM Configuration. Click Next.

Configure LLM

Before you continue, see Manage LLM to review the supported models and LLM providers, and how to set them up.

Select an LLM configuration based on your LLM provider. The application supports integration with Ollama, vLLM, OpenAI, and the full suite of OCI GenAI offerings. Depending on your selected provider, the required connection credentials may differ.

Enter the required details in the selected LLM configuration and select Test Connection. Once you see the Connection successful message, select Save Configuration.

Optionally, configure an embedding model to use for data ingestion and retrieval. By default, multilingual-e5-base model is used to generate embeddings and is also the local embedding model included with the service.

Finally, select Finish Installation to complete the setup and be redirected to the login page.

Log In to the Application

Log in with the email and password created previously. After logging in, you will be greeted by the Get Started screen.
