Screen Sections

Login Screen

This screen controls access to the sensitive business data within the Field Service Mobile app. The user must provide a valid login/password pair to proceed past this screen and gain full access to the app.

Section	Description	Highlighted in Screenshot
Login Controls	The tree controls on this screen form a standard email/password/Sign In button group.	1

Section

Description

Highlighted in Screenshot

The tree controls on this screen form a standard email/password/Sign In button group.

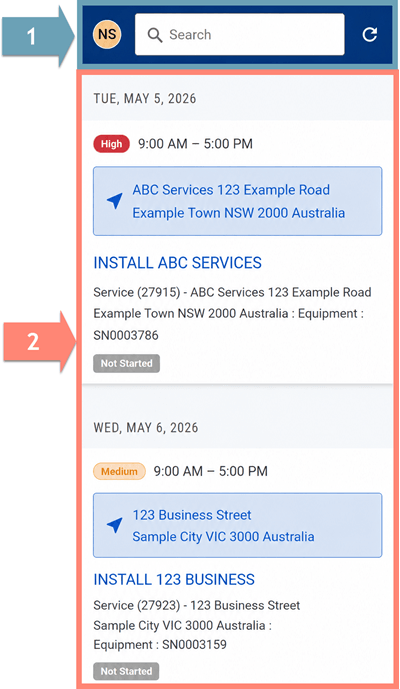

Task List screen

The Task List screen is effectively the “home” screen of the Field Service Mobile app. From this screen the user can view a map showing the user’s current location and the location of all displayed tasks, select a particular task from the list to see more detail, refresh the task data from the cloud, add a new task or logout.

Section	Description	Highlighted in Screenshot
Control Bar	Contained within the Control Bar are several buttons. These cover function such as view map, logout, refresh task data and add new task.	1
Task List	Contains an entry for each assigned task that falls within the configured date range. From each of these entries the user can either navigate to the Selected Task Details screen for more detail or can launch their mobile device’s default GPS mapping app to view the route to the task.	2

Section

Description

Highlighted in Screenshot

Control Bar

Contained within the Control Bar are several buttons. These cover function such as view map, logout, refresh task data and add new task.

Task List

Contains an entry for each assigned task that falls within the configured date range. From each of these entries the user can either navigate to the Selected Task Details screen for more detail or can launch their mobile device’s default GPS mapping app to view the route to the task.

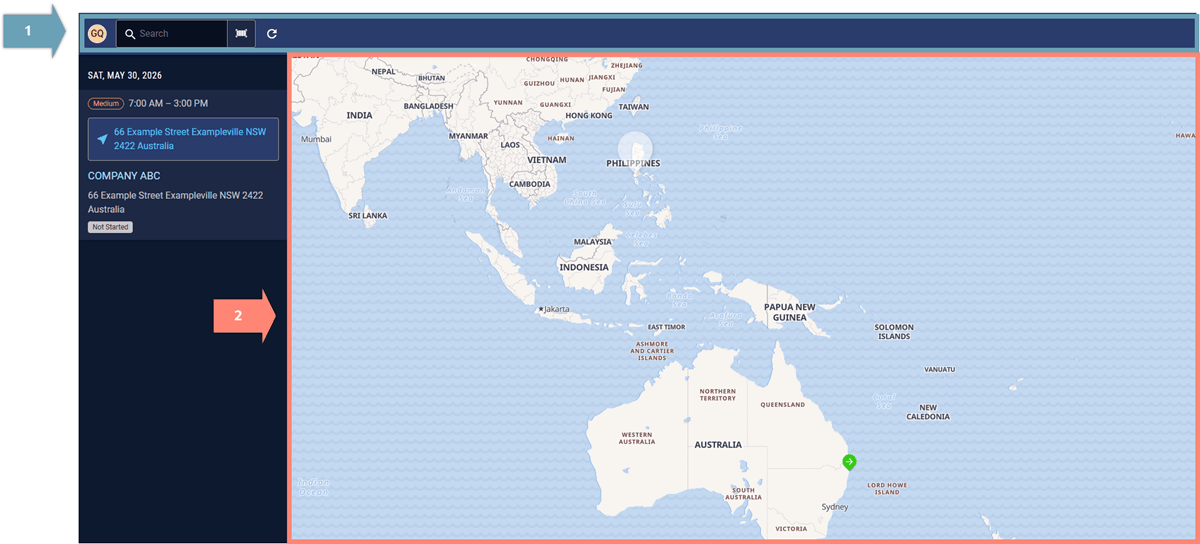

Task List screen -Map view

Description

The Map View within the Task List screen allows the user to see their current location as well as the location for task shown in the Task List within the Task List screen.

Section	Description	Highlighted in Screenshot
Control Bar	Within the Control Bar is a button that allows the user to show the Selected Task Details screen.	1
Map	The map allows the user to zoom in and out, pan north/south/east/west or view details for a selected task.	2

Section

Description

Highlighted in Screenshot

Control Bar

Within the Control Bar is a button that allows the user to show the Selected Task Details screen.

Map

The map allows the user to zoom in and out, pan north/south/east/west or view details for a selected task.

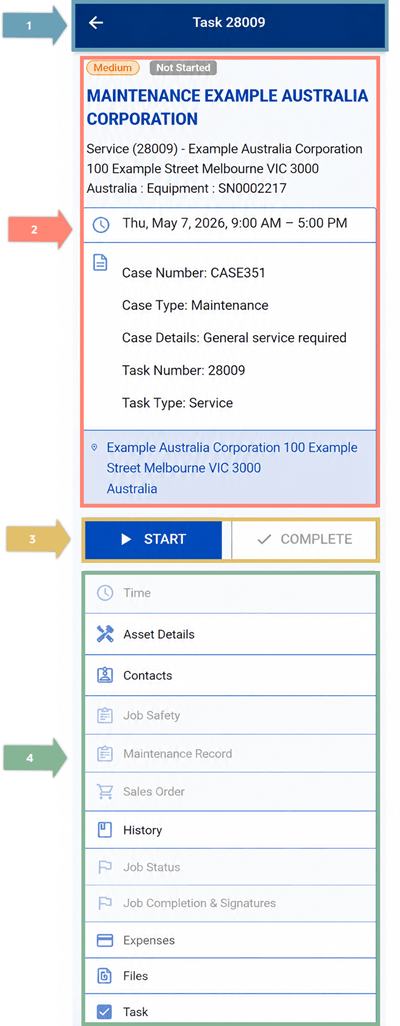

Selected Task Details screen

This screen informs the user of more detailed information about the current task. It also allows the user to view a map, start and complete the task and navigate to each of the tab screens.

Section	Description	Highlighted in Screenshot
Control Bar	Contained within the Control Bar are buttons which allow the user to navigate to the Task List screen or to the Selected Task Details screen – Map View.	1
Task General Details	This section informs the user of details about the selected task such as asset name, scheduled start and end times (in the user’s time zone) and more.	2
Task Status Controls	These controls allow the user to start or complete the selected task.	3
Task Tab List	This list shows all of the available tabs. It allows the user to navigate to the tab screen for any particular tab by simply pressing on its entry within the tab list.	4

Section

Description

Highlighted in Screenshot

Control Bar

Contained within the Control Bar are buttons which allow the user to navigate to the Task List screen or to the Selected Task Details screen – Map View.

Task General Details

This section informs the user of details about the selected task such as asset name, scheduled start and end times (in the user’s time zone) and more.

Task Status Controls

These controls allow the user to start or complete the selected task.

Task Tab List

This list shows all of the available tabs. It allows the user to navigate to the tab screen for any particular tab by simply pressing on its entry within the tab list.

Selected Task Details screen -Map view

This screen allows the user to view a map showing their location, the task location, the fastest route and the travel time (without traffic delays).

Section	Description	Highlighted in Screenshot
Control Bar	The Control Bar contains buttons which allow the user to navigate back to the standard view of the Selected Task Details screen as well as a button which launches the Mobile device’s default GPS mapping app to view the displayed route with a more advanced data such as live traffic data.	1
Map for Selected Task	This map displays the user’s current location and the location of the selected task. This map also shows the quickest route to the task location without traffic being taken into account.	2
Task General Details	This section informs the user of details about the selected task such as asset name, scheduled start and end times (in the user’s time zone) and more.	3
Task Status Controls	These controls allow the user to start or complete the selected task.	4

Section

Description

Highlighted in Screenshot

Control Bar

The Control Bar contains buttons which allow the user to navigate back to the standard view of the Selected Task Details screen as well as a button which launches the Mobile device’s default GPS mapping app to view the displayed route with a more advanced data such as live traffic data.

Map for Selected Task

This map displays the user’s current location and the location of the selected task. This map also shows the quickest route to the task location without traffic being taken into account.

Task General Details

This section informs the user of details about the selected task such as asset name, scheduled start and end times (in the user’s time zone) and more.

Task Status Controls

These controls allow the user to start or complete the selected task.

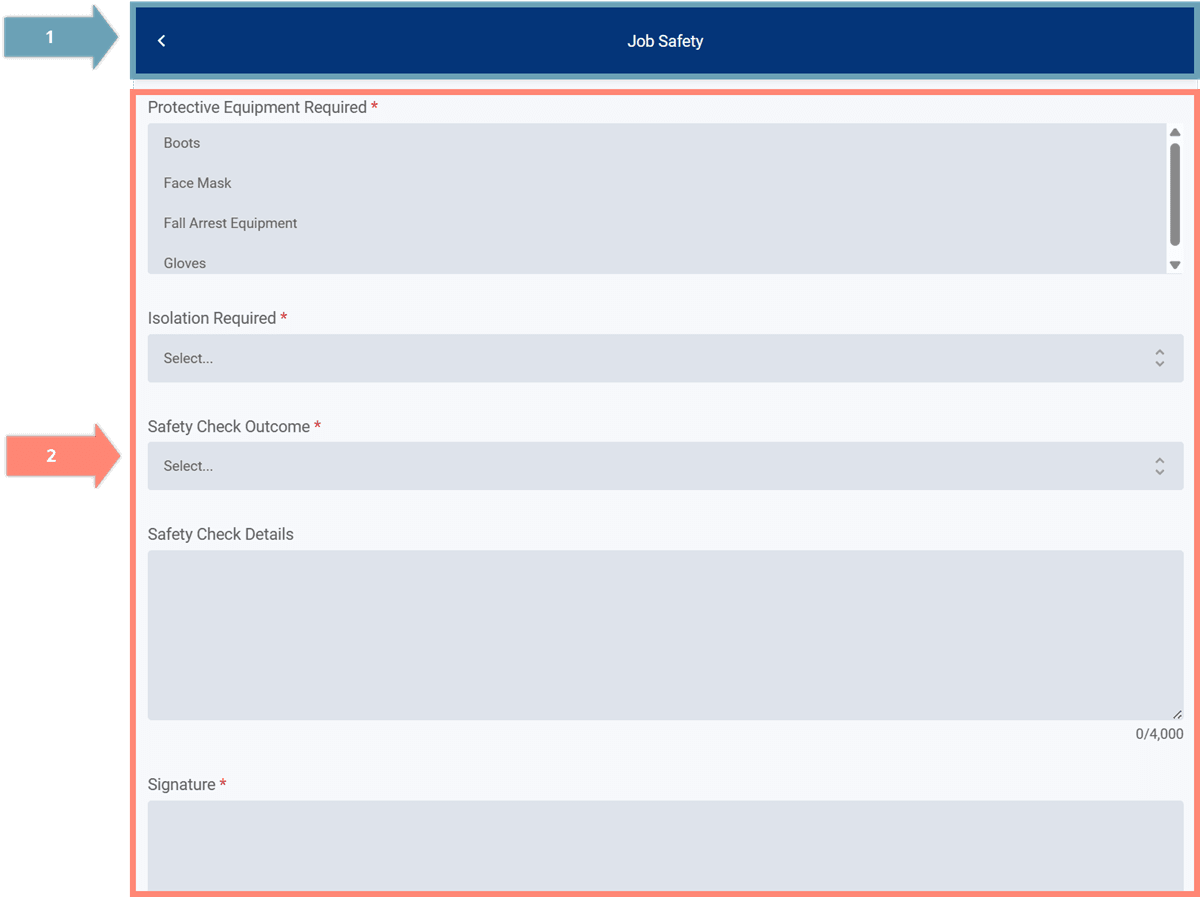

Task Tab Detail screen

Task tabs allow the user to view or record data associated with the selected task. Each tab has one or more screens that together make up its functionality.

Section	Description	Highlighted in Screenshot
Control Bar	Contained within the Control Bar are buttons which allow the user to navigate to other screens within the current tab or to toggle the visibility of the Selected Task Details screen.	1
Task Tab Details Area	Made up of many different combinations of data display and data entry fields, this area allows the user to view or record data relevant to the selected task.	2

Section

Description

Highlighted in Screenshot

Control Bar

Contained within the Control Bar are buttons which allow the user to navigate to other screens within the current tab or to toggle the visibility of the Selected Task Details screen.

Task Tab Details Area

Made up of many different combinations of data display and data entry fields, this area allows the user to view or record data relevant to the selected task.
