Monitor Pipeline Status

You can view the status of all of a project's pipelines from the Pipelines tab.

The Pipelines tab displays this information for the latest run of each pipeline:

Column	Details
Status	The status for the latest pipeline build is displayed: Success : Indicates that the latest build of the pipeline was successful. Failed: Indicates that the latest build of a job in the pipeline failed, causing the pipeline to fail too. Test Failed: Indicates that the latest test build of a job in the pipeline failed, causing the pipeline to fail too. Canceled : Indicates the latest build of the pipeline was canceled. In Progress : Indicates a pipeline is in progress. Disabled : Indicates a pipeline is disabled. It can't be run unless it's enabled again.
Pipeline	Click the pipeline link to view more information about the pipeline. See View Pipeline Run Details.
Weather	The weather for the recent builds are displayed: All recent builds completed successfully All recent builds failed The weather also displays icons showing what percentage (%) of recent builds failed.
Last Successful	Date and time of the last successful build of the pipeline. You can click on the instance number to view more details about the pipeline instance.
Last Unsuccessful	Date and time of the last unsuccessful build of the pipeline. You can click on the instance number to view more details about the pipeline instance.
Duration	Duration of the latest pipeline build
# Jobs	Number of jobs in the pipeline. Click the number to view a list of the jobs. You can click on a job name to display details about the job.
Details	Click Details to view details and settings for the latest build.
Private	The lock icon identifies if the pipeline is protected.

From the Actions menu in the Pipelines tab, you can also run or configure the pipeline, view the pipeline layout and last run log, and disable, enable, or delete the pipeline. See Create and Manage Pipelines.

View Pipeline Run Details

From a pipeline's information page, you can view details about pipeline activity, including status of each pipeline run and pipeline run trends.

Click the name of a pipeline in the Pipelines tab to access details for the pipeline. Click on the column arrows to sort the rows.

The Pipeline Run History table provides the following information for each pipeline build:

Column	Details
By	Who or what initiated the run. The icons represent the following: User : The build was initiated by a user. Periodic Build Trigger: The build was triggered by a periodic build trigger. Build System : The build was started or rescheduled by the build system.
Status	These are the possible statuses for each pipeline build: Success : Indicates that all the pipeline builds were successful. Failed: Indicates that a build of a job in the pipeline failed, causing the pipeline to fail too. Test Failed: Indicates that a test build of a job in the pipeline failed, causing the pipeline to fail too. Canceled : Indicates the pipeline was canceled. In Progress : Indicates a pipeline is in progress. Disabled : Indicates a pipeline is disabled. It can't be run unless it's enabled again.
Run	Click on the run number to view details about the pipeline run. From the run details page, you can view the pipeline run diagram, delete the run, view the run log, or view a summary of the run. In the pipeline diagram, the color of job nodes indicates the job’s status: Green: The last build of the job was successful White: A build of the job is running or hasn’t run yet Red: The last build of the job failed Orange: The last test build failed.
Started	Displays the date and time the run started. Click the link to view the run details and pipeline diagram. Use the Cancel Run, Delete, View Log, and Pipeline Run Summary buttons to cancel a running pipeline, delete the run, view the run log, or view a summary of the run.
View the run log	Click the Actions menu and select View Log.

From the pipeline details page, you can also view the pipeline run trends, run, configure, disable or enable, or delete the pipeline, and view the pipeline layout. See Create and Manage Pipelines.

View Pipelines in Progress

You can view the pipelines in progress from the Pipelines Queue tab.

The Pipelines Queue table provides the following information for each pipeline in the queue:

Column	Details
By	Who or what initiated the run. The icons represent the following: User : The build was initiated by a user. Periodic Build Trigger: The build was triggered by a periodic build trigger. Build System : The build was started or rescheduled by the build system.
Pipeline	Click the name of the pipeline to view the Pipeline Details page.
Run	Click on the run number to view details about the pipeline build progress. From the pipeline details page, you can view the pipeline diagram, delete the run, view the run log, or view a summary of the run. In the pipeline diagram, the color of job nodes indicates the job’s status: Green: The job's last build was successful. White: A build of the job is either currently running or hasn’t run yet. Red: The job's last build failed. Orange: The last test build failed.
Scheduled	Displays the time the build started.
Progress	Displays a progress bar and the percentage of the build that's been completed.

To cancel a pipeline run, click the Actions menu, and select Cancel.

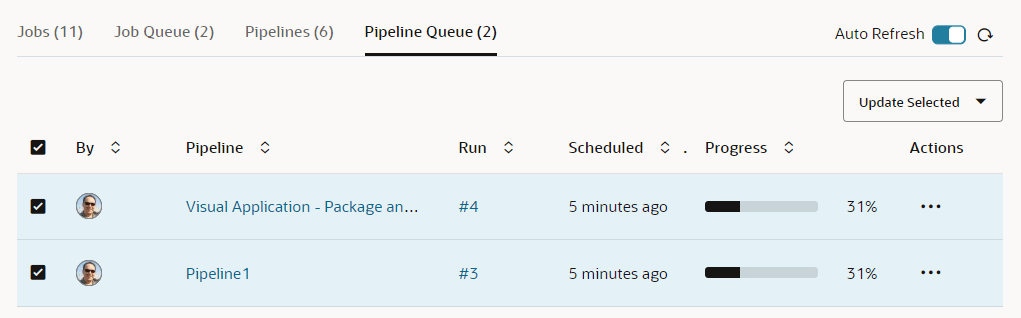

To cancel more than one pipeline run, select the pipelines that you want to cancel or click the box at the top left corner of the table to select all pipelines, then click Update Selected and select Cancel Selected Runs.

Description of pipeline_queue.png follows

Description of the illustration pipeline_queue.png
