Displaying the Expression Builder

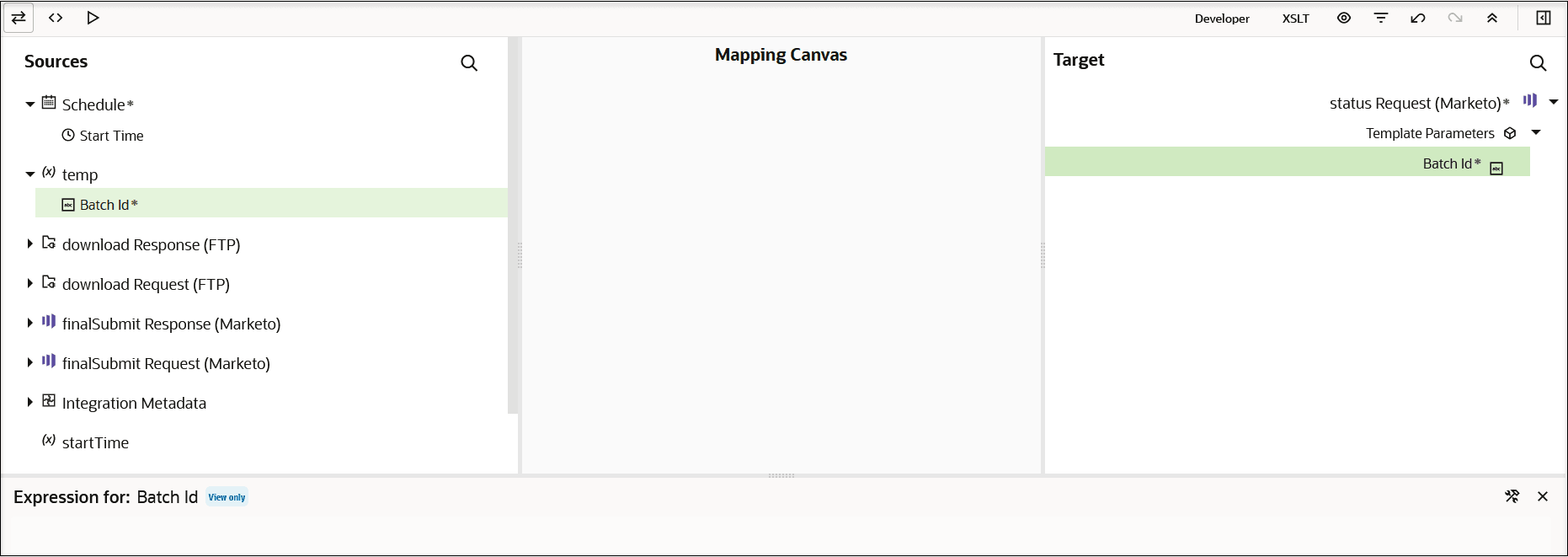

1. Click a target element node.

   The Expression Builder is displayed. A Switch to Developer View icon and Close icon are displayed on the right side of the Expression Builder.

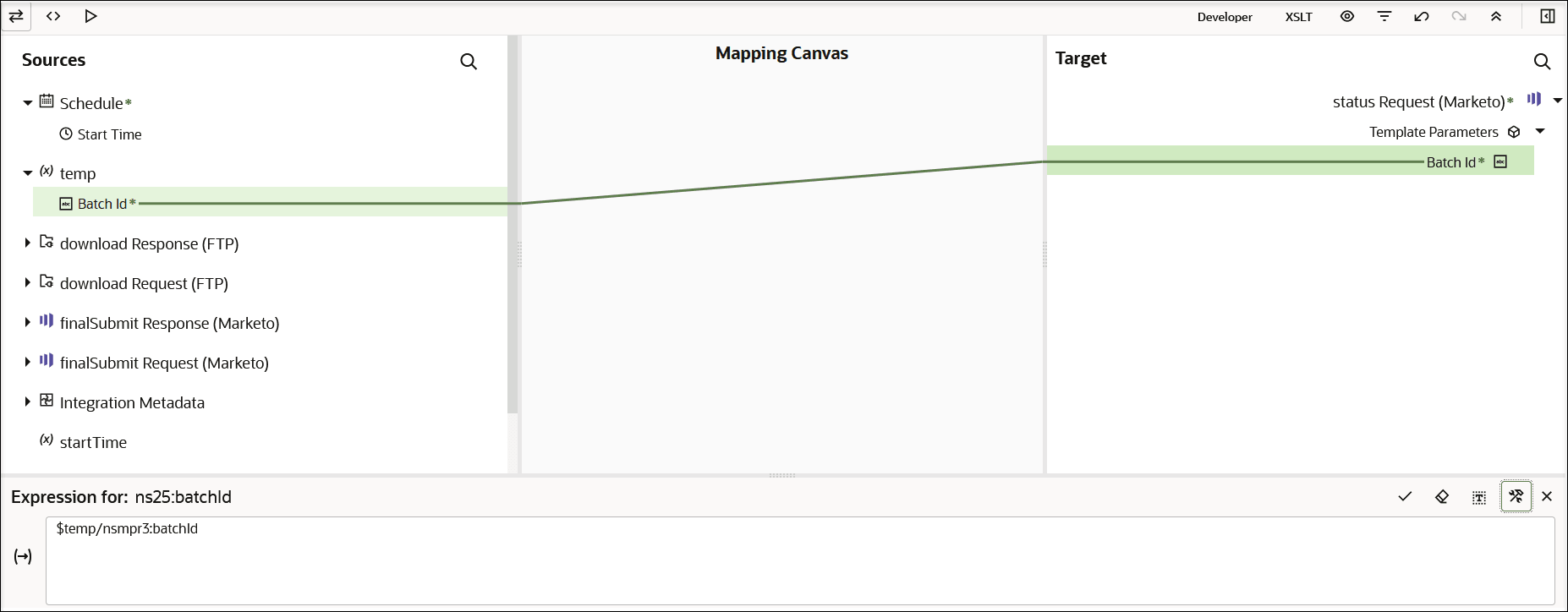

2. Drag a source element node to a target element node.

   The XPath expression is added to the Expression Builder.

3. Click Switch to Developer View to view the developer path of the mapping.





4. If you want to remove the value, click Erase , then click Save to completely remove the mapping.

5. Drag the source element node to the Expression Builder. You can also highlight the source element node and click Insert selected item to add a value to the Expression Builder.





6. Click Save to save the mapping.

Using Set Text Mode

When there is no mapping in the Expression Builder, there is a Set Text button. This option enables you to enter text in an element node. You can only have XPath expression or text in the Expression Builder. You cannot have both types.

1. Highlight a target element node and click Set Text in the Expression Builder to enter set text mode.

2. Enter text in the Expression Builder.

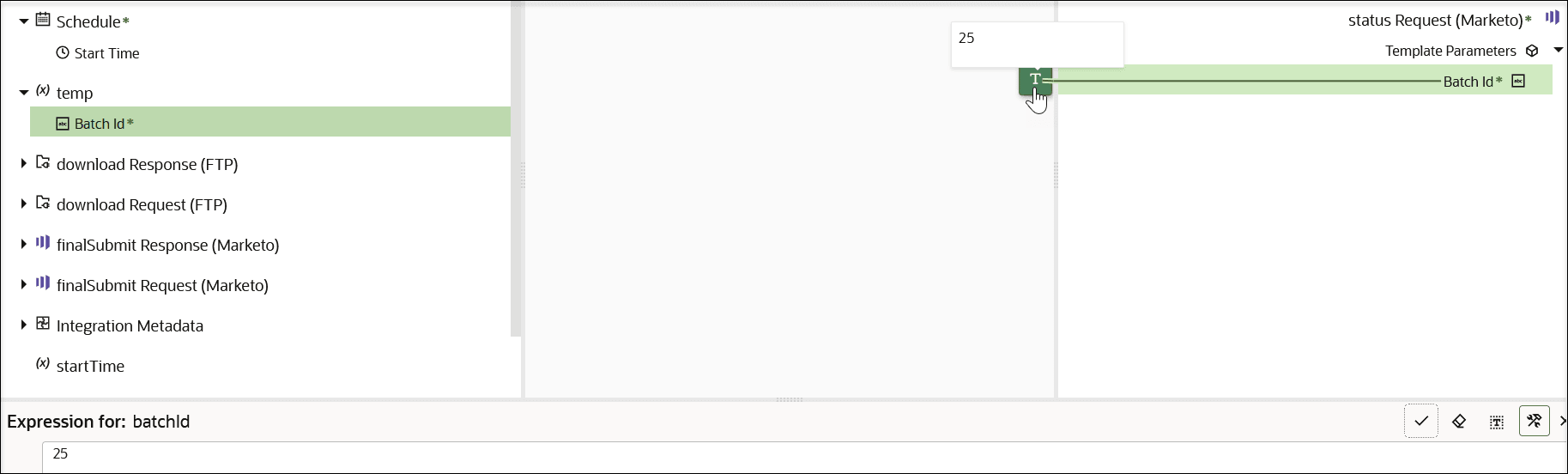

   A letter icon is added to the node. When you place your cursor over the icon, the value you entered is displayed.





   Note:

   If you drag a source target node into the Expression Builder while in set text mode, the mapping value is literally added as text, and not as an XPath expression.

Entering Literal Values

You can enter literal values in the Expression Builder when you are not in set text mode.

1. Enter text in the Expression Builder.

   This creates a value-of expression in the XSTL file instead of straight text. See Edit XSLT Code in the Mapper.
