Updates Are Automatic for the Connectivity Agent

When an update becomes available for the connectivity agent, the local host for the agent gets the update automatically.

About the Update Process

When Oracle Integration is updated, the connectivity agent is also updated within a four-hour window. Oracle doesn't send a separate alert for agent updates. There is no downtime or interruption of service for in-process integrations that use the agent. If there is any failure for in-process integrations using the agent, those integrations may require resubmission.

The connectivity agent update occurs as follows:

  1. A check is made of the version of the agent installed on your on-premises host.
  2. If the agent version on your host is older than the latest available version, the new version is downloaded to your host.
  3. The downloaded ZIP file is extracted.
  4. A backup directory is created.
  5. A backup copy is made of your existing installation in the new backup directory.
  6. Older artifacts are replaced in the agenthome directory of your installation.
  7. The endpoints are quiesced.
  8. The agent is shut down and restarted.

    You are notified of update success.

Note:

After agent update occurs, the agent fails to initialize the SAP JCO libraries because these are native libraries and can only be loaded once per JVM. In the case of automatic agent update, the agent restart reloads the classes (after agent update) without shutting down the JVM. As a workaround, a manual restart of the agent is required. See Restart the Connectivity Agent.

Check the Status of the Connectivity Agent When It Restarts on Windows

The connectivity agent is automatically restarted after update completes. During the restart on Windows, the connectivity agent runs in the background.

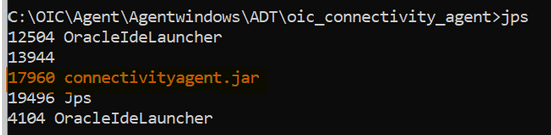

To view connectivity agent restart progress, you can look in the PID file (oic_connectivity_agent/pid) for the process ID, run the jps command from the prompt (as shown below), or view the connectivity agent update logs located in agenthome/logs/agent-diagnostic0.log and agenthome/logs/agent-upgrade.log.


The Windows terminal window shows the PID for the agent and the jps command.
