7 Oracle Big Data SQL Reference

Find reference information for Oracle Big Data SQL here.

Depending on your Oracle RDBMS release, there may be additional procedures such as CREATE_HYBRID_PARTNED_TABLE and SYNCHRONIZE_PARTITIONS_FOR_HIVE. For additional information, see the "Oracle Database PL/SQL Packages and Type Reference" for your RDBMS release at Oracle Database Documentation.

7.1 `CREATE TABLE` ACCESS PARAMETERS Clause

This section describes the properties that you use when creating an external table that uses the ORACLE_HDFS, ORACLE_HIVE, or ORACLE_BIGDATA access drivers. In a CREATE TABLE ORGANIZATION EXTERNAL statement, specify the parameters in the opaque_format_spec clause of ACCESS PARAMETERS.

This section contains the following topics:

7.1.1 Syntax Rules for Specifying Properties

The properties are set using keyword-value pairs in the SQL CREATE TABLE ACCESS PARAMETERS clause and in the configuration files.

The syntax must obey these rules:

The format of each keyword-value pair is a keyword, a colon or equal sign, and a value. The following are valid keyword-value pairs:
```
keyword=value
keyword:value
```
The value is everything from the first non-whitespace character after the separator to the end of the line. Whitespace between the separator and the value is ignored. Trailing whitespace for the value is retained.
A property definition can be on one line or multiple lines.
A line terminator is a line feed, a carriage return, or a carriage return followed by line feeds.
When a property definition spans multiple lines, then precede the line terminators with a backslash (escape character), except on the last line. In this example, the value of the Keyword1 property is Value part 1 Value part 2 Value part 3.
```
Keyword1=  Value part 1 \
           Value part 2 \
           Value part 3
```
You can create a logical line by stripping each physical line of leading whitespace and concatenating the lines. The parser extracts the property names and values from the logical line.
You can embed special characters in a property name or property value by preceding a character with a backslash (escape character), indicating the substitution. Table 7-1 describes the special characters.

Table 7-1 Special Characters in Properties

Escape Sequence	Character
`\b`	Backspace (`\u0008`)
`\t`	Horizontal tab (`\u0009`)
`\n`	Line feed (`\u000a)`
`\f`	Form feed (`\u000c`)
`\r`	Carriage return (`\u000d`)
`\"`	Double quote (`\u0022`)
`\'`	Single quote (`\u0027`)
`\\`	Backslash (`\u005c`) When multiple backslashes are at the end of the line, the parser continues the value to the next line only for an odd number of backslashes.
`\uxxxx`	2-byte, big-endian, Unicode code point. When a character requires two code points (4 bytes), the parser expects `\u` for the second code point.

7.1.2 `ORACLE_HDFS` Access Parameters

The access parameters for the ORACLE_HDFS access driver provide the metadata needed to locate the data in HDFS and generate a Hive table over it.

7.1.2.1 Default Parameter Settings for `ORACLE_HDFS`

Describes default parameter settings for ORACLE_HDFS.

If you omit all access parameters from the CREATE TABLE statement, then ORACLE_HDFS uses the following default values:

com.oracle.bigdata.rowformat=DELIMITED
com.oracle.bigdata.fileformat=TEXTFILE
com.oracle.bigdata.overflow={"action":"error"}
com.oracle.bigdata.erroropt={"action":"setnull"}

7.1.2.2 Optional Parameter Settings for `ORACLE_HDFS`

ORACLE_HDFS supports the following optional com.oracle.bigdata parameters, which you can specify in the opaque_format_spec clause:

Example 7-1 shows a CREATE TABLE statement in which multiple access parameters are set.

Example 7-1 Setting Multiple Access Parameters for ORACLE_HDFS

CREATE TABLE ORDER (CUST_NUM VARCHAR2(10),
                    ORDER_NUM VARCHAR2(20),
                    ORDER_DATE DATE,
                    ITEM_CNT NUMBER,
                    DESCRIPTION VARCHAR2(100),
                    ORDER_TOTAL (NUMBER8,2)) ORGANIZATION EXTERNAL
             (TYPE ORACLE_HDFS
 ACCESS PARAMETERS (
  com.oracle.bigdata.fields: (CUST_NUM,              \
                              ORDER_NUM,             \
                              ORDER_DATE,            \
                              ORDER_LINE_ITEM_COUNT, \
                              DESCRIPTION,           \
                              ORDER_TOTAL)
  com.oracle.bigdata.colMap:     {"col":"item_cnt", \
                                  "field":"order_line_item_count"}
  com.oracle.bigdata.overflow:   {"action":"TRUNCATE", \
                                  "col":"DESCRIPTION"}
  com.oracle.bigdata.errorOpt:  [{"action":"replace", \
                                  "value":"INVALID NUM", \
                                  "col":["CUST_NUM","ORDER_NUM"]} , \
                                 {"action":"reject", \
                                  "col":"ORDER_TOTAL}]
 )
 LOCATION ("hdfs:/usr/cust/summary/*"));

7.1.3 `ORACLE_HIVE` Access Parameters

ORACLE_HIVE retrieves metadata about external data sources from the Hive catalog.

The default mapping of Hive data to columns in the external table are usually appropriate. However, some circumstances require special parameter settings, or you might want to override the default values for reasons of your own.

7.1.3.1 Default Parameter Settings for `ORACLE_HIVE`

Describes the default parameter settings for ORACLE_HIVE.

If you omit all access parameters from the CREATE TABLE statement, then ORACLE_HIVE uses the following default values:

com.oracle.bigdata.tablename=name of external table
com.oracle.bigdata.overflow={"action":"error"}
com.oracle.bigdata.erroropt={"action":"setnull"}

7.1.3.2 Optional Parameter Values for `ORACLE_HIVE`

ORACLE_HIVE supports the following optional com.oracle.bigdata parameters, which you can specify in the opaque_format_spec clause:

Example 7-2 shows a CREATE TABLE statement in which multiple access parameters are set.

Example 7-2 Setting Multiple Access Parameters for ORACLE_HIVE

CREATE TABLE ORDER (cust_num VARCHAR2(10),
                    order_num VARCHAR2(20),
                    order_date DATE,
                    item_cnt NUMBER,
                    description VARCHAR2(100),
                    order_total (NUMBER8,2)) ORGANIZATION EXTERNAL
(TYPE oracle_hive
 ACCESS PARAMETERS (
  com.oracle.bigdata.tableName:  order_db.order_summary
  com.oracle.bigdata.colMap:     {"col":"ITEM_CNT", \
                                  "field":"order_line_item_count"}
  com.oracle.bigdata.overflow:   {"action":"ERROR", \
                                  "col":"DESCRIPTION"}
  com.oracle.bigdata.errorOpt:   [{"action":"replace", \
                                   "value":"INV_NUM" , \
                                   "col":["CUST_NUM","ORDER_NUM"]} ,\
                                  {"action":"reject", \
                                   "col":"ORDER_TOTAL}]
));

7.1.4 Full List of Access Parameters for `ORACLE_HDFS` and `ORACLE_HIVE`

7.1.4.1 com.oracle.bigdata.buffersize

Sets the buffer size in kilobytes for large record reads. Set this value if you need to read records that are greater than the default buffer size.

Default Value

1000 KB

Syntax

com.oracle.bigdata.buffersize: n

Example

The following example sets the buffer size to 100 MB:

com.oracle.bigdata.buffersize: 100000

7.1.4.2 com.oracle.bigdata.datamode

Specifies the method that SmartScan uses to scan a Hadoop data source. The method can make a significant difference in performance.

Default Value

automatic

Syntax

A JSON document with the keyword-value pairs shown in the following diagram:

datamode:

Description of the illustration datamode.eps

Semantics

automatic

Automatically selects the appropriate mode, based on the metadata. It selects c mode if possible, or java mode if the data contains formats that are not supported by c mode.

Uses Java to read the file buffers, but C code to process the data and convert it to Oracle format. Specify this mode for delimited data.

If the data contains formats that the C code does not support, then it returns an error.

java

Uses the Java SerDes and InputFormats to process the data and convert it to Oracle format. Specify this mode for Parquet, RCFile, and other data formats that require a SerDe.

7.1.4.3 com.oracle.bigdata.colmap

Maps a column in the source data to a column in the Oracle external table. You can define one or multiple pairs of column mappings. Use this property when the source field names exceed the maximum length of Oracle column names, or when you want to use different column names in the external table.

Default Value

A column in the external table with the same name as the Hive column

Syntax

A JSON document with the keyword-value pairs is shown in the following diagram:

colmap:

Description of the illustration colmap.eps

colmap_entry:

Description of the illustration colmap_entry.eps

Semantics

"col":name

"col": The keyword must be lowercase and enclosed in quotation marks.

name: The name of a column in the Oracle external table. It is case sensitive and must be enclosed in quotation marks.

"field":name

"field": The keyword must be lowercase and enclosed in quotation marks.

name: The name of a field in the data source. It is not case sensitive, but it must be enclosed in quotation marks. See Syntax Rules for Specifying Properties.

Examples

This example maps a Hive column named ORDER_LINE_ITEM_COUNT to an Oracle column named ITEM_CNT:

com.oracle.bigdata.colMap={"col":"ITEM_CNT", \
                           "field":"order_line_item_count"}

The following example shows the mapping of multiple columns.

com.oracle.bigdata.colmap:[{"col":"KOL1", "field":"PROJECT_NAME"},{ "col":"KOL2","field":"wsdl_name"},{"col":"KOL3", "field":"method"}]

7.1.4.4 com.oracle.bigdata.erroropt

Describes how to handle errors that occur while the value of a column is calculated.

Default Value

{"action":"setnull"}

Syntax

A JSON document with the keyword-value pairs is shown in the following diagram:

erroropt:

Description of the illustration erroropt.eps

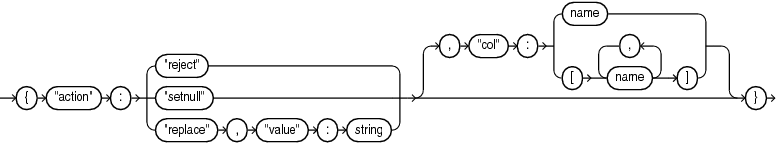

error_element:

Description of erroropt_element.eps follows

Description of the illustration erroropt_element.eps

Semantics

The "action", "reject", "setnull", "replace", "value", and "col" keywords must be lowercase and enclosed in quotation marks. See Syntax Rules for Specifying Properties.

"action":value

value: One of these keywords:

"reject": Does not load any rows.
"setnull": Sets the column to NULL.
"replace": Sets the column to the specified value.

"value":string

string: Replaces a bad value in the external table. It must be enclosed in quotation marks.

"col":name

name: Identifies a column in an external table. The column name is case sensitive, must be enclosed in quotation marks, and can be listed only once.

Example

This example sets the value of the CUST_NUM or ORDER_NUM columns to INVALID if the Hive value causes an error. For any other columns, an error just causes the Hive value to be rejected.

com.oracle.bigdata.errorOpt: {"action":"replace",\
                              "value":"INVALID", \
                              "col":["CUST_NUM","ORDER_NUM"]

7.1.4.5 com.oracle.bigdata.fields

Lists the field names and data types of the data source.

Default Value

Not defined

Syntax

A JSON document with the keyword-value pairs is shown in the following diagram:

fields:

Description of the illustration fields.eps

data_type:

Description of the illustration data_type.eps

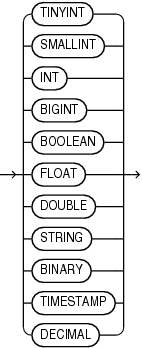

primitive_type:

Description of the illustration primitive_type.eps

Semantics

The syntax is the same as a field list for a Hive table. If you split the field list across multiple lines, you must use a backslash to escape the new line characters.

field_name

The name of the Hive field. Use only alphanumeric characters and underscores (_). The maximum length is 128 characters. Field names are case-insensitive.

data_type

The data type of the Hive field. Optional; the default is STRING. The character set must be UTF8.

The data type can be complex or primitive:

Hive Complex Data Types

ARRAY: Indexable list
MAP: Key-value tuples
STRUCT: List of elements
UNIONTYPE: Multiple data types

Hive Primitive Data Types

INT: 4 byte integer
BIGINT: 8 byte integer
SMALLINT: 2 byte integer
TINYINT: 1 byte integer
BOOLEAN: TRUE or FALSE
FLOAT: single precision
DOUBLE: double precision
STRING: character sequence

See Also:

"Data Types" in the Apache Hive Language Manual at

https://cwiki.apache.org/confluence/display/Hive/LanguageManual+Types

COMMENT col_comment

A string literal enclosed in single quotation marks, which is stored as metadata for the Hive table (comment property of TBLPROPERTIES).

7.1.4.6 com.oracle.bigdata.fileformat

Describes the row format of the data source, based on the ROW FORMAT clause for a Hive table generated by ORACLE_HDFS.

Default Value

TEXTFILE

Syntax

A JSON document with the keyword-value pairs is shown in the following diagram.

fileformat:

Description of the illustration fileformat.eps

Semantics

ORC

Optimized row columnar file format

PARQUET

Column-oriented, binary file format

RCFILE

Record columnar file format

SEQUENCEFILE

Compressed file format

TEXTFILE

Plain text file format

INPUTFORMAT

Identifies a Java class that can extract records from the data file.

OUTPUTFORMAT

Identifies a Java class that can format the output records in the desired format

7.1.4.7 com.oracle.bigdata.log.exec

Specifies how the access driver generates log files generated by the C code for a query, when it is running as parallel processes on CDH.

The access driver does not create or write log files when executing on a Hadoop cluster node; the parallel query processes write them. The log files from the Java code are controlled by log4j properties, which are specified in the configuration file or the access parameters.

See Also:

bigdata-log4j.properties

Default Value

Not defined (no logging)

Syntax

[directory_object:]file_name_template

Semantics

directory_object

The Oracle directory object for the HDFS path on the Hadoop cluster where the log file is created.

file_name_template

A string used to generate file names. This table describes the optional variables that you can use in the template.

Table 7-2 Variables for com.oracle.bigdata.log.exec

Variable	Value
`%p`	Operating system process identifier (PID)
`%a`	A number that uniquely identifies the process.
`%%`	A percent sign (`%`)

Example

The following example generates log file names that include the PID and a unique number, such as xtlogp_hive14_3413_57:

com.oracle.bigdata.log.exec=
                                                  xtlogp_hive14_%p_%a

7.1.4.8 com.oracle.bigdata.log.qc

Specifies how the access driver generates log files for a query.

Default Value

Not defined (no logging)

Syntax

[directory_object:]file_name_template

Semantics

directory_object

Name of an Oracle directory object that points to the path where the log files are written. If this value is omitted, then the logs are written to the default directory for the external table.

file_name_template

A string used to generate file names. Table 7-3 describes the optional variables that you can use in the string.

Table 7-3 Variables for com.oracle.bigdata.log.qc

Variable	Value
`%p`	Operating system process identifier (PID)
`%%`	A percent sign (`%`)

Example

This example creates log file names that include the PID and a percent sign, such as xtlogp_hive213459_%:

com.oracle.bigdata.log.qc= xtlogp_hive21%p_%%

7.1.4.9 com.oracle.bigdata.overflow

Describes how to handle string data that is too long for the columns in the external table. The data source can be character or binary. For Hive, the data source can also be STRUCT, UNIONTYPES, MAP, or ARRAY.

Default Value

{"action":"error"}

Syntax

A JSON document with the keyword-value pairs is shown in the following diagram:

overflow ::=

Description of the illustration overflow.eps

overflow_element ::=

Description of the illustration overflow_element.eps

Semantics

The "action", "truncate", "error", and "col" tags must be lowercase and enclosed in quotation marks. See Syntax Rules for Specifying Properties.

"action":value

The value of "action" can be one of the following keywords:

truncate: Shortens the data to fit the column.
error: Throws an error. The com.oracle.bigdata.erroropt property controls the result of the error.

"col":name

name: Identifies a column in the external table. The name is case sensitive and must be enclosed in quotation marks.

Example

This example truncates the source data for the DESCRIPTION column, if it exceeds the column width:

com.oracle.bigdata.overflow={"action":"truncate", \
                             "col":"DESCRIPTION"}

7.1.4.10 com.oracle.bigdata.rowformat

Provides the information the access driver needs to extract fields from the records in a file.

Important:

The com.oracle.bigdata.rowformat is unrelated to the access parameter syntax of traditional external tables that use "type ORACLE_LOADER." There are keywords such as FIELDS, TERMINATED, and others that appear in both clauses, but the commonality in naming is coincidental and does not imply common functionality. The com.oracle.bigdata.rowformat access parameter is passed without change to the default Hive serde. The Hive serde to extract columns from rows is deliberately limited. Complex cases are handled by specialized serdes.

Default Value

DELIMITED

Syntax

A JSON document with the keyword-value pairs is shown in the following diagram.

rowformat:

Description of the illustration rowformat.eps

Semantics

DELIMITED

Describes the characters used to delimit the fields in a record:

FIELDS TERMINATED BY: The character that delimits every field in the record. The optional ESCAPED BY character precedes the delimit character when it appears within a field value.
COLLECTION ITEMS TERMINATED BY: The character that marks the end of an array element. Used when a column is a collection or a nested record. In this case the resulting value will be a JSON array.
MAP KEYS TERMINATED BY: The character that marks the end of an entry in a MAP field. Used when a column is a collection or a nested record. The resulting value is a JSON object.
LINES TERMINATED BY: The character that marks the end of a record.
NULL DEFINED AS: The character that indicates a null value.

SERDE

Identifies a SerDe that can parse the data and any properties of the SerDe that the access driver might need.

Example

This example specifies a SerDe for an Avro container file:

com.oracle.bigdata.rowformat:
   SERDE'org.apache.hadoop.hive.serde2.avro.AvroSerDe'

The next example specifies a SerDe for a file containing regular expressions:

com.oracle.bigdata.rowformat=\
    SERDE 'org.apache.hadoop.hive.contrib.serde2.RegexSerDe' \
    WITH SERDEPROPERTIES \
    ("input.regex" = "(\\\\d{6}) (\\\\d{5}) (.{29}) .*")

7.1.4.11 com.oracle.bigdata.tablename

The Hive parameter com.oracle.bigdata.tablename identifies the Hive table that contains the source data.

Default Value

DEFAULT.external_table_name

Syntax

[hive_database_name.]table_name

Semantics

The maximum length of hive_database_name and table_name is 128 UTF-8 characters (512 bytes).

hive_database_name: The Hive database where the source data resides. DEFAULT is the name of the initial Hive database.

table_name: The Hive table with the data. If you omit table_name, then ORACLE_HIVE searches for a Hive table with the same name as the external table. Table names are case-insensitive.

Example

This setting indicates that the source data is in a table named ORDER_SUMMARY in the Hive ORDER_DB database:

com.oracle.bigdata.tablename ORDER_DB.ORDER_SUMMARY

7.1.5 ORACLE_BIGDATA Access Parameters

There is a set of access parameters that are common to all file formats. There are also parameters that are unique to a specific file format.

Common Access Parameters

The following table lists parameters that are common to all file formats accessed through ORACLE_BIGDATA. The first column identifies each access parameter common to all data file types. The second column describes each parameter.

Table 7-4 Common Access Parameters

Common Access Parameter	Description
`com.oracle.bigdata.credential.name`	Specifies the credential object to use when accessing data files in an object store. This access parameter is required for object store access. It is not needed for access to files through a directory object or for data stored in public buckets. The name specified for the credential must be the name of a credential object in the same schema as the owner of the table. Granting a user `SELECT` or `READ` access to this table means that credential will be used to access the table. Use `DBMS_CREDENTIAL.CREATE_CREDENTIAL` in the `DBMS_CREDENTIAL PL/SQL` package to create the credential object: `exec dbms_credential.create_credential(credential_name => 'MY_CRED',username =>'<username>', password => '<password>');` In the `CREATE TABLE` statement, set the value of the credential parameter to the name of the credential object. `com.oracle.bigdata.credential.name=MY_CRED`
`com.oracle.bigdata.fileformat`	Specifies the format of the file. The value of this parameter identifies the reader that processes the file. Each reader can support additional access parameters that may or may not be supported by other readers. Valid values: `parquet`, `orc`, `textfile`, `avro`, `csv`, `jsondoc`, `jsontable` `parquet` - file uses Parquet data file format `orc` - file uses ORC columnar storage file format `textfile` - file uses text file format `avro` - file uses Avro file format `csv` - file uses CSV text file format `jsondoc` - reads a JSON file. The JSON values are mapped to a single JSON column that may be queried using SQL/JSON. `jsontable` - reads a JSON file. The JSON values are assumed to be JSON objects and the top-level attributes of the object are mapped to specific columns based on the column name. Default: `parquet`
`com.oracle.bigdata.log.opt`	Specifies whether log messages should be written to a log file. When `none` is specified, then no log file is created. If the value is `normal`, then log file is created when the file reader decides to write a message. It is up to the file reader to decide what is written to the log file. Valid values: `normal`, `none` Default: `none`.
`com.oracle.bigdata.log.qc`	Specifies the name of the log file created by the parallel query coordinator. This parameter is used only when `com.oracle.bigdata.log.opt` is set to `normal`. The valid values are the same as specified for `com.oracle.bigdata.log.qc` in `ORACLE_HIVE` and `ORACLE_HDFS`.
`com.oracle.bigdata.log.exec`	Specifies the name of the log file created during query execution. This value is used (and is required) only when `com.oracle.bigdata.log.exec` is set to normal. The valid values are the same as specified for in `ORACLE_HIVE` and `ORACLE_HDFS`. Valid values: `normal`, `none` Default: `none`.

Avro-Specific Access Parameters

In addition to common access parameters, there are some that are only valid for the Avro file format. The first column in this table identifies the access parameters specific to the Avro file format and the second column describes the parameter. There is only one Avro-specific parameter at this time.

Table 7-5 Avro-Specific Access Parameters

Avro-Specific Parameter Description

Avro-Specific Parameter	Description
`com.oracle.bigdata.avro.decimaltpe`	Specifies the representation of a decimal stored in the byte array. Valid values: `int`, `integer`, `str`, `string` Default: If this parameter is not used, an Avro decimal column is read assuming byte arrays store the numerical representation of the values (that is default to `int`) as the Avro specification defines.

com.oracle.bigdata.avro.decimaltpe

Specifies the representation of a decimal stored in the byte array.

Valid values: int, integer, str, string

Default: If this parameter is not used, an Avro decimal column is read assuming byte arrays store the numerical representation of the values (that is default to int) as the Avro specification defines.

Parquet-Specific Access Parameters

Some access parameters are only valid for the Parquet file format. The first column in this table identifies the access parameters specific to the Parquet file format and the second column describes the parameter.

Table 7-6 Parquet-Specific Access Parameters

Parquet-Specific Access Parameter Description

Parquet-Specific Access Parameter	Description
`com.oracle.bigdata.prq.binary_as_string`	This is a Boolean property that specifies if the binary is stored as a string. Valid values: `true`, `t`, `yes`, `y`, `l`, `false`, `f`, `no`, `n`, `0` Default: `true`
`com.oracle.bigdata.prq.int96_as_timestamp`	This is a Boolean property that specifies if `int96` represents a timestamp. Valid values: `true`, `t`, `yes`, `y`, `l`, `false`, `f`, `no`, `n`, `0` Default: `true`

com.oracle.bigdata.prq.binary_as_string

This is a Boolean property that specifies if the binary is stored as a string.

Valid values: true, t, yes, y, l, false, f, no, n, 0

Default: true

com.oracle.bigdata.prq.int96_as_timestamp

This is a Boolean property that specifies if int96 represents a timestamp.

Valid values: true, t, yes, y, l, false, f, no, n, 0

Default: true

Textfile and CSV-Specific Access Parameters

The text file and comma-separated value (csv) file formats are similar to the hive text file format. It reads text and csv data from delimited files. ORACLE_BIGDATA automatically detects the line terminator (either \n, \r, or \r\n). By default, it assumes the fields in the file are separated by commas, and the order of the fields in the file match the order of the columns in the external table.

Example 7-3 CSV Data File

This is a simple csv example. The data file has comma-separated values, with optional enclosing quotes.

–----Source csv data in t.dat
t.dat:

1,"abc",
2,xyx,

–---------Create an external table over the csv source data in t.dat
CREATE TABLE t
(
 c0 number,
 c1 varchar2(20)
)
ORGANIZATION external
(
 TYPE oracle_bigdata
 DEFAULT DIRECTORY DMPDIR
 ACCESS PARAMETERS
 (
  com.oracle.bigdata.fileformat=csv
 )
 location
 (
  't.dat'
 )
)REJECT LIMIT 1
;

–------Select data from external table
select c0, c1 from t;

 C0    C1
----  -----
 1     abc
 2     xyz

Example 7-4 CSV Data File

This example shows how to create an external table over a csv data source, which has '|' as the field separator, the data file compressed with gzip, blanks as null, and a date format.

–----The source csv data in t.dat
t.dat:

 1|  |
 2|Apr-99-30|

–------Create an external table over the csv data source in t.dat
CREATE TABLE t(
 c0 number,
 c1 date
)
ORGANIZATION external
(
 TYPE oracle_bigdata
 DEFAULT DIRECTORY DMPDIR
 ACCESS PARAMETERS
 (
  com.oracle.bigdata.fileformat=textfile
  com.oracle.bigdata.compressiontype=gzip
  com.oracle.bigdata.csv.rowformat.separatorcharacter='|'
  com.oracle.bigdata.blankasnull=true
  com.oracle.bigdata.dateformat="MON-RR-DD HH:MI:SS"
 )
 location
 (
  't.dat.gz'
  )
 )REJECT LIMIT 1
;

--Select csv data from external table
QL> select c0, c1 from t;

 C0       C1
------ ---------
  1
  2    30-APR-99

Example 7-5 JSON Data File - Map JSON values to columns

This approach works well for simple JSON documents. The expectation is that the rows will primarily consist of a single object with multiple key/value pairs. Like ordinary tables, the column data type has to match the data type of the value found in the file. In cases where the document contains values with nesting, that is complex values, the parser will output the value as a JSON document. However, this is stored as a string. User specifies this mapping strategy via access parameter com.oracle.bigdata.fileformat=jsontable.

As an example of this mapping scheme, consider the following UC1 file:

{"ts":1603802918441,"level":"DEBUG1","component":"resp","cell-id":"cloudsql-v1-12"}
{"ts":1603802918442,"level":"DEBUG2","component":[{"tst":1},{"tst":2},{"tst":3}],"cellid":"cloudsql-v1-12"}
{"ts":1603802918443,"level":"DEBUG3","component":"resp","cell-id":"cloudsql-v1-12"}
{"ts":1603802918444,"level":"DEBUG4","component":"resp","cell-id":"cloudsql-v1-12"}

We could create the following external table:

CREATE TABLE logs(
    ts number(20),
    lvl varchar(35)
    component varchar(50),
    cellid varchar2(20)
)   ORGANIZATION EXTERNAL
   (TYPE ORACLE_BIGDATA
    DEFAULT DIRECTORY default_dir
    ACCESS PARAMETERS
      (com.oracle.bigdata.fileformat = jsontable)
        location ('nested.json'));

Then, we can query the table as follows:

SQL> Select * from logs;
TS         LVL        COMPONENT                       CELLID
---------- --------- -------------------------------- -----------------
1.6038E+12 DEBUG1    resp                             cloudsql-v1-12
1.6038E+12 DEBUG2    [{"tst":1},{"tst":2},{"tst":3}]  cloudsql-v1-12
1.6038E+12 DEBUG3    resp                             cloudsql-v1-12
1.6038E+12 DEBUG4    resp                             cloudsql-v1-12

4 rows selected.

Note, that the value of component column in row 2 is represented as a JSON doc. As already mentioned, this is stored as a varchar in v1. In general, the datatype mapping strategy relies on the datatypes defined at table DDL. When there is a datatype mismatch, the value is rejected and processing continues. For example, consider the following scenario:

{"Customer ID", 123456}
{"Customer ID", "123456"}
{"Customer ID", true}

If the table column was defined as a number, row 3 from above will produce a conversion error and reject the value. However, it will be resilient to the enquoted value of row 2.

Example 7-6 JSON Data File - Entire row is mapped to a single column.

In this mapping strategy, the entire JSON document is mapped to a single column of type JSON. User specifies this mapping strategy via access parameter com.oracle.bigdata.fileformat=jsondoc.

As an example of this mapping scheme, consider the following UC1 file:

{"ts":1603802918441,"level":"DEBUG1","component":"resp","cell-id":"cloudsql-v1-12"}
{"ts":1603802918442,"level":"DEBUG2","component":[{"tst":1},{"tst":2},{"tst":3}],"cellid":"cloudsql-v1-12"}
{"ts":1603802918443,"level":"DEBUG3","component":"resp","cell-id":"cloudsql-v1-12"}
{"ts":1603802918444,"level":"DEBUG4","component":"resp","cell-id":"cloudsql-v1-12"}

We could create the following external table:

CREATE TABLE logs (data JSON)
  ORGANIZATION EXTERNAL
   (TYPE ORACLE_BIGDATA
    DEFAULT DIRECTORY default_dir
    ACCESS PARAMETERS
      (com.oracle.bigdata.fileformat = jsondoc)
    location ('nested.json'));

Then, we can query the external table:

SQL> select l.doc.cell-id, l.doc.component[1].tst
     from logs l
     where l.doc.ts = 1603802918442;
  cell-id            tst
--------------------------------
cloudsql-v1-12     2

In the example above, we selected the component and cell-id value of the second row (TS = 1603802918442). Notice that the component value of row 2 is an array. We then, proceeded by querying the second item of the array, i.e. COMPONENT[1]).

Example 7-7 JSON Data File

This is a JSON file where each row is a JSON document. The external table reaches each row. Queries use Oracle SQL JSON functions to parse the data.

{"id":"72","name":"George","lat":40.76727216,"lon":-73.99392888,"segments":["wealthy","middle-aged"],"age":45}
{"id":"79","name":"Lucy","lat":40.71911552,"lon":-74.00666661,"segments":["married","yes"],"age":33}

— Create the external table over Json source
CREATE TABLE people (
 data json
)
ORGANIZATION EXTERNAL (
  TYPE ORACLE_BIGDATA
  ACCESS PARAMETERS(
    com.oracle.bigdata.fileformat=jsondoc
    )
  LOCATION ('https://swftobjectstorage.us-ashburn-1.oraclecloud.com/n/mytenant/b/people/o/data.json')
)
REJECT LIMIT UNLIMITED;

–---Select data from external table
select s.data.id,
  s.data.name,
  s.data.segments[0]
from people s;

id     Name     segments[0]
–---   –----    –-----------------------------------
  72   George   wealthy
  79   Lucy     married

Textfile, CSV-Specific and JSON-Specific Access Parameters

Table 7-7 Textfile and CSV-Specific Access Parameters

Textfile-Specific Access Parameter	Description
`com.oracle.bigdata.buffersize`	Specifies the size of the input/output (I/O) buffer used for reading the file. The value is the size of the buffer in kilobytes. Note that the buffer size is also the largest size that a record can be. If a format reader encounters a record larger than this value, then it will return an error. Default: `1024`
`com.oracle.bigdata.blankasnull`	When set to `true`, loads fields consisting of spaces as null. Valid values: `true`, `false` Default: `false` Example: `com.oracle.bigdata.blankasnull=true`
`com.oracle.bigdata.characterset`	Specifies the character set of source files. Valid values: `UTF-8` Default: `UTF-8` Example: `com.oracle.bigdata.characterset=UTF-8`
`com.oracle.bigdata.compressiontype`	If this parameter is specified, then the code tries to decompress the data according to the compression scheme specified. Valid values: `gzip`, `bzip2` , `zlib`, `detect` Default: no compression If `detect` is specified, then the format reader tries to determine which of the supported compression methods was used to compress the file.
`com.oracle.bigdata.conversionerrors`	`If a row has data type conversion errors, then the related columns are stored as null, or the row is rejected.` Valid values: `reject_record`, `store_null` Default: `store_null` Example: `com.oracle.bigdata.conversionerrors=reject_record`
`com.oracle.bigdata.csv.rowformat.nulldefinedas`	Specifies the character used to indicate the value of a field is `NULL`. If the parameter is not specified, then there is no value.
`com.oracle.bigdata.csv.rowformat.fields.terminator`	Specifies the character used to separate the field values. The character value must be wrapped in single-quotes. Example: `'\|'`. Default: `','`
`com.oracle.bigdata.csv.rowformat.fields.escapedby`	Specifies the character used to escape any embedded field terminators or line terminators in the value for fields. The character value must be wrapped in single quotes. Example: `'\'`.
`com.oracle.bigdata.dateformat`	Specifies the date format in the source file. The format option `Auto` checks for the following formats: `J, MM-DD-YYYYBC`, `MM-DD-YYYY`, `YYYYMMDD HHMISS`, `YYMMDD HHMISS,` `YYYY.DDD`, `YYYY-MM-DD` Default: `yyyy-mm-dd hh24:mi:ss` Example: `com.oracle.bigdata.dateformat= "MON-RR-DDHH:MI:SS"`
`com.oracle.bigdata.fields`	Specifies the order of fields in the data file. The values are the same as for `com.oracle.bigdata.fields` in `ORACLE_HDFS`, with one exception – in this case, the data type is optional. Because the data file is text, the text file reader ignores the data types for the fields, and assumes all fields are text. Because the data type is optional, this parameter can be a list of field names.
`com.oracle.bigdata.ignoreblanklines`	Blank lines are ignored when set to true. Valid values: `true`, `false` Default: `false` Example: `com.oracle.bigdata.ignoreblanklines=true`
`com.oracle.bigdata.ignoremissingcolumns`	Missing columns are stored as null. Valid values: `true` Default: `true` Example: `com.oracle.bigdata.ignoremissingcolumns=true`
`com.oracle.bigdata.json.ejson`	Specifies whether to enable extended JSON. Valid values: `true`, `t`, `yes`, `y`, `1`, `false`, `f`, `no`, `n`, `0` Default: `true` Example: `com.oracle.bigdata.jason.ejson=yes`
`com.oracle.bigdata.json.path`	A JSON path expression which identifies a sequence of nested JSON values which will be mapped to table rows. Valid values: String property Default: `null` Example: `'$.data[*]'`
`com.oracle.bigdata.json.unpackarrays`	Specifies whether to unbox the array found in JSON files. The file consists of an array of JSON objects. The entire file is a grammatically valid JSON doc. An example of such a file is [{“a”:1},{“a”:2},{“a”:3}]. Valid values: `true`, `t`, `yes`, `y`, `1`, `false`, `f`, `no`, `n`, `0` Default: `false` Example: `com.oracle.bigdata.json.unpackarrays=true`
`com.oracle.bigdata.quote`	Specifies the quote character for the fields. The quote characters are removed during loading when specified. Valid values: character Default: Null, meaning no quote Example: `com.oracle.bigdata.csv.rowformat.quotecharacter='"'`
`com.oracle.bigdata.rejectlimit`	The operation errors out after specified number of rows are rejected. This only applies when rejecting records due to conversion errors. Valid values: number Default: `0` Example:`com.oracle.bigdata.rejectlimit=2`
`com.oracle.bigdata.removequotes`	Removes any quotes that are around any field in the source file. Valid values: `true`, `false` Default: `false` Example:`com.oracle.bigdata.removequotes=true`
`com.oracle.bigdata.csv.skip.header`	Specifies how many rows should be skipped from the start of the files. Valid values: number Default: `0`, if not specified Example: `com.oracle.bigdata.csv.skip.header=1`
`com.oracle.bigdata.timestampformat`	Specifies the timestamp format in the source file. The format option `AUTO` checks for the following formats: `YYYY-MM-DD HH:MI:SS.FF`, `YYYY-MM-DD HH:MI:SS.FF3`, `MM/DD/YYYY HH:MI:SS.FF3` Valid values: `auto` Default: `yyyy-mm-dd hh24:mi:ss.ff` Example: `com.oracle.bigdata.timestamptzformat="auto"`
`com.oracle.bigdata.timestampltzformat`	Specifies the timestamp with local timezone format in the source file. The format option `AUTO` checks for the following formats: `DD Mon YYYY HH:MI:SS.FF TZR`, `MM/DD/YYYY HH:MI:SS.FF TZR`, `YYYY-MM-DD HH:MI:SS+/-TZR`, `YYYY-MM-DD HH:MI:SS.FF3`, `DD.MM.YYYY HH:MI:SS TZR` Valid values: `auto` Default: `yyyy-mm-dd hh24:mi:ss.ff` Example: `com.oracle.bigdata.timestampltzformat="auto"`
`com.oracle.bigdata.timestamptzformat`	Specifies the timestamp with timezone format in the source file. The format option `AUTO` checks for the following formats: `DD Mon YYYY HH:MI:SS.FF TZR`, `MM/DD/YYYY HH:MI:SS.FF TZR`, `YYYY-MM-DD HH:MI:SS+/-TZR`, `YYYY-MM-DD HH:MI:SS.FF3`, `DD.MM.YYYY HH:MI:SS TZR` Valid values: `auto` Default: `yyy-mm-dd hh24:mi:ss.ff` Example: `com.oracle.bigdata.timestamptzformat="auto"`
`com.oracle.bigdata.trimspaces`	Specifies how the leading and trailing spaces of the fields are trimmed. Valid values: `rtrim`, `ltrim`, `notrim`, `ltrim`, `ldrtrim` Default: `notrim` Example: `com.oracle.bigdata.trimspaces=rtrim`
`com.oracle.bigdata.truncatecol`	If the data in the file is too long for a field, then this option truncates the value of the field rather than rejecting the row or setting the field to NULL. Valid values: `true`, `false` Default: `false` Example: `com.oracle.bigdata.truncatecol=true`

7.2 Static Data Dictionary Views for Hive

The Oracle Database catalog contains several static data dictionary views for Hive tables. You can query these data dictionary views to discover information about the Hive tables that you can access.

For you to access any Hive databases from Oracle Database, you must have read privileges on the ORACLE_BIGDATA_CONFIG directory object.

7.2.1 ALL_HIVE_DATABASES

ALL_HIVE_DATABASES describes all databases in the Hive metastore accessible to the current user.

Related Views

DBA_HIVE_DATABASES describes all the databases in the Hive metastore.
USER_HIVE_DATABASES describes the databases in the Hive metastore owned by the current user.

Column	Datatype	NULL	Description
`CLUSTER_ID`	`VARCHAR2(4000)`	`NOT NULL`	Hadoop cluster where the Hive metastore is located
`DATABASE_NAME`	`VARCHAR2(4000)`	`NOT NULL`	Hive database name
`DESCRIPTION`	`VARCHAR2(4000)`		Hive database description
`DB_LOCATION`	`VARCHAR2(4000)`	`NOT NULL`
`HIVE_URI`	`VARCHAR2(4000)`		Hive database URI

See Also:

7.2.2 ALL_HIVE_TABLES

ALL_HIVE_TABLES describes all tables in the Hive metastore accessible to the current user.

The Oracle Big Data SQL configuration must identify the default Hive database for the current user. The current user must also have READ privileges on the ORA_BIGSQL_CONFIG database directory. See "About the bigdata_config Directory".

Related Views

DBA_HIVE_TABLES describes all tables in the Hive metastore.
USER_HIVE_TABLES describes the tables in the database owned by the current user in the Hive metastore.

Column	Datatype	NULL	Description
`CLUSTER_ID`	`VARCHAR2(4000)`	`NOT NULL`	Hadoop cluster where the Hive metastore is located
`DATABASE_NAME`	`VARCHAR2(4000)`	`NOT NULL`	Name of the Hive database
`TABLE_NAME`	`VARCHAR2(4000)`	`NOT NULL`	Name of the Hive table
`LOCATION`	`VARCHAR2(4000)`
`NO_OF_COLS`	`NUMBER`		Number of columns in the Hive table
`CREATION_TIME`	`DATE`		Time when the table was created
`LAST_ACCESSED_TIME`	`DATE`		Time of most recent access
`OWNER`	`VARCHAR2(4000)`		Owner of the Hive table
`TABLE_TYPE`	`VARCHAR2(4000)`	`NOT NULL`	Type of Hive table, such as external or managed
`PARTITIONED`	`VARCHAR2(4000)`		Whether the table is partitioned (`YES`) or not (`NO`)
`NO_OF_PART_KEYS`	`NUMBER`		Number of partitions
`INPUT_FORMAT`	`VARCHAR2(4000)`		Input format
`OUTPUT_FORMAT`	`VARCHAR2(4000)`		Output format
`SERIALIZATION`	`VARCHAR2(4000)`		SerDe serialization information
`COMPRESSED`	`NUMBER`		Whether the table is compressed (`YES`) or not (`NO`)
`HIVE_URI`	`VARCHAR2(4000)`		Hive database URI

See Also:

"DBA_HIVE_TABLES"
"USER_HIVE_TABLES"

7.2.3 ALL_HIVE_COLUMNS

ALL_HIVE_COLUMNS describes the columns of all Hive tables accessible to the current user.

Related Views

DBA_HIVE_COLUMNS describes the columns of all tables in the Hive metastore.
USER_HIVE_COLUMNS describes the columns of the tables in the Hive database owned by the current user.

Column	Datatype	NULL	Description
`CLUSTER_ID`	`VARCHAR2(4000)`	`NOT NULL`	Hadoop cluster where the Hive metastore is located
`DATABASE_NAME`	`VARCHAR2(4000)`	`NOT NULL`	Name of the Hive database; if blank, then the default database
`TABLE_NAME`	`VARCHAR2(4000)`	`NOT NULL`	Name of the Hive table
`COLUMN_NAME`	`VARCHAR2(4000)`	`NOT NULL`	Name of the Hive column
`HIVE_COLUMN_TYPE`	`VARCHAR2(4000)`	`NOT NULL`	Data type of the Hive column
`ORACLE_COLUMN_TYPE`	`VARCHAR2(4000)`	`NOT NULL`	Oracle data type equivalent to Hive data type
`LOCATION`	`VARCHAR2(4000)`
`OWNER`	`VARCHAR2(4000)`		Owner of the Hive table
`CREATION_TIME`	`DATE`		Time when the table was created
`HIVE_URI`	`VARCHAR2(4000)`		Hive database URI

See Also:

"DBA_HIVE_COLUMNS"
"USER_HIVE_COLUMNS"

7.2.4 DBA_HIVE_DATABASES

DBA_HIVE_DATABASES describes all the databases in the Hive metastore. Its columns are the same as those in ALL_HIVE_DATABASES.

See Also:

"ALL_HIVE_DATABASES"

7.2.5 DBA_HIVE_TABLES

DBA_HIVE_TABLES describes all tables in the Hive metastore. Its columns are the same as those in ALL_HIVE_TABLES.

The Oracle Big Data SQL configuration must identify the default Hive database for the current user. See "About the bigdata_config Directory".

See Also:

"ALL_HIVE_TABLES"

7.2.6 DBA_HIVE_COLUMNS

DBA_HIVE_COLUMNS describes the columns of all tables in the Hive metastore. Its columns are the same as those in ALL_HIVE_COLUMNS.

See Also:

"ALL_HIVE_COLUMNS"

7.2.7 USER_HIVE_DATABASES

USER_HIVE_DATABASES describes the databases in the Hive metastore owned by the current user. Its columns (except for OWNER) are the same as those in ALL_HIVE_DATABASES.

See Also:

"ALL_HIVE_DATABASES"

7.2.8 USER_HIVE_TABLES

USER_HIVE_TABLES describes the tables in the database owned by the current user in the Hive metastore. Its columns (except for OWNER) are the same as those in ALL_HIVE_TABLES.

See Also:

"ALL_HIVE_TABLES"

7.2.9 USER_HIVE_COLUMNS

USER_HIVE_COLUMNS describes the columns of the tables in the Hive database owned by the current user. Its columns (except for OWNER) are the same as those in ALL_HIVE_COLUMNS.

See Also:

"ALL_HIVE_COLUMNS"

7.3 DBMS_BDSQL PL/SQL Package

The DBMS_BDSQL PL/SQL package contains procedures to add and remove a user map.

This appendix contains the following sections:

In previous releases of Oracle Big Data SQL, all queries against Hadoop and Hive data are executed as the oracle user and there is no option to change users. Although oracle is still the underlying user in all cases, you can now use Multi-User Authorization (based on Hadoop Secure Impersonation) to direct the oracle account to execute tasks on behalf of other designated users. This enables HDFS data access based on the user that is currently executing the query, rather than the singular oracle user.

The DBMS_BDSQL package enables you to provide rules for identifying the currently connected user and to map the connected user to the user that is impersonated. Because there are numerous ways in which users can connect to Oracle Database, this user may be a database user, a user sourced from LDAP, from Kerberos, and so forth. Authorization rules on the files apply for that user and audits will reflect that user as well.

Note:

Grant the new BDSQL_ADMIN role to designated administrators in order to allow them to invoke these procedures.

7.3.1 ADD_USER_MAP

Use the ADD_USER_MAP procedure to specify the rules for identifying the actual user who is running the query.

At query execution time, the database performs a lookup on the BDSQL_USER_MAP table to determine the current database user (current_database_user). It then uses the syscontext_namespace and syscontext_parm_hadoop_user parameters to identify the actual user.

Syntax

procedure ADD_USER_MAP (
    cluster_name                 IN VARCHAR2 DEFAULT '[DEFAULT]',
    current_database_user        IN VARCHAR2 NOT NULL,
    syscontext_namespace         IN VARCHAR2 DEFAULT NULL,
    syscontext_parm_hadoop_user  IN VARCHAR2 NOT NULL
);

Table 7-8 ADD_USER_MAP Parameters

Parameter	Description
`cluster_name`	The name of the Hadoop cluster where the map will be applied. `[DEFAULT]` as cluster name designates the default cluster.
`current_database_user`	The current effective database user. This is what Oracle uses to check for authority. A value of '*' indicates that this row to be used if no other rows fit the criteria. There is no default and the value may not be NULL.
`syscontext_namespace`	Note that for the Oracle `USERENV` namespace, the only allowed values are `GLOBAL_UID`, `CLIENT_IDENTIFIER`, and `AUTHENTICATED_IDENTITY`. If your Oracle Database installation uses Kerberos credentials, SSL, Active Directory, or LDAP for authentication, it is likely that your Hadoop system uses the same authentication framework. In that case, `AUTHENTICATED_IDENTITY` must be specified. This identifier only includes the username. The domain segment of the credential is truncated, as is the cluster name if included. For example, the username `dirkrb` will be used for authorization on the Hadoop cluster as the authenticated identity of `dirkrb@HQ.TEST1.DBSEC2008.COM`.
`syscontext_parm_hadoop_user`	The Hadoop user that will impersonate the current database user.

Note:

The values for current_database_user and syscontext_parm_hadoop_user can be the single asterisk character (*) or any string that meets the requirements of Oracle simple_sql_name assertion:

The name must begin with an alphabetic character. It may contain alphanumeric characters as well as the characters _, $, and # in the second and subsequent character positions.
Quoted SQL names are also allowed.
Quoted names must be enclosed in double quotes.
Quoted names allow any characters between the quotes.
Quotes inside the name are represented by two quote characters in a row, for example, "a name with "" inside" is a valid quoted name.
The input parameter may have any number of leading and/or trailing white space characters.

7.3.2 REMOVE_USER_MAP

Use REMOVE_USER_MAP to remove a row from BDSQL_USER_MAP table. This disassociates a specific Oracle Database user from specific Hadoop user.

Syntax

procedure REMOVE_USER_MAP (
   cluster_name IN VARCHAR2 DEFAULT '[DEFAULT]',
   current_database_user IN VARCHAR2 NOT NULL
);

See Also:

The reference page for ADD_USER_MAP describes the cluster_name and current_database_user parameters.

7.3.3 Multi-User Authorization Security Table

SYS.BDSQL_USER_MAP is the multi-user authorization security table.

Use the procedures ADD_USER_MAP and REMOVE_USER_MAP to update this table.

The primary key is (cluster_name, current_database_user).

Table 7-9 SYS.BDSQL_USER_MAP

Column	Datatype	Description
`cluster_name`	varchar2	Name of the Hadoop cluster. The default is `[DEFAULT]`.
`current_database_user`	varchar2	The current effective database user (no default, not NULL). Oracle uses this column to check for the authorization rule that corresponds to the given Oracle Database user. A value of '`*`' in a row is a directive to use this row if no other rows fit the criteria.
`syscontext_namespace`	varchar2	This is the optional specification for the Oracle `SYS_CONTEXT` namespace. if customer security is set up. Note that for the Oracle `USERENV` namespace, the only allowed values are: `‘GLOBAL_UID’`,`‘CLIENT_IDENTIFIER’`, `‘AUTHENTICATED_IDENTITY’`.
`syscontext_parm_hadoop_user`	varchar2	This column value has alternate interpretations. If `syscontext_namespace` has a value, then`syscontext_parm_hadoop_user` refers to the parameter that is specific to `syscontext_namespace`. However, when the value is '`*`' , this is a directive to use the value of `current_database_user` for impersonation. The `syscontext_namespace` column must be NULL in this case. If `syscontext_namespace` is NULL, then `syscontext_parm_hadoop_user` contains the Hadoop user who is impersonated prior to HDFS files access.

Here a customer is using Active Directory, Kerberos, SSL, or LDAP for logon authentication against the database. AUTHENTICATED_IDENTITY is specified in this case because customer uses the same Active Directory framework for Hadoop user management.

The example below is similar to running the following SQL query for the currently connected user:

select sys_context('USERENV', 'AUTHENTICATED_IDENTITY') from dual;

In this example, only the username (without the “@<domain>” segment) is used for authorization on the Hadoop cluster. There may also be cases where the format of AUTHENTICATED_IDENTITY is <username>/<cluster>@<domain_name>.

cluster_name	current_database_user	syscontext_namespace	syscontext_parm_hadoop_user
[DEFAULT]	*	USERENV	AUTHENTICATED_IDENTITY

In this example, “HRAPP” is an HR Application that always connects to the database using the HRAPP database user and then programmatically sets the application user through the DBMS_SESSION.SET_IDENTIFIER procedure. There are number of “lightweight” users who are designated with CLIENT_IDENTIFIER (as in sys_context('USERENV', 'CLIENT_IDENTIFIER') [DEFAULT] * USERENV GLOBAL_UID, which is similar to running select sys_context('USERENV', 'CLIENT_IDENTIFIER') from dual; ) .

The current database has other effective users who are enterprise users with logons managed by Oracle Internet Directory for Enterprise User Security. In these cases, the GLOBAL_UID is used for Hadoop impersonation.

cluster_name	current_database_user	syscontext_namespace	syscontext_parm_hadoop_user
[DEFAULT]	HRAPP	USERENV	CLIENT_IDENTIFIER
[DEFAULT]	*	USERENV	GLOBAL_UID

In this example, BIAPP is a business intelligence application whose own context is its username. For customers using the application, their designated ID is used for Hadoop access. In other words, when the effective current user is 'BIAPP', we use sys_context('BIVPD','USERID') for the impersonation. For the rest of the users, we simply designate [DEFAULT] * * in order use their current database username for the impersonation.

cluster_name	current_database_user	syscontext_namespace	syscontext_parm_hadoop_user
[DEFAULT]	BIAPP	BIVPD	USERID
[DEFAULT]	*		*

In this example, the Oracle username SCOTT is impersonated by the hdpusr1 Hadoop user for HDFS access. The user ADAM is impersonated by hdpusr2 for HDFS access.

All other users have more limited access, so we use a syscontext_namespace value of 'lowprivuser” to designate these users.

cluster_name	current_database_user	syscontext_namespace	syscontext_parm_hadoop_user
hadoop_cl_1	SCOTT		hdpusr1
hadoop_cl_1	ADAM	lowprivuser	hdpusr2
hadoop_cl_1	*

7.4 DBMS_BDSQS PL/SQL Package

With the DBMS_BDSQS PL/SQL package you can gather external table statistics and synchronize external tables with corrsponding HIVE tables.

7.4.1 GATHER_EXTERNAL_TABLE_STATS

This is the PL/SQL interface for manually gathering statistics on Oracle Big Data SQL external tables (ORACLE_HDFS, ORACLE_HIVE, ORACLE_BIGDATA).

The behavior and parameters are identical to that of dbms_stats.gather_table_stats, with the exception that the owner of the table must be the session user running the procedure and the stats gathered using this procedure persist after a restart. This procedure cannot be used on external tables that are automatically synced from Hive. See DBMS_STATS.GATHER_TABLE_STATS Procedure.

Syntax

PROCEDURE gather_external_table_stats(
    tabname varchar2,
    partname varchar2 default null,
    estimate_percent number default dbms_stats.DEFAULT_ESTIMATE_PERCENT,
    block_sample boolean default FALSE,
    method_opt varchar2 default dbms_stats.DEFAULT_METHOD_OPT,
    degree number default dbms_stats.DEFAULT_DEGREE_VALUE,
    granularity varchar2 default dbms_stats.DEFAULT_GRANULARITY,
    cascade boolean default dbms_stats.DEFAULT_CASCADE,
    stattab varchar2 default null,
    statid varchar2 default null,
    statown varchar2 default null,
    no_invalidate boolean default dbms_stats.to_no_invalidate_type(dbms_stats.get_param('NO_INVALIDATE')),
    stattype varchar2 default 'DATA',
    force boolean default FALSE,
    options varchar2 default dbms_stats.DEFAULT_OPTIONS
  )

7.4.2 SYNC_HIVE_DATABASES

This is the PL/SQL interface for initiating a Hive synchronization operation.

Calls to this procedure perform a delta synchronization on Hive databases that have already been synced with the Query Server by a previous Cloudera or Ambari command. A delta synchronization applies changes on existing Hive databases, for instance table additions/deletions and table column additions and deletions, to the schemas and external tables already created on the Query Server. More extensive synchronization operations, such as getting a new Hive database, can only be performed by Cloudera or Ambari commands.

7.5 DBMS_BDSQS_ADMIN PL/SQL Package

This package contains procedures to manage database and Kerberos users for the Hadoop cluster.

7.5.1 ADD_DATABASE_USERS

Use this PL/SQL procedure to add database users to Query Server for secure clusters. You can then connect to Query Server using database managed users instead of Kerberos principals.

You must use this procedure in order to add new database users and obtain the following additional functionality:

Assignment of all the internal roles and privileges required to provide users with access to external tables.
"Saving" of the new users so that they are not lost when the Query Server restarts.

Note:

Using CREATE USER to add new users is not supported on the Query Server.

Users created using ADD_DATABASE_USER must be dropped using DROP_DATABASE_USER in order to be cleanly removed. See DROP_DATABASE_USERS.

The ADD_DATABASE_USER procedure does not support setting of the user passwords. Users are created using NO AUTHENTICATION and are locked. After invoking ADD_DATABASE_USER, an administrator needs to manually issue ALTER user statements to set the user password and unlock the user. User passwords can be set normally using ALTER USER statements and the changed passwords are preserved after a Query Server restart.

The ADD_DATABASE_USER procedure must be run by SYS or by a user with the BDSQL_ADMIN role.

Syntax

procedure add_database_users (
    users_list VARCHAR2,
    op_semantics VARCHAR2 DEFAULT 'STOP_ON_FIRST_ERROR');

Parameters for ADD_DATABASE_USERS

Parameter Description

users_list The name(s) of the database users that you want to add to the Query Server. These users are the same database users that will be accessing your Hadoop cluster. To specify several database users, provide a comma-separated list of database user names enclosed in one single quote. The names must adhere to Oracle's rules for database object names exactly as adhered to by the CREATE USER statement.

op_semantics

Parameter	Description
users_list	The name(s) of the database users that you want to add to the Query Server. These users are the same database users that will be accessing your Hadoop cluster. To specify several database users, provide a comma-separated list of database user names enclosed in one single quote. The names must adhere to Oracle's rules for database object names exactly as adhered to by the CREATE USER statement.
op_semantics	The operation semantics (os) parameter can be one of the following options. All failed additions can be reviewed in the `sys.bdsqs_dbusers_errors$` log table. ABSORB_ERRORS: This option processes the successful additions and continues processing after additions that raise errors. Errors are logged in the `sys.bdsqs_dbusers_errors$` internal table. STOP_ON_FIRST_ERROR: This is the default value. This option will process the successful additions and stops processing when the first error is raised. It will not revert any completed additions prior to the exception. The failed addition exception is raised to the user. UNDO_CHANGES: This option attempts to rollback (revert) any changes that were made as part of the processing. For example, it deletes all database users that were added successfully prior to the exception. The failed exception is raised to the user.

The operation semantics (os) parameter can be one of the following options. All failed additions can be reviewed in the sys.bdsqs_dbusers_errors$ log table.

ABSORB_ERRORS: This option processes the successful additions and continues processing after additions that raise errors. Errors are logged in the sys.bdsqs_dbusers_errors$ internal table.
STOP_ON_FIRST_ERROR: This is the default value. This option will process the successful additions and stops processing when the first error is raised. It will not revert any completed additions prior to the exception. The failed addition exception is raised to the user.
UNDO_CHANGES: This option attempts to rollback (revert) any changes that were made as part of the processing. For example, it deletes all database users that were added successfully prior to the exception. The failed exception is raised to the user.

Error Handling

All failed additions can be reviewed in the sys.bdsqs_dbusers_errors$ log table. This PL/SQL procedure may encounter two types of errors:

Parse errors where the users_list cannot be processed. For example, when the list contains mismatched double quotes. Parse errors cause the entire call to fail.
Processing errors occur when executing the call. The error behavior for processing errors is configurable using the op_semantics parameter.

7.5.2 ADD_KERBEROS_PRINCIPALS

This procedure adds Query Server Kerberos principals. Query Server users are selected from the same set of Kerberos principals that have access to the Hadoop cluster. The users are authenticated using Kerberos; passwords do not need to be managed in the Query Server.

Syntax

DBMS_BDSQS_ADMIN.ADD_KERBEROS_PRINCIPALS(
    principals_list varchar2,
    op_semantics varchar2 DEFAULT 'STOP_ON_FIRST_ERROR'
)

Table 7-10 Parameters for ADD_KERBEROS_PRINCIPALS

Parameter	Description
principals_list	The name(s) of the Query Server users that you want to add. These Query Servers users are the same Kerberos principals that will be accessing your Hadoop cluster. To specify several Kerberos principals, you can provide a comma-separated list of strings of the principals enclosed in one single quotes.
op_semantics	The operation semantics (os) parameter can be one of the following options. All failed additions can be reviewed in the sys.bdsqs_kerberos_errors$ log table. ABSORB_ERRORS: This option will process the successful additions and continue processing after additions that raise errors. STOP_ON_FIRST_ERROR: This is the default value. This option will process the successful additions and will stop processing when the first error is raised. It will not revert any completed additions prior to the exception. The failed addition exception is raised to the user. UNDO_CHANGES: This option will attempt to rollback (revert) any changes that had been made as part of the processing. For example, it will delete all the principals that were added successfully prior to the exception. The failed exception is raised to the user.

Parameter

Description

principals_list

The name(s) of the Query Server users that you want to add. These Query Servers users are the same Kerberos principals that will be accessing your Hadoop cluster. To specify several Kerberos principals, you can provide a comma-separated list of strings of the principals enclosed in one single quotes.

op_semantics

The operation semantics (os) parameter can be one of the following options. All failed additions can be reviewed in the sys.bdsqs_kerberos_errors$ log table.

ABSORB_ERRORS: This option will process the successful additions and continue processing after additions that raise errors.
STOP_ON_FIRST_ERROR: This is the default value. This option will process the successful additions and will stop processing when the first error is raised. It will not revert any completed additions prior to the exception. The failed addition exception is raised to the user.
UNDO_CHANGES: This option will attempt to rollback (revert) any changes that had been made as part of the processing. For example, it will delete all the principals that were added successfully prior to the exception. The failed exception is raised to the user.

Usage Notes

The schema for bdsqs_kerberos_errors$ is:

 CREATE TABLE sys.bdsqs_kerberos_errors$
 ( kerberos_principal VARCHAR2(4000), /* principal name */
   operation          VARCHAR2(4), /* ADD, DROP or SYNC*/
   error_code         NUMBER, /* Error num emmited during operation */
   error_message      VARCHAR2(4000), /* Emitted error message */
   additional_info    VARCHAR2(4000) /* Not used yet */
 );

The bdsqs_kerberos_errors$ log table will contain the exception logs for the following situations:

When you invoke the add_kerberos_principals or the drop_kerberos_principals procedures.
When you run the jaguar install command on a secure cluster with the sync_principals parameter set to true in the kerberos section in the bds-config.json (operation SYNC).
When you run the jaguar sync_principals (operation SYNC).

The bdsqs_kerberos_errors$ log table is cleared before invoking any of the above commands. Querying bdsqs_kerberos_errors$ after a successful invocation of the procedures should return no results.

These are the fields in a bdsqs_kerberos_errors$ record and the possible values for field.

bdsqs_kerberos_errors$ Record Field	Possible Values
OPERATION	ADD, DROP, SYNC or UNDO
ERROR_CODE	Numeric code (SQLCODE) of the raised exception
ERROR_MESSAGE	Error message (SQLERRM) of the raised exception
ADDITIONAL_INFO	Additional information pertinent to the raised exception. Currently not used.

Examples

The following example creates two database users identified externally by the Kerberos principals: princ1@REALM.COM and princ2@REALM.COM. The default STOP_ON_FIRST_ERROR parameter is used.

exec dbms_bdsqs_admin.add_kerberos_principals('princ1@REALM.COM,
          princ2@REALM.COM');

The following example creates two database users for the valid princ3@REALM.COM and princ4@REALM.COM Kerberos principals; however, since princ4 is not a valid Kerberos principal, it raises an exception, and adds the error log to the sys.bdsqs_kerberos_errors$ table.

exec dbms_bdsqs_admin.add_kerberos_principals('princ3@REALM.COM, princ4, princ4@REALM.COM','ABSORB_ERRORS');

The following example creates a database user for princ5@REALM.COM, and it raises an exception since princ6 is not a valid Kerberos principal name. It also adds the error log to the sys.bdsqs_kerberos_errors$ table.

exec dbms_bdsqs_admin.add_kerberos_principals('princ5@REALM.COM,
        princ6','STOP_ON_FIRST_ERROR');

The following example does not create any database users because princ8 is not a valid Kerberos principal name and because the UNDO_CHANGES parameter is used. Initially, the procedure creates a database user for princ7@REALM.COM; however, it identifies princ8 as an invalid Kerberos principal name. Since the UNDO_CHANGES parameter is used, the procedure removes the database user it created for princ7@REALM.COM, raises an exception, and adds the error log to the sys.bdsqs_kerberos_errors$ table.

exec dbms_bdsqs_admin.add_kerberos_principals('princ7@REALM.COM, princ8','UNDO_CHANGES');

7.5.3 DROP_DATABASE_USERS

This is the PL/SQL interface for manually dropping database users.

Users created using ADD_DATABASE_USER must be dropped using DROP_DATABASE_USER in order to be cleanly removed. See ADD_DATABASE_USERS.

Syntax

procedure drop_database_users(
    users_list VARCHAR2,
    op_semantics VARCHAR2 DEFAULT 'STOP_ON_FIRST_ERROR'
);

Parameters for DROP_DATABASE_USERS

Parameter Description

users_list The name(s) of the database users that you want to drop from the Query Server. These users are the same database users that have access to your Hadoop cluster. To specify several database users, provide a comma-separated list of database user names enclosed in one single quote.

op_semantics

Parameter	Description
users_list	The name(s) of the database users that you want to drop from the Query Server. These users are the same database users that have access to your Hadoop cluster. To specify several database users, provide a comma-separated list of database user names enclosed in one single quote.
op_semantics	The operation semantics (os) parameter can be one of the following options. All failed additions can be reviewed in the `sys.bdsqs_dbusers_errors$` log table. ABSORB_ERRORS: This option processes the successful additions and continues processing after additions that raise errors. Errors are logged in the `sys.bdsqs_dbusers_errors$` internal table. STOP_ON_FIRST_ERROR: This is the default value. This option will process the successful additions and stops processing when the first error is raised. It will not revert any completed additions prior to the exception. The failed addition exception is raised to the user. UNDO_CHANGES: This option attempts to rollback (revert) any changes that were made as part of the processing. For example, it deletes all database users that were added successfully prior to the exception. The failed exception is raised to the user.

The operation semantics (os) parameter can be one of the following options. All failed additions can be reviewed in the sys.bdsqs_dbusers_errors$ log table.

ABSORB_ERRORS: This option processes the successful additions and continues processing after additions that raise errors. Errors are logged in the sys.bdsqs_dbusers_errors$ internal table.
STOP_ON_FIRST_ERROR: This is the default value. This option will process the successful additions and stops processing when the first error is raised. It will not revert any completed additions prior to the exception. The failed addition exception is raised to the user.
UNDO_CHANGES: This option attempts to rollback (revert) any changes that were made as part of the processing. For example, it deletes all database users that were added successfully prior to the exception. The failed exception is raised to the user.

Error Handling

All failed additions can be reviewed in the sys.bdsqs_dbusers_errors$ log table. This PL/SQL procedure may encounter two types of errors:

Parse errors where the users_list cannot be processed. For example, when the list contains mismatched double quotes. Parse errors cause the entire call to fail.
Processing errors occur when executing the call. The error behavior for processing errors is configurable using the op_semantics parameter.

7.5.4 DROP_KERBEROS_PRINCIPALS

This procedure drops Query Server users. Query Server users are selected from the same set of Kerberos principals that have access to the Hadoop cluster. Errors in the procedure are logged to bdsqs_kerberos_errors$.

Syntax

DBMS_BDSQS_ADMIN.DROP_KERBEROS_PRINCIPALS(
    principals_list varchar2,
    op_semantics varchar2 DEFAULT 'STOP_ON_FIRST_ERROR'
)

Parameters for DROP_KERBEROS_PRINCIPALS

Parameter	Description
principals_list	The name(s) of the Query Server users that you want to drop. These Kerberos principals will no longer have access to Query Server. To specify several Kerberos principals, you can provide a comma-separated list of strings of the principals enclosed in one single quotes.
op_semantics	The operation semantics (os) parameter can be one of the following options. All failed drops can be reviewed in the sys.bdsqs_kerberos_errors$ log table. ABSORB_ERRORS: This option will process the successful drops and continue processing after drops that raise errors. STOP_ON_FIRST_ERROR: This is the default value. This option will process the successful drops and will stop processing when the first error is raised. It will not revert any completed drops prior to the exception. The failed drop exception is raised to the user.

Parameter

Description

principals_list

The name(s) of the Query Server users that you want to drop. These Kerberos principals will no longer have access to Query Server. To specify several Kerberos principals, you can provide a comma-separated list of strings of the principals enclosed in one single quotes.

op_semantics

The operation semantics (os) parameter can be one of the following options. All failed drops can be reviewed in the sys.bdsqs_kerberos_errors$ log table.

- ABSORB_ERRORS: This option will process the successful drops and continue processing after drops that raise errors.
- STOP_ON_FIRST_ERROR: This is the default value. This option will process the successful drops and will stop processing when the first error is raised. It will not revert any completed drops prior to the exception. The failed drop exception is raised to the user.

Usage Notes

See ADD_KERBEROS_PRINCIPALS for usage notes details.

7.6 DBMS_HADOOP PL/SQL Package

The DBMS_HADOOP package contains a function to generate the CREATE EXTERNAL TABLE DDL for a Hive table:

CREATE_EXTDDL_FOR_HIVE

7.6.1 CREATE_EXTDDL_FOR_HIVE

This function returns a SQL CREATE TABLE ORGANIZATION EXTERNAL statement for a Hive table. It uses the ORACLE_HIVE access driver.

Syntax

DBMS_HADOOP.CREATE_EXTDDL_FOR_HIVE (
   cluster_id        IN    VARCHAR2,
   db_name           IN    VARCHAR2   := NULL,
   hive_table_name   IN    VARCHAR2,
   hive_partition    IN    BOOLEAN,
   table_name        IN    VARCHAR2   := NULL,
   perform_ddl       IN    BOOLEAN    DEFAULT FALSE,
   text_of_ddl       OUT   VARCHAR2
);

Parameters

Table 7-11 CREATE_EXTDDL_FOR_HIVE Function Parameters

Parameter	Description
`cluster_id`	Hadoop cluster where the Hive metastore is located
`db_name`	Name of the Hive database
`hive_table_name`	Name of the Hive table
`hive_partition`	Whether the table is partitioned (`TRUE`) or not (`FALSE`)
`table_name`	Name of the Oracle external table to be created. It cannot already exist.
`perform_ddl`	Whether to execute the generated `CREATE TABLE` statement (`TRUE`) or just return the text of the command (`FALSE`). Do not execute the command automatically if you want to review or modify it.
`text_of_ddl`	The generated `CREATE TABLE ORGANIZATION EXTERNAL` statement.

Usage Notes

The Oracle Database system must be configured for Oracle Big Data SQL. See "About Oracle Big Data SQL on the Database Server (Oracle Exadata Machine or Other)".

The data type conversions are based on the default mappings between Hive data types and Oracle data types. See "Hive to Oracle Data Type Conversions".

7.6.1.1 Example

The following query returns the CREATE EXTERNAL TABLE DDL for my_hive_table from the default Hive database. The connection to Hive is established using the configuration files in the ORACLE_BIGDATA_CONFIG directory, which identify the location of the HADOOP1 cluster.

DECLARE
   DDLtxt VARCHAR2(4000);
BEGIN
   dbms_hadoop.create_extddl_for_hive(
     CLUSTER_ID=>'hadoop1',
     DB_NAME=>'default',
     HIVE_TABLE_NAME=>'my_hive_table',
     HIVE_PARTITION=>FALSE,
     TABLE_NAME=>'my_xt_oracle',
     PERFORM_DDL=>FALSE,
     TEXT_OF_DDL=>DDLtxt
   );
   dbms_output.put_line(DDLtxt);
END;
/

The query returns the text of the following SQL command:

CREATE TABLE my_xt_oracle
(
     c0 VARCHAR2(4000),
     c1 VARCHAR2(4000),
     c2 VARCHAR2(4000),
     c3 VARCHAR2(4000))
     ORGANIZATION EXTERNAL
        (TYPE ORACLE_HIVE
          DEFAULT DIRECTORY DEFAULT_DIR
          ACCESS PARAMETERS (
             com.oracle.bigdata.cluster=hadoop1
             com.oracle.bigdata.tablename=default.my_hive_table
          )
)
PARALLEL 2 REJECT LIMIT UNLIMITED

7.1 CREATE TABLE ACCESS PARAMETERS Clause

7.1.1 Syntax Rules for Specifying Properties

7.1.2 ORACLE_HDFS Access Parameters

7.1.2.1 Default Parameter Settings for ORACLE_HDFS

7.1.2.2 Optional Parameter Settings for ORACLE_HDFS

7.1.3 ORACLE_HIVE Access Parameters

7.1.3.1 Default Parameter Settings for ORACLE_HIVE

7.1.3.2 Optional Parameter Values for ORACLE_HIVE

7.1.4 Full List of Access Parameters for ORACLE_HDFS and ORACLE_HIVE

7.1.4.1 com.oracle.bigdata.buffersize

7.1.4.2 com.oracle.bigdata.datamode

7.1.4.3 com.oracle.bigdata.colmap

7.1.4.4 com.oracle.bigdata.erroropt

7.1.4.5 com.oracle.bigdata.fields

7.1.4.6 com.oracle.bigdata.fileformat

7.1.4.7 com.oracle.bigdata.log.exec

7.1.4.8 com.oracle.bigdata.log.qc

7.1.4.9 com.oracle.bigdata.overflow

7.1.4.10 com.oracle.bigdata.rowformat

7.1.4.11 com.oracle.bigdata.tablename

7.1.5 ORACLE_BIGDATA Access Parameters

7.2 Static Data Dictionary Views for Hive

7.2.1 ALL_HIVE_DATABASES

7.2.2 ALL_HIVE_TABLES

7.2.3 ALL_HIVE_COLUMNS

7.2.4 DBA_HIVE_DATABASES

7.2.5 DBA_HIVE_TABLES

7.2.6 DBA_HIVE_COLUMNS

7.2.7 USER_HIVE_DATABASES

7.2.8 USER_HIVE_TABLES

7.2.9 USER_HIVE_COLUMNS

7.3 DBMS_BDSQL PL/SQL Package

7.3.1 ADD_USER_MAP

7.3.2 REMOVE_USER_MAP

7.3.3 Multi-User Authorization Security Table

7.4 DBMS_BDSQS PL/SQL Package

7.4.1 GATHER_EXTERNAL_TABLE_STATS

7.4.2 SYNC_HIVE_DATABASES

7.5 DBMS_BDSQS_ADMIN PL/SQL Package

7.5.1 ADD_DATABASE_USERS

7.5.2 ADD_KERBEROS_PRINCIPALS

7.5.3 DROP_DATABASE_USERS

7.5.4 DROP_KERBEROS_PRINCIPALS

7.6 DBMS_HADOOP PL/SQL Package

7.6.1 CREATE_EXTDDL_FOR_HIVE

7.6.1.1 Example

7.1 `CREATE TABLE` ACCESS PARAMETERS Clause

7.1.2 `ORACLE_HDFS` Access Parameters

7.1.2.1 Default Parameter Settings for `ORACLE_HDFS`

7.1.2.2 Optional Parameter Settings for `ORACLE_HDFS`

7.1.3 `ORACLE_HIVE` Access Parameters

7.1.3.1 Default Parameter Settings for `ORACLE_HIVE`

7.1.3.2 Optional Parameter Values for `ORACLE_HIVE`

7.1.4 Full List of Access Parameters for `ORACLE_HDFS` and `ORACLE_HIVE`
