1. IBM WebSphere Portal for IBM i for Power Systems Guide
  2. Registering the WSRP Producer

Registering the WSRP Producer

To register the WSRP Producer:

This graphic is described in the surrounding text.

  1. When the IBM WebSphere Portal is launched a Site Map will be available. Select WebSphere Portal located below Administration or click on the Tools "Wrench" icon.

    This graphic is described in the surrounding text.

  2. Select the Open portal administration icon located in the upper right side of the toolbar.

    This graphic is described in the surrounding text.

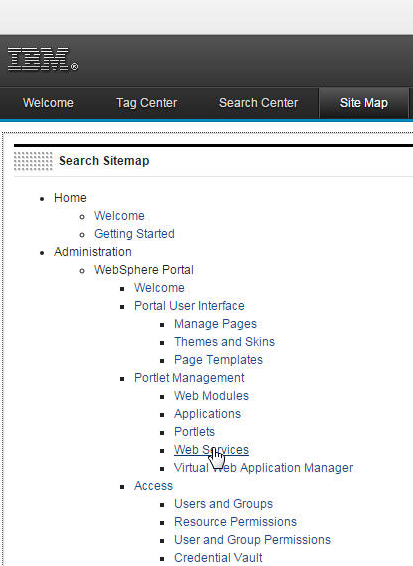

  3. Next, click on Web Services located below Portlet Management.

    This graphic is described in the surrounding text.

  4. Click the New Producer button.

    This graphic is described in the surrounding text.

  5. Verify or enter the Edit Producer URL. Click OK.

    This graphic is described in the surrounding text.

  6. Click Edit to set the transport URLs and other port specific information for this Producer. Click Next.

    This graphic is described in the surrounding text.

  7. Add a New Producer if needed.

    This graphic is described in the surrounding text.

  8. Select Web Modules below Portlet Management.

    This graphic is described in the surrounding text.

  9. Click the Consume button.

    This graphic is described in the surrounding text.

  10. Click the E1_Menu hyperlink.

    This graphic is described in the surrounding text.

  11. Click OK.

    This graphic is described in the surrounding text.

  12. Click the Install icon to install a Web module. select a Web module to view its portlet applications and portlets. Click Delete to remove the Web module from your portal or click Assign Access to allow others to work with the Web module.

    This graphic is described in the surrounding text.

  13. Click Manage Pages.

    This graphic is described in the surrounding text.

  14. Click the Content Root Hyperlink.

    This graphic is described in the surrounding text.

  15. Click the New Page button.

    This graphic is described in the surrounding text.

  16. Fill in the Title and a Unique Name fields and then click the OK button.

    This graphic is described in the surrounding text.

  17. Click the Edit Page Layout icon.

    This graphic is described in the surrounding text.

  18. Click the Add Portlets button.

    This graphic is described in the surrounding text.

  19. When you have added the portlets that you need, click the Done button.

    This graphic is described in the surrounding text.

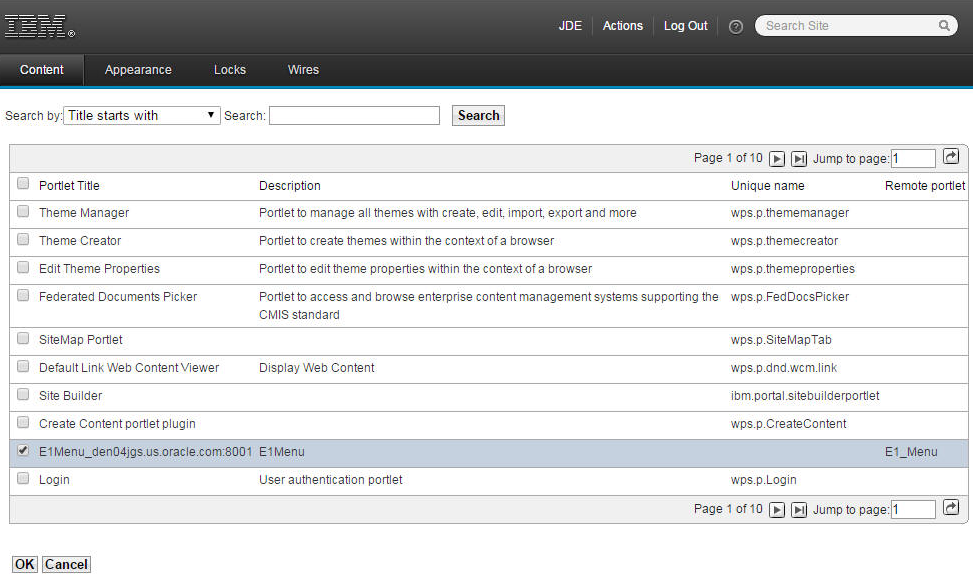

  20. Select the E1 Menu and click OK.

    This graphic is described in the surrounding text.

  21. The Manage Pages screen will display.

    This graphic is described in the surrounding text.

  22. Select E1 Menu from the dropdown menu in the upper right area of the toolbar.

    This graphic is described in the surrounding text.

  23. The E1 Menu icons will display.

This completes the successful registration of the WSRP Producer.
