Create a Data Access Server as a New Managed Instance

You must use Server Manager to install a Data Access Server instance.

To install a JD Edwards EnterpriseOne EnterpriseOne Data Access Server instance:

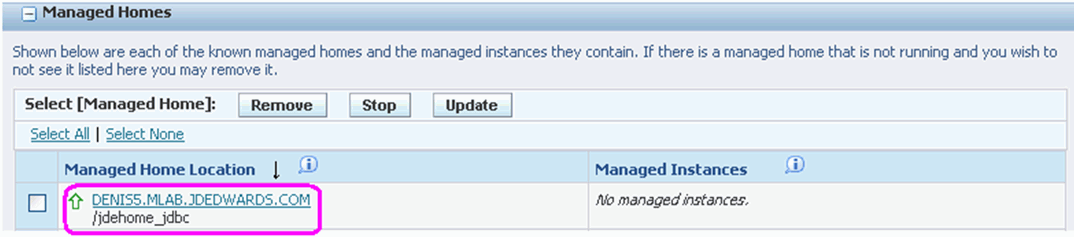

1. Select the Managed Home in which you wish to install the Data Access Server.

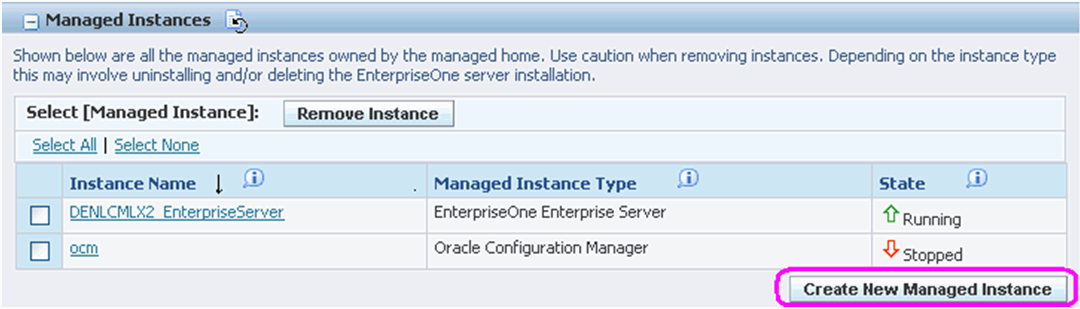

2. Click the Create a New Managed Instance button to create the Managed Instance in the Managed Home.



3. On Create/Register a Managed Instance, Instance Type, select this radio button:

   EnterpriseOne Data Access Server

4. Click Continue.



5. On Create/Register a Managed Instance, Instance Properties, complete these fields:

   • Server Group

     Use the pulldown to select the Server Group to which you want this instance to belong.

     Also refer to Administer Server Groups.

   • Instance Name

     Enter a name for the instance.

     Tip:

     A good business practice is to name your instances so that they are easily and consistently identifiable. For example:

     PRODUCT_SERVER_PORT

     where PRODUCT is the JD Edwards EnterpriseOne server type, such as Data Access_Server, and

     where SERVER is the machine on which the instance is installed, and

     where PORT is the HTTP port which is defined for use by this server.

   • Install Location

     Specify where the Data Access Server is to be installed.

     This location must be unique and not within the Management Agent directory structure.

   • Software Component

     Use the dropdown to select the version of this Software Component that you wish to install.

6. Click Continue.



7. On Create/Register a Managed Instance, Confirmation, review the key configuration items. The values on this form must be manually confirmed. You must validate or update, as appropriate, all configuration items.

   Tip:

   For help, click the Information icon next to the title of a field.

   See also:

   • Configure the Default Server Group Configuration Settings

8. After you have validated and updated all configuration items, click Continue to proceed to the next installation step.



9. On Create/Register a Managed Instance, Finish, click the Create Instance button to complete the installation of the EnterpriseOne Data Access Server.



   Once complete the browser is redirected to the Management Console page for the newly registered Data Access Server. This server also appears as a Managed Instance within the corresponding Managed Home.

   For each registered Managed Instance, the Management Console displays appropriate information at the top of the page:

   • General

     • Status

       Valid values are:

       Running

       When the status is Running, the Stop button is available.

       Stopped

       When the status is Stopped, the Start button is available.

       See also:

       • Start or Stop a Managed EnterpriseOne Software Component

     • Software Component Version

       Displays the version of this Software Component.

       See also:

       • Change a Managed EnterpriseOne Software Component

     • Data Access Server Password

       Allows you to change the Data Access Server Password when the Data Access Server is running. The new password is taken from the current configuration value for the Data Access Server Password.

   • Instance Properties

     • Install Location

       The location Data Access Server was installed.

     • Instance Name

       The name assigned to the Managed Instance at the time it was created or registered.

For information on log files, refer to the chapter entitled: Available Log Files.
